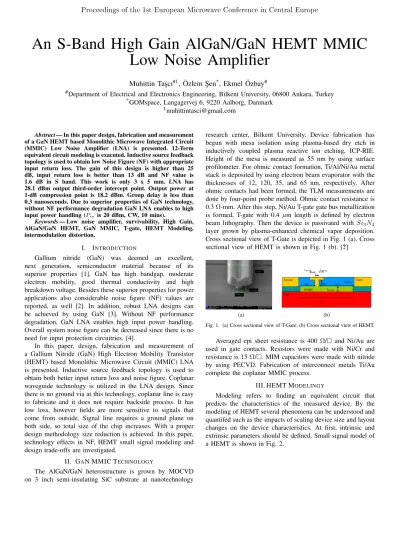

An S-Band High Gain AlGaN/GaN HEMT MMIC
Low Noise Amplifier
Muhittin Tas¸cı
#1, ¨Ozlem S¸en
*, Ekmel ¨Ozbay
##Department of Electrical and Electronics Engineering, Bilkent University, 06800 Ankara, Turkey *GOMspace, Langagervej 6, 9220 Aalborg, Danmark
1muhittintasci@gmail.com
Abstract — In this paper design, fabrication and measurement of a GaN HEMT based Monolithic Microwave Integrated Circuit (MMIC) Low Noise Amplifier (LNA) is presented. 12-Term equivalent circuit modeling is exacuted. Inductive source feedback topology is used to obtain low Noise Figure (NF) with appropriate input return loss. The gain of this design is higher than 25 dB, input return loss is better than 13 dB and NF value is 1.6 dB in S band. This work is only 3 x 5 mm. LNA has 28.1 dBm output third-order intercept point. Output power at 1-dB compression point is 18.2 dBm. Group delay is less than 0.3 nanoseconds. Due to superior properties of GaN technology, without NF performance degradation GaN LNA enables to high input power handling (Pin is 20 dBm, CW, 10 mins).
Keywords — Low noise amplifier, survivability, High Gain, AlGaN/GaN HEMT, GaN MMIC, T-gate, HEMT Modeling, intermodulation distortion.
I. INTRODUCTION
Gallium nitride (GaN) was deemed an excellent, next generation, semiconductor material because of its superior properties [1]. GaN has high bandgap, moderate electron mobility, good thermal conductivity and high breakdown voltage. Besides these superior properties for power applications also considerable noise figure (NF) values are reported, as well [2]. In addition, robust LNA designs can be achieved by using GaN [3]. Without NF performance degradation, GaN LNA enables high input power handling. Overall system noise figure can be decreased since there is no need for input protection circuitries. [4].
In this paper, design, fabrication and measurement of a Gallium Nitride (GaN) High Electron Mobility Transistor (HEMT) based Monolithic Microwave Circuit (MMIC) LNA is presented. Inductive source feedback topology is used to obtain both better input return loss and noise figure. Coplanar waveguide technology is utilized in the LNA design. Since there is no ground via at this technology, coplanar line is easy to fabricate and it does not require backside process. It has low loss, however fields are more sensitive to signals that come from outside. Signal line requires a ground plane on both side, so total size of the chip increases. With a proper design methodology size reduction is achieved. In this paper, technology effects in NF, HEMT small signal modeling and design trade-offs are investigated.
II. GAN MMIC TECHNOLOGY
The AlGaN/GaN heterostructure is grown by MOCVD on 3 inch semi-insulating SiC substrate at nanotechnology
research center, Bilkent University. Device fabrication has begun with mesa isolation using plasma-based dry etch in inductively coupled plasma reactive ion etching, ICP-RIE. Height of the mesa is measured as 55 nm by using surface profilometer. For ohmic contact formation, Ti/Al/Ni/Au metal stack is deposited by using electron beam evaporator with the thicknesses of 12, 120, 35, and 65 nm, respectively. After ohmic contacts had been formed, the TLM measurements are done by four-point probe method. Ohmic contact resistance is 0.3 Ω-mm. After this step, Ni/Au T-gate gate bus metallization is formed, T-gate with 0.4 µm length is defined by electron beam lithography. Then the device is passivated with Si3N4
layer grown by plasma-enhanced chemical vapor deposition. Cross sectional view of T-Gate is depicted in Fig. 1 (a). Cross sectional view of HEMT is shown in Fig. 1 (b). [?]
(a) (b)
Fig. 1. (a) Cross sectional view of T-Gate; (b) Cross sectional view of HEMT.
Averaged epi sheet resistance is 400 Ω/ and Ni/Au are used in gate contacts. Resistors were made with Ni/Cr and resistance is 15 Ω/. MIM capacitors were made with nitride by using PECVD. Fabrication of interconnect metals Ti/Au complete the coplanar MMIC process.
III. HEMT MODELINGY
Modeling refers to finding an equivalent circuit that predicts the characteristics of the measured device. By the modeling of HEMT several phenomena can be understood and quantifed such as the impacts of scaling device size and layout changes on the device characteristics. At first, intrinsic and extrinsic parameters should be defined. Small signal model of a HEMT is shown in Fig. 2.
Proceedings of the 1st European Microwave Conference in Central Europe
Fig. 2. Small signal model of HEMT.
This HEMT model can be divided into two parts, extrinsic parameters that are not affected by biasing conditions and intrinsic parameters that change according to biasing conditions, gate finger number, device periphery. 12-Term equivalent circuit modeling schematic of a HEMT is shown in Fig. 3.
Fig. 3. 12-Term equivalent circuit modeling schematic.
In order to fit the intrinsic parameters correctly, HEMTs that have different periphery, and gate finger number should be measured in different biasing conditions. After tuning and optimization procedure 12-term equivalent circuit modeling can be done. Initial LNA design step can be executed with this HEMT model. Inductive source feedback topology is utilized in LNA design. By tuning Rs and L (actually an inductance that is placed in the source of the HEMT) input impedance can be matched to Γopt. However in the scope of this LNA design, matching input impedance to exactly Γopt is not the desired design approach, since there are other requirements such as high gain and appropriate input return loss. 12-Term equivalent circuit modeling results and measurement results are shown in Fig. 4. Modeling and measurement results are perfectly fitted.
Fig. 4. 12-Term equivalent circuit modeling results and measurement.
IV. LNA DESIGN ANDSIMULATION
Source degenerated, SD, HEMT that is used in this design has 8 fingers, 125 µm gate width and 0.4 µm gate length. Shape of the gate is T. RF choke inductors are utilized at biasing circuitry. These inductors act like an open circuit in the design frequency and loss of biasing circuitry is minimized in the band. In order to acquire isolation bypass capacitors are used at biasing circuitry. Unconditional stability is achieved by using a shunt resistor in the interstage matching circuitry. Source degenerated HEMT topology is used in order to improve the input matching without increasing the noise figure. At the input matching network, which is critical for noise figure, low loss (high Q) inductors and capacitors are used rather than resistors. Simplified schematic of the LNA is shown in Fig. 5.
Fig. 5. Simplified schematic of the LNA design.
Layout of the LNA is depicted in Fig. 6. Dimensions of this design is 5 mm to 3 mm.
Fig. 6. Layout of the LNA desig.
In simulation of this LNA design, higher than 20 dB gain (21.6 dB to 24.4 dB), more than 13 dB input return loss (13.3 dB to 17.1 dB), more than 11 dB output return loss (11.2 dB to 17.8 dB) and less than 2.1 dB NF (1.9 dB to 2.1 dB) are achieved in S band. Simulation results of the LNA design is shown in Fig. 7.
Fig. 7. NF and S-parameter simulations of the LNA.
V. MEASUREMENTRESULTS
Photograph of the LNA design is shown in Fig. 8. This photo was taken during the RF measurements. One DC probe is utilized in order to bias the MMIC. Biasing conditions for both stages are Vd = 7V, Id = 30 mA.
Fig. 8. Photograph of the LNA design.
In this design, we achieved higher than 23.9 dB gain (23.9 dB to 26.5 dB), better than 9.2 dB input return loss (9.2 dB to 16.8 dB), better than 10.1 dB output return loss (10.1 dB to 14.1 dB) and less than 2.5 dB noise figure (1.6 dB to 2.5 dB) in S band. Measurement results of the LNA Design are shown in Fig. 9. Simulation and measurement results show a close correlation.
Fig. 9. NF and S-parameter measurements of the LNA.
Linearity was not a top priority requirement, therefore we did not do any simulation for harmonic products. Simulation time, which is spent during the design, is concentrated on NF and s-parameter simulations. TOI measurement of the LNA design is shown in Fig. 10. Measured TOI value is 28.1 dBm at the worst case.
Fig. 10. TOI measurement result of the LNA design.
Input signal is given at 3 GHz and power level is started from -20 dBm and is increased with 1 dB steps. Difference between output and input powers gives the gain of the DUT. Therefore, gain is noted during the input power sweep. Input power is increased till 1 dB compression. Gain is compressed after -7.8 dBm input power, which justifies harmonic measurements again. Input power (-7.8 dBm) at 1dB compression point plus gain (25 dB) gives the output power (18.2 dBm) at 1 dB compression(P1dB). In theory P1dB point is 10 dB less than TOI. With this measurement we understand the linear range of the amplifier. In Fig. 11 input power vs gain of the LNA design is shown.
Fig. 11. Input Power vs Gain.
VI. CONCLUSION
In this paper, an S-band LNA with various design considerations and trade-offs between NF, gain, and return loss are presented. This research is showed that GaN LNAs have comparable noise figure performance and much higher input power handling capability when it is compared with other technologies such as GaAs. LNA is reached higher than gain 26.5 dB, low power consumption 0.42 W, good input and output return loss combination, and tolerable NF 1.7 dB. LNA
design has less than 0.3 ns τg and higher than 20 dBm (CW 1
minute) input power handling. In this work, it is also showed that, there is no need extra limitter circuitry to protect the LNA. This LNA MMIC can be used as a receiver component.
