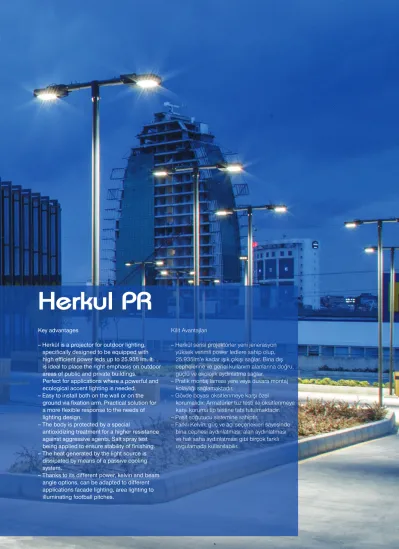

Key advantages
-- Herkül is a projector for outdoor lighting, specifically designed to be equipped with high efficient power leds up to 25.935 lm. It is ideal to place the right emphasis on outdoor areas of public and private buildings.
Perfect for applications where a powerful and ecological accent lighting is needed.
-- Easy to install both on the wall or on the ground via fixation arm. Practical solution for a more flexible response to the needs of lighting design.
-- The body is protected by a special
antioxidizing treatment for a higher resistance against aggressive agents. Salt spray test being applied to ensure stability of finishing.
-- The heat generated by the light source is dissipated by means of a passive cooling system.
-- Thanks to its different power, kelvin and beam angle options, can be adapted to different applications facade lighting, area lighting to illuminating football pitches.
Kilit Avantajları
-- Herkül serisi projektörler yeni jenerasyon yüksek verimli power ledlere sahip olup, 25.935lm’e kadar ışık çıkışı sağlar. Bina dış cephelerine ve genel kullanım alanlarına doğru, güçlü ve ekolojik aydınlatma sağlar.
-- Pratik montaj laması yere veya duvara montaj kolaylığı sağlamaktadır.
-- Gövde boyası oksitlenmeye karşı özel
korumalıdır. Armatürler tuz testi ile oksitlenmeye karşı koruma tip testine tabi tutulmaktadır.
-- Pasif soğutucu sistemine sahiptir.
-- Farklı Kelvin, güç ve açı seçenekleri sayesinde bina cephesi aydınlatması, alan aydınlatması ve halı saha aydınlatması gibi birçok farklı uygulamada kullanılabilir.
Herkul PR
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Herkül PR
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Herkül PR
Herkül Mini PR Herkül Mini PR Herkül PR Herkül PR
Beam Angles / Işık Açıları
Thanks to its clever design heatsinks, our Falcon range can operate at extreme conditions between -25° +50° degree ambient temperature.
Akıllı soğutma tasarımı sayesinde Falcon serisi armatürleri -25° +50° derece aralığına sahip ortam koşullarında çalışabilmektedir.
Operating Conditions / Çalışma Koşulları
-25°C
+50°C
Optics / Optik
Various different light distribution options available in Herkül range.
Herkül serisinde birçok farklı ışık dağılımı mevcuttur.
15° - Spot Beam 35° - Medium Beam 70° - Wide Beam
Oval; 30° x 110°
100° - Wide Flood
High efficient PMMA lens optic compatibe to floodlighting applications.
Yüksek verimli PMMA lens optik projekör aydınlatma
uygulamalarına göre tasarlanmıştır.
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Herkül PR
Avolux use world's best suppliers for LED to ensure consistent colour quality and uniformity. We ensure up to MacAdam step 3 in our Herkül floodlight range.
By using RGBW technology, pure white colour output is not effected from red, green and blue colours. Herkül range provides this option.
Avolux dünyanın en iyi LED üreticileri ile çalışarak renk kalitesi ve skalasını devamlı aynı seviyede korur. Herkül projektör armatür serilerimiz MacAdam step 3 değerini sağlamaktadır.
Herkül serisi RGBW olarak da kullanılabilmektedir.
Saf beyaz ışık çıkışı bu sistem sayesinde kırmızı, yeşil ve mavi renklerinden etkilenmemektedir.
MacAdam
RGBW
We can provide dynamic white colour change in our Herkül floodlight range from 2700K to 5700K.
Control can be done both from automation system or wireless.
Herkül projektör serimizde 2700K ile 5700K arası dinamik beyaz ışık kontrolü sağlayabiliyoruz.
Kontrolü hem otomasyon sistemi üzerinden hem de kablosuz iletişim ile yapılabilmektedir.
Tunable White / Dinamik Beyaz
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Different accesories like visor, protection grill and honeycomb filter can be integrated to Herkül to increase the visiual comfort, decrease glare and increase safety.
1- High efficient lens optic with spot, medium, wide, wide flood and oval distribution options.
Dar, orta, geniş, çok geniş ve oval ışık dağılımlarına sahip yüksek verimli lens optik.
2- Highest efficiency power led's with 2700K, 3000K, 3500K, 4000K and 6000K CCT options.
2700K, 3000K, 3500K, 4000K ve 6000K renklere sahip yüksek verimli power LED modül.
3- High capacity cooling fins enable the fitting operate even in high Ta conditions.
Etkili soğutma kapasitesine sahip kanalları sayesinde yüksek ortam sıcaklığına sahip koşullarda dahi armatür sorunsuz çalışır.
4- High quality LED driver that can function both in low and high Ta conditions with five years warranty. On/off, 1-10V and DALI options available.
Çok düşük ve yüksek Ta değerlerinde çalışabilen yüksek kalite LED trafosu. On/off, 1-10V ve DALI seçenekleri bulunmaktadır.
5- 120dg adjustable mounting arm with mechanical lock system.
120dg hareket edebilir mekanik kilitleme sistemine sahip montaj kolu.
Vizör, koruyucu maske ve bal peteği filtresi gibi aksesuar entegrasyonları sayesinde Herkül serisinin aydınlatma konforu üst düzeye çıkarılır.
Features / Özellikler
Visual Comfort and Safety / Görsel Konfor ve Güvenlik
1 2
3
4 5
Herkül PR
Herkül range has compact and nice shape. Two different size and eight different power options with alternative optical distribution and colour temperatures makes this range very flexible that answers various requirements in outdoor lighting.
Herkül serisi kompakt ve gözalıcı bir tasarıma sahiptir. İki farklı boy ve sekiz farklı güç seçeneği olan bu seride alternatif optik dağılım ve Kelvin seçenekleri ile dış aydınlatmada sayısız farklı talebi karşılar.
Design / Dizayn
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Herkül PR
Accessories / Aksesuarlar
Extending Adaptor / Uzatma Adaptörü Code / Kod: Code / Kod:
O07.DRK.16930 O07.DRK.16935
Visor / Vizör Code / Kod: Code / Kod:
O07.VZR.16930 O07.VZR.16935
Protection Grille / Koruyucu Izgara Code / Kod: Code / Kod:
O07.IZR.16930 O07.IZR.16935
Honeycomb Filter / Balpeteği Filtre Code / Kod: Code / Kod:
O07.HC.16930 O07.HC.16935
Tree Belt / Ağaca Montaj Kemeri Code / Kod: Code / Kod:
O07.BLT.16930 O07.BLT.16935
Herkül Mini PR
Herkül PR
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
15˚/ 35˚/ 70˚/ 100˚
Oval; 30˚x 110˚
Herkül PR
IP
kg 11
Textured Metalic Dark Grey Black Light Grey
White
0°
90°
440m m
335mm 395mm
80mm
245mm
440m m
EN TR
* See page 230 - 231 for ldt files. / Işık eğrileri için sayfa 230 - 231 bakınız.
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body.
-- Installation with bracket on floor, walls and ceiling surfaces.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Spot, medium, wide, wide flood and oval beam angles available.
-- Led colour temperatures are optionally 2700K, 3000K, 3500K, 4000K and 6000K.
-- Suitable for illumination up to 25 meter height.
-- Optionally 2 cable entries for through-wiring of mains supply cable.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 135lm/W efficiency.
-- High colour consistency: <3 SDCM -- Tunable White and RGBW options available.
-- Stainless steel cable gland and mains cable provided with IP68 socket.
-- Mechanical aiming lock.
-- DALI and 1-10V dimming options available.
-- Due to high heatsink capacity, Herkül can operate in high Ta teperature conditions.
-- Led'li simetrik ışık çıkışlı projektör armatür.
-- Korozyona dayanıklı aluminyum enjeksiyon gövde.
-- Braketli montaj sistemine sahiptir.
-- 220-240V / 50-60Hz enerji girişli.
-- İç soğutma pinlerine sahip akıllı soğutma tasarımı.
-- Dar, orta, geniş, çok geniş ve oval açı seçenekleri mevcuttur.
-- 2700K, 3000K, 3500K, 4000K ve 6000K renk sıcaklığı seçenekleri mevcuttur.
-- 25 metre yüksekliğe kadar aydınlatma sağlanır.
-- Opsiyonel olarak 2 kablo giriş terminali ile armatürler arası atlama yapılabilir.
-- Silikon contalar ile IP koruması sorunsuz sağlanır.
-- Tüm dış vidalar paslanmazdır.
-- Çift katmanlı polyester toz boya sayesinde korozyona ve tuza dayanıklı.
-- 135lm/W'a kadar ulaşan verim.
-- Yüksek renk uyumu: <3 SDCM
-- Dinamik beyaz ve RGBW seçenekleri mevcuttur.
-- Armatürde paslanmaz kablo rekoru kullanılmaktadır ve 220V ana şebeke kablosunda IP68 korumalı konnektör bulunmaktadır.
-- Mekanik kilitleme sistemi.
-- DALI ve 1-10V Dim seçenekleri mevcuttur.
-- Yüksek soğutma kapasitesi sayesinde Herkül yüksek Ta sıcaklık
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Herkül PR
Code / Kod WL.16930.V1 WL.16930.V2 WL.16930.V3 WL.16930.V4
System Power / Sistem Gücü 125W 150W 175W 200W
Lumen Output from Fixture / Armatür Çıkış Lümeni CRI>80
2700K 15875 18620 21230 23700
3000K 16200 19000 21660 24180
3500K 16530 19390 22105 24675
4000K 16870 19785 22557 25179
6000K 17375 20375 23230 25935
Driving Current / Sürüş Akımı 650mA 750mA 850mA 950mA
Dali Dimming Option / Dali Dim Seçeneği π π π π
1-10V Dimming Option / 1-10V Dim Seçeneği π π π π
Herkül PR / O07.WL.16930
Code / Kod O07.WL.16930.TW
Light Color Source / Işık Kaynağı 2700K-6000K Tunable White / Dinamik Beyaz LED Quantity / LED Adedi 64
Beam Angle / Işık Dağılım Açısı 15°/35°/70°/100°/ Oval; 30°x110°
Digital Interface / Dijital Interface Standard DMX protocol / Standart DMX protokol Wireless Control / Kablosuz Kontrol CASAMBI
Code / Kod O07.WL.16930.RGBW
Light Color Source / Işık Kaynağı RGBW 4 in 1 Power Led LED Quantity / LED Adedi 24
Beam Angle / Işık Dağılım Açısı 15°/35°/70°/100°/ Oval; 30°x110°
Digital Interface / Dijital Interface Standard DMX protocol / Standart DMX protokol
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
15˚/ 35˚/ 70˚/ 100˚
Oval; 30˚x 110˚
Mini Herkül PR
kg 8.3
Textured Metalic Dark Grey Black Light Grey
White
0°
90°
280mm 340mm
350m m
80mm
245mm
* See page 231 - 232 for ldt files. / Işık eğrileri için sayfa 231 - 232 bakınız.
EN TR
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body.
-- Installation with bracket on floor, walls and ceiling surfaces.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Spot, medium, wide, wide flood and oval beam angles available.
-- Led colour temperatures are optionally 2700K, 3000K, 3500K, 4000K and 6000K.
-- Suitable for illumination up to 20 meter height.
-- Optionally 2 cable entries for through-wiring of mains supply cable.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 139lm/W efficiency.
-- High colour consistency: <3 SDCM -- Tunable White and RGBW options available.
-- Stainless steel cable gland and mains cable provided with IP68 socket.
-- Mechanical aiming lock.
-- DALI and 1-10V dimming options available.
-- Due to high heatsink capacity, Mini Herkül can operate in high Ta teperature conditions.
-- Led'li simetrik ışık çıkışlı projektör armatür.
-- Korozyona dayanıklı aluminyum enjeksiyon gövde.
-- Braketli montaj sistemine sahiptir.
-- 220-240V / 50-60Hz enerji girişli.
-- İç soğutma pinlerine sahip akıllı soğutma tasarımı.
-- Dar, orta, geniş, çok geniş ve oval açı seçenekleri mevcuttur.
-- 2700K, 3000K, 3500K, 4000K ve 6000K renk sıcaklığı seçenekleri mevcuttur.
-- 20 metre yüksekliğe kadar aydınlatma sağlanır.
-- Opsiyonel olarak 2 kablo giriş terminali ile armatürler arası atlama yapılabilir.
-- Silikon contalar ile IP koruması sorunsuz sağlanır.
-- Tüm dış vidalar paslanmazdır.
-- Çift katmanlı polyester toz boya sayesinde korozyona ve tuza dayanıklı.
-- 139lm/W'a kadar ulaşan verim.
-- Yüksek renk uyumu: <3 SDCM
-- Dinamik beyaz ve RGBW seçenekleri mevcuttur.
-- Armatürde paslanmaz kablo rekoru kullanılmaktadır ve 220V ana şebeke kablosunda IP68 korumalı konnektör bulunmaktadır.
-- Mekanik kilitleme sistemi.
-- DALI ve 1-10V Dim seçenekleri mevcuttur.
-- Yüksek soğutma kapasitesi sayesinde Mini Herkül yüksek Ta sıcaklık
IP
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Mini Herkül PR
Code / Kod WL.16935.V1 WL.16935.V2 WL.16935.V3 WL.16935.V4
System Power / Sistem Gücü 25W 50W 75W 100W
Lumen Output from Fixture / Armatür Çıkış Lümeni CRI>80
2700K 3410 6535 9380 11940
3000K 3480 6670 9570 12185
3500K 3550 6805 9765 12435
4000K 3622 6944 9966 12688
6000K 3730 7150 10265 13070
Driving Current / Sürüş Akımı 225mA 425mA 625mA 825mA
Dali Dimming Option / Dali Dim Seçeneği π π π π
1-10V Dimming Option / 1-10V Dim Seçeneği π π π π
Mini Herkül PR / O07.WL.16935
Code / Kod O07.WL.16935.TW
Light Color Source / Işık Kaynağı 2700K-6000K Tunable White / Dinamik Beyaz LED Quantity / LED Adedi 36
Beam Angle / Işık Dağılım Açısı 15°/35°/70°/100°/ Oval; 30°x110°
Digital Interface / Dijital Interface Standard DMX protocol / Standart DMX protokol Wireless Control / Kablosuz Kontrol CASAMBI
Code / Kod O07.WL.16935.RGBW
Light Color Source / Işık Kaynağı RGBW 4 in 1 Power Led LED Quantity / LED Adedi 12
Beam Angle / Işık Dağılım Açısı 15°/35°/70°/100°/ Oval; 30°x110°
Digital Interface / Dijital Interface Standard DMX protocol / Standart DMX protokol
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Beam Angle: 15° 125W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
488154 236694 E(0°) E(C0) 9.2°
122039 59173 E(0°) E(C0) 9.2°
54239 26299 E(0°) E(C0) 9.2°
30510 14793 E(0°) E(C0) 9.2°
19526 9468 E(0°) E(C0) 9.2°
13560 6575 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
143962 62992 E(0°) E(C0) 17.2°
35991 15748 E(0°) E(C0) 17.2°
15996 6999 E(0°) E(C0) 17.2°
8998 3937 E(0°) E(C0) 17.2°
5758 2520 E(0°) E(C0) 17.2°
3999 1750 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 125W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 125W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
53164 15589 E(0°) E(C0) 33.3°
13291 3897 E(0°) E(C0) 33.3°
5907 1732 E(0°) E(C0) 33.3°
3323 974 E(0°) E(C0) 33.3°
2127 624 E(0°) E(C0) 33.3°
1477 433 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 125W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
200 300 400 500
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 92.4°) E(0°) E(C0) 46.2°
29242 4898 E(0°) E(C0) 46.2°
7310 1225 E(0°) E(C0) 46.2° 3249
544 E(0°) E(C0) 46.2° 1828
306 E(0°) E(C0) 46.2°
1170 196 E(0°) E(C0) 46.2°
812 136 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
1.04 2.09 3.13 4.17 5.21 6.26
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 6853
23940 53251
E(C90) E(0 °) E(C0) 15.3°54.2° 1713
5085 13313
E(C90) E(0 °) E(C0) 15.3°54.2° 761
2660 5917
E(C90) E(0 °) E(C0) 15.3°54.2° 428
1496 3328
E(C90) E(0 °) E(C0) 15.3°54.2° 274
958 2130
E(C90) E(0 °) E(C0) 15.3°54.2° 190
665 1479
Beam Angle: Oval; 30° x 110° 125W POWER LED
90° 90°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 30.6°) --- C90 - C270 (Half value angle: 108.4°)
105°
0.271.39 0.552.77 0.824.16 1.095.55 1.376.93 1.648.32
1.5 2.0 2.5 3.0 1.0 0.5
Beam Angle: 15° 150W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
572504 277592 E(0°) E(C0) 9.2°
143126 69398 E(0°) E(C0) 9.2°
63612 30844 E(0°) E(C0) 9.2°
35781 17350 E(0°) E(C0) 9.2°
22900 11104 E(0°) E(C0) 9.2°
15903 7711 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
168912 73909 E(0°) E(C0) 17.2°
42228 18477 E(0°) E(C0) 17.2°
18768 8212 E(0°) E(C0) 17.2°
10557 4619 E(0°) E(C0) 17.2°
6756 2956 E(0°) E(C0) 17.2°
4692 2053 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 150W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 150W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
62385 18293 E(0°) E(C0) 33.3°
15596 4573 E(0°) E(C0) 33.3°
6932 2033 E(0°) E(C0) 33.3°
3899 1143 E(0°) E(C0) 33.3°
2495 732 E(0°) E(C0) 33.3°
1733 508 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 150W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
200 300 400 500
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 92.4°) E(0°) E(C0) 46.2° 34305
5747 E(0°) E(C0) 46.2°
8576 1437 E(0°) E(C0) 46.2°
3812 639 E(0°) E(C0) 46.2°
2144 359 E(0°) E(C0) 46.2°
1372 230 E(0°) E(C0) 46.2°
953 160 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
1.04 2.09 3.13 4.17 5.21 6.26
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 8114
28345 63050
E(C90) E(0 °) E(C0) 15.3°54.2° 2029
7086 15762
E(C90) E(0 °) E(C0) 15.3°54.2° 902
3149 7006
E(C90) E(0 °) E(C0) 15.3°54.2° 507
1772 3941
E(C90) E(0 °) E(C0) 15.3°54.2° 325
1134 2522
E(C90) E(0 °) E(C0) 15.3°54.2° 225
787 1751
Beam Angle: Oval; 30° x 110° 150W POWER LED
90° 90°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 30.6°) --- C90 - C270 (Half value angle: 108.4°)
105°
0.271.39 0.552.77 0.824.16 1.09 5.55
1.37 6.93
1.64 8.32
1.5 2.0 2.5 3.0 1.0 0.5
Beam Angle: 15° 175W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
652715 316485 E(0°) E(C0) 9.2°
163179 79121 E(0°) E(C0) 9.2°
72524 35165 E(0°) E(C0) 9.2°
40795 19780 E(0°) E(C0) 9.2° 26109
12659 E(0°) E(C0) 9.2° 18131
7891 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
192571 84261 E(0°) E(C0) 17.2°
48143 21065 E(0°) E(C0) 17.2°
21397 9362 E(0°) E(C0) 17.2°
12036 5266 E(0°) E(C0) 17.2° 7703
3370 E(0°) E(C0) 17.2° 5349
2341 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 175W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 175W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
71136 20859 E(0°) E(C0) 33.3°
17784 5215 E(0°) E(C0) 33.3°
7904 2318 E(0°) E(C0) 33.3°
4446 1304 E(0°) E(C0) 33.3° 2845
834 E(0°) E(C0) 33.3° 1976
579 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 175W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45° 45°
200 300 400
E(0°) E(C0) 46.2°
39104 6551 E(0°) E(C0) 46.2°
9776 1638 E(0°) E(C0) 46.2°
4345 728 E(0°) E(C0) 46.2°
2444 409 E(0°) E(C0) 46.2°
1564 262 Distance [m]
0.5 1.0 1.5 2.0 2.5
1.04 2.09 3.13 4.17 5.21
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 9253
32322 71896
E(C90) E(0 °) E(C0) 15.3°54.2° 2313
8080 17974
E(C90) E(0 °) E(C0) 15.3°54.2° 1028
3591 7988
E(C90) E(0 °) E(C0) 15.3°54.2° 578
2020 4493
E(C90) E(0 °) E(C0) 15.3°54.2° 370
1293 2876
Beam Angle: Oval; 30° x 110° 175W POWER LED
90° 90°
105°
75° 75°
60° 60°
45° 45°
400 600
105°
0.271.39 0.55 2.77
0.824.16 1.09 5.55
1.37 6.93
1.5 2.0 2.5 1.0 0.5
O07.WL.16930
LDT Files / LDT Dataları
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Beam Angle: 15° 200W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
728586 353273 E(0°) E(C0) 9.2°
182146 88318 E(0°) E(C0) 9.2°
80954 39253 E(0°) E(C0) 9.2°
45537 22080 E(0°) E(C0) 9.2°
29143 14131 E(0°) E(C0) 9.2°
20238 9813 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
214948 94052 E(0°) E(C0) 17.2°
53737 23513 E(0°) E(C0) 17.2°
23883 10450 E(0°) E(C0) 17.2°
13434 5878 E(0°) E(C0) 17.2°
8598 3762 E(0°) E(C0) 17.2°
5971 2613 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 200W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 200W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
79417 23287 E(0°) E(C0) 33.3°
19854 5822 E(0°) E(C0) 33.3°
8824 2587 E(0°) E(C0) 33.3°
4964 1455 E(0°) E(C0) 33.3°
3177 931 E(0°) E(C0) 33.3°
2206 647 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 200W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
200 300 400 500
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 92.4°) E(0°) E(C0) 46.2° 43641
7311 E(0°) E(C0) 46.2° 10910
1828 E(0°) E(C0) 46.2°
4849 812 E(0°) E(C0) 46.2°
2728 457 E(0°) E(C0) 46.2°
1746 292 E(0°) E(C0) 46.2°
1212 203 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
1.04 2.09 3.13 4.17 5.21 6.26
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 10330
36085 80268
E(C90) E(0 °) E(C0) 15.3°54.2° 2583
9021 20067
E(C90) E(0 °) E(C0) 15.3°54.2° 1148
4009 8919
E(C90) E(0 °) E(C0) 15.3°54.2° 646
2255 5017
E(C90) E(0 °) E(C0) 15.3°54.2° 413
1443 3211
E(C90) E(0 °) E(C0) 15.3°54.2° 287
1002 2230
Beam Angle: Oval; 30° x 110° 200W POWER LED
90° 90°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 30.6°) --- C90 - C270 (Half value angle: 108.4°)
105°
0.271.39 0.552.77 0.824.16 5.551.09 1.37 6.93
1.64 8.32
1.5 2.0 2.5 3.0 1.0 0.5
O07.WL.16935
Beam Angle: 15° 25W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°104807
50818 E(0°) E(C0) 9.2°
26202 12705 E(0°) E(C0) 9.2°
11645 5646 E(0°) E(C0) 9.2°
6550 3176 E(0°) E(C0) 9.2°
4192 2033 E(0°) E(C0) 9.2°
2911 1412 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2° 30927
13532 E(0°) E(C0) 17.2°
7732 3383 E(0°) E(C0) 17.2°
3436 1504 E(0°) E(C0) 17.2°
1933 846 E(0°) E(C0) 17.2°
1237 541 E(0°) E(C0) 17.2°
859 376 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 25W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 25W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3° 11411
3346 E(0°) E(C0) 33.3°
2853 836 E(0°) E(C0) 33.3°
1268 372 E(0°) E(C0) 33.3°
713 209 E(0°) E(C0) 33.3°
456 134 E(0°) E(C0) 33.3°
317 93 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 25W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
200 300 400 500
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 92.4°) E(0°) E(C0) 46.2°
6284 1053 E(0°) E(C0) 46.2°
1571 263 E(0°) E(C0) 46.2°
698 117 E(0°) E(C0) 46.2°
393 66 E(0°) E(C0) 46.2° 251
42 E(0°) E(C0) 46.2° 175
29 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
1.04 2.09 3.13 4.17 5.21 6.26
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 1484
5184 11531
E(C90) E(0 °) E(C0) 15.3°54.2° 371
1296 2883
E(C90) E(0 °) E(C0) 15.3°54.2° 165
576 1281
E(C90) E(0 °) E(C0) 15.3°54.2° 93
324 721
E(C90) E(0 °) E(C0) 15.3°54.2° 59
207 561
E(C90) E(0 °) E(C0) 15.3°54.2° 41
144 320
Beam Angle: Oval; 30° x 110° 25W POWER LED
90° 90°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 30.6°) --- C90 - C270 (Half value angle: 108.4°)
105°
0.271.39 0.552.77 0.824.16 5.551.09 6.931.37 8.321.64
1.5 2.0 2.5 3.0 1.0 0.5
Beam Angle: 15° 50W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
200933 97427 E(0°) E(C0) 9.2°
50233 24357 E(0°) E(C0) 9.2°
22326 10825 E(0°) E(C0) 9.2°
12558 6089 E(0°) E(C0) 9.2°
8037 3897 E(0°) E(C0) 9.2°
5581 2706 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
59288 25942 E(0°) E(C0) 17.2°
14822 6485 E(0°) E(C0) 17.2°
6588 2882 E(0°) E(C0) 17.2°
3706 1621 E(0°) E(C0) 17.2°
2372 1038 E(0°) E(C0) 17.2°
1647 721 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 50W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 50W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
21880 6416 E(0°) E(C0) 33.3°
5470 1604 E(0°) E(C0) 33.3°
2431 713 E(0°) E(C0) 33.3°
1368 401 E(0°) E(C0) 33.3°
875 257 E(0°) E(C0) 33.3°
608 178 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 50W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45° 45°
200 300
E(0°) E(C0) 46.2°
12045 2018 E(0°) E(C0) 46.2° 3011
504 E(0°) E(C0) 46.2° 1338
224
E(0°) 753
Distance [m]
0.5 1.0 1.5 2.0
1.04 2.09 3.13 4.17
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 2846
9942 22114
E(C90) E(0 °) E(C0) 15.3°54.2° 712
2485 5529
E(C90) E(0 °) E(C0) 15.3°54.2° 316
1105 2457
E(C90) E(0 °)
54.2° 1382178
Beam Angle: Oval; 30° x 110° 50W POWER LED
90° 90°
105°
75° 75°
60° 60°
45° 45°
400 600
105°
0.271.39 0.552.77 0.824.16 5.551.09
1.5 2.0 1.0 0.5
LDT Files / LDT Dataları
Floodlights L uminair es Series / Pr ojekt ör Ar matür leri Serisi
Beam Angle: 15° 75W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
288379 139827 E(0°) E(C0) 9.2°
72095 34957 E(0°) E(C0) 9.2°
32042 15536 E(0°) E(C0) 9.2°
18024 8739 E(0°) E(C0) 9.2°
11535 5593 E(0°) E(C0) 9.2°
8011 3884 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
85085 37229 E(0°) E(C0) 17.2°
21271 9307 E(0°) E(C0) 17.2°
9454 4137 E(0°) E(C0) 17.2°
5318 2327 E(0°) E(C0) 17.2°
3403 1489 E(0°) E(C0) 17.2°
2363 1034 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 75W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 75W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
31409 9210 E(0°) E(C0) 33.3°
7852 2302 E(0°) E(C0) 33.3°
3490 1023 E(0°) E(C0) 33.3°
1963 576 E(0°) E(C0) 33.3°
1256 368 E(0°) E(C0) 33.3°
872 256 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 75W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
200 300 400 500
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 92.4°) E(0°) E(C0) 46.2° 17281
2895 E(0°) E(C0) 46.2° 4320
724 E(0°) E(C0) 46.2°
1920 322 E(0°) E(C0) 46.2°
1080 181 E(0°) E(C0) 46.2°
691 116 E(0°) E(C0) 46.2°
480 80 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
1.04 2.09 3.13 4.17 5.21 6.26
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 4086
14274 31751
E(C90) E(0 °) E(C0) 15.3°54.2° 1022
3569 7938
E(C90) E(0 °) E(C0) 15.3°54.2° 454
1586 3528
E(C90) E(0 °) E(C0) 15.3°54.2° 255
892 1984
E(C90) E(0 °) E(C0) 15.3°54.2° 163
571 1270
E(C90) E(0 °) E(C0) 15.3°54.2° 114
397 882
Beam Angle: Oval; 30° x 110° 75W POWER LED
90° 90°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 30.6°) --- C90 - C270 (Half value angle: 108.4°)
105°
0.271.39 0.552.77 0.824.16 1.095.55 1.37 6.93
1.64 8.32
1.5 2.0 2.5 3.0 1.0 0.5
Beam Angle: 15° 100W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
3000 4500 6000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 18.4°) E(0°) E(C0) 9.2°
367143 178018 E(0°) E(C0) 9.2°
91786 44505 E(0°) E(C0) 9.2°
40794 19780 E(0°) E(C0) 9.2°
22946 11126 E(0°) E(C0) 9.2° 14686
7121 E(0°) E(C0) 9.2° 10198
4945 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.16 0.32 0.49 0.65 0.81 0.97
E(0°) E(C0) 17.2°
108316 46972 E(0°) E(C0) 17.2°
27079 11849 E(0°) E(C0) 17.2°
12035 5266 E(0°) E(C0) 17.2°
6770 2962 E(0°) E(C0) 17.2° 4333
1896 E(0°) E(C0) 17.2° 3009
1317 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.31 0.62 0.93 1.24 1.55 1.86
Beam Angle: 35° 100W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
800 1200 1600 2000 2400
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 34.4°)
Beam Angle: 70° 100W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 66.6°) E(0°) E(C0) 33.3°
39997 11728 E(0°) E(C0) 33.3°
9999 2932 E(0°) E(C0) 33.3°
4444 1303 E(0°) E(C0) 33.3°
2500 733 E(0°) E(C0) 33.3° 1600
469 E(0°) E(C0) 33.3° 1111
326 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
0.66 1.31 1.97 2.63 3.28 3.94
Beam Angle: 100° 100W POWER LED
90° 90°
105°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
200 300 400 500
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 92.4°) E(0°) E(C0) 46.2°
21994 3684 E(0°) E(C0) 46.2°
5499 921 E(0°) E(C0) 46.2°
2444 409 E(0°) E(C0) 46.2°
1375 230 E(0°) E(C0) 46.2°
880 147 E(0°) E(C0) 46.2°
611 102 Distance [m]
0.5 1.0 1.5 2.0 2.5 3.0
1.04 2.09 3.13 4.17 5.21 6.26
Distance [m]
E(C90) E(0 °) E(C0) 15.3°54.2° 5204
18180 40439
E(C90) E(0 °) E(C0) 15.3°54.2° 1301
4545 10110
E(C90) E(0 °) E(C0) 15.3°54.2° 578
2020 4493
E(C90) E(0 °) E(C0) 15.3°54.2° 325
1136 2527
E(C90) E(0 °) E(C0) 15.3°54.2° 208
727 1618
E(C90) E(0 °) E(C0) 15.3°54.2° 145
505 1123
Beam Angle: Oval; 30° x 110° 100W POWER LED
90° 90°
105°
75° 75°
60° 60°
45°
cd/klm
--- C0 - C180 --- C90 - C270
η
=100%45°
30° 15° 0° 15° 30°
400 600
1000
Koni Daimeter [m] Illuminance [lx]
--- C0 - C180 (Half value angle: 30.6°) --- C90 - C270 (Half value angle: 108.4°)
105°
0.271.39 0.55 2.77
0.824.16 1.09 5.55
1.37 6.93
1.64 8.32
