Monitoring the operation of a graphene transistor in an integrated
circuit by XPS
Pinar Aydogan
a, Osman Balci
b, Coskun Kocabas
b, Se
fik Suzer
a,* aDepartment of Chemistry, Bilkent University, 06800, Ankara, TurkeybDepartment of Physics, Bilkent University, 06800, Ankara, Turkey
a r t i c l e i n f o
Article history: Received 22 March 2016 Received in revised form 20 June 2016
Accepted 20 June 2016 Available online 2 July 2016 Keywords: Graphene XPS Contact resistance Integrated circuit Transistor
a b s t r a c t
One of the transistors in an integrated circuit fabricated with graphene as the current controlling element, is investigated during its operation, using a chemical tool, XPS. Shifts in the binding energy of C1s are used to map out electrical potential variations, and compute sheet resistance of the graphene layer, as well as the contact resistances between the metal electrodes. Measured shifts depend on lateral positions probed, as well as on polarity and magnitude of the gate-voltage. This non-contact and chemically specific characterization can be pivotal in diagnoses.
© 2016 Elsevier B.V. All rights reserved.
1. Introduction
After the discovery of the two-dimensional honeycomb struc-tured carbon about a decade ago, colossal academic activity has been witnessed around a single or few-layers of graphene. [1,2]
Even a greater activity has also been devoted to the technological developments in terms of incorporation of graphene to the existing and well-developed infra-structure.[3e6]For characterization of the materials involving graphene, and more importantly, the de-vices fabricated from them, in addition to electrical, chemical characterization is also needed. In that respect, most of the commonly utilized optical techniques can only give indirect infor-mation about the electrical properties seeked. [7e14] Similarly, information derived using the conventional and powerful electron spectroscopic techniques, like Auger (AES), Ultra-Violet (UPS), and X-ray (XPS) photoelectron spectroscopies are also indirect, when it comes to electrical properties.[15e19]However, under appropriate conditions, all of the electron spectroscopic techniques are capable of reflecting local electrical potentials developed, intentionally or not, on the analyzed material or the device, since such potentials are embedded into the measured kinetic energy of the ejected
electrons. Accordingly, difference between the obtained binding energy and the tabulated one gives the chemically-addressed local electrical potential, which has been extensively utilized by our group and others to harvest electrical information, difficult to obtain by other methods.[20e23]Using this methodology, we have previously reported on analyses of a device using graphene as the resistive sheet between the two electrodes,[20] and in another device where the graphene layer was operated in the back-gated transistor geometry.[21] The present work extends it to analyze one of the transistors of the 64 elements of an IC-device, where C1s binding energy position is measured with lateral resolution to probe and map-out electrical properties of the transistor. Investi-gation of a single element out of the 64, is presented as“a proof of principle”, since extension to the others are straightforward. 2. Experimental details
A picture of the device together with a survey XP spectrum of a graphene-only region is given inFig. 1(a), where the dominating O1s feature belongs to the SiO2 substrate, since probe depth is
about 10 nm, but the C1s peak has the peak position of graphene at 284.7 eV. We synthesize single layer graphene on an ultra-smooth copper foil (purchased from Mitsui mining and smelting company, LTD, B1-SBS) by using a chemical vapor deposition (CVD) system connected to a vacuum pump. We heat up copper foils to 1035C
* Corresponding author.
E-mail address:suzer@fen.bilkent.edu.tr(S. Suzer).
Contents lists available atScienceDirect
Organic Electronics
j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / o r g e l
http://dx.doi.org/10.1016/j.orgel.2016.06.027
1566-1199/© 2016 Elsevier B.V. All rights reserved.
under 100 sccm H2flow. We, then, grow graphene by flowing 10
sccm CH4to the chamber for 1 min at that temperature. The partial
pressures of the H2and CH4are 1.5 Torr and 3 Torr, respectively,
during the growth process. We cool down the chamber at a rate of 10C/s to room temperature, while 100 sccm H2flows. To transfer
graphene on SiO2substrates, wefirst coat the copper foil with the
Shipley 1806 resist and dry them by annealing overnight at 80C. Then, we etch the graphene grown copper in FeCl3aqueous
solu-tion. After washing and drying the resist-graphene stack, we put it on SiO2substrate and heat the resist-graphene-SiO2stack at 70C
for 2 min and at 120C for 20 s. This process ensures that the resist-graphene stack perfectly sticks to the SiO2surface. We dissolve the
dry resist with acetone andfinally obtain a graphene transferred on SiO2substrate. To fabricate back-gated graphene transistors on Siþ/
SiO2substrate, we evaporate 50 nm Au for source and drain
con-tacts to the graphene. After isolating each transistor channel with a reactive ion etching (RIE) process, we evaporate 5 nm-Ti and
100 nm-Au to extend the area of source and drain contacts. Mechanically strong metal contacts are required for wire-bonding. The fabricated transistors used in this work have 0.5 mm channel width and 1.0 mm channel length. Schematic drawing of the fabricated transistors is shown in Fig. 2(a). To measure the electrical performance of the fabricated transistors, we use HP-4153 probe station.
3. Results and discussion
We apply1 V bias between the source and drain electrodes and measure the current as a function of the gate voltage, shown in
Fig. 2(b). The result of the electrical-only measurements indicates the Dirac point to be near 0 V, and other Current-Voltage charac-teristics are depicted inFig. 2(c). The calculatedfield effect mobility of the device used in this study is around 820 and 600 cm2/V for holes and electrons, respectively (see the Supplementary

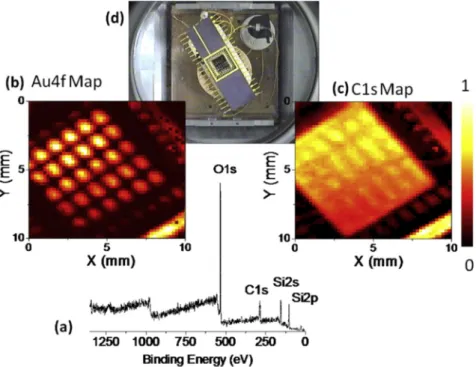

Fig. 1. (a) A survey XP spectrum recorded from the graphene-only part of one of the transistors. Areal intensity maps of the entire IC recorded in the snap-shot mode with 200mm X-ray spot size and 200mm steps of; (b) Au4f, and (c) C1s. (d) Picture of the IC inserted into the load-lock of the instrument.
