Ürün veri kağıdı
Özellikler ATV71HC31N4
Hız Kontrol Cihazı ATV71 - 315KW 500HP - 480V - EMC filtresi
Ana
Ürün serisi Altivar 71
Ürün ya da bileşen tipi Değişken hızlı sürücü
Ürüne özel uygulama Karmaşık, yüksek güçlü makineler
Bileşen adı ATV71
Motor gücü kW 315 kW, 3 faz -de 380...480 V Motor gücü hp 500 hp, 3 faz -de 380...480 V Maximum motor cable
length 100 M ekranlı kablo
200 m ekransız kablo Power supply voltage 380...480 V - 15...10 % Fazların ağ sayısı 3 faz
Hat akımı 444 A için 480 V 3 faz 315 kW / 500 hp 555 A için 380 V 3 faz 315 kW / 500 hp
EMC filtresi Entegre
Montaj stili Soğutma bloklu
Model Sağlamlaştırılmış sürüm
Görünen güç 365,3 kVA -de 380 V 3 faz 315 kW / 500 hp Muhtemel hat Isc 50 kA için 3 faz
Nominal çıkış akımı 616 A -de 2,5 kHz 380 V 3 faz 315 kW / 500 hp 616 A -de 2,5 kHz 460 V 3 faz 315 kW / 500 hp Maksimum geçici akım 1016 A için 2 s 3 faz 315 kW / 500 hp
924 A için 60 s 3 faz 315 kW / 500 hp Output frequency 0,1…500 Hz
Nominal anahtarlama
frekansı 2,5 kHz
Anahtarlama frekansı 2,5...8 kHz ayarlanabilir
2,5...8 kHz değer kaybı faktörü ile Asenkron motor kontrol
profili Sensörlü (akım vektörü) akı vektör kontrolü (FVC) Sensörsüz akı vektör kontrolü (SFVC) (gerilim veya akım vektörü)
Gerilim/Frekans oranı (2 veya 5 nokta) Dengesiz yükler için ENA (Enerji adaptasyonu) sistemi
Polarizasyon tipi Empedans yok için Modbus
Tamamlayıcı
Ürün varış yeri Senkron motorlar
Asenkron motorlar
Power supply voltage limits 323…528 V
Power supply frequency 50...60 Hz - 5...5 %
Power supply frequency limits 47,5...63 Hz
Hız aralığı 1…100 için asenkron motor açık döngü modunda, hız geri besleme olmadan
1…1000 için asenkron motor enkoder geri beslemeyle kapalı döngü modunda 1…50 için senkron motor açık döngü modunda, hız geri besleme olmadan Hız doğruluğu Nominal hızın +/- % 0,01'i enkoder geri beslemeyle kapalı döngü modunda 0,2
Tn - Tn
Nominal kaymanın +/- % 10'u hız geri besleme olmadan 0,2 Tn - Tn
Tork doğruluğu +/- 15 % açık döngü modunda, hız geri besleme olmadan
+/- 5 % enkoder geri beslemeyle kapalı döngü modunda
Senkron motor kontrol profili Hız geri besleme olmadan vektör kontrolü
Düzenleme döngüsü Ayarlanabilir PI regülatör
Motor kayma kompanzasyonu Baskılanabilir
Otomatik her türlü yük Ayarlanabilir
Gerilim/frekans oranında (2 veya 5 puan) geçerli değil
Diagnostic Sürücü gerilimi: 1 LED (kırmızı)
Çıkış gerilimi <= güç besleme gerilimi
Yalıtım Güç ve kontrol arasındaki elektrik
Type of cable for mounting in an enclosure Bir NEMA Tip1 kit ile: 3 tel(ler)UL 508 kablosu -de 40 °C, bakır 75 °C / PVC Bir IP21 veya bir IP31 kit ile: 3 tel(ler)IEC kablosu -de 40 °C, bakır 70 °C / PVC Montaj kitsiz: 1 tel(ler)IEC kablosu -de 45 °C, bakır 70 °C / PVC
Montaj kitsiz: 1 tel(ler)IEC kablosu -de 45 °C, bakır 90 °C / XLPE/EPR
Elektrikli bağlantı Terminal, kelepçeleme kapasitesi: 2,5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Terminal, kelepçeleme kapasitesi: 4 x 185 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/
T3)Terminal, kelepçeleme kapasitesi: 8 x 185 mm² (PC/-, PA/+)
Sıkma torku 0,6 N.M (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
41 N.M, 360 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3) 41 N.m, 360 lb.in (PC/-, PA/+)
Besleme Referans potansiyometre için dahili besleme (1 - 10 kOhm): 10,5 V DC +/- 5 %,
<10 mA, koruma tipi: aşırı yük ve kısa devre koruması
Dahili besleme: 24 V DC (21…27 V), <200 mA, koruma tipi: aşırı yük ve kısa devre koruması
Analog giriş sayısı 2
Analog giriş tipi AI1-/Al1+ çift kutuplu diferansiyel gerilim: +/- 10 V DC 24 V maks, çözünürlük 11 bit + işaret
AI2 yazılım-yapılandırılabilir akım: 0...20 mA, empedans: 242 Ohm, çözünürlük 11 bit
AI2 yazılım-yapılandırılabilir gerilim: 0...10 V DC 24 V maks, empedans: 30000 Ohm, çözünürlük 11 bit
Input sampling time 2 Ms +/- 0,5 msn (AI1-/Al1+) - analog girisler 2 Ms +/- 0,5 msn (Al2) - analog girisler 2 Ms +/- 0,5 msn (LI1...LI5) - gizli girisler
2 ms +/- 0,5 msn (LI6)mantık girişi olarak yapılandırılmışsa - gizli girisler
Yanıt süresi STO'da (Güvenli Tork Kapatma) <= 100 ms
AO1 2 ms, tolerans +/- 0,5 msn için analog çikislar R1A, R1B, R1C 7 ms, tolerans +/- 0,5 msn için gizli çikislar R2A, R2B 7 ms, tolerans +/- 0,5 msn için gizli çikislar Absolute accuracy precision +/- % 0,6 (AI1-/Al1+) 60 °C sıcaklık değişimi için
+/- % 0,6 (AI2) 60 °C sıcaklık değişimi için +/- 1 % (AO1) 60 °C sıcaklık değişimi için Doğrusallık hatası Maksimum değerin +/- % 0,15'i (AI1-/Al1+, AI2)
+/- % 0,2 (AO1)
Analog çıkış sayısı 1
Analog çıkış tipi AO1 yazılım-yapılandırılabilir lojic çıkış 10 V 20 mA
AO1 yazılım-yapılandırılabilir akım 0...20 mA, empedans: 500 Ohm, çözünürlük 10 bit
AO1 yazılım-yapılandırılabilir gerilim 0...10 V DC, empedans: 470 Ohm, çözünürlük 10 bit
Dijital çıkış sayısı 2
Dijital çıkış tipi Yapılandırılabilir röle lojiki: (R1A, R1B, R1C) NA/NK - 100000 cycles Yapılandırılabilir röle lojiki: (R2A, R2B) NA - 100000 cycles
Minimum anahtarlama akımı 3 mA -de 24 V DC için yapılandırılabilir röle lojiki Maksimum anahtarlama akımı R1, R2: 2 A -de 250 V AC endüktif yük, cos phi = 0,4
R1, R2: 2 A -de 30 V DC endüktif yük, cos phi = 0,4 R1, R2: 5 A -de 250 V AC dirençli yük, cos phi = 1 R1, R2: 5 A -de 30 V DC dirençli yük, cos phi = 1
Dijital giriş sayısı 7
Dijital giriş tipi LI1...LI5: programlanabilir 24 V DCile seviye 1 PLC, empedans: 3500 Ohm LI6: anahtar-yapılandırılabilir 24 V DCile seviye 1 PLC, empedans: 3500 Ohm LI6: anahtar-yapılandırılabilir PTC prob 0…6, empedans: 1500 Ohm
PWR: güvenlik girişi 24 V DC, empedans: 1500 Ohm 'e uygunISO 13849-1 seviye d
Dijital giriş lojiği Negatif lojik (blok) (LI1...LI5), > 16 V (durum 0), < 10 V (durum 1) Pozitif lojik (kaynak) (LI1...LI5), < 5 V (durum 0), > 11 V (durum 1)
Negatif lojik (blok) (LI6)mantık girişi olarak yapılandırılmışsa, > 16 V (durum 0), <
10 V (durum 1)
Pozitif lojik (kaynak) (LI6)mantık girişi olarak yapılandırılmışsa, < 5 V (durum 0), >
11 V (durum 1)
Hızlanma ve yavaşlama rampaları Frenleme kapasitesi aşıldığında, rezistör kullanılarak, rampanın oto adaptasyonu S, U veya özelleştirilmiş
0,01 - 9000 sn arasında ayrı olarak doğrusal ayarlanabilir
Durana kadar frenleme DC enjeksiyon ile
Koruma tipi Hız limitini aşmaya karşı: sürücü
Giriş faz kaybına karşı: sürücü Kontrol devresinde kesme: sürücü Giriş faz kesmeleri: sürücü Hat besleme aşırı gerilimi: sürücü Hat besleme düşük gerilimi: sürücü
Çıkış fazları ve toprak arasındaki aşırı akım: sürücü Aşırı ısınmaya karşı koruma: sürücü
DC veriyolunda aşırı gerilimler: sürücü Motor fazları arasındaki kısa devre: sürücü Termal koruma: sürücü
Motor fazı kesme: motor Güç taşıma: motor Termal koruma: motor
Yalıtım direnci > 1 mOhm 1 dakika için topraklamaya 500 V DC
Frekans çözünürlüğü Analog giriş: 0,024/50 Hz
Ekran birimi: 0,1 Hz
Haberleşme port protokolü Modbus
CANopen
Konnektörün tipi 1 RJ45 (ön yüzde) için Modbus
1 RJ45 (terminalde) için Modbus RJ45'te erkek SUB-D 9 için CANopen
Fiziksel arayüz 2 telli RS 485 için Modbus
Iletim çerçevesi RTU için Modbus
Iletim hızı 4800 bps, 9600 bps, 19200 bps, 38,4 Kbps için Modbus terminalde
9600 bps, 19200 bps için Modbus ön yüzde
20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps için CANopen
Veri biçimi 8 bit, 1 durdurma, çift parite için Modbus ön yüzde
8 bit, tek çift veya yapılandırılabilir parite yok için Modbus terminalde
Adreslerin sayısı 1…127 için CANopen
1…247 için Modbus
Erişim yöntemi Slave CANopen
İşaretleme CE
Çalışma konumu Dikey +/- 10 derece
Yükseklik 1390 mm
Derinlik 377 mm
Genişlik 890 mm
Ürün ağırlığı 320 kg
Işlevsellik Full
Özel uygulama Diğer uygulamalar
Seçenek kartı Haberleşme kartı için CC-Link
Controller inside programlama kartı Haberleşme kartı için DeviceNet Haberleşme kartı için Ethernet/IP Haberleşme kartı için Fipio G/Ç uzatma kartı
Haberleşme kartı için Interbus-S Enkoder için arayüz kartı
Haberleşme kartı için Modbus Plus Haberleşme kartı için Modbus TCP Haberleşme kartı için Modbus/Uni-Telway Üstten kaldırmalı vinç kartı
Haberleşme kartı için Profibus DP Haberleşme kartı için Profibus DP V1
Ortam
Gürültü seviyesi 77 dB 'e uygun86/188/EEC
Dielektrik gücü 3535 V DC toprak ve güç terminalleri arasında
5092 V DC kontrol ve güç terminalleri arasında
Elektromanyetik uyumluluk 1,2/50 µs - 8/20 µs kesinti bağışıklık testi seviye 3 'e uygunIEC 61000-4-5 Iletimli radyo frekansı bağışıklık testi seviye 3 'e uygunIEC 61000-4-6 Elektrik hızlı geçici/patlama bağışıklık testi seviye 4 'e uygunIEC 61000-4-4 Elektrostatik deşarj bağışıklık testi seviye 3 'e uygunIEC 61000-4-2 Yayılmalı, radyo frekansı elektromanyetik alan bağışıklık testi seviye 3 'e uygunIEC 61000-4-3
Gerilim düşüşleri ve kesintileri bağışıklık testi 'e uygunIEC 61000-4-11
Standartlar EN 55011 sınıf A grup 2
EN/IEC 61800-5-1
EN 61800-3 ortam 2 kategori C3 EN 61800-3 ortam 1 kategori C3 UL Tip 1
EN/IEC 61800-3 IEC 60721-3-3 sınıf 3C2
Ürün sertifikaları GOST
C-Tick ULCSA NOM 117
Kirletme derecesi 2 'e uygunEN/IEC 61800-5-1
3 'e uygunUL 840
IP koruma derecesi IP20
Titreşim direnci 0,6 gn (f= 10…200 Hz) 'e uygunEN/IEC 60068-2-6
1,5 mm tepeden tepeye (f= 3…10 Hz) 'e uygunEN/IEC 60068-2-6
Darbe dayanımı 4 gn için 11 ms 'e uygunEN/IEC 60068-2-27
Bağıl nem 5…95 % yoğuşmasız 'e uygunIEC 60068-2-3
5…95 % damlayan su olmadan 'e uygunIEC 60068-2-3 Çalışma için ortam hava sıcaklığı -10…50 °C (olmadan)
Depolama ortam koşulları -25…70 °C
Çalışma yüksekliği <= 1000 m olmadan
1000...3000 m 100 m başına % 1 akım düşüşüyle
Paketleme üniteleri
Birim paket türü 1 PCE
Paketteki birim sayısı 1
Paket ağırlığı (Lbs) 336,0 kg
Paket 1 Yükseklik 53 cm
Paket 1 genişliği 92 cm
Paket 1 Uzunluk 145 cm
Birim paket türü 2 PAL
Paketteki birim sayısı 2 1
Paket 2 Ağırlığı 347,0 kg
Paket 2 Yükseklik 195 cm
Paket 2 genişliği 120 cm
Paket 2 Uzunluk 100 cm
Sürdürülebilirlik Teklifi
Sürdürülebilir teklif durumu Green Premium ürünü
EU RoHS Direktifi Proaktif uyumluluk (Ürün, EU RoHS yasal kapsamında değil) EU RoHS Bildirisi
Cıva içermez Evet
RoHS muafiyet bilgileri Evet
Çin RoHS Düzenlemesi Çin RoHS Beyanı
Çevre Beyanı Çevresel Ürün Profili
WEEE Ürün, Avrupa Birliği pazarlarında özel atık toplama ilkelerine uygun şekilde
atılmalıdır ve hiçbir suretle çöp kutularına bırakılmamalıdır.
Sözleşme garantisi
Garanti 18 months
Ürün veri kağıdı
Dimensions Drawings ATV71HC31N4
UL Type 1/IP 20 Drives
Dimensions with or without 1 Option Card (1)
Dimensions in mm
a b c G J J1 H K K1 K2 Ø
890 1390 377 417.5 75 380 1120 150 75 30 11.5
Dimensions in in.
a b c G J J1 H K K1 K2 Ø
35.04 54.72 14.84 16.44 2.95 14.96 44.09 5.90 2.95 1.18 0.45
(1) Option cards: I/O extension cards, communication cards or "Controller Inside” programmable card.
Dimensions with 2 Option Cards (1)
Dimensions in mm
a c1 G J J1 H K K1 K2 Ø
890 392 417.5 75 380 1120 150 75 30 11.5
Dimensions in in.
a c1 G J J1 H K K1 K2 Ø
35.04 15.43 16.44 2.95 14.96 44.09 5.90 2.95 1.18 0.45
(1) Option cards: I/O extension cards, communication cards or "Controller Inside” programmable card.
Ürün veri kağıdı
Mounting and Clearance ATV71HC31N4
Mounting Recommendations Clearance
X1 in mm X2 in mm X1 in in. X2 in in.
250 300 9.84 11.81
These drives can be mounted side by side, observing the following mounting recommendations:
Specific Recommendations for Mounting the Drive in an Enclosure Ventilation
To ensure proper air circulation in the drive:
● Fit ventilation grilles.
● Ensure that there is sufficient ventilation. If there is not, install a forced ventilation unit with a filter. The openings and/or fans must provide a flow rate at least equal to that of the drive fans (refer to the product characteristics).
● Use special filters with IP 54 protection.
● Remove the blanking cover from the top of the drive.
Dust and Damp Proof Metal Enclosure (IP 54)
The drive must be mounted in a dust and damp proof enclosure in certain environmental conditions: dust, corrosive gases, high humidity with risk of condensation and dripping water, splashing liquid, etc.
This enables the drive to be used in an enclosure where the maximum internal temperature reaches 50°C.
Ürün veri kağıdı
Connections and Schema ATV71HC31N4
Wiring Diagram Conforming to Standards EN 954-1 Category 1, IEC/EN 61508 Capacity SIL1, in Stopping Category 0 According to IEC/EN 60204-1
Three-Phase Power Supply with Upstream Breaking via Contactor
A1 ATV71 drive KM1 Contactor L1 DC choke Q1 Circuit-breaker
Q2 GV2 L rated at twice the nominal primary current of T1 Q3 GB2CB05
S1,S2 XB4 B or XB5 A pushbuttons T1 100 VA transformer 220 V secondary
(1) Line choke (three-phase); mandatory for ATV71HC11Y…HC63Y drives (except when a special transformer is used (12-pulse)).
(2) For ATV71HC40N4 drives combined with a 400 kW motor, ATV71HC50N4 and ATV71HC40Y…HC63Y, refer to the power terminal connections diagram.
(3) Fault relay contacts. Used for remote signalling of the drive status.
(4) Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internal power supply switched to the “source” position (for other connection types, refer to the user guide).
(5) There is no PO terminal on ATV71HC11Y…HC63Y drives.
(6) Optional DC choke for ATV71H•••M3, ATV71HD11M3X…HD45M3X, ATV71•075N4…•D75N4 and ATV71P•••N4Z drives. Connected in place of the strap between the PO and PA/+ terminals. For ATV71HD55M3X, HD75M3X, ATV71HD90N4…HC50N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it.
(7) Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.
(8) Reference potentiometer.
All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.
Wiring Diagram Conforming to Standards EN 954-1 Category 1, IEC/EN 61508 Capacity SIL1, in Stopping
Category 0 According to IEC/EN 60204-1
Three-Phase Power Supply with Downstream Breaking via Switch Disconnector
A1 ATV71 drive L1 DC choke Q1 Circuit-breaker
Q2 Switch disconnector (Vario)
(1) Line choke (three-phase), mandatory for ATV71HC11Y…HC63Y drives (except when a special transformer is used (12-pulse)).
(2) For ATV71HC40N4 drives combined with a 400 kW motor, ATV71HC50N4 and ATV71HC40Y…HC63Y, refer to the power terminal connections diagram.
(3) Fault relay contacts. Used for remote signalling of the drive status.
(4) Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internal power supply switched to the “source” position (for other connection types, refer to the user guide).
(5) There is no PO terminal on ATV71HC11Y…HC63Y drives.
(6) Optional DC choke for ATV71H•••M3, ATV71HD11M3X…HD45M3X, ATV71•075N4…•D75N4 and ATV71P•••N4Z drives. Connected in place of the strap between the PO and PA/+ terminals. For ATV71HD55M3X, HD75M3X, ATV71HD90N4…HC50N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it.
(7) Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.
(8) Reference potentiometer.
All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.
Wiring Diagram Conforming to Standards EN 954-1 Category 3, IEC/EN 61508 Capacity SIL2, in Stopping
Category 0 According to IEC/EN 60204-1
Three-Phase Power Supply, Low Inertia Machine, Vertical Movement
A1 ATV71 drive
A2 Preventa XPS AC safety module for monitoring emergency stops and switches. One safety module can manage the “Power Removal”
function for several drives on the same machine. In this case, each drive must connect its PWR terminal to its + 24 V via the safety contacts on the XPS AC module. These contacts are independent for each drive.
F1 Fuse L1 DC choke Q1 Circuit-breaker
S1 Emergency stop button with 2 contacts S2 XB4 B or XB5 A pushbutton
(1) Power supply: 24 Vdc or Vac, 48 Vac, 115 Vac, 230 Vac.
(2) S2: resets XPS AC module on power-up or after an emergency stop. ESC can be used to set external starting conditions.
(3) Requests freewheel stopping of the movement and activates the “Power Removal” safety function.
(4) Line choke (three-phase), mandatory for and ATV71HC11Y…HC63Y drives (except when a special transformer is used (12-pulse)).
(5) The logic output can be used to signal that the machine is in a safe stop state.
(6) For ATV71HC40N4 drives combined with a 400 kW motor, ATV71HC50N4 and ATV71HC40Y…HC63Y, refer to the power terminal connections diagram.
(7) Fault relay contacts. Used for remote signalling of the drive status.
(8) Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internal power supply switched to the “source” position (for other connection types, refer to the user guide).
(9) Standardized coaxial cable, type RG174/U according to MIL-C17 or KX3B according to NF C 93-550, external diameter 2.54 mm /0.09 in., maximum length 15 m / 49.21 ft. The cable shielding must be earthed.
(10) There is no PO terminal on ATV71HC11Y…HC63Y drives.
(11) Optional DC choke for ATV71H•••M3, ATV71HD11M3X…HD45M3X, ATV71•075N4…•D75N4 and ATV71P•••N4Z drives. Connected in place of the strap between the PO and PA/+ terminals. For ATV71HD55M3X, HD75M3X, ATV71HD90N4…HC50N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it.
(12) Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.
(13) Reference potentiometer.
All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.
Wiring Diagram Conforming to Standards EN 954-1 Category 3, IEC/EN 61508 Capacity SIL2, in Stopping
Category 1 According to IEC/EN 60204-1
Three-Phase Power Supply, High Inertia Machine
A1 ATV71 drive
A2(5) Preventa XPS ATE safety module for monitoring emergency stops and switches. One safety module can manage the "Power Removal”
safety function for several drives on the same machine. In this case the time delay must be adjusted on the drive controlling the motor that requires the longest stopping time. In addition, each drive must connect its PWR terminal to its + 24 V via the safety contacts on the XPS ATE module. These contacts are independent for each drive.
F1 Fuse L1 DC choke Q1 Circuit-breaker
S1 Emergency stop button with 2 N/C contacts S2 Run button
(1) Power supply: 24 Vdc or Vac, 115 Vac, 230 Vac.
(2) Requests controlled stopping of the movement and activates the “Power Removal” safety function.
(3) Line choke (three-phase), mandatory for ATV71HC11Y…HC63Y drives (except when a special transformer is used (12-pulse)).
(4) S2: resets XPS ATE module on power-up or after an emergency stop. ESC can be used to set external starting conditions.
(5) For stopping times requiring more than 30 seconds in category 1, use a Preventa XPS AV safety module which can provide a maximum time delay of 300 seconds.
(6) The logic output can be used to signal that the machine is in a safe state.
(7) For ATV71HC40N4 drives combined with a 400 kW motor, ATV71HC50N4 and ATV71HC40Y…HC63Y, refer to the power terminal connections diagram.
(8) Fault relay contacts. Used for remote signalling of the drive status.
(9) Connection of the common for the logic inputs depends on the positioning of the SW1 switch. The above diagram shows the internal power supply switched to the “source” position (for other connection types, refer to the user guide).
(10) Standardized coaxial cable, type RG174/U according to MIL-C17 or KX3B according to NF C 93-550, external diameter 2.54 mm/0.09 in., maximum length 15 m/49.21 ft. The cable shielding must be earthed.
(11) Logic inputs LI1 and LI2 must be assigned to the direction of rotation: LI1 in the forward direction and LI2 in the reverse direction.
(12) There is no PO terminal on ATV71HC11Y…HC63Y drives.
(13) Optional DC choke for ATV71H•••M3, ATV71HD11M3X…HD45M3X, ATV71•075N4…•D75N4 and ATV71P•••N4Z drives. Connected in place of the strap between the PO and PA/+ terminals. For ATV71HD55M3X, HD75M3X, ATV71HD90N4…HC50N4 drives, the choke is supplied with the drive; the customer is responsible for connecting it.
(14) Software-configurable current (0…20 mA) or voltage (0…10 V) analog input.
(15) Reference potentiometer.
All terminals are located at the bottom of the drive. Fit interference suppressors on all inductive circuits near the drive or connected on the same circuit, such as relays, contactors, solenoid valves, fluorescent lighting, etc.

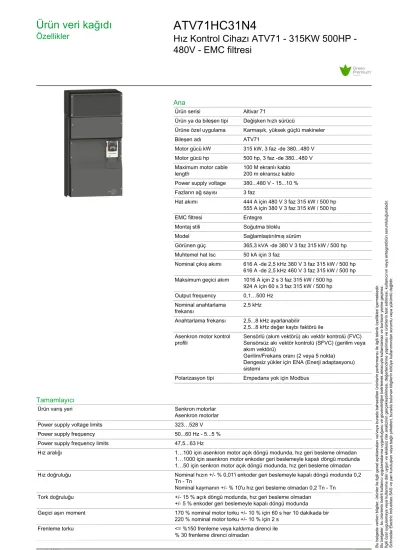

Ürün veri kağıdı
Performance Curves ATV71HC31N4
Derating Curves
The derating curves for the drive nominal current (In) depend on the temperature and the switching frequency. For intermediate temperatures (e.g. 55°C), interpolate between 2 curves.
X Switching frequency
