spectral overlap between the donor emis-sion and the acceptor absorption, the fl uorescence quantum yield of the donor, the dipole orientation and the refractive
index of the medium. [ 1,2 ] Although the
early applications of FRET were mostly in biology, [ 3–6 ] recent studies have shown that
FRET can be effectively used for energy-effi cient optoelectronics [ 7–21 ] for enhanced
light-generation and -harvesting.
Among semiconductor materials, colloidal semiconductor nanocrystals are interesting candidates for FRET-ena-bled systems, where FRET is strongly dependent on the dimensionality of the
quantum confi nement. [ 22–27 ] To date,
there have been several theoretical and experimental reports on FRET in semi-conductor nanocrystals (i.e., colloidal quantum dots (QDs) and nanorods (NRs)) and their hybrids (quantum dot-conju-gated polymer, dye, epitaxial quantum well, etc.) regarding the effects of size, composition, dimensionality and
archi-tecture on FRET. [ 21–23,27–31 ] Such
FRET-enabled colloidal systems were also shown to be suitable for use in devices including light-emitting diodes (LEDs) [ 20 ] and solar cells. [ 32 ]
In recent years, developments in the colloidal synthesis techniques have paved the way for atomically fl at quasi-2D NCs, which are referred to as colloidal quantum wells (QWs), or nanoplatelets (NPLs), having a strong 1D confi nement in a magic-sized vertical thickness. [ 33 ] These colloidal semiconductor
NPLs possess unique optical properties with monolayer-level
Highly Effi cient Nonradiative Energy Transfer from
Colloidal Semiconductor Quantum Dots to Wells for
Sensitive Noncontact Temperature Probing
Murat Olutas , Burak Guzelturk , Yusuf Kelestemur , Kivanc Gungor ,
and Hilmi Volkan Demir *
This study develops and shows highly effi cient exciton-transferring hybrid semiconductor nanocrystal fi lms of mixed dimensionality comprising quasi 0D and 2D colloids. Through a systematic study of time-resolved and steady-state photoluminescence spectroscopy as a function of the donor-to-acceptor molar concentration ratio and temperature, a high-effi ciency nonradiative energy transfer (NRET) process from CdZnS/ZnS core/shell quantum dots (QDs) directed to atomically fl at CdSe nanoplatelets (NPLs) in their solid-state thin fi lms is uncovered. The exciton funneling in this system reaches transfer effi ciency levels as high as 90% at room temperature. In addition, this study fi nds that with decreasing temperature exciton transfer effi ciency is increased to a remarkable maximum level of ≈94%. The enhancement in the dipole– dipole coupling strength with decreasing temperature is well accounted by increasing photoluminescence quantum yield of the donor and growing spec-tral overlap between the donor and the acceptor. Furthermore, NRET effi ciency exhibits a highly linear monotonic response with changing temperature. This makes the proposed QD–NPL composites appealing for noncontact sensitive temperature probing based on NRET effi ciencies as a new metric. These fi nd-ings indicate that combining colloidal nanocrystals of different dimensionality enables effi cient means of temperature probing at an unprecedented sensi-tivity level at nanoscale through almost complete exciton transfer.
DOI: 10.1002/adfm.201505108
Dr. M. Olutas, B. Guzelturk, Y. Kelestemur, K. Gungor, Prof. H. V. Demir Department of Electrical and Electronics Engineering
Department of Physics
UNAM—Institute of Materials Science and Nanotechnology Bilkent University
Ankara 06800 , Turkey
E-mail: volkan@bilkent.edu.tr, hvdemir@ntu.edu.sg Dr. M. Olutas
Department of Physics Abant Izzet Baysal University Bolu 14280 , Turkey
Prof. H. V. Demir
Luminous! Center of Excellence for Semiconductor Lighting and Displays
School of Electrical and Electronic Engineering School of Physical and Mathematical Sciences School of Materials Science and Engineering Nanyang Technological University
Nanyang Avenue , Singapore 639798 , Singapore
1. Introduction
Förster resonance energy transfer (FRET) [ 1 ] is a nonradiative
energy transfer (NRET) process mediated by near-fi eld dipole– dipole coupling between two species (donor and acceptor) that are in close proximity. Exciton transfer rate in FRET depends on the distance between the donor and acceptor species, the
FULL P
APER
atomic precision control of their vertical thicknesses. [ 34 ] They
exhibit extremely narrow photoluminescence (PL) emission
(≈30–40 meV at room temperature) as a result of the absence of
inhomogeneous broadening. [ 35,36 ] Together with giant oscillator
strength, [ 34 ] the large linear and nonlinear absorption
cross-sec-tions [ 37–39 ] and suppressed Auger recombination [ 40,41 ] also make
these NPLs attractive candidates for photonic applications, including high-performance colloidal lasers. [ 36,42,43 ]
Owing to the 2D geometry and extremely large absorption cross-section, the colloidal NPLs stand out as highly effi cient exciton acceptors suitable for light-harvesting applications. [ 44,45 ]
To date, our and Talapin groups’ results have shown that ultra-fast NRET is possible in the binary colloidal NPLs systems, where excitons are transferred from 4 ML CdSe NPLs to 5 ML
CdSe NPLs. [ 44,45 ] Furthermore, we have previously shown that
an ultraeffi cient homo-FRET prevails in the stacked assemblies of the same vertical thickness NPLs and this leads to strong quenching of the overall photoluminescence of NPL assem-blies due to exciton transport assisted exciton trapping in the defected NPLs. [ 35 ]
One key advantage of the NPLs that makes them excep-tional exciton harvesters is their large absorption cross-section (>10 −14 cm 2 ). This makes long range dipole–dipole coupling
possible with a Förster radius ≥ ≈10 nm. Recently, 2D
mono-layers such as graphene and transition metal dichalcogenides
(e.g., MoS 2 ) have also been shown to exhibit strong exciton
sink property through NRET. However, colloidal NPLs with their solution-processability represent a versatile alternative as effi cient exciton acceptors for light-harvesting. To date, NRET studies for NPLs have been limited with only NPL based
donor–acceptor ensemble systems. [ 44,45 ] Even though there are
numerous reports on FRET from 3D-confi ned colloidal semi-conductor QDs (as donors) to indirect band-gap semiconduc-tors, [ 46 ] 2D materials, [ 47,48 ] epitaxial QWs, [ 49 ] colloidal NCs, [ 50 ]
organic dye molecules [ 23 ] (as acceptors) and vice versa, [ 20,22,51,52 ]
FRET has not been studied for an ensemble including colloidal QDs and NPLs. Also, the effi ciency limit of such a mixed-dimensionality system has not been elucidated to date.
In this work, we report the fi rst study on NRET from colloidal 0D NCs (CdZnS/ZnS core/shell QDs) to quasi-2D NCs (CdSe NPLs). Here we systematically investigated the energy transfer processes as a function of the donor-to-acceptor (D/A) molar ratio by using steady-state and time-resolved fl uo-rescence (TRF) spectroscopy in the hybrid fi lms incorporating both the donor QDs and the acceptor NPLs. The signifi cant shortening in PL decay lifetime of the donor QDs and the elongation in the PL decay lifetime of the acceptor NPLs were simultaneously observed, which suggests the exciton transfer from QDs into NPLs. In addition, the existence of NRET was further supported by the PL excitation (PLE) spectra of the acceptor NPLs in the hybrid thin fi lms. We also found that the resulting NRET effi ciency can reach unprecedented levels of ≈90% at room temperature owing to the acceptor NPLs.
Fur-thermore, the NRET effi ciency further increases up to ≈94%
at cryogenic temperatures. The observed enhancement with decreasing temperature is well explained by increasing PL quantum yields and changing in spectral overlaps. We observed that NRET effi ciency shows a highly linear monotonic correla-tion with temperature in the range from 50 to 300 K, which
makes this new QD–NPL hybrid system a highly sensitive non-contact optical thermal probe. We also envision that bringing colloidal quantum dots and quantum wells together can lead to a spectrally tunable and effi cient exciton harvesting in applica-tions ranging from photovoltaics to photocatalytics.
2. Results and Discussion
In this work, we have selected a blue-emitting alloyed-core/ gradient-shell CdZnS/ZnS QDs as an exciton donor due to the fact that they are highly luminescent with long PL decay
life-times. CdSe NPLs (green-emitting at ≈513 nm, 4 monolayer
thick) were chosen as an exciton acceptor. Both the donor QDs and the acceptor NPLs were synthesized using modifi ed recipes from the literature. [ 53,54 ] The details of the synthesis
are described in Experimental Section. Figure 1 a,b show the absorption and steady-state PL spectra of the donor and the acceptor materials suspended in hexane at room temperature, respectively. Absorption spectrum of the donor QDs exhibits an absorption onset at 475 nm. The absence of a strong fi rst exciton peak in the absorption is due to alloyed ZnCdS core, but not due to size distribution. The full-width at half-maximum (FWHM) of the QD emission at the peak emission wavelength
(453 nm) is ≈30 nm, which is comparable to the best reports
for blue-emitting QDs. On the other hand, the acceptor NPLs, thanks to quasi-1D quantum confi nement, exhibit epitaxial QW-like absorbance features. The two distinct peaks observed in the NPLs arise from the electron/light-hole (480 nm) and electron/heavy-hole (512 nm) transitions. In addition, the PL spectrum for the acceptor NPLs shows a single emission peak
at 513 nm with an Fwhm of ≈8 nm. All these spectral features
consistent with the existing literature suggest that the mate-rials are of high quality. Figure 1 c,d shows the transmission electron microscopy (TEM) images of both donor and acceptor ensembles on carbon coated copper grids. The mean size of the
donor QDs is 9.3 ± 1.2 nm, whereas that of the acceptor NPLs
is 12.8 ± 1.9 by 10.5 ± 1.5 nm.
We prepared seven hybrid thin fi lm samples having dif-ferent donor and acceptor molar ratios, which is called D/A ratio hereafter, in addition to the reference samples of only donor and only acceptor. The samples were deposited on pre-cleaned quartz substrates using the pre-mixed solutions of the QDs and the NPLs by spin-coating. The molar concentrations of donor (QDs) and acceptor (NPLs) solutions, which were used for the hybrid fi lm preparation process, were calculated as 3.28 × 10 −7 and 2.16 × 10 −6 M , respectively. To calculate the molar
concentrations, we employed inductively coupled plasma-mass spectrometry (ICP–MS) technique. In addition, the surface cov-erage of the prepared solid thin fi lm samples were analyzed via scanning electron microscopy (SEM). For an exemplary case, Figure 2 shows the surface coverage of the thin fi lm sample
having D/A molar ratio =0.01. In Figure 2 a the QDs are seen
as white spots due to their size (with radius ≈4 nm) creating
a larger contrast as compared to the very thin NPLs (vertical
thickness ≈1.2 nm). Although the surface coverage is less than
100%, the QDs and the NPLs are observed to be intermixed well. The donor QDs are well distributed among the acceptor NPLs, which can be found either lying fl at or stacked and lying
FULL P
APER
perpendicular to the substrate as shown in Figure 2 b and car-toon in Figure 2 a (see Figures S1–S3 in the Supporting Infor-mation for SEM images of different D/A ratios).
Steady-state photoluminescence measurements revealed a evidence of NRET in the hybrid fi lm incorporating both the donor QDs and the acceptor NPLs. Figure 3 shows the PL spectra of the thin fi lms of only-donor, only-acceptor and a hybrid case of with a molar D/A ratio of 0.10, where all samples are excited at 350 nm by a continuous-wave pump. Hybrid fi lm exhibits strong quenching in donor emission located at 453 nm, while the acceptor emission at 513 nm is
simultaneously enhanced. The quenching ratio of the donor
emission suggests ≈90% energy transfer effi ciency. However,
steady-state PL measurements are not only governed by the NRET, but also affected by the radiative energy transfer due to the absorption of the emitted photons by acceptor NPLs. There-fore, we systematically studied the time-resolved PL kinetics in the hybrid samples with varying D/A ratio, which would directly reveal the NRET effi ciencies and its rate.
Next, we performed TRF spectroscopy using a picosecond pulsed pump laser at 375 nm. The decay curves were meas-ured at the band-edge emission peak of both donor (453 nm)
www.MaterialsViews.com
Figure 1. Absorption and photoluminescence spectra of a) the blue-emitting CdZnS/ZnS core/shell QDs and b) the green-emitting 4 ML CdSe NPLs, which are dissolved in hexane at room temperature. High-angle annular dark-fi eld scanning transmission electron microscopy (HAADF-STEM) images of c) the donor-QDs having 9.3 ± 1.2 nm and d) the acceptor-NPLs having 12.8 ± 1.9 nm by 10.5 ± 1.5 nm mean sizes. The inset in (c) shows the TEM image of a CdZnS/ZnS core/shell QDs.
Figure 2. SEM images of the hybrid solid thin fi lms of the donor QDs (bright ones) and the acceptor NPLs having 0.01 D/A molar ratio for a) 500 nm and b) 100 nm scale bars. The yellow and blue arrows given in (b) point at the QDs and the NPLs, respectively.
FULL P
APER
and acceptor (513 nm) to study NRET at room temperature. There is no cross-talk between the emissions of the donor and acceptor due to narrow emission linewidths of the donor and acceptors. Figure 4 depicts the fl uorescence decay curves of prepared samples with different D/A molar ratios. As seen in Figure 4 a, the PL decay of the donor QDs becomes faster as the acceptor content of the hybrid fi lm increases. This strongly indicates that an additional relaxation process (e.g., NRET) for the excited state in the donor QDs opens up and it becomes dominant with increasing NPL acceptor concentration in the hybrid fi lms. On the other hand, in the case of the PL decay curves of the acceptor, the decay is observed to slow down with increasing concentration of the QD donors. This elongation in the acceptor decay has been previously observed for the QD, NR, and NPL acceptors, which is the characteristic signature of the delayed luminescence arising from the recombination of the excitons that have been transferred from the donors. There-fore, the changes in the PL decay kinetics of both donor and acceptor indicate the presence of exciton transfer/funneling by NRET. [ 55 ]
To analyze the PL decay curves, all collected fl uorescence decay data were fi tted with multi-exponential decay functions. Here, we used four exponential decay functions for both donor and acceptor, which was previously found to be intrinsic for
NPLs and this type of QDs. [ 56,57 ] The pump laser intensity (at
375 nm, PicoQuant picosecond pulsed laser) was also kept low
(≈1 nJ cm −2 ) so that number of photogenerated excitons per
QD and NPL was much less than 1 (〈N〉 << 1). The fi tting para-meters and the amplitude-averaged photoluminescence
life-times ( τ av ) of the donor QDs and the acceptor NPLs are
sum-marized in Tables S1 and S2, Supporting Information. τ av of the
donor QDs decreases from 8.78 (donor-only sample) to 0.92 ns
(sample with D/A = 0.01, where there is the largest number of
acceptors per donor). Furthermore, τ av of the donor saturates at
≈0.90 ns. These major modifi cations in the PL lifetime of the donor as a function of the increasing number of acceptor per donor can be explained by the strong energy transfer from the donor QDs to the acceptor NPLs. In the case of acceptors, τ av is
increased from 0.48 (acceptor-only sample) to 2.19 ns (sample
with D/A = 1.37, where there is the largest number of donors
per acceptor).
Subsequently, we analyze the energy transfer rates ( k NRET )
and effi ciencies ( η NRET ) for all hybrid samples using the fi tted
PL decay parameters. Table 1 shows the rate of energy transfer as a function of the D/A ratio. As the number of acceptor per donor is increased, the NRET rate increases. The maximum average k NRET was computed to be 0.97 ns −1 . In our analysis
1 1
DA D
NRET k
τ =τ + ( 1)
was used, where τ DA and τ D are the amplitude-averaged PL
lifetimes of the donor QDs in the presence and absence of acceptor NPLs, respectively. The effi ciency of the energy transfer was obtained by the following relation
1 NRET DA D η τ τ = − ( 2) Figure 5 depicts η NRET as a function of the varying
donor-to-acceptor molar concentration ratio. NRET effi ciencies progres-sively increase with the decreasing D/A ratio (see Figure 5 ). Also, η NRET saturates at ≈90% for the D/A ratios below 0.04. To
the best of our knowledge, the NRET effi ciency found here is the highest reported effi ciency at room temperature between colloidal based semiconductor NCs in their ensembles. Previ-ously, the NRET effi ciency was reported up to 80% in the case of QD-based donor–acceptor pairs. [ 12,58 ] In our previous report
using all NPL based donor–acceptor pairs, the NRET effi ciency
was limited (≈60%) in the hybrid solid thin fi lms of 4 and 5 ML
NPLs donor–acceptor pairs due to inter-NPL stacking. [ 44 ] Thus,
the inter-stacking of the each NPL population leads to phase seg-regation between the donor and acceptor pairs, which consider-ably increases the donor–acceptor distance and limits the NRET effi ciency. Recently, Talapin and co-workers [ 45 ] have shown that
NRET between 4 and 5 ML NPLs can be as effi cient as ≈90%.
However, this NRET was only limited to donor–acceptor pairs that are face-to-face stacked and only separated by the ligands. As discussed in the latter work, these face-to-face stacked donor–acceptor NPLs are very few in number in the ensemble. Therefore, the ensemble NRET effi ciencies were much lower.
Förster radius in the QD–NPL donor–acceptor system was also calculated. To this end, the molar extinction coef-fi cient of the NPL acceptors at 512 nm was calculated to be 1.46 × 10 7 M −1 cm −1 , while the quantum yield (QY) of the QD
donors in fi lm was determined to be 38% using an integrating sphere (see Experimental Section for detail). In addition, the refractive index of the medium was taken to be 1.8, whereas for the dipole orientation factor ( κ 2 ) we used 2/3 corresponding
to random dipole orientations. Using these parameters given above, the Förster radius was computed to be 9.51 nm. In addition, to estimate the distance between the adjacent QDs and NPLs, we also used the calculated Förster radius and found the closest distance between the QDs and the NPLs to be 5.48 nm by taking into account the distance scaling of the exciton transfer in our hybrid system is r −4 , where the r is average distance between donor and acceptor. [ 26 ]
www.MaterialsViews.com
Figure 3. Steady-state PL spectra of the solid fi lms of only-donor (blue line), only-acceptor (green line) and donor–acceptor having D/A = 0.10 (red line) cases.
FULL P
APER
To further investigate systematically the steady-state evi-dence of NRET, PLE spectroscopy was also carried out for
our donor–acceptor hybrid thin fi lm sam-ples. Figure 6 a depicts the PLE spectra of the thin fi lms including the bare donor and acceptor, which were measured for their peak band-edge emission wavelengths.
Exci-tation spectra given in Figure 6 a exhibit
similar spectral features as the absorp-tion spectra of the QDs and NPLs (see Figure 1 ). For example, the peak at 480 nm in the excitation spectrum of the NPLs arises from the electron-light hole (e-lh) transition in the absorption spectrum of acceptor NPLs. We also measured the excitation spectra of the hybrid donor–acceptor cases with varying D/A molar ratios. Figure 6 b exhibits the exci-tation spectra of the NPLs (measured at the emission wavelength of 513 nm) in the four different hybrid samples with the D/A molar ratios of 0.02, 0.10, 0.23, and 0.61. These excitation spectra are normalized at the e-lh
transition peak (≈480 nm) of acceptor since
donor QDs do not have any absorption at
this wavelength (see Figure 1 a). Therefore,
Figure 6 b depicts the normalized excitation spectra of the NPLs. The excitation spectra of the NPLs show increased intensity for the shorter wavelengths with increasing number of donor QDs per NPL (i.e., increasing D/A ratio), which is in alignment with the direc-tion of exciton funneling from the donor to the acceptor. Furthermore, the spectral enhancements in the excitation spectra of the hybrid samples were computed by dividing the normalized excitation spectra of the hybrid cases to that of the acceptor-only case. The inset of Figure 6 b represents the relative spectral enhancement of the acceptor NPL emission due to the NRET from the donor QDs for given D/A molar ratios. The enhancement of the excitation curve resem-bles the absorption of the donor QDs. Furthermore, the spectral enhancement is found to reach to twofolds for the sample with
large number of donors per acceptor (D/A = 0.61).
To investigate the effect of temperature on the NRET in the hybrid solid thin fi lms of the donor QDs-acceptor NPLs, we performed time-resolved fl uorescence measurements as a func-tion of the temperature under vacuum using a closed cycle He cryostat. Here, we investigated the thin fi lm sample exhibiting
the highest NRET effi ciency (≈90%) at room temperature (RT),
which has the lowest D/A molar ratio (i.e., 0.01) in our sample set, together with the donor-only and the acceptor-only sam-ples as reference samsam-ples. The measured PL decay curves as a function of the temperature were again fi tted by multi-expo-nential decay functions, and the fi tting parameters are given in Tables S3–S6 in the Supporting Information. In the case of the donor-only and the acceptor-only, as seen in Figures S4a and S4b in the Supporting Information, the PL decay curves are accelerated with decreasing temperature from 270 to 50 K. Such a temperature dependent PL lifetime behavior was previously
www.MaterialsViews.com
Figure 4. Time-resolved fl uorescence decay curves of the solid thin fi lm samples including donor-only, acceptor-only, and hybrid cases with varying D/A molar ratios measured a) at the donor band-edge emission wavelength (453 nm) and b) at the acceptor band-edge emission wavelength (513 nm). The insets show the zoom-in of the same decay curves and the impulse response function (IRF).
Table 1. Donor QDs and acceptor NPLs lifetimes ( τ ), their NRET rates ( k NRET ) and effi ciencies ( η NRET ) with varying D/A ratios.
D/A ratio τ acceptor [ns] τ donor [ns] k NRET [ns −1 ] η NRET Acceptor only 0.48 – – – 0.01 0.49 0.92 0.973 0.90 0.02 0.48 0.92 0.973 0.90 0.04 0.51 1.24 0.686 0.86 0.10 0.59 1.65 0.492 0.81 0.23 1.00 2.26 0.329 0.74 0.61 1.21 2.99 0.221 0.66 1.37 2.20 4.09 0.130 0.53 Donor only – 8.78 – –
FULL P
APER
reported for NPLs [ 34 ] and epitaxial QWs, [ 59 ] revealing the giant
oscillator strength transition (GOST). The PL lifetime measure-ments were also carried out for the hybrid sample with D/A molar ratio 0.01, and Figures S4c and S4d in the Supporting Information show the PL decay curves taken at the maximum PL emission peak of both the donor and acceptor as a function of the temperature. Temperature-dependent NRET effi ciencies are computed and given in Table S7 in the Supporting Informa-tion. Also, Figure 7 a provides the NRET effi ciency as a function of the temperature. At 270 K, the NRET effi ciency is found to be about 87%. Here, the slight decrease in the NRET effi ciency, which was measured as 90% at RT under ambient conditions, can be due the measurement of the decay curves under vacuum conditions. A recent report indicated that the PL lifetime of the NPLs is affected by the oxygen physisorbed at surface of the NPLs. [ 60 ] Oxygen passivation of the surface traps elongates
the PL lifetime in the NPLs under ambient conditions as com-pared to the vacuum. Therefore, the change of the PL kinetics
of the acceptor is expected to slightly change the overall NRET effi ciency under vacuum. As it is seen from Figure 7 a, with decreasing temperature, the NRET effi ciency increases almost linearly. Also, NRET effi ciency remarkably reaches 94% at 50 K. To explain the increase in NRET effi ciency with decreasing temperature, one possible hypothesis is the enhancement in the spectral overlap between the emission spectrum of the donor and the absorption spectrum of acceptor. To investigate this hypothesis, we fi rst performed the temperature-dependent
transmission ( T) measurements to obtain the absorption
behavior of the acceptor with temperature. 1-T (i.e., absorption plus refl ection) curves are presented in Figure S5a in the Sup-porting Information. In addition, the temperature-dependent PL spectra of the donor were taken (see Figure S5b, Supporting Information). We observed that the absorption spectra of the acceptor and the PL spectra of the donor are blue-shifted with decreasing temperature. The calculated spectral shifts ( Δ Shift ) for given a fi ve set of temperatures (i.e., 270, 240, 210,
180, and 150 K) are given in Table S8 in the Supporting Infor-mation. Also, we calculated the spectral overlap ( J ) integrals using the spectral shift differences between the emission spec-trum of the donor and absorption specspec-trum of acceptor with varying temperature (see Table S8 in the Supporting Informa-tion). For this, we used the spectral information in Figure S5a. We computed relative enhancement of the NRET effi ciencies in the 250–150 K range and compared them with the experi-mentally measured NRET effi ciencies. Here, we fi rst calculated the relative enhancement of the NRET effi ciency by assuming the same parameters (e.g., κ 2 , n , QY, and r ) while considering the
changing spectral overlap as a function of the temperature. Figure 7 b shows the computed effi ciencies (black diamond) along with the experimental data (blue solid circle). However, the change due to the spectral overlap does not successfully predict the change in the NRET effi ciency as a function of the temperature.
Another possible factor for the NRET effi ciency is the changing QY of the donor as a function of the temperature. To this end, we also measured the PL QY of the donor for the temperature range under consideration. We found that PL QY of the donor QDs increases from 38% to 79% when the tem-perature is decreased from RT to 150 K (see Figure S5b and
www.MaterialsViews.com
Figure 6. a) PLE spectra of the only-donor QDs (blue-line) and the only-acceptor NPLs (green-line) measured at their emission peak wavelengths (453 and 513 nm, respectively). b) Excitation spectra of the samples having different D/A ratio normalized at the e-lh transition peak wavelength (480 nm). The inset shows the enhancement in the excitation spectra of the hybrid donor–acceptor samples due to the NRET from donor QDs. Figure 5. Evolution of the NRET effi ciency as a function of the donor
QDs to acceptor NPLs (D/A) molar ratios. The dash-dot lines are a guide for the eyes.
FULL P
APER
Table S8 in the Supporting Information). We calculated the relative enhancement of the NRET effi ciency (red star) by again assuming the same parameters (e.g., κ 2 , n, and r ) while
con-sidering the changing quantum yield and spectral overlap as a function of the temperature. The inclusion of the tempera-ture dependent PL QYs resulted in very close agreement with the experimentally observed enhancement of the NRET effi -ciency over temperature as shown in Figure 7 b. The computed
NRET effi ciencies ( η NRET−2) for different temperatures are
given in Table S8 in the Supporting Information and the per-centage increments in calculated effi ciency exhibit very close match with the experimental ones. For example, the percentage
enhancements in NRET effi ciency ( Δ − 2) were calculated to be
1.32%, 2.21%, 2.87%, and 3.53% (see the red stars in Figure 7 b) corresponding to the NRET effi ciency value at 270 K, whereas they were computed to be 0.81%, 2.65%, 3.22%, and 4.49% (see the blue solid circles in Figure 7 b) for 240, 210, 180, and 150 K, respectively.
In addition, the highly linear correlation between energy transfer effi ciency and temperature as shown in Figure 7 a high-lights the potential of the QD–NPL hybrid system for optical thermal probe applications. Previously, temperature sensing nanocomposites that rely on energy transfer have been studied and proposed. However, all of these previous works have used the change of absolute steady state emission intensities to relate to the temperature change, except the study of Li et al. which was based on linearly temperature dependent fl uorescence life-time of silicon nanoparticles in a limited temperature range of 270–330 K. [ 21,61–65 ] Since absolute intensity of the steady state
emission is very sensitive to measurement conditions such as sample position, detector and photobleaching, reliability of these previous temperature probing nanocomposites based on ratiometric sensing was quite limited. Here, different from previous reports relying on ratiometric sensing, the presented NRET effi ciency represents a new metric for noncontact tem-perature sensing, which can possibly overcome the reliability limitation of previous nanoscale temperature probes. As shown in Figure 7 a, we remarkably achieve a sensitivity level as high as 3.2% per K in the broad range of 50–300 K, which is enabled by effi cient excition transfer phenomena unique to the QD–NPL
hybrids. To the best of our knowledge, our sensitivity level is comparable to the best reported sensitivities (3.5% per K)
in noncontact nanoscale temperature probes. [ 63,64 ] In
addi-tion to temperature sensing, these nanocomposites with such exceptional exciton transfer effi ciencies can further be used in light-harvesting applications in solar cells and artifi cial photosynthesis.
3. Conclusion
In summary, we have investigated the nonradiative energy transfer of excitons in solid thin fi lms of the hybrid ensembles of colloidal CdZnS/ZnS core/shell QDs and CdSe NPLs as a function of the temperature. We found remarkably high NRET effi ciencies reaching 90%, which is enabled by large absorp-tion cross-secabsorp-tion of the NPLs. To the best of our knowledge, this NRET effi ciency level is the highest between colloidal semiconductor NCs reported ever to date. In addition, NRET effi ciencies were observed to exhibit highly linear monotonic response and increase with decreasing temperatures, reaching maximum levels as high as 94%, which is well explained by the increasing PL QY of the donor QDs at low tempera-tures. Owing to the highly linear monotonic behavior of the NRET effi ciency with decreasing temperature in the range of 50–300 K, this QD–NPL hybrid system is suitable for the tem-perature sensing applications with signifi cantly high sensitivity. This presents a new metric based on change of NRET effi ciency for temperature sensing, which could possess improved reli-ability as compared to previously reported nanoscale tem-perature probes that rely on ratiometric sensing principle. We also believe that such highly effi cient NRET between these two colloidal systems having different quantum confi nement dimensionality (QDs and NPLs) will enable high-performance optoelectronic devices utilizing FRET at high effi ciency.
4. Experimental Section
Synthesis of CdZnS/ZnS Core–Shell QDs : 1 mmol of cadmium oxide (CdO), 10 mmol zinc acetate (Cd(OAc) 2 ), 7 mL of oleic acid (OA), www.MaterialsViews.com

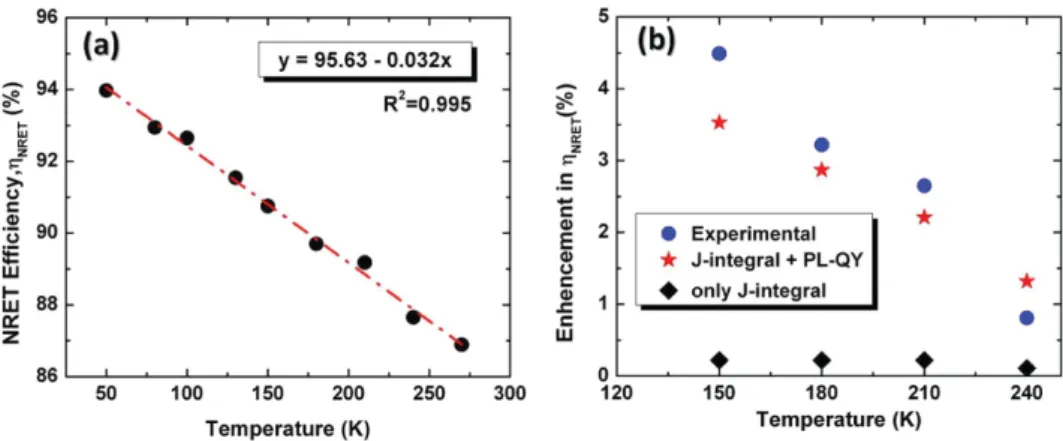

Figure 7. a) Evolution of the NRET effi ciency ( η NRET ) for D/A = 0.01 ratio as a function of the temperature. The dash-dot lines show the linear fi tting
curve with 0.032 of slope. b) Enhancement in η NRET corresponding based on the experimental data (blue-circle) and the calculated results using the
shift in spectral overlap (J-integral) between the PL spectrum of donor and the absorption spectrum of acceptor (black-diamond) and those using both the shift in spectral overlap (J-integral) and the change in PL QY with decreasing temperature.
FULL P
APER
www.MaterialsViews.com
and 15 mL of octadecene (ODE) were loaded to a 100 mL three-neck fl ask. The solution was degassed around 100–110 °C for an hour. After degassing step, the solution was heated to 310 °C for dissolution of cadmium and zinc precursors. When the precursors were completely dissolved, 2.4 mL of sulfur stock solution (0.67 M S-ODE solution),
which initiated the nucleation of alloyed CdZnS core QDs, was injected into the hot mixture. After the growth of alloyed CdZnS core QDs for 12 min, 5 mL sulfur stock solution (0.8 M S-OA solution) was injected
at the rate of 0.5 mL min −1 for the successive ZnS shell coating. After
an hour growth at 310 °C, an additional injection of 2 mL of sulfur stock solution (0.8 M S-OA solution) was performed with the same rate. Then,
the solution was further kept for 2 h at 310 °C. Finally, the reaction was cooled down to room temperature and CdZnS/ZnS core/shell QDs were precipitated with the addition of ethanol. Then, the precipitated QDs were dissolved in hexane and stored for further steps.
Synthesis of 4 ML CdSe NPLs : 340 mg of cadmium myristate (Cd(myr) 2 ), 24 mg of selenium (Se) and 30 mL of ODE were introduced
into a 100 mL three-neck fl ask. The mixture was degassed under vacuum at 90 °C with 1000 rpm magnetic stirring until it was completely dissolved and became colorless. After setting the temperature at 240 °C, the vacuum was broken and the fl ask was fi lled with argon gas at 100 °C. When the temperature reached 190 °C, the color of solution became yellowish, 120 mg of cadmium acetate dihaydrate (Cd(OAc) 2 (H 2 O) 2 )
was introduced swiftly into the hot mixture and the reaction was allowed to proceed 10 min at 240 °C. At the end of the 10 min growth process, 1 mL of oleic acid was added and then the mixture was quickly cooled down to room temperature. After adding 5 mL of hexane into the solution, it was centrifuged for 10 min at 4500 rpm. The supernatant was removed into another centrifuge tube and ethanol was added into supernatant solution untill it became turbid. The turbid solution was centrifuged at 10 000 rpm for 10 min, and then the precipitate was dissolved in hexane and fi ltered with 0.20 µm fi lter.
Preparation of the Solid Thin Films : Using the previously calculated concentrations of CdZnS/ZnS QDs (3.28 × 10 −7 M) and CdSe
(2.16 × 10 −6 M ) NPLs ensembles dissolved in hexane, the solutions
having different D/A molar ratios were mixed in glass vials by way of ultrasonication for 5 min. Before using the quartz slides with 1.5 cm by 1.5 cm as the substrates for coating, they were cleaned with two steps. First, the quartz substrates were treated with piranha solution and then with deionized (DI) water. In the second step, they were cleaned with acetone and then with isopropanol. After drying the substrates using nitrogen gun, the solid thin fi lms were prepared by spin coating at 2000 rpm for 3 min.
PL QY Measurements : PL QY measurements of the donor-only in fi lm were determined utilizing a Spectral Products monochromator integrated xenon lamp as the excitation source (at an excitation wavelength of 375 nm), a Hamamatsu integrating sphere, and an Ocean Optics Maya 2000 spectrometer, and the de Mello method was followed [ 66 ] step by step. Briefl y, this method basically comprised
three different steps. First, spectrum was recorded without sample in the integrating sphere. In the second step, the sample was placed into the integrating sphere and the spectrum was again taken as the sample is directly illuminated by the excitation source. Finally, the sample was rotated and the spectrum was recorded when the sample was excited only under the scattered light from the surface of the integrating sphere. Previously, to test the accuracy of the integrating sphere system, the PL QY of the dye of Rhodamine 6G at 460 nm excitation wavelength was also measured to be 94.7%, which was in good agreement with the standard value of 95%. In this study, the PL QY of the donor-only in fi lm was measured three times in different time periods as 36.5, 38.9, and 37.6%, and ≈38% of averaged PL QY was used in the calculations.
Supporting Information
Supporting Information is available from the Wiley Online Library or from the author.
Acknowledgements
The authors would like to thank for the fi nancial support from Singapore National Research Foundation under the programs of NRF-RF-2009-09, NRF-CRP-6-2010-02, and the Science and Engineering Research Council, Agency for Science, Technology and Research (A*STAR) of Singapore (project Nos. 092 101 0057 and 112 120 2009), EU-FP7 Nanophotonics4Energy NoE, and TUBITAK EEEAG 109E002, 109E004, 110E010, 110E217, 112E183, 114E410, and 115E679. H.V.D. acknowledges support from ESF-EURYI and TUBA-GEBIP. The authors would also like to thank Mustafa Guler for his help in TEM images.
Received: November 28, 2015 Revised: January 29, 2016 Published online: March 17, 2016
[1] T. Förster , Ann. Phys. 1948 , 437 , 55 .
[2] J. R. Lakowicz , Principles of Fluorescence Spectroscopy , 3rd ed. , Springer , New York 2006 ; pp. 443 – 468 .
[3] X. Qiu , N. Hildebrandt , ACS Nano 2015 , 9 , 8449 .
[4] D. Geissler , S. Linden , K. Liermann , K. D. Wegner , L. J. Charbonniere , N. Hildebrandt , Inorg. Chem. 2014 , 53 , 1824 . [5] Y. Xiao , F. Shu , K. Y. Wong , Z. Liu , Anal. Chem. 2013 , 85 , 8493 . [6] A. B. Descalzo , C. Somoza , M. C. Moreno-Bondi , G. Orellana ,
Anal. Chem. 2013 , 85 , 5316 .
[7] V. G. Kozlov , V. Bulovic , P. E. Burrows , M. Baldo , V. B. Khalfi n , G. Parthasarathy , S. R. Forrest , Y. You , M. E. Thompson , J. Appl.
Phys. 1998 , 84 , 4096 .
[8] D. J. Farrell , N. J. Ekins-Daukes , Nat. Photonics 2009 , 3 , 373 . [9] B. Guzelturk , P. L. Hernandez-Martinez , V. K. Sharma , Y. Coskun ,
V. Ibrahimova , D. Tuncel , A. O. Govorov , X. W. Sun , Q. Xiong , H. V. Demir , Nanoscale 2014 , 6 , 11387 .
[10] E. Mutlugun , B. Guzelturk , A. P. Abiyasa , Y. Gao , X. W. Sun , H. V. Demir , J. Phys. Chem. Lett. 2014 , 5 , 2802 .
[11] S. Nizamoglu , B. Guzelturk , D.-W. Jeon , I.-H. Lee , H. V. Demir , Appl. Phys. Lett. 2011 , 98 , 163108 .
[12] N. Cicek , S. Nizamoglu , T. Ozel , E. Mutlugun , D. U. Karatay , V. Lesnyak , T. Otto , N. Gaponik , A. Eychmüller , H. V. Demir , Appl. Phys. Lett. 2009 , 94 , 061105 .
[13] V. Vohra , G. Calzaferri , S. Destri , M. Pasini , W. Porzio , C. Botta , ACS Nano 2010 , 4 , 1409 .
[14] E. Mutlugun , O. Samarskaya , T. Ozel , N. Cicek , N. Gaponik , A. Eychmüller , H. V. Demir , Opt. Express 2010 , 18 , 10720 .
[15] S. Buhbut , S. Itzhakov , E. Tauber , M. Shalom , I. Hod , T. Geiger , K´. Y. Garini , D. Oron , A. Zaban , ACS Nano 2010 , 4 , 1293 .
[16] S. Chanyawadee , R. T. Harley , M. Henini , D. V. Talapin , P. G. Lagoudakis , Phys. Rev. Lett. 2009 , 102 , 077402 .
[17] E. Mutlugün , S. Nizamoglu , H. V. Demir , Appl. Phys. Lett. 2009 , 95 , 033106 .
[18] S. Nizamoglu , H. V. Demir , Appl. Phys. Lett. 2009 , 95 , 151111 . [19] M. Baldo , M. Thompson , S. Forrest , Nature 2000 , 403 , 750 . [20] M. Achermann , M. a Petruska , S. Kos , D. L. Smith , D. D. Koleske ,
V. I. Klimov , Nature 2004 , 429 , 642 .
[21] X. Liu , J. Qiu , Chem. Soc. Rev. 2015 , 44 , 8714 .
[22] M. Artemyev , E. Ustinovich , I. Nabiev , J. Am. Chem. Soc. 2009 , 131 , 8061 .
[23] M. Hardzei , M. Artemyev , M. Molinari , M. Troyon , A. Sukhanova , I. Nabiev , ChemPhysChem 2012 , 13 , 330 .
[24] S. Halivni , A. Sitt , I. Hadar , U. Banin , ACS Nano 2012 , 6 , 2758 . [25] A. Sitt , N. Even-Dar , S. Halivni , A. Faust , L. Yedidya , U. Banin ,
J. Phys. Chem. C 2013 , 117 , 22186 .
[26] P. L. Hernández-Martínez , A. O. Govorov , H. V. Demir , J. Phys.
FULL P
APER
www.MaterialsViews.com
[27] B. Guzelturk , P. L. H. Martinez , Q. Zhang , Q. Xiong , H. Sun , X. W. Sun , A. O. Govorov , H. V. Demir , Laser Photonics Rev. 2014 , 8 , 73 .
[28] A. L. Rogach , T. A. Klar , J. M. Lupton , A. Meijerink , J. Feldmann , J. Mater. Chem. 2009 , 19 , 1208 .
[29] J. Lee , A. O. Govorov , N. A. Kotov , Nano Lett. 2005 , 5 , 2063 . [30] J. B. Hoffman , H. Choi , P. V Kamat , J. Phys. Chem. C 2014 , 118 ,
18453 .
[31] X. Zhang , C. A. Marocico , M. Lunz , V. A. Gerard , Y. K. Gun’Ko , V. Lesnyak , N. Gaponik , A. S. Susha , A. L. Rogach , A. L. Bradley , ACS Nano 2012 , 6 , 9283 .
[32] S. Lu , Z. Lingley , T. Asano , D. Harris , T. Barwicz , S. Guha , A. Madhukar , Nano Lett. 2009 , 9 , 4548 .
[33] S. Ithurria , B. Dubertret , J. Am. Chem. Soc. 2008 , 130 , 16504 . [34] S. Ithurria , M. D. Tessier , B. Mahler , R. P. S. M. Lobo , B. Dubertret ,
A. L. Efros , Nat. Mater. 2011 , 10 , 936 .
[35] B. Guzelturk , O. Erdem , M. Olutas , Y. Kelestemur , H. V. Demir , ACS
Nano 2014 , 8 , 12524 .
[36] C. She , I. Fedin , D. S. Dolzhnikov , A. Demortière , R. D. Schaller , M. Pelton , D. V. Talapin , Nano Lett. 2014 , 14 , 2772 .
[37] A. Yeltik , S. Delikanli , M. Olutas , Y. Kelestemur , B. Guzelturk , H. V. Demir , J. Phys. Chem. C 2015 , 119 , 26768 .
[38] M. Olutas , B. Guzelturk , Y. Kelestemur , A. Yeltik , S. Delikanli , H. V. Demir , ACS Nano 2015 , 9 , 5041 .
[39] A. W. Achtstein , A. Antanovich , A. Prudnikau , R. Scott , U. Woggon , M. Artemyev , J. Phys. Chem. C 2015 , 119 , 20156 .
[40] L. T. Kunneman , M. D. Tessier , H. Heuclin , B. Dubertret , Y. V. Aulin , F. C. Grozema , J. M. Schins , L. D. A. Siebbeles , J. Phys. Chem. Lett.
2013 , 4 , 3574 .
[41] E. Baghani , S. K. O. Leary , I. Fedin , D. V Talapin , M. Pelton , J. Phys.
Chem. Lett. 2015 , 6 , 1032 .
[42] B. Guzelturk , Y. Kelestemur , M. Olutas , S. Delikanli , H. V. Demir , ACS Nano 2014 , 8 , 6599 .
[43] J. Q. Grim , S. Christodoulou , F. Di Stasio , R. Krahne , R. Cingolani , L. Manna , I. Moreels , Nat. Nanotechnol. 2014 , 9 , 891 .
[44] B. Guzelturk , M. Olutas , S. Delikanli , Y. Kelestemur , O. Erden , H. V. Demir , Nanoscale 2015 , 7 , 2545 .
[45] C. E. Rowland , I. Fedin , H. Zhang , S. K. Gray , A. O. Govorov , D. V. Talapin , R. D. Schaller , Nat. Mater. 2015 , 14 , 484 .
[46] A. Yeltik , B. Guzelturk , P. L. Hernandez-Martinez , A. O. Govorov , H. V. Demir , ACS Nano 2013 , 7 , 10492 .
[47] A. Yeltik , G. Kucukayan-Dogu , B. Guzelturk , S. Fardindoost , Y. Kelestemur , H. V. Demir , J. Phys. Chem. C 2013 , 117 , 25298 . [48] D. Prasai , A. R. Klots , A. Newaz , J. S. Niezgoda , N. J. Orfi eld ,
C. A. Escobar , A. Wynn , A. Efi mov , G. K. Jennings , S. J. Rosenthal , K. I. Bolotin , Nano Lett. 2015 , 15 , 4374 .
[49] S. Nizamoglu , E. Sari , J. H. Baek , I. H. Lee , H. V. Demir , Phys. Status
Solidi Rapid Res. Lett. 2010 , 4 , 178 .
[50] C. Higgins , M. Lunz , A. L. Bradley , V. A. Gerard , S. Byrne , Y. K. Gun’ko , V. Lesnyak , N. Gaponik , Opt. Express 2010 , 18 , 24486 .
[51] S. Nizamoglu , P. Ludwig Hernández-Martínez , E. Mutlugun , D. Ugur Karatay , H. Volkan Demir , Appl. Phys. Lett. 2012 , 100 , 241109 .
[52] B. Guzelturk , H. V. Demir , J. Phys. Chem. Lett. 2015 , 6 , 2206 . [53] K.-H. Lee , J.-H. Lee , W. Song , H. Ko , C. Lee , J. Lee , H. Yang ,
ACS Nano 2013 , 7 , 7295 .
[54] M. D. Tessier , P. Spinicelli , D. Dupont , G. Patriarche , S. Ithurria , B. Dubertret , Nano Lett. 2014 , 14 , 207 .
[55] C. Kagan , C. Murray , M. Nirmal , M. Bawendi , Phys. Rev. Lett. 1996 , 76 , 1517 .
[56] M. D. Tessier , C. Javaux , I. Maksimovic , V. Loriette , B. Dubertret , ACS Nano 2012 , 6 , 6751 .
[57] N. Durisic , A. G. Godin , D. Walters , P. Grütter , P. W. Wiseman , C. D. Heyes , ACS Nano 2011 , 5 , 9062 .
[58] T. Franzl , A. Shavel , A. Rogach , N. Gaponik , T. A. Klar , A. Eychmüller , J. Feldmann , Small 2005 , 1 , 392 .
[59] J. Feldmann , G. Peter , E. O. Gobel , Phys. Rev. Lett. 1987 , 59 , 2337 . [60] M. Lorenzon , S. Christodoulou , G. Vaccaro , J. Pedrini , F. Meinardi ,
I. Moreels , S. Brovelli , Nat. Commun. 2015 , 6 , 6434 .
[61] J. Feng , K. Tian , D. Hu , S. Wang , S. Li , Y. Zeng , Y. Li , G. Yang , Angew. Chem. Int. Ed. 2011 , 50 , 8072 .
[62] E. J. McLaurin , V. A. Vlaskin , D. R. Gamelin , J. Am. Chem. Soc. 2011 , 133 , 14978 .
[63] X. Rao , T. Song , J. Gao , Y. Cui , Y. Yang , C. Wu , B. Chen , G. Qian , J. Am. Chem. Soc. 2013 , 135 , 15559 .
[64] S. Zheng , W. Chen , D. Tan , J. Zhou , Q. Guo , W. Jiang , C. Xu , X. Liu , J. Qiu , Nanoscale 2014 , 6 , 5675 .
[65] Q. Li , Y. He , J. Chang , L. Wang , H. Chen , Y. W. Tan , H. Wang , Z. Shao , J. Am. Chem. Soc. 2013 , 135 , 14924 .
[66] J. C. de Mello , H. F. Wittmannn , R. H. Friend , Adv. Mater. 1997 , 9 , 230 .
