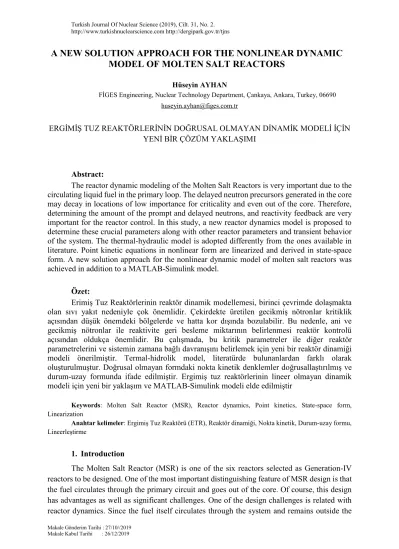

A NEW SOLUTION APPROACH FOR THE NONLINEAR DYNAMIC

MODEL OF MOLTEN SALT REACTORS

Hüseyin AYHAN

FİGES Engineering, Nuclear Technology Department, Çankaya, Ankara, Turkey, 06690 huseyin.ayhan@figes.com.tr

ERGİMİŞ TUZ REAKTÖRLERİNİN DOĞRUSAL OLMAYAN DİNAMİK MODELİ İÇİN YENİ BİR ÇÖZÜM YAKLAŞIMI

Abstract:

The reactor dynamic modeling of the Molten Salt Reactors is very important due to the circulating liquid fuel in the primary loop. The delayed neutron precursors generated in the core may decay in locations of low importance for criticality and even out of the core. Therefore, determining the amount of the prompt and delayed neutrons, and reactivity feedback are very important for the reactor control. In this study, a new reactor dynamics model is proposed to determine these crucial parameters along with other reactor parameters and transient behavior of the system. The thermal-hydraulic model is adopted differently from the ones available in literature. Point kinetic equations in nonlinear form are linearized and derived in state-space form. A new solution approach for the nonlinear dynamic model of molten salt reactors was achieved in addition to a MATLAB-Simulink model.

Özet:

Erimiş Tuz Reaktörlerinin reaktör dinamik modellemesi, birinci çevrimde dolaşmakta olan sıvı yakıt nedeniyle çok önemlidir. Çekirdekte üretilen gecikmiş nötronlar kritiklik açısından düşük önemdeki bölgelerde ve hatta kor dışında bozulabilir. Bu nedenle, ani ve gecikmiş nötronlar ile reaktivite geri besleme miktarının belirlenmesi reaktör kontrolü açısından oldukça önemlidir. Bu çalışmada, bu kritik parametreler ile diğer reaktör parametrelerini ve sistemin zamana bağlı davranışını belirlemek için yeni bir reaktör dinamiği modeli önerilmiştir. Termal-hidrolik model, literatürde bulunanlardan farklı olarak oluşturulmuştur. Doğrusal olmayan formdaki nokta kinetik denklemler doğrusallaştırılmış ve durum-uzay formunda ifade edilmiştir. Ergimiş tuz reaktörlerinin lineer olmayan dinamik modeli için yeni bir yaklaşım ve MATLAB-Simulink modeli elde edilmiştir

Keywords: Molten Salt Reactor (MSR), Reactor dynamics, Point kinetics, State-space form,

Linearization

Anahtar kelimeler: Ergimiş Tuz Reaktörü (ETR), Reaktör dinamiği, Nokta kinetik, Durum-uzay formu,

Lineerleştirme

1. Introduction

The Molten Salt Reactor (MSR) is one of the six reactors selected as Generation-IV reactors to be designed. One of the most important distinguishing feature of MSR design is that the fuel circulates through the primary circuit and goes out of the core. Of course, this design has advantages as well as significant challenges. One of the design challenges is related with reactor dynamics. Since the fuel itself circulates through the system and remains outside the

(2)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

core therefore loss of delayed neutrons outside the core will affect the reactor control mechanism.

In terms of neutron kinetics, the modeling of these reactors is similar to that of solid fuel used in conventional reactors. For the modeling, transit time, during which fuel salt stays outside the core, has to be taken into account. Therefore, a time multiplier term for the delayed neutron precursor is added to neutron kinetics equations (Shimazu, 1978). On the other hand, the thermal-hydraulic models of these reactors are quite different from those of other reactors. The core region of the other conventional reactors is represented by the solid fuel and coolant regions (and maybe moderator region different from coolant region), while MSRs contain only liquid fuel. However, the thermal type MSRs may also have graphite zones in the core.

In the literature, several dynamic models are available for circulating fuel reactors (Cammi & Marcello, 2011; El-Sheikh, 2017; Shimazu, 1978; Singh et al., 2018; Zarei, 2019). These models are generally developed for thermal reactors with a graphite moderator. Therefore, a thermal-hydraulic model is also created for the graphite zone in the core. In these studies, the fuel region is generally modeled as two lumped regions. One of the most significant reason to do this is to be able to write the state equation of the core outlet temperature.

In some studies (El-Sheikh, 2017; Zarei, 2019; Zhang, Qiu & Su, 2009), one or two lumped regions are used for the thermal-hydraulic model. Besides, more than two lumped regions were also used in several studies (Shimazu, 1978; Singh et al., 2018). By increasing the lumped region in the core, the core outlet temperature can be approximated more accurately. In all studies, it is assumed that the core outlet temperature is equal to the average temperature of the upper lumped region.

State-space equations for the thermal-hydraulic modeling of the reactors are generated by using the energy balance for each control volume of the core and heat exchanger (HX) unit. The change in the average temperature of the control volumes can be defined depending on (1) the temperature of the fluid entering that volume, (2) the temperature of the fluid leaving that volume, and (3) the external heat sources.

As above mentioned, when the models available in the literature are examined, for all of them, it is assumed that the outlet temperature of the reactor core is equal to the average temperature of the last of the lumped regions in the core (Cammi & Marcello, 2011; El-Sheikh, 2017; Shimazu, 1978; Singh et al., 2018; Zarei, 2019; Zhang, Qiu & Su, 2009). If the core temperature rise in MSRs is assumed to be around 100 oC, calculation of the core outlet temperature will be quite inaccurate by using this approach in the literature.

In this study, a new approach is proposed to solve this problem. In the core model, energy balance equation for fuel temperature is written without using any assumption and using a single lumped zone. In that condition, one more balance equation has to be taken into account to determine the core outlet temperature. In this study, the required balance equation is formed by using the control volume of the pipeline at the core outlet. Since the temperature difference in the pipe section is very low (compared to the core region) due to the insulation, the core outlet temperature can be calculated more accurately by using this method.

(3)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

2. Materials and Method

In order to solve the thermal and neutronic characteristics of conceptual Molten Salt Reactors, a simplified model for the primary side is adopted. The schematic view of the conceptual MSR is presented in Figure 1.

There are several conceptual designs for MSR available in the literature (Antonio Cammi, Marcello, Luzzi, Memoli, & Ricotti, 2011; Serp et al., 2014). It can be thermal or fast, breeder or burner, chloride fueled or fluoride fueled, etc. In this study, a fast spectrum reactor model is adopted. There is no graphite in the system.

Reactor core consists of only liquid fuel, so the thermal model is created for just one-lumped fuel region. There is one circulating pump located upper side of the heat exchanger unit. For the heat exchanger model, the heat transfer mechanism is simulated with the assumption of a "cooler" operating at a constant temperature. The heat transfer between the hot and cold sides is calculated using average temperatures. The heat transfer coefficient is assumed to be constant.

2.1. Mathematical Model

The point kinetic model of MSR core has been represented with one group of delayed neutrons in this study. For the reactivity feedback mechanism, only the variation in fuel temperature has been considered. The lumped method is used for the fuel salt in both reactor core and heat exchanger units.

Figure 1: Schematic view of the Molten Salt Reactor primary circuit. Tc,i Heat Exchanger Pump 𝒎̇𝒇 Tc,o Th,o Th,i Hc Hh Lp1 Lp2 MSR Core Fuel Salt Tf Th Tsink Tp1 Tp2

(4)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

2.1.1 Reactor neutronics

For the circulating fuel salt, power is generated both inside and outside the core due to the prompt and delayed neutrons. Point kinetic equations derived for these regions are given in Eqs. (1) and (2) (Shimazu, 1978).

𝑑𝑃(𝑡) 𝑑𝑡 = 𝜌𝑛𝑒𝑡(𝑡) − 𝛽𝑒𝑓𝑓 Λ 𝑃(𝑡) + 𝜆𝑒𝑓𝑓𝐶(𝑡), (1) 𝑑𝐶(𝑡) 𝑑𝑡 = 𝛽𝑒𝑓𝑓 Λ 𝑃(𝑡) − 𝜆𝑒𝑓𝑓𝐶(𝑡) − 1 𝜏𝑐𝑜𝑟𝑒𝐶(𝑡) + 𝑒−𝜆𝑒𝑓𝑓𝜏𝑙𝑜𝑜𝑝 𝜏𝑐𝑜𝑟𝑒 𝐶(𝑡 − 𝜏𝑙𝑜𝑜𝑝), (2)

where 𝑃 and 𝐶 represent reactor power and delayed neutron precursor concentration, respectively. The terms 𝜌𝑛𝑒𝑡, 𝛽𝑒𝑓𝑓, 𝜆𝑒𝑓𝑓 and Λ represent net reactivity, effective delayed neutron fraction, effective delayed neutron decay constant and neutron generation time, respectively. 𝜏 represents transit time. Fuel salt passes through the core, pipe section #1, heat exchanger and pipe section #2, respectively and enters the core again (see Figure 1). 𝜏𝑙𝑜𝑜𝑝 represents the transit time out of the core region and it is expressed as, 𝜏𝑙𝑜𝑜𝑝= 𝜏𝑝1+ 𝜏𝑝2+ 𝜏, where subscripts 𝑝1, 𝑝2 and ℎ represent pipe section #1, pipe section #2 and heat exchanger, respectively.

2.1.2 Reactor thermal-hydraulics

The thermodynamic characteristic of the core region is represented by one region fuel lump. The average temperature of the lumped region represents the core fuel temperature. In this study, energy balance is determined via a dimensionless (0-D) model. It is assumed that the specific heat capacity is constant and it is computed at an average temperature of the fuel. The balance equation for the core region can be expressed as

𝑚𝑓𝑐𝑝,𝑓𝑑𝑇𝑓(𝑡)

𝑑𝑡 = 𝑃(𝑡) − 𝑚̇𝑓𝑐𝑝,𝑓[𝑇𝑐,𝑜(𝑡) − 𝑇𝑐,𝑖(𝑡)], (3)

where 𝑚𝑓 and 𝑚̇𝑓 represent the fuel mass in the core and fuel mass flow rate, respectively. 𝑐𝑝,𝑓 represents the average heat capacity of the fuel in the core. 𝑇𝑓, 𝑇𝑐,𝑖 and 𝑇𝑐,𝑜 represent core lumped fuel temperature, core inlet temperature, and core outlet temperature, respectively.

The balance equation for fuel side of the HX unit can be expressed as

𝑚𝑐𝑝,ℎ𝑑𝑇ℎ(𝑡)

𝑑𝑡 = 𝑚̇ℎ𝑐𝑝,ℎ[𝑇ℎ,𝑖(𝑡) − 𝑇ℎ,𝑜(𝑡)] − (𝑈𝐴)ℎ[𝑇ℎ(𝑡) − 𝑇𝑠𝑖𝑛𝑘(𝑡)], (4) where 𝑚ℎ and 𝑚̇ℎ represent the fuel mass in the HX and fuel mass flow rate (𝑚̇ℎ = 𝑚̇𝑓), respectively. 𝑐𝑝,ℎ represents the average heat capacity of the fuel in the HX. 𝑇, 𝑇ℎ,𝑖, 𝑇ℎ,𝑜 and 𝑇𝑠𝑖𝑛𝑘 represent lumped fuel temperature in the HX, inlet temperature of the HX, outlet

(5)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

temperature of the HX and average temperature of the heat sink, respectively. 𝑈 and 𝐴ℎ represent the overall heat transfer coefficient for the HX unit and heat transfer area or the HX, respectively. It is assumed that the overall heat transfer coefficient is constant in this study.

The balance equation for the pipe section #1 can be expressed as

𝑚𝑝1𝑐𝑝,𝑝1𝑑𝑇𝑝1(𝑡)

𝑑𝑡 = 𝑚̇𝑝1𝑐𝑝,𝑝1[𝑇𝑐,𝑜(𝑡) − 𝑇ℎ,𝑖(𝑡)] − (𝑈𝐴)𝑝1[𝑇𝑝1(𝑡) − 𝑇∞], (5) where subscript 𝑝1 represents the pipe section #1. 𝑇𝑝1 and 𝑇∞ represent lumped fuel temperature in pipe section #1 and ambient temperature, respectively. It is assumed that the overall heat transfer coefficient is also constant for pipe section #1.

2.1.3 Reactivity feedback mechanism

The net reactivity for the MSR can be expressed as

𝜌𝑛𝑒𝑡(𝑡) = 𝜌0+ 𝜌𝑒𝑥𝑡(𝑡) − 𝛼𝑓[𝑇𝑓(𝑡) − 𝑇𝑓0], (6)

where 𝜌0 represents initial balancing reactivity, 𝜌𝑒𝑥𝑡 represents external reactivity which can be added with bubbles, 𝛼𝑓 represents the core-fuel temperature coefficient of reactivity and 𝑇𝑓0 represents the steady-state fuel temperature in the core.

2.2. State-Space Representation

The nonlinear differential equations introduced in Section 2.1 may be written in linear form by considering small perturbation around the steady-state operating point. These equations can then be transformed into a state-space model form. Around the steady-state power (𝑃0 and 𝐶0), Eqs. (1) and (2) can be written as

𝛿𝑃(𝑡)̇ = 𝑃0 Λ 𝛿𝜌(𝑡) + 𝛿𝜌(𝑡)𝛿𝑃(𝑡) Λ − 𝛽𝑒𝑓𝑓 Λ 𝛿𝑃(𝑡) + 𝜆𝑒𝑓𝑓𝛿𝐶(𝑡), (7) 𝛿𝐶(𝑡)̇ = 𝛽𝑒𝑓𝑓 Λ 𝛿𝑃(𝑡) − (𝜆𝑒𝑓𝑓+ 1 𝜏𝑐𝑜𝑟𝑒 )𝛿𝐶(𝑡) +𝑒 −𝜆𝑒𝑓𝑓𝜏𝑙𝑜𝑜𝑝 𝜏𝑐𝑜𝑟𝑒 𝛿𝐶(𝑡 − 𝜏𝑙𝑜𝑜𝑝), (8)

where 𝑃(𝑡) = 𝑃0+ 𝛿𝑃(𝑡) , 𝐶(𝑡) = 𝐶0+ 𝛿𝐶(𝑡) and 𝜌(𝑡) = 𝛿𝜌(𝑡) = 𝛼𝑓[𝑇𝑓(𝑡) − 𝑇𝑓0] due to the nature of the reactivity. The reactor has to be critical at steady-state operation, so the reference reactivity (𝜌0+ 𝜌𝑒𝑥𝑡) will be zero at this point.

The nonlinear term, 𝛿𝜌(𝑡)𝛿𝑃(𝑡), is still exist in Eq (7). It can be inferred that the point kinetics equations is linear only for constant reactivity conditions. To perform linear analysis, this second-order term is neglected in this study.

(6)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

𝑇𝑓(𝑡) =1 2[𝑇𝑐,𝑜(𝑡) + 𝑇𝑐,𝑖(𝑡)] (9) and 𝑇ℎ(𝑡) = 1 2[𝑇ℎ,𝑜(𝑡) + 𝑇ℎ,𝑖(𝑡)] (10)

respectively. By taking consideration of the transit times at pipe sections #1 and #2, the following substitutions:

𝑇ℎ,𝑖(𝑡) ≈ 𝑇𝑐,𝑜(𝑡 − 𝜏𝑝1) (11)

and

𝑇𝑐,𝑖(𝑡) ≈ 𝑇ℎ,𝑜(𝑡 − 𝜏𝑝2) (12)

can be made to state the relations between the temperatures. Amount of temperature decrease of fuel salt in the pipeline is neglected due to the insulation. With using Eqs. (9) to (12), Eqs. (3), (4) and (5) can be written in the following forms:

𝑚𝑓𝑐𝑝,𝑓𝑇̇𝑓(𝑡) = 𝑃0 + 𝛿𝑃(𝑡) − 𝑚̇𝑓𝑐𝑝,𝑓[𝑇𝑐,𝑜(𝑡) + 𝑇𝑐,𝑜(𝑡 − 𝜏𝑝1− 𝜏𝑝2) − 2𝑇ℎ(𝑡 − 𝜏𝑝2)], (13) 𝑚𝑐𝑝,ℎ𝑇̇(𝑡) = 2𝑚̇𝑐𝑝,ℎ[𝑇𝑐,𝑜(𝑡 − 𝜏𝑝1) − 𝑇(𝑡)] − (𝑈𝐴)[𝑇(𝑡) − 𝑇𝑠𝑖𝑛𝑘] (14) and 𝑚𝑝1𝑐𝑝,𝑝1𝑇̇𝑐,𝑜(𝑡) = 𝑚̇𝑝1𝑐𝑝,𝑝1[𝑇𝑐,𝑜(𝑡) − 𝑇𝑐,𝑜(𝑡 − 𝜏𝑝1)] − (𝑈𝐴)𝑝1[𝑇𝑐,𝑜(𝑡) + 𝑇𝑐,𝑜(𝑡 − 𝜏𝑝1) − 2𝑇∞]/2 (15)

where 𝑇𝑝1(𝑡) = 1 2⁄ [𝑇𝑐,𝑜(𝑡) + 𝑇𝑐,𝑜(𝑡 − 𝜏𝑝1)]. It is assumed that 𝑇̇𝑝1(𝑡) ≈ 𝑇̇𝑐,𝑜(𝑡) and 𝑇𝑠𝑖𝑛𝑘 is constant.

Finally, for the Eqs. (7), (8), (13), (14) and (15) take the state space form as follows: 𝛿𝑥̇ = 𝐴1𝑥 + 𝐴2𝑥 ∗ 𝛿(𝑡 − 𝜏𝑙𝑜𝑜𝑝) + 𝐴3𝑥 ∗ 𝛿(𝑡 − 𝜏𝑝1) + 𝐴4𝑥

∗ 𝛿(𝑡 − 𝜏𝑝1− 𝜏𝑝2) + 𝐵𝑢, (16)

where

(7)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

𝐴1 = [ −𝛽𝑒𝑓𝑓 Λ 𝜆𝑒𝑓𝑓 𝛼𝑓𝑃0 Λ 0 0 𝛽𝑒𝑓𝑓 Λ −𝜆𝑒𝑓𝑓− 1 𝜏𝑐𝑜𝑟𝑒 0 0 0 1 𝑚𝑓𝑐𝑝,𝑓 0 0 2𝑚̇𝑓 𝑚𝑓 − 𝑚̇𝑓 𝑚𝑓 0 0 0 −2𝑚̇𝑓 𝑚𝑓 − (𝑈𝐴)ℎ 𝑚𝑓𝑐𝑝,ℎ 0 0 0 0 0 𝑚̇𝑓 𝑚𝑓− (𝑈𝐴)𝑝1 2𝑚𝑓𝑐𝑝,𝑝1] , (18) 𝐴2 = [ 0 0 0 0 0 0 𝑒−𝜆𝑒𝑓𝑓𝜏𝑙𝑜𝑜𝑝 𝜏 𝑐𝑜𝑟𝑒 ⁄ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0] , (19) 𝐴3 = [ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2𝑚̇𝑓 𝑚𝑓 0 0 0 0 −𝑚̇𝑓 𝑚𝑓 − (𝑈𝐴)𝑝1 2𝑚𝑓𝑐𝑝,𝑝1] , (20) 𝐴4 = [ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 −𝑚̇𝑓 𝑚𝑓 0 0 0 0 0 0 0 0 0 0 ] , (21) 𝐵 = [ −𝛼𝑓𝑃0 Λ 0 0 0 0 0 0 1 𝑚𝑓𝑐𝑝,𝑓 0 0 0 0 0 (𝑈𝐴)ℎ 𝑚𝑓𝑐𝑝,ℎ 0 0 0 0 0 (𝑈𝐴)𝑝1 𝑚𝑓𝑐𝑝,𝑝1] 𝑇 (22) and 𝑢 = [𝑇𝑓0 𝑃0 𝑇𝑠𝑖𝑛𝑘 𝑇∞]𝑇. (23)

(8)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

It is important to note that 𝑚̇𝑓 = 𝑚̇ = 𝑚̇𝑝1 = 𝑚̇𝑝2 due to the closed-loop operation (variation of expansion tank level is neglected). All physical properties are taken as constant and calculated at the average temperature of lumped regions. Transit time can be calculated by dividing system length (or height) by velocity of the fluid.

3. MATLAB-Simulink Model

The primary loop of MSR is simulated under steady-state condition using MATLAB Simulink (MATLAB-Simulink User’s Guide R2019b, 2019). The dynamic model configuration is presented in Figure 2. Core dynamic model consists of neutronic and thermal-hydraulic coupled system. Coupling is provided with the reactivity feedback mechanism. Therefore, by doing so a tool to make analysis with the new modeling has been generated.

Figure 2: Simulink model

In this tool, the input parameters are external reactivity, ambient temperature and heat sink temperature. The output values are mainly reactor power and the core outlet temperature.

There are several different MSR concepts presented in the literature. Therefore, there is a wide variety of values for both input and output parameters. Table 1 presents the MSR (fast or thermal) parameters and their value ranges that can be used for the developed model and the tool. The proposed model and derived state-space equations can be used for any specific fast MSRs. The equations are written for generic parameters.

Table 1: MSR parameters and the range of values

Parameters Sym. Unit Range in literature (*)

Reactor power P MWth 300 – 3000

Prompt neutron generation time Λ s 10-7 – 10-6

Initial balancing reactivity 𝜌0 pcm 𝛽𝑒𝑓𝑓[

1 − 𝑒−𝜆𝑒𝑓𝑓𝜏𝑙𝑜𝑜𝑝 𝜆𝑒𝑓𝑓𝜏𝑐𝑜𝑟𝑒+ 1 − 𝑒−𝜆𝑒𝑓𝑓𝜏𝑙𝑜𝑜𝑝

]

Steady state external reactivity 𝜌𝑒𝑥𝑡 pcm 𝜌𝑒𝑥𝑡 = −𝜌0

(9)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

Effective delayed neutron decay constant 𝜆𝑒𝑓𝑓 s−1 ~0.06

Core transit time 𝜏𝑐𝑜𝑟𝑒 s ~𝑚𝑓/𝑚̇𝑓

Loop transit time 𝜏𝑙𝑜𝑜𝑝 s 𝜏ℎ+ 𝜏𝑝1+ 𝜏𝑝2

Pipe section #1 transit time 𝜏𝑝1 s ~𝑚𝑝1/𝑚̇𝑓

Pipe section #2 transit time 𝜏𝑝2 s ~𝑚𝑝2/𝑚̇𝑓

Heat exchanger transit time 𝜏ℎ s ~𝑚ℎ/𝑚̇𝑓

Fuel temperature coefficient of reactivity 𝛼𝑓 K-1 ~3.4x10-5

Fuel mass flow rate 𝑚̇𝑓 kg.s-1 depends on the power

Fuel mass in the core 𝑚𝑓 kg 𝑑𝑓@𝑇𝑓𝑉𝑐𝑜𝑟𝑒

Fuel mass in the HX 𝑚ℎ kg 𝑑𝑓@𝑇𝑉ℎ

Fuel mass in the pipe section #1 𝑚𝑝1 kg 𝑑𝑓@𝑇𝑝1𝑉𝑝1

Fuel mass in the pipe section #2 𝑚𝑝2 kg 𝑑𝑓@𝑇𝑝2𝑉𝑝2

Specific heat capacity of the fuel 𝑐𝑝 J.kg−1K−1 −1111 + 2.782𝑇𝑓

Heat exchanger heat transfer coefficient (𝑈𝐴)ℎ W.K−1 𝑃 = 𝑁𝐻𝑋(𝑈𝐴)ℎ∆𝑇𝑙𝑚(**)

Average fuel temperature (in the core) 𝑇𝑓 K ~975

Average fuel temperature (in the HX) 𝑇ℎ K ~975

Average temperature of the heat sink 𝑇𝑠𝑖𝑛𝑘 K 750-900

Ambient temperature 𝑇∞ K ~300

Density of the fuel salt 𝑑𝑓 kg.m-3 4983.56 − 0.882𝑇𝑓

Volume of the core 𝑉𝑐𝑜𝑟𝑒 m3 depends on the power

Volume of the HX 𝑉ℎ m3 depends on the HX capacity

Volume of the pipelines #1, #2 𝑉𝑝1,𝑝2 m3 depends on the design

(*) (Aufiero et al., 2014; Fiorina et al., 2014; Köse, Koç, Erbay, Öğüt, & Ayhan, 2019; Lecce, 2018; Merle-Lucotte

et al., 2012)

(**) 𝑁

𝐻𝑋 represents number of HX unit in the design and ∆𝑇𝑙𝑚 is the log mean temperature difference.

4. Results

In this study general Simulink model was developed for fast type MSRs. There is only liquid fuel in the core. Unlike the thermal MSRs, there is no graphite moderator in the core region. The values in the Table 1 are reactor dependent parameters. There is no available fast type MSR in operation right now. However, there are several publications for the fast type concept MSR. Reactor parameters used in the simulations are presented in Table 2.

Table 2: Fast type MSR parameters used in the simulation

Parameters Value

Reactor power 3000 MWth

Average core temperature 700 oC

Core transit time 2 s

Loop transit time 2 s

Transit time for each pipes 0.1 s

Effective delayed neutron fraction 0.0033

Effective delayed neutron decay constant 0.0611 s-1

Prompt neutron generation time 0.95e-6 s

Fuel temperature coefficient of reactivity 3.4e-5 K-1

Coolant bulk temperature 570 oC

(10)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

For the steady state operation, power profile, precursor concentration and fuel temperature of the core and heat exchanger regions are presented in Figure 3.

Figure 3: Reactor parameters at steady state operation

As seen in Figure 3, the reactor reaches thermal equilibrium at 2.98 GW with the parameters in Table 2. After about 100 s, the reactor reaches steady-state operation level. Temperature differences between the fuel temperatures of the core region and the HX region are so small. There is about 1 K temperature decrease due to the heat loss at pipelines. In this concept reactor, there is 100 K increase in fuel temperature across the core.

The fast type MSRs can be simulated with the proposed model. This model can also be used for perturbation cases. Parameters for the reactor system of fast MSR is adopted from literature (Köse et al., 2019; Lecce, 2018; Merle-Lucotte et al., 2012). The results are consistent with each other and the values are meaningful compared with these studies.

5. Conclusion

There are several dynamic models for thermal Molten Salt Reactors in the literature. In these studies, two or more lumped regions have been used at the reactor core for thermal-hydraulic modeling. Furthermore, in all of them, it is assumed that the core outlet temperature is equal to the average temperature of the upper lumped region. However, by this assumption, calculated core outlet temperature will be inaccurate due to the significant temperature rise in the reactor core.

For all types of MSR, one of the main concern is circulating fuel. For thermal or fast spectrum types, there are no significant differences in terms of the core dynamic model for the fuel side. On the other hand, there is a significant difference in the thermal reactor model due

(11)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

to the moderator region. Graphite region has to be modeled due to the feedback effect of moderator temperature in the thermal MSRs. There is no moderator region in the fast MSRs.

In this study, a new dynamic model is proposed for the fast MSRs. One lumped region has been adopted for reactor core since there is only fuel salt in the core. The energy balance for the core outlet temperature has been determined using pipeline temperature. The nonlinear point kinetic equation has been linearized about the point of steady-state operation condition. State-space form was obtained and MATLAB-Simulink model was created using this form. The proposed model was tested for conceptual reactor using available data from the literature. The proposed final model can be used for all kinds of fast MSR since generic parameters for the fast type MSRs are used in this model.

6. References

1) Aufiero, M., Cammi, A., Geoffroy, O., Losa, M., Luzzi, L., Ricotti, M. E., & Rouch, H. (2014). Development of an OpenFOAM model for the Molten Salt Fast Reactor transient

analysis. Chemical Engineering Science, 111, 390–401.

https://doi.org/10.1016/j.ces.2014.03.003

2) Cammi, A, & Marcello, V. Di. (2011). Transfer Function Modeling of Zero-Power Dynamics of Circulating Fuel Reactors. Journal of Engineering for Gas Turbines and Power, 133, 1–8. https://doi.org/10.1115/1.4002880

3) Cammi, Antonio, Marcello, V. Di, Luzzi, L., Memoli, V., & Ricotti, M. E. (2011). A multi-physics modelling approach to the dynamics of Molten Salt Reactors. Annals of Nuclear Energy, 38(6), 1356–1372. https://doi.org/10.1016/j.anucene.2011.01.037

4) El-Sheikh, B. M. (2017). Kinetic Analysis of Molten Salt Reactors. Arab Journal of Nuclear Sciences and Applications, 50(4), 201–212.

5) Fiorina, C., Lathouwers, D., Aufiero, M., Cammi, A., Guerrieri, C., Leen, J. & Enrico, M. (2014). Modelling and analysis of the MSFR transient behaviour. Annals of Nuclear Energy, 64, 485–498. https://doi.org/10.1016/j.anucene.2013.08.003

6) Köse, U., Koç, U., Erbay, L. B., Öğüt, E. & Ayhan, H. (2019). Heat exchanger design studies for Molten Salt Fast Reactor. EPJ Nuclear Science & Technology. https://doi.org/https://doi.org/10.1051/epjn/2019032

7) Lecce, F. Di. (2018). Neutronic and thermal-hydraulic simulations for Molten Salt Fast Reactor safety assessment. Politecnico Di Torino.

8) MATLAB-Simulink User’s Guide R2019b. (2019). The MathWorks Inc. Retrieved from https://www.mathworks.com/help/pdf_doc/simulink/sl_using.pdf

9) Merle-Lucotte, E., Heuer, D., Allibert, M., Brovchenko, M., Ghetta, V., Laureau, A., & Rubiolo, P. (2012). Preliminary Design Assessment of the Molten Salt Fast Reactor. In ECN-2012: Transactions Advanced Reactors (pp. 17–26).

10) Serp, J., Allibert, M., Ghetta, V., Heuer, D., Holcomb, D., Ignatiev, V. & Zhimin, D. (2014). The molten salt reactor (MSR) in Generation IV: Overview and perspectives. Progress in Nuclear Energy, 77, 308–319. https://doi.org/10.1016/j.pnucene.2014.02.014

(12)

Makale Gönderim Tarihi : 27/10//2019 Makale Kabul Tarihi : 26/12/2019

11) Shimazu, Y. (1978). Nuclear Safety Analysis of a Molten Salt Breeder Reactor. Journal of Nuclear Science and Technology, 522(July), 514–522.

12) Singh, V., Lish, M. R., Wheeler, A. M., Chvála, O., Singh, V., Lish, M. R. & Upadhyaya, B. R. (2018). Dynamic Modeling and Performance Analysis of a Two-Fluid

Molten Salt Breeder Reactor System. Nuclear Technology, 1–24.

https://doi.org/10.1080/00295450.2017.1416879

13) Zarei, M. (2019). A refined time-delay modeling of the molten salt reactor

dynamics. Progress in Nuclear Energy, 117, 103102.

https://doi.org/10.1016/j.pnucene.2019.103102

14) Zhang, D., Qiu, S. & Su, G. (2009). Development of a safety analysis code for molten

salt reactors. Nuclear Engineering and Design, 239, 2778–2785.
