Recommended installation height
Önerilen kurulum yüksekliği
2m to 10m
2 ile 10m CE Certificate
CE sertifika
Yes Evet ROHS compliant
ROHS uyumu
Yes Evet CCT
Renk Sıcaklığı
4000K (Standard)
CRI
Renk Geri Verim İndeksi
> 80+
Power Güç
12W
Luminaire Light Output Armatür Işık Akısı
768Lm
Efficacy Etkinlik Faktörü
64Lm/W
EEI
Enerji Verimliliği İndeksi
0.20
Energy Efficiency Class Enerji Verimliliği Sınıfı
A
Testing standard Test Standartları
EN 60598-1 EN 60598-2-1 EN 60529 IEC TR 62778 LM 79-08 Warranty
Garanti
3 Years 3 Yıl
High efficacy best class LED Yüksek verimli en iyi sınıf LED
ENEC Certificated LED Driver ENEC Sertifikalı LED sürücü
Işık Dağılım Seçenekleri Light distribution options
1/3hours Emergency Kit Available 1/3 saat Acil Aydınlatma Seçeneği Body
Gövde
Aluminum Extrusion Alüminyum Ekstrüzyon Dimensions (mm)
Boyutlar(mm)
135x33x72mm
IP
Koruma Sınıfı
IP40
Colour Options Renk Seçeneği
BLACK RAL9005-WHITE RAL9016
Input Voltage Giriş Gerilimi (V)
200~240 VAC
PF (Power Factor) Güç Faktörü
> 95
Dimmable Options Opsiyonlar
1-10V, TRIAC, DALI
Electromagnetic compatibility (EMC) Elektromanyetik Uyumluluk
EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN61000-4:2,3,4,5,6,11, EN 61547:2009, EN62384, EN 62493:2015
LED SAMSUNG LED Diffüser/Difüzör Reflector + PC Cover LED Lifetime/Ömrü 50.000 Hours Beam Angles/Optik 15° - 24°- 36°
LED color 2700K-3000K-4000K-5000K-6500K Temperature
Renk sıcaklığı
(Standard) 4000K 230° - 60° - 90°-110°

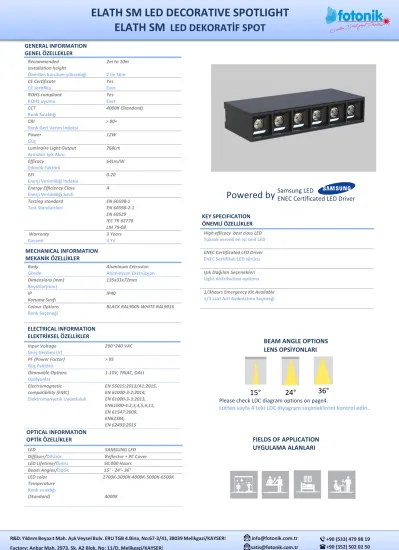

ELATH SM LED DECORATIVE SPOTLIGHT ELATH SM LED DEKORATİF SPOT
GENERAL INFORMATION GENEL ÖZELLEKLER
Powered by Samsung LED
24° 36°
Please check LDC diagram options on page4.
Lütfen sayfa 4'teki LDC diyagram seçeneklerini kontrol edin.
KEY SPECIFICATION ÖNEMLİ ÖZELLİKLER
MECHANICAL INFORMATION MEKANİK ÖZELLİKLER
BEAM ANGLE OPTIONS LENS OPSİYONLARI
FIELDS OF APPLICATION UYGULAMA ALANLARI ELECTRICAL INFORMATION
ELEKTRİKSEL ÖZELLİKLER
OPTICAL INFORMATION OPTİK ÖZELLİKLER
15°
ENEC Certificated LED Driver
R&D: Yıldırım Beyazıt Mah. Aşık Veysel Bulv. ERU TGB 4.Bina, No:67-3/41, 38039 Melikgazi/KAYSERİ Factory: Anbar Mah. 2973. Sk. A2 Blok, No: 11/D, Melikgazi/KAYSERİ
PAGE : 2/6 info@fotonik.com.tr
satis@fotonik.com.tr
+90 (533) 479 98 19 +90 (352) 502 02 50
OTHER OPTIONS DİĞER OPSİYONLAR
Order Code Sipariş Kodu
Product Name Ürün Adı
Body Color Gövde Rengi
CCT Renk Sıcaklığı
CRI Renksel Geri Verim İndeksi
Power (W) Güç
Light Output
(lm) Lümen
Beam Angle Işık Açısı
Efficacy (lm/W) Etkinlik Faktörü
Dimension (mm) Boyut
150.25.1324 ELATH 3P LED DECORATIVE SPOTLIGHT 27800715WSM White 2700K 80+ 7 392 15° 56 83x33x74mm 150.25.1325 ELATH 3P LED DECORATIVE SPOTLIGHT 30800715WSM White 3000K 80+ 7 420 15° 60 83x33x74mm 150.25.1326 ELATH 3P LED DECORATIVE SPOTLIGHT 40800715WSM White 4000K 80+ 7 448 15° 64 83x33x74mm 150.25.1327 ELATH 3P LED DECORATIVE SPOTLIGHT 50800715WSM White 5000K 80+ 7 455 15° 65 83x33x74mm 150.25.1328 ELATH 3P LED DECORATIVE SPOTLIGHT 65800715WSM White 6500K 80+ 7 448 15° 64 83x33x74mm 150.25.1329 ELATH 3P LED DECORATIVE SPOTLIGHT 27800724WSM White 2700K 80+ 7 392 24° 56 83x33x74mm 150.25.1330 ELATH 3P LED DECORATIVE SPOTLIGHT 30800724WSM White 3000K 80+ 7 420 24° 60 83x33x74mm 150.25.1331 ELATH 3P LED DECORATIVE SPOTLIGHT 40800724WSM White 4000K 80+ 7 448 24° 64 83x33x74mm 150.25.1332 ELATH 3P LED DECORATIVE SPOTLIGHT 50800724WSM White 5000K 80+ 7 455 24° 65 83x33x74mm 150.25.1333 ELATH 3P LED DECORATIVE SPOTLIGHT 65800724WSM White 6500K 80+ 7 448 24° 64 83x33x74mm 150.25.1334 ELATH 3P LED DECORATIVE SPOTLIGHT 27800736WSM White 2700K 80+ 7 392 36° 56 83x33x74mm 150.25.1335 ELATH 3P LED DECORATIVE SPOTLIGHT 30800736WSM White 3000K 80+ 7 420 36° 60 83x33x74mm 150.25.1336 ELATH 3P LED DECORATIVE SPOTLIGHT 40800736WSM White 4000K 80+ 7 448 36° 64 83x33x74mm 150.25.1337 ELATH 3P LED DECORATIVE SPOTLIGHT 50800736WSM White 5000K 80+ 7 455 36° 65 83x33x74mm 150.25.1338 ELATH 3P LED DECORATIVE SPOTLIGHT 65800736WSM White 6500K 80+ 7 448 36° 64 83x33x74mm 150.25.1339 ELATH 5P LED DECORATIVE SPOTLIGHT 27801215WSM White 2700K 80+ 12 660 15° 55 135x33x72mm 150.25.1340 ELATH 5P LED DECORATIVE SPOTLIGHT 30801215WSM White 3000K 80+ 12 708 15° 59 135x33x72mm 150.25.1341 ELATH 5P LED DECORATIVE SPOTLIGHT40801215WSM White 4000K 80+ 12 756 15° 63 135x33x72mm 150.25.1342 ELATH 5P LED DECORATIVE SPOTLIGHT50801215WSM White 5000K 80+ 12 768 15° 64 135x33x72mm 150.25.1343 ELATH 5P LED DECORATIVE SPOTLIGHT 65801215WSM White 6500K 80+ 12 756 15° 63 135x33x72mm 150.25.1344 ELATH 5P LED DECORATIVE SPOTLIGHT 27801224WSM White 2700K 80+ 12 660 24° 55 135x33x72mm 150.25.1345 ELATH 5P LED DECORATIVE SPOTLIGHT 30801224WSM White 3000K 80+ 12 708 24° 59 135x33x72mm 150.25.1346 ELATH 5P LED DECORATIVE SPOTLIGHT 40801224WSM White 4000K 80+ 12 756 24° 63 135x33x72mm 150.25.1347 ELATH 5P LED DECORATIVE SPOTLIGHT 50801224WSM White 5000K 80+ 12 768 24° 64 135x33x72mm 150.25.1348 ELATH 5P LED DECORATIVE SPOTLIGHT 65801224WSM White 6500K 80+ 12 756 24° 63 135x33x72mm 150.25.1349 ELATH 5P LED DECORATIVE SPOTLIGHT 27801236WSM White 2700K 80+ 12 660 36° 55 135x33x72mm 150.25.1350 ELATH 5P LED DECORATIVE SPOTLIGHT 30801236WSM White 3000K 80+ 12 708 36° 59 135x33x72mm 150.25.1351 ELATH 5P LED DECORATIVE SPOTLIGHT 40801236WSM White 4000K 80+ 12 756 36° 63 135x33x72mm 150.25.1352 ELATH 5P LED DECORATIVE SPOTLIGHT 50801236WSM White 5000K 80+ 12 768 36° 64 135x33x72mm 150.25.1353 ELATH 5P LED DECORATIVE SPOTLIGHT 65801236WSM White 6500K 80+ 12 756 36° 63 135x33x72mm 150.25.1354 ELATH 6P LED DECORATIVE SPOTLIGHT 27801315WSM White 2700K 80+ 13 793 15° 61 162x33x74mm 150.25.1360 ELATH 6P LED DECORATIVE SPOTLIGHT 30801315WSM White 3000K 80+ 13 845 15° 65 162x33x74mm 150.25.1361 ELATH 6P LED DECORATIVE SPOTLIGHT40801315WSM White 4000K 80+ 13 897 15° 69 162x33x74mm 150.25.1362 ELATH 6P LED DECORATIVE SPOTLIGHT50801315WSM White 5000K 80+ 13 910 15° 70 162x33x74mm 150.25.1363 ELATH 6P LED DECORATIVE SPOTLIGHT 65801315WSM White 6500K 80+ 13 897 15° 69 162x33x74mm 150.25.1364 ELATH 6P LED DECORATIVE SPOTLIGHT 27801324WSM White 2700K 80+ 13 793 24° 61 162x33x74mm 150.25.1365 ELATH 6P LED DECORATIVE SPOTLIGHT 30801324WSM White 3000K 80+ 13 845 24° 65 162x33x74mm 150.25.1366 ELATH 6P LED DECORATIVE SPOTLIGHT 40801324WSM White 4000K 80+ 13 897 24° 69 162x33x74mm 150.25.1367 ELATH 6P LED DECORATIVE SPOTLIGHT 50801324WSM White 5000K 80+ 13 910 24° 70 162x33x74mm 150.25.1368 ELATH 6P LED DECORATIVE SPOTLIGHT 65801324WSM White 6500K 80+ 13 897 24° 69 162x33x74mm 150.25.1369 ELATH 6P LED DECORATIVE SPOTLIGHT 27801336WSM White 2700K 80+ 13 793 36° 61 162x33x74mm 150.25.1370 ELATH 6P LED DECORATIVE SPOTLIGHT 30801336WSM White 3000K 80+ 13 845 36° 65 162x33x74mm 150.25.1371 ELATH 6P LED DECORATIVE SPOTLIGHT 40801336WSM White 4000K 80+ 13 897 36° 69 162x33x74mm 150.25.1372 ELATH 6P LED DECORATIVE SPOTLIGHT 50801336WSM White 5000K 80+ 13 910 36° 70 162x33x74mm 150.25.1373 ELATH 6P LED DECORATIVE SPOTLIGHT 65801336WSM White 6500K 80+ 13 897 36° 69 162x33x74mm
Order Code
Sipariş Kodu
Product Name Ürün Adı
Body Color Gövde Rengi
CCT Renk Sıcaklığı
CRI Renksel Geri Verim İndeksi
Power (W) Güç
Light Output
(lm) Lümen
Beam Angle Işık Açısı
Efficacy (lm/W)
Etkinlik Faktörü
Dimension (mm) Boyut 150.25.1280 ELATH 3P LED DECORATIVE SPOTLIGHT 27800715BSM Black 2700K 80+ 7 392 15° 56 83x33x74mm 150.25.1281 ELATH 3P LED DECORATIVE SPOTLIGHT 30800715BSM Black 3000K 80+ 7 420 15° 60 83x33x74mm 150.25.1282 ELATH 3P LED DECORATIVE SPOTLIGHT 40800715BSM Black 4000K 80+ 7 448 15° 64 83x33x74mm 150.25.1283 ELATH 3P LED DECORATIVE SPOTLIGHT 50800715BSM Black 5000K 80+ 7 455 15° 65 83x33x74mm 150.25.1284 ELATH 3P LED DECORATIVE SPOTLIGHT 65800715BSM Black 6500K 80+ 7 448 15° 64 83x33x74mm 150.25.1285 ELATH 3P LED DECORATIVE SPOTLIGHT 27800724BSM Black 2700K 80+ 7 392 24° 56 83x33x74mm 150.25.1286 ELATH 3P LED DECORATIVE SPOTLIGHT 30800724BSM Black 3000K 80+ 7 420 24° 60 83x33x74mm 150.25.1287 ELATH 3P LED DECORATIVE SPOTLIGHT 40800724BSM Black 4000K 80+ 7 448 24° 64 83x33x74mm 150.25.1288 ELATH 3P LED DECORATIVE SPOTLIGHT 50800724BSM Black 5000K 80+ 7 455 24° 65 83x33x74mm 150.25.1289 ELATH 3P LED DECORATIVE SPOTLIGHT 65800724BSM Black 6500K 80+ 7 448 24° 64 83x33x74mm 150.25.1290 ELATH 3P LED DECORATIVE SPOTLIGHT 27800736BSM Black 2700K 80+ 7 392 36° 56 83x33x74mm 150.25.1291 ELATH 3P LED DECORATIVE SPOTLIGHT 30800736BSM Black 3000K 80+ 7 420 36° 60 83x33x74mm 150.25.1292 ELATH 3P LED DECORATIVE SPOTLIGHT 40800736BSM Black 4000K 80+ 7 448 36° 64 83x33x74mm 150.25.1293 ELATH 3P LED DECORATIVE SPOTLIGHT 50800736BSM Black 5000K 80+ 7 455 36° 65 83x33x74mm 150.25.1294 ELATH 3P LED DECORATIVE SPOTLIGHT 65800736BSM Black 6500K 80+ 7 448 36° 64 83x33x74mm 150.25.1295 ELATH 5P LED DECORATIVE SPOTLIGHT 27801215BSM Black 2700K 80+ 12 660 15° 55 135x33x72mm 150.25.1296 ELATH 5P LED DECORATIVE SPOTLIGHT 30801215BSM Black 3000K 80+ 12 708 15° 59 135x33x72mm 150.25.1297 ELATH 5P LED DECORATIVE SPOTLIGHT40801215BSM Black 4000K 80+ 12 756 15° 63 135x33x72mm 150.25.1298 ELATH 5P LED DECORATIVE SPOTLIGHT50801215BSM Black 5000K 80+ 12 768 15° 64 135x33x72mm 150.25.1299 ELATH 5P LED DECORATIVE SPOTLIGHT 65801215BSM Black 6500K 80+ 12 756 15° 63 135x33x72mm 150.25.1300 ELATH 5P LED DECORATIVE SPOTLIGHT 27801224BSM Black 2700K 80+ 12 660 24° 55 135x33x72mm 150.25.1301 ELATH 5P LED DECORATIVE SPOTLIGHT 30801224BSM Black 3000K 80+ 12 708 24° 59 135x33x72mm 150.25.1302 ELATH 5P LED DECORATIVE SPOTLIGHT 40801224BSM Black 4000K 80+ 12 756 24° 63 135x33x72mm 150.25.1303 ELATH 5P LED DECORATIVE SPOTLIGHT 50801224BSM Black 5000K 80+ 12 768 24° 64 135x33x72mm 150.25.1304 ELATH 5P LED DECORATIVE SPOTLIGHT 65801224BSM Black 6500K 80+ 12 756 24° 63 135x33x72mm 150.25.1884 ELATH 5P LED DECORATIVE SPOTLIGHT 27801236BSM Black 2700K 80+ 12 660 36° 55 135x33x72mm 150.25.1305 ELATH 5P LED DECORATIVE SPOTLIGHT 30801236BSM Black 3000K 80+ 12 708 36° 59 135x33x72mm 150.25.1306 ELATH 5P LED DECORATIVE SPOTLIGHT 40801236BSM Black 4000K 80+ 12 756 36° 63 135x33x72mm 150.25.1307 ELATH 5P LED DECORATIVE SPOTLIGHT 50801236BSM Black 5000K 80+ 12 768 36° 64 135x33x72mm 150.25.1308 ELATH 5P LED DECORATIVE SPOTLIGHT65801236BSM Black 6500K 80+ 12 756 36° 63 135x33x72mm 150.25.1309 ELATH 6P LED DECORATIVE SPOTLIGHT 27801315BSM Black 2700K 80+ 13 793 15° 61 162x33x74mm 150.25.1310 ELATH 6P LED DECORATIVE SPOTLIGHT 30801315BSM Black 3000K 80+ 13 845 15° 65 162x33x74mm 150.25.1311 ELATH 6P LED DECORATIVE SPOTLIGHT40801315BSM Black 4000K 80+ 13 897 15° 69 162x33x74mm 150.25.1312 ELATH 6P LED DECORATIVE SPOTLIGHT50801315BSM Black 5000K 80+ 13 910 15° 70 162x33x74mm 150.25.1313 ELATH 6P LED DECORATIVE SPOTLIGHT 65801315BSM Black 6500K 80+ 13 897 15° 69 162x33x74mm 150.25.1314 ELATH 6P LED DECORATIVE SPOTLIGHT 27801324BSM Black 2700K 80+ 13 793 24° 61 162x33x74mm 150.25.1315 ELATH 6P LED DECORATIVE SPOTLIGHT 30801324BSM Black 3000K 80+ 13 845 24° 65 162x33x74mm 150.25.1316 ELATH 6P LED DECORATIVE SPOTLIGHT 40801324BSM Black 4000K 80+ 13 897 24° 69 162x33x74mm 150.25.1317 ELATH 6P LED DECORATIVE SPOTLIGHT 50801324BSM Black 5000K 80+ 13 910 24° 70 162x33x74mm 150.25.1318 ELATH 6P LED DECORATIVE SPOTLIGHT 65801324BSM Black 6500K 80+ 13 897 24° 69 162x33x74mm 150.25.1319 ELATH 6P LED DECORATIVE SPOTLIGHT 27801336BSM Black 2700K 80+ 13 793 36° 61 162x33x74mm 150.25.1320 ELATH 6P LED DECORATIVE SPOTLIGHT 30801336BSM Black 3000K 80+ 13 845 36° 65 162x33x74mm 150.25.1321 ELATH 6P LED DECORATIVE SPOTLIGHT 40801336BSM Black 4000K 80+ 13 897 36° 69 162x33x74mm 150.25.1322 ELATH 6P LED DECORATIVE SPOTLIGHT 50801336BSM Black 5000K 80+ 13 910 36° 70 162x33x74mm 150.25.1323 ELATH 6P LED DECORATIVE SPOTLIGHT 65801336BSM Black 6500K 80+ 13 897 36° 69 162x33x74mm
R&D: Yıldırım Beyazıt Mah. Aşık Veysel Bulv. ERU TGB 4.Bina, No:67-3/41, 38039 Melikgazi/KAYSERİ Factory: Anbar Mah. 2973. Sk. A2 Blok, No: 11/D, Melikgazi/KAYSERİ
PAGE : 4/6 info@fotonik.com.tr
satis@fotonik.com.tr
+90 (533) 479 98 19 +90 (352) 502 02 50
DIMENSIONS BOYUTLAR
Beam Angle : 15°
Optik :15°
Beam Angle : 36°
Optik: 36°
LIGHT DISTRIBUTION CURVE OPTIONS IŞIK DAĞILIM EĞRİSİ SEÇENEKLERİ
Beam Angle : 24°
Optik :24°
FOR ELATH 3P LED DECORATIVE SPOTLIGHT Dimensions
ELATH 3P LED DECORATIVE SPOTLIGHT için Boyutlar
FOR ELATH 5P LED DECORATIVE SPOTLIGHT Dimensions ELATH 5P LED DECORATIVE SPOTLIGHT için Boyutlar
FOR ELATH 6P LED DECORATIVE SPOTLIGHT Dimensions
ELATH 6P LED DECORATIVE SPOTLIGHT için Boyutlar
