目前已有數種改善中風及脊髓損傷病患手部功能的功能性電刺激系統被發表或上市供病患使用，其可分 為兩大類：植入式功能性電刺激系統及表面式功能性電刺激系統。這兩類系統各有其優缺點，基本功 能上均可完成抓握及側夾的動作，而無法成功再生精細且常用的拿握動作卻是現有系統的共同缺點。
依電刺激的手部肌肉群來分析，這些功能性電刺激抓握系統大致上均以伸指肌肉群、屈指肌肉群及姆 指肌肉群為主要刺激標的肌肉。最近有學者研究發現，手內部肌肉群（ Intrinsic muscles ）在完成手 指伸張及縮屈動作上具有相當程度的輔助作用，而在目前功能性電刺激的發展上，除了姆指掌肌肉群
（ Thenar muscles ）外，少有人將其他手內部肌肉群識為重要刺激標的。因此本研究便是針對手內部 肌肉群，加以納入成為電刺激的標的肌肉，以此新模式的功能性電刺激評估其手部抓握能力。
本研究是以兩個電刺激調節器（ Respond II ）及三對表面式電極貼片，配合新電刺激模式組成簡易型 表面式功能性電刺激器。此種電刺激模式的三對表面式電極貼片分別放置在：前臂外側、前臂內側及 手掌背面，利用電刺激器分別刺激伸指肌肉群、屈指肌肉群及手內部肌肉群，並加上背側手腕固定副 木以限制腕部活動，來完成抓握功能。評估方面，以 ENRAF MYOMED 932 的電刺激模式來當作電 刺激器，使用 Cyber Glove 系統及 Biometrics 系統分別來量測刺激前後關節角度及抓握力量的變化，
並建立電流強度與關節角度及抓握力量之相關性；以抓握功能測驗（ GFT ）來評估手部功能，包括 抓握、拿握及夾握等的完成度。初步篩選五位健康受試者的右手及一名中風病患的左手，接受新模式 功能性電刺激，測試其刺激前後關節角度、抓握力量、側夾力量、拿握力量及抓握能力，最後收集結 果並加以探討。
結果發現，在新刺激模式下，五位健康受試者均能成功模擬各項抓握動作，其中四位在關節角度及抓 握力量的變化上亦都相當類似，並且在適當的”協同刺激”下均可順利完成抓握功能測驗；該名中風 病患的抓握力量變化的趨勢與正常受測者相似，但是對電刺激強度的敏感性及抓握力量強度的大小，
明顯不如正常人，肌肉疲乏的速度亦較正常人快，可能與長期失用導致肌肉萎縮有關。結論認為，以 手內部肌肉群為重要電刺激標的的新電刺激模式，的確可輔助完成手部抓握、側夾及精細的拿握功能
，對將來架構上肢表面式功能性電刺激抓握系統會有相當大的幫助。

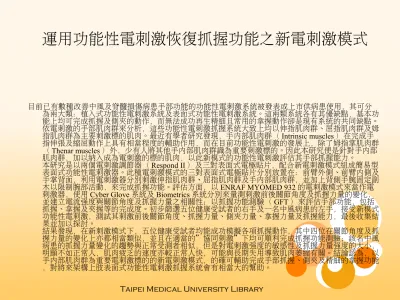

運用功能性電刺激恢復抓握功能之新電刺激模式
Those quadriplegics or hemiplegics who lost their grasp function cannot independently perform activities of daily life (ADL), such as eating, drinking, writing, etc. Being unable to perform these activities independently, the quality of life of the patients is much degraded and it may increase the loading to their families both economically and psychologically. As many researche s showed that functional electrical stimulation (FES) can be used to restore hand function of cervical level spinal cord injury (SCI) and stroke patients. This is achieved by coordination between thumb and other four fingers movement. However, those FES systems still remain many defects which need to be modified for an ideal grasping system. Several studies had investigat ed the function of the hand intrinsic muscles for grasping. They found that electrical stimulation (ES) of the hand intrinsic mu scles may be useful for improving grasp function of disabilities. Therefore, it is our main goal to develop a new ES model by i ncluding the hand intrinsic muscles as stimulating target muscles for quadriplegics and hemiplegics, to improve their quality o f life by restoration of grasp function.
We took two ES regulator and stimulator (Respond II) and three paired surface electrodes to set up a simple surface FES syste m. A wrist fixation splint was custom-made for restriction of wrist motion. The stimulating target sites for generating grasp fu nction of our ES model were dorsal side of forearm (finger extensor muscles group), volar side of forearm (finger flexor musc les group) and dorsal side of hand (hand intrinsic muscles group). In outcome measures, we designed three evaluation tests: ra nge of motion (ROM) test, grasp force test and grasp function test (GFT). At first, we used Cyber Glove system to record rang e of motion (ROM) of subjects’ hands which was elicited by ES. The second test, we used dynamometer of Biometrics system to detect the grasp and pinch forces which were activated by stimulation of flexor or hand intrinsic muscles. The relationship between intensity of ES and ROM or grasp force was also investigated. The third test, grasp function test (include spherical gr ip, cylinder grip, precision grip, lateral pinch and tapping) was evaluated by using ordinary stuff such as: Small ball, cup, bottl e, small cube, pen, floppy disc and telephone. We included five healthy volunteers and one stroke patient for this study.
New ES model FES system was applied in all volunteers’ hands successfully. The movement patterns of hands were similar i n all subjects during electrical stimulation of each muscles group. After optimal adjustment of ES intensity and duration for c o-contraction of those three muscles groups, each subject could do all grasp function task (GFT) smoothly. Especially, precisi on grasp could be induced by electrically co-activation of intrinsic muscles and finger flexor muscles to use pen and take a cu be. Muscle strengths were also enough to perform ADL in all subjects. But, the sensitivity and force generation of patient’s ha nd were small than normal subjects significantly. Those might related with disuse atrophy of paralyzed hand of this stroke pati ent. Finally, we concluded, the primary application of the novel ES model is quite successful for restoring grasp function in n ormal subjects and disability subjects. It will be very helpful to build a new surface FES grasp system for disability patients in the future.
A Novel Functional Electrical Stimulation Method for the Restoration of Precision Grasping Functions
