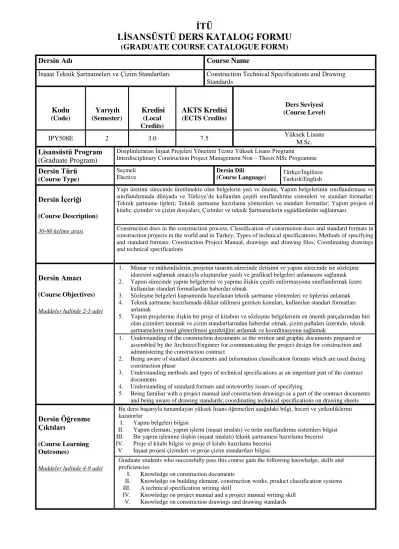

İTÜ
LİSANSÜSTÜ DERS KATALOG FORMU
(GRADUATE COURSE CATALOGUE FORM)
Dersin Adı Course Name
İnşaat Teknik Şartnameleri ve Çizim Standartları Construction Technical Specifıcations and Drawing Standards
Kodu
(Code)Yarıyılı
(Semester)Kredisi
(Local Credits)AKTS Kredisi
(ECTS Credits)Ders Seviyesi (Course Level)
IPY508E 2 3.0 7.5 Yüksek Lisans
M.Sc.
Lisansüstü Program (Graduate Program)
Disiplinlerarası İnşaat Projeleri Yönetimi Tezsiz Yüksek Lisans Programı
Interdisciplinary Construction Project Management Non – Thesis MSc Programme
Dersin Türü
(Course Type)Seçmeli Elective
Dersin Dili
(Course Language) Türkçe/İngilizce Turkish/English
Dersin İçeriği
(Course Description) 30-60 kelime arasıYapı üretimi sürecinde üretilmekte olan belgelerin yeri ve önemi, Yapım belgelerinin sınıflandırması ve sınıflandırmada dünyada ve Türkiye’de kullanılan çeşitli sınıflandırma sistemleri ve standart formatlar;
Teknik şartname tipleri; Teknik şartname hazırlama yöntemleri ve standart formatlar; Yapım projesi el kitabı; çizimler ve çizim dosyaları; Çizimler ve teknik Şartnamelerin eşgüdümünün sağlanması
Construction docs in the construction process, Classification of construction docs and standard formats in construction projects in the world and in Turkey; Types of technical specifications; Methods of specifying and standard formats; Construction Project Manual, drawings and drawing files; Coordinating drawings and technical specifications
Dersin Amacı
(Course Objectives) Maddeler halinde 2-5 adet1. Mimar ve mühendislerin, projenin tasarım sürecinde iletişimi ve yapım sürecinde ise sözleşme idaresini sağlamak amacıyla oluşturulan yazılı ve grafiksel belgeleri anlamasını sağlamak 2. Yapım sürecinde yapım belgelerini ve yapıma ilişkin çeşitli enformasyonu sınıflandırmak üzere
kullanılan standart formatlardan haberdar olmak
3. Sözleşme belgeleri kapsamında hazırlanan teknik şartname yöntemleri ve tiplerini anlamak 4. Teknik şartname hazırlamada dikkat edilmesi gereken konuları, kullanılan standart formatları
anlamak
5. Yapım projelerine ilişkin bir proje el kitabını ve sözleşme belgelerinin en önemli parçalarından biri olan çizimleri tanımak ve çizim standartlarından haberdar olmak, çizim paftaları üzerinde, teknik şartnamelerin nasıl gösterilmesi gerektiğini anlamak ve koordinasyonu sağlamak
1. Understanding of the construction documents as the written and graphic documents prepared or assembled by the Architect/Engineer for communicating the project design for construction and administering the construction contract
2. Being aware of standard documents and information classification formats which are used during construction phase
3. Understanding methods and types of technical specifications as an important part of the contract documents
4. Understanding of standard formats and noteworthy issues of specifying
5. Being familiar with a project manual and construction drawings as a part of the contract documents and being aware of drawing standards; coordinating technical specifications on drawing sheets
Dersin Öğrenme Çıktıları
(Course Learning Outcomes)
Maddeler halinde 4-9 adet
Bu dersi başarıyla tamamlayan yüksek lisans öğrencileri aşağıdaki bilgi, beceri ve yetkinliklerini kazanırlar
I. Yapım belgeleri bilgisi
II. Yapım elemanı, yapım işlemi (inşaat imalatı) ve ürün sınıflandırma sistemleri bilgisi III. Bir yapım işlemine ilişkin (inşaat imalatı) teknik şartnamesi hazırlama becerisi IV. Proje el kitabı bilgisi ve proje el kitabı hazırlama becerisi
V. İnşaat projesi çizimleri ve proje çizim standartları bilgisi
Graduate students who successfully pass this course gain the following knowledge, skills and proficiencies
I. Knowledge on construction documents
II. Knowledge on building element, construction works, product classification systems III. A technical specification writing skill
IV. Knowledge on project manual and a project manual writing skill V. Knowledge on construction drawings and drawing standards
Kaynaklar
(References)
En önemli 5 adedini belirtiniz
1. Rosen, H. J. and Regener J., 2004: Construction Specifications Writing (Principles And Procedures), 4th Edition. John Wiley & Sons, New York, ABD.
2. The Construction Specification Institute, 2005: The Project Resource Manual: CSI Manual Of Practice, 5th Edition. Macgraw-Hill, New York, ABD.
3. Arcom Masterspec Ve Specware Specification Development Software Tool, 2010.
4. Meier, H. W., and Wyatt, D. J., 2008: Construction Specifications: Principles and Applications. Thomson Delmar Learning, New York, ABD.
5. Construction Specification Institute & Construction Specifications Canada, 2004:
Sectionformat A Recommended Format For Construction Specification Sections.
Ödevler ve Projeler
(Homework & Projects)1. Ödev: Verilen Bir Siniflandirma Sistemi Ve/Veya Standart Formatin Ayrintili Olarak İncelenmesi
2. Ödev: Bir Uygulama Projesi Üzerinde Verilen Bir Siniflandirma Sistemine Dayali Olarak Yapim İşlemlerinin Belirlenmesi Ve Kodlanmasi
3. Dönem Ödevi: Bir Uygulama Projesi Üzerinde Verilen Yapi Elemanlari Sinifina İlişkin Tüm Yapim İşlemlerinin Teknik Şartnamelerinin Hazirlanmasi
1. Homework: Detailed Study On A Given Classification System And/Or Format 2. Homework: Determining And Coding Construction Works On A Construction Project
Using A Given Classification System
3. Term Project: Preparing Technical Specifications Of The Construction Works In A Given Section On A Construction Project
Laboratuar Uygulamaları
(Laboratory Work)Bilgisayar Kullanımı
(Computer Use)Diğer Uygulamalar
(Other Activities)Başarı Değerlendirme Sistemi
(Assessment Criteria)
Faaliyetler (Activities)
Adedi*
(Quantity)
Değerlendirmedeki Katkısı, % (Effects on Grading, %) Yıl İçi Sınavları
(Midterm Exams) 1 % 20
Kısa Sınavlar (Quizzes) Ödevler
(Homework) 2 % 20
Projeler (Projects)
Dönem Ödevi/Projesi
(Term Paper/Project) 1 % 30
Laboratuar Uygulaması (Laboratory Work) Diğer Uygulamalar (Other Activities) Final Sınavı
(Final Exam) 1 % 30
*Yukarıda Belirtilen Sayılar Minimum Olup Yerine Getirilmesi Zorunludur
DERS PLANI
Hafta Konular Dersin
Çıktıları 1
Yapı Üretimi Sürecinde Yapım Belgelerinin Yeri ve Önemi, Yapım Belgeleri Sınıflandırması I2
Teklif ve Sözleşme Süreci Kapsamında Kullanılan Yapım Belgeleri I3
Sınıflandırma Sistemleri (CI/SfB, UniClass, OmniClass) II4
Yapım Projelerinde Standart Formatlar (UniFormat, MasterFormat) II, IV5
Türkiye’de Kullanılan Sınıflandırma Sistemleri II6
Teknik Şartnameler Açısından MasterFormat Bölüm 1 – Genel Gereksinimler II, III7
Teknik Şartname Tipleri III, IV8
Teknik Şartname Yöntemleri III, IV9
Teknik Şartname Hazırlama ve SectionFormat Teknik Şartname Bölüm Formatı III, IV10
PageFormat Teknik Şartname Sayfa Formatı III, IV11
Yapım Projesi El Kitabı IV12
İnşaat Projelerinde Çizimler ve Çizim Dosyaları IV, V13
Mimari Proje Çizim Standartları IV, V14
Çizimler ve Teknik Şartnamelerin Eşgüdümünün Sağlanması III, IV,VCOURSE PLAN
Weeks Topics Course
Outcomes 1
Construction Documents in the Construction Process, Major Groups of Construction Documents I2
Construction Documents used in Bidding and Contract Documents I3
Classification Systems (CI/SfB, UniClass, OmniClass) II4
Standard Formats in Construction Projects (UniFormat and MasterFormat) II, IV5
Classification Systems in Turkey II6
MasterFormat Division 1 – General Requirements (Tech Specs Point of View) II, III7
Types of Technical Specifications III, IV8
Methods of Technical Specifications III, IV9
Writing Technical Specifications and SectionFormat Standard Format III, IV10
PageFormat Standard Format III, IV11
Construction Project Manual IV12
Drawings and Drawing Files in Construction Projects IV, V13
Construction Drawings and Drawing Standards IV, V14
Coordinating Drawings and Technical Specifications III, IV,VDersin Disiplinlerarası İnşaat Projeleri Yönetimi (İYP) İkinci Öğretim Tezsiz Yüksek Lisans Programı ile İlişkisi
1: Az, 2. Kısmi, 3. Tam
Programın mezuna kazandıracağı bilgi, beceri ve yetkinlikler (İTÜ FBE YL programları ortak çıktıları)
Katkı Seviyesi 1 2 3
I. i .
Lisans düzeyi yeterliliklerine dayalı olarak, kuramsal ve uygulamalı proje ve yapım yönetimi bilgilerini kullanabilme (beceri III); uzmanlık düzeyinde geliştirebilme ve derinleştirebilme (bilgi I); farklı disiplin alanlarından gelen bilgilerle bütünleştirerek yorumlayabilme ve yeni bilgiler oluşturabilme (beceri IV).
X
II. i i .
Proje ve yapım yönetimi ile ilişkili olan bilgiyi, problem çözme ve/veya uygulama becerilerini, disiplinlerarası çalışmalarda kullanabilme (Alana Özgü Yetkinlik XVI); ve disiplinler arası etkileşimi kavrayabilme (bilgi II).
X
III. i i i .
Proje ve yapım yönetimi ile ilişkili karmaşık sorunları araştırma yöntemlerini kullanarak, yeni stratejik yaklaşımlar geliştirerek ve sorumluluk alarak çözümleyebilme (beceri V) (Bağımsız Çalışabilme ve Sorumluluk Alabilme Yetkinliği VII); bilgi ve becerileri eleştirel bir yaklaşımla değerlendirebilme ve öğrenmesini yönlendirebilme (Öğrenme Yetkinliği IX); uzmanlık gerektiren bir çalışmayı bağımsız olarak yürütebilme (Bağımsız Çalışabilme ve Sorumluluk Alabilme Yetkinliği VI).
X
IV. i v .
Proje ve yapım yönetimi ile ilgili sorunların çözümlenmesini gerektiren ortamlarda liderlik yapabilme (Bağımsız Çalışabilme ve Sorumluluk Alabilme Yetkinliği VIII); sosyal ilişkileri ve bu ilişkileri yönlendiren normları eleştirel bir bakış açısı ile inceleyebilme, geliştirebilme ve gerektiğinde değiştirmek üzere harekete geçebilme (İletişim ve Sosyal Yetkinlik XI).
X
V. v .
Proje ve yapım yönetimi ile ilgili verilerin toplanması, yorumlanması, uygulanması ve
duyurulması aşamalarını toplumsal, bilimsel, kültürel ve etik değerleri gözeterek denetleyebilme ve bu değerleri öğretebilme (Alana Özgü Yetkinlik XIV); strateji, politika ve uygulama planları geliştirebilme ve elde edilen sonuçları, kalite süreçleri çerçevesinde değerlendirebilme (Alana Özgü Yetkinlik XV).
X
VI. v i .
Proje ve yapım yönetimi ile ilişkili olan güncel gelişmeleri ve kendi çalışmalarını, nicel ve nitel veriler ile destekleyerek, alanındaki ve alan dışındaki gruplara uluslararası platformlarda bir yabancı dili ileri düzeyde ve proje ve yapım yönetiminin gerektirdiği düzeyde bilgisayar yazılımı ile birlikte bilişim ve iletişim teknolojilerini (İletişim ve Sosyal Yetkinlik XIII) kullanarak (İletişim ve Sosyal Yetkinlik XII) yazılı, sözlü ve/veya görsel olarak sistemli biçimde aktarabilme (Alana özgü yetkinlik XVII) (İletişim ve Sosyal Yetkinlik X),
X
Relationship between the Course and Interdisciplinary Construction Project Management Non-Thesis MSc Programme Curriculum
1: Little, 2. Partial, 3. Full
Düzenleyen (Prepared by)
Y. Doç. Dr. Hakan YAMAN Tarih (Date)
25 Mayıs 2011
