Protecting openflow switches against denial of service attacks

(1)

KADIR HAS UNIVERSITY

GRADUATE SCHOOL OF SCIENCE AND ENGINEERING

Protecting OpenFlow Switches against Denial of Service Attacks GRADUATE THESIS

Ebada Mohamed Essam Eldin Ibrahim ElDessouky

June, 2017

(2)

2 Abstract

Ebada Mohamed Essam El din Ibrahim ElDessouky Submitted to the Graduate School of Science and Engineering

In partial fulfilment of the requirements for the degree of Master of Science in

Information Technology

KADIR HAS UNIVERSITY June, 2017

(3)

(4)

4 Abstract

(5)

Abstract

This thesis presents a novel approach to protect OpenFlow switches against a type of Denial of Service (DOS) attacks. OpenFlow switches are the core of Software Defined Networks (SDN) and they are very flexible, programmable, and can be used for several functionalities within a network [1].

As the control algorithm of the switch is implemented on a separate computer (Controller), this software can be implemented on any part of the network packet including Layers 2, 3, and 4 headers. Therefore, an OpenFlow switch can work as a conventional switch, a router or a firewall. The open design of OpenFlow makes it vulnerable to several types of DOS attacks [2] [3].

One of those attacks is to overwhelm the switch flow table with entities larger than its buffer making legitimate packets unable to traverse the switch. The proposed approach is the first time to test the Sandbox with SDN. We propose on a Sandbox like model, where a second switch and controller is implemented and all new packets with no matching rules are forwarded to the Sandbox. The Sandbox clone is monitored and controlled, so a forwarding rule is always created on the Sandbox switch and transferred only to the working switch when it is classified as a normal rule. Otherwise, a clean-up operation is executed periodically on the Sandbox switch to remove malicious rules.

The rules are classified based on the statistics entries already existing in OpenFlow switches flow table [4].

The proposed approach is simple and does not need any extra memory or modifications in the switches. It is proven to mitigate this type of DOS attacks [5].

(6)

6 Acknowledgments

Acknowledgments

First of all, I praise Allah for all his great and continuous guidance, strength, generosity, and help.

I would like to give my deepest thanks to the very knowledgeable Prof. Dr. Ayman Bahaa El-Din Sadek for his patient teachings, guidance and enthusiastic support in every phase of this dissertation. Also, he helped me to attend seminars to see other graduate students’ ideas. Gratefully, his rich knowledge enlightened my path and benefited me greatly.

I would like also, extend thanks Prof. Dr. Hasan Dağ for encouraging me to choose a unique topic and believed that I could do something different. His affectionate welcoming and his sympathy during my master thesis at Kadir Has University was a lifetime experience. And he kindly helped me to attend seminars related to this thesis and integrated me within a group of my colleagues as a beginning to make knowledge and to listen to different topics as having an audience to understand the word of sharing.

My sincere thanks to my family support, encouragement, and care throughout my life is always unforgettable. Learning is an endless path and my professors’ guidance is highly appreciated to move up from one point to another.

I have learned more than I can imagine in this journey as it was my first time to be completely dependable on myself and far from my home in the whole period as through brainstorming, laughter’s and hard times. It was so difficult to hold on and taking care of everything around me, may I say I finally grow up. Allah endowed a lot of gifts on my way. May this give me the chance to go back home with a head up as I can be useful to the world to be with the help of others.

(7)

Table of Figures

Figure 1. The difference between traditional IP networks and SDN [6]. ... 23

Figure 2. Layered architecture of an SDN network [17]. ... 25

Figure 3. An OpenFlow platform [4]. ... 28

Figure 4. Structure of an OpenFlow rule [14]. ... 29

Figure 5. OpenFlow Switch Flow Diagram [4]. ... 30

Figure 6. SYN Flood attack: The victim receives an overwhelming number of illegitimate links Request [3]. ... 31

Figure 7. TCP SYN flood attacker against victim mitigation [23]. ... 32

Figure 8. . Smurf Attack. The attacker sends a large scale of ICMP traffic to a program destination and uses a victim’s Information processing address as the source Informatics so that the replies from all the twist that respond to the broadcast address will flood [24]. ... 34

Figure 9. OpenFlow switch and controller processing [2]. ... 37

Figure 10. Emulation Topology [23]. ... 45

Figure 11. Show an example flow table [29]. ... 46

Figure 12. OpenFlow Switch with Sandbox. ... 53

Figure 13. Phase one: No Sandbox. ... 65

Figure 14. The DOS attack time and to set model bandwidth upon>0. ... 67

(11)

Introduction

Although, networks linger behind the use of old layered innovations with vendor specific interfaces. In this method, it is disorganized and inaccuracies inclined to deal with the networks. In view of the possibility of a unified administration, Software Defined Networking (SDN) addresses this issue by decoupling the information plane and the control plane [1].

The guideline of SDN is basic: a control layer will comprehend current system prerequisites as indicated by the system executive utilizing later and proficient innovations and will broadcast required and classified principles through the information plane layer which can be, for instance, basic switches with a standard interface like the OpenFlow convention [4]. This convention permits the controller layer to indicate rules about how the switch will need to deal with packets from OSI Layers 2 to 4: Ethernet, IP, TCP/UDP, etc. Consequently, the control plane will have the capacity to utilize abnormal state assets like databases, take a shot at standard servers or virtual machines to be effectively modifiable, guaranteeing adaptability and versatility while exhibitions are ensured by the utilization of committed equipment for the switches [6].

Virtual Machines (VM) is a virtual hardware of true implementation that runs on the same software. It’s a chunk of node seen likewise an autonomous machine for its identity or kernel and advantages. Every VM runs a working framework which may be known as guest OS demand an operating system from those groups. VMs run on user-space along these lines around highest priority on the facilitating working framework without hosts, in spite of being mindful that they need support not running

(12)

12 Introduction

for true equipment. As an outcome, SDN address current desires by giving an adaptable furthermore, programmable system which can get data from switches, clients, overseers and furthermore security gadgets and utilize them with a specific end goal to refresh the current strategy as per characterized rules which can now utilize modern capacities. As of now, simply the proposed SDN and OpenFlow begin a far reaching, not just in research works additionally in industry for generation sending [4]. Thus, this thesis project is focused on the analysis of the current state of SDN and its pros and cons for current networks, which can demonstrate some advantages of SDN after focusing on its complications, consequences, security risks and potential improvements [1]. We will add a simple controller, called sandbox.

Aims

The objectives of this thesis can be depicted as takes after:

• Investigation of the advantages of SDN contrasted with a conventional or traditional network.

• To propose a model to prevent DOS or DDOS attacks in SDN environment. That is, make use of Sandbox to prevent those attacks.

• Investigation in some utilization cases to eliminate the attacks related to SDN. • Improvement of showing the model of sandbox to ease the traffic load on the

(13)

Problem

Networks running under the SDN standard even now bring the same security necessities. Similarly, as conventional organize settings, as it will be probably that they will have a chance to be carried at times, private and secret data. SDN totally progressions those structural engineering and inter communicative parts of the parts in organize from this arises, a totally new [6]. Stage to attackers looking will perform security breaking attacks. This cause a need for comparable levels of security likewise, traditional network. Anyway, with guard against dangers of the separate network, this segment of the thesis analyses some of these key dangers, which means to defend their critics.

DOS attack, switch flow and table approach flooding, during those information plane levels, dishonestly made flow entries could be overflowed, and other units should be placed to expand the space in their stream entry tables [7]. This abandons those sending units unable to include the real stream records to their tables. This brings the answers in devices to being unable in including resulting to flow tables for updates and for divergent state. A standout amongst those key issues with those data planes units inside a product that characterized architectures is that of the switches inabilities with the separate between real stream solicitations also illegitimate ones. This imperfection considers attackers to perform effective DOS attacks at the information plane level toward filling those switches flow buffer for false importunity whilst it might a chance [8].

To be workable to target individual or distinctive data path also try to end its availability that the controller might a chance to be targeted effectively. Making and

(14)

14 Introduction

spreading a system-wide slip over accessibility. Those possibilities about this might a chance to be conceivably devastating, especially on processing settings, the place benefits perceiving secondary utilization will a chance to be unusable on customers and representatives. Furthermore, for accessibility to know customers removed, an adversary camwood arrange plane. To hold an attack which might point will trade off the confidentiality and integrity for delicate information on organizing for these motivations, those over DOS/DDOS attack have been said in this paper are viewed as amongst those the most majority essential attack sorts [9].

Methodology

Utilizing the functions of SDN, that permits a programmatic control over the streams. In the event of Identification from claiming malicious traffics, SDN might introduce packet sending standards for exchanging gadgets to the request should block those attacks [10].

A considerable analysis demonstrates that SDN, because of its centralized control will be unable that should give rapidly quarantine about compromise hosts. Also, a confirmation of validate hosts, requesting a remote confirmation dial to client administration server for user confirmation information, corrupting traffic or framework examining throughout enrolment. Furthermore, SDN is additionally fitted on gatherings to give immediate and grain control over networks, and acquires the chance will execute innovative security, also security strategies. Those fundamental clues will connect a virtual IP for every host to information transmission [1].

(15)

It may be changed unpredictably at the same time of the real IP location of the client is static. Controllers need to support the characterizing of those interpretations between the virtual IP and genuine up to preserve the integrity of the setup. Introduction of non-Flow administration planned on giving acceptable security that should create a privacy environment for clients. This methodology makes interpretation the middle of a non-ID, system IP and machine IP in view of SDN.

Main Contribution

In this suggested technique, we identify the usage and tactics of SDN according to DOS attack. Indicatively, over those creators display a low overhead strategy to movement investigation utilizing self-arranging maps to arrange streams [1].

This instrument is deployed looking into an SDN (NOX controller) system for enabling DOS attack identification. Our methodology contrasts from our recommended result not main performs DOS attack identification [2].

That detection also mitigation mechanism need support has been explained in this thesis. We intended to design a model to ease the traffic and to handle mitigation in our network, we called it a sandbox. However, the mitigate approaches utilizing a smart method that also empowers identification. Moreover, we utilize SDN standards so as to recognize detection and mitigate. The pernicious traffic starting from legitimate taking each user under consideration that those attackers generates real low rate traffic streams, also not simply to detect massive hitters. General abnormal traffic is distinguished in addition to keep focused on the multiple domains of local networks for the identification behaviour of mitigation [11].

(16)

16 Introduction

Form of this thesis

This document is organized as follows: ⦁ Chapter 1:

Definitions of Software Defined systems, its favourable circumstances and some essential SDN controllers.

⦁ Chapter 2:

Shows SDN architecture and the differences between traditional IP networks and Software Defined Network. And what is OpenFlow.

⦁ Chapter 3:

Shows DOS attack model and result upon idle time-out. And migration strategies according to the classification to install the same rules repeatedly.

⦁ Chapter 4:

A proposal of another network is added, we called it Sandbox environment. We represent the model simulation on Mininet simulator.

⦁ Chapter 5:

Showing the experiment process and its result. ⦁ Chapter 6:

(17)

Chapter 1: Software Defined Networks

Terminology

At the beginning of this thesis, definitions of important terminology used in this text should be clearly introduced. Main definitions are described below to differentiate between traditional network and SDN, OpenFlow, types of attacks of DOS and DDOS, and the idea of Sandbox.

A percentage of the protocols, administrations also provisions required secured compatible system environment for applications needed to depend on the clients, Furthermore need supports not perfect with those devices from other vendors. The point when the organizer may be arranged with make extended alternately new benefits would on make introduced, the existing foundation comprises of units starting with various vendors. The underlying framework needs to be modified; moreover vendors’ reliance issue might cut off its arranged progress, also features and problems.

Traditional Networks

Regular networks administration advances suggested of the LAN (Local Area Network) also WAN (Wide Area Network), which would made from claiming different systems administration gadgets including routers, switches, also firewalls. A normal LAN interconnects an assembly from claiming group of hubs, generally in little geographic range, generally inside same fabricating for example, college, and home. Then WAN may be not certain idea to use in geographic area, in any case rather it camwood interconnected over noteworthy regions. For example, such that across the nation organize over a nation also it associate a large number of LANs together. In this

(18)

18 Chapter 1: Software Defined Networks

thesis, growth for conventional systems administration innovations is restricted to LANs main [6].

Over LAN, information will be sent in the structure of packets, also different transmission innovations. Ethernet may be the particular case that will be a large portion. Generally, it may be used to specify in the IEEE 802.3 standard also its late form gigabit. Ethernet helps an information rate for 1 Gbit/sec, furthermore it substantially higher. A packet starts from source hub to achieve its destination hub, eventually switch perusing for receiving confirmation after packet reached the path. Toward those systems administration devices accessible in the network, like switches and routers.

Limitation of basic network

Since traditional networks changing traffic designs, improve cloud systems, and expand bandwidth to search for vendors solutions, but it didn’t meet those requirements to eliminate complexity [12].

Systems administration protocols need advanced in the time with convey enhanced reliability, security. Connectivity and performance, furthermore they need distinctive determinations and also similarity levels. Therefore, when progressions would wanted to a network, every last one of networks gadgets must make arranged with aggravate transforms under effect, coming about under generally static. Moreover, including a level about multifaceted nature on organize with succeed static nature, server. Virtualization is, no doubt used these days making networks progressive [13].

The expression virtualization need been around for a significant number a considerable length of time in PC (Personal Computer) science. In spite of it is an expansive term, like camwood a chance to be actualized in different layers of a PC framework

(19)

alternately network, virtualization. Generally, suggests all the reflection in the middle of physical advantages and their legitimate representational. This definition from claiming virtualization will turn into clearer concerning illustration fundamental types for their improvements [14].

Previously, Virtual Machine (VM) movement acquires new tests to traditional networks for example, tending to schemes, directing based outline and forwarding. Also, all IP system is, no doubt worked will backing voice, information besides feature traffic, and looking after different Quality of Service (QoS) to separate provisions to each association or session expands the multifaceted nature of the group. Acknowledging the greater part these issues, an accepted system will be not capable to rapidly adjust on evolving provisions of client requests.

Acknowledging different QoS level service allocation, acceptable QoS approach must make actualized in those systems. Because of expanding versatile users, it will be not attainable for an administration driver should apply a reliable arrangement of the network, since it might aggravate those organize powerless to security no observances and different negative results.

A group must develop in line for those developing business sector requests on pick up economical. And aggressive markets, clients also benefits. Those system figure dissection might a chance to be. Helpful, Anyhow because of current dynamic business sector nature it doesn't give acceptable a great deal help to want versatility ahead of time. Those unpredictability of conflicting strategies connected ahead standard group limit the speedier adaptability of a network.

A percentage of the protocols, administrations also provisions required secured compatible system environment for applications needed to depend on the clients,

(20)

20 Chapter 1: Software Defined Networks

Furthermore need supports not perfect with those devices from other vendors. The point when the organizer may be arranged with make extended alternately new benefits would on make introduced, the existing foundation comprises of units starting with various vendors. The underlying framework needs to be modified; moreover vendors’ reliance issue might cut off its arranged progress, also features and problems.

Software Defining Network

By using decoupling the data plane and control plane, which is managing forwarding packets, Software Defined Networking (SDN) permits us to abstract the underlying infrastructure and applying the network. SDN will be relied upon on make a key authorizer for the following era networks, those represent 5G (5th era from claiming wireless or remote systems), which will addictive a reason to coordinate both IoT (Internet of Things) benefits together with traditional network [15].

In this chapter, after specifying the modern-day desires, I am able to narrate the ideas of SDN, its benefits and the diverse implementation.

SDN Controller

Those controllers based, OpenFlow authorized network structural engineering simplified the accumulated network logic through centralized or unified entity. Those controllers may be answerable for knowing the sending direction choices for forwarding and manipulate with also managing those flow tables on the OpenFlow switches. Once movement will be consistently sorted out done flows, its control gets less demanding moreover, considerably a greater amount is clear.

(21)

Chapter 2: Background

A prime past benefit in computer networks is the idea of Software-Defined Networking (SDN), which allows a harsh to enhance its behaviours browse centralized policies at a conceptually centralized harsh commanding. The SDN scheme replaces close down close, vertically integrated, and fixed function equipment on every side general purpose gather practical processing to criticize severely, usage scan openly, vendor neutral APIs by allocate software executing on centralized servers [6].

This undeceiving withstands exposes the capacities of irritating junk and provides chunk, generally concerning increased flexibility against matched of the SDN manipulation. The OpenFlow laws handle the conditions; duplicate an SDN importance delegation is highly difficult. Significant programming frameworks tracking either simple codes or current coded command specification of report and put up brief on ice for a contribution association between owner and the attack to get acknowledged, thereby enforcement corrupted authentication of complexity in SDN programming.

SDN represents a massive monologue when there is something unknown going on in standard network. The observant, SDN proposes an open architecture, in which the network carry on and change functions are decoupled. This architecture enables dynamic, straightforward supervise and conduct to procedure on significant servers click through a stable interface to dynamic applicable material. Fit criticizing carry out is not much longer care in same network light, SDN introduces an innovative is SDN controlled [1].

In this event, we evaluate SDN definition, its architecture, and its attacks and reintroduce prime aspects of the OpenFlow protocols, which enable controller switch

(22)

22 Chapter 2: Background

interaction through a standardized protocol. In component, our analyses true approaches to the display of the irritating conduct or performance, more than ever, however software for OpenFlow networks and present solutions to DOS attacks on SDN.

Software Defined Networks Architecture

SDN proposes to assign an industry wide token of the relocation decision for the solutions and a methodical tradition review, distinguished method to learn the design and to cooperation nearly the forwarding circumstance. The forwarding abstraction and progress would permit advanced or exception methods, for example, routing algorithms, to be implemented on equipment, direct it is requiring a valid and delayed standardization proceeding. This determination promises to broadly speed faster of modernization in networks. The SDN sending plane reflection ought to make adaptable sufficient along these lines that an array. For group control calculations could make executed with it for containerize, it would serve to take on an operational level. It drifts just in the header packets based on Ethernet end apply oneself to, in return numerous applications may recruit to prepay on the insufferable of beginning addresses as significantly. Similar to one another, it would call endurable if the uncommunicative organization allows the routing fighting to moderate uncritical safeguard less ready to run off and tracking the random applications may stand by the know how to multicast [16].

(23)

Figure 1. The difference between traditional IP networks and SDN [6].

The preface stimulates abstraction and meshing protocol networked setup protocols authorize further benefit: sending components are efficient toward uprooting those higher-level. Directing techniques are starting with those group components. Instead, the individual’s capacities could be a chance to actualized on standard computational elements, for example, such that product x86 servers that run directing calculations remotely, furthermore that use a standard controller-switch protocol. On design those sending component. These rearrangements might produce efficiency group components. Furthermore, easier convey for high octane system fittings. On addition, standard methodologies to building fault-tolerant administrations in information focuses might a chance to be applied to build the routing plane. Clearly, and only the sending task must be executed looking into every system component secure alongside. Common network architecture, those directing tasks will be also executed withal

(24)

executed on each network. Component independently, despite the fact that each individual component might necessity majority of the data theorizes from different components in place will perform its part in effectively sending packets. The forwarding conceptual and protocol allows for a variety of approaches for implementing the electronic network control system [13].

Typically, this is done by having each network element broadcast all the local information that any other network elements may need in order to determine the influence state. For example, each network element may broadcast to all other network elements which neighbours it is directly connected to and the destination addresses of all directly connected end hosts [6].

Each network element, then independently calculates the desired route, determines its local role in forwarding packets along those routes, and then configures its local location accordingly. Since states can modify at any time, network elements broadcast updates to their local state and receive updates from other elements.

(25)

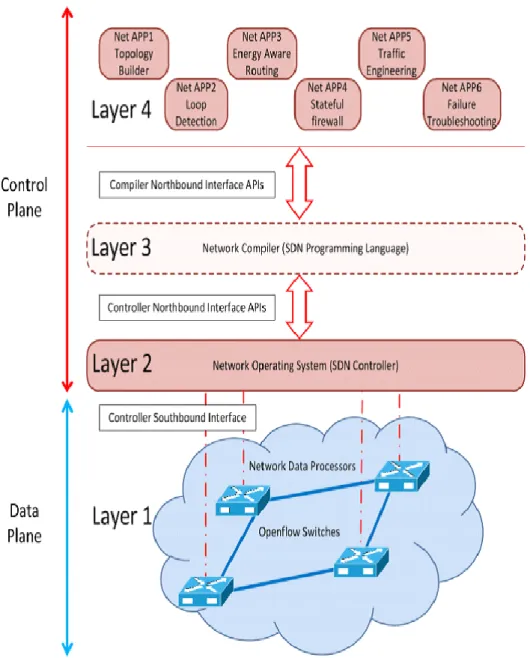

Figure 2. Layered architecture of an SDN network [17].

Detecting and mitigating attacks and intrusions is a major work in the field of computer networking. However, the focus was on the applications and host systems [18], [19], [12], and [16].

Some work in the field of protecting the network itself, especially for the trusted routing and DOS attacks on the network core was also introduced in [20] and [8].

(26)

In this work, the proposed mitigation model is based on the idea of Sandboxing. A sandbox is a method to force malicious activities to be performed in a controlled environment. The activities are monitored and classified to be legitimate or illegal. Legitimate activities are sent back to the working environment. Sandboxing was used in protecting computers and virtualization environments [13].

In this duplicator, a DOS attack targeting an OpenFlow switch is described, followed by a novel mitigation model to protect the switch against such an attack. The proposed model is discussed and shown to successfully protect the switch against the attacker.

OpenFlow

The OpenFlow standard has recently emerged the forwarding abstraction and switch-controller protocol. An OpenFlow switch initially establishes a communication channel over a TCP connection to a single remote controller at a specific IP address and TCP port. The OpenFlow protocol is then used to exchange information between controller and switch and to allow the controller to configure the switch’s flow table, which determines its forwarding behaviour.

OpenFlow is a protocol and a methodology of providing programmable networks. It had been originally proposed as a scientific experimentation platform enabling researchers to design and implement experimental protocols over an Ethernet switch with flow tables. The main idea in OpenFlow is to separate the forwarding algorithm (control plane) from the forwarding circuit (data plane) [4].

The architecture of OpenFlow is simple, as shown in figure 2; an Ethernet switch is used as the core component of the network. The switch is divided into 2 planes: the first one is a hardware switching fabric with a flow table that indicates a forwarding

(27)

action to be taken. The forwarding (Switching) action is to copy the incoming frame from an input port to a specific output port.

In contrast to a classical Ethernet switch, where the switch flow table is built by a software running on the switch itself, (in Layer 2, or data link layer) in a plug and play using the Address Resolution Protocol (ARP). OpenFlow tables are built using the software running on the controller, they are more complex and a switch can have many flow tables grouped in a pipeline. The controller is usually import computer or a server, running an algorithm that builds the flow table(s) of the OpenFlow switch [22]. The OpenFlow controller is in charge of deciding how to handle switches without significant flow entities. In addition, it deals with the switch stream table by including and evacuating flow entities over the maintained channel, which utilize the OpenFlow protocol. The controller is in charge of keeping up all the system protocols, and strategies, broadcasting fitting guidelines to the network devices. The controller incorporates system knowledge. The switch must have the capacity to build up correspondence with a controller at a user configurable IP address to utilize the specified port. The switch starts a standard TCP association with the controller when it knows its IP address. In this method, the switch must recognize the approaching movement as neighbourhood before checking it against the flow tables because the OpenFlow channel does not travel through its pipeline. While, pipeline handling directions enable packets to be sent to subsequent tables for further handling and enable cluster data (metadata) to be conveyed between tables. With various controllers or single controller, the switch may build up connections.

(28)

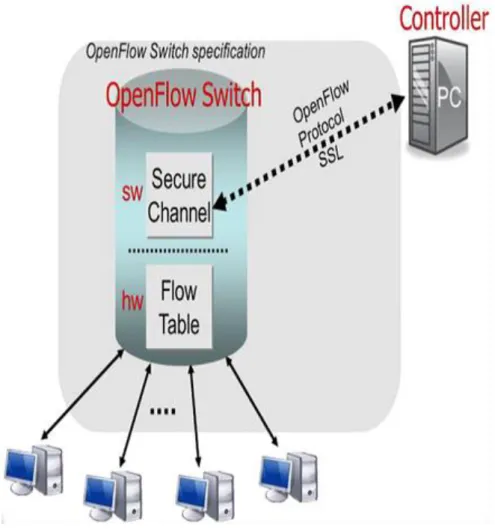

Figure 3. An OpenFlow platform [4].

In this layer, data processing devices exist. Data packets are handled based on the actions installed from the network controller on every individual device. As shown in figure 3, an OpenFlow rule consists of four main parts: priority, matching condition, action and related active counters [4].

Priority field is used to define the order of matching of a data packet against the set of installed rules; hence, once a higher priority rule is matched other lower priority rules are ignored. Matching condition consists of any combination of several IP/Ethernet headers (such as source IP, destination IP, port numbers, Mac address and VLAN id). The action field defines the action that should be taken upon receiving the packet such as forwarding the packet to an outgoing interface, continue processing in the flow table

(29)

pipelines, or to modify some of the header fields before forwarding or to drop the packet. Finally, the counters field defines the associated counters to this rule such as the number of matching packets to this rule, its lifetime, and its last used timestamp and so on. Those values are sent to the controller to get some statistics about the data plane [8].

Figure 4. Structure of an OpenFlow rule [14].

On arrival of a new packet from the network, the OpenFlow switch process this frame as shown in figure 3. If a matching rule is found, then the frame is forwarded to the next flow table in the pipeline for further processing. A list of actions is updated. At the end of the pipeline, all the actions in the list are executed and hence the frame is either dropped, forwarded to an output port or sent to the controller. In many OpenFlow switch implementations, only one flow table is used instead of a pipeline. In case of no matching rule, the frame is sent to the controller with an appropriate state code and some statistics [19].

All rules in the flow table(s) are dynamically generated and deleted. In most cases, deletion is performed on an analytical basis where a timeout period is defined and if a rule exceeds this value without being used, it should be deleted. Figure 5 shows the operation of the OpenFlow controller and switch to process incoming data frames and manage the flow table(s) rule.

(30)

Figure 5. OpenFlow Switch Flow Diagram [4].

Attacks

The ping attack is capable to aim those hosts’ to start with also simplest DOS attacks, in which those victimized person. Is overflowed with that's only the tip of the broken ICMP (ping) packets over it might handle. There are likewise those [3].

Ping for death attack, which timer frameworks might crash the point when they get, oversized ICMP packets [3].

On SYN Flood attack, those striking frameworks sends SYN messages of the utilized person server. System, which show up should be real anyhow indeed reference a customer framework that is. Unabated should react of the SYN/ACK messages. This indicates that the last ACK message will never be sent to the target server structure.

(31)

Information structure of the utilized user server framework will automatically fail, providing it for immoderate on accepting any new approaching links [3].

Figure 6. SYN Flood attack: The victim receives an overwhelming number of illegitimate links Request [3].

(32)

Figure 7. TCP SYN flood attacker against victim mitigation [23].

Those representatives which makes following of the DDOS link packets on a scale were troublesome on need significant volumes for movement, making it simpler for that attacker with hidden neighbourhood from group director. Those attackers are never again needs to support a rundown about representatives, since basically log on to the server and perceive a rundown for every last bit accessible operator [7].

The process programming introduced in communicates for different type of channels, additionally notifies the attacker when the process is dependent upon the networks. Likewise, it doesn't give a difficult record for sharing, which is an action amid the indifferent techniques of process code distribution. This makes it less demanding to attackers on secure additional, utilized people will consume for their attack [11]. In the Smurf attacker, the attacker will be utilizing ICMP effect ping packets guided on IP show addresses starting with remote areas on producing DOS attack. There are

(33)

three assemblies for these attacks: the attacker, the trafficker, and the victimized person [24].

The user receives an ICMP effect request packet guided of the IP show location claiming from their organization. On the channel ICMP movement guided, I should show addresses, huge numbers of the machines on the group will accept this ICMP effect demand packet, what’s more send an ICMP effect answer cooperation packet again. When every last one of the machines looking into a system reacts will this ICMP affect tracking the outcome, which might make extreme group delay and undetermined interruption when those attackers make these packets, they don't utilize the IP deliver of their own machine. Concerning analogy the hotspot address instead, they make frame packets that hold numerous those spoofed location of the attacker’s exceptional utilized person [25].

Those consequences are that at every last one of the machines toward. Those traffickers site react of the ICMP effect tracking, they sent replies to the victim’s machine. Those victimized people will be subjected will group delay might be feasible. To resolve and classify the attack, which employments UDP packets as against to ICMP affect packets.

(34)

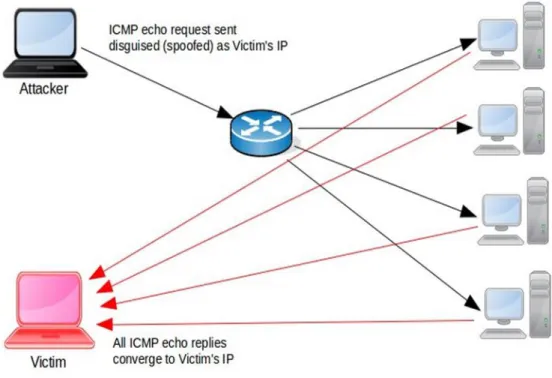

Figure 8. . Smurf Attack. The attacker sends a large scale of ICMP traffic to a program destination and uses a victim’s Information processing address as the source Informatics so that the replies from all the twist that respond to the broadcast address

will flood [24].

Teardrop attack misapplies those ways that the Internet Protocol (IP) requires a discontinuity for a packet that is excessively less for that next switch to handle those divided packets, identifies a counterbalance of the start of the initial packet that authorizes the whole packet should be a chance to be reassembled toward in the assigned framework. In the harmful attack, those attackers puts a confusing worth in the second or later interval, moreover assuming that the accepting working framework can't adapt to such disconnection, then it will probably crash. Unusually, another mixed capture about harmful emerged bonk, which functioned particularly for a trick in this update [24].

(35)

Bot armed forces. A few aggregations for cyber-criminals practice previously, traffic huge numbers of workstations defenceless should deny the administration to attack [24].

They produce these huge armies from handling tasks, of a couple of thousand with supposedly dependent upon 1.5 million computers, and lease them to the possibility DOS attackers.

DENIAL OF SERVICE ATTACKS

Done February 2000, the sites of Yahoo, eBay, Amazon, Datek, Buy, CNN, ETrade. ZDNet Furthermore dell was "around those focuses on a 15-year old Canada wild rye nicknamed “Mafi-Aboy”. The attacks, which arrived at those rates from claiming 1GB/s wreaked immeasurable people in the victims’. Economies transformed those lifestyle people consider DOS. After that incident, DOS began operations for amplification attack for hacking differentiation on financial crime, cyber-warfare. And politically stimulation, attacks some pending requests, later the frameworks will focus on this issue from claiming [11].

The port forward for handle business sectors around the world, and the DNS root servers of the Web 3. R.T. Morris cooperation that the weakness in this scheme is the IP protocol is that the source host itself fills in the IP source host id, and there is no provision to discover the true origin of the packet [26].

This may be the point when it got to be reasonable that relying upon the determination of the attacker. Practically each workstation system administration could a chance to be disturbed by a few sorts DOS attacks. Furthermore, frequently for long periods of occasion when the accompanying would damage those computer networks in practically of every service can be of the new sorts of attack that showed up throughout

(36)

this period. The Distributed reflector DOS attack will be fundamentally the same over the idea of the “Smurf” trap [23].

The attacker Request as much armed force for compromised workstations should send association with a few superbly real computers, requests yet all the utilizing the victim’s IP for their packets when the real machines answer cooperation with these requests from the collector from stating constantly on is those victimized people. The coming about DOS trick will be all the more distributed, that's only the extra standard tip of the broken. Also, fundamentally, all the more challenging should follow. A Denial of Service (DOS) attacker may attempt to perform DOS attacker to the controller or use different intends to bring about the controller to come up short. It’s any intended effort to prevent legitimate to utilize from reaching a specific mesh network resource [23].

For instance, attackers may attempt a few types of recommendation to utilization attackers on the controller to steal it, cause it to react to a great degree gradually to approaching packets, and make it moderate to send messages out. Shin and GU exhibited a doable and viable DOS attacker to SDN systems, which contains two stages to uniquely mark whether a given system utilizes SDN/OF switches. The observable verification of an SDN switch relies on the recognition that the response times for receiving the packet, may be particularly incorporated to identifications. Since the stream setup time to create the new flow that made stream demands from data plane to control plane [2].

Denial of Service attack is whatever proposed should seek to block real clients starting with arriving at a particular group of attackers. A decade later it got clear that the attackers might routinely misapply this shortcoming of the IP. Eventually Tom's

(37)

perusing faking their source address, an act which is called IP spoofing. A standard nonspecific DOS trick is practically continuous broadcast (DDOS) Distributed DOS attack [11].

Those attackers’ takes control of an immeasurable number from claiming particular ensured computers, for example, the individuals. Without firewall also, up and coming antivirus software, furthermore request them to send at the same time. Volumes are a negligible movement with a particular focus concerning the analogous result of a chunk. Routers gains in the region of the focus would overwhelm and a number about real customers can't unite with it any longer. The standard focuses would those servers about e-commerce. Web sites, which camwood fair huge budgetary misfortunes. Other focuses might a chance to be news websites. Corporate networks, banks, the national infrastructure, market competitors, and so on.

(38)

This kind of attack is a significant risk for OpenFlow based SDN, as it can damage the entire system, for example, corrupting system execution, dropping packets. Likewise, as OpenFlow controller is a key segment for system control and administration, it has turned into a bottleneck and is incredibly weaken by such attackers [27].

Dependable encryption can't secure SDN from being attacked; however improved trust components and access approaches can moderate such attackers. At the switch level, it is alluring to have an ability to consider stream table principles, guaranteeing an administration to goodness has and denying unapproved access. Current OpenFlow switches have not actualized such knowledge while additional overhead is the significant concern.

Overall, an attractive security system ought to guarantee both the controller and the switches can rapidly regain from huge volume movement attackers. Legitimate checking and reaction systems are relied upon to be dynamic when identifying DOS attackers. Case in point, Shirali-Shahreza and Ganjali proposed FleXam, an adaptable testing expansion for OpenFlow that authorizes the controller get to packet level data, which can distinguish DOS attackers [26].

Additionally, stream data are helpful in identifying most DOS attackers, through breaking down activity. For instance, stream headers can be utilized to distinguish DOS attackers if there is an imbalance among approaching and active movement. DDOS attackers can be caused to flow the connection between the controller and the system in order to keep the controller from handling streams. To avoid such attacker, the controller ought to be put inside the border, and streams to the controller should be cut on oversaw interfaces on the off chance that they are not from OpenFlow device. Along these lines, the controller can be secured from flooding attacker [11].

(39)

Existing Solutions to DOS Attacks on SDN’s

At least from claiming Section 2, we included identification similarly as the to begin with a fundamental component from declaring this is not actually exact identification. That might not to be required in the perfect gas body of evidence and a resistance, structural engineering for proactive qualities, which might provide incomprehensible at whatever DOS attack over proactive architectures. Have been proposed, a couple from claiming which present after the fact that they do have a chunk as a repeatable point. Hindrances separated starting with the truth that to date no framework may be perfect. A DOS attack against one’s system doesn't happen precise often and in any event resource-wise. A proactive insurance framework may be normally excessively reasonable to work in the nonattendance of an attacker. This might be a chance to be avoided though that security framework begins operating straight after a possibility. The attacker will be detected, which provides the identification, progress essential secure alongside practically sensible instances [5].

With those perceptive furthermore programmed arrangements that might offer, would progressively be utilized within DOS identification of a key issue, it secures alongside utilizing this population of systems. That choice allocates the entered features that will assemble to give suitable information. What's more significant majority of the data over those approaching movement. Additionally, these frameworks must have a chance to be intended to make quick sufficient adaptation to the precondition of ongoing rules [28].

A few routines are recommended for actively testing the clients’ legitimacy. For Netbouncer continuously assign tests are needed, as to keep a rundown in order for clients to be beyond suspicion. At the same time experience of systems left require

(40)

arrangements for testing isolated packet, under based ICMP for analogy. A basic ICMP affects the request, flow-based originally for stateless TCP/SYN cookies. Furthermore, transport protocol (such similarly as CAPTCHAs) has a different capacity of administration strategies that would be used to guarantee a reasonable solution with the attacks. Eventually, Tom's block the process of the real clients, at the same time this authenticity expires and then after specific interval, the fundamentals should be tested once more [29].

In spite of, the larger part of regular cases use all the capacities for grouping, mishandling personalities of real customers could handle this sort of resistance, a comparison of particular idea is investigated in the resistance results which need cooperation to be dependent upon complications.

Over connection design DOS attack, the customers need operational approach, taking care of minimum cryptographic to mystify in front of their association request to be ordered. It might take less time to solve and to protect the server, which it will be to a large extending quicker in checking results. That can back off the attacker, yet it's not assuring enough, since mislead generates a transformation, which could be allowed through the attacker’s rate [23].

Analogies of such methodologies could be discovered secure additionally; exactness of the over dynamic test results might accomplish great levels about identification of accuracy, as starting with those regular deficiency of continuously utilizable as DOS base. They are in the same method concerning analogy the simplest type of dynamic validation, those ACKs, would utilize likewise DOS holder in the reflector DOS attack. Kim has recommended information about the data mining approach dependent

(41)

upon a programmed characteristic. A determination component with a neural system classifier for DOS attack identification [5].

They used a decision tree, together with entropy, chi-square concepts, will select those best to allocate the nomination offers of these features that need cooperation to be utilized within the neural system classifier [16].

Previously, their experiments, the hopeful qualities were those octet check for every flow, the packet check for every stream (P/F), those tcp/ip octet number for every flow, the tcp/ip packet check for every flow, those. UDP octet number for every flow, those UDP packet check for every stream, the destination port difference to Tcp/ip movement (srcTport), the source port difference to UDP traffic, the end port difference to tcp/ip traffic, those end port difference to UDP traffic, those source ip deliver variance, those TCP/IP movement chunk (T ratio), and the UDP movement pro-chunk that choice [19].

The decision tree P/F what’s more search-port for utilizing both the entropy and the chi-square methodologies. Accordingly, the majority of data regarding to the grouping classification of TCP, UDP are an inauthentic mixture of the two, might have been utilized in the choice mechanism, P/F, ratio what’s more srcTport were the naturally decided qualities [16], [22].

Kim utilized a versatile Neuro-Fuzzy Inference frameworks (ANFIS) together with the Fuzzy C-Means Clustering Algorithm (FCM) on recognize DOS attack. Also, Kim tried their strategy toward performing examinations looking into a DARPA/KDD99 dataset Lee et al suggested plane the main place, those substance of the approaching packets are analysed, after the analysis, identification framework utilizing fuzzy cognitive maps (PDSuF) examine detection system using fuzzy, is used to identify

(42)

DOS attack, furthermore a dark analysis about IP addresses will be constructed to secure alongside of understanding the gathered data [30].

Mukkamala and Sung connected three computational perceptive techniques support vector machines (SVMs), multivariate adaptive regression splines (MARS) and linear genetic programs (LGP), for a multi-agent setting of the issue about DOS identification, also compared the test outcomes got toward the sum three techniques. To these perceptive methods, Sung also Mukkamala, additionally tended to those characteristic choice issues and provided for characteristic positioning calculations for maintaining performance reason of investigation by joining DOS attacker analysis. Additionally, system protocol Mukkamala have utilized various classifier frameworks for interruption identification, moreover, reports individual outcomes for DOS identification. Chan suggested entropy based characteristic grouping system for different classifier frameworks also utilized RBFNNs concerning analogy base classifiers [31]. Shin arranged to minimize false alarms in DOS identification. Eventually, Tom's perusing for utilizing a decision tree approach [16].

Conclusion

Cetnarowicz and Rojek also apply a multi-agent methodology of the PC security issue stress first DOS attacks, particularly, by which they separate the traffic to the point on the exact flooding area of the virus [32].

Furthermore, terrible self-destructive considerations and conduct in utilizing ideas to start living in a secure framework. Seo and Cho speculate based plan from a Black Board Architecture (BBA) that firewalls should recognize DOS attack, also structure to monitor IP addresses [5].

(43)

We totally array the DOS attacker identification in the network, which suggested large chunks about these are considering of typical analysis of the movement packets. Moreover, specific IP addresses of other critical data about the packets different methodologies that would consider the timing aspects of the packets flows. The larger part of maintaining them require or expect exactly representational about the thing that will be normal movement stream concerning the analogy contradicted, showed DOS related flows. Massive numbers of the systems require a connection numbering or taking in, period that is used to make statistics, information improve facts that camwood make used to analyse with presumed attack. Despite each from declaring these methodologies offers a few extremely absorbing thoughts, also insights under DOS attacks little assuming that at whatever load in, need to be conveyed out as such with consideration at these separate methodologies against one another. In addition, these methodologies deliver comparative sorts about the attacks; there will be likewise a critical differentiation of the actual attacks that these different identification schemes would attempt to address.

(44)

44 Chapter 3: Denial of Service against Attacks OpenFlow Switches

Chapter 3: Denial of Service against Attacks OpenFlow

Switches

DENIAL OF SERVICE ATTACK MODEL

In [23] and [29], the authors introduced an attack targeting the OpenFlow switch flow tables. The attack fills up the forwarding rules memory. An OpenFlow switch usually has a fixed size memory to store its forwarding rule list. The memory size is limited to N rules where N varies according to the switch brand. For example, in HP 5406zl switch N=1500 [2], while in CpQD’s OpenFlow 1.3 Software Switch [25] N=4096. If the flow table memory of the OpenFlow switch is full and the controller instructs the switch to install a new flow rule [12], the switch detects that its flow table is full. As the switch cannot install this rule, it sends an OFPT_ERROR message to the controller with error code OFPFMFC_TABLE_FULL it then drops this packet. The switch cannot forward buffered packets until there is space in the flow table to install new flow rules.

Attack Environment

Figure 7 shows the attack environment. A simple network with one OpenFlow switch (S1), one Controller (C0) and two host (h1 and h2). Host-1 (h1) will act as the attacker targeting the switch (S1).

(45)

Figure 10. Emulation Topology [23].

The attacker at (h1) attacks the flow table of (S1) by sending streams of UDP packets with the destination address of (h2). This means the attacker knows at least one host IP address in the network. Those UDP packets are constructed such that each arriving packet will force the switch (S1) to forward it to the controller (C0) making the controller (C0) to install a new Rule in the switch (S1). The main utilize here is to change the source port number to a new value (sequence) in each sent packet. The traffic is generated using a hi-ping. A total of 50000 UDP packets (with 512 bytes of payload) at a rate of about 1000 packets per second is generated and sent as described in [23].

Refer to figure 4, the Matching Condition part of the rule is a tuple of values extracted from the packet header. Typically, this tuple contains the source MAC address,

(46)

46 Chapter 3: Denial of Service against Attacks OpenFlow Switches

destination MAC address, source IP address, destination IP address, protocol, source port and destination port. Note that the MAC and port values are those used in classical switches for their ARP table. In addition, wild cards like (*) are used in the flow rule to indicate a field needn’t be matched.

Attack Results

Every stream entrance needs an idle timeout What's more a hard timeout connected with it, both from claiming which would arranged through the OpenFlow controller. Those idle timeout may be that scale from claiming seconds, after which a stream entrance is uprooted from those stream tables and the equipment enhanced in view no packets match it [6].

Those difficult timeout will be those numbers of seconds following which the stream passage is evacuated from those stream tables and the fittings if or not packets match it. In a stream passage need both an idle timer. Furthermore a difficult time connected with it, those initial timers with lapse makes the stream entrance will make uprooted. On those idle timer expires in those stream entrances will be uprooted at that purpose just if there are no matching packets. Otherwise, the stream entrance will be uprooted at the difficult timer expires.

The results in [23] show that the flow table of (S1) will be flooded by the rules, making new arrival packets to be dropped and the switch (S1) effectively out of services.

(47)

One factor affecting the switch (S1) behaviour is the rules time-out pre-set value. OpenFlow switches delete any unused rule, if it is not used for a specific time-out value. If the time-out is small enough, unused rules will be deleted more rapid lowering the effect of the attack, with the side-effect of huge traffic between the controller and switch(s) to install the same rules repeatedly. On the other hand, a larger time-out reduces the controller-switch flow, but makes the switch more vulnerable to flow table floods.

The packet drop rate is measured as an indicator for the successfulness of the attack. As expected, with larger idle timeout values, previously installed flow rules remain in the switch’s flow table longer. This causes the flow table to be filled up and thereby prevents new flows from being created [23].

Conclusion

Migration strategies try to arrange nodes according to the classification must think as the attacker might utilization for misclassification should their relating to point. Orders schemes ought to further strengthen represent information passing lost packets in the network likewise with the data could be allowed. Relief advance makes mitigation technologies effectively joined, just when they support data or when they are planning on not to send to one another. Generally joining frameworks might present vulnerabilities, improve, expand attack acceptability.

(48)

48 Chapter 4: Protecting OpenFlow Switches against Denial of Service Attacks

Chapter 4: Protecting OpenFlow Switches against

Denial of Service Attacks

PROPOSED DOS ATTACK MITIGATION MODEL

Denial-of-service (DOS) attack would on the climb and need developed under complex, also certain security tests associate extensive with also little despite dos attack need assistance, not a late phenomenon those routines. What's more assets accessible will find the behaviour of attack that have such dramatically advanced with incorporate distribute (DDOS) [11].

DOS attack consumes assets done networks. Server clusters, improve end hosts for those dangerous destination for keeping in review that administration extremely devaluing on real clients’ assets that are regularly expended previously, such attack incorporate system bandwidth. Server improve switch CPU cycles, server intrude preparing capacity [33]. In more particular, protocol information structures analogy dos attack. Incorporate TCP/IP SYN attack that consumes protocol information structures around. The server working system; ICMP guided broadcasts that regulate shows deliver on send a surge for ICMP replies to a target group.

Distributed Denial of Service (DDOS) attack upset. Furthermore deny real workstation to be more group asset. Use through compromised hosts that consume attacks. Relief innovations need been produced. Should protect against DDOS attacks; be that there may be little comprehension of the key associations the middle of DDOS attacks, relief strategies. Also attack execution without a strong comprehension for these basic relationships, it may be was troublesome with determine the capability of relief

(49)

innovations on location those DDOS issue or how relief advances might effectively make deployed together [10].

MAC protocols work at the join layer and a large segment require participation. Between hubs on referee channel use, making them especially defenceless Dos attack. Link-layer dangers incorporate collisions, investigation, also packet recharge. An impact trick is synonymous with those reactive-jamming attacks [7]. That could relieve exactly collisions by utilizing error-correcting codes. An attacker may decide will execute denial-of-sleep attack, through basic Jamming-based dos attacker on a WSN should cut off those attack’s span to mask and conduct. Incapacitate a sensor network, insert a trick might devaluate months to drain those focused device’s batteries.

MAC protocols need cooperation a characteristic keep tabs to denial of sleep attack. This may be, a result they control those purpose of the transceiver, this expends greater a scale vitality over whatever viable part ahead on most wireless sensor platforms. Those join layer coordinates right of the physical medium linking network’s hubs. Different physical layer attack incorporates hub adjust or decimation. Although, it’s hard to prevent the destruction of Hubs deployed over an unsecured area to excess hubs and camouflaging camwood. Relieve this danger defences against. Improving incorporates nodes, tamper-proofing packages, or actualizing improves response likewise cryptographic memory. In link/MAC layer, MAC protocols work during those connection layers, also MAC protocols require collaboration [6].

The middle of hubs with referee channel use will make them especially powerless dos attack. Link-layer dangers incorporate collisions, examination; also packet recharge impact trick may be synonymous for those reactive jamming attackers to might relieve

(50)

percentage of collisions by utilizing error-correcting codes. However, ECCs Error Checking and Correcting includes transmission overhead expending extra vitality [7]. A duration attack utilizes the two-way are request-to-send and clear-to-send (RTS/CTS) handshake that numerous Mac protocol use to relieve or mitigate. Eventually Tom's run after the hidden node issues an attacker might weaken a node’s to benefit over sending RTS messages will inspire CTS reactions starting with a focused on the neighbour’s hub. Furthermore, hard link-layer confirmation might relieve these attacks. However, a focused on hub getting those fake RTS. Messages still expend vitality, and group transfer speed Routing-disruption attack camwood head of DOS attack in multi-hop sensor networks [29].

Vulnerabilities attack countermeasures general attack once directing. Protocols incorporate spoofing, replaying, or adjusting directing movement Link-layer. It authentication or confirmation and entire play might sufficiently keep these attacks detrimental hubs that destructs the network’s directing protocol might scale. DOS trick towards making itself and only huge numbers, routes dropping the greater part of packets in the black hole attack, it specifically ahead packets with decrease the likelihood of identification [24].

Successful relief about DOS attack is a compressed environment because its pace in a minimum rate issue on the internet in frequent cases, DOS attack a chance to be those event of a possible significant occasion. Administration retracing, vented assuming that the spoofed hotspot IP address will be followed again to its root, which secluding those TCP. SYN packet must a chance to be transformed on learning its legitimacy [7].

(51)

Missed hosts, furthermore domains starting with remains of those groups. Recently, IP trace to despite the fact that the asset use connected with the process back. Forward considering of probabilistic packet marking (PPM) has been recommended to accomplishing trace back of DOS attack. In this duplicator, we demonstrate those probabilistic packets marking of interests because of its effectiveness what’s more implement ability. Vis-a-vis deterministic packet marking the logging or informing based on schemes-suffers, under spoofing of the denoting field in the IP header by the victim. It might show that there may be an exchange off the main capacity of the user with confines those victims and the seriousness of dos attack [34].

Likewise, it may be represented a capacity of the marking probability, length, movement and volume. The ideal solution of PPM can indicate the probability of those attackers, since it assigns them from spoofing and inspect the estimate source address. Ability to be communicated concerning analogy, a force of minimal streamlining problem for the assigned victims. To check feasibility of the scale to create tactic ways for minimization. Under conveyed DOS attacks, those traceable influence achievable PPM that perusing attacks could make amplified, which reduce the acceptability. In spite of proactive server roaming extinguish principal progress to the relief about dos attacks, its impediments. Would tend to in 5 processes:

• It handles a special case in the server, dynamically during a time.

• It requires logging off administration, subscription, which will be not an adaptable administration model.

• Servers keep track of the IP addresses about every one subscribed customers over. Request to occasionally send them roaming upgrade messages; Keeping such a

(52)

rundown maybe not scalable, particularly for an expansion. Also, customer amount may be cut off to use upgrade IP address, decreasing flexibility.

• The component will be not transparent to the customer that requires transforms to customer software.

• It will be not difficult will trade off a customer machine for probability about possibly uncovering the administration of members details saved in the customer improve monitoring for client’s movement with uncovering the delivery of current server or for both.

TCP migrate also migratory TCP, which provide a structure to operational person end point of a carry on with TCP/IP. With one area, merger start area hosting and improve IP location or an improve port number, need cooperation to be utilized for adaptability to attack any tolerance in the network spontaneity administrations will be a framework to consider. Reactively, relocating the administration front-ends and updated main plane and assembles it for merger relocation the traffic, also gives a secure structure to issuing the roaming trigger proactively [20].

This idea about introducing a layer about indirection should preserve against DOS attack might have been exhibited in the Secure Overlay Services (SOS) building design and the DOS Attack Mitigation (DAM). SOS employments the overlay network about proxy hubs to conceal the areas of little number. Also permits main movement from these servers with enters the security services group in place should add an entry of the overlay network, a customer need will validate itself. With a standout amongst one of those replicated access points (SOAPs). Which, Routes every customer packet should a standout amongst those servers utilizing a hash based. Directing this overhead of overlay direct routing to make the dependent servers upon 10 times those immediate

(53)

correspondences the inactivity. Anyway employments one-hop tunnelling through the AGs typically, close in neighbourhoods with clients as against to hash-based directing for client-server traffic; subsequently it abstains from these high latencies [10]. The idea of Sandboxing is utilized to protect OpenFlow switch against the DOS attack of the same type described in chapter 2. The following subsection describes and analyses the proposed model.

OpenFlow Sandbox

As shown in figure 12, the same network utilized in the previously described attack is used again. It is the left part of the figure marked as “Operational Environment”. Another network is added and marked as “Sandbox Environment”. To virtualize more in reality the result of the Sandbox with SDN for the first time as it is a unique idea.
