Vibrational analysis of flavone
Yusuf ERDO ˘GDU1, Ozan ¨UNSALAN2 and Mehmet Tahir G ¨ULL ¨UO ˘GLU1
1Department of Physics, Faculty of Art and Science, Ahi Evran University, 40040, Kır¸sehir-TURKEY
e-mail: yusuferdogdu@gmail.com
2Department of Physics, Faculty of Science, ˙Istanbul University, 34459, Vezneciler, ˙Istanbul-TURKEY
Received 16.09.2008
Abstract
In this study, the experimental and theoretical study on the structures and vibrations of flavone are presented. FT-IR and FT-Raman spectra of the molecule have been recorded in the 400–4000 cm−1 region and the 5–3500 cm−1 region, respectively. The molecular geometry and vibrational frequencies of flavone in the ground state have been calculated by using Density Functional method (B3LYP) in conjunction with 6-311++G(d,p) and 6-31++G(d) as basis sets.
Key Words: Infrared spectra, Raman Spectra, Hartree-Fock, Density functional theory, Flavone.
1.
Introduction
Flavonoids are a large group of plant secondary metabolites that share a basic phenylbenzopyrone feature and are found in all vascular plants where they occur in several structurally and biosynthetically related classes [1, 2]. They are important constituents of the human diet [1, 3] and can also be found in expressive amounts in many medicinal plants [1, 4]. Flavonoid is any member of a class of widely distributed biological natural products containing aromatic heterocyclic skeleton of flavan but no nitrogen. Generally, flavonoids are biological pigments providing colors from red to blue in flowers, fruit and leaves. Besides their coloring in plants, flavonoids have important roles in the growth and development of plants; protection against UV-B radiation; forming antifungal barriers; antimicrobial, insecticidal and oestrogenic activities; and plant reproduction. Flavonoids also exhibit a wide range of biological properties including anti-microbial, insecticidal and oestrogenic activities [5].
Flavone has been investigated by Raman and surface-enhanced Raman spectra [6], Gas phase infrared spectra [7]. Mantas et al. [8] performed ab initio conformational analysis of flavone and related compounds. In this study, conformational analysis was investigated at HF/STO-3G level of theory and optimized geometric
parameters and vibrational spectra were calculated at HF level with STO-3G and 3-21G basis sets. However, in that study only values of the flavone frequencies were given. Waller et al. [9] crystallized and structurally characterized a single crystal of flavone. The vibrational frequencies for flavone and some deuterated analogues have been calculated from the conformational analysis of flavone using the semi-empirical AM1 method and compared with experimental values by Vrielynck et al. [10]. Vrielynck et al. [11] calculated conformational analysis of flavone by vibrational and quantum mechanical studies. These calculations used combined molecular mechanics (MMX), semi-empirical (AM1) and ab initio calculations. Although semi-empirical methods proved its usefulness in practice to facilitate the IR identifications, the performance of semi-empirical methods can not satisfy modern criteria of theoretical FT-IR spectral predictions. The IR spectra computed with Hartree-Fock (HF) and density functional theory (DFT) methods were in much better agreement with the observed IR spectrum: the correlation between the calculated and experimental vibration frequencies was characterized by the coefficients for all DFT methods higher than HF method. The calculated absolute band intensities were satisfactorily matched with the observed relative intensities as well.
In the present work, we report the results of calculated and experimental (IR and Raman) spectra of the flavone molecule using the DFT approximations. To the best of our knowledge, detailed quantum chemical calculations of the vibrational spectra of flavone have not been reported. Therefore, the present investigation was undertaken to study the vibrational spectra of this molecule completely and to identify the various modes with greater wavenumber accuracy. Density Functional Theory (DFT) calculations have been performed to support our wavenumber assignments. Furthermore, we interpreted the calculated spectra of in terms of total energy distributions (TEDs) and made the assignment of the experimental bands based on the results of the TED analysis.
2.
Experimental
Flavone samples were purchased from Sigma-Aldrich Chemical Company with a stated purity of greater than 98% and it was used as such without further purification. The flavone sample is in powder form at room temperature. The infrared spectrum of the sample was recorded between 400–4000 cm−1 on a Mattson 1000 FTIR spectrometer which was calibrated using polystyrene bands. The sample was prepared as a KBr disc. The FT-Raman spectrum of the sample was recorded between 5–3500 cm−1 regions on a Bruker FRA 106/S FT-Raman instrument using 1064 nm excitation from a Nd:YAG laser. The detector is a liquid nitrogen cooled Ge detector.
3.
Computational details
The molecular structure of flavone (in vacuum) in the ground state is optimized by HF and B3LYP with the 6-311++G(d,p) and 6-31++G(d) basis sets. Vibrational frequencies are calculated with DFT (B3LYP) approximation and then scaled by corresponding scaling factors. All the calculations are performed by using Gauss-view molecular visualization program and Gaussian 03W program package on a personal computer [12, 13]. These calculations are valuable to gain insight into the vibrational spectroscopy and molecular parameters of flavone structure.
4.
Results and discussion
4.1.
Conformational analysis
While the conjugation interaction between the C ring and A and B rings tends to prefer a planar structure, the steric repulsion between the ortho-ring hydrogens favors a nonplanar structure. The equilibrium geometry of the molecule results from a balance between these two effects. Figure 1 shows the variation of torsional barriers with the dihedral angles. The calculated relative energies and dipole moment for torsional angle are given in Table 1. The torsional barrier for phenyl rotation computed at the B3LYP and HF with 6-31++G(d,p) basis set corresponds to a low-transition state at 0◦ and high-transition state at 90◦. For both models, the relative energy of corresponding molecule displays the same trends with the uniform shape of torsional dependence.
Dihedral Angle (Degrees)
0 30 60 90 120 150 180 Relative Ener gy (kj.mol ) -1 0 3 6 9 12 15 HF/6-31++G(d,p) B3LYP/6-31++G(d,p)
Figure 1. Torsional barriers of the flavone.
B3LYP/6-31++G(d,p) level of theory calculations predicted the dihedral angle (OCCC) as 20.37◦, while the corresponding predictions were 20.67◦(B3LYP/6-31++G(d,p)) and 28.18◦(HF/6-31++G(d,p)) for flavone. The dihedral angle is determined at about 30◦ via the HF method, and at about 20◦ via the B3LYP method. This angle is experimentally determined as 10.53◦ in single crystal diffraction study for flavone [9]. Mantas et al. [8] calculated it as 20.82◦ for HF/STO-3G level of theory.
The calculated dipole moment results are shown in Table 1. The variation of dipole moment with the dihedral angle for flavone is shown in Figure 2. The dipole moments are calculated at B3LYP and HF with 6-31++G(d,p) basis set.
4.2.
Geometry optimization
Optimized molecular structure of the flavone was calculated using RHF and B3LYP levels of theory using 6-31++G(d,p) and 6-311++G(d,p) standard basis sets. Optimized molecular structure of flavone is given in Figure 3. Calculated geometric parameters and definitions of the natural coordinates for the molecules are summarized in Table 2. X-ray data of flavone is reported by Waller et al. [9].

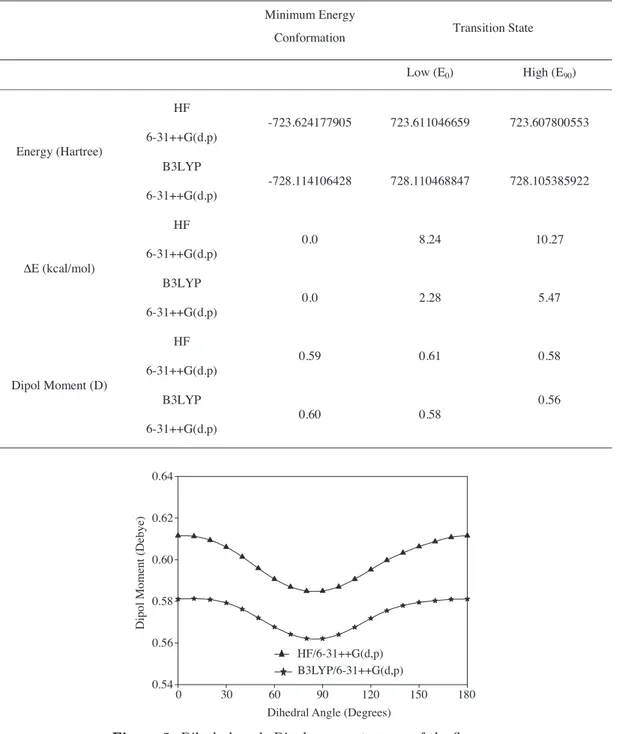

Table 1. Low and high energy barriers of phenyl rotation computed at various levels of theory for flavone.
Minimum Energy
Conformation Transition State
Low (E0) High (E90) HF 6-31++G(d.p) -723.624177905 723.611046659 723.607800553 Energy (Hartree) B3LYP 6-31++G(d.p) -728.114106428 728.110468847 728.105385922 HF 6-31++G(d.p) 0.0 8.24 10.27 ΔE (kcal/mol) B3LYP 6-31++G(d.p) 0.0 2.28 5.47 HF 6-31++G(d.p) 0.59 0.61 0.58 Dipol Moment (D) B3LYP 6-31++G(d.p) 0.60 0.58 0.56
Dihedral Angle (Degrees)
0 30 60 90 120 150 180
Dipol Moment (Debye)
0.54 0.56 0.58 0.60 0.62 0.64 HF/6-31++G(d,p) B3LYP/6-31++G(d,p)
Figure 2. Dihedral angle-Dipole moment curves of the flavone.
The C4-C14 bond distances are between 1.475–1.490 ˚A. This distance is variously determined as: 1.475 ˚A (B3LYP/6-31++G(d,p)), 1.474 ˚A (B3LYP/6-311++G(d,p)), 1.481 ˚A (HF/6-31++G(d,p)) and 1.481 ˚A (HF/6-311++G(d,p)) for both flavone. The dihedral angle between the phenyl and the pyrone ring is small (8.9 ˚A), as expected in the generally preferred conformation of flavones. The small dihedral angle results in a relatively short C4-C14 bond length of 1.472 (2) ˚A is consistent with bond lengths and dihedral angles as found in other
flavones [14]. Flavone-3-sulfonamide has a dihedral angle of 8.2◦ and the C4-C14 bond length of 1.478 (3) ˚A [15]. In 5-hydroxyflavone, the dihedral angle is 5.2◦ and the C4-C14 bond length is 1.465 ˚A [16]. 5,7-Dihydroxy-4-methoxyflavone with a dihedral angle of 3.1◦ has a C4-C14 bond length of 1.453 ˚A [17]. However, in 2 -methyl-3-nitroflavone, the dihedral angle is 139.8◦ and the C4-C14 bond length is 1.491 ˚A [18], and in 5,4 -dihydroxy-3,6,7,8- tetramethoxyflavone a large dihedral angle of 164.4◦ and a C4-C14 bond length of 1.503 ˚A were reported [19].
Table 2. Bond lengths and bond angles for flavone.
B3LYP 6-311++G(d,p) HF 6-311++G(d,p) X-RAY [6] B3LYP 6-311++G(d,p) HF 6-311++G(d,p) X-RAY [6]
Bond Lengths (Å) Bond Angles (°)
C1-C2 1.455 1.460 1.448 C2-C1-C6 113.9 113.8 114.1 C1-C6 1.481 1.479 1.475 C2-C1-O26 123.2 123.2 123.5 C1-O26 1.226 1.197 1.232 C6-C1-O26 122.7 122.9 122.3 C2-C4 1.355 1.335 1.354 C1-C2-C4 122.5 121.6 122.4 C4-C14 1.475 1.482 1.475 C2-C4-C14 125.8 125.3 125.8 C4-O25 1.361 1.341 1.367 C2-C4-O25 121.8 122.5 122.2 C5-C6 1.398 1.381 1.393 C14-C4-O25 112.2 112.1 111.9 C5-C12 1.396 1.391 1.395 C6-C5-C12 121.5 121.3 121.6 C5-O25 1.371 1.352 1.374 C6-C5-O25 121.8 121.9 122.3 C6-C7 1.403 1.398 1.405 C12-C5-O25 116.5 116.6 115.9 C7-C9 1.384 1.372 1.374 C1-C6-C5 119.6 119.3 119.6 C9-C10 1.403 1.398 1.397 C1-C6-C7 121.8 121.7 121.8 C10-C12 1.386 1.374 1.379 C5-C6-C7 118.5 118.8 118.5 C14-C15 1.402 1.391 1.400 C6-C7-C9 120.5 120.4 120.2 C14-C23 1.403 1.391 1.399 C7-C9-C10 120.2 120.4 120.1 C15-C17 1.391 1.384 1.391 C9-C10-C12 120.6 120.8 120.9 C17-C19 1.393 1.384 1.393 C5-C12-C10 118.8 118.7 118.4 C19-C21 1.394 1.385 1.380 C4-C14-C15 120.4 120.1 121.1 C21-C23 1.390 1.383 1.385 C4-C14-C23 120.7 120.7 119.3 C15-C14-C23 118.7 119.1 119.4 C14-C15-C17 120.4 120.3 120.0 C15-C17-C19 120.3 120.2 120.1 C17-C19-C21 119.6 119.7 119.5 C19-C21-C23 120.2 120.1 121.2 C14-C23-C21 120.5 120.3 119.6 C4-O25-C5 120.1 120.7 119.1
A
B
C
Figure 3. Flavone structure and atoms numbering.
The average C-C bond lengths for rings A and C are 1.394 ˚A and 1.383 ˚A for 6-methylflavone [14]. The average C-C bond lengths of the A, B and C rings are 1.395 ˚A, 1.422 ˚A and 1.396 ˚A in flavone for the B3LYP/6-311++G(d,p) calculation. Calculated C-H bond lengths are in the range of 1.070 ˚A–1.086 ˚A in flavone for B3LYP and HF respectively. C=O bond lengths are between 1.226 ˚A–1.234 ˚A and 1.197 ˚A–1.203 ˚A in the flavone for B3LYP and HF respectively. All aromatic ring angles are almost 120◦ for flavone.
4.3.
Vibrational analysis
Flavone consists of 27 atoms, which has 75 normal modes. The 75 normal modes of the flavone have been assigned according to the detailed motion of the individual atoms. This molecule belongs to C1 symmetry group. To the best of our knowledge, there are no detailed quantum chemical studies for the IR and FT-Raman spectra of flavone. Scale factors were used to fit the calculated wavenumbers with those of the observed ones. The FT-IR (Figure 4) and FT-Raman (Figure 5) spectra of flavone are given. The experimental FT-IR
1.0 0.5 0.0 Absorbance 3500 3000 2500 2000 1500 1000 500 Wavenumber (cm-1) 4000 1.0 0.5 0.0 Raman Intensity 3500 3000 2500 2000 1500 1000 500 0 Wavenumber (cm-1)
and FT-Raman wavenumbers are tabulated in Table 3 together with the calculated wavenumbers. As seen in Table 3 IR absorption intensities of flavone are consistent with the PED results [20].
The theoretical Raman intensities (IR
i ) can be derived from the computed Raman scattering activities using the equations
IiR= Cυ−0υi 4
· υ−1
i · Bi−1· Si, (1)
where Bi is a temperature factor which accounts for the intensity contribution of excited vibrational states, and is represented by the Boltzmann distribution
Bi = 1− exp −hυic kT . (2)
In equation (1) υ0 is the frequency of the laser excitation line (in this work, we have used the excitation frequency υ0=9398.5 cm−1, which corresponds to the wavelength of 1064 nm of a Nd:YAG laser), υi is the frequency of normal mode (cm−1), while Si is the Raman scattering activity of the normal mode Qi. IiR is given in arbitrary units (C is a constant equal 10−12). In Equation (2) h, k , c, and T are the Planck constant, Boltzman constant, light-speed and temperature (in Kelvin), respectively. The Bi factor was assumed to 1, otherwise, the calculated Raman intensities for the bands below 300 cm−1 were extremely overestimated, in comparison to experiment [21].
In aromatic compounds, C-H stretching frequencies appear in the range of 3000–3100 cm−1; in-plane C-H bending vibrations appear in the range of 1000–1300 cm−1; and out-of-plane C-H bending vibrations appear in the range 750–1000 cm−1. In the flavone, the C-H stretching vibrations are predicted at 3098–3151 cm−1 for B3LYP/6-311++G(d,p) level of theory. These vibrations are observed experimentally in the range of 3040–3100 cm−1 in the infrared spectra. Four C–H stretching modes of the phenyl group (ν66, ν68, ν70, ν75) are predicted in this region. These vibrations are observed at 3040 cm−1 and 3070 cm−1 in the infrared spectra. In the high frequency region, the TED calculations show that all the C-H stretching vibrations are pure modes. In-plane C-H bending vibrations are observed in the range of 1079–1260 cm−1 for infrared spectra. In-plane C-H bending vibrations of flavone molecule observed at 1079 cm−1, 1001 cm−1, 1129 cm−1 and 1260 cm−1 in the infrared spectra. Out-of-plane C-H bending vibrations are observed at 769 cm−1, 851 cm−1, 868 cm−1, 906 cm−1 and 925 cm−1 for flavone. The theoretical wave number of (in-plane and out-of-plane) C-H stretching coincides very well with experimental values.
The most intensive peak is C=O stretching and is observed at 1646 cm−1 in IR, and 1633 cm−1 in RA for flavone. Fundamental CC=O bending mode was at 606 cm−1 (IR), 616 cm−1 (RA) for flavone. This peak calculated at 599 cm−1 for B3LYP/6-311++G(d,p) level of theory for flavone. The CC ring stretching vibrations for all rings assigned to 1606 cm−1 in the flavone. CC stretching modes for all rings observed between 1569 cm−1–1011 cm−1 for flavone, where they are expected to be.
Ta b le 3 . Co m p ar iso n o f t he o bs er v ed an d cal cul at ed v ib ra ti ona l s p ect ra of f la v on e. B 3 L Y P/ 6 -31 1+ + G (d .p ) B3L Y P 6 -31 + + G (d.p) Ex p. IR. Ex p. RA TE D g(% ) Fr eq. a Fr eq . b IR e. R A f. F re q. a Fr eq . c R a [5] S E R S [5 ] G as pha se [ 6 ] ν1 34 33 0. 09 0. 06 33 32 - ΓCCC O (50 ) Γ CCC C (42 ) ν2 57 56 0. 07 4. 85 58 57 - ΓCCCC (39 ) Γ CO C C (27 ) ν3 10 2 10 0 0. 07 0. 08 10 3 10 0 - 9 4 m δCCC (3 3 ) δ CC O (20 ) ν4 11 9 11 6 0. 52 0. 10 12 2 11 9 - 1 2 3 w ΓCC CO ( 36 ) Γ C C CC (28 ) ν5 15 4 15 1 0. 08 0. 46 15 7 15 3 - 14 4 w ΓCCCC (33 ) Γ CO C C (25 ) ν6 20 2 1 98 0. 30 0. 02 2 0 5 20 0 - 21 5 m ΓCCCC (3 3 ) Γ C CC O (30 ) ν7 26 4 25 8 0. 29 0. 34 26 4 25 8 - δCCC (2 3 ) υ CC (16 ) δ CCO ( 15 )υ CO ( 10 ) ν8 28 1 2 75 0. 0 1 63 .6 9 28 3 27 6 - 2 6 7 w ΓCCCO (13 ) υCC (10 ) ν9 29 4 28 8 0 .60 24 .5 6 29 4 28 8 2 9 5 - 29 4 w δCCC (2 5 ) δ CCO (16 ) ν10 34 7 33 9 0. 97 0 .7 8 34 7 33 9 34 6 - δCCC (3 5 ) δCC O (2 4 ) ν11 4 10 4 01 0. 03 13 .0 1 41 2 4 03 - ΓCCCC (6 5 ) Γ CC C H (3 4 ) (P) ν12 43 4 42 5 0. 06 2. 24 43 6 42 6 - ΓCC CC ( 4 3) ΓCC CH (1 9 ) ν13 46 8 4 58 0. 7 7 3 .5 8 4 69 45 9 4 49 4 5 7 vw 45 4 v w ΓCCCH ( 3 0) ΓC C CC (21 ) (P) ν14 50 4 49 3 0. 52 3. 57 5 03 4 9 2 - δCC C (3 2 ) δ C CH (10) δC CO ( 13) δCO C ( 12 ) ν15 51 4 5 03 0. 46 1. 4 9 5 14 50 3 5 01 50 0 v w 49 8 v w δCCC (2 5 ) υ C C (22 ) δ CC O (18 ) ν16 5 35 5 23 0. 9 6 3. 61 53 8 5 26 51 1 50 9 51 0 m ΓCCCC (25 ) Γ CC CH ( 25) Γ C C CO (15 ) ν17 58 8 5 7 5 0. 15 17 .5 3 58 6 57 3 52 0 52 9 w 52 7 w δCC H (2 8 ) δ CCC (14 ) ν18 6 1 3 59 9 2 .7 6 35 .2 4 61 2 59 8 - δCCO ( 3 2) δC C C (14 ) ν19 63 3 61 9 0 .04 41 .7 4 63 1 61 7 62 1 61 4 60 6 m 6 16 w δCCC ( 5 8 ) (P) δCC H ( 2 0 ) ν20 66 3 64 9 0. 32 65 .8 2 6 63 64 8 65 2 65 0 w 6 4 9 v w ΓCCCC (1 3 ) Γ CC CO (13 ) Γ CO CC ( 11 ) Γ CCC C ( 1 1 ) (P) ν21 68 5 67 0 2 .47 20 .3 6 6 84 66 9 - ΓCCC C (24 ) Γ CC CO 18 ) ν22 68 6 6 71 0. 83 0. 2 1 6 84 66 9 67 5 68 0 67 3 m 6 74 m δCCC ( 15) (P) ν23 70 3 68 7 6 .2 6 7. 45 70 2 68 6 68 7 m ΓCCCH ( 55) ΓCCC C (33 ) (P) ν24 75 4 73 7 0. 88 3. 75 7 55 73 8 - δCCC (4 1 ) δ CCC (1 2 ) ν25 76 8 7 51 3. 26 33 .5 3 7 65 74 8 -ΓCCCH ( 3 3) ΓC CC C (24 ) Γ CC CO ( 16 ) ν26 78 3 76 6 1 7. 3 6 5. 80 78 3 76 6 74 6 75 5 7 5 6 m 7 4 5 ΓCCC H (3 8 ) Γ CCCH ( 15 ) (P) ν27 78 9 77 2 0. 55 2 .17 7 88 77 1 7 69 s 76 8 ΓCCCH (2 2 ) Γ CCCH (19 ) ν28 85 3 8 35 0 .4 3 4. 02 8 55 83 7 - ΓCCCH (9 3 ) ( P) ν29 86 0 84 1 2 .02 5. 89 8 6 0 84 1 83 8 - δCCC (2 8 ) υ OC ( 15 )( P) ν30 87 3 85 4 3. 35 5 0 .7 3 87 4 85 5 85 6 85 1 m 85 0 v w ΓCCCO ( 4 1) ΓC CCH (33 ) ν31 8 82 8 6 2 0 .5 0 1. 62 88 4 8 64 86 8 w ΓCCC H (4 5 ) Γ HC C H (1 7 ) Γ OC C H ( 1 7) ν32 92 0 90 0 3. 54 65 .7 7 9 19 89 9 - δOC C (1 5 ) δ CO C ( 1 2) δCC C (10 ) υ OC ( 11) υCC (10 ) (P) ν33 94 2 92 1 0. 30 69 .5 4 94 2 92 1 9 06 m 9 0 4 w ΓCCCH ( 57) ΓHC C H (3 2 ) (P ) ν34 97 9 95 7 0 .26 10 0 97 9 95 7 92 9 92 5 v w ΓHCC H (4 8 ) Γ CCCH (3 7) ν35 99 1 96 9 0. 08 48 .2 9 9 89 96 7 - ΓHC C H ( 53 ) (P ) Γ C C C H (3 3 ) (P) ν36 1 00 3 98 1 0. 03 0. 95 1 005 9 8 3 - ΓHC C H (6 0 ) Γ CCCH (2 9 ) ν37 10 0 8 98 6 0. 02 1 .3 7 10 0 8 98 6 - ΓHCC H (7 7 ) ( P ) ν38 10 1 6 99 3 0. 32 2. 7 3 1 014 99 2 - υCC ( 40) ( P ) δ CCC (40 ) (P) ν39 1 03 1 10 0 9 1 .50 2. 84 10 3 5 10 1 3 - υCC (4 6 ) υ O C (17 ) (P )
ν40 10 4 9 10 2 6 3. 27 3. 03 1 052 1 0 29 1 0 02 10 0 5 10 1 1 w 10 0 0 s υCC (3 3 ) ( P ) υ C C (20) δCCH (1 5 ) (P) ν41 10 6 3 10 4 0 3. 07 3. 20 1 067 1 0 44 1 0 13 10 2 9 m 10 1 2 m υOC (2 0 ) υ C C (19 ) (P) ν42 11 0 8 10 8 4 1. 8 7 0. 65 11 1 0 10 8 6 10 4 8 10 4 4 m 10 4 4 v w υCC (3 6 ) δCCH (2 7 ) (P) ν43 11 0 9 10 8 5 0. 05 5. 70 11 1 1 10 8 6 δCCH (3 5 ) υ CC ( 19) ν44 1 1 4 7 1 122 7 .9 8 1. 89 1 149 1 1 2 4 1 098 10 7 9 w δCC H (4 4 ) υ CC ( 3 7 ) ν45 1 1 74 1 148 0 .0 3 1. 73 11 77 1 151 δCC H (7 1 ) υ CC (1 6 ) ν46 11 8 6 1 1 6 0 0. 0 3 0. 0 6 11 8 8 11 62 1 1 00 1 1 0 1 m 1 1 0 0 v w δCC H (7 4 ) (P) υCC (1 5 ) (P) ν47 1 2 0 8 1 1 8 2 2 .2 2 4. 85 12 1 1 11 84 1 143 1 12 9 s 11 3 1 v w δCC H (7 5 ) (P) υCC ( 1 5) ( P ) ν48 1 2 35 12 0 8 7 .2 4 0. 08 12 4 6 12 19 11 6 2 11 7 0 - 11 6 0 vw υOC (3 9 ) υ CC ( 27 ) δ CCH ( 1 5) ν49 1 2 53 12 2 5 0. 60 0. 10 1 257 1 230 1 195 - 11 9 1 w δCC H (2 8 ) υ CC ( 2 2) ( P ) υ CC (R -P) ( 1 8 ) ν50 1 2 7 3 1 2 4 5 4 .4 4 0. 46 12 7 8 12 5 0 12 3 5 1 244 1 226 m 1 2 3 5 s δCC H (4 7 ) υ C C (1 2 ) (P) ν51 1 3 0 7 12 7 8 1. 0 0 0. 02 1 313 1 2 84 1 270 1 256 1 260 m 12 66 s δCC H (2 9 ) υ CC ( 2 6 ) (P) ν52 1 330 1 3 0 1 1 0 .0 6 0. 34 13 39 1 3 10 1 28 3 w υCC (4 4 ) (P) ν53 1 3 55 13 2 5 3. 0 2 63 .6 9 1 3 65 1 3 35 - υCC (3 1 ) υ C C (24 ) (P) δCCH ( 2 5 ) (P) ν54 13 5 9 13 2 9 0. 7 6 2 4 .56 1 3 72 1 342 1 3 3 6 1 322 13 1 1 w 13 34 m υCC (4 5 ) δ C C H ( 28 ) (P) ν55 1 3 86 1 3 56 65 .2 3 0. 78 13 9 7 13 6 6 13 7 7 1 359 13 7 6 s 13 7 4 w υCC (2 1 ) υ C O (18 ) δ CCH (1 1) ν56 1 4 78 1 4 4 5 3. 93 13 .0 1 14 83 1 4 50 - δCC H (5 2 ) υ C C ( 29) ν57 1 4 92 1 4 5 9 1 9. 66 2 .2 4 1 498 1 4 65 - δCC H (3 9) υCC (2 8 ) ν58 15 0 1 14 6 8 0 .6 3 3 .5 8 15 07 1 474 1 4 52 1 403 14 4 9 m 1 4 49 w δCC H ( 51 ) υ CC (3 5 ) ν59 15 2 5 14 9 1 2 .7 7 3. 57 1 531 1 4 97 1 47 0 14 7 4 1 4 6 6 s 1 469 w δCC H (6 0 ) (P) υCC (2 9 ) ν60 16 0 4 1 5 6 8 8 .8 4 1 .4 9 16 12 1 576 14 9 5 14 9 5 s υCC ( 6 4) ν61 16 1 6 15 8 0 0 .8 1 3 .61 1 624 1 5 88 1 5 70 15 5 6 15 6 9 m 1 5 7 1 s υCC ( 4 8 ) (P) υCC (19 ) (P ) ν62 16 4 2 1 6 0 6 0 .0 7 17 .5 3 1 650 1 614 υCC (6 0 ) ( P ) δ CC H (1 5 ) ν63 1 6 4 3 1 6 0 7 1 1. 42 3 5 .24 16 5 1 16 15 - υCC (5 9 ) ν64 16 5 4 16 1 8 18 .5 0 41 .7 4 16 6 2 16 2 6 16 0 3 16 0 3 1 653 1 6 0 6 m 1 602 s υCC (6 4 ) ν65 1 7 04 16 6 6 1 0 0 65 .8 2 17 1 2 16 7 5 16 3 4 16 3 6 16 8 3 1 646 vs 1 6 33 v s υCO ( 77) ν66 3 1 6 8 30 9 8 0. 08 20 .3 6 3 185 3 1 15 30 2 5 30 4 0 v w υCH (9 9 ) (P ) ν67 3 1 7 3 3 103 0 .5 4 0. 21 3 1 91 3 1 21 30 5 9 s υCH (1 00 ) ν68 31 7 8 31 0 8 1. 2 8 7. 45 3 195 3 125 3 075 29 2 9 30 7 0 v w 30 6 9 s υCH ( 97) (P) ν69 31 8 6 31 1 6 1 .5 1 3. 75 32 04 3 1 34 - υCH (9 8 ) ν70 31 8 8 3 1 1 8 3. 31 3 3. 53 3 205 3 135 - υCH (9 7 ) (P) ν71 31 9 7 3 1 2 6 1. 66 5 .80 32 1 4 31 44 - υCH ( 94) ν72 31 9 8 31 2 7 0. 62 2 .1 7 32 16 3 1 45 - υCH (9 9 ) ν73 3 2 0 2 3 1 3 1 1 .8 3 4 .0 2 32 1 9 31 49 - υCH (9 9 ) ν74 3 2 0 9 31 3 9 0 .6 2 5 .8 9 32 2 6 31 5 5 υCH (9 8) ( P ) ν75 3 2 2 2 31 5 1 0 .2 2 50 .7 3 32 4 2 31 71 3 0 95 3 100 vw 3 1 35 v w υCH ( 97) P: Ph e n y l (C R in g ), R : A a nd B R in gs , υ : S tr et c h in g , δ : B en d in g , Γ : T or si o n, vs , V er y st ro n g ; s, S tr on g ; m, M ed iu m ; w, We ak ; vw, Very we ak a Un sc al ed f req u e nc ie s; b S ca ling fa ctor 0 .8 9 00; c Sc a lin g f ac to r 0 .978 1; On ly c o n tr ibu ti o ns ≥ 1 0 % ar e l ist ed , e Rel at iv e ab sor p tio n i n te ns it ie s n or m a liz ed wi th high es t p eak a bs or p tio n equ al t o 1 0 0 f R el at iv e Ra m a n i n te ns it ie s cal c u la te d b y E q. 1 an d n o rma liz ed t o 1 00 g To ta l e n er gy d ist rib u tio n c a lc u la te d B3 L Y P/6-3 1 1++G( d ,p ) l e v el . Ta b le 3. Contunied B 3 L Y P/ 6 -31 1+ + G (d .p ) B3L Y P 6 -31 + +G (d .p) Ex p . IR . Ex p . RA TE D g(% ) F re q. a Fr eq . b IR e. RA f. F re q . a Fr eq . c R a [ 5 ] S E R S [5 ] G as pha se [ 6 ]
5.
Conclusion
The IR spectrum of the title compound was computed using the B3LYP methods in conjunction with the 6-31++G(d,p) and 6-311++G(d,p) basis sets. Results are in good agreement with the observed FT-IR spectrum. The scale factors were used in order to compare how the calculated wave numbers are consistent with those of the experimental values.
