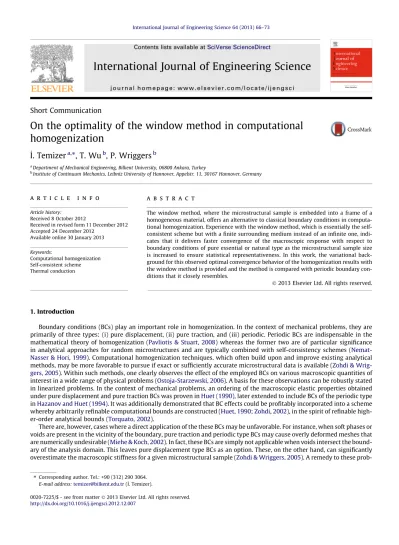

On the optimality of the window method in computational

homogenization

_I. Temizer

a,⇑

_{, T. Wu}

b

_{, P. Wriggers}

b

a_{Department of Mechanical Engineering, Bilkent University, 06800 Ankara, Turkey}

b_{Institute of Continuum Mechanics, Leibniz University of Hannover, Appelstr. 11, 30167 Hannover, Germany}

a r t i c l e

i n f o

Article history: Received 8 October 2012

Received in revised form 11 December 2012 Accepted 24 December 2012

Available online 30 January 2013 Keywords:

Computational homogenization Self-consistent scheme Thermal conduction

a b s t r a c t

The window method, where the microstructural sample is embedded into a frame of a homogeneous material, offers an alternative to classical boundary conditions in computa-tional homogenization. Experience with the window method, which is essentially the self-consistent scheme but with a ﬁnite surrounding medium instead of an inﬁnite one, indi-cates that it delivers faster convergence of the macroscopic response with respect to boundary conditions of pure essential or natural type as the microstructural sample size is increased to ensure statistical representativeness. In this work, the variational back-ground for this observed optimal convergence behavior of the homogenization results with the window method is provided and the method is compared with periodic boundary con-ditions that it closely resembles.

1. Introduction

Boundary conditions (BCs) play an important role in homogenization. In the context of mechanical problems, they are primarily of three types: (i) pure displacement, (ii) pure traction, and (iii) periodic. Periodic BCs are indispensable in the mathematical theory of homogenization (Pavliotis & Stuart, 2008) whereas the former two are of particular significance in analytical approaches for random microstructures and are typically combined with self-consistency schemes ( Nemat-Nasser & Hori, 1999). Computational homogenization techniques, which often build upon and improve existing analytical methods, may be more favorable to pursue if exact or sufficiently accurate microstructural data is available (Zohdi & Wrig-gers, 2005). Within such methods, one clearly observes the effect of the employed BCs on various macroscopic quantities of interest in a wide range of physical problems (Ostoja-Starzewski, 2006). A basis for these observations can be robustly stated in linearized problems. In the context of mechanical problems, an ordering of the macroscopic elastic properties obtained under pure displacement and pure traction BCs was proven inHuet (1990), later extended to include BCs of the periodic type inHazanov and Huet (1994). It was additionally demonstrated that BC effects could be profitably incorporated into a scheme whereby arbitrarily refinable computational bounds are constructed (Huet, 1990; Zohdi, 2002), in the spirit of refinable high-er-order analytical bounds (Torquato, 2002).

There are, however, cases where a direct application of the these BCs may be unfavorable. For instance, when soft phases or voids are present in the vicinity of the boundary, pure traction and periodic type BCs may cause overly deformed meshes that are numerically undesirable (Miehe & Koch, 2002). In fact, these BCs are simply not applicable when voids intersect the bound-ary of the analysis domain. This leaves pure displacement type BCs as an option. These, on the other hand, can signiﬁcantly overestimate the macroscopic stiffness for a given microstructural sample (Zohdi & Wriggers, 2005). A remedy to these

http://dx.doi.org/10.1016/j.ijengsci.2012.12.007 ⇑ Corresponding author. Tel.: +90 (312) 290 3064.

E-mail address:temizer@bilkent.edu.tr(_I. Temizer).

Contents lists available atSciVerse ScienceDirect

International Journal of Engineering Science

(2)

Experience with the window method indicates that it delivers faster convergence of the macroscopic response with re-spect to BCs of pure displacement or traction type as the microstructural sample size is increased, a procedure that is nec-essary to assess the statistical representativeness of the sample. In this work, the variational background for this observed optimal convergence behavior of the homogenization results with the window method is provided. The emphasis is on the effects of employing frames with finite width since the case of an infinite surrounding frame medium corresponds to the classical self-consistent scheme. A detailed overview of self-consistent methods is given inKanaun and Levi (2008)and a recent discussion of their generalizations inBenveniste (2008). These methods have classically been applied to particulate-or fiber-reinfparticulate-orced composites, although extensions to mparticulate-ore complicated heterogeneous media such as polycrystals have also been pursued (Jiang & Weng, 2004; Su & Weng, 2006). Presently, no restrictions are imposed on the microstructural geometry however the presentation is limited to linear thermal conduction. The same variational principles apply to other physical phenomena within a linear framework in a straightforward fashion, in particular to diffusion or elasticity. An exten-sion to the analysis of the overall electromagnetic response of heterogeneous media does not follow from this presentation yet is expected to be realizable with additional effort in view of the applicability of classical micromechanics techniques to this physical regime (Benveniste & Milton, 2011; Su & Weng, 2006; Zohdi, 2010).

2. Variational framework 2.1. Minimum principles

As the classical homogenization problem posed on a microstructural sample V, with boundary @V ¼ @Vh

[ @Vh_{, the}

stea-dy-state energy balance is considered in the absence of an external heat supply. The problem may be stated within a vari-ational setting via the functional

DðhÞ ¼ Z V 1 2g Kg d

v

Z @Vhhh da: ð2:1Þ

Here, h is the temperature, g = grad[h] and K is the thermal conductivity tensor. The corresponding heat ﬂux is q = Kg. The solution h to the problem among all admissible temperature ﬁelds —those which satisfy the essential BCs h ¼ h on @Vh

—min-imizes D, implying the energy balance div[q] = 0 in V as well as the natural BCs h ¼ h on @Vh_{. Here, h = q n is the normal heat}

ﬂux on a surface having outward unit normal n. The same problem may also be stated within a complementary setting. Consider

DcðqÞ ¼ Z V 1 2q Rq d

v

Z @Vh hh da; ð2:2Þ

where R = K1_{is the thermal resistivity tensor. The solution q to the problem among all admissible ﬂux ﬁelds —those which}

satisfy div[q] = 0 in V and h ¼ h on @Vh_{—is the one that minimizes D}c_{, implying h ¼ h on @V}h_.

2.2. Window method

The variational results apply to any domainX. Typically, linear (LN), uniform (UF) or periodic (PR) BCs on @Xare of interest:

LT-BCs : h ¼ g x; UF-BCs : h ¼ q n; PR-BCs : hþ

h¼ g ðxþ_x_{Þ and h}þ

¼ h: ð2:3Þ

With PR-BCs, the boundary of the domain is partitioned into periodically linked + and regions. The notation

hQiX¼ 1 j

X

j Z X Q d

v

ð2:4Þ

for the average of an arbitrary quantity Q will be useful for compactness. Standard averaging theorems (Nemat-Nasser & Hori, 1999) are then recalled under the assumptions of a diverge-free flux field and a continuous temperature field. The the-orems state that for LT- and PR-BCs on @Xone obtains hgiX¼ g and for UF-BCs hqiX¼ q. Additionally, for all the BCs in(2.3),

(3)

The microstructure is now embedded within a homogeneous frame W and the extended domain V [ W is denoted with X (Fig. 1). The frame is assigned a judiciously chosen material property Kw¼ R1w. After solving the problem, subject to a set of

BCs in the form above, the homogenized response is characterized through the macroscopic tensors K ¼ R1_{such that}

hqiV¼ KhgiV: ð2:6Þ

However, the window method is incomplete in this form. It is additionally required that the solution from the window meth-od satisﬁes self-consistency—replacing Kwby K followed by a repetition of the solution should again deliver K. In practice,

self-consistency is satisﬁed within a few iterations to very good accuracy, as to be demonstrated.

It is important to highlight that the domain of averaging in(2.6)is the microstructure only. Note that (Zohdi & Wriggers, 2005)

hQiX¼ fvhQiVþ fwhQiW; ð2:7Þ

where fv¼ jVj=jX j and fw¼ jWj=jX j ¼ 1 fv. Therefore, without self-consistency,

hqiX¼ fvhqiVþ fwhqiW¼ fvKhgiV fwKwhgiW¼ KðfvhgiVþ fwK1KwhgiWÞ – KhgiX: ð2:8Þ

Only at convergence of the iterations is Kw¼ K so that the domain of averaging can be V or X .

3. Augmented ordering relationship

Let fKLT;KUF;KPRg denote the homogenized conductivities under different BCs obtained using the window method.

With-out the frame, it is well-known (Hazanov & Huet, 1994) that the ordering relationship

Kð0ÞUF6K ð0Þ PR6K

ð0Þ

LT ð3:1Þ

holds, where the superscript is used to denote that there is no frame and A 6 B means B A is positive semi-deﬁnite. In this section, it will be shown that the window method subject to self-consistency delivers the augmented ordering relationship

Kð0ÞUF6KUF6KPR6KLT6Kð0ÞLT: ð3:2Þ

Now, a signature of a statistically representative microstructural sample is that its response is independent of the boundary conditions imposed. Therefore, the gap between Kð0ÞUFand K

ð0Þ

UFis an indication of how well the sample represents the desired

homogenized response. Increasing sample size typically results in a diminishing gap. When the gap is sufﬁciently small, the sample is deemed representative for computational purposes. Since it is undesirable to use very large samples, the practical signiﬁcance of the augmented ordering relationship becomes apparent. The window method delivers results that always fall between the two alternative BC results and therefore, similar to periodic BCs, one expects it to deliver faster convergence with increasing sample size. In this sense, the window method provides a tighter control over the sample size such that it is eventually possible to use a smaller sample compared to the situation without a frame, assuming LT- or UF-BCs are of concern. Where Kð0Þ

PR falls in(3.2)will be commented upon.

3.1. Linear temperature boundary conditions To prove KLT6Kð0Þ

LT, let go= grad[ho] and qoconstitute the solution to the problem without the frame under LT-BCs on @V.

The solution hois extended into a ﬁctitious frame domain via ho¼ g x for x 2 W. This extension is compatible with LT-BCs on

@V or @X . On the other hand, the solution with the window method using LT-BCs on @X is computed. The same frame mate-rial is employed in both cases. For the latter problem @Vh_{¼ ; and, since the extended ﬁeld is admissible, the minimum}

prin-ciple based on(2.1)implies

1

2jX jhg qiX6

1

2jX jhgo qoiX; ð3:3Þ

(4)

Self-consistency is now invoked by replacing Kwby KLT:

g KLTg 6 g ðfvKLTð0Þg þ fwKLTgÞ; ð3:7Þ

or

f_vg KLTg 6 f vg K ð0ÞLTg: ð3:8Þ

Since g is arbitrary, this result states the positive semi-deﬁniteness of Kð0Þ LT KLT.

3.2. Uniform ﬂux boundary conditions The proof of Kð0Þ

UF6KUFclosely follows the steps of the previous section. Only the beginning is stated. Let go= grad[ho] and

qoconstitute the solution to the problem without the frame under UF-BCs on @V. The solution qois extended into a ﬁctitious

frame domain via q_o¼ q for x 2 W. This extension is compatible with UF-BCs on @V or @X . On the other hand, the solution with the window method using UF-BCs on @X is computed. For the latter problem @Vh

¼ ; and, since the extended ﬁeld is admissible, the complementary minimum principle based on(2.2)implies

1

2jX jhq giX6

1

2jX jhqo goiX: ð3:9Þ

The remaining steps are identical, leading to the positive semi-deﬁniteness of Rð0Þ LT RLT.

3.3. Completing the ordering

The end inequalities in(3.2)have been proven. To complete the ordering, it is sufﬁcient to adapt the steps leading to the classical result(3.1). Only the idea inHazanov and Huet (1994)is recalled here. Let {hLT, hUF, hPR} be the three solutions under

the three different boundary conditions using the window method, with corresponding flux and gradient fields. Moreover, it is assumed that q in UF-BCs is chosen such that the average temperature gradient is enforced, i.e. hgi_X¼ g. One observes: 1. qPRis an admissible flux field for the LT-BC problem. The complementary minimum principle is applicable, which leads to

KPR6KLT.

2. hPRis an admissible temperature ﬁeld for the UF-BC problem. The minimum principle is applicable, which leads to

KUF6KPR.

Again, invoking self-consistency is critical to completing the proofs. It is noted that none of the arguments apply to Kð0Þ

PR, i.e. where it stands in(3.2)cannot be predetermined. Regarding the

limit response with increasing sample size, let K⁄_{denote the effective thermal conductivity tensor that is obtained from a}

statistically representative sample. Arguments (Huet, 1990; Zohdi, 2002), based on the partitioning of a very large sample into smaller ones indicate that, provided ensemble averaging hhii of the arithmetic type is used,

hhRð0ÞUFii 1

6K6_hhKð0Þ

LTii: ð3:10Þ

In other words, LT- and UF-BCs offer bounds on the unknown effective response. While the above bounds monitor only the mean response of the sample population, ordering relations for higher-order statistical measures may also be constructed (Zohdi, 2005). Moreover, these bounds can be argued to be arbitrarily reﬁnable, i.e. the gap between them diminishes with increasing sample size. Presently, one cannot show that KUFand KLT, which are obtained with the window method,

consti-tute similar arbitrarily reﬁnable bounds—their positions with respect to K⁄_{are unknown. In this sense, the window method}

resembles periodic boundary conditions. This observation will be veriﬁed numerically. 3.4. Choosing the frame width

The width of the frame appears to be a free variable and this was of concern in the original work ofBabuška et al. (1999) as well. Numerically, it is expected that choosing the frame width is similar to choosing the sample size—for a given sample size, one observes that K saturates to a limit with increasing frame width. This expectation is based on the well-known

(5)

self-consistent scheme, where the frame is essentially an inﬁnite surrounding medium, which delivers a unique response independent of whether LT- or UF-BCs are employed (Nemat-Nasser & Hori, 1999). In fact, one can show that the augmented ordering complemented by increasing frame width delivers a monotonic closure of the gap between LT- and UF-BC results:

Kð0ÞUF6K ð1Þ UF6K ð2Þ UF6. . . 6Kw6. . . 6Kð2ÞLT 6K ð1Þ LT 6K ð0Þ LT: ð3:11Þ

Here, increasing superscript indicates the results obtained under increasing frame width and Kwis the limit of the window

method which corresponds to the classical self-consistent scheme. The proof is very similar to the one outlined for(3.2) therefore only the case for LT-BCs is discussed. Consider the setup inFig. 2and let hoconstitute the solution to the problem

with the thinner frame. It is extended into a ﬁctitious frame domain Xð2Þ_{n X}ð1Þ_{via h}

o¼ g x and compared with the solution h

using the frame Wð2Þ_{. Invoking self-consistency for both cases, the result}_(3.7)_{now takes the form}

g Kð2ÞLTg 6 g faKð1ÞLTg þ f bK ð2Þ LTg ; ð3:12Þ

where fa¼ jXð1Þj=jXð2Þj ¼ 1 fb, which indicates Kð2ÞLT 6K ð1Þ LT.

Where the PR-BC results fall with respect to the limit Kwis unknown at small frame widths. However, the limit obtained

is independent of the BCs employed since PR-BC results are bounded in(3.2). On the other hand, this limit is not the effective limit K⁄_{since the sample is not necessarily statistically representative. On the computational side, of course, it is undesirable}

to choose a very large width since this increases the size of the problem. Therefore, a trade-off exists between increasing the frame width and the sample size in practice.

4. Numerical investigations

In this section, the observations of the earlier discussions are brieﬂy demonstrated through computations on two types of three-dimensional microstructures: (i) periodic microstructures where a unit cell corresponds to a sphere embedded in a matrix, and (ii) random microstructures which are obtained through the computed tomography scan (CT-scan) of hardened cement paste.

4.1. Periodic media

For investigations in the periodic setting, the unit cell width is set to 10 units while the diameter of the sphere is 9 units, corresponding to a volume fraction of approximately 0.38. The thermal conductivity of the sphere is 500 W/mK and the one of the matrix is 1 W/mK. The unit-cell displays macroscopic isotropy, represented by k ¼ khqi_Vk=khgiVk. The unit cell is

Fig. 2. Increasing frame thickness is depicted.

Fig. 3. (Left) Iterations under PR-BCs with respect to various initial thermal conductivities k [W/mK] assigned to the frame of 1 unit around a unit cell. (Right) Inﬂuence of the frame width and number of unit cells per direction on the macroscopic thermal conductivity under PR-BCs. Self-consistency is ensured.

(6)

embedded within a homogeneous frame and various BCs are directly prescribed on the frame to investigate the influence of the window method on the macroscopic response. The number of self-consistency iterations vary depending on the conduc-tivity initially assigned to the frame material but is typically less than four as summarized inFig. 3. The influence of the width of the frame is also illustrated inFig. 3based on PR-BCs, where it is observed that the results obtained with a frame converge to a limit with increasing frame width. In this periodic setting, it is also observed that this limit is very close to the exact result that is obtained with PR-BCs directly on the unit cell. Clearly, for a given frame width, increasing the number of unit cells in the periodic sample also drives the results closer to the exact result as expected, which is also shown inFig. 4for the three types of BCs without a frame as well as with a fixed frame width of 4 units. Finally, the results(3.2) and (3.11)are also demonstrated inFig. 4, where strict ordering among different BCs as well as their convergence to a common limit with increasing frame width are observed.

Fig. 4. (Left) Comparison of the macroscopic response with and without a frame (ﬁxed width at 1 unit) under different BCs and increasing number of unit cells per spatial direction of the sample. (Right) The inﬂuence of the frame width under different BCs with four unit cells per direction.

Fig. 5. (Top-left) The CT-scan of an HCP sample with 64 voxels per direction, embedded in a frame. (Top-right) effect of the frame width on a single sample with 20 voxels per direction subjected to different BCs. (Bottom-Left) Using a frame width of 4 units, the effect of the sample size is demonstrated without a frame. 150 samples are tested and the results are averaged to alleviate randomness effects. (Bottom-Right) The same set of samples are tested with a frame.

(7)

4.2. Random media

As an application to random media, hardened cement paste (HCP) is considered. The microstructure originates from a micro-CT scan although the assigned conductivities are artificial. The representation of an HCP sample embedded in a frame is illustrated inFig. 5where the hydration products are indicated with the gray color, the unhydrated residual klinker with blue and the micropores with red. The volume fraction of the klinker is 0.84, the one of unhydrated residual is 0.02 and the one of micropores is 0.14. The thermal conductivity of the klinker is set to 100 W/mK while the others are set to 1 W/mK. In presenting the results, a single quantity k is monitored assuming macroscopic isotropy. This assumption is only satisfied for sufficiently large samples and therefore leads to some deviation from the predicted ordering relations for smaller sample sizes, the size referring to the number of voxels per spatial direction of the sample. This is observed inFig. 5on a sample with 20 voxels per direction. Nevertheless, the response under different BCs approach each other with increasing frame width. In order to obtain a statistically representative sample, larger CT-scans have to be employed. To alleviate randomness effects, 150 samples are tested per sample size. If no frame is used, it is observed that the LT- and PR-BC results are close to each other but they remain significantly far away from UF-BC predictions. This large gap casts a doubt on the quality of the macroscopic predictions since the types of BCs should not affect the response of a statistically representative sample. When the same computations are carried out with a window, it is observed that the gap is small even at small sample sizes. Con-sequently, one can state with confidence that the macroscopic conductivity is in the range of 70 to 75 W/mK. Considering that the frame width is only 4 units and that only two iterations were sufficient to ensure self-consistency, the additional cost of using the window method is negligible with this observed advantage. This advantage translates into a tighter control over the sample size when analyzing randomly heterogeneous media.

5. Conclusion

The observed optimal convergence behavior of the homogenization results with the window method has been proven analytically and demonstrated numerically with periodic particulate and random digital microstructures. In contrast to the three types of classical boundary conditions, it was shown that the window method delivers a unique macroscopic re-sponse for any given sample size independent of the type of boundary conditions imposed—provided that the window is chosen to be sufficiently thick and that the overall scheme satisfies self-consistency. For randomly heterogeneous media, the window method enables a tighter control over the sample size in trying to ensure statistical representativeness. Although the presentation was pursued in a thermal context, the underlying variational basis is applicable to linear elasticity in a straightforward manner. Specifically, denoting the macroscopic fourth-order stiffness tensor by IE, the counterpart of the ordering relation(3.2)which delivers refined predictions reads

IEð0Þ

UF6IEUF6IEPR6IELT6IEð0ÞLT; ð5:1Þ

while the monotonic convergence relation(3.11)of the window method predictions to a common limit IEw as the frame

width is increased under different BCs may be stated as

IEð0Þ UF6IE ð1Þ UF6IE ð2Þ UF 6. . . 6IEw6. . . 6IEð2ÞLT 6IE ð1Þ LT 6IE ð0Þ LT: ð5:2Þ References
