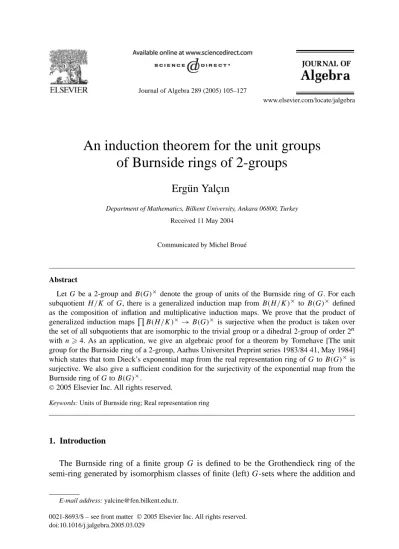

An induction theorem for the unit groups
of Burnside rings of 2-groups
Ergün Yalçın
Department of Mathematics, Bilkent University, Ankara 06800, Turkey Received 11 May 2004
Communicated by Michel Broué
Abstract
Let G be a 2-group and B(G)×denote the group of units of the Burnside ring of G. For each subquotient H /K of G, there is a generalized induction map from B(H /K)× to B(G)× defined as the composition of inflation and multiplicative induction maps. We prove that the product of generalized induction mapsB(H /K)×→ B(G)×is surjective when the product is taken over the set of all subquotients that are isomorphic to the trivial group or a dihedral 2-group of order 2n with n 4. As an application, we give an algebraic proof for a theorem by Tornehave [The unit group for the Burnside ring of a 2-group, Aarhus Universitet Preprint series 1983/84 41, May 1984] which states that tom Dieck’s exponential map from the real representation ring of G to B(G)×is surjective. We also give a sufficient condition for the surjectivity of the exponential map from the Burnside ring of G to B(G)×.
2005 Elsevier Inc. All rights reserved.
Keywords: Units of Burnside ring; Real representation ring
1. Introduction
The Burnside ring of a finite group G is defined to be the Grothendieck ring of the semi-ring generated by isomorphism classes of finite (left) G-sets where the addition and
E-mail address: yalcine@fen.bilkent.edu.tr.
0021-8693/$ – see front matter 2005 Elsevier Inc. All rights reserved. doi:10.1016/j.jalgebra.2005.03.029
multiplication are given by disjoint unions and cartesian products. We denote the Burnside ring of G by B(G), and its unit group by B(G)×. The Burnside ring of G can be imbedded, as a subring, into the ring of superclass functions C(G)= ZCl(G)where Cl(G) denotes the set of conjugacy classes of subgroups of G, andZCl(G)denotes the ring of functions from
Cl(G) to Z. So, the unit group of B(G), being isomorphic to a subgroup of C(G)×=
{±1}Cl(G), is an elementary abelian 2-group. Our ultimate goal is to relate the 2-rank of
B(G)×to other well known group theoretical invariants.
Throughout the paper we assume G is a 2-group. The reasons for restricting ourselves to 2-groups are as follows: First, the unit group B(G)×is quite difficult to understand for a composite group. For example, the assertion that B(G)×∼= Z/2 when G is an odd order group is equivalent to the odd order theorem. On the other hand, when G is a p-group with p > 2, it is easy to show that B(G)×= {±1}, and so there is nothing to study. We also believe that the unit group functor B(−)×over 2-groups is an interesting object in the category of biset functors over 2-groups.
We use mainly two ingredients for studying B(G)×. One is a complete characterization of B(G)×as a subgroup of C(G)×given by Yoshida [12]. We explain this characterization in detail at the end of Section 2. The other ingredient is the structure of B(G)×as a Mackey functor together with appropriate restriction, induction and conjugation maps. There are also inflation and deflation maps defined in a suitable sense. These maps are defined and studied in detail in [12] and we give an overview in Section 3.
The induction map is particularly interesting since we are using a multiplicative in-duction map instead of the usual inin-duction map on the Burnside ring. Given a subgroup
H G, the multiplicative induction map jndGH: B(H )×→ B(G)×is defined on the Burn-side ring as the polynomial extension of the assignment X→ MapH(G, X) where X is an
H -set, and MapH(G, X) is the set of H -maps f : G→ X. Note that given a normal
sub-group KP H , we have a homomorphism, called the inflation map, infHH /K: B(H /K)×→
B(H )× defined by considering a H /K-set as an H -set through the quotient map H →
H /K. We call the composition jndGHinfHH /K the generalized induction map from
subquo-tient H /K to G. The main result of the paper is the following induction theorem:
Theorem 1.1. Let G be a 2-group, and letH denote the collection of all subquotients of
G which are isomorphic to the trivial group or a dihedral group of order 2n with n 4.
Then, the product of generalized induction maps
H /K∈H jndGHinfHH /K: H /K∈H B(H /K)×→ B(G)× is surjective.
One of the ways to obtain units in the Burnside ring of G is to construct exponential maps from the Burnside ring B(G) or from the real representation ring R(G,R) to the unit group of superclass functions C(G)×, and then show that they actually lie in B(G)×. For example, given a real representation V of G, we can define a unit superclass function H → sgn(dim VH) for all H G where sgn(n) = (−1)n for n∈ Z. Tom Dieck showed that these superclass functions lay in the Burnside ring, so one gets an exponential map from
the real representation ring R(G,R) to B(G)× which is now referred to as tom Dieck’s homomorphism (see [8, p. 242] for details). As a corollary of Theorem 1.1, we obtain an algebraic proof for the following result:
Corollary 1.2 (Tornehave [11]). Let G be a 2-group. Then, tom Dieck’s homomorphism
Θ : R(G,R) → B(G)×
is surjective.
There is a similar exponential map from the Burnside ring B(G) to its unit group
B(G)×. Given a G-set X, consider the superclass function fX: H→ sgn(|X/H|) for all
H G. The exponential map exp : B(G) → B(G)×is defined as the linear extension of the assignment X→ fXfor G-sets. This map is closely related to the B(G)-module
struc-ture on B(G)×which has been studied extensively by Matsuda in [9,10]. The connection comes from the fact that the exponential map can be defined also as exp(x)= (−1) ↑ x where (−1) ↑ x denotes the action of x ∈ B(G) on −1 ∈ B(G)×(see Section 7 for more details). We prove
Corollary 1.3. If G is a 2-group which has no subquotients isomorphic to the dihedral
group of order 16, then the exponential map
exp : B(G)→ B(G)×
is surjective. In this case, B(G)×is generated by−1 as a module over B(G).
Corollary 1.3 applies, in particular, to all 2-groups of exponent 4. This includes all 2-groups which can be expressed as an extension of an elementary abelian 2-group by an elementary abelian 2-group. Also, it is well known that the exponential map is not surjec-tive when G is a dihedral 2-group of order at least 16 (see Matsuda [10]). So, the corollary cannot be improved further using the induction theorem. On the other hand, the converse of the corollary does not hold either: There are 2-groups where the exponential map is surjective although they have a dihedral section of order 16. So, Corollary 1.3 provides a sufficient condition for surjectivity of exponential map, which is not a necessary condition.
2. Superclass functions and idempotent basis
Let G be a finite group. The Burnside ring B(G) is defined as the Grothendieck ring of the semi-ring generated by G-isomorphism classes of finite (left) G-sets where the ad-dition and multiplication are given by disjoint unions and cartesian products. So, as an abelian group B(G) is generated by isomorphism classes of (left) G-sets, and isomorphism classes of transitive G-sets form a basis for B(G). A transitive G-set is isomorphic to
G/H := {gH | g ∈ G} as a G-set, and any two such G-sets G/H and G/K are isomorphic
with basis{[G/H] | [H] ∈ Cl(G)}, where Cl(G) is the set of conjugacy classes [H ] of sub-groups H G. In other words, B(G) decomposes as the direct sum of cyclic Z-modules
B(G)=
[H ]∈Cl(G)
Z[G/H].
The multiplicative structure can be explained in terms of the basis by the following double coset formula: [G/H][G/K] = H gK∈H \G/K G/(H∩gK) wheregK= gKg−1.
A superclass function is a map from the set of subgroups of G to Z which is con-stant on conjugacy classes of subgroups. We will denote the set of superclass functions by
C(G):= ZCl(G). It is easy to see that C(G) is a ring under the usual addition and multipli-cation of functions. For each H G, consider the map sH: B(G)→ Z defined as the linear
extension of the assignment sH(X)= |XH| where |XH| denotes the number of points in X
fixed by H . It is easy to see that sH(X× Y ) = sH(X)sH(Y ), hence sH is a ring
homomor-phism. It is well known that the ring homomorphisms sHand sKare equal if and only if H
and K are conjugate. Therefore, for each element x∈ B(G), one can define a superclass function fx∈ C(G) by setting fx(H )= sH(x). This defines a ring homomorphism
ϕ : B(G)→ C(G) := ZCl(G)
which is injective. The injectivity follows from the fact that if |XH| = |YH| for each
H G, then X and Y are isomorphic as G-sets. We sometimes identify B(G) with its
image in C(G), and write x(H )= sH(x) for x∈ B(G).
The image of ϕ is characterized by the following theorem:
Theorem 2.1 (tom Dieck [7, Section 1.3]). Let G be a finite group. For each H G, let
WG(H ) denote the quotient group NG(H )/H . Then, the following sequence of abelian
groups is exact: 0→ B(G)−→ C(G)ϕ −→ψ [H ]∈Cl(G) Z/|WG(H )|Z → 0
where ϕ is the injective ring homomorphism defined above, and the[H] component of ψ is defined by
ψ (f )H=
gH∈WG(H )
f (gH ) (mod |WG(H )|).
Let QB(G) and QC(G) denote Q ⊗ZB(G) and Q ⊗ZC(G), respectively. By
Qϕ : QB(G) → QC(G). For each [H] ∈ Cl(G), let eG
H ∈ QB(G) be the element defined
by the condition that sK(eGH) is equal to unity when[H] = [K] and zero otherwise. It is
easy to see thatQϕ maps {eHG| H ∈ Cl(G)} to primitive idempotents of QC(G) := QCl(G), hence they are primitive idempotents of QB(G). Observe that each element x ∈ QB(G) has a coordinate decomposition
x=
[H ]∈Cl(G)
sH(x)eHG.
The ghost ring of G is defined by
β(G)= (Qϕ)−1C(G)=
[H ]∈Cl(G)
ZeG H.
We often will identify β(G) with C(G) and use the notation u(H ) for u∈ β(G) and write
u=
[H ]∈Cl(G)
u(H )eHG.
The Burnside ring B(G) is a subring of β(G). Therefore the group of units of B(G) is a subgroup of the group of units
β(G)×=
[H ]∈Cl(G)
{−1, 1}eG H
which is an elementary abelian 2-group of rank |Cl(G)|. Thus B(G)× is an elementary abelian 2-group of rank at most|Cl(G)|.
Notice that Theorem 2.1 can be used to characterize the subring B(G)×in β(G)×. An element x∈ β(G)×is in B(G)×if and only if
gH∈WG(H )
x(gH ) = 0 (mod |WG(H )|)
for all [H] ∈ Cl(G). But, this characterization is quite inconvenient for calculations. We often think β(G)× as a vector space overF2and B(G)×as a subspace, so the
character-izations given in terms of linear equations over F2 are usually more convenient. Such a
characterization is given by Yoshida [12]:
Proposition 2.2 (Yoshida [12, Proposition 6.5]). Let u∈ β(G)×. Then, u is contained in
B(G)×if and only if for each subgroup H of G, the map
gH→ u(gH )
u(H ) , gH∈ WG(H ),
Notice that we can rephrase Yoshida’s characterization as follows:
Corollary 2.3. Let u∈ β(G)×. Then, u is contained in B(G)× if and only if for each subquotient H /K of G, and for every xK, yK∈ H/K,
u(K)· u(xK) · u(yK) · u(xyK) = 1.
In the rest of the paper, we will consider B(G)×as the subspace of β(G)×satisfying the linear equations given in Corollary 2.3.
3. Maps between unit groups of Burnside rings
In this section, we briefly explain the maps between unit groups of Burnside rings and give some of the formulas involving these maps. A full account of this material can be found in [12].
Let G be a finite group, H be a subgroup and N be a normal subgroup of G, and
f : G → G be an isomorphism. Let X be a G-set, Y be an H -set, and Z be a G/N-set.
Then, we have
isoGG : X→ X as an G -set through f : G → G (isomorphism map),
infGG/N: Z→ Z as a G-set through G → G/N (inflation map),
invGG/N: X→ XN (invariant map),
resGH: X→ X as an H-set (restriction map),
jndGH: Y→ MapH(G, Y ) (multiplicative induction map), (1) where MapH(G, Y ) is the set of maps α : G→ X such that α(h·g) = h·α(g) for all h ∈ H , g∈ G, with the action of G defined by (k · α)(g) = α(gk) for k ∈ G.
Notice that isomorphism, inflation, invariant, and restriction maps are additive and mul-tiplicative, and hence they extend linearly to ring homomorphisms on the Burnside ring, and induce group homomorphisms on the unit group of Burnside ring. However, the mul-tiplicative induction map is not linear, so it has to be considered separately.
LetZ+denote the set of non-negative integers, and
B(G)+=
[H ]∈Cl(G)
Z+[G/H]
be the free monoid of G-sets. The assignment jndGH: Y→ MapH(G, Y ) defines a
multi-plicative map from B(H )+to B(G) which is not additive. In [5], Dress considers this map, and observes that the multiplicative induction is an algebraic map, and describes how one can extend it to map jndGH: B(H )→ B(G). Unfortunately, Dress does not give many de-tails for his arguments in [5]. A more detailed description of multiplicative induction can
be found in Yoshida [12]. There is also a recent paper by Barker [1] where the multiplica-tive induction is defined more generally for monomial Burnside rings. Barker’s paper also includes some further details on algebraic functions.
Another way to define the multiplicative induction map is to use tom Dieck’s definition of the Burnside ring. In Chapter IV of [8], the Burnside ring B(G) is defined as the ring of equivalence classes of finite (left) G-complexes under the equivalence relation defined as follows: X∼ Y if and only if for every H G, the spaces XH and YHhave the same Euler characteristic. Notice that now−[X] can be expressed as [Y × X] where Y is a G-complex with trivial action and with Euler characteristic−1.
Given an H -complex X, one can define jndGHX= MapH(G, Y ) as the set of maps
α : G→ X such that α(hg) = hα(g) for all h ∈ H and g ∈ G, with the action of G defined
by kα : g→ α(gk) for k ∈ G. To show that the assignment X → jndGHX from the set
of H -complexes to the set of G-complexes induces a well defined map on the Burnside ring, one just needs to check that if X and Y are H -complexes such that X∼ Y , then jndGHX∼ jndGHY . For this consider the following calculation (see [8, p. 244]):
sK jndGHX= sK MapH(G, X)= χMapH(G, X)K = χMapGG/K, MapH(G, X) = χMapHresGH(G/K), X = χ MapH H gK∈H \G/K H /(H∩gK), X = H gK∈H \G/K sH∩gK(X). (2)
Here χ (X) denotes the Euler characteristic of the G-complex X, and sK(X) is defined as
χ (XK) for every K G. So, the assignment X → jndGHX induces a well-defined map on
the Burnside ring. It is clear from the definition that this map is multiplicative, hence it induces a group homomorphism on the unit group of the Burnside ring. (There is a similar construction for bisets, using posets with group actions, in [2, Section 4.1].)
Considering an element x∈ B(G) as a class function through x(K) = sK(x), we have
the following formulas:
isoGG (x)(H )= x(H) where f (H )= H, infGG/N(z)(K)= z(KN/N), invGG/N(x)(K/N )= x(K), resGH(x)(K)= x(K), jndGH(y)(K)= H gK∈H \G/K y(H∩gK). (3)
Using the definitions of these maps on G-sets (or on G-complexes), one obtains many composition formulas, such as the Mackey formula for the composition of multiplicative
induction and restriction maps. These formulas are listed in Lemmas 3.1, 3.3, and 3.4 in [12]. For example, if N is a normal subgroup of G, and H is a subgroup of G containing N , we have:
resGHinfGG/N= infHH /NresG/NH /N,
jndGHinfHH /N= infGG/NjndG/NH /N,
invHH /NresGH= resG/NH /NinvGG/N,
invGG/NjndGH= jndG/NH /NinvHH /N. (4) Notice that using the formulas in Eq. (3) as a definition, we can extend all the maps in the list to C(G) or equivalently to β(G), and hence obtain group homomorphisms on C(G)× or on β(G)× as the extension of group homomorphisms on B(G)×. Since B(G) has a finite index in β(G), the extended maps will also have the same composition formulas.
Another way to define these maps on the unit group of β(G) is to consider the duality pairing ( , ) : β(G)×⊗ F2B(G)→ {±1} defined by (u, x)= H∈Cl(G) (γH)αH
where u=[H ]∈Cl(G)γHeGH ∈ β(G)× and x=[H ]∈Cl(G)αH[G/H] ∈ F2B(G). Here
F2B(G) denotes the mod 2 reduction of the Burnside ring, i.e.,F2B(G)= F2⊗ZB(G).
Note that the group homomorphisms we defined above as extensions of maps on B(G)× can also be defined as duals of maps between the Burnside rings. To illustrate this duality, we will show that
jndGH: β(H )×→ β(G)× is dual to the restriction map
resGH:F2B(G)→ F2B(H ).
First observe that for every u∈ β(G)×, we have u(K)= (u, [G/K]). So, for some y ∈
β(G)×, the last formula in Eq. (3) gives
jndGHy,[G/K]= y, H gK∈H \G/K H /(H ∩gK) =y, resGH[G/K].
4. The proof of the induction theorem
The aim of this section is to prove Theorem 1.1 stated in the introduction. In the proof, we will be using Yoshida’s characterization of units in B(G)×given in Corollary 2.3. We first state a proposition from which Theorem 1.1 follows as a corollary:
Proposition 4.1. Let G be a nontrivial 2-group which is not isomorphic to a dihedral group
of order 2nwith n 4. Then, the map
H /K=G/1
jndGHinfHH /K:
H /K=G/1
B(H /K)×→ B(G)×
is surjective, where the sum is over all proper subquotients of G.
This is a general strategy for proving induction theorems. To see that Theorem 1.1 follows from Proposition 4.1, one just needs to check that the generalized induction map jndGHinfHH /K is transitive. This follows from the following calculation: Let H /K and
H /K be two subquotients of G such that K K P H H . Then, applying the second
equation in Eq. (4), we get
jndGHinfHH /KjndH /KH /Kinf H /K H /K = jnd G HjndHH inf H H /Kinf H /K H /K = jnd G H inf H H /K .
To prove the proposition, we use a well known argument used to prove similar results (see, for example, [3,4]). The idea is to reduce the proof to the case where G has no normal subgroups isomorphic toZ/2 × Z/2, and then use the classification of such 2-groups.
We first consider the case where G has a central subgroup isomorphic toZ/2 × Z/2.
Lemma 4.2. Let G be a 2-group which includes a central subgroup E isomorphic toZ/2×
Z/2. Let H1, H2, and H3be the distinct subgroups of E of order 2. Then, 3 i=1 infGG/H i: 3 i=1 B(G/Hi)×→ B(G)× is surjective.
Proof. Let c1and c2be the generators of H1and H2, respectively. Take u∈ B(G)×, and
let ui= infGG/HiinvGG/Hiu. Consider the element w= uu1u2u3. For every H G, we have
w(H )= u(H ) · u1(H )· u2(H )· u3(H )
= u(H ) · u(H1H )· u(H2H )· u(H3H )
= u(H ) · u(c1H ) · u(c2H ) · u(c1c2H ).
If c1, c2, or c1c2is in H , then it is clear that w(H )= 1. So, assume that H is a subgroup
we again get w(H )= 1 by Corollary 2.3. This shows that w = 1, and hence u = u1u2u3.
Therefore, u is in the image of3i=1infGG/H
i. 2
If G is a 2-group which has no centralZ/2 × Z/2, then the center Z(G) must be cyclic. In this case, G has a unique central element of order 2, which we usually denote by c. We have the following decomposition for B(G)×.
Lemma 4.3. Let G be a 2-group with cyclic center and let c be the unique central element
of order 2. Then, B(G)×= im{infGG/c} × B(G, c)×where B(G, c)×is the set of all units
u∈ B(G)×such that u(H )= 1 for every H G such that c ∈ H .
Proof. Note that for every normal subgroup KP G, we have
B(G)×∼= iminfGG/K: B(G/K)×→ B(G)×× kerinvGG/K: B(G)×→ B(G/K)×.
This is because the composite invGG/KinfGG/Kis the identity homomorphism. Applying this to K= c, we get
B(G)×= iminfGG/c× kerinvGG/c.
If c∈ H G, then we have u(H ) = sH(u)= sH /c(invGG/cu) for every u∈ B(G)×. It
follows that u∈ ker{invGG/c} if and only if u(H ) = 1 for every H G such that c ∈ H . Thus, ker{invGG/c} = B(G, c)×. 2
Lemma 4.4. Let G be a 2-group with cyclic center. Assume that G has a normal subgroup E ∼= Z/2 × Z/2 generated by a, c ∈ E where c is central. Let H be the centralizer of E.
Then,
B(G, c)×⊆ imjndGHinfH /H a: B(H /a)×→ B(G)×.
Proof. Let u∈ B(G, c)×, then u(H )= 1 for every H G such that c ∈ H . Define
w= jndGHinfHH /ainvHH /aresGHu.
We will show that u= w. First note that H = CG(E) is a normal subgroup of G with
index 2. This is because Aut(E)= GL(2, 2) has order (22− 1)(22− 2) = 6. For every K G, we have
w(K)=jndGHinfHH /ainvHH /aresGHu(K)
=
H gK∈H \G/K
infHH /ainvHH /aresGHu(H∩gK)
=
H gK∈H \G/K
=
gH K∈G/H K
uag(H ∩ K).
Now, we consider the following two cases:
Case 1. Assume that K H . Then H K = G and w(K) = u(a(H ∩ K)). If K ∩ E = a
or ac, then a will be central in K, contradicting the assumption K H = CG(E). So,
we either have c∈ K or K ∩ E = {1}.
If c∈ K, then c ∈ H ∩ K, and hence w(K) = 1 = u(K). So, assume E ∩ K = {1}. Consider the subgroup series (H ∩ K) P EK G. Pick an element k ∈ K − (K ∩ H ), and let k, a, c denote the images of k, a, c in the quotient group EK/(H∩ K). We have
(k)2= (a)2= 1 and [a, k] = c. So, EK/(H ∩ K) ∼= D
8, the dihedral group of order 8. By
Corollary 2.3, we get
u(H ∩ K) · ua(H ∩ K)· uk(H ∩ K)· uak(H ∩ K)= 1. (5) Since (ak)2= c, we have c ∈ ak(H ∩ K), and hence u(ak(H ∩ K)) = 1. Note also that K= k(H ∩ K), so Eq. (5) reduces to
u(H∩ K) · w(K) · u(K) = 1. (6) To finish the proof we need to show u(H∩K) = 1. For this, we consider the subquotient
E(H∩ K)/(H ∩ K) which is isomorphic to Z/2 × Z/2. By Corollary 2.3, we have u(H∩ K) · ua(H ∩ K)· uc(H ∩ K)· uac(H ∩ K)= 1.
Since a is conjugate to ac, this equation reduces to u(H∩ K) = u(c(H ∩ K)). It is clear that c∈ c(H ∩ K), so we conclude that u(H ∩ K) = 1.
Case 2. Assume that K H . Then H K = H and w(K) = u(aK) · u(acK). If c ∈ K,
then both w(K) and u(K) are equal to 1. If K∩ E = a or ac, then w(K) = u(K) ·
u(cK) = u(K). Finally, if K ∩ E = {1}, then we consider K P KE G, and apply
Corollary 2.3. This gives
u(K)· u(aK) · u(cK) · u(acK) = 1
from which we obtain
w(K)= u(aK) · u(acK) = u(K).
This completes the proof of the lemma. 2
For the proof of Proposition 4.1, it remains to consider the case where G is a 2-group which has no normal subgroups isomorphic toZ/2 × Z/2. In this case, G is said to have normal 2-rank one. Note that a 2-group G has normal 2-rank one if and only if every abelian normal subgroup of G is cyclic.
The classification of 2-groups with no non-cyclic abelian subgroups is given in Chap-ter 5 of Gorenstein [6] as Theorem 4.10. We quote this result here:
Theorem 4.5. Let G be a 2-group with normal 2-rank equal to one. Then, G is isomorphic
to one of the following groups:
(a) cyclic group C2n(n 0);
(b) generalized quaternion group Q2n(n 3);
(c) dihedral group D2n(n 4);
(d) semi-dihedral group SD2n(n 4).
We have the following lemma:
Lemma 4.6. Let G be a 2-group isomorphic to one of the following groups:
(a) cyclic group C2n(n 2);
(b) generalized quaternion group Q2n(n 3);
(c) semi-dihedral group SD2n(n 4). Then, B(G, c)×= {1}.
Proof. Let G be a cyclic group or a generalized quaternion group. Then, G has no
sub-groups isomorphic to Z/2 × Z/2, so the unique central element c is the only element of order 2 in G. This implies, in particular, that c is included in every non-trivial sub-group of G. So, if u is a unit in B(G, c)×, then u(H )= 1 for every non-trivial subgroup
H G. We claim that if |G| > 2, then u({1}) is also unity. Observe that if |G| > 2,
then G must include an element g of order 4, such that g2= c. Now, consider the sub-group series{1} P g G. Applying Corollary 2.3 for K = {1} and x = y = g, we get
u({1}) = u(g2) = 1, hence u = 1.
Now assume that G ∼= SD2n(n 4). A presentation for G can be given as
G=b, z| z2n−1 = b2= 1, bzb = z−1+2n−2.
Note that c= z2n−2 is the unique central element of order 2. Take u∈ B(G, c)×. If H is a subgroup of G such that H ∩ z = {1}, then c ∈ H , and hence u(H ) = 1. So, assume
H∩ z = {1}. Since z has index 2 in G, the order of H is 2. Let H = h. Then, h = bzm
for some m. Since
(bzm)2= bzmbzm= z(−1+2n−2)mzm= z2n−2m= cm,
m must be an even integer. Note that (hz)2= (bzm+1)2= cm+1= c, so c ∈ hz.
Applying Corollary 2.3 to the subquotient G/{1} we get
which reduces to u(h) = u({1}). Similarly, Corollary 2.3 applied to the subquotient
c, b/{1} gives u({1}) = u(c) = 1. Combining these, we get u(h) = 1. Thus, u(H ) = 1
for all H G, giving u = 1 as desired. 2
Lemma 4.6, together Theorem 4.5, completes the proof of Proposition 4.1 for all cases except the case G ∼= C2. Note that in this case
B(G)×= β(G)×=α1e1G+ α2eGG| α1, α2= ±1 ∼=Z/2×Z/2
and
B(G, c)×=αeG1 + eGG| α = ±1 ∼=Z/2.
It is easy to see that
jndG{1}(−1) · infGG/G(−1) = −e1G+ eGG.
So, the map
jndG{1}, infGG/G: B({1})×× B(G/G)×→ B(G)×
is surjective. This completes the proof of Proposition 4.1, and hence the proof of Theo-rem 1.1. We end this section with two refinements of TheoTheo-rem 1.1 which we use later for applications.
Corollary 4.7. Theorem 1.1 still holds if we replace each B(H /K)×with B(H /K, cH /K)× for every subquotient H /K∈ H with |H/K| > 1, where cH /K denotes the unique central element of order 2 in H /K.
Proof. By Lemma 4.3, for each subquotient for every H /K∈ H with |H/K| > 1, there is
a decomposition
B(H /K)×= iminfH /K(H /K)/cH /K× B(H/K, cH /K)×
where cH /K is the unique central element of order 2 in H /K. Let I (H /K)× denote the
image of inflations in the above decomposition. By the transitivity of generalized induction map jndGHinfHH /K, it is easy to see that for every H /K∈ H with |H/K| > 1, the subgroup
jndGHinfHH /K(I (H /K)×) is included in the image of the map
H /K∈H jndGH infHH /K : H /K ∈H B(H /K )×→ B(G)×
whereH = {H /K ∈ H | H /K < H /K}. So, starting from the subquotients with bigger
Corollary 4.8. Theorem 1.1 still holds if we replace the collectionH with a collection of
representatives of conjugacy classes of subquotients inH.
Proof. We say two subquotients H /K and H /K are conjugate if there is an elements
g∈ G such that H = Hgand K = Kg. Note that in this case the images of jndGHinfHH /K and jndGH infHH /K are equal, so it is enough to take one representative from each conjugacy class.
5. The surjectivity of tom Dieck’s homomorphism
The main purpose of this section is to prove Corollary 1.2 stated in the introduction. First we recall the definition of tom Dieck’s homomorphism.
Let G be a finite group, and let R(G,R) denote the Grothendieck ring of isomorphism classes of (left)RG-modules where addition and multiplication are defined by direct sums and tensor products. Given anRG-module V , consider the following element in β(G)× defined as
Θ(V )=
[H ]∈Cl(G)
sgndimRVHeGH
where sgn(n)= (−1)n. Using a geometric argument, tom Dieck [8] proved that Θ(V ) actually lies in B(G)×. Later, Yoshida [12] gave an algebraic proof (for a more general statement which holds for real valued characters) which uses the characterization given in Proposition 2.2. It is clear that Θ(V ⊕ W) = Θ(V )Θ(W), so Θ defines a group homomor-phism
Θ : R(G,R) → B(G)×
from the underlying additive group of R(G,R) to the multiplicative group B(G)×which is usually referred as tom Dieck’s homomorphism.
Similar to the maps defined on unit group of the Burnside ring, there are restriction, induction, isomorphism, inflation, and invariant maps defined on group rings. Given a map f : H → K, an RK-module V can be considered as an RH -module through the map
f : H → K. This gives a ring homomorphism Φf: R(K,R) → R(H, R). If f : H → G is
an inclusion map of a subgroup H G, then this ring homomorphism is called restriction
map and is denoted by resGH. When f : G→ G/N is a quotient map for a normal subgroup
N P G, then the ring homomorphism we obtain is called inflation map and it is denoted
by infGG/N. Finally, if f : G → G is an isomorphism, we get the isomorphism map which is denoted by isoGG .
Aside from these maps, we have two more maps, induction and invariant maps, which are not ring homomorphisms, but group homomorphisms of the underlying additive group. The induction map indGH: R(H,R) → R(G, R) is the linear extension of the assignment
V → RG ⊗RH V defined for every RH -module V where H G. The invariant map
W→ WNwhere W is anRG-module and N is a normal subgroup of G. We will need the following result from Yoshida [12].
Lemma 5.1 (Yoshida [12, Lemma 3.5]). The tom Dieck homomorphism commutes with
induction, restriction, isomorphism, inflation, and invariant maps.
Now, we are ready to prove Corollary 1.2.
Proof of Corollary 1.2. Consider the following diagram:
H /K∈HR(H /K,R) ΘH /K indGHinfHH /K R(G,R) ΘG H /K∈HB(H /K)× jndGHinfHH /K B(G)×.
By Lemma 5.1, this diagram commutes. By Corollary 4.7, the horizontal map on the bottom is surjective even when each B(H /K)×is replaced with B(H /K, cH /K)×for
sub-quotients H /K∈ H with |H/K| > 1. When H = K, we have B(H/H)×= {±1}, which is the image of trivialRH/H -module R under ΘH /H. So, to prove that ΘGis surjective, it
is enough to show that B(G, cH /K) is in the image of ΘH /K for all H /K∈ H isomorphic
to a dihedral group of order 2n with n 4. Hence, the proof follows from the following lemma. 2
Lemma 5.2. Let G be a 2-group isomorphic to a dihedral group of order 2n with n 4. Then, B(G, c)×∼= Z/2, and the generator of B(G, c)×is an element of the form Θ(V ) for some V ∈ R(G, R).
Proof. Let G ∼= D2n with n 4. Consider the following presentations
G=b, zz2n−1= b2= 1, bzb = z−1=a, ba2= b2= (ab)2n−1= 1
where z= ab. Note that c = z2n−2 is a central element. If g is an element G which is not inz, then g = bzi for some i, and
bzizj = z−jbzi+j=bzjbbzi+j= bzi+2j.
Hence every element g∈ G is either conjugate to b or a = bz−1. Let H be a non-trivial subgroup of G such that c /∈ H . Then, H ∩ z = {1}, and hence H is a cyclic subgroup of order 2. If h is a generator of H , then h is conjugate to a or b, and therefore H is conjugate toa or b.
Let V be 2-dimensional real representation of G where z action is a rotation by π/2n−2 and b action is a reflection around the x-axis. Then c acts by multiplication with−1, so
dim VH= 0 if c ∈ H . If c is not in H , then H is conjugate to a or b. It is obvious that dimRVa= dimRVb= 1. So, Θ(V ) = 1 − 2(eGa+ ebG).
We claim that Θ(V ) is the only non-trivial unit in B(G, c)×. Let u∈ B(G, c)×. Then,
u(H )= 0 for every c ∈ H . If c is not in H , then H is conjugate to a or b. So,
u= 1 − 2αaeGa+ αbeGb
for some αa, αb∈ {0, 1}. We will show that αa= αb. For this, we apply Corollary 2.3 to subquotients G/{1} and a, c/{1}, and get
u({1}) · u(a) · u(b) · u(ab) = 1 and u({1}) = u(c) = 1.
These give u(a) = u(b), and hence αa= αb. Thus, the proof is complete. 2
6. The unit group as a B(G)-module
In this section we define an action of B(G) on B(G)×. The material is well-known, and can be found in Yoshida [12] and Dress [5]. We include it here for convenience, and to introduce the notation.
Let G be a finite group. For left G-sets X and Y , let[Y ] ↑ [X] := [Map(X, Y )] denote the equivalence class of the G-set consisting of all maps from X to Y with G action defined by
(g· α)(x) = gαg−1x
for α : X→ Y , g ∈ G, and x ∈ X. As before let B(G)+be the monoid generated by G-sets. The assignment ([Y ], [X]) → [Y ] ↑ [X] gives a map
( )↑ ( ) : B(G)+× B(G)+→ B(G)+ satisfying [Y1] · [Y2] ↑ [X] =[Y1] ↑ [X] [Y2] ↑ [X] , [Y1] ↑ [X1] + [X2] =[Y ] ↑ [X1] [Y ] ↑ [X2] , [Y ] ↑[X1] · [X2] =[Y ] ↑ [X1] ↑ [X2]. (7)
When X is a transitive G-set, say[X] = [G/H], we have
[Y ] ↑ [X] =Map(G/H, Y )=MapHG, resGHY= jndGHresGH[Y ], so the assignment[Y ] → [Y ] ↑ [G/H] can be extended to a map
defined by y↑ [G/H] = jndGHresGHy. Hence, we obtain a map ( )↑ ( ) : B(G) × B(G)+→ B(G) such that y↑ x = H∈Cl(G) jndGHresGHyαH for x= H∈Cl(G) αH[G/H] ∈ B(G)+. (8)
Note that this equation makes sense only when αH is non-negative for all H G, so the
action of B(G)+on B(G) cannot be extended to a B(G)-action.
On the other hand, when y is a unit, then the formula for y↑ x given in Eq. (8) makes sense even when αH is a negative integer for some H G. So, we have a map
( )↑ ( ) : B(G)×× B(G) → B(G)×
which defines a B(G)-module structure for B(G)×. Note that B(G)×↑ 2B(G) = {1}, so
B(G)×can also be considered as a module overF2B(G):= F2⊗ZB(G).
Proposition 6.1. There is a B(G)-action on B(G)×derived from the pairing Y ↑ X :=
Map(X, Y ) on G-sets satisfying the following formula:
sK(u↑ x) = [H ]∈Cl(G) KgH∈K\G/H u(Kg∩ H )xH (9) where u∈ B(G)×and x=[H ]∈Cl(G)xH[G/H] ∈ B(G).
We can extend the B(G)-action on B(G)×to an action on β(G)×(or equivalently on
C(G)×). For this, we first extend the map ( )↑ ( ) : B(G) × B(G)+→ B(G) to a map
( )↑ ( ) : β(G) × B(G)+→ β(G). Since B(G) has a finite index in β(G), the extension
also satisfies the identities in Eq. (7). Repeating the arguments used above, we obtain a
B(G) action on β(G)×. Note that B(G) action on β(G)×also satisfies the formula given
in Eq. (9).
In Section 2, we introduced a duality pairing·, · : β(G)×⊗ F2B(G)→ {±1} where
u, x =
[H ]∈Cl(G)
(γH)αH
for u=[H ]∈Cl(G)γHeGH∈ β(G)×and x=[H ]∈Cl(G)αH[G/H] ∈ F2B(G). Note that
this is the bilinear map of elementary abelian 2-groups (written multiplicatively on the first entry and additively on the second) which satisfies
eGK,[G/H]=
1 if[H] = [K], 0 if[H ] = [K].
This means that for every u in β(G)×, we haveu, [G/H] = sH(u). On the other hand,
by Proposition 6.1, we have sG(u↑ [G/H]) = sH(u). So, we conclude the following:
Lemma 6.2. The pairing· , · : β(G)×⊗ F2B(G)→ {±1} can expressed by the formula
u, x = sG(u↑ x) for every u∈ β(G)×and x∈ F2B(G).
As a consequence of this we obtain the following:
Proposition 6.3. As aF2B(G)-module β(G)×is isomorphic to Hom(B(G),F2). So, as a
B(G)-module, B(G)×is a submodule of Hom(B(G),F2).
Proof. This follows from the identity
(u ↑ x), y = sG
(u↑ x) ↑ y= sG
u↑ (xy)= u, xy. 2
7. The surjectivity of the exponential map
In this section, we define the exponential map, and study some basic properties of this map. The main objective of this section is to prove Corollary 1.3 stated in the introduction. We start with the definition of exponential map.
Definition 7.1. The map exp : B(G)→ B(G)×defined by exp(x)= (−1) ↑ x is called the
exponential map.
Notice that for a G-set X=HGGxH[G/H], we have
sK exp(X)= HGG KgH∈K\G/H (−1)xH = (−1)|X/K|.
One can consider the exponential map as a map exp: F2B(G)→ β(G)×, where the
image is in B(G)×. Then, it is possible to describe this map as a linear transformation, where the matrix of the transformation with suitable choice of basis is the mod-2 reduction of the matrix of double cosets. So, the rank of the image of the exponential map is equal to the rank of mod-2 reduction of matrix of double cosets.
Recall that, for every x, y∈ B(G), we have
exp(x)↑ y =(−1) ↑ x↑ y = (−1) ↑ (xy) = exp(xy),
so the exponential is a B(G)-module map. In particular, the image of the exponential map is the submodule of B(G)×generated by (−1). The image of the exponential map is usually denoted by (−1) ↑ B(G).
Lemma 7.2. Let G be a 2-group, and let πR: B(G) → R(G, R) be the linearization map.
Then
exp= Θ ◦ πR
where Θ : R(G,R) → B(G)×is tom Dieck’s homomorphism.
Proof. For every G-set X and[K] ∈ Cl(G), we have sK
exp(X)= (−1)|X/K|= sgndimRπR(X)K.
So, the result follows. 2
Let R(G,Q) denote the ring of rational representations of G. We can consider R(G, Q) as a subring of R(G,R) through linear extension of the map V → R ⊗QV . In particular
tom Dieck’s homomorphism restricts to map
ΘQ: R(G,Q) → B(G)× where sK
ΘQ(V )= sgndimQVK.
We have the following:
Lemma 7.3. Let G be a 2-group. Then,
(−1) ↑ B(G) = im(ΘQ).
Proof. This follows from the Ritter–Segal theorem which states that the linearization map πQ: B(G)→ R(G, Q) is surjective when G is a p-group (see [3] for a new proof). 2
Finally, we have
Lemma 7.4. The exponential map commutes with induction, restriction, conjugation,
in-flation, and invariant maps.
Proof. This follows from Lemmas 7.2 and 5.1. 2
Note that B(G) is an abelian group generated by{[G/H] | [H] ∈ Cl(G)}, so the image of the exponential map, (−1) ↑ B(G), will be generated by (−1) ↑ [G/H]. Note that for each[H] ∈ Cl(G), we can express [G/H] as indGH[H/H ], and by Lemma 7.4, we have
(−1) ↑ indGH[H/H] = jndGH(−1) ↑ [H/H ]= jndGH(−1).
Thus, (−1) ↑ B(G) is generated by the set {jndGH(−1) | [H ] ∈ Cl(G)}. So, we proved the
Lemma 7.5. Let G be a 2-group. Then, (−1) ↑ B(G) = im [H ]∈Cl(G) jndGHinfHH /H: [H ]∈Cl(G) B(H /H )×→ B(G)× .
Now, we are ready to prove Corollary 1.3 stated in the introduction. In fact we will state a slightly more general version of Corollary 1.3 which will be easier to prove.
Theorem 7.6. If G is a 2-group which has no subquotients isomorphic to D2n of order 2n with n 4, then
(i) the exponential map exp : B(G)→ B(G)×is surjective,
(ii) B(G)×is generated by (−1) as a module over B(G),
(iii) ΘQ: R(G,Q) → B(G)×is surjective,
(iv) jndGHinfHH /H:B(H /H )×→ B(G)× is surjective where the product is over all
[H ] ∈ Cl(G).
Proof. First observe that (i) and (ii) are equivalent because of the way we defined the
exponential map. By Lemma 7.3, (iii) is equivalent to (i) and (ii). Similarly, (iv) is equiva-lent to first three statements by Lemma 7.5. Now, by Theorem 1.1 the last statement holds whenever G does not have a subquotient isomorphic to D2nof order 2nwith n 4. So, the
proof is complete. 2
Remark 7.7. Note that we could give a direct proof for the surjectivity of the exponential
map using the same argument used for the surjectivity of tom Dieck’s homomorphism. For this consider the following diagram
H /K∈HB(H /K) expH /K indG HinfHH /K B(G) expG H /K∈HB(H /K)× jndG HinfHH /K B(G)×.
Since G has no subquotients isomorphic to D2n of order 2n with n 4, we can take
H as the collection of subquotients of G which are isomorphic to the trivial group. By
Lemma 7.4, this diagram commutes, and by Theorem 1.1, the horizontal map on the bottom is surjective. So, to show that expGis surjective, it is enough to show that the exponential map is surjective for the trivial group which is obvious.
Theorem 7.6 applies, in particular, to a group with exponent less than or equal to 4. It is well known that the exponential map is not surjective in general, even for 2-groups. For example, Matsuda in [10] shows that when G is a dihedral group of order 2n, the exponential map is surjective if and only if n= 2, 4, pr or 2pr, where p is an odd prime such that p= 3 mod 4. In particular, when G ∼= D2n with n 4, the exponential map
is not surjective. For convenience of the reader, we include a short argument for this last statement.
Proposition 7.8. If G is a 2-group such that G ∼= D2nwith n 4, then the exponential map
exp : B(G)→ B(G)×is not surjective.
Proof. Let G ∼= D2n for some n 4, and let c be the unique central element in G of
order 2. We will be using the presentation given in the proof of Lemma 5.2, and carry over the calculations already done there.
Let I (G)× denote the image of the inflation map infGG/c: B(G/c)×→ B(G)×, and
B(G, c)× denote the group of units u∈ B(G) such that u(H) = 1 for every H which
includes the unique central element c∈ G. By Lemma 4.3, we have a decomposition
B(G)×∼= I (G)×× B(G, c)×. In Lemma 5.2, we have shown that B(G, c) is a cyclic group of order 2, generated by the unit u= 1 − 2(eGa+ eGb). We will show that u is
not in the image of the exponential map, by showing that exp([G/H]) ∈ I (G)×for every
[H ] ∈ Cl(G).
It is clear that if c∈ H , then exp(G/H ) lies in I (G)×. So, assume c /∈ H . Then
H is conjugate to a or b. We complete the proof by showing that exp([G/a] +
[G/a, c]) = 1. The argument for G/b is similar.
Recall that for a transitive G-set G/L, we have
sK
exp(G/L)= sgn(G/L)/K =sgn|L\G/K|
where|L\G/K| denotes the number of double cosets of L and K in G. So, we just need to show that nK:= |a\G/K| − |a, c\G/K|) is even for every [K] ∈ Cl(G). Applying
the formula |H \G/K| = 1 |H | h∈H (G/K)h
and H = a and a, c, we get
nK=
1 4
|G/K| −(G/K)c.
If c∈ K, then nK = |G/K| − |(G/K)c| = 0. If c /∈ K, then |K| = 2 and |(G/K)c| = 0.
So, nK=14(|G/K| − |(G/K)c|) = |G|/8 which is even since G ∼= D2n with n 4. This
completes the proof of the proposition. 2
We have shown that the exponential map is not surjective when G is a dihedral 2-group of order at least 16. However, there exist 2-groups where the exponential map is surjective even though they have a dihedral section of order 16. The smallest 2-group with these properties is of order 32, and below we give an example of such a 2-group.
Lemma 7.9. There exists a 2-group G such that G has a subquotient isomorphic to D16, and the exponential map exp : B(G)→ B(G)×is surjective.
Proof. Let G be the 2-group of order 32 generated by g1, g2, g3subject to following
rela-tions:[g1, g3] = g4,[g1, g2] = [g3, g4] = [g1, g4] = g5, g22= g32= g42= g5, g12= g25= 1,
[g2, g3] = [g2, g4] = [gi, g5] = 1 for every 1 i 4. It is easy to see that G has a
unique central element of order 2 which is g5, so the only quotient group of order 16
is G/g5 ∼= D8× C2. The Frattini subgroup of G is the cyclic group generated by g4
which is of order 4. We have G/g4 ∼= (Z/2)3, so the group has 7 maximal subgroups.
Out of these 7, only two of them are isomorphic to D16, namely H1= g1, g1g2g3, and
H2= g1g2, g1g3. So, G has two subquotients isomorphic to D16.
Now, we will show that the exponential map is surjective. For this, we will use Lem-mas 4.3 and 4.4. Recall that by these lemLem-mas, there is a surjective map
infGG/c× jndGHinfH /H a: B(G/c)×× B(H/a)×→ B(G)×
wherec is a central element, E = c, a is a non-central normal subgroup isomorphic to
Z/2 × Z/2, and H is the centralizer of E in G. Take c = g5 and a= g2g4. Then, H =
g1, g2, g4 ∼= C2× D8, and H /a ∼= D8. We have already observed above that G/c ∼=
C2× D8. Since the exponential map is surjective for D8and C2× D8, it is also surjective
for G. 2
We have seen that Corollary 1.3 provides a sufficient condition for the surjectivity of exponential map, but it is not a necessary condition. To find a necessary and sufficient condition, one needs to understand the contribution of each subquotient in Theorem 1.1. This can be done by considering B(G)×as a module over the ring of (QG, QG)-bimodules and using an idempotent decomposition for this ring. We leave this to another paper since it requires some background on bisets and their actions on the unit group.
Acknowledgments
I am grateful to my colleague Laurence Barker for introducing this subject to me and for many illuminating conversations on the subject. I also thank the referee for many helpful comments and suggestions on the earlier version of this paper.
References
[1] L. Barker, Fibred permutation sets and the idempotents and units of monomial Burnside rings, J. Algebra 281 (2004) 535–566.
[2] S. Bouc, Non-additive exact functors and tensor induction for Mackey functors, Mem. Amer. Math. Soc. 144 (683) (2000) viii+74.
[3] S. Bouc, A remark on a theorem of Ritter and Segal, J. Group Theory 4 (2001) 11–18.
[4] R. Dotzel, G. Hamrick, p-Group actions on homology spheres, Invent. Math. 62 (1981) 437–442. [5] A. Dress, Operations in representation rings, Proc. Symp. Pure Math. 21 (1971) 39–45. [6] D. Gorenstein, Finite Groups, Harper and Row, Chelsea, 1968.
[7] T. tom Dieck, Transformation Groups and Representation Theory, Lecture Notes in Math., vol. 766, Springer-Verlag, Berlin, 1979.
[9] T. Matsuda, On the unit groups of Burnside rings, Japan. J. Math. (N.S.) 8 (1982) 71–93.
[10] T. Matsuda, A note on the unit groups of Burnside rings as Burnside Ring Modules, J. Fac. Sci. Shinshu Univ. 21 (1986) 1–10.
[11] J. Tornehave, The unit group for the Burnside ring of a 2-group, Aarhus Universitet Preprint series 1983/84 41, May 1984.
