L E T T E R T O T H E E D I T O R
Serum pentraxin-3 follows a logarithmic distribution particularly
at low expected levels
Dear Editors,
We read the article by Ozer Balin et al
1with interest and would
like to comment on the results, focusing on data expression and
statistical evaluation regarding serum pentraxin-3 (PTX3) levels.
PTX3, a soluble pattern recognition receptor, is an acute-phase
protein, and its level in systemic circulation was proposed as a
marker for the prediction and/or prognostication of
cardiovascu-lar, metabolic, infectious, and inflammatory disorders as in the
present study.
1As in the case of C-reactive protein (CRP),
dis-tribution of serum PTX3 is skewed to the right (positive
skew-ness) in healthy population,
1-6but unlike CRP, it may increase
by up to 1000 to 10 000 times in case of disease, and its range

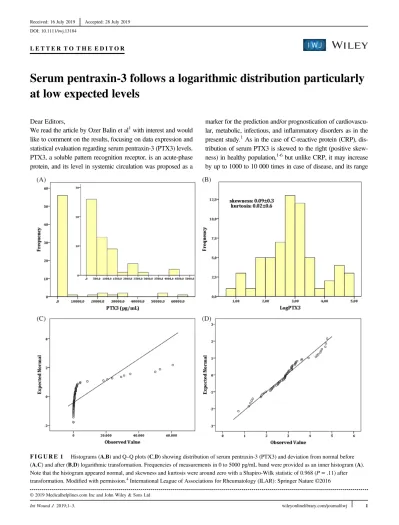

F I G U R E 1 Histograms (A,B) and Q–Q plots (C,D) showing distribution of serum pentraxin-3 (PTX3) and deviation from normal before (A,C) and after (B,D) logarithmic transformation. Frequencies of measurements in 0 to 5000 pg/mL band were provided as an inner histogram (A). Note that the histogram appeared normal, and skewness and kurtosis were around zero with a Shapiro-Wilk statistic of 0.968 (P = .11) after transformation. Modified with permission.4International League of Associations for Rheumatology (ILAR): Springer Nature ©2016
Received: 16 July 2019 Accepted: 28 July 2019
DOI: 10.1111/iwj.13184
© 2019 Medicalhelplines.com Inc and John Wiley & Sons Ltd
is quite wide in healthy population.
4-6Based on our previous
findings in a healthy control group,
4we tested the hypothesis
if logarithmic transformation could yield a normal distribution
in these wide-ranging and skewed data. After transformation,
the histogram appeared to be normal and skewness and
kurtosis were around zero with a Shapiro
–Wilk statistic of
0.968 (P = .11) (Figure 1). Similarly, logarithmic
transforma-tion resulted in near-normal distributransforma-tions in disease groups
too (Figure 2). In studies with higher numbers of
parti-cipants, healthy or with disease, it is the logarithmic
distribu-tion of serum PTX3 that made the researchers use
logarithmic/exponential scales when reporting their data.
5-7In
the case of a small sample size and high expected serum
PTX3 levels, it is depicted in Figure 3 how the data
distribu-tion may appear normal, particularly after excluding the
extreme values (ie, the outliers), which is a common statistical
practice. This was possibly the case in many previous
stud-ies.
8-11However, extreme values in a linear scale are an
integral feature of a logarithmic/exponential distribution
5-7and should not be missed.
In conclusion, logarithmic transformation of serum
PTX3 levels may yield normal distribution, particularly at
low expected levels, and makes parametric analysis of
vari-ance possible. Beside an easier data expression and more
powerful statistical analysis, this may enable logarithmic/
exponential, instead of linear cut-offs to be used in
discrim-inating between potential diagnostic and/or prognostic
groups in future studies.
C O N F L I C T O F I N T E R E S T
The authors declare no potential conflict of interest.
O R C I D
Ufuk _llgen
https://orcid.org/0000-0001-6443-6426
Ufuk _llgen
1Müçteba Enes Yayla
2Cenk Gökalp
3Hakan Emmungil
1Nurs¸en Düzgün
4 1Department of Rheumatology, Trakya University Medical
School, Edirne, Turkey
2Department of Rheumatology, Ankara University Medical
School, Ankara, Turkey
3Department of Nephrology, Trakya University Medical
School, Edirne, Turkey
4Department of Rheumatology, Ufuk University Medical
School, Ankara, Turkey
Correspondence
Ufuk _Ilgen, MD, Department of Rheumatology, Trakya
University Hospital, 22100 Edirne, Turkey.
Email: ufukilgen@gmail.com
F I G U R E 2 Logarithmic transformation of serum pentraxin-3(PTX3) in disease groups (ie, systemic sclerosis and systemic lupus erythematosus) yielded near-normal distributions as in the case of healthy population. Modified with permission.4International League of Associations for Rheumatology (ILAR): Springer Nature ©2016
0 100 200 300 400 500 600 1 2 3 4 5 6 7 8 9 10 Fr equency
Serum pentraxin-3 quantiles
Low-expected High-expected High-expected with a small sample size
F I G U R E 3 Distribution of serum pentraxin-3 at low and high expected levels. Note that the decrease in skewness at high expected levels may result in a normal-like distribution, particularly if the quantiles 8 to 10 with a low number of cases were considered outliers. At high expected levels with a small sample size, the tail of the histogram may automatically disappear, again leaving a normal-like distribution
R E F E R E N C E S
1. Ozer Balin S, Sagmak Tartar A, Ugur K, et al. Pentraxin-3: a new parameter in predicting the severity of diabetic foot infection? Int Wound J. 2019;16:659-664.
2. Rifai N, Ridker PM. Population distributions of C-reactive protein in apparently healthy men and women in the United States: impli-cation for clinical interpretation. Clin Chem. 2003;49:666-669. 3. Imhof A, Fröhlich M, Loewel H, et al. Distributions of C-reactive
protein measured by high- sensitivity assays in apparently healthy men and women from different populations in Europe. Clin Chem. 2003;49:669-672.
4. _llgen U, Yayla ME, Düzgün N. Low serum fibroblast growth factor 2 levels not accompanied by increased serum pentraxin 3 levels in patients with systemic sclerosis. Clin Rheumatol. 2017;36:367-372. 5. Hamed S, Behnes M, Pauly D, et al. Diagnostic value of
Pentraxin-3 in patients with sepsis and septic shock in accordance with latest sepsis-3 definitions. BMC Infect Dis. 2017;17:554. 6. Yamasaki K, Kurimura M, Kasai T, Sagara M, Kodama T, Inoue K.
Determination of physiological plasma pentraxin 3 (PTX3) levels in healthy populations. Clin Chem Lab Med. 2009;47:471-477.
7. Kontny F, Andersen T, Ueland T, et al. Pentraxin-3 vs C-reactive protein and other prognostic biomarkers in acute coronary syn-drome: a substudy of the Platelet Inhibition and Patients Outcomes (PLATO) trial. Eur Heart J Acute Cardiovasc Care. 2019. In press. https://doi.org/10.1177/2048872619846334.
8. Oztan MO, Aksoy Gokmen A, Ozdemir T, Müderris T, Kaya S, Koyluoglu G. Pentraxin-3: a strong novel biochemical marker for appendicitis in children. Am J Emerg Med. 2019. In press. https:// doi.org/10.1016/j.ajem.2019.01.010.
9. Gokdemir MT, Nas C, Gokdemir GS. Pentraxin 3 level in acute migraine attack with aura: patient management in the emergency department. Am J Emerg Med. 2019. In press. https://doi.org/10. 1016/j.ajem.2019.04.004.
10. Yang H, Zhang J, Huan Y, Xu Y, Guo R. Pentraxin-3 levels relate to the Wells score and prognosis in patients with acute pulmonary embolism. Dis Markers. 2019;2019:1-6. https://doi.org/10.1155/ 2019/2324515.
11. Leira Y, Ameijeira P, Domínguez C, et al. Severe periodontitis is linked with increased peripheral levels of sTWEAK and PTX3 in chronic migraineurs. Clin Oral Investig. 2019. In press. https://doi. org/10.1007/s00784-019-02950-9.
