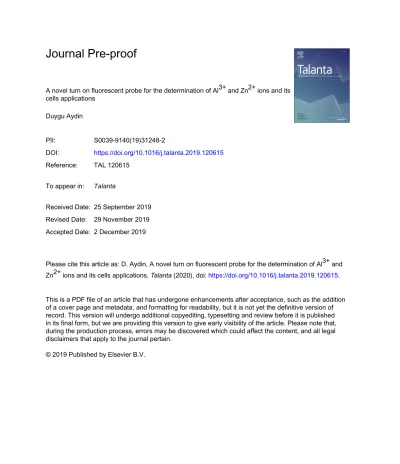

Journal Pre-proof
A novel turn on fluorescent probe for the determination of Al3+ and Zn2+ ions and its cells applications
Duygu Aydin
PII: S0039-9140(19)31248-2
DOI: https://doi.org/10.1016/j.talanta.2019.120615 Reference: TAL 120615
To appear in: Talanta
Received Date: 25 September 2019 Revised Date: 29 November 2019 Accepted Date: 2 December 2019
Please cite this article as: D. Aydin, A novel turn on fluorescent probe for the determination of Al3+ and Zn2+ ions and its cells applications, Talanta (2020), doi: https://doi.org/10.1016/j.talanta.2019.120615.
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of record. This version will undergo additional copyediting, typesetting and review before it is published in its final form, but we are providing this version to give early visibility of the article. Please note that, during the production process, errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.
1
A Novel Turn On Fluorescent Probe For The Determination of Al3+ and Zn2+ Ions and Its Cells Applications
Duygu AYDIN
Karamanoglu Mehmetbey University, Kamil Ozdag Science Faculty, Department of Chemistry, Karaman, 70100 Turkey
*Corresponding Author: Dr. Duygu AYDIN, Kamil Ozdag Science Faculty, Department of Chemistry, Karamanoglu Mehmetbey University, 70100 Karaman, Turkey
Tel.: +90 338 226 00 00/3860 E-mail: duyguaydin@kmu.edu.tr
Abstract
Early detection of probes is very important for limiting toxic effects of various transition metal ions for example aluminum and zinc. Monitoring of these metal ions can be challenging via conventional methods since they are high cost instrumentations, time consuming and so on. We report facile preparation of a fluorescence probe containing biphenyl groups that effectively selective and superb sensitivity towards aluminum (III) and zinc (II) in neutral solutions without interference from each other and other ions. In neutral pH value, the probe FOB displayed the OFF-ON fluorescence enhancement at 464 nm and 512 nm toward aluminum (III) and zinc (II), respectively. The detection limit values of FOB for Al3+ and Zn2+ in neutral solutions were 1.27 and 1.02 nM, respectively and these values were significantly lower than permitted Al3+ and Zn2+ concentrations in drinking water determined by the World Health Organization (WHO) and European Water Quality. Also, fabricated cyano-biphenyl based probe is effective for sensing for aluminum (III) and zinc (II) in living human colon cancer cells even when employed at low concentrations (1µM). Overall, this work allows us to obtain a great potential to be applied to detect Al3+ and Zn2+.
2 1. Introduction
Utilizing of heavy metal ions in industry, environmental and biological sources and several human activities causes various side effects such as contamination of environment and several diseases [1–4]. Among the various metal ions, aluminum and zinc ions exist widely in air, water, and soil because of acidic rain. These d block metal ions have broad applications in daily life including clinical drugs, packing materials, water treatment, cookie sheets and etc and so they are crucial agents for human life. However, high concentration of aluminum and zinc ions may cause many serious diseases [5–9]. Over the past decade, based on these metal ions, extensive research has reported that aluminum (III) ions induces a serious threat to public health, when it is in high concentration levels. The excessive aluminum (III) ions may cause several human diseases like Alzheimer's disease, Wilson syndrome, Parkinson's disease, dementia and impairment of memory, breast cancer and including dialysis encephalopathy. Moreover, the adverse effect of zinc (II) ions can cause a serious detrimental health disorders including prostate cancer, cerebral ischemia and epilepsy. Thus, the study of determination of aluminum (III) and zinc (II) ions in solutions and environmental and biological systems is valuable to check its effect on the human life and also environment [10–13].
Compared with other analytical methodologies for example ions atomic absorption spectrometry, inductively coupled mass atomic emission spectrometry (ICM–AES), electrochemical assays, inductively coupled plasma optical emission spectroscopy (ICP–OES), ion selective membrane and so on are currently available for regarding the detection of aluminum (III) and zinc (II) ions [8,14–16]. Nevertheless, these methods are not effective applied for the sensing and recognition of environmentally and biologically pertinent metal ions because they are high cost instrumentations, need an extremely trained person, complicated and time consuming procedures and lack of selectivity. Therefore, fluorescence chemosensors have emerged as one of the most widely utilized analytical tools because of their unique advantages such as excellent temporal-spatial resolution, non-invasiveness, operational simplicity, high sensitivity, good selectivity, low cost and rapid response time. Recently, various fluorescent chemosensors including coumarin, rhodamine, naphalimide, pyrene, BODIPY and fluorescein were exploited for detection of aluminum (III) and zinc (II) [13,17–20]. Cyano-biphenyl moiety has also been employed to identify various metal ions including
3
aluminum (III) and zinc (II). For instance, Erdemir et. al. reported a cyanobiphenyl containing fluorescent chemosensor for the selective determination of aluminum (III) and zinc (II) ions [21]. Also, hydrazides have been widely employed in many research areas because of their easy preparation, tunable electronic properties and good chelating capability simple [12,22]. Li et. al. developed an a novel pyrazine-derived fluorescent chemosensor for monitoring Al3+ in ethanol [23].
Herein, we report a novel ultrasensitive and selective fluorescent ''turn on'' probe, FOB, based on cyano-biphenyl and 2-furoic hydrazide derivative that could be used as dual analyte fluorescent chemosensor to monitor aluminum (III) and zinc (II) ions in ACN/H2O (v/v=80/20, 1µM, pH=7.0) solution. Moreover, the FOB sensor can monitor
Al3+ and Zn2+ without being affected by various metal ions. Additionally, the results showed that fabricated probe could be employed in living cells for determination of Al3+ and Zn2+. Therefore, fabricated probe can be chosen as a tool for detection of Al3+ and Zn2+.
2. Experimental Section
2.1. Materials and instrumentation
4′-Hydroxy-4-biphenylcarbonitrile, hexamethylenetetramine (HMTA) and 2-furoic hydrazide were bought from Sigma-Aldrich. Other reagents and solvents were obtained from commercial suppliers (Sigma-Aldrich and Merck). Unless otherwise stated, they were utilized without further purification. Preperation of 3-formyl-4-hydroxy-4-biphenylcarbonitrile (1) was undertaken according to a previously reported methods [9].
1
H NMR spectra was performed utilizing a Varian 300 MHz spectrometer in deuterated dimethyl sulfoxide (DMSO-d6) at room temperature. Fluorescent spectra were taken
using on a Perkin Agilent Cary Eclipse spectrometer using quartz cells of 1.0 cm path length. Elemental analysis data was obtained using a Leco CHNS-932 elemental analyzer (Leco, USA).
2.2. Synthesis of the Fluorescent Probe (FOB)
To synthesize the ligand (FOB), 3-formyl-4-hydroxy-4-biphenylcarbonitrile (1) (0.5 g, 2.24 mmol) and 2-furoic hydrazide (0.31 g, 2.44 mmol) was refluxed in absolute ethanol (30 mL) for 3 h under nitrogen atmosphere. After 3h, the solution was filtered to
4
obtain precipitated ligand and unreacted species were removed by washing fabricated precipitate with excess EtOH. The precipitate was dried in vacuo and yield is 81%; [Found:C, 73.60; H, 4.02; N, 9.35; O, 13.03. C46H31N5O6 requires C, 73.69; H, 4.17; N,
9.34; O, 12.80%].nmax (solid, ATR) 3225, 3113, 3058, 2217, 1653, 1598, 1532, 1479,
1355, 1284, 1183, 1011, 960, 824; dh (300 MHz, DMSO-d6) 12.28 (1H, s), 11.49 (1H, s), 8.70 (1H, s), 7.96 (2H, m), 7.87 (4H, dd, J 8.50 Hz), 7.71 (1H, dd, J 2.29 Hz, J 8.70 Hz), 7.33 (1H, d, J 3.40 Hz), 7.05 (1H, t, J 8.60 Hz), 6.71 (1H, m); dc (100 MHz, DMSO-d6) 158.66, 154.74, 148.06, 146.86, 144.54, 133.51, 130.72, 130.06, 128.24, 127.53, 120.10, 119.69, 117.94, 116.14, 112.93, 109.89. 2.3. Fluorescence experiments
For fluorescence studies, the stock solution of FOB was prepared in DMSO (1 mM) and diluted with the mixture of ACN/H2O (80/20) (1 µM, 25 mL) and 3 mL probe solution
was added to a cuvette to evaluate detection of various cations. Perchlorate salts of metals were used and solved in ACN for preparing cation solutions (1mM). Corresponding volume of perchlorate salts were put into solution of FOB and then the spectra of mixtures were recorded after mixing for 10 min by the help of the fluorescence spectroscopy utilizing λex=355 nm, λem=464 nm for Al(III) and λex=355
nm, λem=512 nm for Zn(II). Also, slit widths=10 nm, 10 nm and all titration
experiments were repeated three times.
2.4. Cell Culturing and Cytotoxicity Testing
Human prostate cancer PC-3 (CRL 1435) cell lines were obtained from ATCC (American Type Culture Collection, Rockville, MD, USA). The PC-3 cells were maintained in Ham's F12K Medium supplemented with 10 % fotal bovine serum, 1% L-glutamine, and 1% penicillin/streptomycin at 37 °C in a 5% CO2 atmosphere and 95%
humidity. The stock solutions of FOB, and its complexes were prepared in DMSO and diluted with growth medium. The DMSO concentration was kept under 0.1%. To further investigate the biosensor properties of compound, the cells were incubated 1 µM of FOB and incubated 30 min then to remove excess FOB, the cells were washed three times with 10 mM PBS. Cells were then treated with 10 µM of Al3+ and Zn2+ and reincubated for 30 min. After the washing in PBS, the fluorescence signals showing aluminum and zinc ions was monitored with Bio-Rad ZOE fluorescence microscope.
5 3. Results and Discussion
3.1. Synthesis
An aldehyde derivative of cyano-biphenyl was prepared according to previous reports and then, the designed fluorescent sensor was prepared by condensation reaction between the fabricated aldehyde and 2-furoic hydrazide in EtOH with high yields (scheme 1). The fabricated compound was characterized by the help of 1H-NMR (Fig. S2), 13C-NMR (Fig. S3), APT (Fig. S4), and FT-IR spectroscopy (Fig. S1) and elemental analyzer.
Scheme 1.
3.2. Fluorescence study of ligand FOB towards metal ions
The photophysical property of the fabricated fluorescent chemosensor in ACN/H2O
(v/v=80/20, 1 µM, pH=7.0) was investigated in the presence of the various metal ions (Ba2+, Cs+, Na+, Li+,Ag+, Ni2+, Pb2+, Zn2+, Mn2+, Cu2+, Fe2+, Sr2+, Fe3+, Cd2+, Cr3+, Co2+, Al3+, Hg2+ and Mg2+) and utilizing fluorescence spectroscopy. As depicted in Figure 1, free probe (FOB) demonstrated very weak fluorescence at about 464 and 512 nm because of efficient the effect of PET from the amine and the excited-stated intermolecular proton transfer (ESIPT) process. Upon the adding of 5.0 equiv different metal ions to FOB probe solution in ACN/H2O (v/v=80/20, 1 µM, pH=7.0), the
fluorescence emission increment at 464 and 512 nm remained unchanged except Al3+ and Zn2+ ions. Addition of 5.0 equiv of aluminum (III) and zinc (II) ions causes remarkable enhancement of fluorescent intensity.
Figure 1.
However, fluorescent enhancements were easily observed in different emission wavelengths and two different colors: blue for complex between aluminum (III) ions and probe and green for complex between zinc (II) ions and probe (FOB). Although the probe FOB exhibited remarkable fluorescent respond toward aluminum (III) ions at 464 nm, FOB displayed significant binding with zinc (II) at 512 nm. An obvious
6
fluorescence enhancement was associated with the complexation between Al3+ and FOB and also zinc (II) ion and probe FOB and formed complexes might be prevented the PET effect and the excited-stated intermolecular proton transfer in the probe and so the formation of the stable chelation between chemosensor FOB and ions (aluminum (III) and zinc (II)) resulted in CHEF (chelation enhanced fluorescence). While the FOB and aluminum (III) solution displayed blue fluorescence with the maximum wavelength (λem ≈ 464 nm upon excitation at λex= 355 nm), formed complex between the probe FOB
and zinc (II) showed a rapid ‘’turn-on’’ fluorescence respond toward zinc (II) at λem ≈
512 nm (Fig. S5a and b). Consequently, these results suggest that strong fluorescence turn on emissions in different emission wavelengths were a result of complexation between the probe FOB and the metal ions (Al3+ and Zn2+).
To verify the quantitative analysis of probe FOB towards aluminum (III) and zinc (II) ions, fluorescence signals of the probe solution were performed in the presence of aluminum (III) and zinc (II) perchlorate at various concentrations. According to the fluorescence titration profiles, “OFF-ON” fluorescence sensing behaviors toward both metal ions were observed. Furthermore, the intensity ratio of the FOB solution at 464 nm raised gradually with the adding of increasing amount of aluminum (III) ions concentration in the range from 0.0-5.0 equiv and stabilized a maximum value in the presence of 1 equiv. of aluminum (III) (Fig. 2a). Similarly, gradual addition of Zn2+ into the FOB solution induced an increase the emission intensity at 512 nm because of the prevention of PET effect and the intensity of probe remained stable about 1-fold (Fig. 2b).
Figure 2.
The Job’s plot was conducted to display the complexation ratios of FOB with both metal ions. The mole fraction of FOB with the both metal ions was 0.5 indicating that FOB and both metal ions (aluminum (III) and zinc (II)) were coordinated with a 1:1 binding stoichiometry (Fig. 3a and b). Furthermore, the binding constant values of the probe both Al(III) and Zn(II) (Ka) have been calculated utilizing Benesi-Hildebrand equation and determined to be 12.8x105 and 5.05x105 M-1 for Al3+ and Zn2+, respectively (Fig. S6a-b) [25].
7
To determine the detection limits (LOD) of the probe FOB for the analysis of Al3+ and Zn2+, S/N=3 equation was utilized [9,16,19]. Where, S is the standard deviation of fabricated FOB measurement in the absence Al3+ and Zn2+ and K is the slope from plotting the relative fluorescence intensity versus the concentration of Al3+ and Zn2+. As shown in Fig. S7a and b, detection limits values of probe FOB have been found 1.27 nM for Al3+ and 1.02 nM for Zn2+. These values were below the World Health Organization (WHO) guideline values for drinking water (7.41 µM and 76 µM for Al (III) and Zn (II), respectively) [22,24,27]. Also, there are many probes with µM levels of LOD values in the literature [7,22,26], but LOD values of the probe FOB in this study are nM values for both metal ions. These results shows that this probe has excellent sensitive for the determination of aluminum (III) and zinc (II). Moreover, the reliability and accuracy of the proposed fluorescence application was confirmed as an external standard method (Table S1).
Furthermore, the selectivity of the probe FOB has been performed adding 5.0 equiv of various metal ions into the system ACN/H2O (v/v=80/20, 1µM, pH=7.0) at room
temperature. When the intensity of the FOB rises at 464 nm as a result of adding of Al (III) ion (λex = 355 nm), we check at 464 nm to understand whether other metal ions
have any impact on the intensity of the sensor FOB. As shown in Fig. 4a, only aluminum (III) shows a large fluorescence increment in the FOB solution, whereas other metals excepting Zn2+ exhibited only minimal changing in the intensity of the FOB. Similarly, our probe at 512 nm has good selectivity for zinc (II) ions over other cations, only Fe2+, Ca2+, Cu2+ and Fe3+ ions make a drastic decrease of the intensity of FOB solution with zinc(II) in small magnitude (Fig. 4b). This data indicates that the FOB could be employed to monitor aluminum and zinc ions even in the presence of other competitive metal ions.
Figure 4
The effect of pH on the emission intensity of probe FOB both Al (III)and Zn (II) ions has been tested in the pH range of 2.0-10.0 separately due to it is well known that pH is especially important for many biological applications. It is clear from Fig. S8a and b that the intensity of FOB in the presence of both aluminum (III) and Zn(II) has decreased until pH 6.0 and altered significantly high at pH 7.0. The insensitivity of the probe both Al3+ and Zn2+ at high pH values decreased probably since the competition of
8
OH- ions interacted with Al3+ and Zn2+ coordination. In addition, the nitrogen groups in the -C=N- groups in FOB at low pH values (pH: 2.0 and 6.5) were protonated and coordination with both the metal ions does not formed. Obtained pH-dependent studies display that both aluminum (III) and zinc (II) ions can produce remarkable turn on fluorescence signals at different emission wavelengths with the FOB in the physiological pH region. Therefore, these results highlight that the FOB could be utilized as a candidate for applications in living systems.
3.3. 1H NMR/FTIR studies and DFT calculations
1
H NMR spectroscopy in DMSO-d6 was used to highlight the nature of complexation
between probe FOB and both the metal ions (aluminum (III) and zinc (II) ions). FOB in the presence and absence of both of the metal ions was analyzed in DMSO-d6. It was
clear that the phenolic proton and the NH proton signal of the probe FOB appear at 12.28 and at 11.49 ppm, respectively. In the presence of 1.0 equiv of aluminum (III) and zinc (II) ions, the phenolic OH and NH peaks from ligand at 12.28 and 11.49 ppm decrease and especially disappeared for Zn2+ due to deprotonation of the phenolic and NH proton. After addition of aluminum (III) and Zn (II), the C=N moiety was shifted downfield by 0.04 and 0.05 ppm, respectively (Fig S9a and b). The possible complexation formed between both the metal ions is shown in Scheme 2 according to above results.
Scheme 2.
In order to support the possibility of chelation process, the electron density of FOB and its metal complexations with Al3+ and Zn2+ were performed with density functional theory (DFT) calculations by GaussView 5.0.8 software [28,29].As depicted in Figure 8, the differences of energy gaps between highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) were 3.661 for FOB, 1.344 eV for FOB-Al3+ and 3.329 eV for FOB-Zn2+. This results exhibit that the HOMO-LUMO energy gaps of the complexations of each metal (Al+3 and Zn2+) to FOB is less than only the energy gaps of FOB molecule and the result supported that system stabilize (Figure 5).
Figure 5.
9
Additionally, human colon cancer cells could be employed in fluorescence imaging to determine the intracellular Zn2+ and Al3+ imaging behavior of probe FOB. The cells display no fluorescence after it has been incubated with FOB alone. Also, probe FOB deposited PC-3 cells were incubated with 10 µM Zn2+ and Al3+ for 60 min at 37 °C. It was clear from the micrographs that probe FOB exhibited similar turn on sensing fluorescent behaviors in PC-3 cells to Zn2+ and Al3+ as in the solutions (Figure 6).
Figure 6.
4. Conclusion
Overall, the synthesis of cyano-biphenyl aldehyde was achieved according to previous literature and then, it is reacted with an amine containing 2-furoic hydrazide. Probe FOB was prepared with high conversions and utilized as an ultrasensitive and selective fluorescence turn on for the determination of in ACN/H2O (v/v=80/20, 1 µM, pH=7.0).
Moreover, the sensor shows superb response and high sensitivity toward aluminum (III) ion and zinc (II) through a turn on fluorescence intensity over other relevant competing metal ions. The high Al3+ chelation-enhanced fluorescence (CHEF) is probably because of including prevention of PET and ESIPT. Probe FOB was employed in practical pH values and in living cells for monitoring of aluminum (III) ion and zinc (II). In summary, the facile preparation of FOB, low detection value of FOB for Al3+ and Zn2+ and FOB is applicable for detecting Al3+ and Zn2+ in living cells warrant its ability to utilize as a tool for detection of aluminum (III) and zinc (II) ions.
Conflicts of interest
The authors declare that they have no conflict of interest.
Acknowledgment
The author is grateful to the KMU Scientific Research Project Center for their support with the project numbers 30-M-16 and to provide the Gaussian 09W and Gauss view 5.0.8 programs. Also, author thanks Serdar Karakaya for help with in vitro studies. Appendix A. Supplementary data
10
Supplementary data to this article can be found online at https://doi.
References
[1] X. Tang, Z. Zhu, Y. Wang, J. Han, L. Ni, L. Wang, H. Zhang, J. Li, Y. Qiu, A dual site controlled probe for fluorescent monitoring of intracellular pH and colorimetric monitoring of Cu2+, Sensors Actuators, B Chem. 270 (2018) 35–44. doi:10.1016/j.snb.2018.04.173.
11
[2] S. Sakunkaewkasem, A. Petdum, W. Panchan, J. Sirirak, A. Charoenpanich, T. Sooksimuang, N. Wanichacheva, Dual-Analyte Fluorescent Sensor Based on [5]Helicene Derivative with Super Large Stokes Shift for the Selective Determinations of Cu2+ or Zn2+ in Buffer Solutions and Its Application in a
Living Cell, ACS Sensors. 3 (2018) 1016–1023.
doi:10.1021/acssensors.8b00158.
[3] P. Raj, A. Singh, A. Singh, N. Singh, Syntheses and Photophysical Properties of Schiff Base Ni(II) Complexes: Application for Sustainable Antibacterial Activity and Cytotoxicity, ACS Sustain. Chem. Eng. 5 (2017) 6070–6080. doi:10.1021/acssuschemeng.7b00963.
[4] A. Kim, J.H. Kang, H.J. Jang, C. Kim, Fluorescent detection of Zn(II) and In(III) and colorimetric detection of Cu(II) and Co(II) by a versatile chemosensor, J. Ind. Eng. Chem. 65 (2018) 290–299. doi:10.1016/j.jiec.2018.04.040.
[5] X. Wen, Q. Wang, Z. Fan, Highly selective turn-on fluorogenic chemosensor for Zn(II) detection based on aggregation-induced emission, J. Lumin. 194 (2018) 366–373. doi:10.1016/j.jlumin.2017.10.064.
[6] M. Shyamal, P. Mazumdar, S. Maity, S. Samanta, G.P. Sahoo, A. Misra, Highly Selective Turn-On Fluorogenic Chemosensor for Robust Quantification of Zn(II) Based on Aggregation Induced Emission Enhancement Feature, ACS Sensors. 1 (2016) 739–747. doi:10.1021/acssensors.6b00289.
[7] Y. Lu, S. Huang, Y. Liu, S. He, L. Zhao, X. Zeng, Highly selective and sensitive fluorescent turn-on chemosensor for AI 3+ based on a novel photoinduced electron transfer approach, Org. Lett. 13 (2011) 5274–5277.
doi:10.1021/ol202054v.
[8] B. Liu, P.F. Wang, J. Chai, X.Q. Hu, T. Gao, J. Bin Chao, T.G. Chen, B.S. Yang, Naphthol-based fluorescent sensors for aluminium ion and application to bioimaging, Spectrochim. Acta - Part A Mol. Biomol. Spectrosc. 168 (2016) 98– 103. doi:10.1016/j.saa.2016.06.002.
[9] O. Alici, S. Erdemir, A cyanobiphenyl containing fluorescence “turn on” sensor for Al3+ ion in CH3CN–water, Sensors Actuators B Chem. 208 (2015) 159–163.
12 doi:10.1016/j.snb.2014.11.033.
[10] X. Leng, W. Xu, C. Qiao, X. Jia, Y. Long, B. Yang, New rhodamine B-based chromo-fluorogenic probes for highly selective detection of aluminium(III) ions and their application in living cell imaging, RSC Adv. 9 (2019) 6027–6034. doi:10.1039/c8ra09850f.
[11] K. Tiwari, M. Mishra, V.P. Singh, A highly sensitive and selective fluorescent sensor for Al3+ ions based on thiophene-2-carboxylic acid hydrazide Schiff base, RSC Adv. 3 (2013) 12124–12132. doi:10.1039/c3ra41573b.
[12] X. li Yue, Z. qing Wang, C. rui Li, Z. yin Yang, A highly selective and sensitive fluorescent chemosensor and its application for rapid on-site detection of Al3+, Spectrochim. Acta - Part A Mol. Biomol. Spectrosc. 193 (2018) 415–421. doi:10.1016/j.saa.2017.12.053.
[13] A. Gupta, N. Kumar, A review of mechanisms for fluorescent “turn-on” probes to detect Al3+ ions, RSC Adv. 6 (2016) 106413–106434. doi:10.1039/c6ra23682k.
[14] D. Maity, T. Govindaraju, Conformationally constrained (Coumarin-Triazolyl-Bipyridyl) click fluoroionophore as a selective Al3+ sensor, Inorg. Chem. 49 (2010) 7229–7231. doi:10.1021/ic1009994.
[15] X. Sun, Y.W. Wang, Y. Peng, A selective and ratiometric bifunctional fluorescent probe for Al3+ ion and proton, Org. Lett. 14 (2012) 3420–3423. doi:10.1021/ol301390g.
[16] S. Erdemir, M. Yuksekogul, S. Karakurt, O. Kocyigit, Dual-channel fluorescent probe based on bisphenol A-rhodamine for Zn2+ and Hg2+ through different signaling mechanisms and its bioimaging studies, Sensors Actuators, B Chem. 241 (2017) 230–238. doi:10.1016/j.snb.2016.10.082.
[17] W.H. Ding, W. Cao, X.J. Zheng, D.C. Fang, W.T. Wong, L.P. Jin, A highly selective fluorescent chemosensor for AlIII ion and fluorescent species formed in the solution, Inorg. Chem. 52 (2013) 7320–7322. doi:10.1021/ic401028u.
ESIPT-13
Based Al3+ Probe, J. Phys. Chem. B. 120 (2016) 6730–6738. doi:10.1021/acs.jpcb.6b04474.
[19] X. Yue, Z. Wang, C. Li, Z. Yang, Naphthalene-derived Al3+ selective fluorescent chemosensor based on PET and ESIPT in aqueous solution, Tetrahedron Lett. 58 (2017) 4532–4537. doi:10.1016/j.tetlet.2017.10.044.
[20] T. Khan, S. Vaidya, D.S. Mhatre, A. Datta, The Prospect of Salophen in Fluorescence Lifetime Sensing of Al3+, J. Phys. Chem. B. 120 (2016) 10319– 10326. doi:10.1021/acs.jpcb.6b05854.
[21] S. Erdemir, O. Kocyigit, Dual recognition of Zn2+ and Al3+ ions by a novel probe containing two fluorophore through different signaling mechanisms, Sensors Actuators B Chem. 273 (2018) 56–61. doi:10.1016/j.snb.2018.06.019.
[22] K. Boonkitpatarakul, J. Wang, N. Niamnont, B. Liu, L. McDonald, Y. Pang, M. Sukwattanasinitt, Novel Turn-On Fluorescent Sensors with Mega Stokes Shifts for Dual Detection of Al3+ and Zn2+, ACS Sensors. 1 (2016) 144–150. doi:10.1021/acssensors.5b00136.
[23] C. Li, J. Qin, G. Wang, B. Wang, Z. Yang, A novel pyrazine derivative as a “turn on” fluorescent sensor for the highly selective and sensitive detection of Al3+, Anal. Methods. 7 (2015) 3500–3505. doi:10.1039/C5AY00200A.
[24] J.J. Lee, S.A. Lee, H. Kim, L. Nguyen, I. Noh, C. Kim, A highly selective CHEF-type chemosensor for monitoring Zn2+ in aqueous solution and living cells, RSC Adv. 5 (2015) 41905–41913. doi:10.1039/C5RA05080D.
[25] K.B. Kim, H. Kim, E.J. Song, S. Kim, I. Noh, C. Kim, A cap-type Schiff base acting as a fluorescence sensor for zinc(II) and a colorimetric sensor for iron(II), copper(II), and zinc(II) in aqueous media, Dalt. Trans. 42 (2013) 16569. doi:10.1039/c3dt51916c.
[26] S. Erdemir, Fluorometric dual sensing of Hg2+ and Al3+ by novel triphenylamine appended rhodamine derivative in aqueous media, Sensors Actuators, B Chem. 290 (2019) 558–564. doi:10.1016/j.snb.2019.04.037.
14
Pb(II), Zn(II), Fe(III) and Cr(III) ions with coprecipitation method without carrier element and their determination in food and water samples, Food Chem. 177 (2015) 320–324. doi:10.1016/j.foodchem.2015.01.008.
15
Scheme 1. Synthesis routes of 1 and FOB.
Scheme 2. Fluorescence increment mechanism of the FOB-Metal complex. FOB 1
16
Figure captions
Figure 1. Fluorescence spectra of FOB ACN/H2O (v/v=80/20, 1 µM, pH=7.0) solution
before and after addition of 5.0 equiv of different metal ions (Na+, Li+,Ag+, Ni2+, Ba2+, Mn2+, Mg2+, Sr2+, Fe2+, Cr3+, Co2+, Cu2+, Fe3+, Zn2+, Cd2+, Hg2+, Al3+, Cs+ and Pb2+). The spectra were studied after 5 min mixing with λex = 355 nm, λex =464 nm for Al3+ andλex =512 nm for
Zn2+, slit: 10-10.
Figure 1. Fluorescence spectra of FOB (1 µM) after addition of increment concentrations of (a) Al3+ and (b) Zn2+ in ACN/H2O (v/v=50/50). The spectra were provided after mixing for 5
min for Al3+ and 3 min for Zn2+ (sensors) using λex = 355 nm.
Figure 3. Job’s plots of the complexation between FOB with (a) Al3+ and (b) Zn2+.
Figure 4. Relative fluorescence of (a) FOB in ACN/H2O (v/v=80/20, 1µM, pH=7.0)in the
presence of (a) Al (III) and (b) Zn(II)(5.0 eqv) with another interfering metal ion tested. Figure 5. Electron density in HOMO and LUMO of FOB and its complexes with Al3+ and Zn2+.
Figure 6. Fluorescence images of (a) Al (III)and (d) Zn (II) ions utilizing sensor FOB in Human prostate cancer PC-3 (CRL 1435) cells: (a and d) bright field image of living Human epithelium Lovo cells treated with sensor FOB (1 µM) for 30 min, then threated with Al(III) and Zn(II) ions for 30 min; (b and e). (c and f) Merged fluorescence images of (a) and (b), and also (d) and (e). Scale bar = 100 µm.
17 Figure 1.
18 Figure 2.
19 Figure 4.
20 Figure 6.
Highlights
• A novel turn on fluorescent probe (FOB) for Al3+ and Zn2+ was fabricated.
• The fluorescent of FOB can be enhanced in the presence of Al3+ and Zn2+.
• The limits of detection of the fabricated sensor was 1.27 nM for Al3+ and 1.02 nM for Zn2+.
• This fluorescent sensor can be used for detection of aluminum and zinc ion in
