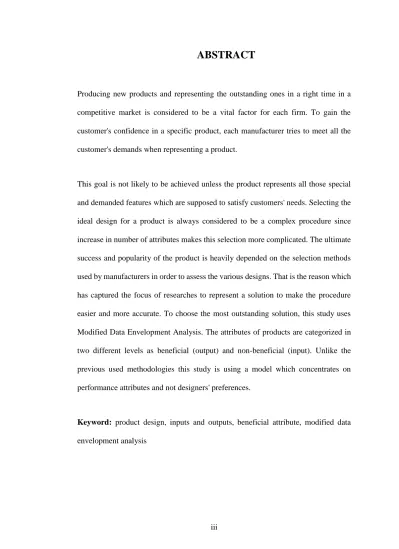

ABSTRACT
Producing new products and representing the outstanding ones in a right time in a
competitive market is considered to be a vital factor for each firm. To gain the
customer's confidence in a specific product, each manufacturer tries to meet all the
customer's demands when representing a product.
This goal is not likely to be achieved unless the product represents all those special
and demanded features which are supposed to satisfy customers' needs. Selecting the
ideal design for a product is always considered to be a complex procedure since
increase in number of attributes makes this selection more complicated. The ultimate
success and popularity of the product is heavily depended on the selection methods
used by manufacturers in order to assess the various designs. That is the reason which
has captured the focus of researches to represent a solution to make the procedure
easier and more accurate. To choose the most outstanding solution, this study uses
Modified Data Envelopment Analysis. The attributes of products are categorized in
two different levels as beneficial (output) and non-beneficial (input). Unlike the
previous used methodologies this study is using a model which concentrates on
performance attributes and not designers' preferences.
Keyword: product design, inputs and outputs, beneficial attribute, modified data
