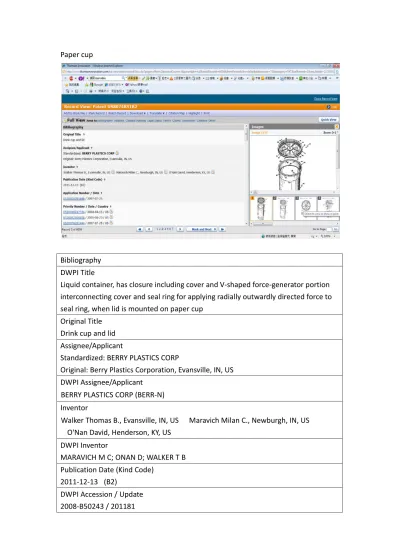

Paper cup

Bibliography DWPI Title

Liquid container, has closure including cover and V-shaped force-generator portion interconnecting cover and seal ring for applying radially outwardly directed force to seal ring, when lid is mounted on paper cup

Original Title Drink cup and lid Assignee/Applicant

Standardized: BERRY PLASTICS CORP

Original: Berry Plastics Corporation, Evansville, IN, US DWPI Assignee/Applicant

BERRY PLASTICS CORP (BERR-N) Inventor

Walker Thomas B., Evansville, IN, US Maravich Milan C., Newburgh, IN, US O'Nan David, Henderson, KY, US

DWPI Inventor

MARAVICH M C; ONAN D; WALKER T B Publication Date (Kind Code)

2011-12-13 (B2)

DWPI Accession / Update

2008-B50243 / 201181

(2)

Application Number / Date US2007828144A / 2007-07-25 Priority Number / Date / Country US2004824753A / 2004-04-15 / US US2005210085A / 2005-08-23 / US US2007828144A / 2007-07-25 / US Abstract

DWPI Abstract (US20080017651A1) Novelty

The container (10) has a paper cup (12) including a brim (20), and a side wall (40) extending from the brim toward a floor, where the side wall includes a radially inwardly facing annular seal surface. A lid (14) includes a bowl-shaped closure (16) that comprises a cover, seal ring (31), and a V-shaped force-generator portion that interconnects the cover and the seal ring for applying radially outwardly directed force to the seal ring to urge the seal ring against the annular seal surface of the side wall of the paper cup, when the lid is mounted on the paper cup.

Use

Liquid container.

Advantage

The V-shaped force-generator portion interconnects the cover and the seal ring for applying the radially outwardly directed force to the seal ring, when the lid is mounted on the paper cup, to urge the seal ring against the radially inwardly facing annular seal surface of the side wall of the paper cup, thus establishing a sealed tight interference fit between the lid and the paper cup, and reinforcing and rigidifying an upper portion of the paper cup.

Drawing Description

The drawing shows a perspective view of a lid and a cup before the lid is mounted on the cup.

10 - Liquid container.

12 - Paper cup.

14 - Lid.

16 - Bowl-shaped closure.

20 - Brim.

31 - Seal ring.

(3)

40 - Side wall.

Abstract

A liquid container includes a brim forming an opening into a liquid reservoir chamber formed in the cup. A lid is coupled to the brim to form more than one seal with the container.

Classes/Indexing IPC

Current IPC Invention Version Additional Version Full B65D 39/00 20060101 - -

Main Group - - - -

Subclass - - - -

Original IPC Invention Version Additional Version Advanced/Full B65D 39/00 20060101 - -

Core/Main Group - - - -

Subclass - - - -

ECLA

B65D 43/02S3B L65D 203/00 L65D 231/02A L65D 543/00Y1A L65D 543/00Y1F2C L65D 543/00Y1M6 L65D 543/00Y2K1 L65D

543/00Y8D1C L65D 543/00Y8D5 L65D 543/00Y8S1B2 L65D 543/00Y8S1B10 L65D 543/00Y8S1D2 L65D 543/00Y8S3B2 L65D 543/00Y8S3D2 L65D 543/00Y8S3D4

US Class

Current: 220/790; 220/780; 220/793; 220/792 Original: 220/790; 220/780; 220/793; 220/792

Field Of Search: 220/711, 220/780, 220/783, 220/790, 220/791, 220/792, 220/793, 220/789

INPADOC Legal Status

Gazette

Date Code Description

2008-04-24 AS

ASSIGNMENT CAPTIVE PLASTICS, INC., NEW JERSEY RELEASE OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A. REEL/FRAME:020845/0198 2008-04-21

2008-04-24 AS ASSIGNMENT TUBED PRODUCTS, LLC, MASSACHUSETTS RELEASE

(4)

OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A. REEL/FRAME:020845/0198 2008-04-21

2008-04-24 AS

ASSIGNMENT BERRY PLASTICS CORPORATION, INDIANA RELEASE OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A. REEL/FRAME:020845/0198 2008-04-21

2008-04-24 AS

ASSIGNMENT BERRY STERLING CORPORATION, INDIANA RELEASE OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A. REEL/FRAME:020845/0198 2008-04-21

2008-04-24 AS

ASSIGNMENT WELLS FARGO BANK, N.A., CONNECTICUT SECURITY AGREEMENT ASSIGNORS:BERRY PLASTICS CORPORATION BERRY STERLING CORPORATION CAPTIVE PLASTICS, INC. AND OTHERS REEL/FRAME:020845/0301 2008-04-21

2008-04-24 AS

ASSIGNMENT GRAFCO INDUSTRIES LIMITED PARTNERSHIP, NEW JERSEY RELEASE OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A. REEL/FRAME:020845/0198 2008-04-21

2008-04-24 AS

ASSIGNMENT LANDIS PLASTICS, LLC, ILLINOIS RELEASE OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A. REEL/FRAME:020845/0198 2008-04-21

2008-04-24 AS

ASSIGNMENT SETCO, LLC, CALIFORNIA RELEASE OF BRIDGE 1ST LIEN SECURITY AGREEMENT ASSIGNOR:BANK OF AMERICA, N.A.

REEL/FRAME:020845/0198 2008-04-21

2008-03-12 AS

ASSIGNMENT BANK OF AMERICA, N.A., AS COLLATERAL AGENT, CALIFOR BRIDGE LOAN FIRST LIEN INTELLECTUAL PROPERTY SECURITY AGREEMENT ASSIGNORS:BERRY PLASTICS

CORPORATION BERRY STERLING CORPORATION CAPTIVE PLASTICS, INC. AND OTHERS REEL/FRAME:020638/0249 2008-02-05

2007-10-09 AS

ASSIGNMENT BERRY PLASTICS CORPORATION, INDIANA ASSIGNMENT OF ASSIGNORS INTEREST ASSIGNORS:WALKER, THOMAS B. MARAVICH, MILAN C. O' NAN, DAVID

REEL/FRAME:019936/0474 2007-10-08

Get Family Legal Status Claims

Claims

(5)

1. A liquid container comprising

a paper cup including a brim, a floor, and a side wall extending from the brim toward the floor, the side wall including a radially inwardly facing first annular seal surface, the brim including an axially upwardly facing second annular seal surface and a radially outwardly facing third annular seal surface,

a lid including a bowl-shaped closure and a brim mount appended to the

bowl-shaped closure and configured to cooperate with the bowl-shaped closure to retain the bowl-shaped closure in a position closing a mouth opening into a liquid reservoir chamber formed in the paper cup, wherein the bowl-shaped closure includes a first seal ring arranged to engage the radially inwardly facing first annular seal surface of the side wall of the paper cup to establish a first liquid flow barrier therebetween, the brim mount includes a rim coupled to the bowl-shaped closure, a lid-removal flange, and a lid-removal blocker wall interconnecting the rim and the lid-removal flange, the rim includes a second seal ring arranged to engage the axially upwardly facing second annular seal surface of the side wall of the paper cup to establish a second liquid flow barrier therebetween and a third seal ring arranged to engage the radially outwardly facing third annular seal surface of the side wall of the paper cup to establish a third liquid flow barrier therebetween, the lid-removal flange is located below the lid-removal blocker wall and arranged to extend

downwardly in an inner direction toward the floor of the paper cup, the lid-removal blocker wall is located between the third seal ring and the lid-removal flange and arranged to engage an outer portion of the brim during movement of the lid in an outer direction opposite to the inner direction, and the bowl-shaped closure further includes a cover and force-generator means interconnecting the cover and the first seal ring for applying a radially outwardly directed force to the first seal ring when the lid is mounted on the paper cup to urge the first seal ring against the radially inwardly facing first annular seal surface of the side wall of the paper cup to establish a press-plug interference fit between the lid and the paper cup, and

wherein the force-generator means intersects the first seal ring at a first plane and the force-generator means intersects the cover at a second plane located between the first plane and the floor of the cup.

DWPI Drawing Description

The drawing shows a perspective view of a lid and a cup before the lid is mounted on the cup.

10 - Liquid container.

12 - Paper cup.

14 - Lid.

16 - Bowl-shaped closure.

(6)

20 - Brim.

31 - Seal ring.

40 - Side wall.

Related Applications

Parent/C hild

Application Number

Filed Date

Publication Number

Publicati on Date

Type of

Relationship Status

C US20078281

44A

2007-07- 25

US2008001765 1A1

2008-01-

24 - -

P/C US20052100 85A

2005-08-

23 US7318536B2 2008-01- 15

Continuation-in -part

Unkno wn

P US20048247

53A

2004-04-

15 US7055715B2 2006-06- 06

Continuation-in -part

Unkno

wn
