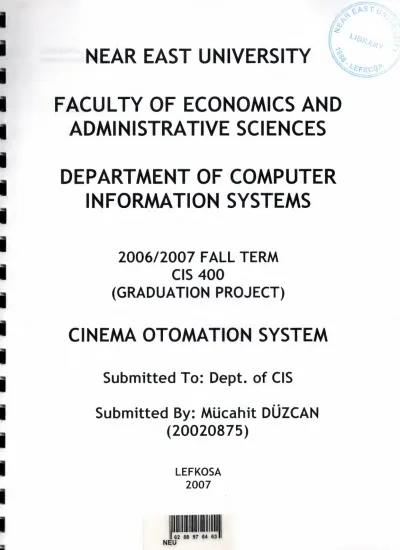

CINEMA OTOMATION SYSTEM
Submitted To: Dept. of CIS
Submitted By: MUcahit D0ZCAN
(20020875)
LEFKOSA
2007
I
i
I
f
Contents
PAGE
1.ACKNOWLEDGEMTS
11
2.ABSTRACT ...••...•
1
3. INTRODUCTION ...••...•••...•...••
3
4. DESIGN OF THE SYSTEM ...•...•.•...•••...•• 5
4. 1 - Explanation
6
4.2 - Data Flow Diagram
10
4. 3 - System Block diagram
17
4.4 - Database Design
19
5. USER MANUAL ...•...•...•...
31
5. 1 - User Guidelines
52
5.2- User Flow Charts
34
6. REFERENCES
...••...••...•••...
74
APPENDIX I
Screen Outputs
76
APPENDIX II
I
J'°'j
tfuU to /f(!f r/e,;ar-t/f(1!4ft a,rr/ aff Te,aekl"J'
fo,.
!'i,i,<f
/f(e, tM
/"'Of
"'alfflffe,I" ilf ou;fu/je,,
111(1
I
J'°'j
t!.al(M to
#,..
t/a~tl( Afva!t
fo,.
lui
J'«(1f'Ot'-t of tM
data
flow
liOjl"alff.f.
/ OJI(
tMI( Nt'-!f lf(ad tful/af to /f(!f ar!1H°J'Ot'-
#
R.
Tal(J'e,f
OfV/
;V
fol"
lui
alu-/e,e,g al(d /rig //e,a.f u;/,,,/e,/,,,
are
lffott'u-a.ul lffe, go lffael
( alff t/,,,alfifaf to lfff /af"e,lf~'
I
ea«
l(Ot /ot'fd /f(!f /,.te,l(r/J' Mr£, w!.o afw~ /f(ottixi.te-r/ /f(e, wMI(
eoer
I
1ot d!So/7/0!ff-Ud /ff al(, /Olfft
u;/,,,;'/e,
/l(aliffj ths l"'t/!e,et.
I
i
I
i
i
I
I
I
2
ABS·TRACT
I
I
I
I
I
I
I
I
I
I
I
I
I
I
ABSTRACT
My desire to do the automation system is the system of cinema. I
want to do this project as CIS 400 graduation project. Because I want a
project which consists mainly accountancies and personal management
things.
I want to do my cinema automation by using software language
Delphi? and for database Microsoft SQL Server. The aim on using
Microsoft SQL Server is not to use packet program but to use software
which is manuel.
3
INTRODUCTION
I
I
OFSYSTEM
I
I
I
I
I
I
I
3
I
INTRODUCTION THE CINEMA OTOMATION
SYSTEM
I want a personal search system and accountancies system which
depends on personal searching system. This system can comfortably be
used in a saloon which sizes 6,7 and which has got 3,4 ticket window. The
saloon which has got 3,4 ticket window needs 6,7 cashier and needs other
workers. Personals salaries but mostly cashier's salaries are going to be
detected. In this system reservations can be reserved, tickets can be bought
or cancelled.
After the rate of fullness of halls is evaluated, the ticket will be
booked or cancelled. The rate to make mistake is very low for user; because
(s)he can see free seats and reserved ones easily. Because every ticket-
checker uses his or her own password while entering the password, it will be
known which ticket checker reserved tickets; therefore, money in the case of
checker and balance in system must be equal. Insufficient or sufficient
balance will be recorded to the account of staff. According to the decision
makes, total of insufficient balance management may or may not reduce the
salary of staff. Of course, this process will be done to every checker
individually. Or, again according to the decision they make, bonus can be
appointed to checker who sells more than Standard. Changes in session or
hall, reports will be done by the executer of this administration or owner of
it. The staff only deals with the departments of purchase and cancellation of
ticket and reservation.
4
DESIGN
I
OF SYSTEM
I
I
I
I
I
I
I
I
I
5
I
i
I
4.1.EXPLANATION OF THE CINEMA
OTOMATION SYSTEM
This system works on the cinema salon so we need a (LAN) Local
Area Network also a computer.
The system is coded DELPHI 7 and database is The Microsoft SQL
Server database.
PROCEDURES
1.) Ticket selling's, canceling, reservations (can be used all users)
In this part, after users are making seance searching according to date,
then choose an appropriate seance from the seances at screen and armchairs
of saloon which belongs to that seance will be seen. After user chooses
appropriate armchairs, he/she can determine how much student and civilians
are. Than , he/she decides is he/she sells or make reservation tickets which
are chooser if he/she want to sell then ,he/she touchier to the "sell" button. If
he/she wants to make reservation, reservation screen comes and it is written
name, surname and phone number of the customer to this part and it is
touched to the "reservation" button so, we finish processing of this part.
2.) Reports This part helps us to reach to various report summaries.
• Expenditure Reports (There reports are used only director).
In this part, we choose kind of reports( expense reports, payment
reports ) and we determine two different date and when we touch to the
"show" button, the system show us the expenses which are made between
these dates or payments which are made to the staff. If we touch to the
"print" button, the system prints these reports.
• Employee Reports (There reports are used chef and director).
In this part, we can see information about the staff which ever staff is
information we want to search, we write that staff's "employee number"
and come in to the two dates system and this system shows us events
between two dates. If we want, we also take it as "print".
• Income and Expenses Reports (There reports are used only director)
In this part, we come two dates in system and the system shows us
selling, expense and total of payment which are made to the staff by
making processing according to certain formats between the two dates so
we can easily see profit-losing money report.
• Reports from the end of the day (There reports are used chef and
director).
In this part, we can fix is selling which cashiers are making in that
day are equal with the money which are in their box at the end of the day.
If we want, we can print this report.
3.) Expenditures and Payments
• Registration of expenditures.(There reports are used chef and director)
• Registration of Payment. (There reports are used chef and director)
In expenses registration part, we can see registration of expenses
which administrating is making, There are two areas in payments
registration part. In first area we make salary appointment for every staff
every month. In second area, we can register advance which
administrating give to it's staff
4.) Enlistment of the personal (There reports are used chef and director).
In this part, we can search to the individual information's, and salary
amount of the staff, and user's name and password which staff is
determined. In addition there is also an area which helps to change user's
name and password in the main menu.
5.) Set or defines
This part helps us to search to the definitions in the system.
• Set or define seance and cancel. (It used by chef and director).
This part helps us to fix when and where the film will start. In
addition, it also helps us to cancel the seance which we defined before.
• Set or define salon. (It used by chef and director).
This part helps us to define new saloon we can see which saloon has
got how much armchair.
• Set or define price. (Only it used by director).
In this part, anybody who has admin authority can easily define prices
of tickets.
• Definition and record film. (It used by chef and director).
In this part, films which are ready to be shown are registered to the
system.
FILES
1.) EXPENDITURES ( File which expenses are registered)
2.) PAYMENTS ( File which staff's salaries are defined, advances gave are
registered, in addition this is a file which money which cashiers give at the
end of the day are registered.)
3.) EMPLOYEE ( File which staff's information are determined and
defining of salaries are registered.)
4.) RESERVATION ( File which reservations are registered.)
5.) SELLING ( File which selling are registered.)
6.) SALON ( File which salons defined are registered.)
7 .) SEANS ( File which seances determined according to dates are
registered.)
8.) SEANS ACTION ( File which helps us to reach to the new or old
seances are registered.)
9.) PRICE ( File which ticket prices and kind of ticket is registered.)
10.) FILM ( File which films are ready to be shown are registered.)
EXTERNAL PROCEDURES
1.) DIRECTOR
2.) CHIEF
3.) USER/EMPLOYEE
4 .)CUSTOMER
9
4.2. DAT A FLOW
DIAGRAMS
-
-
-
-
CONTEXT DIAGRAM OF CINEMA SALON AUTOMATION SYSTEM
Payment ticket
CUSTOMER
... Customer rezervationprice info info .... Employee knowladge . Seans knowladge ... knowladge Ticket price Sales ticket· ···Customer Rezervation-
USER/EMPLOYEES
I
·· ·· ···
Change ' ··· ··· · · Set authority for the user· · Payment entry
... Expenditure entry. · ··· ···define ticketprice
· Sales ticket- ··· Employee Information ·
Set or define salon-
password for the user····
CINEMA SALON
AUTOMATION
SYSTEM
11
Customer Rezervation .... or define seans ... Employee tnformation-Set authority for the user--- t::xpenanure entry
Set or define salon . Set password for the user
Set or define film ticket ... Payment entry
CHIEF
· Ticket price Employee report · Salon knowladge · · · Seans knowladge End Day Reportace
Sale
. Rezervation information
/
·· +Payrnents .
, ··· ··· ··· lnccme and sale reports · ·· ···-···-·-····--···-···-··· ···-···Sale info···-···
····End Day Report ·--· ··· ··- Ticket price knowladge ··· Rezervation information · ···-·-···-····--·Salon knowladge
·· Seans knowladge
'
DIRECTOR
Set or define seans- · · ···-···-·-···-·-·- ···-···-· Film information record-
-.ii
.-MJ
·· -v-v-v-v-Payment ticket ·Customer reservation
Customer reservation/sale (1.2.3) ···Sales ticket and cancel (1 2}· ·
... Rezervation knowladge····-···-···--· Rezervation info
. customer into
···Customer reservation; . Payment entry ....
·AH
CUSTOMER Sale info . .. Expenditures enfy'.1
,%'! . Payment entry ... CHIEF RESERVATION FILE
SALON
FILEl
<f) Cill
<f) • QJ C 2 i5 PAYMENT FILE EXPENDITURES FILE'a,
0, u C 0ro
.
~
Payment reports Expenditure reports· USER/EMPLOYEES DIRECTOR Sales ticket12
•• J
-.J
•••
J
DETAIL DFD FOR TICKET PROCESS
reservation .... ·· ... Sales ticket· -· -·· Reservation info CUSTOMER
•
i
I'
'
a, <J 0)2:'
"Cl"'
.,?3
.S 0 C:-"'
C: 0~
C: a,"'
a, a:::i
I
!···•'
SALE FILEl
<i> "Cl .00
E <J cl, :::,2:'
0) C: C: "Cl"'
rn
03
a, -~ 0"'
j
~
.S~
"'
(/) C: i 0,._,
•• a,"'-"'
C: .S! a, -~ C
~ a,~ E
a, > E "' 0 0.. 1n :::, <..) RESERVATION FILE Q) .0 E :::, C:rn
a, (/) 1 .1 SALE ,AND REZERVATION ENTRY PROCESS 1.3 REZERVATION SALE AND CANCEL /-4!!! 1.2 SALE CANCEL PROCESS C: Qts
E
.,? C: .s Q$!
"'
rn
C: .S"'
C: C: a, a, 0 (/)"'
~
a, o; C:"'
Q)~
SEANS ACTION E a, (l) 0~
FILEro
1n (/) :::, <..) Sales cancel PRICE FILE USER/ EMPLOYEES ··· Reservation salfr· ···Customer reservation ... ---·--·Sales ticket--···13
CHIEFI
<D <J I C: (l)rl
ro
"'
C: (l) ~ § .Qro
fJ)-.;:::;rn
(/) (l)"' C:ro z
(l) (/)~
"'
a, a, a:::I
a:::I
'
···•
DIRECTOR2.3 INCOME AND EXPENDITURE REPORT PROCESS >- Q)
-2
Q) 0) C -0·'=
0 cu >- E~
Q)"'
0 C ::, C: 0 C:-"'
EE
c
-0 -0 Q)~
C: cu E >-~
"'
cu 0 ::, 0..u
z;
DETAIL DFD FOR REPORTS PROCESS
I
CHIEF [: ·•··· Daily ~ale reportI
···+
t
0 a.~
Q) Q) >- 0a.
E ui,:»BJ Sales tickets info
*'*···· ···
Expenditure knowladge EXPENDITURE FILE 2.1 EXPENDITURES REPORT PROCESS"'
t: 0 a. Q) .... !~. .3 i5 C: ,'(l} a. Xw
and Expense repors
EMPLOYEE FILE SALE FILE C: Q
rn
§
2
'=
Q).z
i5 C: Q) a. X w C 0 -~§
2
·'=
Q) Q) >- 0a.
Ew
<f) Q)rn
(/) Q) Q) >- 0a.
E ur 2.2 PERSON EL REPORT PROCESSc
0 -~ E.E
'=
c
Q) E c-, cu 0..and minus money . money .... PAYMENT FILE Q) Q)
i:;'
a.
Ew
···· End day report
14
2.4 END DAY
REPORT PROCESS
-
-
-
-
DETAIL DFD FOR ACCOUNTING PROCESS
entry .. ··· ··-··· -·· ··· ··· ···\ CHIEF :··· ···- ----Payment • ... ---·· -· --·--··-···----····- -- ---Employee
L.---'
3.1 EXPENDITURES ENTRY PROCESS Expenditure record PAYMENT FILE . Payment record EXPENDITURE FILEEmployee knowladge Ji>
3.2 PAYMENT ENTRY PROCESS EMPLOYEE FILE
1
DIRECTOR
1~
Payment Employee knowladge15
••
Set or define salon
DETAIL DFD FOR SET OR DEFINE PROCESS
a., O> "O C\J
3
0 C-"'
C 0ro
(f) 5.1 SALON DEFINE PROCESSCHIEF
--····-··---···---·--- Film information record SALON FILE
A
<l> O> "O C\J3
0 a., C C-=
-"'
<f) a., "O C0
C\J a.,a,
(f) (f)"
ci, O> "O C\Ji
C-"'
C 0 ·~E
.2
.S -Filrn knowradqe->- ···- 5.2 SEANS DEFINE PROCESS a.,T
~
O> 0 "O C\J C a. 0~
3
~
C 08
0E ~
Cg_
-"' .2
<f)E
.S a.,a, a,
C.2
C\J C O> <f)-"'
-"'
a., C D C (.) (.)~
·- (f) r- C\J C\J ""-
3
a., <f) <f) 0 <f) a., a., C a.,ro
ro
-"'
C (f) (f)-=
a., D0
SEANS ACTION FILE PRICE FILE knowladgeDIRECTOR
Set or define salon16
FILM FILE 5.3 PRICE DEFINE PROCESS i <l> O> C\J D C\J3
0 d, C-"'
(.) a., "§. (.)a,
"§_-"'
(.) "" a., C'fil
D0
· Film information intcrmation- 5.4 FILM REGISTRATION PROCESS knowladge · P,,I4.3. SYSTEM BLOCK
DIAGRAM
ADMIN MENU TiCKET ACCOUNTING EMPLOYEE REPORTS SET OR DEFINES SECURITY TICKET SALES CANCEL RESERVATION SALE • AND CANCEL EXPENDITURE RECORD PAYMENT RECORD EXPENDITURE REPORT EMPLOYEE REPORT INCOME AND EXPENSE
REPORT END DAY REPORT DEFINE SALON DEFINE SEANS DEFINE TICKET PRICE • FILM RECORD
*""
EMPLOYEE INFORMATION CONTROL t,,,- •CHANGE PASSWORD pc,-. PROGRAM CLOSE );,,-PROGRAM ABOUT PROGRAM MAPSYSTEM BLOCK DIAGRAM
PASSWORD ENTRY CHIEF MENU TiCKET • ACCOUNTING •· EMPLOYEE ···•· REPORTS TICKET SALES i
!_
USER I EMPLOYEE MENU SALES CANCEL RESERVATION SALE AND CANCEL EXPEN~TURERECORD PAYMENT RECORD EMPLOYEE REPORT END DAY REPORT
¢,- DEFINE SALON • SET OR DEFINES ¢,- p,,.DEFINE SEANS
*'"
SECURITY • HELP ¢,- FILM RECORD 4,.. EMPLOYEE INFORMATION CONTROL ,;;,.; ¥=CHANGE PASSWORD : • PROGRAM CLOSE ·•PROGRAM ABOUT PROGRAM MAP18
p;,-TiCKET SECURITY HELP TICKET SALES • SALES CANCEL RESERVATION SALE AND CANCEL ¢,- EMPLOYEE INFORMATION CONTROL · · ··· ¢,- F*"CHANGE PASSWORD ···f;~ PROGRAM CLOSE ·?••PROGRAM ABOUT I> PROGRAM MAPI
I
I
I
4.4 DATABASE
DESIGN
19
- -
-
- -
- -
-
- -
._,
-
-
,_,
-
-
-
-
RELATIONSHIP
ADI
ISLEMI_YAPAN_KISI
\
1.·1.11TC_KIMLIK_NO
!·.· ... ··.11··· ..•i .. · ..
sEANs:sAAT
11
\
'.·.··'···· ...
SOYADI
ti
IlllTARIH
ACIKLAMA
II
KULANICI_ADI
filSALON_NO
,J
f
PEL_NO
MIKTAR
liiSIFRE
PIFLIM NO
IJ:SEANS_NO
KONUM
! ..
·.·!·· •.!.FLIMIN_AOJ
1
'·· ..
·.1.KOLTUK_NO
!.:.\J'.·.·.·l···l· .. SATIS.
oo
ADI
1:IFLIMIN_SURESI
'I
liiTARIH
!:
(l!TARIH
SOYADI
!I
:!
j!UCRET_TURU
!i
oolliKOLTUK_NO
BABA ADI
' .::,,;; ""
::--=.\·=--··
1 ,UCRET
1,
lJ:SEANS NO
ANA_ADI
1iiKASIYER
!:
;IKASIYE-R
DOGUM_YERI
'liJ:_KIMLIK_NO
j1
ij[TC_KIMLIK_NO
DOGUM TARIHI
JS1-1LON_NO
;,
fl!UCRET
- lL
L
if
MEDENI HALI
b::::,
···=-·.· -"
m UCRET TURU
- if -
ISE_BASLAMAJARIHI
ll!SALON NO
ADRES
EV_TEL
CEP _TEL
AVANS
KASASU~DAKI _PARA
ACIK_FAZLA
ISLEMI _Y APAN _ KISI
ACIKLAMA
EXPENDITURE TABLE
~\i
ISLEMI_YAPAN_KISI nvarchar
30
V
ACIKLAMA
nvarchar
50
V
MIKTAR
money
8
V
TARIH
date time
8
V
Columns
Description
Identity
Yes
Identity Seed
1
Identity Increment
Formula
21
PAYMENT TABLE
SOYADI nvarchar20
V
TARIH datetime8
V
MAAS money8
V
AVANS money8
V
KASASINDAKI_PARA money8
V
ACIK_FAZLA money8
V
ISLEMI_YAPAN_KISI nvarchar30
V
Columns Description Identity Yes Identity Seed Identity Increment Formula22
~\?
TC_KIMLIK_NO nvarchar11
V
KULLANICI_ADI nvarchar10
V
SIFRE nvarchar10
V
KONUM nvarchar10
V
ADI nvarchar15
V
SOYADI nvarchar20
V
BABA_ADI nvarchar15
V
ANA_ADI nvarchar15
V
DOGUM_YERI nvarchar15
V
DOGUM_TARIHI smalldatetime4
V
I
lt:J
MEDENI HALI nvarchar5
V
Ii
ISE_BASLANGIC_TAR smalldatetime4
V
ADRES nvarchar
60
V
EV _TEL nvarchar
11
V
CEP _TEL nvarchar
11
V
GOREVI nvarchar
15
V
P _NOTE nvarchar60
V
MAAS_YTL money8
V
Columns DescriptionEMPLOYEE TABLE
Identity Yes Identity Seed 1 Identity Increment Formula23
RESERVATION TABLE
I
li~ADI!
SOYADI nvarchar20
V
TEL_NO nvarchar 11V
SEANS_NO nvarchar5
V
KOLTUK_NO nvarchar3
V
TARIH datetime8
V
UCRET_TURU nvarchar8
V
UCRET money8
V
KASIYER nvarchar30
V
TC _KIMLIK _ NO nvarchar 11V
SALON_NO int4
V
ColumnsI
i:
Description Identity Yes Identity Seed 1 Identity Increment Formula24
I
I
SELLING TABLE
TARIH datetime8
V
KOLTUK_NO nvarchar3
V
SEANS_NO nvarchar5
V
KASIYER nvarchar30
V
TC_KIMLIK_NO nvarchar11
V
UCRET money8
V
I
!w
UCRET _TURU nvarchar8
V
i
SALON NO int4
'
-
Columns Description
11
I
'Ii Identity YesIdentity Seed
1
Identity Increment FormulaI
25
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
SALON TABLE
Column Name~ru
SALON_NOI SALON_ADI nvarchar25
V
KOL TUK_SA YISI int
4
V
ACIKLAMA nvarchar
50
V
Columns DescriptionPrsos;.on
Identity Yes Identity Seed1
Identity Increment Formula26
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
SEANSTABLE
TARIH datetime8
V
SEANS_HAREKET _NO bigint
8
V
FILM_ADI nvarchar
30
V
SEANS_SAAT nvarchar8
V
SALON_NO int4
V
Columns Description Identity Identity Seed Identity Increment Yes1
1
Formula27
SEANS ACTION TABLE
~?
SEANS_GUNU
nvarchar
10
SEANS_SAAT
nvarchar
8
SALONJJO
int
4
I
lRFILM
NO
int
4
V
I
FILMIN_ADI
nvarchar
30
V
FILMIN_SURESI
nvarchar
20
V
11----,I
ll
Columns
Description
Identity
Yes
Identity Seed
1
Identity Increment
Formula
28
I
I
I
I
I
I
I
I
I
I
I
UCRET
TARIH
Columns
Description
Default Value
Formula
Collation
PRICE TABLE
money
datetime
8
8
V
<database default>
29
I
FILM TABLE
-
I
I
Column Name
I
)] FILM_NO FILM_ADI nvarchar~
SURE SI nvarchar20
I/
FILM_TARIH date time
8
I/
I
ColumnsI
Description Default ValueI
I
FormulaCollation <database default>
I
I
I
I
I
I
I
I
•
30
I
5
USER MANUAL
I
I
I
I
I
31
I
5.1
USER GUIDLINES
PASSWORD ENTRY AND MAIN MENU
Firstly users have to enter user name and password and each user has different
authorization
There are 3 kind of user Admin, Manager, Cashier
Admin is allowed to enter each part of program and can control everything.
Manager only can not define ticket price income\expenditure reports .
Cashier is only authorized ticket sales, reservations and cancel them just that.
(Reference figure 1.2.3.4)
)
I
TICKET SALES
&
CANCEL
I
In this part, after users are making seance searching according to date, then choose an
appropriate seance from the seances at screen and armchairs of saloon which
belongs to that seance will be seen. After user chooses appropriate armchairs, he/she
can determine how much student and civilians are. Than , he/she decides is he/she
sells or make reservation tickets which are chooser if he/she want to sell then ,he/she
touchier to the "sell" button. If he/she wants to make reservation, reservation screen
comes and it is written name, surname and phone number of the customer to this
part and it is touched to the "reservation" button so, we finish processing of this part.
(Reference figure 5.6.7.8.)
I
I
A
CCU ANTING
Expenditures and Payments
• Registration of expenditures.I'There reports are used chef and director)
• Registration of Payment. (There reports are used chef and director)
In expenses registration part, we can see registration of expenses which
administrating is making, There are two areas in payments registration part. In first
area we make salary appointment for every staff every month. In second area, we
can registry advance which administrating give to it's staff
(Reference figure 9.10.11.)
I
I
I
EMPLOYEE
I
Enlistment of the personnel (There reports are used chef and director).
In this part, we can search to the individual information, and salary amount of
the staff, and user's name and password which staff is determined. In addition there
is also an area which helps to change user's name and password in the main menu.
(Reference figure 12.)
I
I
I
REPORTS
Reports This part helps us to reach to various report summaries.
I
• Expenditure Reports (There reports are used only director).
In this part, we choose kind of reports( expense reports, payment reports ) and we
determine two different date and when we touch to the "show" button, the system
show us the expenses which are made between these dates or payments which are
made to the staff. If we touch to the "print" button, the system prints these reports.
I
I
I
• Employee Reports (There reports are used chef and director).
In this part, we can see information about the staff which ever staff is information
we want to search, we write that staff's "employee number" and come in to the two
dates system and this system shows us events between two dates. If we want, we
also take it as "print".
I
I
• Income and Expenses Reports (There reports are used only director)
In this part, we come two dates in system and the system shows us selling, expense
and total of payment which are made to the staff by making processing according to
certain formats between the two dates so we can easily see profit-losing money
report.
I
I
• Reports from the end of the day (There reports are used chef and director).
In this part, we can fix is selling which cashiers are making in that day are equal
with the money which are in their box at the end of the day. If we want, we can print
this report.
I
I
(Reference figure 13.14.15.16.17 .18.19.20.21.22.23.24.25.)
I
I
34
I
SET OR DEFINES
This part helps us to search to the definitions in the system.
• Set or define seance and cancel. (It used by chef and director).
This part helps us to fix when and where the film will start. In addition, it also
helps us to cancel the seance which we defined before.
(Reference figure 26.27.29.)
• Set or define salon. (It used by chef and director).
This part helps us to define new saloon we can see which saloon has got how much
armchair.
(Reference figure 30.)
• Set or define ticket price. (Only it used by director).
In this part, anybody who has admin authority can easily define prices of tickets.
(Reference figure 31.)
• Definition and record film. (It used by chef and director).
In this part, films which are ready to be shown are registered to the film.
(Reference figure 32.)
SECURITY
All users can change own password and usemame firstly user must enter old password
and usemame and then information of user will be shown on the screen and user will
be authorized to change own password and usemame
(Reference figure 33.34.)
HELP
User can see help menu depends on their authorization. And user can see authorized
menu and then can enter these menu.
(Reference figure 35.36.37.38.39.)
I
I
I
I
I
I
I
I
5.2
I
I
USER FLOW
I
CHARTS
I
I
I
I
I
I
'
36
I
PASSWORD ENTRY AND MAIN MENU
ENTER USER NAME AND PASSWORD CONDITION FALSE>-- -- ---y
3 TIMES WRONG y ···--···-···-·---~ NI
MAIN MENU 1.TICKET 2.ACCUANTING 3.EMPLOYEE 4.REPORTS 5.SET OR DEFINE 6.SECURITY 7.HELP SELECT YOUR CHOISEI
37
~
<E?-y--··-···-····----·-··-·-···-··-·-··-····-···- -·--·-· ···-···-- ----·-· ··-····-· --····---
y Authority=Admin or Mudur User not authority yI
<E?-y
,.
N y Authority=Admin or MudurI
User not authorityI
v
8
l~y--·G
,N·~y - {,)
' N's
38
I
Authority=Adrnin or Muour N User not authority Authority=Admin or Mudur User not authority y yI
I
1.TICKET
0
TICKET SUBMENU 1. TICKET SALES 2.SALES CANCEL 3.RESERVATION SALE AND CANCEL Select Your choise Selection= 1 N N y y y···bG
39
I
I
I
I
SELECT DATAI
I
I
I
I
I
I
I
I
I
I
I
I
I
I
1.1.TICKET SALES
Show seats Select seat V<S>y
N N y Customer data0. ~
..
data 1L::_J
Customer data .~:t ··-~~ -- ---C)
40
Select
I
Idate
I
I
~I C"IA ••. I~y
I
I
I
I
I
I
I
I
1.2.SALES CANCEL
Select
seat data
- y
Delete seat
N
()
41
1.3.RESERVATION
SALE AND CANCEL
Select
date
IF SEANS
FOUND
N
y
Select
seat data
y
y
42
ACCOUNTINGSUBMENU
1.EXPENDITURE RECORD 2.PAYMENT RECORD Select Your chaise Selection=1 N N2.ACCOUNTING
y Authority=Admin or MOdOr N User not authority V8
y Authority=Admin or Mudur N User not authority43
y y2.1.EXPENDITURE RECORD
0
EXPENDITURE SUBMENU 1. Add 2. Update 3. Delete 4.Close i~
Select Choice-w
0y
0)
N
N
N44
2.1.1.EXPENDITURE ADD
8
Click New Button
Enter new
expenditure
information
Click Add button
Save information
to database
Registration
is completed
2.1.2.EXPENDITURE UPDATE
8
Enter
expenditure
number
Click search
button
N
Record Not
found
Show
expenditure
information
Change the
expenditure
information
'
Click update button
to Save updated
expenditure
information
2.1.3.EXPENDITURE DELETE
8
Enter
Expenditure
no
Is expenditure
no
Click search
button
v
0y···==-~
Show
expenditure
information
N
Click delete button to
delete expenditure
information
Record Not
found
()
47
2.2.PAYMENT RECORD
PAYMENT SUBMENU 1. Add 2. Update 3. Delete 4.Close Select Choice<2>-y
NG
<S>y
NG
G
48
2.2.1.PA YMENT ADD
G
Click New Button
Enter new
payment
information
Click Add button
Save information
to database
Registration
is completed
2.2.2.PAYMENT UPDATE
G
Enter
payment no
'
Click search
button
NRecord Not
found
Show
payment
information
Change the payment
information
Click update button
to Save updated
payment information
2.2.3.EXPENDITURE DELETE
G
Enter payment no Is payment no Click search button Show payment information Click delete button todelete payment information N Record Not found
C)
51
I
I
I
3.EMPLOYEE
'
EMPLOYEE SUBMENU 1. Add 2. Update 3. Delete 4.Close Select Choice<E>y
NN
<E>y
52
G
G
G
3.1.EMPLOYEE ADD
Click New Button
Enter new
employee
information
Click Add button
Save information
to database
Registration
is completed
0
53
I
I
3.2.EMPLOYEE UPDATE
Enter
employee
no
Click search
button
I
N
:7_
Show
employee
information
Record Not
found
'
Change the
employee
information
Click update button
to Save updated
employee
information
C)
l
3.3.EMPLOYEE DELETE
Enter
employee
no
Is employee
no
Click search
button
y
If found?
N
Show
employee
information
Click delete button to
delete employee
information
C)
Record Not
found
55
4.REPORTS
Select Your choise N 78
N y y User not authority y User not authority y56
y4.1.EXPENDITURE REPORTS
8
Enter two date Click search button' N
Show expenditure report Record Not found0
Y
·~
Rooworo
I
N()
57
p,( Print report4.2.EMPLOYEE REPORTS
C)
Enter two date and employee no Click search button N Record Not found Show employee information report58
Print report---{1,,,-j
Enter two date Click search
button
4.3.INCOME AND EXPENSE REPORTS
'f
0--
N Record Not found Show sale and expense report0
Y
··~
Roowmd
I
NC)
59
Print reportC)
Enter two date and employee no Click search button N y Record Not found4.4.END DAY REPORT
Show sale report Click OK button Save information to database Registration is completed
~~~
Run word60
Print report5.SET OR DEFINE
SET OR DEFINE SUBMENU
1.DEFINE SALON 2.DEFINE SEANS 3.DEFINE TICKET PRICE
4_FILM RECORD Select Your choise Authority=Admin or rnudur
>
Y--->8
N N y User not authority Authority=Admin or MUdUr N User not authority y y Authority=Admin y N y User not authority Authority=Admin or MUdurt
8
User not authority 'f8
61
I
5.1.DEFINE SALON
DEFINE SALON SUBMENU 1. Add 2. Update 3. Delete 4.Close Select Choice
0!
N<S>y-
N
<S>y
'*'
<S:>y
N62
I
5.1.1. DEFINE SALON ADD
8
Click New Button
Enter new
salon
information
Click Add button
Save information
to database
Registration
is completed
63
••
I
I
I
I
5.1.2.DEFINE SALON UPDATE
Enter salon no Click search button
o/
0
N Show salon information Record Not foundChange the salon information Click update button
to Save updated salon information
5.1.3.DEFINE SALON DELETE
Enter salon
no
Is salon no
Click search
button
y
If found
? NShow salon
information
Click delete button to
delete salon
information
Record Not
found
5.2.DEFINE SEANS
8
DEFINE SEANS SUBMENU 1. Add 2. Delete 3.Close Select Choice
66
5.2.1. DEFINE SEANS ADD
8
Click New Button
Enter new
seans
information
Click Add button
Save information
to database
Registration
is completed
5.2.2.DEFINE SEANS DELETE
I
8
I
I
---··----~
~
Enter seans
no
Is seans no
Click search
button
N
Show salon
information
Click delete button to
delete seans
information
Record Not
found
I
5.3.DEFINE TICKET PRICE
DEFINE TICKET PRICE SUBMENU 1. Add 2. Update 3. Delete 4.Close Select Choice
'o/
0y
N
N
'if~y
'*.
~y
69
5.3.1. DEFINE TICKET PRICE ADD
8
Click New Button
Enter new
ticket price
information
Click Add button
Save information
to database
Registration
is completed
5.3.2.DEFINE TICKET PRICE UPDATE
I /
Enter ticket
price no
Click search
button
N
'WRecord Not
found
Show ticket
price
information
Change the ticket
price information
Click update button
to Save updated
ticket price
information
()
5.3.3.DEFINE TICKET PRICE DELETE
I
8
Enter ticket
price no
Is ticket price
no
Click search
button
NShow salon
information
Click delete button to
delete ticket price
information
Record Not
found
SECURITY SUBMENU
1.EMPLOYEE INFORMATION CONTROL 2.CHANGES PASSWORD 3 PROGRAM CLOSE Select Your choise y y N y N V
8
6.SECURITY
Display employee information Are you sure want to exit? N73
6.2.CHANGES PASSWORD
User enter old password'
Click search buttony
password? N Record Not foundShow employee old password and
username Change password
and user name Click update button to Save updated password
and user name
7.HELP
0
HELP SUBMENU
1.PRORAM ABOUT
2.PROGRAM MAP
Select Your
chaise
N75
Display program and
>I
programmer about
information
6
REFERANCES
REFERANCES
1.
I use only internet for researching.
www.GooGLE.coM
2.
SQL BOOK (Written by James R.Groff and Paul N.Weinberg)
3.
Borland DELPHI 7 (Written by Ihsan KARAGULLE)
APPENDIX I
SCREEN OUTPUTS
FIGURE 1.
DIRECTOR MAIN MENU
MUHASEBE
,,,,,-,. MASRAFLAR ~ KAYIT ~ ODEMELER KAYITRAPORLAR
@
~ MASRAF ···. RAPORLARI • PERSONEL •• RAPORLARI ~ GELiR GiDER RAPORLARI,j~
GUN SONU 'RAPORUAYARLAR
@I,\
SALON TANIMLAFIGURE 2.
80
CHIEF MAIN MENU
eiq
REZERVASYON ""' SATIS / IPTALMUHASEBE
'f}
MASAAFLAA KAYJTi_'
PERSONEL ' RAPOALARIfi,
GUN SONU RAPOAUAYARLAR
FIGURE 3.
81
FIGURE 4.
Per Cum Cit __
P;z-~~
133 25.06.2007 18'GORA 150 25.06.2007 26< ESARETIN· BEDELi '19:00'00 2 6 7 8 9 10 13 14 15 16 17 20 21 22 23 24 27 28 29 30FIGURE 5.
83
TICKET CANCEL
133 25.06.2007 18 10 SiViL E5 156 MLJU..HiT DLJZCJ>.N E6 156 MUU..HiT DLJZCJ>.N ES 156 MLJU..HiT DLJZCJ>.N F7 156 MLJU..HiT DLJZU..N F8 156 MLJU..HiT DLJZCJ>.N GS 156 MLJU..HiT DUZCJ>.N L3 156 ABDULK.6.DiR GLJNCU L4 156 ABDULK.6.DiR GLJNCLJ M4 156 ABDULK.6.DiR GLJNCU M3 156 ABDULK.6.DiR GLJNCU M6 156 ABDULK.6.DiR GLJNCU L6 156 ABDULK.6.DiR GUNCU C14 156 duzcen sinema C13 156 diizcan sinema 17249595990 17249595990 17249595990 17249595990 17249595990 17249595990 12345676386 12345676386 12345676386 12345676386 10 SiViL 5,i:iGRENCi. 5,QdRENci
5 i:iGRENCi 5li:iGRENCi 10,SiViL2
.22
2
2
2
2
1234-
-
-
BILETI
SE<;
VE IPTAL ET
FIGURE 6.
84
TICKET REZERVATION
117
Sal Pef· <::urn (;rn·t Psiz 1
33
25.06.2007 18 GORA 19:00:00 92 3 1 50 25.06.2007 26 ESARETIN BEDELi 19:00:00 2 5 6 7 8 9 10 12 13 14 15 16 17 19 20 21 22 23 24 26 27 28 29 30
AD!
SDY.t\D
jDUZct<N . .!FL NO
(0533868320~ ·~'""'~~---
FIGURE 7.
85
RESERVATION SALE AND CANCEL
133 25.06.2007 18 GORA 19:00:00 ~ MASRAF · RAPORLARI(9
PERSONEL ,_, RAPORLARI ~ GELiR GiDE . :, RAPORLARI @GUN SONU 'RAPORU 5 6 7 12 13 14 15 16 17 19 20 21 22 23 24 26 27 28 29 30==-·$
"'TM
~ERVASYON_NO\ AD 65 Ali 66 Ali 67 Ali 68 Ali 69 Ali 74 MUCO 75 MUCO 77 MUCO .-,., •• -·" ••. ,----""'' ~--- '"''~;- •• :.:«"«"'<««<«<-•''"''"'"'"' rnn ,.0_·,~·n<~ ucRE"('r'JRurUCFiE·r SOYADI TEl_NOSEANS_NO KOLTUK_NO. TARIH SERT 2314343 156 J9 17.06 2007
.swu.
SERT 2314343 156 J10 17.06.2007slvu,
SERT 2314343 156 J11 17.06.2007 tJGRENCi SERT 2314343 156 K10 17.06.2007 65RENCi SERT 2314343 156 K11 17.06.2007 tJ(;~ENCi DUZCAN 1234234 156 E11 17.06.2007 siViL DUZCAN 1234234 156 E12 17.06.2007 tJGRENCi DUZCAN 1234234 1_56 E14 ,17.06.2007 MRENCIAYARLAR
3l.
SALON TANREZERVASYONiPTALET
REZERVASYON
SATl$1 ONAYLA
FIGURE 8.
86
EXPENDITURE RECORD
KLAMA
MUHASERE
·tz
MASRAFLAR KAYITYTL
~ MASRAF RAPORLARIi,
PERSONEL .,, RAPORL.ARI ~ GELiR GiDER ·. RAPORLARIfit
GUN SONU B_A_E'_ORU35 duzceri sinema erzak altnd,
45 duzcen sinema 46 duzcen sinema SU PARASI FiLM KiRASI
AYARLAR
@
SALON TANIMLAFIGURE 9.
87
PAYMENT RECORD (SALARY)
SATIS iPTAL ~i4 REZERVASYON SATIS / IPTALMUHASEBE
'fll
MASRAFLAR KAYITGg
ODEMELER ~ KAYITJ\R
j !!
22 052007PEF~SONEL NO
A!J!
5 ABDULKADiR 8 MEHMET 9 HASAN 10 TAYFUN 11 MAHMUTGLJNCLJ
SARI BARUONU T_OPRAK KURSAlMIKTAR!
13 MAHMUT KlJR$AlEYICIE
Y/\PAN
Ei,
PERSONEL RAPORLARI ~ GELiR GiDER RAPORLARIfj~
GUN SONU ··· RAPORUAYARLAR
10 TAYFUN TOPRAK 24.05.2007 10 10 TAYFUN TOPRAK 24.05.2007 11 5 ABDULKADiR GONCO 28.05.2007 12 13 MAHMUT KURS. EYICI 19.06.2007 13 9 HASAN BARUONU 20.06.2007 14. 8 MEHMET SARI 22,06.2007 15 8 MEHMET SARI 22:06'.20'07 16 8 MEHMET SARI 22.06,2007 · 17 8 MEHMET SARI 22.06 ..2007
18 ;>,;ABDULKADiR GONCO22.0li:"2007'
FIGURE 10.
PAYMENT RECORD (AVANCE)
MUHASEBE
,iJi
MASRAFLAR KAYITv;?
ODEMELER '. KAYITJAH!H
22062007PERSONE
A!)!
5 ABDULKADiR 8 MEHMET 9 HA.SAN 10 TAYFUN 11 MAHMUT GUN CU SARI BARUONU TO PRAK KUR SAT/\VANS
MIKTAH!
'YTL
13 MAHMUT KUR$Al EYICIMAS RAF RAPORLARI ~ PERSONEL RAPORLARI ~ GELiR GiDER . RAPORLARI @GUN SONU 'RAPORU
AYARLAR
7 10 10 TAYFUN TO PRAK 24.05.2007 11 5 ABDULKADiR GUNCU 28.05.2007 .12 13 MAHMUT KUR$. EYICI 19.06.2007 13 9 HASAN BARUONU 20,06.2007 14· 8 MEHMET SARI 22;06:2go1., 15 8 MEHMET SARI 16 8 MEHMET SARI 17 8 MEHMET SARI 18' 5 ABDULKADiR GUNCU 2.2.06.2007FIGURE 11.
89
EMPLOYEE REGISTRATION
i1tJ.,
SATIS \'j'/~' SATIS iPTAL §3M~!~Ft;'f;(~tN
K NO
.AD!
!M"OCAHiT ,,,,, __ fouZCAN ·. .··~3ClYAD
MUHASEBE'i;l
MASRAFLAR KAYITg
OOEMELER . ICAYITB1::\B/:,.
AD!
lMlJHAMMET ... ·.AN/\ ;o"\D!
jAY!;,E
...
. ..
UM YEH!
!AKYAZI . .UM Tf\HIHI
L/'.\N(11r;; ··rAn
!
H !
RAPORLAR MAS RAF RAPORLARI ~ PERSONEL RAPORLARI ~ GELiR GiDER RAPORLARIfig
GON SONU RAPORU»,o
ES
AYARLAR (~/ 12345676386 8 13245324543 9 34523452323 1 0 32452345642 KADiR asd PERWARDMEDf
j026431 93592C
--.·.···
•··· j3 y,·.::1 'L ... 1. 05338683203 j ---··.·
! ... , ... _., ...
]
GO
n
MUDUR •. : ..N(JT
iADMiNE BiLGi ivERiLECEKI
!I
1000'Y1L
YETKI
!MUDUR sr·--'"""'"
···
KULLANICI
ADI
1
miicoSiFRE
••••••••
1111 12345 TAYFUN KASiYERFIGURE 12.
90
EXPENDITURE REPORTS (ENTRY)
MU HAS EBE
,-", MASRAFLAR'O
KAYIT r7> ODEMELER \;!:'.> KAYITRAPORLAR
tJi,i;i; MASRAF ti\41 RAPORLARI • PERSONEL RAPORLARI ~~ GELiR GiOER RAPORLARItj
GUN SONU RAPORUAYARLAR
FIGURE 13.
91
EXPENDITURE REPOR1~S
MUHASEBE
'i'}
MASRAFLAR KAYIT.:?,
ODEMELER UP KAYITTAH
B!;:G_TARIHI
BT~ TARIHI
RAPORU GOSTER
RAPORU YAZDIR
ff,;.
MASRAF '~ RAPORLARIej)
PERSONEL - RAPORLARI@i:~
GEUR GiDER RAPORLARI @GUN SONU RAPORUAYARLAR
FIGURE 14.
92
EXPENDITURE REPORT OUT PUT
MUHASEBE
'iJ;;
MASRAFLAR KAYIT ~ ODEMELER . KAYITMAS RAFLAR RAP ORU
25.06.2007 02:28: 10MAS RAF RAPORLARI ~ PERSONEL RAPORLARI ~ GELiR GiDER • ' RAPORLARI
Ci'?. GUN SONU
'4,JII RAPORU
TARiH MASRAF NO iSLEM YAPAN KiSi A.-;IKLAMA
TU TAR
24.05XD7 34 MUCAHiT PARS FiUv1iNi KiRALAMA
10Xl 24.05.XD7 35 dUZ:can sinerna erzak almdr
2CO 24.05.XD7 41 dU:Zc an s inema YOLPARASI
2CO 19.00.XD7 "15 dU:Zc an s inema SU PARAS!
2CO 22.00= <'15 dU:Zc an s inema F iW KiRAS I
3X) 41 d 45 di 46 d
7
7
AYARLAR
FIGURE 15.
93
-
-
SATIS iPTAL
REZERVASYON
SATIS / IPTAL
MUHASEBE
,fl
MASRAFLAR
KAYIT
MAS RAFLAR RAP ORU
25.06.2007 02: 28: 10
i)
PERSONEL
RAPORLARI
~ GELiR GiDER
'RAPORLARI
fi:;.,;
i,
GUN SONU
RAPORU
TARiH
MASRAF
NO
iSLEllli YAPAN
KiSi
ACIKLAMA
TUT
AR
24.05.= 34 MUCAHiT PARS FiWiNi KiRALAMA 1(0) 24.05.LlXfl 35 dUZc an s inema erzak almdi 200 24.05.= 41 dUZc an s inema YOL PARASI 200 19.00.= 45 dUZc an s inema SU PARASI 200 Z2..00.LlXfl 4:\ dUZc ans inema F iW KiRAS I XO
AYARLAR
FIGURE 16.
EMPLOYEE REPORT
MUHASFBE
·-zt
MASRAFLAR KAYIT 3 duzcen 5 ABDULK.i>.DiR 8 MEHMET 9 HASAN sinerne GLINCLI SARI BARUONU 10 TAYFUN TOPRAK 11 MAHMUT KURSAT 13 MAHMUT KLIR$.l>.l EYICI~
RAPORU GUSTER
S()'{J\Di·
SARI
!'EFtSONEL
N():
8
TAFtill FOHM.A.Tl (yyyynuqq;
B$G
12007:06-01 .BT$
!2007-06-30RAPORU YAZDIR
~ MASRAF ...•••. RAPORLARI ~ PERSONEL ,,, RAPORLARI ~~ GELiR GiDER , RAPORLARI '' GON SONU RAPORUAYARLAR
1500
500
-160
840
FIGURE 17.
95
INCOME AND EXPENDITURE REPORTS
MUHASEAE
'f;'.
MASRAFLAR KAYIT'[e
ODEMELER KAYIT ~ MASRAF ···. RAPORLARI ~ PERSONEL • ' RAPORLARI ~ GELiR GiDER . RAPOHLARI ~' GUN SONU "I'll' RAPORUAYARLAR
FIGURE 18.
96
INCOME AND EXPENDffUl{E
l{El>()I{rrS
(SAI.JE
1)
MU HAS EBE
'""'" MAS RAFLAR
'Cl-
K.AYITGIRi~
T.AHJH FOHMATI (
Ylf'YY-en-tJIJ)B_;;>G.TARIHI
f2007-06-01 . ·.· ...BT~ TARIHI
(2007-06-30 _KASIYER
UCRET
RAPORU YAZDIR
~ MASRAF ·•.· RAPORLARI~'I
PERSONEL RAPORLARI ~ GELiR GiDER . RAPORLARIfij}
GUN SONU 'RAPORURAPORU AYRINTILI
GOSTER
i'P
TOPLAMLARI
GOSTER
AYARLAR
MUCAHiT oUZCAN
MUCAHiT OUZCAN
MUCAHiT OUZCAN
MUCAHiT OUZCAN
MUCAHiT oUZCAN
MUCAHiT oUZCAN
ABDULKADiR
GUNCU
ABDULKADiR
GUNCU
ABOULKADiR
GUNCU
ABDULKADiR
GUNCU
ABDULKADiR
GUNCU
1 O.SiViL
1o;sivii
s,oGRENci
5 O~RENCi
s.OGRENci
51.0GRENCi
10 SiViL
1
o
siviL
10HSiViL
5.iOGRENCi
5 bGRENCi
2
2
2
2
2
2
2
FIGURE 19.
97
INCOME AND EXPENDITURE REPORTS (SALE 2)
~ SATIS'*''
SATIS iPTAL §,1) REZERVASYON SATIS / IPTALMUHASEBE
•'"''' MASRAFLAR ~ KAYITg
ooEMELER KAYITGIRi$
TAHiH FORMAT! {
yyyy-tu1-gg
)
BSG.TARIHI
)2007-06:01---···
BTS TARiHi
!2007-06~'.30
··· ...RAPORU YAZDIR
~MASRAF . RAPORLARI ~ PERSONEL RAPOHLARI ~ GELiR GiDER RAPORLARIflt
GUN SONU RAPORURAPORU AYRINTILI GOSTER
TOPLAMLARIGOSTER
SATILAN
TOf>L,!l,.M EIILET S~'(ISl]~ATI~
TOPLAMI
60 425
AYARLAR
FIGURE 20.
INCOME AND EXPENDITURE REPORTS
t;t;.,
SATIS ·~· SATIS iPTAL !11,Gl REZERVASYON - SATIS / IPTALMU HAS EBE
'El
MASRAFLAR KAYITg
ODEMELER KAYITGIRi~
TAHHJ FORMAT! { W)')t-a.a-qq
B~G_TARIHI
f2007-01-01 .
BT:;;TARiHi
~"-
fit~ MASRAF · RAPORLARI@j
PERSONEL ,,, RAPORLARI ~ GELiR GiDER RAPORLARI • GUN SONU • BAPORURAPORU GOSTER
RAPORU YAZDIR
AYARl.AR
425
1900
2400
I
-220
+
I
-4095
¥TL
FIGURE 21.
99
INCOME AND EXPENDITURE REPORTS (EMPLOYEE 1)
~ SATIS
'4t;ti'
SATIS iPTAL ~.t:? REZERVASYON ""' SATIS LJPTALMUHASEBE
,,~ MASRAFLAR ~ KAYIT @ODEMELER . KAYIT _r;·GIRi~
!ARHI
FORMAT! {YY':lY--a.a-qq )
:r'=,·+·''"'' ,,,,·wo·w• ..•• ,-,"wow•,
B$G_TAR1HI
;2007-06-01BT$ TARiHi
12007-06-30 ~ADI
SOYADI
MAAS
RAPORU YAZDIR
~
TOPLAMLARI
GOSl'ER
~
KASASINDAKI
~ MASRAF .. RAPORLARI~l
PERSONEL ' RAPORLARI ~ GELiR GiDER ... RAPORLARIfjj
GUN SONU · RAPORURAPORU AYRINTILI GOSTER
MAHMUT KUR:; EYICI
HASAN
BARUONU
100
200
AYARLAR
MEHMET
SARI
MEHMET
SARI
MEHMET
SARI
MEHMET
SARI
ABDULKADiR
GUN CU
ABDULKADiR
GUN CU
750
FIGURE 22.
100
INCOME AND EXPENDITURE REPORTS (EMPLOYEE 2)
Bi LET ~ SATIS \~;~: SATIS iPTAL ~Gl. REZERVASYON - SATIS / IPTALMU HAS EBE
'fi
MASRAFLAR KAYITTAR.!H FORMAT! ( Y:,fyy-t1n-gg )
B;:jG_TARIHI
(2007-06-01 ..
B::C;:
TARiHi
f2oo7-06"':"3o
~ MASRAF RAPORLARI • PERSONEL -· RAPORLARI ~ GELiR GiDER RAPORLA:RIti'j
GUN SONU 'RAPORURAPORU AYRINTILI
GOSTER
TOPLAMLARI
GOSTER
RAPORU YAZDIR
VERILECEK
OLAN TOPLAM .t,,,tAA:;;]yERILEl',I TOPLAM .. AYA""~lt<f..~Al:)J\l<:t
TPPLAM
P.A.f3At~,C:::IIS:
FAZLA TOPLAMI
.,I
2650
1 600
450
-220
AYARl.AR
FIGURE
23.
END DAY REPORT (1)
SATIS iPTAL ~l.1 ~if1~Rj~tT~OLNMUHASEBE
SI
MASRAFLAR KAYITGg
ODEMELER KAYIT 3 duzcan sinema 1234 5 ABDULKADiR GUN CU 12345676386 8 MEHMET SARI 13245324543E
10 TAYFUN TO PRAK 32452345642 11 MAHMUT KURSAT 24234324534 13 MAHMUT KLJR$Al EYICI 23123421412TAHiH FORMAT! { YYY)"Ua··qq)
B~K T ARIHI
f
2007-06-24BT:;i TARiHi
j2007-06-24 SOYl\Df MAS RAF RAPORLARI • PERSONEL RAPORLARIff~
GELiR GiDER ' • RAPORLARI ~GUN SONU-1,1"
RAPORUAYARLAR
(iii)
FIGURE 24.
102
-
-
END DAY REPORT (2)
SATIS iPTAL fi;l{ AEZEAVASYON "" SATIS / IPTAL
