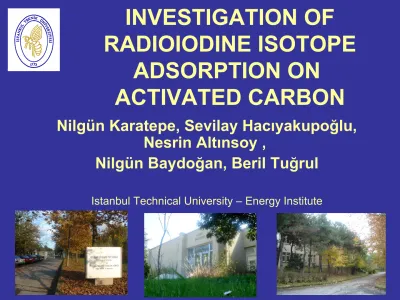

INVESTIGATION OF
RADIOIODINE ISOTOPE
ADSORPTION ON
ACTIVATED CARBON
Nilgün Karatepe, Sevilay Hacıyakupoğlu,
Nesrin Altınsoy ,
Nilgün Baydoğan, Beril Tuğrul
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Introduction
The radionuclide of greatest concern from a
radiation protection viewpoint is radioiodine
which is regularly used in nuclear medicine
procedures.
Various methods have been evaluated for the
removal of radioiodine from actual liquid
waste received from the isotope.
Adsorption is an important technique in
separation and purification processes which is
used in water and waste water industry.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
The objectives of this research
The objectives of this research were to
investigate the adsorption of iodine on
activated carbon and contribute the storage
problem of medical radioactive liquid waste.
In this frame, the adsorption phenomenon of
iodine and radioiodine from aqueous solutions
on activated carbon was studied.
Activated carbon samples were prepared from
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Experimental Processes
Preparation of Activated Carbon
Adsorption Process
Irradiation and Gamma Spectroscopic
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Preparation of
Activated Carbon
Activated carbon samples produced from olive stone with chemical
activation method were used in this study.
This material was initially stirred for 1 h at 100 °C in a general-purpose
oven.
Then, the sample was sieved to separate the seeds from the unwanted
cortex material.
They were washed to remove oil residues and dried.
Then they were grounded subsequently and the samples were
impregnated with phosphoric acid of 50 % concentration, dried in air at
about 220°C and then carbonized in a quartz reactor at a temperature of
400°C for 120 min.
The carbonization was done in a flow of nitrogen (300 ml/min). After
carbonization, the carbon was cooled down to room temperature in a flow
of nitrogen.
To remove the excess of H3PO4, the carbons after carbonization were
extensively washed with hot water until neutral pH. Then the samples
were dried in an oven at 110°C.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
BET surface area and pore volume of the
activated carbon sample.
Sample BET surface area (m2/g)
Total pore volume (P/P0= 0.95) (cm3/g)
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Adsorption Process
To represent the iodine specimen’s sodium iodide and
radioactive sodium iodide samples were prepared and the
adsorption performance of activated carbon for each condition
was evaluated.
The batch iodine adsorption experiments were performed on a
shaker by varying the parameters such as pH (3.0 and 9.0),
initial iodine concentration (100 mg/L and 200 mg/L),
temperature (25 °C and 75 °C), and shaking time (60 min and
120 min).
The batch radioiodine (128I) adsorption experiments were also
performed on a shaker by varying the parameters such as pH
(3.0, 6,0 and 9.0) and initial radioiodine concentration
(100 mg/L, 150mg/L and 200 mg/L), at temperature of 75 °C
for shaking time of 60 min.
The results of iodine adsorption
experiments
Sample
No. Temp.(°C) Iodine Conc.(mg/L) pH Time(min) (mg iodine/ gr AC)Adsorption Adsorption( %) 1 25 100 3 60 9.12 87.5 2 120 8.9 83.8 3 9 60 9.12 85.5 4 120 8.80 83.5 5 200 3 60 20.82 94.48 6 120 20.80 94.38 7 9 60 20.30 92.13 8 120 18.04 89.54 9 75 100 3 60 9.12 85.81 10 120 8.96 84.00 11 9 60 8.25 77.34 12 120 8.29 78.22 13 200 3 60 19.89 91.15 14 120 19.83 89.38 15 9 60 20.15 91.45 16 120 19.73 89.53
The results of radioactive iodine
adsorption experiments.
Sample
No. Iodine Conc.(mg/L) pH Count rate (γ/s/ml) (± %8) 17 100 3 696113 18 6 812576 19 9 944001 20 150 3 1091857 21 6 1552185 22 9 1735619 23 200 3 2753254 24 6 3601212 25 9 3843929
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Adsorption Process (Continue)
The iodine solutions were prepared by
dissolving known quantities of sodium iodide
and radioactive sodium iodide (produced by
irradiation of sodium iodide in ITU TRIGA
Mark II nuclear research reactor) in distilled
water.
The pH was adjusted using dilute hydrochloric
acid or sodium hydroxide solutions by pH
meter.
All chemicals used were analytical reagent
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Irradiation and Gamma
Spectroscopic Process
Neutron activation analysis method was used to
determine the amount of iodine in adsorption process.
For this purpose the samples which taken from the
adsorption solutions were irradiated at ITU TRIGA Mark
II nuclear research reactor at Energy Institute of
Istanbul Technical University.
ITU TRIGA Mark-II reactor was equipped with a
pneumatic system of rabbit transfer that permits the
use of short-lived radioisotopes.
The system is located in the outer ring of fuel element
positions that has region of high neutron flux.
The sample container is conveyed to a receiver-sender
station via polyethylene tubing with 2.2 cm outer
diameter and 12 cm height.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Irradiation and Gamma
Spectroscopic Process (Continue)
Neutron bombardment of the iodine
sample activates
127
I to the radioactive
isotope
128
I.
The
127
I (n,γ)
128
I reaction provides the
enough activity to measure
128
I
radioisotopes (cross section of
127
I is 6.2
barn) [7].
The half life of this radioisotope is
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Nuclear properties of
128
I isotope
γ-ray Energy (keV) 27.20 31.00 31.70 442.89 * 526.62 743.32 969.53 Abundance (%) 1.30000 0.70000 0.15000 16.90000 1.59000 0.16900 0.43000 † Generating reactions 127I (n th, γ) and 128Xe (nfa, γ) * Useful energy14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
41.5 µl solutions of aqueous phase for different adsorption sets were
transferred onto filter paper and sealed in the suitable films.
After this stage only sodium iodide samples were packed together in
polyethylene rabbit container and irradiated at a reactor power level
of 250 kW for 60 seconds at TRIGA Mark II reactor of the institute.
After appropriate cooling time, irradiated samples were transferred to
the gamma-ray spectroscopy system.
The
128I radioactivity for 41.5 µl solutions of aqueous phase obtained
by sodium iodide and radioactive sodium iodide adsorption sets were
measured separately.
For determination of
128I content samples were counted for 120 and
240 seconds.
Counting rates of the
128I isotope of aqueous phase for different
adsorption sets were derived from the -rays spectra of the irradiated
samples and corrected to the end of the irradiation. The 442.89 keV
-ray peak from
128I isotope was counted each time [6].
Irradiation and Gamma
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
The gamma spectrometry
system
The gamma spectrometry
system consists of a n-type high purity germanium detector (with relative efficiency of 48.7 %) and Canberra Eagle Plus MCA multichannel analyzer installed in 4096 channel.
The gamma spectrometry
system was calibrated by using 60Co and 137Cs
radionuclides standards.
The count rate resolution of
the detector at 1333 keV is 2.1 keV. The gamma- ray spectra of the irradiated samples were analyzed by the Genie 2000 software.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Result and Discussion
The adsorption behavior of iodine on
activated carbon samples was
investigated and the results are
discussed as follows with respect to the
effects of temperature, pH, initial iodine
concentration, adsorption contact time
and radioactivity.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Effect of pH
The removal of iodine as a function of pH at different temperatures and initial iodine
concentrations (Shaking time : 60 min).
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Effect of Temperature
The removal of iodine as a function of temperature at different pH and initial
iodine concentrations (Shaking time : 60 min).
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Effect of Initial Iodine
Concentration
The removal of iodine as a function of initial iodine concentration at different pH
and temperature (Shaking time : 60 min).
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Effect of Adsorption
Contact Time
The removal of iodine as a function of shaking time at different initial iodine concentrations
and different pH (Temperature: 25°).
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Statistical Analysis Results
In this study, a statistical design technique described
in detail elsewhere [8, 9] was also applied by use of a
two level factorial design matrix to interpret the
experimental results.
A major advantage of the statistical model over the
analytical ones is that they do not use rough
approximations and allow for a greater number of
factors.
In two level factorial design experiments, process
variables were selected as temperature (25 °C and 75
°C), pH (3.0 and 9.0), shaking time (60 min and 120
min) and initial iodine concentration (100 mg/L and
200 mg/L).
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
The regression equation
The variance test of the parameters for the two samples
showed that some of the variables are not statistically
significant. Therefore, their respective terms can be rejected as
given in the following proposed models:
Y= 87.357– 1.497 X
1-1.456 X
2+ 4.148 X
3-0.813 X
4+ 0.613X
2X
3+ 1.224 X
1X
2X
3(2)
where Y is the amount of iodine adsorption in % , X
1is coded
value of temperature in °C, X
2is coded value of pH, X
3is
coded value of initial iodine concentration in mg/L and X
4is
coded value of shaking time in min. The correlation coefficients
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
The relationship between the coded values (X
k) and the actual
values can be given as follows:
X
1= (T- 50)/25
(3)
X
2= (pH- 6)/3
(4)
X
3= (C- 150)/50
(5)
X
4= (t- 1.5)/0.5
(6)
where T is the temperature in °C, t is the shaking time in min and
C is the initial iodine concentration in mg/L.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Effect of Radioactivity
The count rate of aqueous phase as a function of initial radioiodine concentration
at 75°C for different pH.
14-17 Oct. 2008 N.Karatepe, S.Hacıyakupoğlu N. Altınsoy, V. Eurosian Conference N. Baydoğan, B. Tuğrul of Nuclear Science and Its Application
Conclusion
Active carbon which was prepared with chemical activation method from olive
stone is an effective adsorbent for the removal of iodine from aqueous
solutions.
In adsorption process, it was found that increasing the temperature, pH and
shaking time cause a decrease in iodine adsorption.
On the contrary, increasing the initial iodine concentration induce an increase in
iodine adsorption.
A statistical design technique was also applied by use of two-level factorial
design matrix to measure the main effects due to the variables in iodine
adsorption and to optimize the process conditions.
The multi-linear mathematical model developed to predict the amount of iodine
adsorption on activated carbon was found to be successful with correlation
coefficient above 0.974.
For the radioactivity effect it can be said that generally all results of
experiments iodine is appropriate each other except initial iodine concentration
effect.
When the initial iodine concentration increases adsorption capacity decreases
