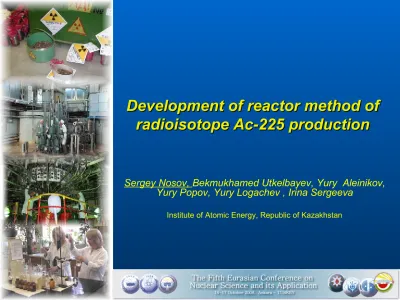

Development of reactor method of
Development of reactor method of
radioisotope Ac-225 production
radioisotope Ac-225 production
Sergey Nosov, Bekmukhamed Utkelbayev, Yury Aleinikov, Yury Popov, Yury Logachev , Irina Sergeeva
Objective
Objective
Estimation of abilities of small commercial production of radioisotope 225Ас by neutron irradiation of Ra-226 in the Institute of Atomic Energy in Kazakhstan
The Tasks:
1.Study of current IVG-1M reactor opportunities 2.Estimation of mother isotope (Ra-226) availability
3.Determination of need reactor condition to provide actinium production
2
Institute of Atomic Energy NNC KZ
Ac-225
Ac-225
Ас-225 (Т1/2=10 d) for generators of medical isotope
Bi-213 (Т1/2=45,6 m)
Alpha-decay resulting formation of more two
daughter short-living alpha-emitters Fr-221 and At-217
Average energy of alpha-particle 6.9 MeV
Ac-225 is more effective to kill cancer cells than
β-sources, because:
• high linear energy transfer • short track length
3
Institute of Atomic Energy NNC KZ
Alpha decay from bone surface
Alpha decay from bone surface
RH Larsen et al., SNM 2002
RH Larsen et al., SNM 2002
Institute of Atomic Energy NNC KZ
Institute of Atomic Energy NNC KZ 4
Higher
exposure
showing
extensive
overlap of
damage
tracks
near
bone-marrow
interface
Data of market research
Data of market research
Minimal sales of the Ас-225/Bi-213 generator in USA are equal to 200 millions dollars per year (2006)
Annually in USA and Europe more than 200 000 patients with a cancer of the blood are diagnosed
The current cost of treatment procedure using the radionuclide Bi-213 is evaluated as 30,000 dollars/a patient
5
Institute of Atomic Energy NNC KZ
Methods of
Methods of
Ас
Ас
-225 production
-225 production
Ac-225 production from U-233 radioactive decay (Russia, USA)
Th-229 production by Reactor irradiation of Ra-226
Accelerator production of Ac-225 using the (p,2n) and (γ,n) reaction
6
Institute of Atomic Energy NNC KZ
Institute of Atomic Energy NNC KZ Ra-225 production by Reactor
Problems
Problems
It is required that:• fluence of fast neutrons with energy of more than 6,42
MeV is not lesser than 8,6·1018 n/(cm2)
• thermal neutrons current density should be decreased in
several hundreds times
• increase of reactor operating time should be provided • radium-226 should be collected
7
Institute of Atomic Energy NNC KZ
Spectrum of fast neutrons in IVG.1M to 10 kW
Spectrum of fast neutrons in IVG.1M to 10 kW
Institute of Atomic Energy NNC KZ
Institute of Atomic Energy NNC KZ 8
1.0E+06 1.0E+07 1.0E+08 1.0E+09 1.0E+10 1.0E+11 0 2 4 6 8 10 12 14
Energy of neutron Е, МeV
- empty experimental channel; - experimental device
N eu tr on f lu x, n /( cm 2 s )
Now value of fast neutrons flux
Parameters of IVG.1M
Parameters of IVG.1M
parameter title for modernization after upgrade
Heat power, МW 60 60
The flux of thermal
neutrons, n/sec·cm2 8.81014 11014
The fluence of fast
neutrons, n/cm2 41016 7.21017
Maximum duration of reactor operation at power level , sec 60 МW
6 МW 1 000
14 400 72 0005 000
9
Institute of Atomic Energy NNC KZ
Integral spectrum of fast neutron in the experimental channel
Integral spectrum of fast neutron in the experimental channel
(reactor power
(reactor power
Р
Р
= 1 kW
= 1 kW
)
)
Institute of Atomic Energy NNC KZ
Institute of Atomic Energy NNC KZ 10
1,0E+07 1,0E+08 1,0E+09 1,0E+10 1 2 3 4 5 6 7 8 1 2 3 Neutron energy, MeV
1 – empty channel; 2 – shield of UO2 with water; 3 – shield of UO2 without water
N eu tr on f lu x, n /s c m 2
Discussion
Discussion
Institute of Atomic Energy NNC KZ
Institute of Atomic Energy NNC KZ 11
Steps promoting production of actinium :
to upgrade reactor to have possibility for increasing the
fluence up to 7,2·1017 n/сm2
use of enriched (U-235,17%) uranium dioxide and boron
carbide shields in the target during reactor irradiation to have possibility to produce 3·108 Bq of Ac-225 per 1 g of Ra-226
use of radium-226 from spent radioactive sources and
radioactive waste to have possibility to collect 0.8-1 g of radium-226
Conclusion
Conclusion
12
Institute of Atomic Energy NNC KZ
Institute of Atomic Energy NNC KZ
