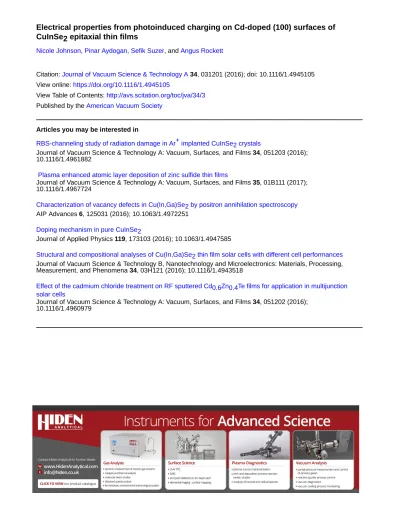

Electrical properties from photoinduced charging on Cd-doped (100) surfaces of
CuInSe2 epitaxial thin films
Nicole Johnson, Pinar Aydogan, Sefik Suzer, and Angus Rockett
Citation: Journal of Vacuum Science & Technology A 34, 031201 (2016); doi: 10.1116/1.4945105 View online: https://doi.org/10.1116/1.4945105
View Table of Contents: http://avs.scitation.org/toc/jva/34/3
Published by the American Vacuum Society
Articles you may be interested in
RBS-channeling study of radiation damage in Ar+ implanted CuInSe2 crystals
Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films 34, 051203 (2016); 10.1116/1.4961882
Plasma enhanced atomic layer deposition of zinc sulfide thin films
Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films 35, 01B111 (2017); 10.1116/1.4967724
Characterization of vacancy defects in Cu(In,Ga)Se2 by positron annihilation spectroscopy
AIP Advances 6, 125031 (2016); 10.1063/1.4972251
Doping mechanism in pure CuInSe2
Journal of Applied Physics 119, 173103 (2016); 10.1063/1.4947585
Structural and compositional analyses of Cu(In,Ga)Se2 thin film solar cells with different cell performances
Journal of Vacuum Science & Technology B, Nanotechnology and Microelectronics: Materials, Processing, Measurement, and Phenomena 34, 03H121 (2016); 10.1116/1.4943518
Effect of the cadmium chloride treatment on RF sputtered Cd0.6Zn0.4Te films for application in multijunction solar cells
Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films 34, 051202 (2016); 10.1116/1.4960979
surfaces of CuInSe
2epitaxial thin films
NicoleJohnsona)
Department of Materials Science and Engineering, University of Illinois at Urbana-Champaign, 1304 W Green St., Urbana, Illinois 61801
PinarAydoganand SefikSuzer
Department of Chemistry, Bilkent University, 06800 Ankara, Turkey
AngusRockett
Department of Materials Science and Engineering, University of Illinois at Urbana-Champaign, 1304 W Green St., Urbana, Illinois 61801
(Received 11 January 2016; accepted 18 March 2016; published 5 April 2016)
The photoresponse of Cd-doped CuInSe2(CIS) epitaxial thin films on GaAs(100) was studied using
x-ray photoelectron spectroscopy under illumination from a 532 nm laser between sample tempera-tures of 28–260C. The initial, air-exposed surface shows little to no photoresponse in the photo-electron binding energies, the Auger photo-electron kinetic energies or peak shapes. Heating between 50 and 130C in the analysis chamber results in enhanced n-type doping at the surface and an increased light-induced binding energy shift, the magnitude of which persists when the samples are cooled to room temperature from 130C but which disappears when cooling from 260C. Extra negative charge trapped on the Cu and Se atoms indicates deep trap states that dissociate after cool-ing from 260C. Analysis of the Cd modified Auger parameter under illumination gives experi-mental verification of electron charging on Cd atoms thought to be shallow donors in CIS. The electron charging under illumination disappears at 130C but occurs again when the sample is cooled to room temperature.VC 2016 American Vacuum Society.
[http://dx.doi.org/10.1116/1.4945105]
I. INTRODUCTION
Cu(In,Ga)Se2 (CIGS) is a promising material for the
absorber layer in photovoltaic devices due to its modest pro-duction cost and chemical flexibility, with champion devices recorded at over 22% efficiency.1 Many costs associated with producing and distributing photovoltaic modules are related to device area rather than power output. Increasing the device efficiency results in more power per unit area and thus to an overall reduction in levellized cost of electricity. However, CIGS-based photovoltaic devices suffer from a less than optimal open-circuit voltage, which is limited by a variety of defects that promote charge recombination.2Thus, there is potential for further improvements in performance if charge collection and recombination mechanisms can be bet-ter understood.
Point defects, thought to be responsible for recombination in CIGS-based devices, have been extensively studied using electrical characterization, including various types of capaci-tance and admitcapaci-tance spectroscopies.3–5 The defects identi-fied as most likely to be a problem are Cu-Se divacancy complexes (VCu-VSe), Se vacancies, and In on Cu (InCu)
antisite complexes with Cu vacancies, the latter of which may contribute to band tails. Nonetheless, there is debate over which defect complex is most critical.6–12 Techniques for analyzing these defects in a chemically specific fashion are rare and sometimes unreliable.
Open-circuit voltage, and by extension defects driving recombination, can be investigated by analyzing the surface photovoltage (SPV), which has been directly related to open-circuit voltage in photovoltaics.13–15 A simple model for the surface photovoltage suggests that the dipole due to band bending at a semiconductor surface will typically sweep photogenerated minority carriers to the surface, caus-ing the bands to flatten from the resultcaus-ing charge.16Surface defects in Cd-doped CuInSe2(CIS) surfaces, such as In
dan-gling bonds and Cd on Cu antisites (CdCu) pin the Fermi
level close enough to the conduction band to cause down-ward band bending at the CdS/CIS interface.17,18
It is becoming increasingly important to analyze defect and photovoltage behavior under realistic operating conditions. Methods that can accomplish this are known as operando techniques. Examples of methods using photons as the prob-ing particle include some implementations of infrared vibra-tional spectroscopy, Raman spectroscopy, sum-frequency generation, x-ray emission and absorption spectroscopies, as well as their derivatives. Techniques such as Auger electron spectroscopy and x-ray photoelectron spectroscopy (XPS) have been underutilized due to the high vacuum requirement of the instruments. However, XPS is quite unique in its ability to analyze changes in electron density around individual types of atoms in a solid. The experiment in this study utilizes an operando adaptation to XPS using two photon sources, soft x-rays and a 532 nm visible laser. The x-rays produce the measured photoelectron peaks while the visible photons are used to induce the surface charge. Photoelectrons generated by the x-rays in the XPS technique escape from the charge a)
dipole layer near the surface, including traversing any poten-tial due to band bending resulting from the electric field at the surface. This alters their kinetic energy and thus their apparent binding energy (BE) to the atoms from which they were released. The altered kinetic energy appears as a shift in the core level binding energies of the characteristic peaks under illumination. Previous work with optically and electrically modulated XPS has included work on relatively well known materials such as Si, GaN and CdS.19–21Additionally a previ-ous study by Hungeret al. looked at bare, clean polycrystal-line CIS surfaces and found that the surface exhibited a negligible surface charging, which Hungeret al. attributed to dangling In bonds that are passivated by S during CdS deposi-tion.18Our study complements the existing literature by com-bining sample heating and illumination to provide new insights into device properties and reliability.
In this work, we combine illumination intensity and tem-perature to measure changes in surface charging behavior of single crystal films of CIS grown epitaxially on GaAs. Epitaxial films were studied in order to investigate surface charging properties in the absence of grain boundary effects, which are thought to have lateral band bending due to defects along the boundaries.22–24 Additionally, surface potential is orientation-dependent, and so it is important to be able to select the surface orientation. Finally, it is impor-tant to have relatively flat films to allow the probe depth to be well defined to simplify data interpretation.
This study finds that heating under UHV can reduce or eliminate surface recombination from ambient air contami-nation and enhance n-type doping in the surface region, lead-ing to the development of a persistent negative surface photovoltage. Further, this study finds a higher surface recombination velocity around the In atoms that correlates with excess negative charge trapped on nearby Se and Cu atoms. Additional analysis of the modified Auger parameter also gives direct experimental evidence of electron charging on Cd donors in CuInSe2thin films. Thus, the results help to
understand charging and decharging behavior at the CIS surface.
II. EXPERIMENT
CIS films were grown epitaxially on (100)-oriented GaAs substrates. The 500–1000 nm thick films were grown at 650–700C using a hybrid sputtering and evaporation method.25In this method, Cu and In were cosputtered using separate dc magnetron sources while Se was evaporated from an effusion cell in a single stage process. The targets were located30 cm from the substrate. Typically, the sput-tering conditions for the two sources were 210 and 350 mA at 330 and 650 V for the Cu and In magnetrons, respectively, at an Ar sputtering gas pressure of 0.28 Pa. The base pressure of the deposition system is3 104Pa. The Se evaporator
was ramped to a temperature of 520C initially to accelerate heat up and then allowed to cool to the operating condition of 300C. The substrates were affixed to a sealed resistively heated holder using spring clips. Substrate temperatures were measured by a thermocouple embedded in the heater
and calibrated using an optical pyrometer. The substrate, magnetrons, and the Se evaporator were covered using shut-ters until growth was initiated. The substrate was heated at 40C/min to the growth temperature and growth was initi-ated shortly after that temperature was stabilized. After growth, the Se heater and magnetrons were shut off, and the substrate was cooled using a controlled ramp down to 250C (720–450C in 20 min, 450–350C in 20 min, and 350–250C in 15 min). The sample heater was then turned off, and the sample was allowed to cool to room temperature. Cu-poor films (Cu:In0.8) were grown, as this composition is comparable to that used in commercial devices. Films with Cu-poor composition should have a variety of point defects that might trap charge and contribute to surface band bending.12,26,27Typical film compositions before depositing the CdS were 21 at. % Cu, 27 at. % In, and 51 at. % Se as measured by energy dispersive spectroscopy (EDS) with an error of 0.5% based on references to standard films with known composition. X-ray diffraction confirmed the films were phase pure and epitaxial on the GaAs substrates.
Some of the best performing devices utilize a postgrowth treatment under a Se flux.28The films used in this study had been left out in ambient air after several months and then reintroduced to the deposition chamber for a postgrowth anneal. The anneal occurred under a Se flux at a sample tem-perature of 450C for 15 min. After the heat treatment, the sample was cooled to 250C over 20 min, and then, the heater was turned off. Once the sample cooled to room tem-perature, it was removed and then coated with CdS. The CdS protects the CIS surface from oxidation.
The CdS was deposited via a chemical bath deposition process.17,29 Deionized water of 146 ml was heated to 75C. Solutions of 0.015 M CdSO
4 and 1.5 M thiourea
were prepared by mixing hydrates of CdSO4 and thiourea,
respectively, with deionized water. CdSO4solution of 20 ml,
25 ml of stock 14.8 M NH4OH, and 10 ml of the thiourea
sol-utions were measured out separately. Samples to be coated were held by clips and blown dry with nitrogen gas to remove any dust particles that had settled on the surface. Once the reaction beaker reached 69C, the samples were lowered into the beaker and stirring was turned on to thor-oughly mix the contents of the beaker during deposition. The CdSO4 and the NH4OH were added first to the reaction
beaker, lowering the reaction solution temperature to 60C. The solution was allowed to mix for 1 min before the thiourea was added. The 1 min mixing time allows the NH4OH to strip any native oxides from the CIS, ensuring a
clean reaction surface and so that the CdSO4is thoroughly
distributed. After adding thiourea, the solution was heated to 65C, which was stable over the course of the deposition. The samples were held in the solution for 3 min, taken out, washed with deionized water, and blown dry with nitrogen gas. The reaction beaker solution had turned slightly yellow but was still transparent when the samples were removed. Prior to loading into the XPS chamber, the CdS was etched off using a dilute (5%) HCl solution, rinsed with deionized water, and blown dry with dry nitrogen. The samples were etched for approximately 2 min. Previous work has shown
031201-2 Johnson et al.: Electrical properties from photoinduced charging on Cd-doped (100) surfaces 031201-2
that the CIS films are resistant to this etch even after etch times of 18 h.17The samples were loaded into the analysis system as rapidly as possible after the etch/rinse/dry steps.
A Kratos Axis Ultra spectrometer was used to measure the photoinduced surface charging of the films. Monochromatic Al Kax-rays with an energy of 1486.8 eV were generated at a
source power of 210 W. The samples could be heated during analysis up to 260C using a radiant heater, as monitored by a thermocouple on the sample stage. Each temperature was held for 30 min after the ramp to ensure an even temperature on the sample surface. Survey spectra were used to monitor the film composition while high resolution spectra were taken of the Cu 2p3/2, In 3d5/2, In 4d, Se 3d, Cd 3d5/2, Cd 4d peaks and
the valence band to determine their positions and shape changes under illumination and temperature changes. Peak positions were calibrated to the Au4f7/2line at 84.00 eV.
To measure the photoresponse of the peak positions, a 532 nm continuous wave laser with a rated power of 50 mW illuminated the sample through one of the system’s quartz viewports. The spot size was approximately 2 mm and cen-tered so that it encompassed an area larger than the spec-trometer’s analysis region (which was 400 700 lm in this work). The photon flux on the sample was calculated to be approximately 1 1018 [photons cm2 s1]. While the
system has a low energy electron flood gun for charge neu-tralization, it was not used in order to isolate the effect of the laser on the surface electronic properties. The samples were conductive enough to not experience peak drift due to photo-electrons escaping the surface at the x-ray source power used.
III. RESULTS AND DISCUSSION
A. Initial surface chemistry
Survey spectra were obtained at a variety of sample temper-atures (28, 50, 80, 100, 130, 180, 230, and 260C) to under-stand changes in composition versus temperature (Fig.1). The initially loaded surface showed small but measurable amounts of oxygen (12–14 at. %) and carbon contamination on the surface. Carbon was not included in the composition analysis because of overlap with one of the Se LMM Auger lines. In addition to the expected CIS film peaks, Cd peaks were observed, and accounted for8 (at. %) of the analysis volume. No Cl peaks were present, suggesting the water rinse removed any Cl potentially leftover from the HCl etch. The binding energy of the observed Cd3d5/2peak, 405.2 eV, corresponds to
a CdSe chemical environment.30Thus, there should be little to no S present on the surface, suggesting that the HCl etch had selectively removed the CdS. This observation along with the absence of any S peaks in the survey spectrum implies that the Cd was not primarily present as an oxide or sulfide and had been incorporated into the CIS surface rather than adsorbed on the surface, in agreement with previous studies.17
Quantification of the surface composition over the various temperatures studied was done by correcting peak intensities using relative sensitivity factors specific to the Kratos sys-tem. The relative sensitivity factors take into account the mean free path of the photoelectrons, the transmission
function of the spectrometer and the relative x-ray cross-sec-tion. The Shirley background was used for the Cu2p, In3d, Se3p, and Cd3d regions. The film’s initial composition at the surface was found to be cation and specifically In rich. Based on the inelastic background and the small O1s peak present in Fig.1, we conclude that the surface was relatively clean. The average composition was Cu:In:Se:Cd 13:33:46:8 at. %, after elimination of the O contribution, consistent with prior work on clean CIS surfaces.22,23EDS measurements of films in this work have a bulk Cu:In ratio of0.8 as com-pared with the surface value of0.4 measured by XPS, indi-cating that the surface is indeed Cu deficient. As the sample stage in the analysis chamber was heated, the O concentra-tion declined to below noise levels. We attribute this to O de-sorption, either as O2or residual H2O contamination, as the
CIS film peaks increased in intensity without changing rela-tive to each other.
Initial calibrated Cu 2p3/2, In 3d5/2, Se3d5/2, and Cd 3d5/2
emission energies were measured as 932.0, 444.6, 54.2, and 405.2 eV, respectively. Linear regression from the leading edge of the valence band can be used to determine the posi-tion of the valence band maximum.31 In this work, the va-lence band maximum was 0.6 eV from the Fermi level. The bulk of the films are p-type, so we attribute the increased dif-ference between the Fermi level and the valence band as due to donor type surface states such as In dangling bonds or Cd doping that shift the Fermi level to just above midgap. The binding energy values for the In3d5/2 and Se3d5/2 peaks are
consistent with CuInSe2, and the Cd3d5/2 peak binding
FIG. 1. (Color online) Survey spectra at various sample stage temperatures. Twenty eight degree Celsius is at the top (black) with increasing tempera-tures downward in the series, ending at 260C (brown). The elements indi-cated (except the O1s) are regions studied in high resolution.
energy was consistent with a CdSe chemical environment within the error of the spectrometer.30The Cu 2p3/2peak is
slightly higher in binding energy than expected, although not so high that it can be attributed to Cu2Se.32A better indicator
of the chemical environment is the modified Auger parame-ter defined as the a0¼ BEpþ KEA, where p represents the
core level and A represents the Auger line.33Auger parame-ters were calculated for the Cu (BE Cu 2p3/2þ KE Cu LMM
Auger line), Cd (BE Cd 3d5/2þ KE Cd MNN Auger line)
and Se (BE Se 3d5/2þ KE Se LMM Auger line) atoms as
1849.3, 787.2, and 1361.4 eV, respectively. The Cu and Se Auger parameters are consistent with Cu-poor films of CuInSe2.34The Cd Auger parameter turned out to be too big
to be CdSe, but we believe positive charge trapping on the Cd atoms may be affecting the Auger parameter as discussed in Sec.III B.
B. Heating in the dark: 28–260C
The core level spectra were obtained at the same tempera-tures indicated in the survey scans. Upon heating in the anal-ysis chamber without illumination, the peak binding energies for all elements and the valence band edge shift toward higher binding energies (Fig. 2). This behavior has been reported in the literature for polycrystalline CIS surfaces and has been attributed to increased n-type doping at the surface, which, in turn, enhances the surface band bending.22,23 However, in that case, the authors measured the peak shifts after cooling to room temperature while in this work we measured the peak positions while the sample was held at temperature. The peaks all shift together toward higher bind-ing energies until 100C was reached, indicating an increase in n-type surface doping likely from activation of Cd donor defects or electron release from other shallow donors.
This work also differs from the literature in that not all peaks shifted by the same amount under heating. After 100C,
the Cu2p and Se3d peaks start to deviate from the rest of the core levels and valence band. If one assumes that all the peaks shift together when the surface doping is enhanced, then the Cu and Se atoms seem to be surrounded by extra negative charge that offsets the band bending. When cooling to room temperature from 130C, the binding energies of all peaks remain the same as at 130C, indicating the surface doping, and thus the band bending, remain constant after cooling.
We interpret these observations as follows. Net negative charge is being transferred from the In and Cd to the Cu and Se atoms. We anticipate that In on Cu sites (InCu) and Cd on
Cu sites (CdCu) act as donors, consistent with the observed
In-rich, Cd-doped surface composition, and transfer the neg-ative charge to Cu and Se atoms at the surface. This is also consistent with the slightly Se-deficient surface composition that would be promoted by net negative charge on the Se sites. The additional positive charge on the In atoms causes the In core levels to shift to higher binding energy. However, this is accompanied by a shift in the Fermi energy as the sur-face is more n-type. Thus we propose that the shift in the In core levels is matched by a shift in the valence band associ-ated with the InCu n-type doping of the surface, such that
there is no shift in the In core levels relative to the Fermi energy. The negative charge on the Cu and Se atoms appears to be discharged after cooling to room temperature from 260C as all the core level peaks show the same amount of shift compared to their as-loaded values.
Beyond 180C, the surface starts to become less n-type. This is seen in Fig.2(b)as all of the core level peaks and va-lence band edge shift approximately together toward lower binding energies. The extra negative charge on the Cu and Se atoms is still present even at these temperatures. One mechanism for this behavior could be Cd diffusion, which is thought to occur via Cu vacancy substitution. While bulk Cd diffusion was not observed in epitaxial films until FIG. 2. (Color online) (a) In3d5/2normalized intensity vs binding energy in the dark at 28C (black squares), 130C (red circles), 28C cooled from 130C (blue empty diamonds), and 230C (green triangles). (b) Binding energy shift in the dark vs temperature for all core level peaks and the valence band edge between 28 and 260C relative to room temperature value.
031201-4 Johnson et al.: Electrical properties from photoinduced charging on Cd-doped (100) surfaces 031201-4
400C,35 the extremely Cu-poor surface could provide enough Cu vacancies for Cd diffusion to occur near the CIS surface. We did not see a decrease in the Cd atomic concen-tration within the error of the spectrometer. However, above 180C, the intensity of the Cd3d5/2 peak relative to the
In3d5/2 peak started to decrease substantially. Therefore,
there could be evidence of Cd surface diffusion at tempera-tures as low as 180C.
To further investigate the chemical state of the elements within our samples, we calculated the modified Auger pa-rameters for the Cu, Cd, and Se atoms at sample tempera-tures of 28C (initial load), 80, 130, and 28C after cooling from 130C (Fig. 3). The Auger parameters for Cu and Se are consistent within 60.1 eV of what has been reported for CuInSe2. The Cd Auger parameter in our work is
signifi-cantly higher (>0.1 eV) than reported for the CdSe, the CdO, and the Cd(OH)2chemical environments. From
previ-ous work, we expect that the Cd is sitting on Cu sites, mean-ing it should make bonds to four selenium atoms (close to CdSe chemical environment). However, Cd in the surface of CIS on Cu sites has second-nearest neighbor cations very different from CdSe. Thus, it is very likely that there would be charge on the Cd atoms, changing its overall charge state. Such charging would affect the modified Auger parameter and gives information about whether a species is oxidized or reduced, which has been used to study oxidation of the CIS
surface under air exposure.36We looked at a similar analysis of the modified Auger parameter, but in this case under heat for the dark and illuminated cases instead of air exposure. A higher than expected Auger parameter indicates a reduction of the Cd atoms, making them more positively charged than expected for the CdSe environment. As the sample is heated, there is a negligible effect on the Cu, Cd, and Se modified Auger parameters within the error of measurement. This indicates there is no chemical or charge change purely as a result of temperature. However, illumination does seem to affect the modified Auger parameter as seen in Sec.III C.
C. Photoresponse under illumination
Illuminating the initial air exposed surface showed little effect on the peak position or shape (Fig.4). The small pho-toresponse at room temperature was observed over a range of x-ray source powers from 10 to 210 W. We propose that the negligible photoresponse is due to high surface recombi-nation rates resulting from defect states that limit the accu-mulation of photogenerated carriers. This behavior appears to be related to air exposure since samples heated to 130C maintained a large photoresponse after cooling to 28C under UHV but reverted to a small photoresponse after re-exposure to air. The higher photoresponse can be
FIG. 3. (Color online) Modified Auger parameters compared to room tem-perature values for (a) Cu, (b) Cd and (c) Se at sample temtem-peratures 28C (initial load), 80, 130, and 28C after cooled from 130C.
FIG. 4. (Color online) Cu2p3/2 peak in the dark and under illumination at 28C (initial loading), 130C and cooled to 28C from 130C. Under illu-mination, the peak shifts toward lower binding energies (see arrow).
recovered again by heating the sample under UHV to 130C. Thus, there appears to be a need for an O free CIS/CdS interface, which agrees with observations showing that oxygen at the junction resulted in poorer device performance.23
The air-induced states observed here are unlikely to result from simple surface oxides as no additional components were observed in the CIS or Cd core level peaks that would indicate the presence of Cu, In, Se, or Cd oxides for the air-exposed films. Furthermore, the expected oxides would not likely desorb with gentle heating. We note that between room temperature and 130C, there is a decrease in O con-centration that correlates with an increase in the light-induced peak shift.
Binding energy changes due to illumination are a function of temperature and illumination as seen in Fig. 5. Once the sample has been heated to as little as 50C, illumination caused a shift, consistent in both value and direction, in the binding energy of all core level peaks and the valence band edge toward lower binding energies. This suggests the pres-ence of a surface photovoltage. The value of this shift satu-rates at (150–200) meV for a sample temperature of 130C as seen in Fig.5(a)for the Cu2p3/2and In3d5/2peaks.
Changing the intensity using neutral density filters results in a logarithmic dependence of the photoinduced shift versus the light intensity [Fig. 5(c)], confirming the surface photo-voltage nature of the photoresponse.16
Quantitative information on the surface recombination velocity can be obtained by combining the intensity and tem-perature dependence of the surface photovoltage response. Assuming a thermionic model, which has been used to study surface charging properties in n-type GaN,37the steady-state SPV can be fit with the following equation:
DY¼ g kT Ln 1 þcPo Ro
; (1)
where DY is the light-induced shift, g is the ideality factor, k is Boltzmann’s constant, T is the temperature,c represents the fraction of photons absorbed in the depletion region,Pois the
photon flux, and Ro is the rate that carriers move from the
bulk to the surface under dark conditions. Fitting the data using best fit values of 0.5 forc and 1.1 for g gave values for Roof 2.5, 3, and 4 1015cm2s1based on data for the In
3d5/2, Cd 3d5/2, and Cu 2p3/2 photoelectrons, respectively.
From the same model as in Ref.33,Rocan be used to find the
surface recombination velocity if the band bending is known. The temperature dependence of the photoresponse gives that information using the following equation by Tanakaet al.:16
Ln DY kT e DY=kT ð Þ ¼ Ln Ið Þ þYo kT; (2)
where I is the laser intensity and Yois the band bending in
the dark. Figure 5(b)plots the left hand side of the equation versus 1/kT. When plotted, the slope of this curve is the band bending, which was measured as 0.52 6 0.01 eV, 0.58 6 0.05 eV, and 0.59 6 0.03 eV for the In 3d5/2 and
the Cd 3d5/2 and Cu 2p3/2 photoelectrons, respectively. The
error was found based on the least squares method.
Surface recombination velocity can now be solved for using
Sn¼ eðYoþ Eð cEfÞ=kTÞ R o Nc
; (3)
whereNcis the density of states at the conduction band
mini-mum and Ec Ef is the difference between the conduction
band edge and the Fermi level. Without accounting for a possi-bly higher bandgap at the surface (due to missing Cu), values for the surface recombination velocity were an order of magni-tude lower than those reported previously for clean CuInSe2
surfaces (104vs 105cm s1).38Because the chemical bath dep-osition process has resulted in higher efficiency devices, it is FIG. 5. (Color online) (a) Laser-induced peak shift (DY) in meV vs the sample temperature for the In3d5/2and the Cu2p3/2peaks, (b) laser-induced peak shift vs temperature (130–260C) with the lines indicating the line of best fit to the data using a linear fit following the formalism of Eq.(2), and (c) In3d5/2BE vs the log of the laser intensity at sample temperature 130C.
031201-6 Johnson et al.: Electrical properties from photoinduced charging on Cd-doped (100) surfaces 031201-6
possible that this process is responsible for the improved sur-face recombination of the CIS even when the CdS is subse-quently removed. This could help explain the relative success of Cd partial-electrolyte treatments. Alternatively, heating under UHV could have inhibited surface recombination since the surface recombination velocity was measured after the films had been cooled from 130C.
What is interesting here is that the surface recombination velocities were element dependent. The surface recombination velocity measured using the In 3d photoelectrons was (2 6 0.7) 104cm s1was approximately an order of magni-tude higher than the velocity measured using the Cu or Cd pho-toelectrons, which was measured at (2.06 6 2.39) 103cm s1 and (2.28 6 4.40) 103cm s1, respectively. The errors are large enough that the Cu and Cd electrons have effectively the same surface recombination velocity but are distinct from the surface recombination velocity measured using the In photo-electrons. When considering the potential defects, the evidence from the valence band and core level shifts in the dark suggests that the In and Cd atoms are relatively positively charged com-pared to the negative Cu and Se atoms. However, the surface recombination velocities imply that the In atoms have a higher trapping rate for electrons than the Cd, despite both being donors at relatively equivalent probe depths in the XPS tech-nique. The InCudonor has aþ2 charge state when fully ionized
so when an electron becomes trapped, the defect is still repul-sive to holes since it now exists in aþ1 charge state. This sug-gests that the rate-limiting step in recombination is probably capture of holes rather than electrons on the In. It makes sense that the recombination velocity is higher since the þ2 charge state makes it more attractive to electrons traveling toward the surface. In comparison, the CdCudonor has a þ1 charge state
when fully ionized. When an electron is trapped on this donor, the defect is neutral and holes could recombine with the trapped electrons relatively easily. Thus, recombination on donors with a charge state ofþ1 or lower is likely limited by electron capture, opposite to defects with a charge state ofþ2 or higher.
Charge trapping behavior becomes more apparent when looking at the differences in the modified Auger parameter under illumination (Fig. 6) where zero represents no change under illumination. The Cu and Se Auger parameters show no significant deviation (<0.1 eV) under light and increasing temperature compared to their initial values at room tempera-ture. However, under illumination, there is a significant increase in the Cd modified Auger parameter at 28 and 80C. This increase disappears at 130C. An increase in the modi-fied Auger parameter indicates an oxidation process, making the Cd more negatively charged. This electron trapping is consistent with Cd being a donor in CIS. At 130C, the elec-tron charging disappears presumably due to thermal escape of electrons from the Cd atoms. This suggests that the energy level associated with this Cd point defect is between 30 and 34 meV because the change in Auger parameter under illumi-nation goes to zero somewhere between 80 and 130C, con-sistent with a shallow donor.
When the sample was cooled to 28 from 130C, the Cd modified Auger parameter still increases under illumination,
but not as much as it did before cooling. This suggests that electron trapping on Cd atoms under illumination is due to changes in the Cd donor charge state. Because there is no change in the Se modified Auger parameter, we conclude that the electron charging is localized on the Cd atoms only.
Additionally, the band bending can be used to determine bulk material properties. As mentioned above, the band bending was measured at 0.59 eV for the Cu photoelec-trons. Ef Ev between 130 and 260C was approximately
constant at 0.69 eV. Because the Cu 2p photoelectrons should be the most surface sensitive and show the maximum band bending at the surface, this value is used to construct the diagram of the sample surface (Fig. 7). In the analysis used to construct (Fig.7), we use 13.6 for the dielectric con-stant (e), 1.02 eV for the bulk bandgap, and calculate 1.5 1019cm3 and 6.7 1017cm3 for NvandNc,
respec-tively, from effective masses reported in Rockett and Birkmire,39which gives an intrinsic carrier concentration of 9 109cm3. Knowing these values, we can use the
follow-ing to calculate the depletion region (W)40
W¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 2eðYo kTÞ qNA s : (4)
From those values, the depletion region is calculated to be approximately 0.44 lm.
FIG. 6. (Color online) Modified Auger parameters under illumination com-pared to values in the dark for (a) Cu, (b) Cd, and (c) Se at sample tempera-tures 28C (initial load), 80C, 130C, and 28C after cooled from 130C.
IV. SUMMARY AND CONCLUSIONS
We have demonstrated that thisoperando XPS technique can observe changes in surface electronic properties due to changes in surface doping, charging of shallow donor states created by Cd atoms, and surface recombination velocity in a chemically specific way. High recombination surface states due to air exposure can be passivated via heating at low tem-peratures. Enhanced n-type doping is maximized at 130C, which gives the highest photoresponse of(150–200) meV. Heating in the dark shows excess negative charge on/near the Cu and Se atoms, which we believe is caused by charge trapping. Whatever is responsible for this behavior disap-pears after cooling the sample to room temperature from 260C. The temperature and intensity dependence of the photoresponse allowed us to measure the band bending and surface recombination behavior in a chemically specific fashion, which suggests that surface recombination occurs preferably on the In atoms compared to the Cu and Cd atoms. This could indicate a higher defect density around the In atoms, possibly from defects or defect complexes involv-ing some of the In atoms. Detailed analysis of the modified Auger parameter suggests electron charging localized on Cd atoms between room temperature and 130C, confirming the Cd atoms’ shallow donor behavior. Finally, the photores-ponse appears to abruptly decrease after cooling to room temperature from 230 to 260C, which suggests Cd diffu-sion when compared to the decrease in the peak intensity of the Cd photoelectron peak compared to the other film constituents.
