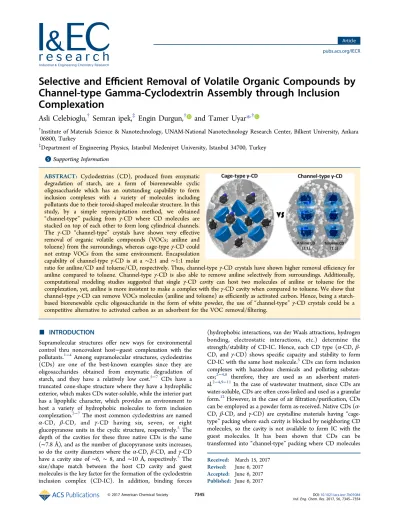

Selective and efficient removal of volatile organic compounds by channel-type gamma-cyclodextrin assembly through inclusion complexation

Selective and E

fficient Removal of Volatile Organic Compounds by

Channel-type Gamma-Cyclodextrin Assembly through Inclusion

Complexation

Asli Celebioglu,

Semran ipek,

Engin Durgun,

and Tamer Uyar

*

†_{Institute of Materials Science & Nanotechnology, UNAM-National Nanotechnology Research Center, Bilkent University, Ankara} 06800, Turkey

‡_{Department of Engineering Physics, Istanbul Medeniyet University, Istanbul 34700, Turkey}

*

ABSTRACT: Cyclodextrins (CD), produced from enzymatic degradation of starch, are a form of biorenewable cyclic oligosaccharide which has an outstanding capability to form inclusion complexes with a variety of molecules including pollutants due to their toroid-shaped molecular structure. In this study, by a simple reprecipitation method, we obtained “channel-type” packing from γ-CD where CD molecules are stacked on top of each other to form long cylindrical channels. The γ-CD “channel-type” crystals have shown very effective removal of organic volatile compounds (VOCs; aniline and toluene) from the surroundings, whereas cage-typeγ-CD could not entrap VOCs from the same environment. Encapsulation capability of channel-type γ-CD is at a ∼2:1 and ∼1:1 molar

ratio for aniline/CD and toluene/CD, respectively. Thus, channel-typeγ-CD crystals have shown higher removal efficiency for aniline compared to toluene. Channel-type γ-CD is also able to remove aniline selectively from surroundings. Additionally, computational modeling studies suggested that single γ-CD cavity can host two molecules of aniline or toluene for the complexation, yet, aniline is more insistent to make a complex with theγ-CD cavity when compared to toluene. We show that channel-typeγ-CD can remove VOCs molecules (aniline and toluene) as efficiently as activated carbon. Hence, being a starch-based biorenewable cyclic oligosaccharide in the form of white powder, the use of “channel-type” γ-CD crystals could be a competitive alternative to activated carbon as an adsorbent for the VOC removal/filtering.

■

Supramolecular structures offer new ways for environmental control thru noncovalent host−guest complexation with the pollutants.1−4 Among supramolecular structures, cyclodextrins (CDs) are one of the best-known examples since they are oligosaccharides obtained from enzymatic degradation of starch, and they have a relatively low cost.5−7 CDs have a truncated cone-shape structure where they have a hydrophilic exterior, which makes CDs water-soluble, while the interior part has a lipophilic character, which provides an environment to host a variety of hydrophobic molecules to form inclusion complexation.5−7The most common cyclodextrins are named α-CD, β-CD, and γ-CD having six, seven, or eight glucopyranose units in the cyclic structure, respectively.5 The depth of the cavities for these three native CDs is the same (∼7.8 Å), and as the number of glucopyranose units increases, so do the cavity diameters where theα-CD, β-CD, and γ-CD have a cavity size of ∼6, ∼ 8, and ∼10 Å, respectively.5 The size/shape match between the host CD cavity and guest molecules is the key factor for the formation of the cyclodextrin inclusion complex (CD-IC). In addition, binding forces

(hydrophobic interactions, van der Waals attractions, hydrogen bonding, electrostatic interactions, etc.) determine the strength/stability of CD-IC. Hence, each CD type (α-CD, β-CD, and γ-CD) shows specific capacity and stability to form CD-IC with the same host molecule.5CDs can form inclusion complexes with hazardous chemicals and polluting substan-ces;2−4,8 therefore, they are used as an adsorbent materi-al.2−4,9−11In the case of wastewater treatment, since CDs are water-soluble, CDs are often cross-linked and used as a granular form.12However, in the case of airfiltration/purification, CDs can be employed as a powder form as-received. Native CDs ( α-CD,β-CD, and γ-CD) are crystalline materials having “cage-type” packing where each cavity is blocked by neighboring CD molecules, so the cavity is not available to form IC with the guest molecules. It has been shown that CDs can be transformed into“channel-type” packing where CD molecules

Received: March 15, 2017

Revised: June 6, 2017

Accepted: June 6, 2017

Published: June 6, 2017

are stacked on top of each other to form long cylindrical channels by simple reprecipitation procedure where CDs are dissolved in water and precipitated into a nonsolvent.13It has been also shown that these channel-type CD powders are able to include both small molecules as well as long polymer chains when they are suspended in nonsolvent solution.13Moreover, CD crystalline channel-type assembly can serve as an adsorbent to remove chlorinated aromatic compounds.14

In this study, we employed channel-type γ-CD powders to entrap volatile organic compounds (VOCs) for air filtration purposes. VOCs are one of the major sources of air pollution, and they are considered one of the most hazardous classes of pollutants due to their highly toxic and carcinogenic character-istics.15,16Adsorption is considered as an efficient method for the removal and sometimes recovery of VOCs from the air. Although active carbon is a commonly used material to reduce the VOC degree in the surrounding area due to its high surface area and porous structure,17−20adsorbents based on biorenew-able resources is always on demand forfiltration of such VOCs. Being derived from starch, CD is a promising candidate for the filtration of VOCs.10,21−24

In our recent studies, we have shown that CD functionalized electrospun polymeric nanofibers can remove VOCs.25−27 Moreover, we were able to obtain nanofibers of pure CDs such as γ-CD21 and chemically modified hydroxypropyl-β-cyclodextrin (HPβCD) and hydrox-ypropyl-γ-cyclodextrin (HPγCD) for VOC removal.22Yet, the removal efficiency of VOCs can be much higher by channel-type CD. In this study, we investigated the entrapment

efficiency of channel-type γ-CD for two types of VOC

molecules (i.e., aniline and toluene). Computational modeling studies were also performed to understand the inclusion

complex formation between the γ-CD cavity and VOC

molecules and the selectivity of the γ-CD cavity for VOC. Activated carbon was also tested for comparison, and it was found that the removal efficiency of channel-type γ-CD was comparable with the activated carbon.

■

Materials. The gamma cyclodextrin (γ-CD, CAVAMAX

W8) was a gift from Wacker Chemie AG (Germany). Acetone (Sigma-Aldrich, 99.9%), aniline (Sigma-Aldrich, 99%), toluene (Sigma-Aldrich, ≥99.5%), d6-DMSO (Merck), and activated charcoal (AC; Sigma-Aldrich, untreated, granular, 8−20 mesh) were purchased. Deionized water was used from a Millipore Milli-Q Ultrapure Water System. All the materials were used without any purification.

Formation of Channel-type γ-CD. Here, homogeneous

solutions ofγ-CD (5 g) were prepared in water (25 mL) at 50 °C. Thereafter, the clear and warm γ-CD solution was quickly poured into nonsolvent (acetone, 150 mL) in which acetone was continuously stirred at 1000 rpm. A sudden precipitation of γ-CD in acetone was observed, and after 5 min of stirring, the suspension wasfiltered under a vacuum, then the white powder of channel-type γ-CD was obtained and dried in the hood overnight.

Characterizations and Measurements. The morphology of as-received cage-type γ-CD and channel-type γ-CD was analyzed by using scanning electron microscopy (SEM; Quanta 200 FEG, FEI). The samples were coated with 5 nm Au/Pd

before SEM imaging (PECS-682). A Brunauer−Emmett−

Teller (BET) surface area analyzer (Quantachrome, IQ-C model) was used to calculate the specific surface area of both cage-type and channel-type γ-CD crystalline aggregates.

Nitrogen adsorption isotherm data were collected at 77 K in the range of 0.00−1.00 relative pressure. Prior to analysis, samples were located in a 9 mm cell and degassed for 12 h at 373 K. The X-ray diffraction patterns of cage-type γ-CD and channel-type γ-CD were determined by X-ray diffractometer (XRD; X’Pert powder diffractometer, PANalytical) with Cu Kα radiation in the 2θ = 5−30°.

Entrapment of VOCs. The molecular filtration perform-ance of cage-type and channel-type γ-CD was evaluated by entrapping VOC (aniline and toluene) vapors. For this experiment, 10 mL of aniline or toluene or aniline+toluene (1:1 volume ratio) was put into glass Petri dishes and then placed at the bottom of the desiccator (30 cm (diameter) and 30 cm (height)). For time dependent tests, the desiccator was first saturated with VOCs for 12 h just before the experiments. Then, the channel-type and cage-type γ-CD samples were placed into the desiccator and sealed. Samples were exposed to

a VOC atmosphere at room temperature (23 ± 1 °C);

afterward, theγ-CD samples were taken out of the desiccators and kept in a suction hood for 1 h in order to remove the VOC molecules that were just adsorbed and could not form an inclusion complex (IC) withγ-CD molecules. In order to see the volume/dimension factor of the VOC test environment, we have performed a toluene (since it has much higher vapor pressure than aniline) entrapment test in a much smaller volume (in a 50 mL-volume glass vial). As an experimental detail, 5 mL of toluene is placed in the 50 mL glass vial, and 0.1 g of each channel-typeγ-CD and cage-type γ-CD powder was tested. The CD powder samples were placed in a 3 mL small glass vial (with an open lid to have full contact with toluene vapor, but the glass vial prevents direct contact of the CD samples with the liquid toluene), and these 3 mL small glass vials containing CD samples were directly placed in the 50 mL glass vial having 5 mL of toluene in it and were sealed. The toluene entrapment experiment was performed for 24 h at RT (23± 1 °C) for both channel-type γ-CD and cage-type γ-CD. Additional entrapment tests were also performed in the desiccator in which γ-CD samples were exposed to VOCs by different experimental pathways. Initially, time dependent removal of aniline and toluene by channel-type γ-CD was performed for a 24 h period, and for comparison, cage-type γ-CD was also exposed to aniline and toluene for 24 h. A summary of the further entrapment tests is as follows: (i) Pristine channel-typeγ-CD was exposed to aniline or toluene vapor. (ii) pristine channel-type γ-CD was exposed to aniline +toluene vapor, (iii) Aniline exposed channel-type γ-CD (aniline/γ-CD) was exposed to toluene vapor. (iv) Toluene exposed channel-type γ-CD (toluene/γ-CD) was exposed to aniline vapor. All the exposure tests were performed for 24 h at room temperature (23 ± 1 °C). Additionally, a well-known adsorbent, activated carbon (AC, BET = 600−800 m2/g, 8−20 mesh, untreated) was used as another control sample during entrapment experiments, and it was exposed to aniline+toluene vapor for 24 h. All the entrapment experiments were repeated three times.

The entrapped amount of VOC was analyzed by using a proton nuclear magnetic resonance (1_{H NMR; Bruker D}

PX-400) system. Theγ-CD samples were dissolved in d6-DMSO (20g/L concentration) after being exposed to VOC. The 1H NMR spectra were recorded at 400 MHz and at 16 total scans. The molar ratios between VOC/CD were determined by integrating the peak ratio of the characteristic chemical shifts (δ) corresponding to γ-CD, aniline, and toluene by using NMR

software. The particular peaks belonging to aniline and toluene were observed in the aromatic region of the NMR spectrum (6.7 and 7.1 ppm for aniline, 7.1 and 7.2 ppm for toluene). The molar ratios were calculated by taking into account the integration of aniline, toluene aromatic peaks, and the γ-CD’s characteristic peak at about 4.8 ppm for the d6-DMSO system. Three sets of samples were used for the NMR measurements to quantify the molar ratio of VOC/CD. A thermal Gravimetric Analyzer (TGA; Q500, TA Instruments) was performed to investigate temperature shifts for the evaporation of aniline and toluene for the VOC/CD samples which could reveal inclusion complexation betweenγ-CD and VOC molecules. In addition, TGA data were also used for the calculation of the entrapped amount of aniline and toluene by channel-typeγ-CD. The TGA of the samples was carried out from 25 to 600°C at a 20 °C/ min heating rate, and N2was used as a purge gas.

Computational Method. The calculations were performed by using density functional theory28,29within the generalized gradient approximation30including van der Waals correction,31 as implemented in the Vienna ab initio simulation package.32,33 The pseudopotentials of the elements were described by projector augmented-wave method (PAW)34 using a plane-wave basis set with a kinetic energy cutoff of 500 eV. The initial structure ofγ-CD was obtained from the Cambridge Structural Database.35The guest molecules, pristineγ-CD, and their ICs were relaxed using the Kosugi algorithm without any constraints by setting convergence criteria on the total energy and force to 10−5eV and 10−2eV/Å, respectively.

■

Structural Characterization. The as-received γ-CD is a white crystalline powder having a crystal structures called “cage-type” packing where each cavity is blocked by neighboring CD molecules (Figure 1). The diffraction pattern of as-received γ-CD has characteristic peaks at 2θ = 12.0, 14.4, and 21.7°, and SEM imaging shows that the as-receivedγ-CD has crystals with irregular shapes and sizes (Figure 2a,b). On the other hand, using the simple reprecipitation method,13 γ-CD can be transformed into“channel-type” packing where CD molecules are stacked on top of each other to form long cylindrical channels (Figure 1). Here, we successfully produced

channel-type γ-CD as proved by XRD in which the fingerprint

diffraction pattern of the γ-CD channel-type is reported in the literature.13 The characteristic peaks at 2θ = 7.9, 15.4, 16.2, 17.1, and 22.2° was recorded by XRD (Figure 2a). Rusa et al. reported that the transition of cage-typeγ-CD to channel-type γ-CD in a nonsolvent system (acetone), without using a guest molecule, originates from the water molecules’ orientation inside and outside of the CD cavity, which form strong

Figure 1.(a) Chemical structure and the schematic representation of (i)γ-CD molecule, (ii) aniline, and (iii) toluene. (b) Schematic representation of packing structures of (i) cage-typeγ-CD and (ii) channel-type γ-CD. (c) Schematic representation of VOC entrapment by channel-type γ-CD.

Figure 2.(a) XRD diffraction patterns of cage γ-CD, channel γ-CD, and channelγ-CD after one year of storage (in refrigerator at +4 °C). The representative SEM images of (b) as-received cage-typeγ-CD and (c) channel-typeγ-CD.

hydrogen bonds so as to keep the crystalline structure in a columnar form.13 It is know that the channel-type γ-CD structure is not stable unless there is a guest molecule inside; however, the XRD result indicated that patterns did not change even after one year under the storage conditions (refrigerator at +4 °C), revealing the stability of the structure under these storage conditions (Figure 2a). In addition, SEM imaging shows that the crystal size for channel-typeγ-CD is smaller and has a more regular shape (Figure 2c) when compared to that of as-receivedγ-CD crystals (Figure 2b). The BET measurements showed that the specific surface area of the as-received cage-typeγ-CD (1.46 m2_{/g) is slightly higher than the reprecipitated}

channel-typeγ-CD (1.14 m2_/g).

Entrapment of VOCs. Cyclodextrins (CDs) can be used for filtration due to their molecular cavity by forming noncovalent host−guest inclusion complexes with a variety of organic molecules.1−4,9−12In our recent studies, we have also shown that electrospun nanofibers made of pure CDs21,22and polymeric nanofibers functionalized with CDs25−27 are quite effective to capture VOCs for air filtration purposes. Here, we have tested the molecularfiltration capacity of the channel-type γ-CD by exposing them into vapor of aniline and toluene. It is anticipated that the entrapment of VOC byγ-CD would take place through inclusion complexation in which VOC molecules will be captured by the CD cavity. For a comparison study, the as-receivedγ-CD sample was also tested at the same time. We

have placed both as-receivedγ-CD (cage-type) and reprecipi-tated CD (channel-type) in a desiccator saturated with aniline or toluene vapor for a certain time period (24 h). Additionally, we have performed time-dependent VOC entrapment tests for the channel-typeγ-CD sample, but we only performed a 24 h VOC entrapment test for cage-typeγ-CD for the comparison. In order to see the volume/dimension factor of the VOC test environment, we have also performed a toluene entrapment test by channel-type γ-CD and cage-type γ-CD in a much smaller entrapment environment (i.e., 50 mL-volume glass vial).

1_{H NMR results revealed that the channel-type γ-CD}

effectively entrapped aniline and toluene in the desiccator test environment due to the available long cylindrical channels for the entrapment (Figure 3a-i,ii). On the other hand, under the same conditions, cage-type γ-CD could not entrap the VOC molecules from the surrounding area possibly because each CD cavity is blocked by the neighboring CD molecule, and therefore the CD cavity could not be available for the entrapment of VOCs (Figure 3b-i,ii). Similar to the desiccator test environment, channel-type γ-CD could entrap toluene, whereas cage-typeγ-CD could not entrap toluene when a much smaller entrapment environment (i.e., 50 mL volume) was used (Figure S1, see Supporting Information). This result clearly indicated that the entrapment of VOC is due to inclusion complexation between VOC molecules (aniline and toluene)

Figure 3.Representative1H NMR spectra of (a) channelγ-CD and (b) cage γ-CD exposed to (i) aniline and (ii) toluene vapor, which were dissolved in d6-DMSO.

and the CD cavity. Even the cage-typeγ-CD (1.46 m2_{/g) has a}

higher specific surface area than channel-type γ-CD (1.14 m2/ g), and bothγ-CD types are in powder form; cage-type γ-CD could not entrap the VOCs because of the unavailable cavity for the complexation.Figure 4a shows the entrapment test of VOC

by channel-typeγ-CD with respect to exposure time. At the end of the entrapment test (24 h), the molar ratio of aniline/γ-CD and toluene/γ-CD was calculated as (2.20 ± 0.07):1.00 (∼2:1) and (0.98± 0.11):1.00 (∼1:1), respectively (Figure 4a). This finding was similar to our previous report8

in which γ-CD formed ∼2:1 inclusion complexes (IC) with aniline, styrene, and phenol, whereas toluene, ethylbenzene, and p-xylene guests formed∼1:1 inclusion complexes with γ-CD when the solution precipitation method was used for the CD-IC formation. The ∼1:1 (γ-CD/toluene) inclusion complexation between chan-nel-typeγ-CD and toluene was also observed (Figure S1) in the case of using a smaller entrapment environment (i.e., 50 mL volume). This finding suggests that the toluene molecule prefers 1:1 inclusion complexation with channel-type γ-CD regardless of the volume/dimension of the entrapment environment.

On the other hand, in our very recent report21 in which a similar entrapment test was followed as in the present study, an electrospun γ-CD nanofibrous web could entrap aniline and toluene vapor, but the molar ratio of aniline/γ-CD and toluene/γ-CD was about ∼1:1 and ∼0.7:1, respectively. Although, the specific surface area of electrospun γ-CD nanofibers (4.38 m2/g)21 was 4 times higher than that of channel-typeγ-CD (1.14 m2_{/g), the present study revealed that}

the complexation efficiency of channel-type γ-CD with VOCs (aniline and toluene) was higher here. It is worth it to mention that in the case ofγ-CD nanofibers,21CD molecules were in an amorphous state without forming any particular crystalline packing structure. For the channel-typeγ-CD sample, the CD cavities form a long cylinder which seems to be more accessible for the complexation. Therefore, this sample has shown more efficient removal of VOCs. So, the specific surface area is not the key player for the entrapment of VOCs. That is, even though cage-type γ-CD (1.46 m2_{/g) has a slightly higher}

surface area than the channel-typeγ-CD (1.14 m2/g), it did not capture any VOCs at all. So, it is more about the packing structure of the CD molecules, which are accessible sites for the VOC entrapment. After the entrapment experiment, we analyzed channel-type γ-CD by XRD, and it was observed thatγ-CDs still kept their initial channel-type packing structures (Figure 4b).

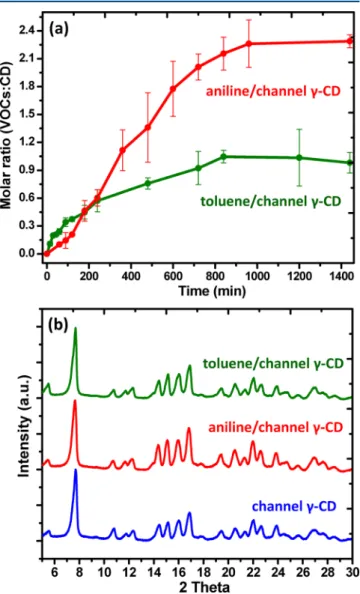

Figure 4a also indicates that the removal capacity of the channel-type γ-CD has increased with time and the VOC entrapment reached the steady-state after 15 h. The entrapping efficiency of γ-CD for the aniline was 2 times higher than that of toluene. The ∼2:1 molar ratio of aniline/γ-CD clearly indicates that theγ-CD cavity is capable of hosting two aniline molecules, similar to our earlier report.8To evaluate the results more practically, we have also calculated molar ratio values in terms of milligrams per gram (VOCs/CD), and this provided better understanding for the VOC entrapment capacity of 1 g ofγ-CD from the environment. The entrapment of aniline and toluene by channel-typeγ-CD was calculated as 144 mg/g and 71 mg/g, respectively.

Thermogravimetric analysis (TGA) is a useful technique to confirm the inclusion complexation between CDs and VOC molecules. In the case of inclusion complexation within the CD cavity, the evaporation of the VOC molecules shifts to much higher temperature owing to the interaction with CD cavity.8,36 As clear from the TGA thermograms (Figure 5a), pure aniline and toluene are quite volatile and readily evaporated at low temperatures. Toluene is more volatile than aniline since toluene has a lower boiling point (111°C) and higher vapor pressure (26 mmHg at 25 °C) when compared to aniline, which has a higher boiling point (∼184 °C) and much lower vapor pressure (0.7 mmHg at 25 °C). The pristine channel-typeγ-CD sample has two weight losses: the one below 100 °C was evaporation of water, and the second, which starts at 300 °C, corresponds to the main degradation of γ-CD. It may be expected that acetone may be left since the aqueous CD solution is reprecipitated into acetone to obtain channel-type γ-CD. From the1H NMR data, the residue of acetone which is calculated as 0.28% (w/w) is very minimal (Figure S2), so channel-type γ-CD contains about 10% (w/w) water only according to TGA data. For the channel-typeγ-CD exposed to aniline (aniline/γ-CD), besides the water evaporation below 100°C and main degradation of CD above 300 °C, there is an additional weight loss observed between 150 and 300°C which corresponds to the evaporation of aniline (Figure 5a-i and a-ii).

Figure 4. (a) Time dependent entrapment of aniline and toluene molecules by channel-type γ-CD. (b) XRD diffraction pattern of channel-typeγ-CD samples before and after VOC entrapment tests. Industrial & Engineering Chemistry Research

The evaporation of aniline has shifted to very high temperature when compared to pure aniline because of the inclusion complexation with the CD cavity which the interaction prevents its evaporation. In the case of complexation, the thermal stability of the volatile guest molecule is expected to be increased due to guest−host interaction.8 So, TGA data have proved that the entrapment of aniline is through inclusion complexation with γ-CD. Because, in the case of a physical mixture where VOCs are only bounded outside of the cavity, the evaporation would take place at a much lower temper-ature.36

Similar to the aniline/γ-CD case, additional weight loss which corresponds to evaporation of toluene was observed at

much higher temperatures (150−300 °C) in the TGA

thermogram of the channel-type γ-CD exposed to toluene (toluene/γ-CD;Figure 5a-i and a-ii). The presence of weight loss between 150 and 300 °C and higher thermal stability of toluene is further strong evidence for the complexation of toluene withγ-CD in this sample. A similar TGA thermogram was also obtained where toluene evaporation was recorded between 150 and 300°C for the toluene/channel γ-CD sample in which the exposure of toluene vapor was performed in a 50 mL-volume glass vial (Figure S3).

In brief, TGA confirms that the entrapping of VOC (aniline and toluene) is through inclusion complexation. The TGA can also provide the weight of VOCs entrapped by the channel-type γ-CD. From TGA data, considering that the aniline or toluene

only evaporated between 150 and 300°C, the amount of VOC present in theγ-CD was calculated as ∼13.5% (w/w) and 8.5% (w/w) for aniline and toluene, respectively. The amount of toluene was calculated as∼9.7% (w/w) from the TGA data of the toluene/channel γ-CD sample in which the exposure of toluene vapor was performed in a 50 mL-volume glass vial (Figure S3). Overall, this corresponds to a molar ratio of∼2.1:1 for aniline/γ-CD and ∼1.3:1 for toluene/γ-CD. Although it is not exactly same, thesefindings are consistent with the NMR findings as discussed above, where a higher amount of aniline (144 mg/g) was entrapped when compared to toluene (71 mg/ g) by the channel-typeγ-CD.

We have performed a series of comparative entrapment tests for channel-typeγ-CD to see if there is any selectivity between aniline and toluene to be included inside theγ-CD cavity.Table 1 summarized the experimental pathways and the amount of VOCs in the samples in terms of molar ratio (VOC/CD). Here, three separate experimental environments were created in the desiccator with (i) aniline, (ii) toluene, and (iii) aniline +toluene vapor. Afterward, (i) pristine channel-typeγ-CD and toluene exposed channel-typeγ-CD (toluene/γ-CD) were kept in an aniline environment. (ii) Pristine channel-typeγ-CD and aniline exposed channel-type γ-CD (aniline/γ-CD) were kept in toluene environment. (iii) Pristine channel-typeγ-CDs were kept in an aniline+toluene environment for a 24 h time period. At the end of all these experiments, the amount of VOC in aniline/γ-CD, toluene/γ-CD, and pristine channel-type γ-CD

Figure 5.(i) TGA thermograms and (ii) their derivatives for (a) channelγ-CD, pure aniline, pure toluene, aniline/channel γ-CD (24 h aniline exposure), and toluene/channelγ-CD (24 h toluene exposure); (b) channel γ-CD, activated carbon (AC), VOCs/channel γ-CD and VOCs/AC. Industrial & Engineering Chemistry Research

was calculated by1_{H NMR studies. We found out that, in the}

case of the aniline environment, the entrapment molar ratio of aniline/γ-CD is (2.01 ± 0.14):1.00 and (1.86 ± 0.11):1.00 for pristine channel-type γ-CD and toluene/γ-CD, respectively, and toluene/γ-CD ratio is only (0.21 ± 0.01):1.00 for the toluene/γ-CD sample. This indicates that only 20% of toluene molecules remained in theCD cavity, and the rest of the γ-CD cavity was occupied by aniline molecules with a much higher molar ratio ([1.86± 0.11]:1.00) when the sample was exposed to aniline vapor. For the exact opposite situation, in a toluene environment, the entrapment molar ratio of toluene/ γ-CD is (0.82 ± 0.12):1.00 and (0.92 ± 0.05):1.00 for pristine channel-type γ-CD and aniline/γ-CD, respectively. Moreover, the aniline/γ-CD ratio is (0.17 ± 0.02):1.00 and (0.20 ± 0.02):1.00 for pristine channel-type γ-CD and aniline/γ-CD, respectively. This indicates that only 10% of aniline molecules remained in theγ-CD cavity, and the rest of the γ-CD cavity was occupied by toluene molecules with a (0.92± 0.05):1.00 molar ratio of toluene/CD in the toluene vapor exposure test. In spite of the toluene vapor environment, it was interestingly observed that the pristine channel-typeγ-CD also captured an aniline molecule which was released from the aniline/γ-CD sample. The time dependent tests we initially performed also indicated that γ-CD tends to form inclusion complexes with aniline and toluene at∼2:1 and ∼1:1 molar ratios (VOC/CD), respectively. In brief, the comparative test results supported this finding by demonstrating similar trends for the aniline and toluene vapor environment. Additionally, the pristine channel-type γ-CD was exposed to aniline+toluene vapor, and the VOC/CD molar ratio was calculated as (1.58± 0.06):1.00 and (0.25 ± 0.01):1.00 for aniline and toluene, respectively. As clearly seen, even in the mixed vapor, a higher amount of aniline was entrapped from the desiccator compared to toluene; even more toluene was expected in the environment since it has a more volatile nature (higher vapor pressure) than aniline. In brief, these results suggested the more favorable inclusion complex formation between aniline andγ-CD along with higher entrapment efficiency when compared to toluene. We can also

conclude that the channel-type γ-CD enables the selective entrapment of aniline over toluene vapor from the surrounding area. As discussed in the following section below, we also performed computational modeling studies in order to understand the different complexation affinity for aniline and toluene byγ-CD cavity.

As is known, activated carbon (AC) is one of the most commonly used adsorbent materials for the removal of VOCs from the environment.37 On the other hand, the handling of AC material is a challenge. The AC materials are generally integrated into solid support, and they need an energy intensive regeneration process after their usage. All these drawbacks create problems during the practical applications of AC materials; therefore, easy-to-use, cost-effective, and biobased CD-based adsorbent materials could be an alternative to AC.38 Hence, we have also performed a comparative study by using AC. Here, we have exposed AC to the aniline+toluene mixture environment, and then we evaluated the results by using TGA. TGA measurements suggested that the channel-typeγ-CD and AC entrapped 11.3% and 14.0% (w/w) of VOC molecules from the environment with respect to total sample amount (Figure 5b). This result revealed that, although AC is one of the most commonly used adsorbents for VOC removal, channel-type γ-CD could also entrap VOC molecules as efficiently as AC, in spite of the extremely high specific surface area of AC (600−800 m2/g) when compared to channel-typeγ-CD (1.14 m2_{/g). Eventually, our results suggest that channel-typeγ-CD}

might be a better alternative to AC as an adsorbent for VOC removal due to its biobased sustainability, being a white-colored powder, and nontoxic nature without a burden to the environment.

Computational Modeling of CD Complexation with VOCs. In order to elucidate the inclusion process of guest molecules (aniline and toluene) within the γ-CD cavity, we consider the structure and energetics of the inclusion complexes. First, the initial structures ofγ-CD,35aniline, and toluene are fully optimized in vacuum. The lowest energy conformations of guest molecule dimers are also found. The obtained results are consistent with recent spectroscopic studies in terms of binding energy and geometrical conformation of the dimer.39,40Since the 2:1 molar ratio is observed for aniline in the experimental part of the study, the dimer of two guest molecules is introduced into the cavity of γ-CD for a more proper comparison (Figure 6). The various locations and the complexation energy (E_comp) for the lowest energy orientations are calculated as

= + − −

E_comp E_CD E_{dimer guest} E_IC

where ECD, Edimer‑guest, and EIC are the total energies ofγ-CD,

the guest dimer (aniline or toluene), and their inclusion complex, respectively. The results are summarized inTable 2. According to the obtained results, all energies are comparable and do not indicate any significant difference.

Thus, to understand the inclusion propensity ofγ-CD toward aniline and toluene, an additional guest molecule is initially placed 6 Å away from the center of theγ-CD cavity and then moved towardγ-CD IC in 0.5 Å steps as shown inFigure 6. At each moving step, all of the system is optimized except the coordinates of the incoming guest molecule in the moving direction, allowing any possible conformational changes. Remarkably, the incoming guest molecule triggers different conformational responses depending on the type of existing

dimer in γ-CD. When an additional aniline molecule

Table 1. VOC Entrapment Tests for Pristine Channel-type

γ-CD and VOC Exposed Channel-typeγ-CD (Toluene/γ-CD

and Aniline/γ-CD)a VOC exposure sample aniline/CDb (molar ratio) toluene/CDb (molar ratio) total VOC/CDb (molar ratio) aniline channel-type γ-CD 2.01± 0.14 2.01± 0.14 toluene/ γ-CDc 1.86± 0.11 0.21± 0.01 2.08± 0.11 toluene channel-type γ-CD 0.17± 0.02 0.82± 0.12 0.98± 0.11 aniline/ γ-CDd 0.20± 0.02 0.92± 0.05 1.12± 0.06 aniline +toluene channel γ-CD 1.58± 0.06 0.25± 0.01 1.82± 0.07 a_{The amount of VOC in the samples in terms of molar ratio (VOC/}

CD) after 24 h of exposure to aniline or toluene or aniline+toluene (1:1, v/v) vapor. The molar ratio of VOC/CD was calculated from1_H NMR. All entrapment experiments were repeated three times (n = 3).

b_{The molar ratio of CD is 1:00.}c_{The 24 h toluene exposed}

channel-typeγ-CD (toluene/γ-CD); the initial molar ratio of toluene is 0.98 ± 0.11 before the entrapment test.dThe 24 h aniline exposed channel-typeγ-CD (aniline/γ-CD); the initial molar ratio of aniline is 2.20 ± 0.07 before the entrapment test.

approaches the (toluene dimer)-γ-CD-IC, the toluene dimer tends to leave outγ-CD together, as shown inFigure 6a. This result suggests that toluene molecules inγ-CD can be replaced by aniline when additional aniline molecules are present. However, when we repeat the same procedure for an additional toluene molecule approaching the (aniline dimer)-γ-CD-IC, the aniline dimer moves apart at the first place, trying to allow space for toluene in the cavity. This action also slightly deforms γ-CD. If toluene is further pushed inside, one of the aniline molecules tends to move out of theγ-CD leaving its pair aniline with toluene inγ-CD as illustrated inFigure 6b. Thus, it makes it harder to replace aniline molecules with toluene when compared to the previous case but can occur to some extent. Accordingly, although binding of the guest dimer to γ-CD is mainly governed by van der Waals interactions, the superiority of theπ−π interaction between aromatic guest dimers plays a key role for substitution. For instance, the toluene dimer energy is 3 kcal/mol, which is almost double that of the aniline dimer energy (Table 2) suggesting a higher π−π interaction for the toluene dimer. Briefly, our computational modeling studies show that both aniline and toluene can form 2:1 CD-IC with a very similar complexation energy; however, as it is also observed from the results, aniline is more insistent to be located in the CD cavity compared to toluene. In addition, the aniline dimer is not in demand to be replaced by toluene molecules, while toluene dimers tend to be replaced by an aniline molecule. Actually, this situation also clarifies the aniline

selectivity by theγ-CD cavity during the entrapment studies. When we consider the molecular properties of aniline and toluene, we observe that toluene molecules (log P: 2.39) are more hydrophobic compared to aniline (log P: 1.01).41 Therefore, we may expect a more desirable interaction between the CD cavity and toluene molecules compared to between the aniline and CD cavity, because of more likely hydrophobic interactions between the aromatic ring and CD cavity. On the other hand, inclusion complexation with CD molecules is also governed by van der Waals interactions, hydrogen bonding, release of the high energy water, and a decrease in the strain energy in the CD cavity.42The presence of a hydrogen bonding substituent on the guest aromatic rings leads to possible hydrogen bonds between CD and the guest molecule.43When we checked the PSA (polar surface area) values of the concerned VOCs, we clearly observed that aniline molecules (PSA: 26.32 Å2) contain polar sides as distinct from toluene (PSA: 0 Å2), which may enable aniline to form hydrogen bonds with CD molecules in addition to other interactions.42,43So, the 2:1 stoichiometric tendency of aniline/γ-CD might also be explained by this favorable molecular structure of aniline which may facilitate an easier localization for aniline into the CD cavity compared to toluene. Since there is not so much of a difference between the aniline (95.3 Å3_{) and toluene (100 Å}3₎

molecular volumes, size match variations cannot be created during inclusion complexation.41

■

In this study, a channel-type γ-CD crystal was successfully obtained by a simple reprecipitation method as a white-colored andfine-powder form. The molecular entrapment performance of channel-type γ-CD was investigated by exposing them to VOCs: aniline and toluene vapor. We have observed that, while

channel-type γ-CDs are able to entrap VOCs from the

surroundings, as-received cage-type γ-CD could not remove VOCs from the same environment.1H NMR and TGA results revealed that the aniline encapsulation capability (∼2:1 aniline/ CD molar ratio) of channel-typeγ-CD was significantly higher compared to that of toluene encapsulation (∼1:1 toluene/CD molar ratio). Even channel-type γ-CD demonstrates selective entrapment for aniline molecules in the VOCs’ mixture environment. The computational modeling studies also support our experimental data by indicating the more dominant tendency of CD cavities for maintaining the interaction with aniline compared to toluene molecules. TGA measurements prove the inclusion complex formation between CD and VOCs where a much higher evaporation temperature range (150−300 °C) for VOCs was recorded in the case of VOC/channel γ-CD samples. Although channel-type γ-CD prominently have a lower surface area (1.14 m2_{/g) compared to activated carbon}

(AC) (600−800 m2_{/g), channel-typeγ-CD (11.3% (w/w) with}

respect to sample) removed VOC molecules (aniline+toluene) as efficiently as AC (14% (w/w) with respect to the sample). In short, our findings suggest that “channel-type” γ-CD crystals offer effective and selective filtering possibilities for the removal of VOCs for air filtration. Being a starch-based biorenewable cyclic oligosaccharide in the form of a white powder, the use of “channel-type” γ-CD crystals can contribute to development of new sustainablefiltering materials for VOC removal/treatment as an alternative to carbon-based materials or any other syntheticfiltering materials.

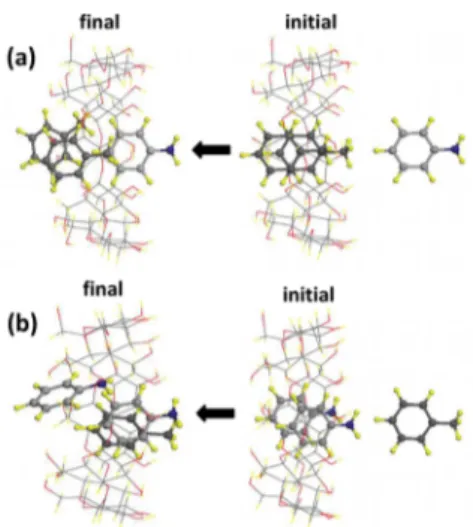

Figure 6.Side view of optimized structures of the guest (aniline and toluene) dimer and γ-CD inclusion complexes (IC) with incoming extra guest molecules toward it. Initial andfinal configurations when (a) an additional aniline molecule approaches toluene−toluene/γ-CD IC and (b) when an additional toluene molecule approaches aniline− aniline/γ-CD IC. Gray, red, and yellow represent carbon, oxygen, and hydrogen atoms, respectively. For a better illustration, dark and light gray spheres represent carbon atoms of toluene and aniline molecules, respectively.

Table 2. Binding Energies of Pristine Guest Dimers and Complexation Energies of Guest Dimers withinγ-CD Cavitya

aniline−

aniline toluene−toluene aniline−toluene

Ecomp(kcal/mol) (2:1) 22.37 25.62 25.30

Edimer(kcal/mol) 1.61 3.0 2.07

a_{(2:1) denotes the molar ratio of guest molecule/γ-CD.}

■

*
