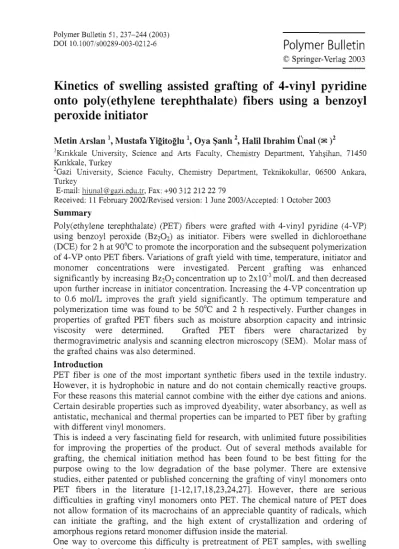

DO1 10.1007/~00289-003-0212-6
Polymer B u I I et i n
0 Springer-Verlag 2003
Kinetics of swelling assisted grafting of 4-vinyl pyridine onto poly(ethy1ene terephthalate) fibers using a benzoyl peroxide initiator
Metin Arslan
',
Mustafa Yigitoglu',
Oya van11',
Halil Ibrahim Unal (m )2'Inkkale University, Science and Arts Faculty, Chemistry Department, Yah$han, 7 1450 Irikkale, Turkey
2Gazi University, Science Faculty, Chemistry Department, Teknikokullar, 06500 Ankara, Turkey
E-mail: hi~inatlQtrazi.edt~.tr, Fax: +90 312 212 22 79
Received: 11 February 2002iRevised version: 1 June 2003/Accepted: 1 October 2003 Summary
Poly(ethy1ene terephthalate) (PET) fibers were grafted with 4-vinyl pyridine (4-VP) using benzoyl peroxide (Bz202) as initiator. Fibers were swelled in dichloroethane (DCE) for 2 h at 90°C to promote the incorporation and the subsequent polymerization of 4-VP onto PET fibers. Variations of graft yield with time, temperature, initiator and monomer concentrations were investigated. Percent grafting was enhanced significantly by increasing BzzOz concentration up to 2 ~ 1 0 . ~ mol/L and then decreased upon further increase in initiator concentration. Increasing the 4-VP concentration up to 0.6 mol/L improves the graft yield significantly. The optimum temperature and polymerization time was found to be 50°C and 2 h respectively. Further changes in properties of grafted PET fibers such as moisture absorption capacity and intrinsic viscosity were determined. Grafted PET fibers were charactarized by thermogravimetric analysis and scanning electron microscopy (SEM). Molar mass of the grafted chains was also determined.
Introduction
PET fiber is one of the most important synthetic fibers used in the textile industry.
However, it is hydrophobic in nature and do not contain chemically reactive groups.
For these reasons this material cannot combine with the either dye cations and anions.
Certain desirable properties such as improved dyeability, water absorbancy, as well as antistatic, mechanical and thermal properties can be imparted to PET fiber by grafting with different vinyl monomers.
This is indeed a very fascinating field for research, with unlimited future possibilities for improving the properties of the product. Out of several methods available for grafting, the chemical initiation method has been found to be best fitting for the purpose owing to the low degradation of the base polymer. There are extensive studies, either patented or published concerning the grafting of vinyl monomers onto PET fibers in the literature [ I-12,17,18,23,24,27]. However, there are serious difficulties in grafting vinyl monomers onto PET. The chemical nature of PET does not allow formation of its macrochains of an appreciable quantity of radicals, which can initiate the grafting, and the high extent of crystallization and ordering of amorphous regions retard monomer diffusion inside the material.
One way to overcome this difficulty is pretreatment of PET samples, with swelling solvents before the grafting procedure, to open up the physical structure of the polymer, allowing the monomer and initiator to enter in sufficient quantities [7,14-171.
Osipenko and Martinovicz [8] swelled PET films and fibers by treatment with dichloroethane (DCE) and reported that preswelling leads to an increase in the degree
of grafting of acrylic acid (AA). $an11 et al. used [17] dimethyl formamide, morpholine, acetic acid, n-butanol, DCE and dimethyl sulfoxide (DMSO) as swelling agents in the graft polymerization of acrylamide (AAm) onto PET fibers using cerium ammonium nitrate as initiator. Unal and $an11 [16] pretreated the PET films with DMSO before the graft copolymerization of 4-vinyl pyridine onto PET films. $an11 and Pulat [18] reported grafting of
AAm
onto PET films using benzoyl peroxide (Bz202) initiator after swelling the films in DMSO, pyridine, DCE, DCE/H20 (20180 v/v). Unal et al. [I91 studied graft copolymerization of AAm onto 1,1,2,2 tetrachloroethane (TCE) preswelled PET films.There are only a few studies in the literature concerning the grafting of vinyl pyridines onto PET, which are stimulating materials for the preparation of water-attractive films and fibers. Shalaby and colleaques [20-211, Hebeish and coworkers [9,21,26] were grafted 2-methyl-5-vinyl pyridine using y-rays or peroxides onto PET fibers and analyzed the moisture gain and dyeability of fibers. Unal and $an11 [16] studied the grafting of 4-vinyl pyridine on PET films after swelling of the films in DMSO for 1 h at 140°C and reported significant enhancement in percent grafting due to the use of swelling agent.
The present paper deals with a view of studying factors affecting the graft copolymerization of 4-VP onto PET fibers, for the purpose of preparing suitable grafted PET fibers for the use of adsorption of heavy metal ions fiom industrial waste water.
Experimental Materials
The PET fibers (I26 denier, 28 flaments) used in these experiments were provided by SASA Co. (Adana, Turkey). The fiber samples were Soxhlet-extracted for 6 h with acetone and dried in a vacuum oven at ambient temperature. 4-VP was purified by vacuum distillation at 2 mmHg and 65°C. Bz202 was twice precipitated ffom chloroform in methanol and dried in a vacuum oven for 2 days. Other reagents were used as supplied. All reagents were Merck products.
Swelling Procedure
A temperature controlled oil bath was used for heating. The fiber samples were dipped into DCE for 2 h at 90°C. After treatment, solvent on the fibers was removed by blotting between a filter paper and put into the polymerization medium.
Polymerization Procedure
Polymerization was carried out in a thermostated 100 mL tubes under reflux. The mixture containing the PET fiber sample (0.3 k O.OIg), monomer and Bz202 at required concentration in 2 mL acetone was made up to 20 mL with deionized water.
The mixture was immediately placed into the water bath adjusted to the polymerization temperature. At the end of the predetermined polymerization time, fibers were removed ffom the polymerization medium and residual solvent, monomer and homopoly (4-VP) were removed by Soxhlet-extracting the PET fibers in methanol for 96 h. The grafted fibers were then vacuum-dried at 50°C for 72 h and weighed.
The graft yield (G Y)was calculated fiom the weight increase in grafted fibers as follows :
Where w, and wg denote the weights of the original (ungrafted) and grafted PET fibers, respectively.
G Y (%) = [(wg-w1 )/wJ x 100 (1)
Homopoly(4-VP) formed in the grafting medium was determined from the grafting efficiency (G E) according to the following equiation:
Where wh is the weight of homopolymer.
The rate of grafting (Q was calculated by using the formula as follows :
Where M is the molar mass of the monomer ; t is the polymerization time (s); and V is the volume (mL) of the overall reaction medium.
Determination of Intrinsic Viscosity
Intrinsic viscosity measurements were carried out for both 4-VP grafted PET fibers and homopoly(4-VP) (formed in the grafting medium) in m-cresol and in ethanol, respectively, using a Ubbelohde capillary flow viscometer at 25.0 k 0.1"C.
Determination of Water Absorption Capaciv
PET fibers were immersed in distilled water at 20°C for 48 h, blotted between a filter paper, and weighed. They were then vacuum dried at 50°C for 72 h and weighed again. Water absorption capacity was determined kom the weight gain of the fibers.
FTIR Spectrum
Fourier transform infrared (FTIR) spectra of 4-VP grafted PET fibers were recorded using a Mattson model 1000 FTIR spectrophotometer with KBr discs.
Differential Scanning Calorimetvy
Thermal analyses were performed with General V4.1C Dupont 2000 Differential Scanning Calorimeter (DSC). Sample weights ranged from 3.0 to 9.0 mg. The samples were heated from 30 "C to 300 "C at a heating rate of 10 "C/min. The intercept points of slopes were taken as glass transition temperatures (Tg).
Scanning Electron Microscopy
SEM studies of the original and 4-(VP) grafted PET fibers, coated with gold, were performed using a JEOL Model JSM 5600 microscope.
Result and Discussion Effect of Polymerization Time
Grafting of PET fibers was carried out at various polymerization times. As it is reflected from Fig.1, graft yield progressively increases with the increase in polymerization time up to 2 h then levels off reaching a 55% saturation grafting value.
This may be attributed to the formation of a diffusion barrier, an increase in the medium viscosity due to the homopoly(4-VP) formed in the polymerization medium, as reflected 6om the grafting efficiency curve in Fig. 1. Similar results observed in the graft copolymerization of AAm [ 12,17,18], methyl methacrylate [23], glycidyl methacrylate [24] on PET fibers and n-vinyl-2-pyrrolidone (n-VP) [25], and AAm (19), 4-VP [ 161 on PET films.
Effect of Temperature
The effect of temperature on the graft copolymerization of 4-VP onto PET fibers was studied by varying temperature between 1575°C (Fig. 2). It is clear that the graft yield increases with increasing the temperature fkom 15°C to 50°C; further increase in the temperature decreases the graft yield. The enhancement in grafting upon raising the polymerization temperature could be ascribed to higher rate of Bz202 decomposition, and possible reaction between the growing homopolymer chain radical with PET. It also increases swellability of PET fiber and facilitates the diffusion of monomer into
G E (%) = [(w~-w~)/(w~-w,)
+
wh] x 100&
= [(W,-W~ ) x 1000]/[ M x t x V](2)
(3)
PET matrix, thus resulting in increased rates of grafting. Whereas, lowering of grafting by raising the temperature above 50°C could be due to the favoured chain termination reactions and increase in the formation of homo(4-W), as reflected from the grafting efficiency curve in Fig. 2. Similar results were obtained in the Bz202 initiated graft copolymerization of AAm on PET fibers [ 181.
Effect of Initiator Concentration
Fig. 3 shows the effect of Bz202 concentration on the rate of grafting as the Bz202 concentration increased. The graft yield increases significantly by increasing the Bz202 concentration up to 2.0~10” M, and then falls down upon further increase in initiator concentration
.
This is a typical behaviour reported in many other studies .~1-1 3,17,23,24].
I
0 50 100 150 200 3 0 4 0 s o m 7 0 8 0
-3 T=w-*QC)
Figure 1. Variation of graft yield (+) Figure 2. Variation of graft yield (+) and and grafting efficiency ( 0 ) with grafting efficiency ( 0 ) with temperature : polymerization time: [4-VP] = 0.8 M; [4-VP] = 0.8 M; @3z202J = 3.0~10” M; t
1 8 ~ 2 0 2 1 = 3 . 0 ~ 1 0 ” M; T = 55 “C
The enhancement of grafting by increasing the Bz202 concentration to a certain limit implies that, primary fi-ee radical species (C,H,COO) and/or secondary fi-ee radical species (C6H5) may participate essentially in the direct abstraction of hydrogen atom from the PET backbone to yield a polyester macroradical capable of initiating the grafting. Above this limit, the termination process with the growing polymer chains, the combination of the fi-ee radical species and the termination process with the polyester macroradicals prevail over the initiation process.
Effect of Monomer Concentration
Variation of grafting yield with monomer concentration was studied in the range of 0.05-0.8 M. The percentage of grafting was found to increase steadily with the monomer concentration up to 0.6 M then levelled off (Fig.4). As the monomer concentration increases, the diffusion of monomer molecules into the PET structure increases, leading to a higher grafting yield. The levelling off of the grafting after saturation graft yield (70%) could be associated with depletion of the available 4-VP due to the simultaneous increase in the homopolymerization rate with growing 4-VP concentration in the polymerization medium. In addition, the homopoly(4-VP) accumulated in the reaction medium increases the medium viscosity and the monomer diffusion into the PET structure becomes more difficult. Similar results obtained in our previous study on the graft copolymerization of 4-VP onto PET films [ 161.
Kinetics of Grafting
It is obvious that the mechanism of the graft copolymerization is quite complex due to the propagation, termination and homopolymerization reactions. However, kinetically,
= 2 h.
0
0 2 4 6 8 10
[Bz2O2]r1O3 (mol/L)
Figure 3. Effect of initiator concentration on graft yield :
[4-VP] = 0.6 M, T = 50°C; t = 2 h.
-
75 60g 5
45T g 30
8
15 00.0 0.2 0.4 0.6 0.8 1.0
[4-VP] (mol/L)
Figure 4. Effect of monomer
concentration on graft yield : [Bz202] =
3 . 0 ~ 1 0 - ~ M; T = 50°C; t = 2 h.
the rate of graft copolymerization (RJ with respect to monomer and initiator concentrations can be written as follows [25].
where m, and n can be experimentally determined. The experimental results showing the change of the initial rate of graRing with BzzO2 concentration (Table 1) in the range of 0.0 to 2.0~10" M (keeping the concentration of 4-VP constant) were related by plotting Log$ vs. Log[Bz202]. Fig. 5 shows that the rate of grafting was proportional to 1.0 power of Bz202 concentration. Similarly, at constant Bz202 concentration the initial rates of grafting obtained at various 4-Vp concentrations (Table 2) were related (Fig 6). Fig. 6 shows that the rate of grafting was proportional to the 1.5 power of 4-VP concentration in the range of 0.05-0.6 M 4-Vp concentration. Therefore, the grafting rate of 4-W and PET fibers using the BzZ02 initiator can be written as
Table 1. Kinetic data showing the change of the initial rate of grafting with Bz202 concentration
$ = k[4-VPIm [Bz~OZ]~ (3)
&
= k[4-VPI1 [Bz202]'.' (4)[4-W]=O.6 rno1L-I; T=50 'C; t-2 11
Table 2. Kinetic data showing the change of the initial rate of grafting with 4-VP concentrat ion
pz202]=3x10" molL-'; T=50 O C ; t=2 h
1
.o
0.0j
, I I0.4 0.8 1.2 1.6 2.0 Log (4-VP]+2
Figure 6. Rates of grafting
(RJ
vs.[4-W]: [Bz202] = 3.0~10” M;
T = 50°C; t = 2 h
2.5 3.0 3.5 4.0 4.5
L%[BzzOzl+7
Figure 5. Rates of grafting
(RJ
vs.[ B z ~ O ~ ] : [4-W] = 0.6 M; T = 50°C;
t = 2 h .
There are no kinetic data concerned with the grafting of 4-VP using Bz202 in the literature. However, many researchers have investigated the kinetics of the grafting of various vinyl monomers onto PET fibers using different initiators [9,19,25-271. As mentioned in the given references above, the dependence of the rate of grafting on initiator and monomer concentrations varies with the types of initiator and monomer grafted onto PET backbone.
Intrinsic Viscosity Measurements
Intrinsic viscosity [q], data obtained from 4-W-grafted PET fibers are plotted in Fig.
7. As reflected from the graph, intrinsic viscosity was increased with the increasing grafl yields, showing an evidence of grafting. Similar results were observed during the grafting of 4-vinylpyridine [16] and n-vinyl-2-pyrrolidone onto PET films [25].
Viscosity average molar mass of the grafted homopoly(4-VP) chins were determined to be 104.000 g/mol from the Mark-Houwink equation taking K and a as 25 x mL/g and 0.68 [29], respectively.
2.0
,
I0.0 ~
-
, I0 20 40 60 80
Graft Yield (YO) Figure 7. Variation of intrinsic viscosity
with graft yield.
-
50s
40.-
0p
302
10g o
5: 20 a
I
0 20 40 60 80
Graft Yield (YO) Figure 8. Change of water absorption capacity with graft yield.
Water Absorption Capacity
As seen fiom Fig. 8, water absorption capacity of 4-VP grafted PET fiber is increased with increasing grafting yield due to the introduction of hydrophilic units.
Differential Scanning Calorimetry
Thermal analysis results are given in Table 3. As seen from the table, as the amount of grafted 4-VP increases, T, of the grafted PET fiber also increases up to 43 % grafting yield and then almost remained constant.
% Grafr Yield TP
ec)
Orijinal PET 81.05
Figure 9. FTIR spectrum of 4-VP grafted PET fiber.
*
Homopoly( 4-VP)26
43
Microstructure of Grafted Copolymers
The scanning electron micrographs of ungrafted and 4-VP grafted (25%) PET fibers are shown in Figure 10. It is clear from the SEM results that, the ungrafied PET fiber surface (Fig. 10.a) has a smooth and relatively homogeneous appearance. The grafted side chain, 4-VP, seems to form microphases attached to the PET back-bone and caused a heterogeneous appearance in the graft copolymer (Fig. 10.b), and showing another proof of grafting.
90.63 141.26
145.07 'I
Figure 10. SEM micrographs of (a) ungrafted (500x) and (b) 4-VP grafted (SOOX) PET fibers.
60 146.80
Conclusions
Maximum percent grafking (70%) was obtained when the polymerization was carried at the following conditions: [Bz202] = 2.0~10” M; [4-VP] = 0.6 M; t = 2 h and T =
50°C. The rate of grafting was found to be proportional of the 1.5 and 1 .O powers of 4-
VP
and Bzz02 concentrations, respectively. It was recognized that, both water absorption capacity, intrinsic viscosity and glass transition temperature increased with the increasing graft yield.Acknowledgements: We are gratefbl to the Kirikkale University and Gazi University Research Funds (Grant No: 05/2000-12) for the financial support of this work.
References 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
Hebeish A, Shalaby SE, Bayazeed AM, (1981) J. Appl. Polym. Sci. 26:3253 Pradhan AK, Pati NC, Nayak PL (1982) Ibid. 27:213 1
Lenka S, Nayak PL, Tripathy AK (1982) J. Macromol. Sci. Pure and Appl.
Chem. A18(6):987
Lenka S (1983) J. Polym. Sci., Polym. Let. Ed. 21:281
Mishra S, Nayak PL, Sahu G (1982) J. Appl. Polym. Sci. 27:3867 Lenka S, Nayak PL, Mishra MK, Tripathy AK (1981) Ibid. 26:2773 Hsieh Y, Pugh C, Ellison MS (1984) Ibid. 29:3547
Osipenko IF, Martinovich Vl(1990) Ibid. 39:935
Shalaby SE, Bayazeed
AM,
Hebeish A (1 978) Ibid. 22: 1359 Pradhan AK, Pati NC, Nayak PL (1982) Ibid. 27: 1873Abdel-bary EM, Sarhan AA, Abdel-Razik HH (1 988) Ibid. 35:439 Saqak M, Pulat E (1989) Ibid. 33:539
Hebeish A, Shalaby SE, Bayazeed AM (1982) Ibid. 27: 197 Uchida E, Uyama Y , Ikada Y (1989) J. Polym. Sci. A27:527 Xue J, Wilkie CA (1 995) Ibid. 3 3 : 10 19
Unal HI, Sanli 0 (1 996) J. Appl. Polym. Sci. 62: 1 161
Sank 0, Aytemiz S, Unal HI (1997) J. Macromol. Sci. Pure and Appl. Chem.
A34(6): 1003
$an11 0, Pulat E (1993) J. Appl. Polym. Sci. 47:l
Unal HI, Rostamlou M, Sanh 0 (1998) J. Macromol. Sci. Pure and Appl. Chem.
A3 5(9): 154 1
Shalaby S.E, Allam E, Abouzeid N.Y, Bayazeed AM (1976) J. Appl. Polym. Sci.
20:2565
Shalaby SE, Bayazeed AM, Hebeish A (1978) Ibid. 22:1359 Hebeish A, Shalaby SE, Bayazeed A.M (1979) Ibid. 23:3051 Hebeish A, Shalaby SE, Bayazeed AM (1981) Ibid. 26:3245 Hebeish A, Shalaby S, Wally A, Bayazeed A (1983) Ibid. 28:303 Unal HI, CoSkun R, Sanh 0, Yigitoglu M (1997) Ibid. 64:1437
Hebeish A, Shalaby SE, El Shahid MF (1978) Angew. Makromol. Chem. 66:139 Somanathan N, Balasubramaniam B, Subramaniam V (1995) J. Macromol. Sci.
Pure and Appl. Chem. A32(5): 1025
Uchida E, Uyama Y, Iwata H, Ikada Y (1990) J. Polym. Sci. Polym. Chem. Ed.
28:2837
Brandrup J, Immergut E.H (1975) Polymer Handbook, Second edition, Ed: John Wiley and sons, NY, pp. IV-20.
