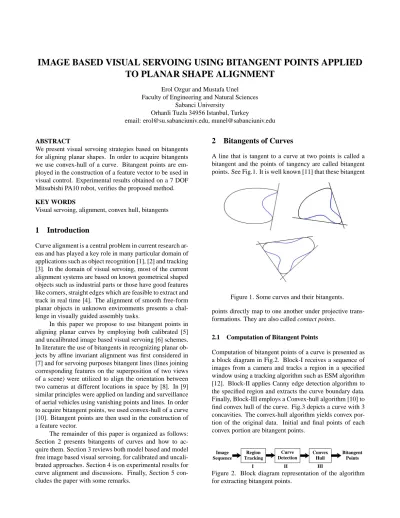

IMAGE BASED VISUAL SERVOING USING BITANGENT POINTS APPLIED
TO PLANAR SHAPE ALIGNMENT
Erol Ozgur and Mustafa Unel Faculty of Engineering and Natural Sciences
Sabanci University
Orhanli Tuzla 34956 Istanbul, Turkey
email: erol@su.sabanciuniv.edu, munel@sabanciuniv.edu
ABSTRACT
We present visual servoing strategies based on bitangents for aligning planar shapes. In order to acquire bitangents we use convex-hull of a curve. Bitangent points are em-ployed in the construction of a feature vector to be used in visual control. Experimental results obtained on a 7 DOF Mitsubishi PA10 robot, verifies the proposed method. KEY WORDS
Visual servoing, alignment, convex hull, bitangents
1
Introduction
Curve alignment is a central problem in current research ar-eas and has played a key role in many particular domain of applications such as object recognition [1], [2] and tracking [3]. In the domain of visual servoing, most of the current alignment systems are based on known geometrical shaped objects such as industrial parts or those have good features like corners, straight edges which are feasible to extract and track in real time [4]. The alignment of smooth free-form planar objects in unknown environments presents a chal-lenge in visually guided assembly tasks.
In this paper we propose to use bitangent points in aligning planar curves by employing both calibrated [5] and uncalibrated image based visual servoing [6] schemes. In literature the use of bitangents in recognizing planar ob-jects by affine invariant alignment was first considered in [7] and for servoing purposes bitangent lines (lines joining corresponding features on the superposition of two views of a scene) were utilized to align the orientation between two cameras at different locations in space by [8]. In [9] similar principles were applied on landing and surveillance of aerial vehicles using vanishing points and lines. In order to acquire bitangent points, we used convex-hull of a curve [10]. Bitangent points are then used in the construction of a feature vector.
The remainder of this paper is organized as follows: Section 2 presents bitangents of curves and how to ac-quire them. Section 3 reviews both model based and model free image based visual servoing, for calibrated and uncali-brated approaches. Section 4 is on experimental results for curve alignment and discussions. Finally, Section 5 con-cludes the paper with some remarks.
2
Bitangents of Curves
A line that is tangent to a curve at two points is called a bitangent and the points of tangency are called bitangent points. See Fig.1. It is well known [11] that these bitangent
Figure 1. Some curves and their bitangents. points directly map to one another under projective trans-formations. They are also called contact points.
2.1 Computation of Bitangent Points
Computation of bitangent points of a curve is presented as a block diagram in Fig.2. Block-I receives a sequence of images from a camera and tracks a region in a specified window using a tracking algorithm such as ESM algorithm [12]. Block-II applies Canny edge detection algorithm to the specified region and extracts the curve boundary data. Finally, Block-III employs a Convex-hull algorithm [10] to find convex hull of the curve. Fig.3 depicts a curve with 3 concavities. The convex-hull algorithm yields convex por-tion of the original data. Initial and final points of each convex portion are bitangent points.
Region Tracking Curve Detection Convex Hull Bitangent Points I II III Image Sequence
Figure 2. Block diagram representation of the algorithm for extracting bitangent points.
(a) (b)
Figure 3. (a) a curve and its convex-hull, (b) convex data portions and the bitangent points
3
Visual Servoing
3.1 Background
Let
θ
∈ℜn, s ∈ℜmand r ∈ℜ6denote the vectors of jointvariables of a robot, image features obtained from visual sensors and the pose of the end-effector of the robot, re-spectively. The differential relation between
θ
and r with respect to time implies˙r = JR(
θ
) ˙θ
(1)where JR(
θ
) =∂
r/∂θ
∈ℜ6×nis the robot Jacobian whichdescribes the relation between the robot joint velocities and the velocities of its end-effector in Cartesian space. The re-lation between s and r is given as s = s(r) and its differen-tiation with respect to time yields
˙
s = JI(r)˙r (2)
where JI(r) =
∂
s/∂
r ∈ℜm×6is the image Jacobian which describes the differential relation of the image features, and pose of the robot end-effector, and the ˙r is the camera ve-locity screw (Vc). The composite Jacobian is defined asJ = JIJR (3)
where J ∈ℜm×n is a matrix which is the product of im-age and robot Jacobian. Thus, the relation between joint coordinates and image features is given by
˙
s = J ˙
θ
(4)3.2 Calibrated Visual Servoing
Let s∗∈ℜmbe the constant desired feature vector and de-fine the error e ∈ℜmon image plane as e = s − s∗. Then
the control problem can be formulated as follows: design an end-effector velocity screw u in such a way that the error disappears, i.e. e → 0.
The image Jacobian of a single point feature vector s = [x, y]T for a fixed-camera system is given by:
µ ˙ x ˙ y ¶ = µ 1 Z 0 −x Z −xy (1 + x2) −y 0 1Z −yZ −(1 + y2) xy x ¶ | {z } Jxy Vc (5) where x =xp− xc fx , y =yp− yc fy (6) and (xp, yp) are pixel coordinates of the image point and (xc, yc) are the coordinates of the principle point, and ( fx, fy) are effective focal lengths of the vision sensor, respectively.
By rearranging and differentiating (6), and writing in matrix form, we get the following expression
µ ˙ xp ˙ yp ¶ = µ fx 0 0 fy ¶ µ ˙ x ˙ y ¶ (7) and substituting (5) into (7), the following equation appears
µ ˙ xp ˙ yp ¶ = µ fx 0 0 fy ¶ Jxy | {z } JI Vc (8) ˙ s = JIVc (9)
where JIis the pixel-image Jacobian. In eye-to-hand case, the im-age jacobian has to consider the mapping from the camera frame onto the robot control frame. This relationship is given by the robot-to-camera transformation, denoted by:
Vc= TVR (10)
where VRis the end-effector velocity screw in robot control frame. The robot-to-camera velocity transformation T ∈ℜ6×6is defined as below T = µ R [t]xR 03 R ¶ (11) where [R,t] are being rotational matrix and the translation vector that map camera frame onto robot control frame and [t]x is the skew symmetric matrix associated with vector t.
Substituting (10) into (9), an expression that relates the im-age motion to the end-effector velocity is acquired:
˙
s = JIT
|{z} , ¯JI
VR= ¯JIVR (12)
where ¯JI is the new image Jacobian which directly relates the changes of the image features to the end-effector velocity in robot control frame. Note that if k feature points are taken into account, e.g. s = [x1, y1. . . xk, yk]T, ¯J
I is given by the following stacked image Jacobian ¯ JI= ¯ JI1 .. . ¯ JIk (13)
By imposing ˙e = −Λe an exponential decrease of the error
function is realized. Solving (12), the control for end-effector motion is obtained as follow:
where Λ ∈ ℜ6×6 is a positive constant gain matrix, J¯†
I is the pseudo-inverse of the image Jacobian and VR = ¡
Vx Vy Vz Ωx Ωy Ωz ¢T
.
3.3 Uncalibrated Visual Servoing
Here the composite Jacobian is unknown and it has to be esti-mated dynamically. The error function in the image plane for a moving target at position s∗(t) and an end-effector at position
s(θ) is given as
e(θ,t) = s(θ) − s∗(t) (15) where s∗(t) represents desired image features at time t. The con-trol problem can be formulated as follows: design a concon-troller that computes the velocity of joint variables u in such a way that the error disappears, i.e. e → 0.
3.3.1 Dynamic Jacobian Estimation
Since the system model is assumed to be unknown, a recursive least-squares (RLS) algorithm [6] is used to estimate the compos-ite Jacobian J. This is accomplished by minimizing the following cost function, which is a weighted sum of the changes in the affine model of error over time,
εk= k−1
∑
i=0 λk−i−1k∆ mkik2 (16) where ∆mki= mk(θi,ti) − mi(θi,ti) (17) with mk(θ,t) being an expansion of m(θ,t), which is the affine model of the error function e(θ,t), about the kthdata point as follows: mk(θ,t) = e(θk,tk) + ˆJk(θ−θk) + ∂ek ∂t (t − tk) (18) In light of (18), (17) becomes ∆mki= e(θk,tk) − e(θi,ti) −∂ek ∂t (tk− ti) − ˆJkhki, (19)where hki=θk−θi, the weighting factorλ satisfies 0 <λ < 1, and the unknown variables are the elements of ˆJk.
Solution of the minimization problem yields the following recursive update rule for the composite Jacobian:
ˆ Jk= ˆJk−1+ (∆e − ˆJk−1hθ−∂ek ∂t ht)(λ+ h T θPk−1hθ)−1hTθPk−1 (20) where Pk= 1 λ(Pk−1− Pk−1hθ(λ+ h T θPk−1hθ) −1hT θPk−1) (21) and hθ =θk−θk−1, ht = tk− tk−1, ∆e = ek− ek−1, and ek= sk− s∗
k, which is the difference between the end-effector position and the target position at kthiteration. The term ∂ek
∂t predicts the change in the error function for the next iteration, and in the case of a static camera it can directly be estimated from the target im-age feature vector with a first-order difference:
∂ek ∂t ∼ = −s ∗ k− s∗k−1 ht (22)
The weighting factor is 0 <λ ≤ 1 and when close to 1 re-sults in a filter with a longer memory. The Jacobian estimate is used in the visual controllers to determine the joint variablesθk that track the target.
3.3.2 Dynamic Gauss-Newton Controller
The dynamic Gauss-Newton method [6] minimizes the following time varying objective function
E(θ,t) =1 2e
T(θ,t)e(θ,t) (23)
By minimizing above objective function it computes the joint variables iteratively as follows:
θk+1=θk− ( ˆJkTJˆk)−1JˆT k(ek+ ∂ek ∂t ht) (24) Control is defined as uk+1= ˙θk+1= −KpJˆk†(ek+ ∂ek ∂t ht) (25)
where Kp and ˆJk† are some positive proportional gain and the pseudo-inverse of the estimated Jacobian at kthiteration, respec-tively.
4
Experiments
In this section, experimental results are presented both for cali-brated and uncalicali-brated visual servoing to demonstrate the valid-ity of the proposed scheme.
Experiments were conducted with a 7 DOF Mitsubishi PA10 robot arm and a Unibrain Fire-i400 digital camera. The camera was mounted on a tripod in eye-to-hand configuration in order to observe the motion of the end-effctor. The images were digitized at 320 × 240 resolution.The system setup is shown in Fig.4. The visual control and image processing modules were implemented in VC++ 6.0 using OpenCV library and run on P4 2.26GHz with 1GB ram personal computer.
XR Z R YR XC Z C YC
Figure 4. System setup.
Fig. 5 shows a test shape, which is on a plane and rigidly attached to the end-effector. Bitangent points of the shape are acquired using the proposed algorithm in this paper. For visual servoing purposes, either bitangent points or their midpoints, see points denoted by 1, 2 and 3 in Fig. 5, can be used. Unlike bitangent points, which are projective invariant, midpoints are
affine invariant. If the scene’s depth is much less than its dis-tance from the camera, a weak-perspective projection can be as-sumed. Throughout the experiments weak-perspective assump-tion is made and the visual feature vector s is constructed from the midpoints as follows:
s = [x1, y1, x2, y2, x3, y3]T
Figure 5. Test shape and midpoints of bitangent points
In the case of perspective projection, i.e. if the weak-perspective assumption does not hold, one can use bitangent points to construct the visual feature vector.
For alignment task, desired pose of the curve is obtained during an off-line stage by moving the robot in xz-plane of the robot control frame with some Vx, VzandΩyfor a certain time interval. Consequently, the desired feature vector s∗is constructed from this reference pose.
4.1 Calibrated Viual Servoing Results
The parameters fx= 1000, fy= 1000, xc= 160, yc= 120 are obtained by a coarse calibration of the camera and Z = 2000 mm. The robot base frame is positioned at z = 2000 mm in z-axis and
y = 1000 mm in y-axis away from the camera frame. Thus, we
have R = −10 00 −10 0 −1 0 , t = 10000 2000
where R is the rotational matrix and t is the translational vec-tor that are used for the construction of robot-to-camera trans-formation matrix T . The gain matrixΛis tuned asΛi= 0.3 for
i = 1, 2, .., 6. The control input is defined as u =¡ Vx Vz Ωy
¢T
where u consists of the 1stand 3rdcomponents of VRfor the mo-tion in xz-plane and 5thcomponent of VRfor the rotation around
y-axis in robot control frame, respectively. Fig.6 depicts the initial
and the desired images. Fig.7 shows feature trajectories. Align-ment errors and control signals are plotted in Figs.8-9. The norm of the resulting alignment error is found to be less than 1 pixel.
4.2 Uncalibrated Visual Servoing Results
Here we do not need the calibration parameters since the compos-ite Jacobian J ∈ℜ6×3is estimated in a recursive manner. Only 3 joints, namely the 2nd, the 4thand the 6thjoints of PA10 robot are used to steer the end-effector by locking the remaining 4 joints. The control parameters are set asλ= 0.96 and Kp= 0.6. The control input is defined as
Figure 6. Initial and desired images
Figure 7. Feature trajectories on the image plane
0 5 10 15 20 25 30 35 40 45 −100 0 100 200 t (s) error (pixels) Midpoint 1 0 5 10 15 20 25 30 35 40 45 −100 0 100 200 t (s) error (pixels) Midpoint 2 0 5 10 15 20 25 30 35 40 45 −100 0 100 200 t (s) error (pixels) Midpoint 3
Figure 8. Alignment errors
u =¡ Ω2 Ω4 Ω6 ¢T
whereΩ2, Ω4 and Ω6 are the joint velocities. Figs.10-11 de-pict the initial and the desired images, and the feature trajecto-ries on the image plane. Alignment errors and the control signals
0 5 10 15 20 25 30 35 40 45 −300 −200 −100 0 100 t (s) Vx , V z (mm/s)
Translational Control Signals
0 5 10 15 20 25 30 35 40 45 −0.1 0 0.1 0.2 0.3 t (s) Ωy (rad/s)
Rotational Control Signal
Figure 9. Control signals Vx, VzandΩy
are plotted in Figs.12-13, respectively. The norm of the resulting alignment error is found to be less than 1.5 pixel.
Figure 10. Initial and desired images
Figure 11. Feature trajectories on the image plane
4.3 Discussions
In both visual servoing approaches we observed that alignment task errors are less than 1.5 pixels, which corresponds to 5 mm in robot workspace. It can be seen that calibrated approach draws
0 5 10 15 20 25 30 −200 −100 0 100 t (s) error (pixels) Midpoint 1 0 5 10 15 20 25 30 −150 −100 −50 0 50 t (s) error (pixels) Midpoint 2 0 5 10 15 20 25 30 −150 −100 −50 0 50 t (s) error (pixels) Midpoint 3
Figure 12. Alignment errors
0 5 10 15 20 25 30 −4 −2 0 2 t (s) Ω2 (rad/s)
Joint Control Signals
0 5 10 15 20 25 30 −4 −2 0 2 4 t (s) Ω4 (rad/s) 0 5 10 15 20 25 30 −1 0 1 2 t (s) Ω6 (rad/s)
Figure 13. Control signalsΩ2,Ω4andΩ6
more smoother trajectories while the uncalibrated one shows am-biguous behaviour until the Jacobian converges and the end-effector moves towards the desired pose. Computation times of region tracking, curve detection and bitangent extraction modules are approximately 13 ms, 5 ms and 4 ms, respectively.
5
Conclusion
In this paper, bitangents are used to design image based visual servoing schemes, both calibrated and uncalibrated, for aligning planar shapes with a fixed camera. The assumption is that the curve has at least one concavity on its boundary shape. Exper-imental results validates the proposed method. Alignment tasks are performed with approximately 5 mm accuracy.
