Decolorisation
of
aqueous
crystal
violet
solution
by
a
new
nanoporous
carbon:
Equilibrium
and
kinetic
approach
Fuat
Gu¨zel
a,*
,
Hasan
Sayg˘ılı
b,
Gu¨lbahar
Akkaya
Sayg˘ılı
a,
Filiz
Koyuncu
a aDepartmentofChemistry,FacultyofEducation,DicleUniversity,21280Diyarbakır,Turkeyb
DepartmentofChemistry,FacultyofScience&Arts,BatmanUniversity,72060Batman,Turkey
1. Introduction
Dyesarepresentinthewastewaterstreamsofmanyindustrial sectorssuchas,dyeing,textile,tanneryandthepaintindustry.The dyemoleculesortheirmetabolites(e.g.,aromaticamines)maybe highlytoxic,potentiallycarcinogenic,mutagenicandallergenicon exposedorganisms.Theycontaminatenotonlytheenvironment but also traverse through the entire food chain, leading to biomagnifications [1]. Today there are more than 10,000 dyes withdifferentchemical structuresavailablecommercially. Dyes arebroadlyclassifiedasanionic,cationicandnon-ionicdepending on theionic charge on the dyemolecules [2,3]. Among them, cationicdyesaremoretoxicthananionicdyes,andtheirtinctorial valuesareveryhigh(lessthan1.0mgL1)[4].Amongthevarious
available dyes, crystal violet (CV) dye, a member of the
triphenylmethanegroup,which iscationicdye,isawell-known dye that is used in a variety of ways: as a biological stain, dermatologicalagent,veterinarymedicine,additivetopoultryfeed toinhibit propagation of mold, intestinal parasites and fungus, textiledyingandpaperprinting,etc.Itiscarcinogenicandhasbeen classifiedasarecalcitrantmoleculesinceitispoorlymetabolized bymicrobes,isnon-biodegradable,andcanpersistinavarietyof environments[5].HencetheCVdyeremovalfromthewaterbodies becomesessential.
Variousphysical,chemicalandbiologicaltreatmenttechniques
can be employed to remove dyes from wastewater. The most
widelyusedmethodsforwastewatertreatmentareflocculation, coagulation, precipitation,adsorption,membrane filtration, and electrochemicaltechniques[6].Thesetechnologiesdonotshow significant effectiveness or economic advantage. Among them, adsorptionhasbeenfoundtobesuperiortoothertechniquesfor dyewastewatertreatmentintermsofcost,simplicityofdesign, easeofoperationandinsensitivitytotoxicsubstances[7,8].Most oftheinvestigationsarebasedoncommercialactivatedcarbonand activatedcarbonderivedfromvarioussourcesanditfoundtobe moreeffectiveforcolorremoval.Commercialactivatedcarbonis usuallyderivedfromnaturalmaterialssuchaswoodorcoaland thereforeitis stillconsideredexpensive [9].Thishasledtothe searchforcheapersubstitutes.Hence,low-costactivatedcarbons basedonagriculturalsolidwastesareinvestigatedforalongtime. Thishasledtothesearchforcheapersubstitutes.Hence,low-cost activatedcarbonsbasedonagriculturalsolidwastesare investi-gatedforalongtime.Agriculturalproductsandwastematerials usedfortheproductionofactivatedcarbonsincludealmondand hazelnutshells[10,11],peanutshells[12,13],sourcherrypits[14], andolivestones[15,16],jutefibercarbon[17],cassavapeel[18], bagasse [19],waste apricot[20],cocoa (Theobroma cacao) shell [21],date’sstones[22],etc.Inthispaper,wereporttheuseofa novelprecursor,thetomatowaste(TW),whichisaveryabundant andinexpensivematerialinMediterraneancountries.Tothebest ofourknowledge,thepresentstudyisthefirstonetostudythe adsorptionof CVby TWNC.According totherecords ofUnited NationsFoodand AgricultureOrganization(FAO), tomatoisthe mostwidelygrownproductinfreshvegetablesaroundtheworld withaproductionof145.6milliontons.Turkeyranksfourthwith productionof10milliontonsoftomatointheworld[23,24]. ARTICLE INFO
Articlehistory:
Received9October2013 Accepted9December2013 Availableonline16December2013 Keywords:
Tomatopastewaste Nanoporouscarbon Crystalvioletadsorption Equilibrium
ABSTRACT
Anewnanoporouscarbonfromtomatopastewaste(TWNC)wasprepared.Thesurfacearea,totalpore
volume,averageporediameterofTWNCwas foundas722.17m2g1,0.476cm3g1and2.644nm,
respectively.TheeffectsofsolutionpH,adsorbentdose,initialconcentration,ionicstrength,contact
time,andtemperaturewerestudied.Adsorptionkineticswasfoundtobebestrepresentedbythepseudo
secondordermodel.Isothermdata werefittedwelltothebothLangmuir andFreundlich models.
Maximumadsorptioncapacitywasfoundas68.97mgg1at508C.Thermodynamicparametersshowed
thattheprocesswasspontaneousandendothermic.
ß 2013TheKoreanSocietyofIndustrialandEngineeringChemistry.PublishedbyElsevierB.V.Allrights
reserved.
* Correspondingauthor.Tel.:+904122488377;fax:+904122488257. E-mailaddresses:fguzel@dicle.edu.tr,guzelfuat@gmail.com(F.Gu¨zel).
ContentslistsavailableatScienceDirect
Journal
of
Industrial
and
Engineering
Chemistry
j o urna l hom e pa ge :ww w. e l s e v i e r. c om/ l o ca t e / j i e c
1226-086X/$–seefrontmatterß2013TheKoreanSocietyofIndustrialandEngineeringChemistry.PublishedbyElsevierB.V.Allrightsreserved.
In this study, we prepared a new nanoporous carbon from tomato waste as low-cost and abundantly available precursor, whichiswasteoftomatojuiceandpastefactories,withchemical activationbyzincchlorideasadehydratingagent.TheTWNCis characterized with nitrogen adsorption/desorption isotherms, Scanning Electron Microscopy (SEM), X-Ray Diffraction (XRD), FourierTransformInfrared(FT-IR)analysisandsomeadsorptive
tests such as methylene blue and iodine numbers. Optimum
adsorptionconditionsforCVfromasyntheticaqueoussolutionare determinedasafunctionofpH,adsorbentdose,initial concentra-tion, contact time, and temperature. The adsorption kinetics, thermodynamicandisothermswerealsodiscussed.
2. Materialsandmethods 2.1. Materials
TWwasprovidedfromtomatopastefactoryinAdana,Turkey. Firstly,theTWwaswashedanddriedinanairovenat708Cfor 24h and then crushed and sieved to the desired particle size
(between 0.177mm and 0.4mm) for using in the chemical
activation experiment. Zinc chloride (purchased from Sigma-Aldrich)ofpurity99.9%wasusedaschemicalactivator.CV,abasic dye,C.I.42555,
l
max=590nm,molecularformulaC25H30N3Cl,alsoknownashexamethylpararosanilinechloride,waspurchasedfrom Merck company and its general characteristics are shown in Table1 [25].Stock solutionof dyewasprepared bydissolving accuratelyweigheddyein distilled watertoa concentration of 1000mgL1.Theexperimentalsolutionofthedesired
concentra-tionswasobtainedbysuccessivedilutions.Freshdilutionswere usedin each experiment.The pHofdye solutionwasadjusted using0.1NHClorNaOH.Allchemicalsusedwereof analytical grades.
2.2. PreparationofTWNC
TheTWwasmixedwithzincchloride(TW/ZnCl2weightratioof
1:1)andtherequiredamountofdistilledwaterwasaddedtothis mixture.Then,themixturewasdriedat1058Cinanairovento
obtain an impregnated sample. The impregnated sample was
placed in a stainless-steel tubular reactor (7.0cm diame-ter100cmlength),andthenheatedtotheactivation tempera-tureof5008Cfor1hundernitrogenatmosphere(99.99%)flow (100mLmin1) at the rateof 108Cmin1. After the activation
process,theobtainproductwascooleddownundernitrogenflow andthen0.2Nhydrochloricacidwasaddedonit.Thismixturewas filtered and washed with distilled water for several times to removeresidualchemicalsandchlorineuntilfiltratedsolutiondid notgiveanyreactionwithsilvernitrate.Itwasdriedat1058Cfor 24handgroundandsievedtounder40–80meshsizes.Finally,the resulting product was stored in desiccators for further use in adsorptionexperiments.Theyieldwascalculatedastheratioofthe dryweightofresultantactivatedcarbontotheweightofthe air-driedoftherawprecursor.
2.3. CharacterizationofTWNC
The proximate analysis was conducted according to ASTM D3173-3175standards[26]andtheresultsweregivenasmoisture, ash,volatilematter,andfixedcarboncontents.Todeterminethe contentsofC,H,N,andSintheTWandTWNC,ultimateanalysis wasperformedinanElementalAnalyzer(ThermoScientificFlash 2000,CHNSAnalyzer,Italy).Resultswereobtainedaspercentages ofcarbonandnitrogen,andtheoxygencontentwasdeterminedby difference.
ThesurfacephysicalmorphologiesofTWandTWNCbeforeand afteradsorptionwereidentifiedbyusingSEMtechnique (Jeol/jsm-6335F,USA).
Table1
Generalcharacteristicsofcrystalvioletdye. Chemicalstructure N CH3 H3C N CH3 H3C N CH3 CH3
Cl
-Molecularformula C25H30ClN3 Dyecontent(%) 90
C.I.number 42555 Molecularweight(g/mol) 407.979
C.I.name BasicViolet3 Molecularsurfacearea(A˚2
/molecule)a
585.90
Chemicalclass Cationicdye Width(A˚´)a
14
Chromophore Methylgroups Depth(A˚´)a
14
Ionization Basic Watersolubility 16gL1(258C)
lmax(nm) 590
a
Ref.[25].
F.Gu¨zeletal./JournalofIndustrialandEngineeringChemistry20(2014)3375–3386 3376
Surface area and poresize distribution weredeterminedby nitrogen adsorption–desorption isotherms measured at 77K (Micromeritics,ASAP2020).Priortothemeasurements,theTWNC wasoutgassedat423Kundernitrogenflowfor4h.Thenitrogen adsorption–desorption data were recorded at liquid nitrogen temperature(77K)andwasmeasuredoverarelativepressure(P/ P0)rangefromapproximately106–1. Thespecificsurface area
(SBET)wasdeterminedbymeansofthestandardBET(Brunauer–
Emmett–Teller) equation [27] applied in the relative pressure rangefrom0.05to0.35[28].Thisstudyassumesthatthe cross-sectionalareaofanitrogenmoleculeis0.162nm2.Theexternal
surfacearea(includingonlymesopores,Sext), microporevolume
(Vm)andmicroporearea(Sm)werecalculatedbyt-plotmethod.The totalporevolume(VT)wasestimatedbyconvertingtheamountof
nitrogengas adsorbed(expressed in cm3g1STP) at a relative
pressureof0.95toliquidvolumeofthenitrogenadsorbate[29]. Themesopore volume (Vm)wasdetermined bysubtracting the
microporevolumefromthetotalporevolumewhilethemicropore fraction [Vm (%)=Vm/VT100] and mesopore fraction [Vm
(%)=Vm/VT100] were based on the total pore volume. The
averageporediameter(Dp)wasestimatedfromtheBETsurface
area and totalpore volume (Dp=4VT/SBET)assuming an
open-endedcylindrical poremodel withoutpore networks[30]. This
study assumes that micropores are less than 2nm wide,
mesopores are 2–50nm wide, and macropores are more than
50nmwide[28,29].Theporesizedistributionwasdeterminedby usingBarrett–Joyner–Halenda(BJH)model[31].
Thedeterminationofsurfaceacidfunctionalgroupswasbased on theBoehmtitrationmethod[32].The variousacidic groups were determined with the following assumption that NaHCO3
neutralized carboxyl groups, Na2CO3 neutralized carboxyl and
lactone groups and NaOH neutralized carboxyl, lactone and phenolicgroups.
Surface functional groups was detected using the pressed potassiumbromide(KBr)pelletscontaining5%ofcarbonsample by FT-IRspectrometer (PerkinElmerspectrum 100, USA) in the scanningrangeof4000–400cm1.
ThepHpzcindicatestheacidorbasiccharacterofthecarbon
surface.The combinedinfluenceof all thefunctional groupsof activatedcarbondeterminespHpzc,i.e.,thepHatwhichthenet
surfacechargeoncarbonwaszero.ThepHpzcwasdeterminedby
themethoddescribedbyPreethiandSivasamy[33].Thedifference between theinitial pH(pHi)and
D
pH (pHipHf)values wereplottedagainstthepHi.Thepointofintersectionoftheresulting
curvewithabscissa,wherepHwaszero,givesthepHpzc.
TheX-raypowderdiffraction(XRD)patternswerecollectedon an X-ray powder diffractometer (Bruker, D8 Discovery EVA, Germany).XRDfortheTWNCwasmeasuredusingCuK
a
radiation at40kVand40mAovertherange5–558(2u
)atascanspeedof 68min1.Adsorptive capability was preliminarily characterized by measuringbothiodineandmethylenebluenumbers.Theiodine
number and methylene blue number tests were conducted as
describedinASTMD4607-94[34]andChinaNationalstandards [35].Theiodinenumber(mgofiodineadsorbed/gofcarbon,IN) andmethylenebluenumber(mgofmethyleneblueadsorbed/gof carbon,MN)areconsideredasameasureofadsorptioncapability ofactivatedcarbon.Normally,iodinenumberdenotestheamount of micropore (less than 10A˚ in diameter) and methylene blue number (equal or greater than 15A˚ in diameter) denotes the amountofmesoporeofactivatedcarbon[36,37].
2.4. Crystalvioletremovalstudies
Removalexperimentswerecarriedoutin100mLflasksandthe totalvolumeofthereactionsolutionwaskeptat50mL.Theflasks
wereshaken at 120rpmfor therequiredtime in a water bath shaker(Daihan-WSB-30,Korea).Theeffectsofvariousoperating parameters, solution pH (3–10), adsorbent dosage (0.1–0.9g), initialconcentration(25–200mgL1),contacttime(5–270min),
temperature(20–508C)andionicstrength(0–0.1molL1)onthe
adsorptionwerestudied.Thetemperaturewascontrolledbyusing anisothermalshaker.Aftereachadsorptionprocess,thesamples werecentrifuged(5000rpm,10min)for solid–liquidseparation andtheresidualdyeconcentrationinsolutionwasanalyzedbya
UV–vis spectrophotometer (Perkin Elmer-Lamda 25, USA) at
590nm.Inthepresentstudy,adsorptionisothermswerecarried outbyusingseveralsolutionswithdifferentconcentrations.The amount of dye adsorbed onto per gram of adsorbent (qe)was
calculatedbyusingEq.(1). qe¼
ðC0CeÞV
m (1)
where C0 and Ce are initial and equilibrium concentrations,
respectively(mgL1),Vissolutionvolume(L),misthemassof
adsorbent(g).
Removalisothermexperimentswerecarriedoutbyagitating dye solutions of different concentrations (20–350mgL1)with
0.1g TWNC at different temperatures (208C, 308C, 408C and 508C).
Removalkineticstudieswereusedtoinvestigatetheeffectof contact time and initial concentrations and determine kinetic parameters. For these experiments, 0.1g TWNC was added to 50mLCVsolutionswithdifferentinitialconcentrations(25,75, 100,150and200mgL1).Themixturewasstirredinwaterbathat
258Cand120rpm.Atpredeterminedtimeintervals(5–270min),
10mL samples were taken out and filtered. The amount of
adsorptionqt(mgg1),attimet(min),wascalculatedby:
qt¼
ðC0CtÞV
W (2)
whereCtisconcentrationofCVattimet(mgL1).
2.5. Erroranalysis
NonlinearChi-squaretest(
x
2)andaveragerelativeerror(ARE) tocheckconsistencyofadsorptionkineticandisothermmodels wereperformedinadditiontodeterminationthelinearregression correlationcoefficient(R2).Theexpressionsoftheerrorfunctions aregivenbelow:
x
2¼X N i¼1 ðqe;expqe;calÞ2 qe;exp (3) ARE¼100 N XN i¼1 jqe;expqe;calj qe;exp " # i (4) Table2ProximateandultimateanalysesofTWandTWNC. Proximate analysis(wt%) Ultimate analysis (wt%) TW TWNC TW TWNC Moisture 2.95 7.48 C 59.84 72.93 Ash 1.58 1.47 H 8.79 3.49 Volatilematter 82.67 22.73 S 0.26 0.33 Fixedcarbon 12.80 68.32 N 4.08 3.42 Burnoff – 78.63 Oa 27.03 19.83 Yield – 21.37 Chemicalrecovery(ZnCl2%) – 96.42 a Bydifference.
whereqe,expandqe,calrepresenttheexperimentallyandcalculated
adsorbedamountsofCV(mgg1),respectively.Nisthenumberof
observationsintheregressionmodel[38]. 3. Resultsanddiscussion
3.1. CharacteristicsofTWNC
3.1.1. Proximateandultimateanalysis
TheproximateandultimateanalysisoftheTWandTWNCare summarizedinTable2.Table2disclosesthatTWhavehighfixed carbon and low ash content which confirms its suitability as activatedcarbonprecursor.However,sincethecarboncontentand fixedcarboncontentincreasefurtherthroughcarbonization,the contentswillbeevenhigher andtherawmaterial isbetterfor producingactivatedcarbon.
3.1.2. Surfacemorphologyandtexturalstructure
SEMmicrographsofTWandTWNCbeforeandafteradsorption areshowninFig.1.AscanbeseenfromFig.1a,thesurfacetexture of the TW was regular and undulating withonly a few pores availableonthesurface.However,afterZnCl2activationtreatment,
manyvarioussizesporesinahoneycombcanbeobservedonthe samplesurfaceasshowninFig.1b.Duringactivationprocess,the ZnCl2–carbon reaction occurred, which enhances the pores
development thus, the surface area and porosity increase. In addition, almost heterogeneous type of pores structure was distributedontheTWNCsurface.Itisclearthat,TWNCappears tohavenumbersofporeswhere,thereisagoodpossibilityfordye tobetrappedandadsorbedintothesepores.SEMimagesofTWNC (Fig. 1b) showed bright dark color on the surface. After CV adsorptionthesurfaceofTWNCwasturnedtolightcolor(Fig.1c). Thismaybedue totheadsorptionofCV onthe surfaceof the activatedcarbon.
Fig.2ashowsthenitrogenisothermat1968C.Asseenfrom Fig.2a, it exhibits adsorptionisothermof type IV according to IUPAC [39]. The type IV isotherm characteristically shows the simultaneouspresenceofmicroandmesopore.Theinitialpartof theisothermfollowsthesamepathlikethecorrespondingtypeII
isotherm and therefore the result of monolayer–multilayer adsorption on the mesopore walls [40]. The BET surface area (SBET), external surface area (mesopore surface area, Sext),
micropore surface area (Sm), totalpore volume (VT), micropore
volume (Vm), mesopore volume (Vm), micropore fraction(Vm%), mesoporefraction(Vm%)andaverageporediameter(Dp)results
obtainedbyapplyingtheBETequationandt-methodtonitrogen adsorption at 1968C are listed in Table 3. The pore size distribution of the prepared activated carbon is shown in Fig. 2b. It can be foundfrom Fig. 2b that the sample exhibits multimodal distribution in both the micropore and mesopore domainsbutdoesnothavemacropores.Thiswasconfirmedbythe microporeandmesoporefractionvaluesinTable3.Porosityresults suggestthatthemoremesoporedominantTWNCissuitablefor dyeadsorption.ThisideaisalsosupportedbythevaluesofINand MNvalues(Table3).Therefore,thehighBETsurfaceareaofthe TWNCrenderthemtobesuitableaseffectiveadsorbentforthe removalofbothairandwastewaterpollutants.Acomparisonof thetextural propertiesoftheactivatedcarbon preparedinthis
study with other reported values for some commercial and
vegetable-basedactivatedcarbonsarelistedinTable4. 3.1.3. Surfacechemistry
The surface chemistry is important characteristics of the activatedcarbons since it determinesthe surface properties of thecarbonsandhassignificantimplicationsontheirbehaviorsas ion exchangers, adsorbents, catalysts, and catalyst supports [48,49]. For a better understanding of the surface chemistry differencesoftheTWNC,FT-IRspectraarerepresentedinFig.3.In thespectraofnativeTWNC,thebandobservedat3245.68cm1
presentbonded–OHgrouponthesurface.Thisbanddisappeared afterCVadsorption,indicatedthat–OHgroupsplayanimportant roleintheadsorptionofCV.Thebandsobservedat2922.96and 2853.11cm1correspondtosymmetric–CH
2vibrationand–CH2
stretching vibration, respectively. These peaks shifted after CV adsorption.Thepeakat1741.68cm1whichistheindicative of
C55Ostretchingofcarboxylicacidsdisappearedafteradsorption. Thepeakobservedat1592.65cm1isassignedtoaromaticC55C
stretching.Thispeakshiftedto1575.80cm1withasignificance

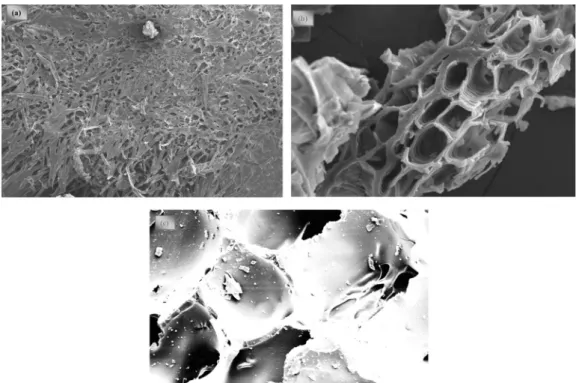

Fig.1.SEMmicrographsofrawTW(a),TWNC(b),andTWNCafterCVadsorption(c). F.Gu¨zeletal./JournalofIndustrialandEngineeringChemistry20(2014)3375–3386 3378
differenceof16.85cm1afterCVadsorption.Thepeakslocatedat
1374.41and1155.16cm1presentlactonegroupsonthesurface.
These peaks shifted to 1352.91 and 1165.50cm1 after CV
adsorptionwithavariationof21.50and10.34cm1,respectively.
Thebandsappearedat1090.63and720.87cm1indicatedSi–O
stretching vibrations. New bands appeared in the fingerprint region at1434.60, 938,873.50and 744.52cm1on thesurface
afteradsorption.ThesebandsconfirmtheadsorptionofCVonthe surface.
The surface acidity and basicity is an important criterion describing thesurface chemistryof thecarbon adsorbents.The surfacepropertiesoftheactivatedcarbonareaffectedsignificantly bythetypeandquantityofthesurfacefunctionalgroups.Table5
showsquantitativesurfacechemistryanalyses, whichconsistof amountofacidsandbasicfunctionalgroupsofsurface.According tothe results, it exhibitedan acidic behavior,with thesurface acidity of 1.33mequiv.g1 with the maximum composition of
phenolic group (0.26mequiv.g1) with traces of lactonic
(0.53mequiv.g1)andcarboxylic(0.54mequiv.g1)groups,and
0.95mequiv.g1 as surface basicity. In parallel withthis, FTIR
spectraconfirmedthepresenceofgroupscontainingoxygensuch ascarboxylicandphenolicgroups.
3.1.4. Crystalstructure
XRDtechniqueisapowerfultooltoanalyzecrystallinenatureof materials. Fig.4 shows XRDprofiles of the TWand TWNC.As Fig.2.Nitrogenadsorption(filledsymbols)–desorption(emptysymbols)isotherms(a)andporesizedistribution(b)fortheTWNC.
Table4
Comparisonoftexturalpropertiesofsomecommercialandvegetable-basedactivatedcarbons.
Activatedcarbons SBET(m2g1) VT(cm3g1) DP(nm) Ref.
Filtrasorb400 793 0.486 2.44 [41]
Mosobambooactivatedcarbon 486.80 0.235 1.93 [42]
Mabambooactivatedcarbon 589.65 0.276 1.87 [42]
CalgonCPG-LF 648.50 0.177 222.5 [43]
Chestnutshellactivatedcarbon 1319 0.567 36.5 [44]
Grapeseedactivatedcarbon 916 0.392 30.5 [44]
CecaAC-40 1294 0.650 2.02 [45]
Sorbo-Noritactivatedcarbon 1143 0.570 2.02 [45]
Teaindustrywasteactivatedcarbon 1066 0.580 2.18 [46]
WSC-470activatedcarbon 1143 0.505 1.77 [47]
WS-490activatedcarbon 1324 0.599 1.81 [47]
Tomatopastewasteactivatedcarbon 722.17 0.476 2.64 Thiswork
Table3
TexturalandadsorptivecharacteristicsofTWNC.
SBET(m2g1) Sm(m2g1) Sm(m2g1) VT(cm3g1) Vm(cm3g1) Vm(%) Vm(cm3g1) Vm(%) DP(nm) IN(mgg1) MN(mgg1)
showninFig.4,therewereverybroaddiffractionpeaksinbothof thesamples.TW shows binary peak between 2
u
=108 and 268 ranges.TWNCexhibitsinwide2u
ranges(between2u
=108and 208).TheXRDpatternrevealstheamorphousstateoftheobtained samples.Activatedcarbonswhichwereachievedfromagricultural wastes show usually amorphous structure. Possible functionalgroups which existed on the activated carbon surface may
complicateformationofthecrystallization[50].
3.2. EffectofvariousoperatingparametersforCVadsorptionon TWNC
3.2.1. EffectofpHpzcandpH
pHpzc determines combined influence of all the functional
groupsofsurface.Fig.5ashowsthatat5.30,
D
pH=0.Thereforethe pHpzcofTWNCis5.30.AtpH<pHpzc,thecarbonsurfacehasanetpositivecharge,whileatpH>pHpzcthesurfacehasanetnegative
charge [51]. The pHpzc of TWNC indicated that the surface is
negativelychargedatpHvaluesabove5.30.Theaqueoussolution pHhasbeenreported to present a significantinfluenceon the adsorptiveuptakeofdyemoleculesduetoitsimpactonboththe surfacebinding-sitesoftheadsorbentandtheionizationprocessof thedyemolecule[52].TheeffectofinitialpHwasdeterminedat different pH values (3–10). The pH values of solutions were adjusted by drop wise addition of 0.1M HCl and 0.1M NaOH solution.Initialconcentration,shakingtime,temperatureandthe amountofadsorbentwerefixedat100mgL1,120min,258Cand

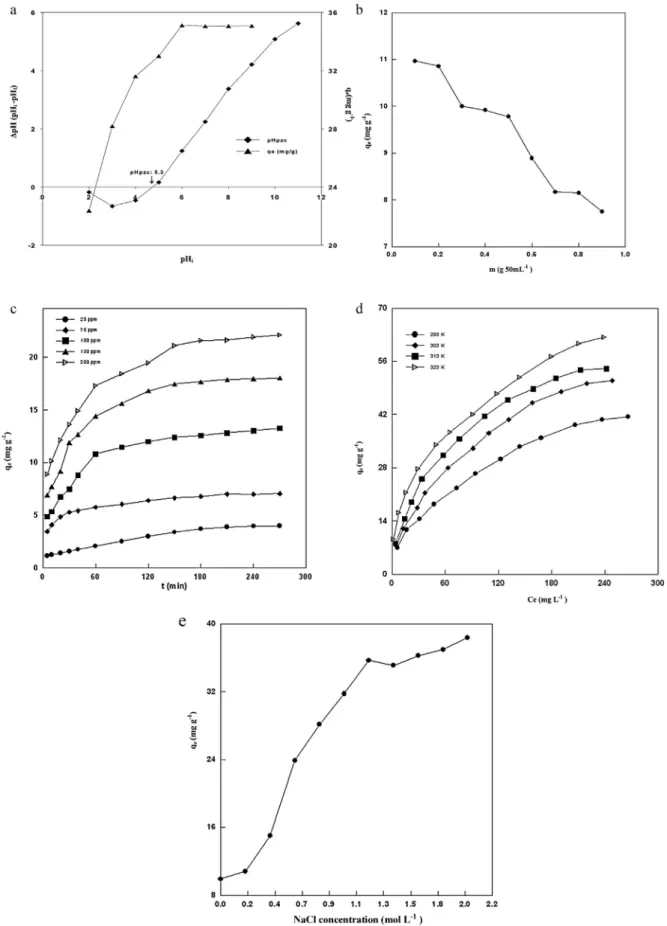

0.1g,respectively.TheeffectofpHwasillustratedinFig.5a.Itwas observedthatadsorptioncapacityincreasedbyincreasingpHfrom 3to10.ThemaximumadsorptionwasfoundaspH8.0,indicating theadsorptionwasstronglypH-dependent.Therefore,pH8.0was considered more effective pH, and it was used for further adsorption experiments. At low pH values, protonation of the
functionalgroupspresentonthesurfaceeasilyoccurs.Thesurface oftheadsorbentbecomespositivelycharged,andthisdecreases the adsorption of the positively charged dye ions through electrostatic repulsion.AsthepHofthedyesolutionincreases, a proportional increase in adsorption takes place due to the consecutive deprotonationof positively chargedgroups on the adsorbentandelectrostaticattractionbetweennegativelycharged sites on the TWNC and CV+ ions. Similar observations were
reportedfortheadsorptionofCVbysomeearlierresearchers[53– 56]. ðTWNCÞOH!H þ ðTWNCÞOHþ2þCV þ !ðTWNCÞOHþ2$CV þ (5) ðTWNCÞOH!OH ðTWNCÞOþCVþ!ðTWNCÞO... CVþ (6)
ThebindingmechanismoftheCV(atpH8)ontoTWNCisgiven inFig.6.
3.2.2. EffectofTWNCdose
The dependence of CV adsorption on TWNC dosage was
investigatedintherangeof2–18gL1.Thedependenceondosage
ofCVadsorptionwasstudiedbyvaryingtheamountofadsorbents inthemediumfrom2to18gL1,whilekeepingotherparameters
constantsuchasinitialconcentration(100mgL1),pH8.0,stirring
rate120rpmandcontacttime2h.Theeffectofadsorbentdosage isshowninFig.5b.Theadsorptioncapacitydecreasedfrom10.97 to 7.65mgg1 with an increase in adsorbent dose from 2 to
18gL1.Thus,theadsorptioncapacityofCVdecreasedwiththe
increaseintheadsorbentdoseandreachedmaximumadsorption valuearound0.1gof adsorbentdosage.Itwasusedforfurther adsorption experiments. As presented in Fig. 5b, with the increasing amountof adsorbent, qe (mgg1)values, which are
the amount of CV adsorbed per unit weight of adsorbent at Fig.3.FTIRspectraofTWNC(a)andTWNCafteradsorptionofCV(b).
Table5
SurfacechemicalcharacteristicsoftheTWNC.
Carboxylic(mequiv./g) Phenolic(mequiv.uiv./g) Lactonic(mequiv./g) Totalacidity(mequiv./g) Totalbasicity(mequiv./g) pHPZC
0.54 0.26 0.53 1.33 0.95 5.30
F.Gu¨zeletal./JournalofIndustrialandEngineeringChemistry20(2014)3375–3386 3380
equilibrium, were decreased. This may be attributed to the decrease in totaladsorption surface area available to dye ions resulting from overlapping or aggregation of adsorption sites. Similarobservationswerepreviouslyreportedbysome research-ers[53,57].
3.2.3. Effectofcontacttimeandinitialconcentration
Fig.5cshowstheeffectsofcontacttimeandinitial concentra-tiononthedyeuptakeat258C.Itwasfoundthattheadsorption wasfastatinitialstageof120min,thereafteritbecameslower until it reached a constant value where no more dye can be removedfrom the solution.The rapid adsorption at the initial contacttimeisduetothehighlynegativelychargedsurfaceofthe TWNCforadsorptionofCVinthesolutionatpH8.Thelaterslow rate of adsorption probably occurred due to the electrostatic hindranceorrepulsionbetweentheadsorbedpositivelycharged adsorbate species onto the surface and the available cationic adsorbatespeciesinthesolutionaswellastheslowporediffusion of the solute ions into the bulk of the adsorbent. Similar observations werereported by some otherresearchers [58,59].
The equilibrium was attained at 150min when the maximum
adsorptionwasreachedanditisselectedasequilibriumcontact time forfurther adsorption experiments.Theincrease in initial concentrationalsoenhancestheinteractionbetweendyeionsand surface.Therefore,anincreasein initialconcentration enhances theadsorptioncapability.Theeffectofinitialconcentrationinthe rangeof25–200mgL1isshowninFig.5c.Theadsorbedamount
in the equilibrium state (qe) was increased from 2.83 to
21.89mgg1withtheincrease ininitialconcentration from25
to200mgL1.Thismaybeattributedtoanincreaseinthedriving
force between the aqueous and solid phases and increase the numberofcollisionsbetweendyeionsandadsorbent[60]. 3.2.4. Effectoftemperature
Theeffectoftemperaturewasstudiedat20,30,40and508C, and theresultsare shown in Fig.5d. Asshown in Fig. 5d, the amountofdyeadsorptionwithincreaseintemperaturewasfound toincrease from51.55 to 68.97mgg1. This suggests that the
adsorptionprocessisendothermicinnature.Thismaybedueto increaseinthedyemobilitytopenetrateinsidethesampleporesat hightemperature.Besides,itmightalsobeduetotheincreasein
chemicalinteractionbetweentheadsorbateandsurface function-alitiesoftheadsorbent[61].
3.2.5. Effectofionicstrength
The ionic strengthof the solutionis one of thefactors that control both electrostatic and non-electrostatic interactions betweentheadsorbateandtheadsorbentsurface[62].Theeffect of ionic strength was analyzed in the NaCl solutions with concentrationsrangingfrom0.0to1.0molL1at258C, pH8.0,
120rpmand100mgL1initialdyeconcentration.Fig.5eshows,
theinfluenceofthepresenceofsodiumchlorideontheadsorption capacityofCV+ionsontothesurface.AsseeninFig.5e,increasing
the ionic strength of solution decreases the adsorption. This behavior could be attributed to the electrical double layer surrounding thesurface waspressed and herebyresulted in a decrease in adsorption. Similar observations were reported by someearlierresearchers[1,63].
3.3. Kineticsstudies
Inordertoanalyzetheadsorptionkinetics,twokineticmodels; pseudo first order [64] and pseudo second order [65] kinetic modelswereappliedtotheexperimental data.In addition,the intraparticlediffusionmodelwastestedtodeterminethediffusion mechanism of the adsorption process. The best fit model was selectedbasedonthelinearregressioncorrelationcoefficient(R2)
values.Thelinearizedpseudofirstorderandpseudosecondorder kineticequationsare:
logðqeqtÞ¼logqe k1 2:303t (7) t qt ¼ 1 k2q2e þ1 qe t (8)
where k1 (min1) and k2 (gmg1min1) are rate constants of
pseudo first order and pseudo second order, respectively. The valuesofthepseudofirstorderandpseudosecondorderkinetic parameterswerecalculatedfromtheslopeandinterceptoftheir respectiveplots(Fig.7aandb).Table6liststheresultsofkinetic parametersofbothmodelsatdifferentconcentrations.Forpseudo first order,theqe,calvalues werelow as comparedto theqe,exp
values,suggestingthatthepseudofirstordermodelwasnotfitfor describing the adsorption process although higher correlation coefficients were achieved (R2=0.978). Pseudo second order
model described the adsorption process more effectively
(R2=0.997) withthe q
e,cal values matched well withthe qe,exp
values. These resultsimpliedthat theadsorptioncouldbebest describedbythepseudosecondordermodel.
AsshowninTable6,thevaluesofrateconstantk2decreasewith
increasing initial concentration and surface loading. At lower concentrations,CV+ionspresentintheadsorptionmediumcould
interactwiththebindingsites; hencehigherrateconstantsare obtained.Athighersurfaceloadingswouldresultinlessdiffusion efficiencyandahighcompetitionofCV+ionsforafixedreaction
sites,consequentlylowerk2valueswereobserved.Similarresults
havebeenobservedbyothersomeresearchers[6,66]. 3.4. Adsorptionmechanism
Thepseudofirstorderandpseudosecondorderkineticmodels cannotidentifythediffusionmechanismand thekineticresults werethenanalyzedbyusingtheintraparticlediffusionmodel.The mechanismofadsorptionprocessisusuallydemonstratedbyfour steps:(i)bulkdiffusion;(ii)filmdiffusion;(iii)porediffusionor intra-particle diffusion; (iv) adsorption of adsorbate on the adsorbent surface. Because the first step is not involved with Fig.4.XRDprofilesofTWNCandTW.
Fig.5.EffectsofsolutionpHandpHpzc(a),adsorbentdose(b),initialdyeconcentrationandcontacttime(c),solutiontemperature(d)andionicstrength(e)ontheadsorption
ofCVontoTWNC.
F.Gu¨zeletal./JournalofIndustrialandEngineeringChemistry20(2014)3375–3386 3382
adsorbentandthefourthstepisaveryrapidprocess,theydonot belongtotheratecontrollingsteps.Therefore,theratecontrolling stepsmainlydependoneithersurfaceorporediffusion[67,68]. WeberandMorrismodelisawidelyusedintra-particlediffusion model,Eq.(9),topredicttheratecontrollingstep[69].
qt¼kidt1=2þC (9)
wherekidistheintraparticlediffusionrateconstant(mgg1min1/ 2)andCisthethicknessoftheboundarylayer.Ifthemechanismof
adsorptionprocessfollowstheintraparticlediffusion,theplotofqt
versus t1/2 would be a straight line and the k
id and C can be
calculatedfromtheslopand interceptof theplot,respectively. Accordingtothismodel,theplotshouldbelinearifintraparticle diffusionisinvolvedintheadsorptionprocessandiftheselines passthrough theoriginthen intraparticlediffusion is the rate-controllingstep.Whentheplotsdonotpassthroughtheorigin, thisisindicativeofsomedegreeofboundarylayercontrolandthis furthershowsthattheintraparticlediffusionisnottheonly rate-limitingstep,butalsootherkineticmodelsmaycontroltherateof adsorption,allofwhichmaybeoperatingsimultaneously[70,71]. Fig.7cshowstheintraparticlediffusionplotsat258Cforvarious dyeinitialconcentrations.AsseenfromFig.7c,therewasalinear relationshipwiththreestagesoverthewholetimerange,butplots didnotpassthroughtheorigin.Therefore,intraparticlediffusion wasnotonlyratelimitingstepandboundarylayercontrolmaybe involvedintheadsorptionprocess.
Thevaluesofkid,CandR2obtainedforthethreeregionsfrom
theplotsaregiveninTable7.Itshowedthatthekidvaluesforthe
threeregionsincreasewithincreaseininitialconcentration.The resultsdisclosedthattheincreaseindyeconcentrationresultsin an increase in thedrivingforce, which is an indicationfor the increaseofthethicknessoftheboundarylayer.
3.5. Isothermstudies
The interaction between adsorbate and adsorbent can be estimatedbytheadsorptionisotherm.Theshapeoftheisothermis the first experimental tool used to diagnose thenature of the adsorptionphenomenon.Twofamousisothermmodels,namely the Langmuir [72] and Freundlich [73] were applied to the experimentaldataatdifferenttemperaturesfrom20to508C.The usedlinearizedisothermequationswere:
Ce qe ¼ 1 qmb þCe qm (10) logqe¼logKFþ 1 nlnCe (11)
wherebisaconstantrelatedtotheenergyofadsorptionandqm
constant represents the maximum binding at the complete
saturationofadsorbentbindingsites.Fromtheslopeandintercept of straight portion ofthelinear plotobtained by plotting Ce/qe
against 1/Ce (Fig. 8a), the values of Langmuir constants were
C O OH O C O OH OH TWNC Surface C O HO OH C O TWNC Surface N CH3 H3C N H3C CH3 N H3C CH3 Cl N H3C CH3 N CH3 H3C N CH3 CH3 Cl H OH O H
calculated. KF and n are the Freundlich adsorption isotherm
constants(Eq.(11)).KF(mgg1(Lmg1)1/n)isFreundlichconstant
and taken as an indicator of adsorption capacity, and 1/n is a measureoftheadsorptionintensity.Fromtheslopeandintercept ofstraightportion ofthelinearplotobtainedby plottinglogqe
againstlogCe(Fig.8b),thevaluesofFreundlich constantswere
calculated.ThecalculatedLangmuirandFreundlichconstantsand regressioncoefficients(R2)aresummarizedinTable8.Thebest-fit modelwasselectedbasedontheR2values.
AsobservedfromTable8,althoughtheequilibriumdatafitted well with high R2 values at studied temperatures to both the
Langmuir and Freundlich adsorption isotherm models, the
Freundlichmodelexhibitedaslightlybetterfittotheadsorption datathantheLangmuirmodel.Themaximumqmobtainedfrom
theLangmuirequationat508C,andis 68.97mgg1.Asseenin
Table 8, the constants qm and b increased withincreasing the
temperature,indicatingthattheadsorptiondensitywashigherat higher temperatures. The value of the Freundlich constant, KF
Fig.7.Theplotsofpseudofirstorder(a),pseudosecondorder(b)andintraparticlediffusion(c)kineticmodelsatvariousconcentrationsforCVadsorptionontoTWNC.

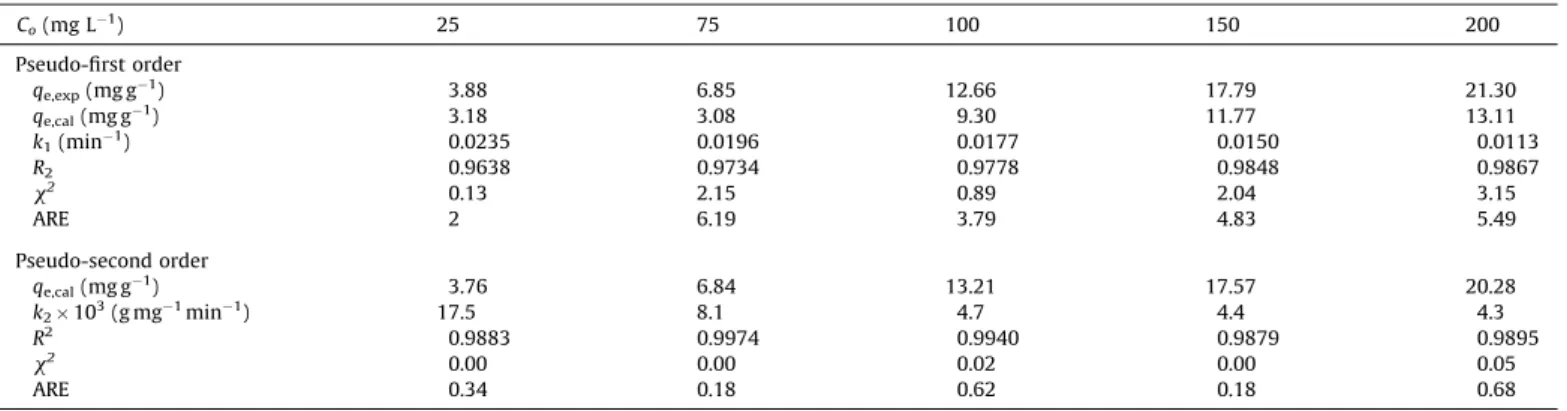

Table6
KineticparametersforCVadsorptionontoTWNCatdifferentinitialconcentrations.
Co(mgL1) 25 75 100 150 200 Pseudo-firstorder qe,exp(mgg1) 3.88 6.85 12.66 17.79 21.30 qe,cal(mgg1) 3.18 3.08 9.30 11.77 13.11 k1(min1) 0.0235 0.0196 0.0177 0.0150 0.0113 R2 0.9638 0.9734 0.9778 0.9848 0.9867 x2 0.13 2.15 0.89 2.04 3.15 ARE 2 6.19 3.79 4.83 5.49 Pseudo-secondorder qe,cal(mgg1) 3.76 6.84 13.21 17.57 20.28 k2103(gmg1min1) 17.5 8.1 4.7 4.4 4.3 R2 0.9883 0.9974 0.9940 0.9879 0.9895 x2 0.00 0.00 0.02 0.00 0.05 ARE 0.34 0.18 0.62 0.18 0.68
F.Gu¨zeletal./JournalofIndustrialandEngineeringChemistry20(2014)3375–3386 3384
representsthedegreeofadsorption.TheincreaseofKFvaluesat
higher temperatures suggests that the adsorption process was favorable at higher temperatures. Furthermore, the Freundlich intensityparameter,1/n,indicatesthedeviationoftheadsorption isothermfromlinearity. Ifn=1,theadsorptionislineari.e.,the
adsorption sites are homogeneous and there is no interaction between the adsorbed species. If 1/n<1, the adsorption is favorable;theadsorptioncapacityincreasesandnewadsorption sites appear. If 1/n>1, the adsorption is unfavorable; the
adsorption bonds become weak and the adsorption capacity
decreases[74].Inparticular,thevalueofnissignificantlylower thanunityatallthetemperaturesstudied.Thevaluesof1/nforCV dyewhichislessthan1(Table8)indicatefavorableadsorption.
TheessentialcharacteristicsoftheLangmuirisothermmaybe expressed in terms of dimensionless separation parameters RL,
whichisindicativeoftheisothermshapethatpredictswhetheran adsorptionsystemisfavorableorunfavorable.RLisdefinedas[75]:
RL¼
1 1þbC0
(12)
Thevalue ofRLindicates theshape ofisothermtobeeither
unfavorable(RL>1)orlinear(RL=1)orfavorable(0<RL<1)or
irreversible(RL=0).Here,RLvaluesobtainedfordyearelistedin
Table8.AsseenfromTable8,alltheRLvaluesareintherangesof
0.173–0.10at20–508Ctemperatures,andconfirmedthefavorable adsorption.
3.6. Thermodynamicsstudies
Theincreaseinadsorptionwithariseintemperaturerevealsan endothermicprocesswhichcanbeexplainedthermodynamically byevaluatingthermodynamicparameterssuchaschangeinfree energy(
D
G8),enthalpy(D
H8)andentropy(D
S8).Theseparameters werecalculatedusingthefollowingequations:D
G¼RTlnKL (13)
whereKLequalstoqmb,theequilibriumconstantoftheadsorption
process (Lmg1). R and T are gas constant and absolute
temperature, respectively. According to thermodynamics, the
D
G8isalsorelatedtotheD
H8andD

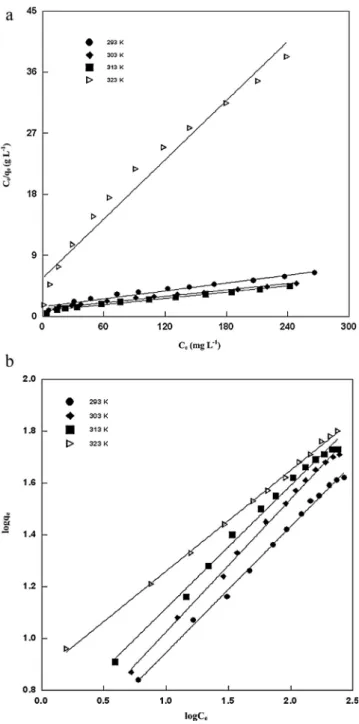

S8atconstanttemperatureFig.8.Langmuir(a)andFreundlich(b)linearadsorptionisothermsofCVonto TWNCatdifferenttemperatures.
Table8
Isotherm parameters obtained for adsorption of CV onto TWNC at different temperatures. Temperatures(8C) 20 30 40 50 Langmuir qm(mgg1) 51.55 63.29 64.52 68.97 b(Lmg1) 0.014 0.015 0.020 0.026 RL 0.173 0.160 0.127 0.100 R2 0.9888 0.9862 0.9873 0.9880 x2 0.36 0.21 0.20 0.74 ARE 0.94 0.74 0.58 1.28 Freundlich KF(mgg1(Lmg1)1/n) 2.880 3.263 4.392 7.425 1/n 0.51 0.49 0.47 0.39 R2 0.9970 0.9971 0.9925 0.9990 x2 0.02 0.05 0.09 0.00 ARE 0.21 0.24 0.37 0.06 Table7
Intra-particlediffusionmodelparametersfortheadsorptionofCVdyeontoTWNCatdifferentinitialconcentrations. Co(mgL1) Intra-particlediffusionmodel
kid,1 C1 R12 kid,2 C2 R22 kid,3 C3 R32
25 0.15 0.95 0.9772 0.19 0.34 0.9972 0.02 3.63 0.9998
75 0.57 2.24 0.9924 0.30 4.24 0.9942 0.06 6.09 0.9999
100 0.84 2.86 0.9697 0.64 4.99 0.9991 0.14 9.24 0.9835
150 1.01 4.59 0.9942 0.90 7.07 0.9896 0.23 15.84 0.9732
bythevan’tHoffequation: lnKL¼
D
G RT ¼D
H RT þD
S R (14)Inordertodeterminethethermodynamicparameters, experi-mentswerecarriedoutatdifferenttemperaturesintherangeof 20–508C.TheplotoflnKLasafunctionof1/T(figurenotshown)
yieldsastraightline(R2=0.998)fromwhich
D
H8andD
S8werecalculatedfromtheslopeandintercept,respectively.
D
G8(0.8474,0.1309,0.6242and1.5372kJmol1at20,30,40and508C,respectively)athightemperaturesrevealedfavorable andspontaneousnatureoftheprocess.Thepositivevalueof
D
H8 (25.38kJmol1)indicates that theprocess is endothermic. Thepositive value of
D
S8 (83.33Jmol1K1) demonstrated theincreased randomness which displayed good affinity between CVandthesurfaceofTWNCduringtheadsorptionprocess. 4. Conclusion
ThepresentstudyexaminestheadsorptionofCVontoTWNC. Theresultsofthisworkcanbesummarizedasfollows:
1.TheN2adsorptionisothermistypeIV.ThevaluesofSBET,Vt,V
m
,Vext and average pore size are 722.17m2g1, 0.457cm3g1,
0.201cm3g1,0.276cm3g1and26.44A˚,respectively.Results
showthatTWNCincludesmicroporesandmesopores. 2.Theadsorptionof CVwasfoundtoincrease withincrease in
initialsolutionpH,dosage,contacttime,solutiontemperature anddecreaseswithincreasingtheionicstrengthofsolution. 3.Equilibrium data fitted well with high R2 values at studied
temperaturestoboththeLangmuirandFreundlichadsorption isotherm models, the Freundlich model exhibited a slightly betterfittotheadsorptiondatathantheLangmuirmodel.The maximumadsorptioncapacity (qm)increaseswithincreasing
temperature,whichalsoindicatesthattheprocessis
endother-mic. The maximum monolayer adsorption capacity was
obtained as 68.97mgg1 at 508C. The separation factors of
Langmuir isotherm RL were in the range of 0–1, and the
Freundlichconstants1/nweresmallerthan1,whichindicated thattheprocessisfavorable.
4.The adsorption of CV from aqueous solution onto TWNC
proceeds accordingtothepseudosecondorder modelwhich provides thebestcorrelationofthedatainall casesand the experimentalqe,expvaluesagreewiththecalculatedones.Inthis
adsorptionprocess, notonly intra-particlediffusion,but also boundarylayerdiffusiontakesplace.
5.Thermodynamic studies showed that the adsorptionprocess wasspontaneousandendothermic.
6.Tomatowasteactivatedcarbonwithzincchlorideimpregnation canbeusedeffectivelyforremovalofbasicdyesinindustrial effluents.
Acknowledgements
TheauthorsacknowledgetheScientificResearchFundofDicle Universityforfinancialsupport(ProjectNo:12-ZEF-95). References
[1]G.Bayramog˘lu,B.Altıntas¸,M.Y.Arıca,Chem.Eng.J.152(2009)339.
[2]O.J.Hao,H.Kim,P.C.Chiang,Crit.Rev.Environ.Sci.Technol.30(2000)449.
[3]G.O.El-Sayed,Desalination272(2011)225.
[4]G.S.Heiss,B.Gowan,E.R.Dabbs,FEMSMicrobiol.Lett.99(1992)221.
[5]C.C.Chen,H.J.Liao,C.Y.Cheng,C.Y.Yen,Y.C.Chung,Biotechnol.Lett.29(2007) 391.
[6]R.Kumar,R.Ahmad,Desalination265(2011)112.
[7]V.K.Garg,R.Kumar,R.Gupta,DyesPigments62(2004)1.
[8]V.Singh,A.K.Sharma,D.N.Tripathi,R.Sanghi,J.Hazard.Mater.161(2009)955.
[9]B.K.Singh,N.S.Rawat,J.Chem.Technol.Biotechnol.61(1994)307.
[10]F.Gu¨zel,Z.Tez,Sep.Sci.Technol.28(8)(1993)1609.
[11]F.Gu¨zel,Z.Tez,VomWasser81(1993)123.
[12]F.Gu¨zel,Sep.Sci.Technol.34(4)(1999)587.
[13]J.X.Zhang,L.L.Ou,WaterSci.Technol.67(4)(2013)737.
[14]F.Gu¨zel,I.Uzun,Turk.J.Chem.26(2002)369.
[15]A.H.El-Sheikh,A.P.Newman,J.Anal.Appl.Pyrol.71(2004)151.
[16]B.S.Girgis,A.A.EI-Hendawy,Micropor.Mesopor.Mater.52(2002)105.
[17]K.Porkodi,V.K.Kumar,J.Hazard.Mater.143(2007)311.
[18]S.Rajeshwarisivaraj,P.Senthilkumar,V.Subburam,Bioresour.Technol.80(2001) 233.
[19]W.T.Tsai,C.Y.Chang,M.C.Lin,S.F.Chien,H.F.Sun,M.F.Hsieh,Chemosphere45 (2001)51.
[20]Y.O¨ nal,J.Hazard.Mater.B137(2006)1719.
[21]T.M.Shanker,S.Nageswaran,Res.J.Chem.Sci.1(7)(2011)38.
[22]A.J.K.Algidsawi,J.BasicAppl.Sci.5(11)(2011)1397.
[23]FAO(FoodandAgricultureOrganization)(2009)www.fao.org.
[24]I˙.E.Sarısac¸lı,Salc¸a,T.C.Bas¸bakanlıkDıs¸TicaretMu¨stes¸arlıg˘ı, I˙GEMEPublisher, Ankara,2007.
[25]L.M.Cotoruelo,M.D.Marque´s,F.J.Diaz,J.Rodriguez-Mirasol,J.J.Rodriguez,T. Cordero,Environ.Prog.Sustain.31(3)(2012)309.
[26]ASTMD3173-3175,AnnualBookofASTMStandards,Section5Petroleum Pro-ducts,LubricantsandFossilFuels,vol.05.05GaseousFuels,CoalandCoke,1999.
[27]S.Brunauer,P.H.Emmett,E.Teller,J.Am.Chem.Soc.60(1938)309.
[28]S.J.Gregg,K.S.W.Sing,Adsorption,SurfaceAreaandPorosity, AcademicPress, London,1982p.42.
[29]J.A.Guo,C.Lua,Carbon38(2000)1985.
[30]J.G.Gomez,A.M.Garcia,M.A.D.Diez,C.G.Garcia,E.S.Rey,Appl.Surf.Sci.252 (2006)5976.
[31]E.P.Barrett,L.G.Joyner,P.P.Halenda,J.Am.Chem.Soc.73(1951)373.
[32]H.P.Boehm,Carbon32(1994)759.
[33]S.Preethi,A.Sivasamy,Ind.Eng.Chem.Res.45(2006)7627.
[34]ASTMD4607-94,StandardTestMethodforDeterminationofIodineNumberof ActivatedCarbon,ASTMCommitteeonStandards,ASTM,Philadelphia,PA,1999.
[35]GB/T12496.10,ChinaNationalStandard.Standardtestmethodfordetermination ofmethylenebluenumberofactivatedcarbon, 1999.
[36]H.Deng,G.X.Li,H.B.Yang,J.P.Tang,J.Y.Tang,Chem.Eng.J.163(2010)373.
[37]H.Xiao,H.Peng,S.Deng,X.Yang,Y.Zhang,Y.Li,Bioresour.Technol.111(2012) 127.
[38]T.Depci,Chem.Eng.J.(2012)467.
[39]IUPAC,PureAppl.Chem.31(1972)587.
[40]Z.Ryu,J.Zheng,M.Wang,B.Zhang,Carbon37(1999)1257.
[41]A.W.M.Ip,J.P.Barford,G.McKay,Chem.Eng.J.157(2010)434.
[42]S.-F.Lo,S.-Y.Wang,M.-J.Tsai,L.-D.Lin,Chem.Eng.Res.Des.90(2012)1397.
[43]U¨ .Beker,B.Ganbold,H.Dertli,D.D.Gu¨lbayır,EnergyConvers.Manage.51(2010) 235.
[44]D.O¨ zc¸imen,A.E.Meric¸boyu,J.Hazard.Mater.168(2009)1118.
[45]I.Velo-Gala,J.J.Lo`pez-Penalver,M.Sa`nchez-Polo,J.Rivera-Utrilla,Carbon67 (2014)288.
[46]A.Gu¨ndog˘du,C.Duran,H.B.S¸entu¨rk,M.Soylak,M.I˙mamog˘lu,Y.O¨ nal,J.Anal. Appl.Pyrol.104(2013)249.
[47]A.A.Adelodun,Y.-M.Jo,Appl.Surf.Sci.286(2013)306.
[48]T.Budinova,E.Ekinci,F.Yardım,A.Grimm,E.Bjo¨rnbom,V.Minkova,M.Goranova, FuelProcess.Technol.87(2006)899.
[49]L.Huang,Y.Sun,W.Wang,Q.Yue,T.Yang,Chem.Eng.J.171(2011)1446.
[50]J.M.Ketcha,D.J.D.Dina,H.M.Ngomo,N.J.Ndi,Am.Chem.Sci.J.2(2012)136.
[51]Y.Al-Degs,M.Khraisheh,S.Allen,M.Ahmad,WaterRes.34(2000)927.
[52]L.S.Oliveira,A.S.Franca,T.M.Alves,S.D.F.Rocha,J.Hazard.Mater.155(2008) 507.
[53]S.Chakraborty,S.Chowdhury,P.D.Saha,Carbohydr.Polym.86(2011)1533.
[54]A.Saeed,M.Sharif,M.Iqbal,J.Hazard.Mater.179(2010)564.
[55]M.Ramakrishnan,S.Nagarajan,WorldAppl.Sci.J.5(2009)114.
[56]P.Monash,G.Pugazhenthi,Adsorption15(2009)390.
[57]J.Zhang,Y.Li,C.Zhang,Y.Jing,J.Hazard.Mater.150(2008)774.
[58]B.H.Hameed,M.I.El-Khaiary,J.Hazard.Mater.157(2008)344.
[59]T.Santhia,S.Manonmanib,T.Smitha,J.Hazard.Mater.179(2010)178.
[60]I.A.W.Tan,A.L.Ahmad,B.H.Hameed,J.Hazard.Mater.164(2009)473.
[61]M.A.Ahmad,N.K.Rahman,Chem.Eng.J.170(2011)154.
[62]E.Lorenc-Grabowska,G.Gryglewicz,DyesPigments74(2007)34.
[63]R.Gong,Y.Ding,M.Li,C.Yang,H.Liu,Y.Sun,DyesPigments64(2005)187.
[64]S.Lagergren,KsverVeterskapsakadHandl.24(1898)1.
[65]G.Mckay,Y.S.Ho,Proc.Biochem.34(1999)451.
[66]E.Eren,O.Cubuk,H.Ciftci,B.Eren,B.Caglar,Desalination252(2010)88.
[67]Y.Li,Q.Du,X.Wang,Y.Xia,J.Hazard.Mater.183(2010)583.
[68]S.K.Theydana,M.J.Ahmed,J.Anal.Appl.Pyrol.97(2012)116.
[69]W.J.Weber,J.C.Morris,J.San.Eng.Divis.Am.Soc.CivilEng.89(1963)31.
[70]G.K.Bhattacharyya,A.Sharma,J.Environ.Manage.71(2004)217.
[71]O¨ .Gerc¸el,A.O¨ zcan,A.S.O¨ zcan,H.F.Gerc¸el,Appl.Surf.Sci.253(2007)4843.
[72]I.Langmuir,J.Am.Chem.Soc.40(1918)1361.
[73]H.M.F.Freundlich,J.Chem.Phys.57(1906)385.
[74]M.H.Isa,L.S.Lang,F.A.H.Asaari,H.A.Aziz,N.A.Ramli,J.P.A.Dhas,DyesPigments 74(2007)446.
[75]G.K.Bhattarcharyya,A.Sharma,DyesPigments57(2003)211.
F.Gu¨zeletal./JournalofIndustrialandEngineeringChemistry20(2014)3375–3386 3386
