INTRODUCTION
Carbamazepine (CBZ), 5-H-Dibenz [b.f] azepine-5- carboxomide (Fig.1), is widely prescribed as an anti- convulsant, antiepileptic and antimanic drug1,2. In
the body, CBZ is metabolized to an active metabolite, CBZ-10.11 Epoxide (CBZ-EP), which also displays anticonvulsant properties similar to those of the parent compound3,4. CBZ is poorly soluble in aqueous media and has a high oral bioavailability in humans3.

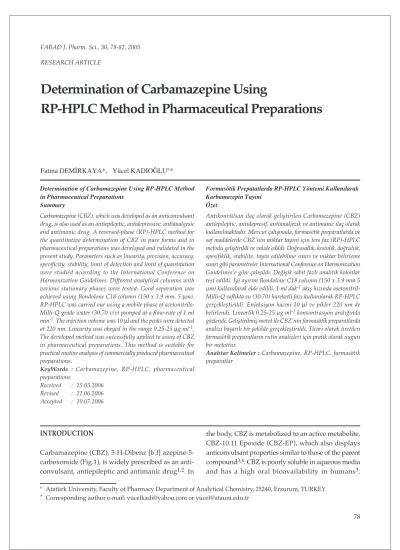

Determination of Carbamazepine Using
RP-HPLC Method in Pharmaceutical Preparations
Carbamazepine (CBZ), which was developed as an anticonvulsant drug, is also used as an antiepileptic, antidepressive, antianalgesic and antimanic drug. A reversed-phase (RP)-HPLC method for the quantitative determination of CBZ in pure forms and in pharmaceutical preparations was developed and validated in the present study. Parameters such as linearity, precision, accuracy, specificity, stability, limit of detection and limit of quantitation were studied according to the International Conference on Harmonization Guidelines. Different analytical columns with various stationary phases were tested. Good separation was achieved using Bondolone C18 column (150 x 3.9 mm. 5 µm).
RP-HPLC was carried out using a mobile phase of acetonitrile- Milli-Q grade water (30:70 v/v) pumped at a flow-rate of 1 ml min-1. The injection volume was 10 µl and the peaks were detected at 220 nm. Linearity was obeyed in the range 0.25-25 µg ml-1. The developed method was successfully applied to assay of CBZ in pharmaceutical preparations. This method is suitable for practical routine analysis of commercially produced pharmaceutical preparations.
KeyWords : Carbamazepine, RP-HPLC, pharmaceutical preparations
Received : 15.05.2006 Revised : 21.06.2006 Accepted : 10.07.2006
º
*
Atatürk University, Faculty of Pharmacy Department of Analytical Chemistry, 25240, Erzurum, TURKEY Corresponding author e-mail: yucelkadi@yahoo.com or yucel@atauni.edu.tr
Several methods have been reported for the determi- nation of CBZ standards and in pharmaceutical prep- arations including spectrophotometric methods4-7, spectrofluorimetry methods8,9, gas-liquid chromatog- raphy (GC)10,11, FT-Raman spectroscopy12 and liquid chromatography13-18.
Therefore, the purpose of this investigation was to develop and validate a reversed-phase (RP)-HPLC method that could be used for determination of CBZ in pure forms and in pharmaceutical preparations.
In the present paper, a simple, rapid, sensitive, precise, accurate and specific RP-HPLC-DAD method is de- scribed and applied to pharmaceutical preparations, which require high sensitivity and selectivity.
MATERIALS AND METHODS
Materials and chemicals
Carbamazepine (CBZ) was kindly supplied by No- vartis (Turkey). HPLC and analytical grade solvent (methanol, acetonitrile) were purchased from Merck (Germany). The water of HPLC was prepared by double glass distillation and filtration through Milli- pore 0.45 µm. white nylon HNWP 47 mm filters.
Three commercial preparations-Tegretol tablet (pro- duced by Novartis Pharm. Ind., Turkey, containing 200 mg CBZ/tablet), Karberol tablet (produced by Munir Sahin Pharm. Ind., Turkey containing 200 mg CBZ/tablet) and Karbelex tablet (produced by Liba Pharm. Ind., Turkey, containing 300 mg CBZ/tablet)- were assayed.
Chromatographic system and conditions
A Thermoseparations Spectra HPLC system was applied to perform the analyses. Detection was ac- complished using UV 6000 LP photodiode array detector. The Series P 400 gradient auto pump and a Thermoseparations As 3000 autosampler were condi-
tioned at 25°C. Chromatographic software Chromoquest30 was used for data collection and processing.
Three different analytical columns with various sta- tionary phases were tested: Phenomenex Bondolone RP C18 column (150 x 3.9 mm. 5 µm.), Ace 5 C8 column (150 x 4.6 mm. 5 µm.) and Nucleosil 5 NH2 100A (250 x 4.0 mm 5 µm).
Standard solutions
Standard stock solution of CBZ was prepared with methanol to a concentration 50 µg ml-1 and stored at 4°C. Working solutions (0.25-25 µg ml-1) were prepared by diluting with water appropriate volumes of stock solutions at 10 ml as needed to construct the calibration curves. The working solutions were prepared freshly in analysis daily. The solutions were filtered through a phenomenex membrane of 0.45 µm pore size (25 mm filter) and transferred to an autosampler vial for analysis. Calibration graphs were prepared using peak area versus concentrations of working solutions in mobile phase. Six replicate 10 µl injections were made for each concentration. The final concentrations of CBZ in the samples were calculated by comparison with peak area obtained with an average of six injec- tions of standard solutions.
Analysis of pharmaceutical preparations
Twenty tablets (Tegretol® Karberol® and Karbelex®
tablets) were accurately weighed and finely powdered in a mortar. An amount of tablet mass equivalent to content of a tablet (200 mg for Tegretol® and Karberol®, 300 mg for Karbelex®) was transferred to a 50 ml volumetric flask and dispersed in 40 ml methanol. The flask was placed in ultrasonic bath for 15 min. The resulting suspension was diluted to volume with methanol and then filtered. Further dilutions were performed to constitute the calibration graphs for the RP-HPLC method.
Method validation
The methods were validated according to the Inter- national Conference on Harmonization Guidelines19
for validation of analytical procedures.
N
C O
H N
Chemical structure of carbamazepine.
Figure 1.
RESULTS AND DISCUSSION
RP-HPLC method
The development of the RP-HPLC method for the determination of drugs has received considerable attention in recent years because of its importance in routine quality control analysis. Different analytical columns with various stationary phases were tested.
Good separation from these three columns was achieved using a Phenomenex Bondolone RP C18
column. The latter was finally used for analysis. A RP-HPLC method was proposed as a suitable method for the estimation of CBZ in pharmaceutical dosage form. The chromatographic conditions were adjusted in order to provide a good performance of the assay.
The method involved a mobile phase consisting of acetonitrile- Milli-Q grade water (3:7 v/v) accom- plished at 220 nm. The retention time was 8.2 min at a flow-rate of 1 ml min-1 and the injection volume was 10 µl. The total run time for an assay was approx- imately 9 min. The integrator attenuation was 8 and the chart speed was 0.2 cm min-1. The mobile phase was chosen after several trials with other solvent combinations. Mobile phase selection was based on peak parameters (symmetry, tailing), run time, ease of preparation and cost. Figures 2 and 3 show a typical chromatogram obtained from the analysis of a stan- dard and solution of commercial CBZ using the pro- posed method. As shown in these figures, CBZ was eluted forming symmetrical peak and well separated from the solvent front. Observed retention time (8.2 min) allowed a rapid determination of the drug.
System suitability parameters calculated under the optimized experimental conditions were capacity factor (k’) 4.46; symmetry factor 1.05 and column efficiency (n) 4303 plates/m.
Linearity
To determine the linearity of the RP-HPLC method, calibration standard solutions of CBZ were prepared as in the text. The linear ranges were found to be 0.25- 25 µg ml-1 concentration. The regression equation and correlation coefficient (r) obtained by least square regression method were y=449820x+115048 (y: peak area, x: concentration) and 0.9995, respectively. The regression equation calculated from calibration curves given with the standard deviations of slope (Sb) and intercept (Sa) on the ordinate are given in Table 1. The linearity of the calibration graph and conformity of RP-HPLC value to Beer’s Law were proven by the high correlation coefficients (r) for the regression equations.
Accuracy and precision
Repeatability is given as inter- and intra-day precision and accuracy evaluated by analyzing three different concentrations of CBZ. Accuracy of the method was checked for six days at three concentration levels at 2.5, 7.5 and 15 µg ml-1 in six replicates. The results are given in Table 2. The precision of the RP-HPLC method was demonstrated by the relative standard derivation (RSD %) of lower than 5.88% for intra-day and 6.68% for inter-day. Recovery experiments were
a) HPLC chromatogram of obtained calibration graph point using the assay spiked procedure
b) Calibration graphs (n=6) Figure 2.
HPLC chromatogram of 10 µg ml-1 CBZ:
a) Standard b) Tegretol c) Karbelex d) Karberol Figure 3.
Table 1. Results of regression analysis of data for the quantitation of CBZ by the proposed methods (n=6)
performed via standard-addition technique. To fixed and known amount of drug in the pre-analyzed tablet extracts, pure CBZ (standard) was added at three levels and the total amount was found by method.
The experiment at each level was repeated six times.
The developed RP-HPLC method was applied to three serials of tablets and the percent recoveries obtained are given in Table 3. These results indicated a very good reproducibility of this method.
Sensitivity
Limit of detection (LOD) and limit of quantitation (LOQ) were determined by an empirical method that consisted of analyzing a series of standard solutions containing decreased amounts of CBZ. The LOQ is defined as the lowest concentration on the calibration curve at which both accuracy and precision should be within 20%. LOQ value of the RP-HPLC method was determined as 0.07 µg ml-1, and its precision and accuracy were well within the proposed criteria (Table 1). The LOD for CBZ determination was approximate- ly 0.05 µg ml-1.
Stability
For the determination of the stability of CBZ in solu- tion at ambient 4ºC and -20ºC refrigeration tempera- ture, three sets of low (2.5 µg ml-1), medium (7.5 µg ml-1) and high (15 µg ml-1) concentrations were di- vided into 12 tubes. One set was assayed immediately and taken as standard (100%). One of the sets was stored at 4ºC for 24 h and for 1 week. The other set
was stored at – 20ºC in a deepfeezer for 24 h. The remaining set was allowed to stand at ambient tem- perature for 24 h. The stability measurements were then carried out. The results were evaluated by com- paring these measurements with those of standards and expressed as percentage deviation. They are summarized in Table 4.
CONCLUSION
This paper describes a reversed-phase HPLC method for determination of CBZ in pure forms and in phar- maceutical preparations with minor sample treatment.
The validation studies show good recoveries, precision and accuracy. This method was successfully applied to assay of CBZ in tablets (Tegretol® Karberol® and Karbelex® (Table 5)). In summary, the reported method can be used for the routine quality control analysis of the investigated drug in pharmaceutical prepara- tions.
Bradley MK, Rene H, Levy RR, Matson R, Meldrum B, Penry JK, Dreifuss FE (Eds.) Carbamazepine and carbamazepine epoxide, Antiepileptic Drugs, Third Edition, Raven Press, Ltd., New York , 505-517, 1989.
Olling M, Mensinga TT, Barends DM, Groen C, Lake OA, Meulenbent J Bioavailability of carbamazepine from four different products and the occurrence of side effects, Biopharm Drug Dispos, 20 19-28, 1999.
REFERENCES Table 2. Precision of the methods for determination
of CBZ (n=6)
Table 3. Recovery values of CBZ in pharmaceutical preparations (n=6)
Table 4. Stability of CBZ in solution (n=6).
Table 5. Determination of CBZ in pharmaceutical preparations (n=6)
1.
2.
Jung H, Milan RC, Girard ME, Leon F, Montoya MA Bioequivalence study of carbamazepine tablets: in vitro/in vivo correlation, Int. J.
Pharmaceutics, 152 37-44, 1997.
Jaffery NF, Ahmad SN, Jailkhani BL Spectrophotometric method for simultaneous estimation of phenytoin and carbamazepine, J Pharmacol Methods, 933-39, 1983.
Riad LE, Chan KK, Wagner WE, Sawchuk RJ Simultaneous first and zero-order absorption of carbamazepine tablets in humans, J Pharm Sci, 75 897-900, 1986.
Camara MS, Mastandrea C, Goicoechea HC Chemometrics-assisted simple UV-spectroscopic determination of carbamazepine in human serum and comparison with reference methods, J.Biochem Biophys Methods, 64 153-166, 2005.
Rezaei Z, Hemmateenejad B, Khabnadideh S, Gorgin M Simultaneous spectrophotometric determination of carbamazepine and phenytoin in serum by PLS regression and comparison with HPLC, Talanta, 65 21-28, 2005.
Huang C, He Q, Chen H Flow injection photochemical spectrofluorimetry for the d e t e r m i n a t i o n o f c a r b a m a z e p i n e i n pharmaceutical preparations, J Pharm Biomed Anal, 22 59-65, 2002.
F e l l e n b e rg A J , P o l l a rd A C A r a p i d spectrophotometric procedure for the simultaneous micro determination of carbamazepine and 5,5-diphenyl-hydantoin in blood, Clin Chim Acta, 69 429-431, 1976.
Frigerio A, Baker KM, Belvedere G Gas chromatographic degradation of several drugs and their metabolites, Anal Chem., 45 1846-1850, 1973.
Chen K, Bashi HK Comparative analysis of antiepileptic drugs by gas chromatography using capillary or packed columns and by fluorescence polarization immunoassay, Analytical Toxicol, 15 82-85, 1991.
Auer ME, Griesser US, Sawatzki J Qualitative and quantitative study of polymorphic forms in drug formulations by near infrared FT-Raman spectroscopy, J Mol Structure, 661 307-317, 2003.
Cry TD, Matsui F, Sears RW, Curran NM,
Lovering EG Liquid chromatographic methods f o r a s s a y o f c a r b a m a z e p i n e , 1 0 , 11 - dihydrocarbamazepine and related compounds in carbamazepine drug subtance and tablets, Anal. Chem., 70(5) 836-840, 1987.
Mohammed EAH Comparative LC–MS and HPLC analyses of selected antiepileptics and beta-blocking drugs, Il Farmaco, 55 136-145. 2000.
Manoj Babu MK Simultaneous separation and quantitation of four antiepileptic drugs—a study with potential for use in patient drug level monitoring, J Pharm and Biomed Anal, 34 315-324, 2004.
Lam MW, Young CJ, Brain RA, Johnson DJ, Hanson MA, Wilson CJ, Richards SM, Solomon KR, Mabury SA Aquatic persistence of eight pharmaceuticals in a microcosm study, Environ Toxicol Chem, 23 1431-1440, 2004.
González-Barreiro C, Lores M, Casais MC, Cela R Simultaneous determination of neutral and acidic pharmaceuticals in wastewater by high- performance liquid chromatography–post- column photochemically induced fluorimetry, J Chromatogr A, 993 29-37, 2003.
Walker ES Liquid chromatographic determination of carbamazepine in tablets, J.Assoc Off Anal Chem., 71 523-525, 1988.
Validation of Analytical Procedures, Proceedings of the International Conference on Harmonisation (ICH), Commission of the European Communities, 1996.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
