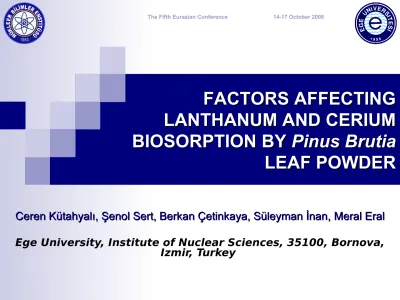

14-17 October 2008 The Fifth Eurasian Conference
FACTORS AFFECTING
FACTORS AFFECTING
LANTHANUM AND CERIUM
LANTHANUM AND CERIUM
BIOSORPTION
BIOSORPTION
BY
BY
Pinus Brutia
Pinus Brutia
LEAF POWDER
LEAF POWDER
Ceren Kütahyalı,Ceren Kütahyalı, Şenol Sert, Berkan Çetinkaya, Süleyman İnan,Şenol Sert, Berkan Çetinkaya, Süleyman İnan, Meral EralMeral Eral
Ege University, Institute of Nuclear Sciences, 35100, Bornova, Izmir, Turkey
Outline
•
La and Ce in Nuclear field•
Biosorption•
Adsorption experiments14-17 October 2008
14-17 October 2008
The Fifth Eurasian Conference 3
Rare earth elements are widely used in the fields
Nuclear energy Chemical engineering Metallurgy Electronics Computers
Introduction
14-17 October 2008
The Fifth Eurasian Conference 4
Introduction
High purity grade cerium and lanthanum is required
• nuclear power production
• catalyst for automobile and nuclear industries
Current applications of lanthanum as a pure
element or in association with other compounds are in super alloys, catalysts, special ceramics, and in organic synthesis.
Introduction
In environmental point of view
increasing demand of the rare earth elements for several industrial areas,
monitoring and removal studies from waters and waste waters are important.
Removal Technics Precipitation Ion exchange Oxidation Solvent extraction Filtration Electrochemical treatment Membrane technologies
advantages and limitations in application
ineffective or extremely expensive
14-17 October 2008
This has initiated research in new, low-cost materials for possible use as adsorbents.
Alternative process;
Adsorption/biosorption of heavy metals from aqueous solutions by biological materials.
In contrast to traditional methods biosorption is
Competitive Effective Economical eco-friendly technology.
Introduction
14-17 October 2008 Biosorbent materials for concentration and recovery of strategic or
valuable heavy metals, nuclear fuel, or radioactive elements.
Objective
14-17 October 2008Biosorption
The removal of metal or metalloid species, compounds, particulates from solution by biological material. The term biosorption refers to metal uptake by (microbial) biomass which
may even be dead.
Biosorbent materials seaweed yeast bacteria fungi 14-17 October 2008
Biosorption
In general, biomass considered could be an industrial waste or naturally grown and collected material.
Biosorbents can be highly selective,
efficient, cheap.
14-17 October 2008
Biosorption
Plant leaves have also been recommended as a simple inexpensive method to remove heavy metals from solutions.
14-17 October 2008
Al-Subu described the removal of lead from aqueous solutions using
leaves of three different plant species; cypress (Cupressus
sempervirens), cinchona (Eucalyptus longifolio) and pine (Pinus halepensis).
Bhattacharyya and Sharma used dry Neem leaf powder, as an
adsorbent for removal of toxic heavy metals such as Pb(II).
Kumar et al., investigated the potential use of untreated Tectona grandis
L.f. biomass as metal sorbent for zinc from aqueous solution.
Ucun et al., used ovulate cone biomass of Pinus sylvestris as a
biosorbent for Cr(VI) from artificial wastewaters and studied to determine the constants of the adsorption isotherm relation.
Biosorption
M.M. Al-Subu, Adv. Environ. Res. 6 (2002) 569-576.
H. Ucun, Y. K. Bayhan, Y. Kaya, A. Cakici, O. Faruk Algur, Bioresource Technol. 85 (2002) 155–158. K. G. Bhattacharyya, A. Sharma, J. Hazard. Mater. B113 (2004) 97–109.
Y. P. Kumar, P. King, V.S.R.K. Prasad, Chem. Eng. J. 124 (2006) 63–70.
14-17 October 2008
Despite their strategic and economic importance, only in the last few years some investigations have been published related to the removal of REEs by biomaterials;
Diniz and Volesky investigated the biosorption of La, Eu and Yb using
Sargassum biomass. This study focuses on exploring the biosorption potential in the recovery of a light (La), intermediate (Eu) and a heavy (Yb) rare earth elements using Sargassum biomass in single- and multi-component metal systems.
Texier et al., investigate the selective sorption of three trivalent
lanthanide (La, Eu, and Yb) ions by biomass from P. aeruginosa.
Palmieri et al., work on to develop a study on neodymium biosorption
from acidic solution utilizing different types of biomass in batch experiments.
V. Diniz, B. Volesky, Water Res. 39 (2005) 239–247.
A. Texier, Y. Andrès, P. Le Cloirec, Environ. Sci. Technol. 33 (1999) 489-495.
M.C. Palmieri, O. Garcia Jr., P. Melnikov, Process Biochemistry. 36 (2000) 441–444.
14-17 October 2008
14-17 October 2008
The Fifth Eurasian Conference 13
Present work;
finely ground Pinus brutia leaf powder for the removal of La
and Ce from aqueous solutions.
14-17 October 2008
14-17 October 2008
The Fifth Eurasian Conference 15
The dried leaves were used as biosorbent without any chemical treatment to avoid extra expenditure.
Experimental
Collection of the leaves
Washing, deionized water
drying, 80°C for 24 h
grinding
Sieving, 125 μm
14-17 October 2008
The Fifth Eurasian Conference 16
0.1 g of dry biomass were mixed with 25 mL of metal ion solution. LaNO3.6H2O and CeNO3.6H2O (Merck)
The mixture was shaken in thermostatically controlled shaker Filtered (Whatman filter paper no: 44)
The amounts of metal ions adsorbed on biomass were calculated as
the difference between initial and final concentration at equilibrium.
Batch adsorption experiments
Experimental
m
V
)
C
C
(
q
0
e (mg/g)ICP-OES (Optima 2000 DV, Perkin Elmer, USA)
Experimental
14-17 October 200814-17 October 2008
The Fifth Eurasian Conference 18
The parameters which affect the La and Ce adsorption were investigated, such as;
pH (2-6),
shaking time (5-480 min),
Initial metal ion concentration (25-300 ppm), adsorbent concentration (2-30 mg/mL)
Temperature (20-50°C).
14-17 October 2008
The Fifth Eurasian Conference 19
Initial La and Ce concentrations: 100 ppm Shaking time: 120 min
Temperature: 30°C
Adsorbent amount: 0.1 g
Adsorption tests
14-17 October 2008
The Fifth Eurasian Conference 20
Initial La and Ce concentrations: 100 ppm pH 5
Temperature: 30°C
Adsorbent amount: 0.1 g
Adsorption tests
Effect of shaking timeAdsorption tests
pH 5
Shaking time: 30 min for La, 15 min for Ce Temperature: 30°C
Adsorbent amount: 0.1 g
Effect of initial metal concentration 14-17 October 2008
14-17 October 2008
The Fifth Eurasian Conference 22
Adsorption tests
Effect of temperatureInitial La and Ce concentrations: 25 ppm pH 5
Shaking time: 30 min for La, 15 min for Ce Adsorbent amount: 0.1 g
14-17 October 2008
The Fifth Eurasian Conference 23
Thermodynamic considerations
H positive and G negative Endothermic and spontaneous
RT H R S K ln d 0 0 0 0 0 S G H° (kJ/mol) S° (kJ/mol K) G° (kj/mol) 292 K 303 K 313 K 323 K La 5.650 0.077 -16.93 -17.78 -18.55 -19.33 Ce 3.325 0.068 -16.59 -17.34 -18.02 -18.70
14-17 October 2008
The Fifth Eurasian Conference 24
Adsorption tests
Effect of adsorbent concentrationInitial La and Ce concentrations: 25 ppm pH 5
Shaking time: 30 min for La, 15 min for Ce Temperature: 30°C
14-17 October 2008
The Fifth Eurasian Conference 25
Adsorption isotherms
Langmuir Isotherm Freundlich Isotherm
m e m e e n C bn q C 1 Ce: equilibrium concentration (mg/L), qe: amount absorbed at equilibrium (mg/g) nm:monolayer capacity b: energy of adsorption n / e e KC q 1
q: amount of solute adsorbed per mass unit
adsorbent
C: equilibrium concentration K and n: Freundlich constants
14-17 October 2008
The Fifth Eurasian Conference 26
Freundlich and Langmiur Constants
Freundlich Constants Langmiur Constants R2 n K R2 n
m (mg/g) b (L/mg)
Lanthanum 0.8925 3.6 3.85 0.8961 22.57 0.021 Cerium 0.9613 3.06 2.67 0.9342 17.57 0.029
14-17 October 2008
The Fifth Eurasian Conference 27
The initial pH of the aqueous phase strongly affected the uptake of the
ions, with the highest capacity achieved at pH 5.0
The Langmuir and Freundlich adsorption model were used for
mathematical description of the removal of the La and Ce(III) ions onto Pinus Brutia leaf powder.
Thermodynamic parameters ΔH°, ΔS° and ΔG° were estimated and
these parameters show that adsorption is more favorable at high temperature, process is spontaneous and endothermic.
Adsorption onto Pinus Brutia leaf powders showed a good potential to
be an interesting alternative and low-cost method for lanthanum and cerium recovery from solutions.
Thank you very much for your attention…
