RF-MEMS load sensors with enhanced Q-factor and sensitivity

in a suspended architecture

Rohat Melik

a

_{, Emre Unal}

a

_{, Nihan Kosku Perkgoz}

a

_{, Christian Puttlitz}

b

_{, Hilmi Volkan Demir}

a,⇑ a

Departments of Electrical Engineering and Physics, Nanotechnology Research Center, and Institute of Materials Science and Nanotechnology, Bilkent University, Ankara 06800, Turkey

b

Department of Mechanical Engineering, Orthopaedic Bioengineering Research Laboratory, Colorado State University, Fort Collins, CO 80523, USA

a r t i c l e

i n f o

Article history:

Received 31 August 2009

Received in revised form 7 July 2010 Accepted 29 October 2010 Available online 9 November 2010 Keywords:

Fabrication IC

Resonance frequency shift Quality-factor

Bio-implant RF-MEMS

a b s t r a c t

In this paper, we present and demonstrate RF-MEMS load sensors designed and fabricated in a suspended architecture that increases their quality-factor (Q-factor), accompanied with an increased resonance fre-quency shift under load. The suspended architecture is obtained by removing silicon under the sensor. We compare two sensors that consist of 195lm 195lm resonators, where all of the resonator features are of equal dimensions, but one’s substrate is partially removed (suspended architecture) and the other’s is not (planar architecture). The single suspended device has a resonance of 15.18 GHz with 102.06 Q-fac-tor whereas the single planar device has the resonance at 15.01 GHz and an associated Q-facQ-fac-tor of 93.81. For the single planar device, we measured a resonance frequency shift of 430 MHz with 3920 N of applied load, while we achieved a 780 MHz frequency shift in the single suspended device. In the planar triplet conﬁguration (with three devices placed side by side on the same chip, with the two outmost ones serv-ing as the receiver and the transmitter), we observed a 220 MHz frequency shift with 3920 N of applied load while we obtained a 340 MHz frequency shift in the suspended triplet device with 3920 N load applied. Thus, the single planar device exhibited a sensitivity level of 0.1097 MHz/N while the single sus-pended device led to an improved sensitivity of 0.1990 MHz/N. Similarly, with the planar triplet device having a sensitivity of 0.0561 MHz/N, the suspended triplet device yielded an enhanced sensitivity of 0.0867 MHz/N.

1. Introduction

In the case of major fractures in humans, ﬁxation plates are commonly implanted to facilitate bony healing. When the plate is implanted, it assumes a majority of the load and demonstrates a relatively high associated strain. During the course of healing, the tissue consolidates and the strain in the plates decreases. The

strain change proﬁle over time can be found in[1]. To monitor

the healing process, a bio-implantable sensor is needed to observe the strain change in real-time. For this purpose, we present RF-MEMS resonator sensors that shift their resonance frequency when an external force is applied and strain occurs. The structure of these sensors is based on spiral RF coil architecture that provides a distributed LC tank circuit. The operating principle of these sen-sors relies on the resonance frequency shift as a result of the dielectric area (and thus the ﬁlm capacitance between the metal and the substrate) changing with the externally applied load. Therefore, using these RF-MEMS load sensors, the induced strain can in principle be monitored in real-time to observe the fracture healing process by tracking the shift of resonance frequency. While

there are also some other bio-sensor reports in the literature[2–6], our sensors are unique in that they monitor the strain wireless and with small dimensions.

Previously, we developed on-chip resonators[7,8]. In[7], the highest Q-factor with the smallest size at high frequency (15 GHz) was demonstrated. We also showed proof-of-concept of resonator-based sensors in[9]. In this work, we propose and dem-onstrate RF-MEMS load sensors designed and fabricated in a sus-pended architecture to achieve a higher shift in resonance frequency and an enhanced level of Q-factor and sensitivity com-pared to the previous resonators.

In this paper, we introduce the effects of suspended architecture on a resonator for RF MEMS bio-implant sensors, which rely on res-onance frequency shift to monitor fracture healing. Using a silicon substrate to fabricate our chips, we describe the suspended archi-tecture obtained by etching the silicon through a carefully de-signed mask. This new design, which is obtained by partially removing the substrate of the single planar device, is called the sin-gle suspended device. Applying load to both of these devices (pla-nar vs. suspended), we observed their resonance frequencies, change in their resonance frequencies, and their Q-factors. We found a higher Q-factor for the single suspended device compared to single planar device. Further, the single suspended device led to

⇑ Corresponding author. Tel.: +90 312 290 1021; fax: +90 312 290 1015. E-mail address:volkan@bilkent.edu.tr(H.V. Demir).

Contents lists available atScienceDirect

Microelectronic Engineering

(2)

a higher resonance frequency (f0) shift compared to the single

pla-nar device. We also achieved a higher f0shift compared to our

pre-viously published data in [9]as a result of partially etching the substrate. The rest of the paper presents our theoretical

back-ground and design process, fabrication processes, and experimen-tal characterization and analysis sections.

2. Theoretical background and design

Our aim is to design bio-compatible sensors with maximum Q-factor and maximum resonance frequency shifts. By using the cir-cuit model in[8], the formulas in[7,8], and techniques available in the literature[10–18], we design our devices to maximize the Q-factor. The formulas in[9,19]are used during device design process to have maximum frequency shift. We use gold as the metal layer, Si3N4as the dielectric and silicon (identical to the ones used in[7])

as the substrate so that our chip is fully bio-compatible and has a high Q-factor. To obtain a high Q-factor with minimum spacing, our technique leverages the ﬁlm capacitance (Cﬁlm) as the main

capacitance change in the LC tank circuit with the spiral geometry, as in[7,8]. In order to obtain a high Q-factor, dielectric, dielectric thickness, effects of substrate, metal layer, metal layer thickness, metal layer width, spacing, number of turns and area should also be considered carefully. The other important aspect of the design is the resonance frequency shift. The main driver of the resonance frequency shift is the change in the area of the dielectric, and, as a result, the change in the value of the capacitance. When the load is applied, since the Young’s modulus of silicon and gold is high, the main change occurs in the dielectric area as veriﬁed by the Coven-torware simulation, which is described in detail in[9].

The parameters of the single planar device are presented in

Ta-ble 1. We remove the substrate of another chip, with all the same

Table 1

The parameters of the resonator device.

Lc(lm) Wc(lm) N w (lm) s (lm) tox(lm) t (lm)

195 195 2 35 5 0.1 0.1

Fig. 1. The Qindof the singular devices with respect to frequency.

(3)

parameters, to obtain the single suspended device. By using this technique, we theorize that higher Q-factors and shifts of reso-nance frequency will result. When we etch the substrate, we de-crease the substrate loss. As a result, we inde-crease the silicon resistance (Rsi) and decrease the silicon capacitance (Csi). Hence,

the overall result is an increase in the parallel resistance (RP). By

engineering a higher substrate loss factor, a higher inductor qual-ity-factor (Qind) and hence a higher Q-factor of the device are

obtainable, as explained in details in[7,8]. The resonator quality factor (Q) is obtained from the inductor quality factor (Qind) and

capacitor quality factor (Qc) as given in[8]by:_Q1¼_Q1 indþ

1 Qc. From

this relation, it is possible to observe that increasing the inductor quality-factor will increase the resonator quality factor. Due to the higher Rsiand lower Csi, we have a lower parallel capacitance

(Cp); therefore, a higher self resonance factor is obtained at the

same frequency compared to the case with single planar device. Thus, the resonance frequency is also higher. Combining all these effects, we obtain higher Q-factors and higher resonance frequen-cies with silicon removal.Fig. 1presents the Qind-factors of the

sin-gle suspended device and the sinsin-gle planar device.

By etching the substrate, we will also have higher shift of reso-nance frequency. This can be examined from two aspects. As a re-sult of the etching of the substrate, the strain propagation will be higher. Since the strain ﬁrst occurs in the substrate then pass to the dielectric and metal layers, with an etched substrate, there will be more strain and as a result, there will be more capacitance change. Hence, there will be a higher f0shift. If we apply the same

load to the single planar device and the single suspended device, assuming they have the same resonance frequency, we will have higher shift of resonance frequency (Df0) in the single suspended

device as a result of higher strain in dielectric and metal layer. Sec-ondly, if we have two chips with same relative shiftDf0

f0, the chip

with the higher f0will have the higherDf0as well. Thus the chip

with etched substrate, with its higher f0, also has a higherDf0. If

we combine these two rationales, we expect to have a higherDf0

in the chip with the etched substrate. Also, due to the strain ampli-ﬁcation effect we also expect that the silicon-etched chip has a higher sensitivity@f0

@F. Considering all these factors, we postulate

that the suspended architecture yields a higher f0shift and higher

sensitivity.

3. Fabrication

Fig. 2provides a detailed schematic view of our fabrication

pro-cedure. We use an n-type 500

l

m thick substrate with a <1 0 0> orientation. We deposit a Si3N4thin ﬁlm using a plasma-enhanced

chemical vapor deposition (PECVD) system; this ﬁlm is 0.1

l

m

thick (Fig. 2b). We then lay down the ﬁrst metal layer (contact layer) made of Au with a thickness of 0.1

l

m (Fig. 2c). A 0.1

l

m thick Si3N4thin ﬁlm is subsequently deposited (Fig. 2d). This ﬁlm

is patterned and vertical interconnection areas are opened using a wet etching process with HF (Fig. 2e). We also perform an Au (gold) metallization step to make the interconnects and top coil construction (Fig. 2f). A 0.8

l

m thick Si3N4 ﬁlm is deposited

(Fig. 2g) and this layer is patterned and etched by HF (Fig. 2h). Fi-nally, using potassium hydroxide (KOH), we partially etch the sili-con as shown inFig. 2i.

Unlike other process ﬂows used in[7–9], here we initially put down the Si3N4thin ﬁlm to protect the contact metal layer while

silicon is being etched. Since KOH also etches the metal layer, we use the ﬁrst and third Si3N4layers as etch-stop layers. The second

Si3N4layer acts as our dielectric layer. For silicon etching, we use a

process simulation (ACES), with its simulation results shown in

Fig. 3. Using a KOH solution with a concentration of 30% at 65° C

gives an etch rate of 1.1

l

m/min, as expected from our chemical

Fig. 3. Simulation of the silicon etching. The trapezoids represent areas where there are no Si3N4. KOH solution etches the silicon through these regions.

Fig. 4. Planar images of the devices (a) the fabricated single suspended device and (b) the fabricated suspended triplet device.

(4)

kinetics simulation. Thus, after 70 min, a depth of 77

l

m is etched. This is the maximum feasible etch depth that avoids damaging the device given the architecture and size of the sensor. Since etching the substrate deep enough increases the Q-factor and sensitivity, we used the maximum feasible etching to obtain the best possible performance for this sensor geometry in practice. Here it is worth noting that, although etching helps especially at the beginning, etching has a diminishing effect in improving the Q-factor and sen-sitivity after a certain point. In our case, this etch depth of 77

l

m is practically good enough for a proof-of-concept demonstration of the resulting improvements. The ﬁnal structures are visualized in

Fig. 4and the associated SEM image of the single suspended device

is presented inFig. 5.

4. Experimental characterization and analysis

We characterize our resonator sensors with a custom-design apparatus; details of the setup can be found in[9]. We ﬁrst mea-sure S21parameters of our devices by the network analyzer when

there is no load. The S21parameters are also then recorded when

applying loads of 1960, 2940 and 3920 N (i.e., 200, 300, and 400 kgf). Using this experimental protocol, the resonance frequen-cies (f0), Q-factors, and f0shifts are determined under different

lev-els of applied loads. In our characterization, we apply up to 400 kgf (3920 N) because the human body can effectively apply 4 times of its weight to a bone; for example, a human body with a weight of 100 kgf can generate a mechanical loading of 400 kgf for a bone. During operation, in one frequency scan of the network analyzer, there are only a limited number of data points; it is thus easier to track smaller shifts in the transmission spectra in response to the applied load when the sensitivity is higher. Therefore, higher sensitivity, which results in larger shifts in transmission with the same level of induced strain, is highly preferred to read out the strain correctly. In this work, we characterized the single sus-pended device, the single planar device, the sussus-pended triplet de-vice and the planar triplet dede-vice to compare their performances with respect to each other including their resonance frequencies, Q-factors, and sensitivities. Here with the ‘‘triplet’’ conﬁguration, we refer to a method of characterizing the sensor on the chip tele-metrically where all the receiver and transmitter antennas are placed on the same chip side by side with the sensor; further de-tails can also be found in[9].

Fig. 6shows the S21parameters of the single suspended device

and the single planar device under different applied load values.

Fig. 6a gives the S21parameters of the single planar device under

different loads andFig. 6b, provides a magniﬁed view of this

infor-mation. The S21parameters of the single suspended device under

different applied loads are shown inFigs. 6c and d. There is a con-siderable increase of the resonance frequency for single suspended devices.

Table 2displays the resonance frequencies of the single planar

devices under different loads. The single planar device has a reso-nance frequency of 15.01 GHz under no deformation and demon-strates 430 MHz shift with 3920 N applied.

Fig. 5. SEM image of the single suspended device.

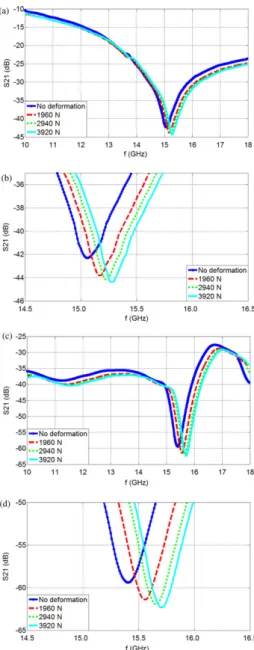

Fig. 6. Experimental measurements of the S21 parameters as a function of

frequency for (a) the single planar device and (b) zoom in for the single planar device, (c) the single suspended device and (d) zoom in for the single suspended device. Data is presented for the cases of no deformation and also when loads of 1960 N, 2940 N and 3920 N are applied.

Table 2

Resonance frequencies of the device variants with different loads. Load No load (GHz) 1960 N (GHz) 2940 N (GHz) 3920 N (GHz) Single planar device 15.01 15.30 15.39 15.44 Single suspended

device

15.18 15.64 15.83 15.96 Planar triplet 15.06 15.17 15.23 15.28 Suspended triplet 15.41 15.56 15.66 15.75

(5)

For the single suspended device, it demonstrates a 15.18 GHz resonance frequency with no deformation (Table 2). Its resonance frequency increases 780 MHz with 3920 N applied load. There is an increase in resonance frequency for the single suspended device compared to single planar device with no load, as expected and hypothesized in the theoretical background and design section. The table also shows a signiﬁcant increase in the resonance fre-quency shift in the single suspended device compared to the single planar device.

Table 2shows the increase in resonance frequency with applied

load. The underlying reason is that, under load, the dielectric area decreases and the capacitance decreases. Hence, there is a concom-itant resonance frequency increase. In addition, since the relation between the capacitance change and resonance frequency is non-linear, then the resonance frequency shift is nonlinear.

For the triplet case, we can see the S21parameters of the

sus-pended triplet device and the planar triplet device under different

applied loads inFig. 7. The ﬁgures display a considerable increase of the resonance frequency for suspended triplet devices compared to the planar triplet devices. If we observe the resonance frequen-cies for triplet cases, we will see that the planar triplet device has a resonance frequency of 15.06 GHz with no deformation, and the suspended triplet device displays 15.41 GHz with no deformation (Table 2). The resonance frequency shift of the planar triplet device is 220 MHz under 3920 N load while the resonance frequency shift of the suspended triplet device is 340 MHz under 3920 N load. In all cases of single and triplet devices, we measured each device 5 times. The presented points of resonance frequency correspond to the averages of these points of all 5 measurements. In these measurements, we also observed that the difference between the maximum and the minimum measured f0(variable range of f0) is

0.02 GHz while their standard deviation is only 0.01 GHz.

Table 3shows the device Q-factors that are obtained fromFigs.

6 and 7. We see that the single planar device has Q-factors of 93.81

under no load, and 111.08 under 3920 N load. The single sus-pended device yields an increase in Q-factor compared to the single planar device case. The single suspended device has Q-factors of 102.64 under no load, and 120.02 under 3920 N. The suspended triplet device has higher Q-factors compared to the planar triplet device case. The Q-factors of the planar triplet device are 51.90 when there is no load, and 62.55 when 3920 N load is applied. However, the Q-factors of the suspended triplet device are 67.15 with no load, and 80.45 when 3920 N load is applied. These data show that the Q-factor rises with the applied load, as expected from the load-related capacitance decrease.

The sensitivity @f0 @F

and relative shift Df0 f0

are important parameters for a sensor. The sensitivity and relative shift of the sensors are presented inTable 4. We see that the single suspended device has higher sensitivity and relative shift compared to the sin-gle planar device case. The sinsin-gle planar device has a sensitivity of 0.1097 MHz/N while the single suspended device has a sensitivity of 0.1990 MHz/N. The single planar device has a 2.9% relative shift whereas the single suspended device has a 5.1% relative shift. The same comparison occurs for the triplet case, the suspended triplet device has both higher sensitivity and relative shift compared to the planar triplet device. The planar triplet device has a 0.0561 MHz/N sensitivity and a 1.5% relative shift while the sus-pended triplet device has a 0.0867 MHz/N sensitivity and a 2.2% relative shift. These data demonstrate that the single suspended device has a higher Q-factor compared to the single planar device presented in[7]and has a higher resonance frequency shift, higher sensitivity and higher relative shift compared to the case in[9].

If we compare the case of triplet and single devices, we observe that we have different experimental performance results in terms

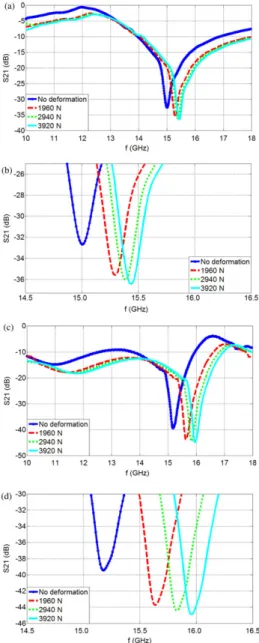

Fig. 7. Experimental measurements of the S21 parameters as a function of

frequency for (a) the planar triplet device and (b) zoom in for planar triplet device, (c) the suspended triplet device and (d) zoom in for suspended triplet device. Data for the no deformation and also when loads of 1960 N, 2940 N and 3920 N are applied are presented.

Table 3

The Q-factors of the variant devices with different loads.

Load No load 1960 N 2940 N 3920 N Single planar device 93.81 109.21 110.96 111.08 Single suspended device 102.06 116.54 119.47 120.02 Planar triplet 51.90 57.38 60.82 62.55 Suspended triplet 67.15 79.51 80.31 80.45

Table 4

The sensitivities of the variant devices.

Sensitivity (MHz/N) Relative shift (%) Single planar device 0.1097 2.9

Single suspended device 0.1990 5.1 Planar triplet 0.0561 1.5 Suspended triplet 0.0867 2.2

(6)

of signal level, resonance frequency, Q-factor and sensitivity. Since there is a distance between antennas on the chip, the signal level of the triplet device case is lower than that of the single device case.

Besides, because of the interaction between antennas, the reso-nance frequency of the single device and triplet device is slightly different. Also in the single device case, the signal is directly fed to the device whereas in the triplet device case, it is sent via the external antennas on the same chip. As a result, the Q-factor of the triplet device is lower than that of the single device as ex-pected. The shift of resonance frequency is observed to be lower in the case of triplet device compared to the single device case. The reason is that the external load is applied across a larger area in the triplet device, whereas it is applied to a smaller area in the single device case. Consequently, the shift of resonance frequency in the single device for the same level of external loading is higher compared to the triplet device, making its measured sensitivity to be higher in the single device case.

We also numerically simulate S parameters of our devices for the no-load case in CST Microwave Studio. The simulation results are given inFig. 8. We observe generally good agreement between

theoretical and experimental results from these ﬁgures.Table 5

gives the theoretical and experimental resonance frequencies and Q-factors inTable 5. The single planar device theoretically has a 14.88 GHz resonance frequency and a 98.77 Q-factor (experimen-tally it demonstrates a 15.01 GHz resonance frequency and 93.81

Q-factor). The single suspended device has a theoretical

15.31 GHz resonance frequency and a 117.41 Q-factor at the same time (experimentally it has a 15.18 GHz resonance frequency and 102.06 Q-factor). For triplet cases, we have a theoretical 14.9 GHz resonance frequency and a 57.62 Q-factor for the planar triplet de-vice. The planar triplet device has a 15.06 GHz resonance frequency and a 51.90 Q-factor. For the suspended triplet device, we have a theoretical 15.22 GHz resonance frequency while the experimental resonance frequency is 15.41 GHz. The theoretical Q-factor for this device is 80.32 while the experimental one is 67.15. The theoretical and experimental resonance frequencies and Q-factors are ob-served to be reasonably close, but not identical. There is a slight difference between each pair of the simulated and measured val-ues, which is attributed to the assumptions we make in our com-putations. In numerical simulations, we treat all components to be ‘ideal’; we assume perfect contact of the probes, perfect plane wave, perfect grounds, perfectly the same dimensions in design, and perfect environment with no external conditions affecting the signal or noise level. However, in real life, we experimentally face with all of these complications and measure all non-idealities in effect together, along with some degree of experimental error. Hence, the theoretical and experimental results differ slightly.

5. Conclusion

In conclusion, we designed, numerically and analytically simu-lated, fabricated and experimentally characterized suspended RF-MEMS load sensors that achieve higher Q-factors and higher reso-nance frequency shifts compared to planar devices (devices

with-Fig. 8. Numerical simulations for the S21parameters when there is No Load (a) for

the single planar device, (b) for the single suspended device, (c) for the planar triplet device, and (d) for the suspended triplet device.

Table 5

The theoretical and experimental resonance frequencies and Q-factors of the variant devices.

f0(GHz) Q-factor

Theoretical Experimental Theoretical Experimental Single planar device 14.88 15.01 98.77 93.81 Single suspended device 15.31 15.18 117.41 102.06 Planar triplet 14.90 15.06 57.62 51.90 Suspended triplet 15.22 15.41 80.32 67.15

(7)

out substrate etching). The single suspended device has a 102.06 Q-factor, a 780 MHz frequency shift, a 0.1990 MHz/N sensitivity and a 5.1% relative shift whereas the single planar device has a 93.81 Q-factor, 430 MHz frequency shift, they 0.1097 MHz/N sensitivity and a 2.9% relative shift. For triplet cases, the suspended triplet de-vice has a 340 MHz frequency shift, a 0.0867 MHz/N sensitivity and a 2.2% relative shift while the planar triplet device has a 220 MHz frequency shift, a 0.0561 MHz/N sensitivity and a 1.5% relative shift. The suspended structures have greater resonance frequency shifts, sensitivities and relative shifts compared to all other cases presented heretofore. Therefore, the suspended architecture repre-sents an improved geometry for monitoring strain in real-time. This improvement can be useful for the application of assessing the progression of healing osseous fractures.

Acknowledgments

This work is supported by the Turkish National Academy of Sci-ences Distinguished Young Scientist Award (TÜBA GEB_IP), the European Science Foundation European Young Investigator Award (ESF-EURYI), and TÜB_ITAK EEEAG 105E066, 105E065, 104E114, 106E020, 107E088, 107E297, and 109E004 and EU MOON 021391. This work is also supported by a subcontract from the Uni-ted States National Institutes of Health (NIH) 5R01EB010035-02. We acknowledge Dr. Z. Dilli for valuable discussions.
