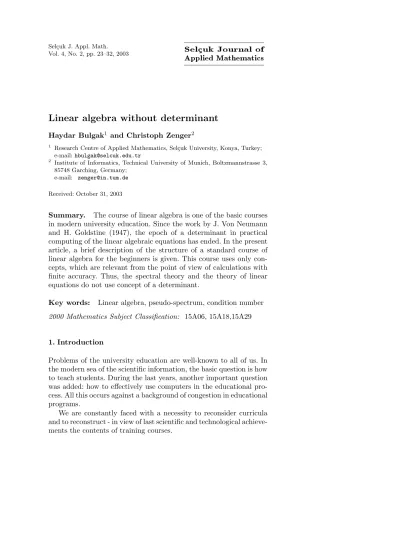

Selcuk Journal of
Applied Mathematics
Vol. 4, No. 2, pp. 23–32, 2003
Linear algebra without determinant
Haydar Bulgak1 and Christoph Zenger2
1 Research Centre of Applied Mathematics, Sel¸cuk University, Konya, Turkey; e-mail: hbulgak@selcuk.edu.tr
2 Institute of Informatics, Technical University of Munich, Boltzmannstrasse 3, 85748 Garching, Germany;
e-mail: zenger@in.tum.de Received: October 31, 2003
Summary. The course of linear algebra is one of the basic courses in modern university education. Since the work by J. Von Neumann and H. Goldstine (1947), the epoch of a determinant in practical computing of the linear algebraic equations has ended. In the present article, a brief description of the structure of a standard course of linear algebra for the beginners is given. This course uses only con-cepts, which are relevant from the point of view of calculations with finite accuracy. Thus, the spectral theory and the theory of linear equations do not use concept of a determinant.
Key words: Linear algebra, pseudo-spectrum, condition number
2000 Mathematics Subject Classification: 15A06, 15A18,15A29
1. Introduction
Problems of the university education are well-known to all of us. In the modern sea of the scientific information, the basic question is how to teach students. During the last years, another important question was added: how to effectively use computers in the educational pro-cess. All this occurs against a background of congestion in educational programs.
We are constantly faced with a necessity to reconsider curricula and to reconstruct - in view of last scientific and technological achieve-ments the contents of training courses.
One of the key courses of modern university education is a course of linear algebra. The latter course includes many beautiful mathe-matical theories ( see e.g. [3]–[6], [8], [10]–[14]). On which of them one should concentrate attention depends on a speciality, to which the students are being trained.
The authors have prepared a variant of a linear algebra textbook which is supported by computer program MVC [15]. It is an extension version of the textbook [5]. The book gives an introduction to linear algebra and it also includes some important material from numeri-cal linear algebra and mathematinumeri-cal analysis. Generally, introductory courses on linear algebra are frequently spoilt as they are being mis-used as an introduction to algebra, mathematical logic and projective geometry - and thus students might not be aware of the connections to analysis when the course is over. However, these connections are very important, particularly in applied mathematics and numerical analysis. In that sense, the present book tries to bridge the gap both between traditional linear algebra and numerical linear algebra as well as between linear algebra and functional analysis.
We would like to stress that we see an urgent need for a textbook emphasizing the fact that certain questions from linear algebra are no longer well-posed, when the problem comes from an application where perturbations have to be considered. The eigenvalue problem for nonsymmetric matrices is just one of several examples.
The main results are introduced and proved without any references to determinant. Since the papers [1], [2] show that a determinant is ill-posed concept of a linear algebra in general case, we think that determinant is a complex concept of linear algebra and it is a subject for the additional articles about it.
The material of the book is organized in such a manner as the reader would master the material without omissions. All statements in the book are proven. All concepts of the book can be correctly computed using the MVC [15]. The MVC is a C++ toolbox. The users don’t have to be familiar with the C++; they only need to call the functions that are listed in the book [5].
Written primarily for first- and second- year undergraduates in mathematics, this book features a host of diverse and interesting examples, making it an entertaining and stimulating companion that will also be accessible to students of statistics, computer science and engineering, as well as to professionals in this fields.
2. Vector space
One of the most important ideas of modern mathematics is the idea of vector spaces. As an example of the vector spaces over the real field, we generally take the set of real polynomials. We have chosen this example, since the students are familiar with the polynomials and besides it is far from the traditional interpretation of a vector as an arrow with the starting and ending points.
The idea of a basis in a vector space V leads us to finite dimen-sional vector spaces. We work only with such vector spaces in this book.
For N -dimensional vector space V ( dim(V ) = N ) the co-ordinates of a vector with respect to its basis leads us to RN space. It is the first time an idea of a linear algebraic system appears here. If we have a bank of co-ordinates of vectors of a vector space V with re-spect to a basis e1, e2, . . . , eN, then we can easily find co-ordinates of
them with respect to a new basis w1, w2, . . . , wN, if we have a ma-trix, which characterises these bases. The matrix appears here the very first time as one of the objects of linear algebra theory.
3. Linear equations
Let P : V → W be a linear transformation of a vector space V to a vector space W . Let N = dimV and M = dimW . If we have two ordered bases v1, v2, . . . , vN and w1, w2, . . . , wM in V and W
respec-tively. It is convenient using the co-ordinates of a vector x ( V and a matrix with N columns and M rows compute the co-ordinates of vector P x. The matrix is the matrix of the transformation P with respect to the bases. The question of choosing the convenient bases is a very important one from theoretical and practical point of view. This topic leads us to linear equations.
Let P : V → V be a linear operator. We can speak about an identical operator, singular and regular operators. We have kerP and ImP subspaces. Here we have Krylov’s subspaces. Invariant sub-spaces. Projectors. All of these concepts are illustrated by the simple examples.
4. Euclidean and Hermitian spaces
A distance and angle between two vectors are meaningful in Euclidean and Hermitian spaces. The adjoint, self-adjoint and Hermitian oper-ators are objects of Hermitian space. The transpose, symmetric and orthogonal operators are objects of Euclidean space.
The Hermitian and symmetric operators allow us to speak about sign of operator. In these spaces we can speak about well- and ill-posed operators.
Let V = {p(x), p(x) = ax + b, a, b ∈ R, 0 ≤ x ≤ 1} be a vector space. The following examples illustrate some aspects of the theory of operator equations.
- Define an inner product in the vector space V such that the vectors 1 + x and 1 + 2x (0 ≤ x ≤ 1) are orthogonal.
-Consider the operators P and Q in V ,
P [ax+b] = (a+b)x+a−b, Q[ax+b] = (2a−b)x+3a, a, b ∈ R, 0 ≤ x ≤ 1.
Check that there is no any inner product such that Q is a self-adjoint operator with respect to it.
Check that P is a non-self-adjoint operator with respect to the inner product
(ax + b, cx + d)1 = 2ac + 7bd, a, b, c, d ∈ R, 0 ≤ x ≤ 1
and it is a self-adjoint operator with respect to the inner product (ax + b, cx + d) = ac + bd, a, b, c, d ∈ R, 0 ≤ x ≤ 1.
It is interesting that a symmetric operator has a symmetric matrix with respect to an orthonormal basis.
In this chapter the orthogonal subspaces, orthogonal direct sum of the subspaces, the orthogonal operators and the orthogonal pro-jectors are introduced.
An important example of an orthogonal operator is a Householder reflection. Another example of an orthogonal operator is a Givens rotation [9].
5. Symmetric eigenvalue problem
A couple (λ, L) is known as an eigencouple of a symmetric matrix
S, if for any non-zero vector x of a one-dimensional subspace L the
equality Sx = λx holds. In this case λ is known as an eigevalue of S and L as its eigensubspace, which corresponds to λ. Any vector of L is known as an eigenvector of S which corresponds to λ.
An N -dimensional symmetric matrix S has N different eigensub-spaces L1, L2, . . . , LN such that RN = L1 ⊕ L2 ⊕ . . . ⊕ LN is an
orthogonal direct sum.
Let L1 and L2 be two eigensubspaces, which correspond to λ1
matrix S. These eigensubspaces are orthogonal one to another. Really, take any non-zero vectors u ∈ L1 and w ∈ L2. Since
(Su, w) = (λ1u, w) = λ1(u, w),
(Su, w) = (u, S ∗ w) = (u, Sw) = (u, λ2w) = λ2(u, w)
and λ1 = λ2 we can conclude that (u, w) = 0.
We know that any symmetric matrix S can be reduced to a tridi-agonal symmetric one by a sequence of Householder transformations. Any symmetric tridiagonal matrix is represented by a number of sym-metric Jacobi matrices.
Some words about symmetric eigenvalue problem for symmetric tridiagonal Jacobi matrix. Let d1, dj, bj = 0, j = 2, 3, . . . , N be the
real numbers. A symmetric N -dimensional tridiagonal matrix
S = ⎛ ⎜ ⎜ ⎜ ⎜ ⎝ d1 b2 O b2 d2 . .. . .. ... bN O bN dN ⎞ ⎟ ⎟ ⎟ ⎟ ⎠
is known as a symmetric Jacobi matrix. The sequence
D0(λ) = 1;
D1(λ) = d1− λ; k = 1, 2, . . . , N − 1,
Dk+1(λ) = (dk+1− λ)Dk(λ) − b2k+1Dk−1(λ) is known as a Sturm sequence ( see, for example, [3], [4], [15]).
The roots of a polynomial Dk(λ), k = 1, 2, 3, . . . , N are real and
simple (not multiple). Between two neighbour roots of the polyno-mial Dj(λ) there is one root of the polynomial Dj−1(λ). Hence the polynomial DN(λ) = 0 has N different real roots.
It is easy to check that if (λ, L) is an eigencouple of S then for any non-zero vector u = (u1, u2, . . . , uN)T ∈ L we have u1 = 0.
The vector u with components 1) u1= 1;
2) u2=−(d1− λ)/b2;
uk=−(bk−1uk−2+ (dk− λ)uk−1)/bk, k = 3, 4, . . . , N.
satisfies to equations
−(d1− λ)u1− b2u2= 0;
bNuN−1+ (dN− λ)uN = (−1)N+1DN(λ)/[b2b3. . . bN].
Hence, for λ1, λ2, . . . , λN, the N different roots of DN(λ) = 0, there
exist N orthonormal eigenvectors x1, x2, . . . , xN that define N
eigen-subspaces L1, L2, . . . , LN.
The equalities Sxj = λjxj, j = 1, 2, . . . , N allows concluding that
a diagonal matrix Λ with the diagonal entries λ1, λ2, . . . , λN and an orthogonal matrix U = [x1, x2, . . . , xN] with the columns xj, j =
1, 2, . . . , N are related by the equality SU = U Λ. Hence we proved that for any symmetric Jacobi matrix S there exist an orthogonal matrix U , such that U∗SU is a diagonal matrix. S = U ΛU∗ is known as an eigenvalue decomposition (EVD) of S.
It is easy to check that for a block-diagonal symmetric diagonal matrix there exists its EVD. Hence it is also true for any symmetric matrix. A set of the eigenvalues of the symmetric matrix S is known as its spectrum.
EVD is true for the Hermitian matrices too. For any Hermitian matrix S there exists an unitary matrix U such that U∗SU is a real
diagonal matrix.
6. SVD - singular value decomposition
EVD for a symmetric matrix has a generalisation to non-symmetric matrix. Let A be a real square N -dimensional matrix. It can be shown that the spectrum of
H =
O A∗ A O
is symmetric with respect to 0. EVD of symmetric matrix H guar-anties that there exist non-negative numbers 0≤ σ1 ≤ σ2 ≤ . . . ≤ σN and two sets of N -dimensional orthonormal N vectors u1, u2, . . . , uN
and q1, q2, . . . , qN such that
Auj = σjqj, A∗qj = σjuj, j = 1, 2, . . . , N.
A diagonal matrix Σ with the diagonal entries σ1, σ2, . . . , σN and
the orthogonal matrices U = [u1, u2, . . . , uN], Q = [q1, q2, . . . , qN] are related by the equality AU = QΣ. The A = QΣU∗ is known as a singular value decomposition (SVD) of A. The numbers σ1, σ2, . . . , σN
are an orthogonal invariant of A and they are known as the singular values of A.
SVD is true for the non-self-adjoint complex matrices too. For any complex matrix A there exist the unitary matrices U and Q such
that Q∗AU is a real diagonal matrix with non-negative entries on the
diagonal.
SVD has a generalisation for rectangular matrices. If A is a matrix with M rows and N columns then there exist the orthogonal (uni-tary) matrices Q and U such that the matrix Q∗AU is a real
pseudo-diagonal matrix with non-negative entries on the main pseudo-diagonal. If
Σ is a diagonal K = min(N, M ) dimensional matrix, which diagonal
entries are the singular values of A, then either Q∗AU = (Σ O) or Q∗AU = Σ O .
SVD gives a natural way for introduction Fredholm alternatives.
7. Singular and regular matrices
A square matrix A is recognised as a regular matrix if there exists its inverse matrix X = A−1, such as AX = I with an identical matrix
I. If A is not a regular matrix then it is known as a singular one. 7.1. Condition number
For checking regularity of a square matrix A on a computer, one needs a condition number μ(A). For regular matrices this number is introduced as follows: μ(A) = max x=0 Ax x maxξ=0 ξ Aξ =AA−1 = σN(A) σ1(A).
If A is a singular matrix, i.e. σ1(A) = 0, then μ(A) = ∞. It is easy to check that the following statements are true. 1) μ(A) = μ(ρA) for any ρ = 0;
2) μ(A) ≥ 1;
3) μ(A) = μ(QAP ) for any orthogonal matrices P ,Q; 4) if σ1(A) = 0 then μ(A) < ∞ and μ(A) = σN(A)/σ1(A).
It is clear that the equations AA−1 = I, A(A−1+ H) = I + G lead us to the inequality
H
A−1 ≤ μ(A)G.
This inequality shows that the relative error in the computed approx-imation to the inverted matrix can be as great as the relative residual multiplied by the condition number. Therefore, if the condition num-ber is large, the residual gives little information about the accuracy of the computed approximation.
7.2. Practice regular and practice singular matrices
There are many different way to express the quality of regularity of a matrix A. One of them is given by so called the parameter of practical regularity (we note μ∗).
If μ(A) < μ∗ then matrix A is called as μ∗-regular (practice reg-ular) matrix. Introduction of the value μ∗ allows us to organise the process of computation of A−1 such that we either compute it with all valid digits (without the last digit of its computer representation) or detect the ill-conditioning of the problem, which can be detected by inequality μ(A) > μ∗.
8. Non-symmetric eigenvalue problem
A set Σ(A) of the complex numbers, for which A − zI is regular, is a spectrum of A and its elements are the eigenvalues of A. As any matrix is similar to Hessenberg matrix H that needs to be shown that there is an eigenvalue of H. Let H,
H = ⎛ ⎜ ⎜ ⎜ ⎜ ⎜ ⎜ ⎝ a11 b2 O a21 a22 b3 .. . ... . .. . .. aN−1,1 aN−1,2 . . . aN−1,N−1 bN aN1 aN2 . . . aN,N−1 aNN ⎞ ⎟ ⎟ ⎟ ⎟ ⎟ ⎟ ⎠
be a strong lower Hessenberg matrix with the real elements aij, bi =
0, i = 2, 3, ..., N, j = i, i + 1, . . . , N. The sequence
D0(λ) = 1; D1(λ) = a11− λ; k = 2, 3, . . . , N,
Dk(λ) = (akk− λ)Dk−1(λ) − bkak,k−1Dk−2(λ)
+bkbk−1ak,k−2Dk−3(λ) − . . . − (−1)kbkbk−1. . . b2ak1D0(λ)
is a generalization of a Sturm sequence for a strong Hessenberg ma-trix. DN(λ) is known as a characteristic polynomial of H. Let λ
satisfies to DN(λ) = 0. It is easy to check that the vector x with the
components
x1= 1, x2 =−D1(λ)
b2 , . . . , xN = (−1)
N+1 DN−1(λ)
b2b3. . . bN
satisfies to equation (H − λI)x = 0.
Hence any Hessenberg N -dimensional matrix A has the N ( may be multiple ) eigenvalues. For each of them there exists an invariant with respect to A one-dimensional subspace ( eigensubspace ). These are true for any square N -dimensional matrix A also.
8.1. Schur decomposition
There are two main generalisations of EVD for non-symmetric ma-trices. The first one is SVD. Another generalisation is the well-known Schur theorem: Let λ1(A), λ2(A), . . . , λm(A) be a symmetrical with
respect to Ox-axis set of eigenvalues of A inside a domain Ω1that are well-separated by the given closed curve Γ from another part of the spectrum of A inside a domain Ω2; then there is exist an orthogonal matrix U such that
U∗AU =
B D O C
is true. Here B and C are respectively m- and N − m-dimensional square matrices; all eigenvalues of B are inside Ω1 and all eigenvalues
of C are inside Ω2.
8.2. Maximal invariant eigensubspaces
Let Ω1, Ω2, . . . , Ωmbe m domains without intersection. Assume that
Ωj (j = 1, 2, . . . , m) is a symmetrical with respect to Ox-axis domain
such that Σ(A) ∩ Ωj = ∅, j = 1, 2, . . . , m and Σ(A) ⊂ Ω1∪ Ω2∪ . . . ∪
Ωm.
Then there exist the m subspaces L(A, Ωj), j = 1, 2, . . . , m. Each of them is an A-invariant subspace and spectrum of A : L(A, Ωj)→
L(A, Ωj) is strongly inside Ωj. L(A, Ωj) is known as the maximal invariant eigensubspace of A which corresponds to Ωj. In this case
RN = L(A, Ω1)⊕ L(A, Ω2)⊕ . . . ⊕ L(A, Ωm).
There is exist v1,j, v2,j, . . . , vk(j),j an orthonormal basis in L(A, Ωj).
In general case, the set of similar bases is not an orthonormal basis in RN.
8.3. Spectral portrait of a matrix
The problem of eigenvalues computation is not the one that can be considered as a correctly stated. From the view of the ”indefiniteness principle” we can only guarantee that instead of the matrix A we are dealing with a certain matrix A0, which is close to A.
We know about that matrix only that the inequality A − A0 ≤
εA is true for a small positive value ε. The ε characterises either
the number of digits in a computer cell or the uncertainties in data. Therefore instead of the eigenvalues of the matrix A we deal with the spots of its ”ε-spectrum”.
Let ε > 0 be given. A complex number λ is in the ε-spectrum of A, which we denote by Σε(A), if the smallest singular value of
A − λI is less than or equal to εA. There are some other equivalent
definitions of the ε-spectrum of A (see, for example, [4]–[7]).
At present during computing an eigenvalue problem, we have a visualisation of the eigenvalue spots ( see [15]). This visualisation is known as a spectral portrait of a matrix. And now, instead of solving the eigenvalue problem, in practice we can only solve a partial eigen-value problem. The aim of this method is recognising the eigeneigen-value spots and computing the corresponding maximal invariant subspaces.
Acknowledgement. The authors are thankful to T. Huckle and
J. Staudacher, who read the first version of the book and gave useful advises that lead to improvements in some chapters of the book.
