R E S E A R C H A R T I C L E
Open Access
Determining the origin of synchronous
multifocal bladder cancer by exome
sequencing
Ömer Acar
1,2, Ezgi Özkurt
3, Gulfem Demir
4, Hilal Saraç
5, Can Alkan
4, Tar
ık Esen
1,2, Mehmet Somel
3†and Nathan A. Lack
5*†Abstract
Background: Synchronous multifocal tumours are commonly observed in urothelial carcinomas of the bladder. The origin of these physically independent tumours has been proposed to occur by either intraluminal migration (clonal) or spontaneous transformation of multiple cells by carcinogens (field effect). It is unclear which model is correct, with several studies supporting both hypotheses. A potential cause of this uncertainty may be the small number of genetic mutations previously used to quantify the relationship between these tumours.
Methods: To better understand the genetic lineage of these tumours we conducted exome sequencing of synchronous multifocal pTa urothelial bladder cancers at a high depth, using multiple samples from three patients. Results: Phylogenetic analysis of high confidence single nucleotide variants (SNV) demonstrated that the
sequenced multifocal bladder cancers arose from a clonal origin in all three patients (bootstrap value 100 %). Interestingly, in two patients the most common type of tumour-associated SNVs were cytosine mutations of TpC* dinucleotides (Fisher’s exact test p < 10−41), likely caused by APOBEC-mediated deamination. Incorporating these results into our clonal model, we found that TpC* type mutations occurred 2-5× more often among SNVs on the ancestral branches than in the more recent private branches (p < 10−4) suggesting that TpC* mutations largely occurred early in the development of the tumour.
Conclusions: These results demonstrate that synchronous multifocal bladder cancers frequently arise from a clonal origin. Our data also suggests that APOBEC-mediated mutations occur early in the development of the tumour and may be a driver of tumourigenesis in non-muscle invasive urothelial bladder cancer.
Keywords: Multifocal bladder cancer, Next-generation sequencing, Population genetics, APOBEC deaminase Background
Synchronous multifocal tumours are present in ~30 % of all non-muscle invasive urothelial carcinomas of the bladder. Two competing theories have been proposed to describe how these physically separated independent tumours arise. The clonal hypothesis suggests that multi-focal tumours are formed by intraluminal or intraepithelial migration of cells that are shed from a founder tumour. In contrast, the field hypothesis proposes that a large area of
cells is first partially transformed by a carcinogen and then subsequently acquires additional mutations that induce neoplastic transformation. As cancer occurs by the se-quential accumulation of transformative mutations, each model would produce a different genetic signature (Fig. 1a). Various studies investigating the origin of multi-focal bladder cancer have produced conflicting reports. Classic work characterizing the X-chromosomal inactiva-tion patterns in female patients [1] and microsatellite loss of heterozygosity (LOH) [2] clearly demonstrated a clonal origin. Further, tumours analysed by array-based compara-tive genomic hybridization also showed monoclonality [3]. However, in a study of 21 bladder cancer patients, ~30 % of patients demonstrated significant LOH allelic
* Correspondence:nlack@ku.edu.tr
Ömer Acar and Ezgi Özkurt are co-first authors.
†Equal contributors
5School of Medicine, Koc University, Istanbul, Turkey
Full list of author information is available at the end of the article
© 2015 Acar et al. Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
differences among tumours with >40 % of patients showing some allelic variance, suggesting that these tu-mours arose from a field effect [4]. Additional research with microdissected bladder tumour samples also demon-strated similar results in accordance with a field effect hypothesis [5, 6]. Interestingly, in a recent study of meta-chronous multifocal tumours, the authors clearly demon-strated that these arose from a clonal origin [7].
A potential cause of this variability could be attributed to the small number of genetic mutations used to quantify the relationship of the tumours. Given the intrinsic gen-etic instability of cancer, the mutational markers selected to quantify the relationship between these tumours could drastically alter their predicted molecular origins. We therefore hypothesized that the thousands of unbiased genetic markers generated through next-generation se-quencing would be ideally suited to determine the origin of synchronous multifocal bladder cancer.
Methods
Ethics and consent
Ethical approval was obtained for this study from the Koç University Institutional Review Board (2012.017.IRB2.007)
in accordance with the Declaration of Helsinki. Written consent to participate in this study was obtained from all patients.
Clinical sample collection
Synchronous multifocal tumours were obtained from male patients (62–72 years old) with pTA papillary urothelial carcinoma. During transurethral resection, all macroscopically visible tumours were resected and a sample from the normal mucosa was taken for study purposes. Normal mucosa sample was located equidis-tantly with respect to the tumoural foci. As a result, a total of four samples (three neoplastic, one normal) were collected from each patient.
Samples were washed in saline solution and then snap frozen in liquid nitrogen within 10 min of the resection. Molecular biology methodology
Genomic DNA was isolated from samples following mechanical shearing using the Qiagen QIAmp DNA kit as per the manufacturer instructions. Illumina adaptor se-quences were added to sheared and blunted gDNA by TA ligation. Exomic sequences were captured with Agilent
A
C
D
B

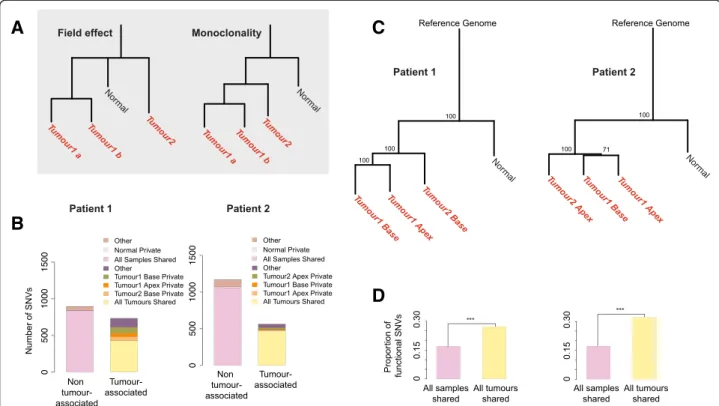

Fig. 1 SNV distribution and phylogeny of tumours. a Hypothetical phylogenies with the field effect and monoclonal origin hypotheses. b Number of SNVs with respect to occurrence among samples. Tumour 1 Apex, Tumour 1 Base, Tumour 2 Base/Apex, Normal private: SNVs only in that sample. As there are only 3 normal private mutations their bar is too small to be visually noticeable. All samples shared: SNVs in all 4 samples, representing the individual genotype. Other: SNVs in the normal mucosa sample and in one or in two tumour samples. All tumours shared: SNVs in all 3 tumour samples but not in normal mucosa. Other tumour-associated: SNVs in found in one or two but not all tumours and not in normal mucosa. c Neighbour-joining tree of the 4 samples and the human reference genome based on 1628–1733 high-confidence SNVs. Bootstrap support for each internal node is indicated. d Proportion of functional SNVs among all SNVs shared among all 4 samples (n = 143–182), and SNVs shared among all 3 tumours (n = 116–152). ***: Fisher’s exact test p < 0.001
SureSelect v5 and sequenced on an Illumina HiSeq 2000 with 100bp paired end reads at 100× coverage by Centril-lion BioScience as a contract service.
Sequence alignment
We aligned the resulting sequencing data (Additional file 1: Table S1) to the reference human genome (hg19/NCBI GRCh37) using the BWA aligner (version 0.7.10) using the “mem” algorithm with default options and paired-end mode [8]. Following this, to correct for mapping biases, we used the GATK tool for realigning indel-containing reads [9]. GATK UnifiedGenotyper in multi-sample mode was used to generate SNV and indel callsets by pooling read data from the four samples of a patient. The Variant Quality Score Recalibration filter was used from the GATK resource bundle version 2.5 to help minimize false positives. Since this project is focused on cancer- and tissue- specific variants, we removed any SNV or indel prediction that is represented in dbSNP version 138. Therefore, common SNPs were not included in the genetic analysis. In our final SNV dataset we only included SNVs and indels where the genotype was reliably detected (passed the GATK quality filter) and was supported by≥4 reads in all four samples. This procedure was repeated in-dependently for each patient.
Population genetics analysis
Downstream bioinformatic analysis was conducted using R and Python programming languages. The SNV data was converted into binary form, with heterozygous or homozygous non-reference alleles called “1”, and homo-zygous reference alleles called “0”. The same approach was applied to the indel data. We added the reference genome (“0” s at all positions) to these datasets. The bin-ary datasets were used to calculate Euclidean distance matrices among samples using the R “dist” function. We then constructed phylogenetic trees using the R“ape” pack-age’s [10] “bionj” algorithm – a variant of the neighbor-joining algorithm suggested to perform well when branch lengths are heterogeneous, as in our case [11]. The “refer-ence genome” was used to root the tree. Using the more simple Unweighted Pair Group Method with Arithmetic Mean algorithm produced qualitatively identical results (data not shown). We performed 10,000 bootstraps using the“boots.phylo” function of the R “ape” package.
Analysis of indels
We also identified 2130–2555 indels in the three pa-tients (Additional file 1: Table S1) using the GATK ana-lysis procedure described above. We repeated the same phylogenetic analysis as above using indels, but the phylogenetic relationships could not be resolved (low bootstrap support) (Additional file 2: Figure S1). Observ-ing a strong phylogenetic signal usObserv-ing SNVs, but not
using indels can be explained by homoplasies (conver-gent evolution), but more likely, high technical noise in indel calls in exome sequencing at this coverage. We did not include indels in further analysis.
Functional analysis
We used the “snpEff” software [12] to annotate SNVs and indels according to their impact on protein struc-ture. All mutations predicted to have low, moderate or high impact on protein sequence (e.g. loss of splice sites, non-synonymous substitutions, stop-codon insertions) were considered “functional.” We compared ratios of functional vs. non-functional mutations between SNV sets (e.g. those shared among all samples vs. those shared only among the 3 tumour samples) with the Fisher’s exact test using the R “fisher.test” function. Mutation type analysis
We classified SNVs based on the dinucleotide sequence context following Lawrence et al. [13], where we re-corded the nucleotide preceding an SNV using the hu-man reference genome (hg19). To simplify the analysis, following Nordentoft et al. [7] we only considered A and C positions in the reference genome and the preceding nucleotide, on each strand, and made a list of all SNVs in dinucleotide context. We compared the frequencies of TpC* vs. non-TpC* mutations between SNV sets (e.g. SNVs shared among all samples, SNVs shared only among the 3 tumour samples, and SNVs private to tu-mours) with the Fisher’s exact test. We similarly com-pared dinucleotide frequencies taking into account the resulting mutation, as well as trinucleotide frequencies (Additional file 3: Table S3).
Candidate driver gene analysis
We identified a series of potential driver mutations from those genes frequently mutated in bladder cancer in the COSMIC [14] and ATLAS [15] databases (as of October 1st, 2014). This yielded 94 candidate driver mutations. We then checked for overlap between this list and genes containing SNVs that are both functional (based on the “snpEff” software; see above) and are mutated in at least one tumour sample.
Results
Exome sequencing of synchronous multifocal tumours Synchronous multifocal tumour samples were surgically removed from the bladder during transurethral resec-tion. Ethical approval and patient consent were obtained for all sample collections. Material from patients was only sampled if the tumours were physically separated (>1cm). Resected material from three patients with a low/high grade, pTa, urothelial carcinoma with very little stromal cell contamination was used for further analysis.
In each patient, genomic DNA was isolated from the base and apex of a single tumour, the base of a second tumour and the normal bladder mucosa (four samples/ patient). Multiple samples were taken from a single tumour to determine the intratumoural mutation het-erogeneity. The exome regions of gDNA were enriched and sequenced with paired-end Illumina sequencing at 100× coverage. High-depth coverage was used to in-crease confidence in mutation calling. The resulting se-quences (51–66 million reads/sample) were aligned to the human reference genome (GRCH37) with 94 % of the reads successfully mapping (Additional file 1: Table S1). By using strict filtering criteria (≥4 reads in each sample, see Material and Methods), between 1628–1733 single nucleotide variants (SNV) were identified in each patient.
In the first two patients, approximately half (52–61 %) of these SNVs were shared among all samples including the normal mucosa. These SNVs were assumed to repre-sent the individual’s unique genotype, i.e. germline vari-ants. Almost all of the remaining SNVs (33–45 %) were observed in at least one tumour sample but not in the normal mucosa. These somatic mutations were therefore defined as “tumour-associated SNVs” (n = 564–734). In these patients, the majority of the tumour-associated SNVs were shared among all three tumour samples (58– 84 %), with only 0.6–5 % (n = 11–80 SNVs) private to each tumour (Fig. 1b). In contrast, in the third patient, 80 % of SNVs were shared among all samples, while only 15 % of the SNVs were tumour-associated, and only 2 % of these were shared among all tumour samples (Additional file 4: Figure S2). Therefore, in the third pa-tient, the normal sample’s genetic profile appears very similar to those of the tumour samples.
We then built phylogenetic trees based on the SNVs detected in each patient, and bootstrapped over these mutations. The trees for the first two patients clearly demonstrated that the tumour samples are monophyletic (of clonal origin) with significantly similar genetic signa-tures to each other compared to the normal tissue (Fig. 1c, bootstrap value 100 %). Notably, the bootstrap test ensures that the phylogenetic trees are robust to any random sequencing errors. In both trees, the tumour branches were markedly longer than the normal mucosa branch, indicating an excess of mutation accumulation in the tumour lineages. In contrast, the“normal” sample clustered together with the other tumour samples with high confidence in the third patient’s phylogenetic tree (Additional file 5: Figure S3). In this patient, neither tumour branch was longer than the “normal” sample branch, in contrast to what was observed in the other two patients. We therefore concluded that the“normal” sample from the third patient contained contaminating neoplastic material. Supporting this theory, the“normal”
sample was found to have functional mutations in many classical bladder cancer tumour suppressors (Additional file 6: Table S2). Meanwhile, we noted that this patient’s first tumour’s apex and second tumour’s base clustered together (Additional file 5: Figure S3), to the exclusion of the first tumour’s base. The second tumour is therefore a phylogenetic sub-branch of the first tumour. This can only be explained by a monoclonal origin of the two tu-mours, rather than the field effect hypothesis. Together, these results strongly support a clonal origin for all of the collected synchronous multifocal tumours.
We then investigated the functionality of tumour-associated SNVs in the first two patients, relative to SNVs representing the individual’s genotype. Classifying all 1628–1733 SNVs according to their impact on pro-tein sequence revealed that 350–354 (20–22 %) of these mutations were potentially functional, i.e. altered protein sequence or splicing pattern. Such functional mutations were about 1.8–2.3 times more common among SNVs shared among tumours than those representing the indi-vidual’s genotype (Fig. 1d, Fisher’s exact test p < 10−5).
APOBEC mutations in multifocal tumours
A recent study observed that TpC* mutations (where a C preceded by a T is mutated) occur at a higher fre-quency in bladder, cervical and head-and-neck cancers [16]. This pattern was proposed to be caused by over-activation of APOBEC family single stranded RNA/DNA editing enzymes; APOBECs can cause widespread cytosine deamination, possibly in response to retroviral infection [17]. We therefore asked whether TpC* substi-tutions might also accumulate at high rate in the tu-mours sampled. Indeed, we found higher TpC* substitution frequencies, particularly TpC*- > TpT*/TpG*, relative to non-tumour associated mutations in two of first two patients (Fig. 2a, Additional file 3: Table S3 and Additional file 7: Table S4). Compared to the SNVs representing the individual’s genotype (n = 842–1059), the SNVs shared among all tumours (n = 428–473) had a 6–6.3 fold higher proportion of TpC* mutations (Fisher’s exact test p < 10−41). Furthermore, TpC* mutations shared among tumours were most frequent in the context of TpC*pA, consistent with the APOBEC3B mutational signature [18] (Additional file 3: Table S3). Given that these tumours arise from a common origin, we can roughly assess when these TpC* mutations occurred based on the distribution of this particular mutation within the phylogeny. With this model, we found that in both patients, TpC* mutations were 2.5–4.6 times more common along the ancestral tumour branch (SNVs shared among tumour samples, or “trunk” [19]) relative to more recent branches (SNVs private to each tumour) (p-value < 10−4, Additional file 8: Table S5).
occurred early in the development of the tumours in these two patients. Supporting this model, we found that among missense SNVs in common bladder cancer “driver” genes, as defined by the COSMIC and ATLAS databases, approximately half were TpC* mutations (Additional file 6: Table S2). Meanwhile, in the third patient, TpC* mutation rate did not show a comparable elevation (Additional file 9: Figure S4) indicating that this mutation pattern is not ubiquitous for bladder cancer.
Discussion
Previous studies characterizing the origins of synchron-ous multifocal bladder cancer produced conflicting re-sults, with data supporting both a clonal and field effect. This potentially could be due to the limited number of genetic markers used in many of these previous studies. By analyzing a comprehensive set of markers with ex-ome sequencing it is possible to overcex-ome this limita-tion. Sequencing data also provides detailed information that can indicate the possible mechanisms behind each tumourigenesis event.
Therefore, in this study we conducted next-generation sequencing and identified thousands of unique SNVs per patient. With this data, we were able to utilize conven-tional population genetic models to determine the relationship between these multifocal tumours. Our data
clearly demonstrated that these tumours arose from a clonal origin in all three patients sampled. While one of the patients appears to have a neoplastic contamination in its“normal” sample, this patient’s data is still consist-ent with the monoclonal origin model, as there is con-siderable overlap in the mutations found across the patient’s samples. Our finding parallels a recent report indicating a clonal origin for four metachronous tumour pairs that were characterized by genome sequencing [7]. Such similarity raises the interesting possibility that metachronous tumours may reflect synchronous tu-mours that have been“seeded” but not yet grown at the time of surgery. Both tumour types appear to arise from a clonal origin, suggesting a similar origin. However, fur-ther studies will be needed to characterize this potential relationship.
Once developed this clonal model can be used to pro-vide insight into the evolutionary timing of the cancer. If a mutation happens very early in the development of the cancer it will be shared with all samples, however a mu-tation that occurs late will only be found in a single re-gion or tumour. We applied this concept to study the timing of TpC* mutation accumulation. Recent work has demonstrated that this class of mutations occurs by over-activation of the cytosine deaminase APOBEC3B [16, 17]. This enzyme is believed to be important in the host-defence of retroviruses and transposons; however

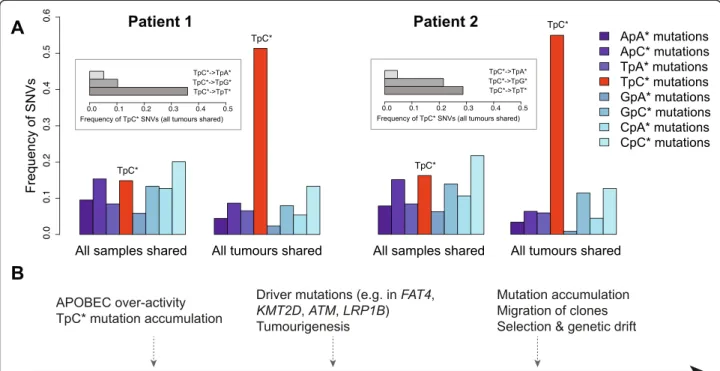

large-Fig. 2 a SNV frequencies in dinucleotide context. Frequencies are compared between SNVs among all SNVs shared among all 4 samples (n = 842–1059), and SNVs shared among all 3 tumours (n = 428–473). Asterisks indicate which base is mutated; e.g. TpC* stands for TpC- > TpA, TpC- > TpG, or TpC- > TpT. Inset shows the frequency of substitutions in all tumours at TpC* sites. We only consider A or C mutations in either strand and their 5’ nucleotides, following [9]. b Proposed development of the bladder cancer lesion from initiation of transformation to migration of the clonal tumours
scale cancer genome sequencing studies have demon-strated that it is also a major mutagenic factor in many types of cancer [18]. Our results demonstrated that in two patients, APOBEC-mediated mutations occurred very early in tumour development and could potentially be important in the initial neoplastic transformation (Fig. 2b). This is seen in the high frequency of TpC* mutations in potential “driver” mutations, including missense TpC* mutations in
well-known genes such as KMTD2 and ATM shared
across all tumours of a patient (Additional file 6: Table S2). Our result deviates from recent studies reporting accelerating of APOBEC-mediated mutations in lung cancer in smokers [19], or constitutive accumulation in early and late metachronous bladder cancer tumours [7]. This difference may reflect variation in the role of APO-BEC activity in different cancers. Our finding also suggests that, as TpC* mutations primarily occur early in the devel-opment of the cancer, therapeutic targeting of APOBEC3B may not be suitable in non-muscle invasive bladder cancer.
Overall this study demonstrates the utility of exome sequencing and population genetic analysis in character-izing the molecular evolution of synchronous bladder cancer tumours.
Conclusions
By using next-generation sequencing to identify a large number of unique mutations our study clearly demon-strates that multifocal tumours primarily arise from a clonal origin. Interestingly our work also suggests that APOBEC mutations occur relatively early in the devel-opment of non-muscle invasive bladder cancer.
Additional files
Additional file 1: Table S1. Number of reads and number of detected SNVs and indels. Cov: coverage. The strict filtering criteria include the GATK quality score (“PASS”), excluding segmental duplications, removing SNVs included in dbSNPv.138, only including SNVs reliably genotyped in all 4 samples, and identified at least in 4 reads. See Material and Methods for details. (XLS 29 kb)
Additional file 2: Figure S1. Neighbour-joining tree of indels in the 4 samples and the human reference genome based on 2130–2555 indels. Bootstrap support for each internal node is indicated. (PDF 301 kb) Additional file 3: Table S3. Odd’s ratio and Fisher’s exact test p-values for a frequency difference between SNVs shared among all tumours and SNVs shared among all samples, with respect to dinucleotide context and trinucleotide context. The table includes results for Patients 1 and 2. Bold lines show significant results with odd’s ratio > 1. (XLS 25 kb)
Additional file 4: Figure S2. Number of SNVs with respect to occurrence among samples of the Patient 3. Tumour 1 Apex, Tumour 1 Base, Tumour 2 Base, Normal private: SNVs only in that sample. All samples shared: SNVs in all 4 samples. Other: SNVs in the normal mucosa sample and in one or in two tumour samples. (PDF 140 kb)
Additional file 5: Figure S3. Neighbour-joining tree of the 4 samples from Patient 3 and the human reference genome based on 1628 high-confidence SNVs. (PDF 119 kb)
Additional file 6: Table S2. Potential driver mutations in samples identified from COSMIC or ATLAS databases and literature. (XLS 33 kb) Additional file 7: Table S4. Odd’s ratio and Fisher’s exact test p-values for a frequency difference between SNVs shared among all tumours and SNVs shared among all samples, with respect to dinucleotide context and resulting mutations. The table includes results for Patients 1 and 2. Bold lines show significant results with odd’s ratio > 1. (XLS 24 kb)
Additional file 8: Table S5. Odd’s ratio and Fisher’s exact test p-values for a frequency difference between SNVs shared among all tumours and SNVs found private to tumours, with respect to dinucleotide context. The table includes results for Patients 1 and 2. Bold lines show significant results with odd’s ratio > 1. (XLS 20 kb)
Additional file 9: Figure S4. Dinucleotide specific SNV frequencies in Patient 3. Frequencies are compared between SNVs among all SNVs shared among all 4 samples (n = 1304), and SNVs in each sample. Asterisks indicate which base is mutated; e.g. TpC* stands for TpC- > TpA, TpC- > TpG, or TpC- > TpT. (PDF 116 kb)
Abbreviations
APOBEC:apolipoprotein B mRNA editing enzyme catalytic polypeptide-like; LOH: loss of heterozygosity; SNV: single nucleotide variants.
Competing interests
The authors declare no conflict of interest. Authors’ contributions
OA collected samples and drafted the manuscript, EÖ, GD, CA, and MS conducted bioinformatics analysis of the exome sequencing data. HS identified driver mutations. NAL, TE and MS conceived and designed the experiments, data analysis and preparation of manuscript. All authors read and approved the final manuscript
Acknowledgements
This project was supported by a TÜBITAK 1002 grant (no:114Z558). M.S. was supported by a TÜBITAK 2232 grant (no: 114C040) and a Science Academy of Turkey through the BAGEP program. C.A. was supported by a TÜBITAK 1001 grant (no:112E135), and support from the Science Academy of Turkey through the BAGEP program. HS was supported by a TÜBITAK 1001 grant (no: 113Z382).
Author details
1
Department of Urology, School of Medicine, Koc University, Istanbul, Turkey.
2Department of Urology, VKF American Hospital, Istanbul, Turkey. 3
Department of Biological Sciences, Middle East Technical University, Ankara, Turkey.4Department of Computer Engineering, Bilkent University, Ankara,
Turkey.5School of Medicine, Koc University, Istanbul, Turkey.
Received: 26 March 2015 Accepted: 27 October 2015 References
1. Sidransky D, Frost P, Von Eschenbach A, Oyasu R, Preisinger AC, Vogelstein B. Clonal origin bladder cancer. N Engl J Med. 1992;326:737–40. 2. Simon R, Eltze E, Schafer KL, Burger H, Semjonow A, Hertle L, et al.
Cytogenetic analysis of multifocal bladder cancer supports a monoclonal origin and intraepithelial spread of tumor cells. Cancer Res. 2001;61:355–62. 3. Kawanishi H, Takahashi T, Ito M, Matsui Y, Watanabe J, Ito N, et al. Genetic
analysis of multifocal superficial urothelial cancers by array-based comparative genomic hybridisation. Br J Cancer. 2007;97:260–6.
4. Jones TD, Wang M, Eble JN, MacLennan GT, Lopez-Beltran A, Zhang S, et al. Molecular evidence supporting field effect in urothelial carcinogenesis. Clin Cancer Res. 2005;11:6512–9.
5. Hartmann A, Rosner U, Schlake G, Dietmaier W, Zaak D, Hofstaedter F, et al. Clonality and genetic divergence in multifocal low-grade superficial urothelial carcinoma as determined by chromosome 9 and p53 deletion analysis. Lab Invest. 2000;80:709–18.
6. Takahashi T, Habuchi T, Kakehi Y, Mitsumori K, Akao T, Terachi T, et al. Clonal and Chronological Genetic Analysis of Multifocal Cancers of the Bladder and Upper Urinary Tract. Cancer Res. 1998:5835–5841.
7. Nordentoft I, Lamy P, Birkenkamp-Demtröder K, Shumansky K, Vang S, Hornshøj H, et al. Mutational context and diverse clonal development in early and late bladder cancer. Cell Rep. 2014;7:1649–63.
8. Li H and Durbin R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics. 2009;25:1754–60.
9. McKenna A, Hanna M, Banks E, Sivachenko A, Cibulskis K, Kernytsky A, et al. The genome analysis toolkit: a MapReduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010;20:1297–303. 10. Paradis E, Claude J, Strimmer K. APE: Analyses of Phylogenetics and
Evolution in R language. Bioinformatics. 2004;20:289–90.
11. Gascuel O. BIONJ: an improved version of the NJ algorithm based on a simple model of sequence data. Mol Biol Evol. 1997;14:685–95. 12. Cingolani P, Platts A, Wang LL, Coon M, Nguyen T, Wang L, et al.
A program for annotating and predicting the effects of single nucleotide polymorphisms, SnpEff: SNPs in the genome of Drosophila melanogaster strain w1118. Fly. 2012;6:80–92.
13. Lawrence MS, Stojanov P, Polak P, Kryukov GV, Cibulskis K, Sivachenko A, et al. Mutational heterogeneity in cancer and the search for new cancer-associated genes. Nature. 2013;499:214–8.
14. Forbes S, Tang G, Bindal N, Bamford S, Dawson E, Cole C, et al. COSMIC (the Catalogue of Somatic Mutations in Cancer): a resource to investigate acquired mutations in human cancer. Nucleic Acids Res.
2010;38(Database issue):D652–7.
15. Cancer Genome Atlas Research Network. Comprehensive molecular characterization of urothelial bladder carcinoma. Nature. 2014;507:315–22. 16. Roberts SA, Lawrence MS, Klimczak LJ, Grimm SA, Fargo D, Stojanov P, et al.
An APOBEC cytidine deaminase mutagenesis pattern is widespread in human cancers. Nat Genet. 2013;45:970–6.
17. Suspene R, Aynaud MM, Guetard D, Henry M, Eckhoff G, Marchio A, et al. Somatic hypermutation of human mitochondrial and nuclear DNA by APOBEC3 cytidine deaminases, a pathway for DNA catabolism. Proc Natl Acad Sci U S A. 2011;108:4858–63.
18. Burns MB, Temiz NA, Harris RS. Evidence for APOBEC3B mutagenesis in multiple human cancers. Nat Genet. 2013;45:977–83.
19. De Bruin E, McGranahan N, Mitter R, Salm M, Wedge D, Yates L, et al. Spatial and temporal diversity in genomic instability processes defines lung cancer evolution. Science. 2014;346:251–6.
