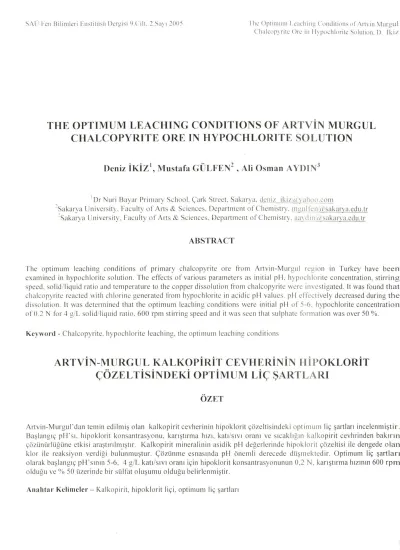

Si\l.l l·cn Bilin1kri EnstitCtsCI Dcr~isi 9.Cilt. 1 .Sa' 1 1 005
~ . I he UplinHlm Leaching ( ·ond ition~ nl' .'\ rt\ 111 \1 llr... e.u I ChaJcup: rite ()re in I I: pt)chloritc Snlution. D. Iki/
THE OPTIMUM LEACHING CONDITIONS OF ARTViN
MURGUL
CHALCOPYRITE ORE IN HYPOCHLORITE
SOLU
TION
Deniz
iKiZ
1,Mustafa
GiJL~
~
(1
~
N
2, Ali
Osman
A YDIN
31
Or Nu ri 8 ayar P ri n1ary Se hoo I. c;ark Street~ Sakarya, den i z i k i z
u
yahoo~ eo 1_1J"'
-sakarya Uni versity, Faculty
or
Arts & Sc iences. Departn1cnt of C'hen1i stry. tn~ul te nJl' ~akar\ <Ledu.tr"
-sakarya University, f aculty
o
r
Arts & ciences. Oepartn1cnt of'C he1nistry, <l~t\di n u ~nkar\'a .cdu.trABSTRACT
The opt in1un1 leaching conditions or prin1ary chalcopyrite ore tl·on1 Artvin-Murgul region in T urkey have been
exan1 ined in hypoc hl orite so lution. 'The effects of various paran1eters as initial pH , hypochlorite concentration, stirring
speed, solid/liquid ratio and ternperatu re to the co pper di sso lution fron1 chalcopyrite were investigated. lt was found that
chc:1lcopyritc reacted \\'ith chlorine generated fron1 hypochlorite in ac idic pH values. pi I cfTcctivc ly decreased during the di. solution. It was detern1incd th at the optin1un1 leac hing cond itions \vere initial pll of 5-6~ hypochlorite concentration
of0.2 N for 4 g/L so lid/liquid ratio. 600 rpn1 stirring speed and it was see n that sulphate forn1at ion was over 50%.
Key" ' o r d - C ha I copy rite, hypo c h I or it e I each i n g, the opt i n1u 111 I c a c h i n g con cl it i o n s
• • • • • • •
ARrfVIN-MURGUL KALKOPIRIT
CEVHERININ
1-IIPOKLORIT
•• • • • • •
(OZEL TISINDEKI OPTIMUM Ll(
SART
LAR
I
••
OZET
i\rtvin-Murgul dan ternin ed iln1i ~ olan kalkopirit cevherinin hipokl orit <;ozeltisindeki optin1un1 li9 ~artlan incelenn1i~tir. Ba~ lang r~ pll'sr, hipoklorit konsant rasyon u, kan~t tnna htzt, katt/stvr orant ve stcakltg111 kalkop irit cevhrinden baktrin
c;:ozUnUriUgLine etkisi ara~t rrrln11~trr. l(alkopirit n1ineralinin asidi k pH degcrlcrin de hi poklorit c;ozeltisi ile dengede olan •
klor ile rcaksiyon verdigi bulunt11U$tur. <";ozi.inn1e esnastnda pH onen1 li derecede di.i~rnektedir. Optin1um lie; ~artlar1
olarak ba~ lang t<; pH'stnrn 5-6, 4 g/L kat1/srvt orant ic;in hipoklorit konsantrasyo nunun 0,2 N, kart$ttnna hiztntn 600 rpn1
o Id u
g
u v e 0/o 5 0 Li z er in de b i r s U I fat o I u$ u 111 u o l dug u bel i r I en tn i ~ t i r.
Ana h tar Kcli me le r - Ka I ko pi ri t~ hi po k lorit I i~ i, opti rn un1 I i~ $artlan
S \l Fen Bilin1lcri Enstitl"lsli Derei i 9.Cilt. 2.Sa\ 1 2005
~ .
1. INTRODUCTION
C' ha le o p) r it
c
(
C u Fc
S ~ or C u::: S . F c::: S , ) is l h c 111 os t a bun d ant 111 in er a I i n the s ul p h i de cop pc r-b car i n g de p os itsand the princ iple so urce fron1 which co pper is produced
con1 n1crcially. Conventional pyrotnetall urgica I co pper
production results in SQ~ and toxic 111etals en1iss ions to
2nvii onn1ent. This situation has led to the devclopn1ent
Gf hydron1etallurgica l n1ethods of co pper extraction as
'l.,PO~ed to the classic pyron1etallurgica l routes[ I]. . ·-... .--~ron1etallurgica l processes, not only red uce
~. , ·.-c;r lll~n ta l pollution, but also offer n1any other
"'· \. ~tin l advantages as cost of producti on and recovery
·t.r n1ctals in lo\v concentrati ons
1
2,3
1
.
·"' are a lot of papers on the lce1ching chcn1istry and
of
chalcopyrite. Disso lutiono
f
copper sulphidesI pyt ttc i~ perforn1 ed by usage of suitable
"i in the prL·~encc of ox idants or elcctroc hctn ical
"~u ch d '-l irl)Jl ( Ill ) f--l-6]. oxygen or ozone
[
7L
. lid r 1]. clcctrochcnlical ox idation
f8
l
,
hyd rogen19.
I 0 J . c h In r i ne f I I J. c h I or i ne g c ne ratedrr
o tne dto,idc f 121. etc. On the other hand. Pu vvada
th) (2000) have studied selective precious
cttch i ng fron1 c halcopyritc in eh loride/
·itc tncdin
r
13J.ri l~ IS one of the refractory and difficult to
Hdng the co pper ores
[3].
Ferric salts in theo1
chalcopyrite belo\v373
K
tetnperature give aId n f e lernental sulphur and co pper rich
I1ides \\'hich cause a slow leach ing rate because
t t inn
14
1
.
S i tn i I a r I y the I each i ng
of s u I ph id eh) o\ ygen also gives eletnental sulphur at low
ure 12,6, 141.
hing
o
r
chalcopyr ite in hydrogen peroxide inti un1 \vas studied by sotne researchers and , they
1 i nlcrt~lcial chen1ical reaction co ntrolled in the
n and the activation energy of
39-60
kJ .rnor1•atinn energ'"-'y -- has a high value ..._.. in H-..,Q., - leachin~ g
~'o lak et u/. studied disso lution kinetics of , 1 i tc 1
n '"
·
a
ter saturated with eh lori ne. They nat the disso lution was controlled by diffusion the product layer and the activation energy was~ 1nol"1 [ 111. Devi et al. investigated the oxidation ·dcopyritc in hydrochloric ac id rned ium in the
t;t ~e n1anganese dioxide. Chlorine generated frotn
~ ,~anesc dioxide was effective in the disso lution of l'ilcopyrite [ 121.
~n tne researc hers used ch lorine hypochlorite and
chlorine generated frotn manganese dioxide as ox idant
for sulph ide ores such as chalcopyrite, enargite,
·phalerite and pyrite etc. They airned to d is so lve copper
or precious tnetals, rernove arsenic, or desulfurize frorn sulphide ores or coal [ 11-13, 15-22].
7
The Optin1un1 Leaching Cond it ions
o
r
/\rt' in M urgul Chalcopyrite ()re in I I) pochlnritc Solutiun. D. lki1Both chlorine and hypochlorite, strong ox idan ts. ha e
got high redox potentials 1.358 and 1.630 vo lts.
respecti ve ly. Therefore they arc good at leach ing of s u I p h id e 111 i ne r a I s. They are i n c q u i I i b r i u 111 as r c v c r s i b I e each other in hyd roc hloric acid so lution related to pH [2J.
Because of the corrosive nature and dif1icult# v in stora2:e . . _
of chlorine gas, its use has been re ·tricted so far. Today with avai lability if in1proved co rros ion-rcsi ~tant n1etals . alloys or polytneric tnaterials, the use of chl orine gas a
leaching agent seen1s to have paten tial for develop n1ent and growth in n1any specific areas or base-tnetal extraction and process ing. Hypoch lorite solution n1 eans storage chlorine and it gives aq ueous chlorine. Free c h l or i ne re acts w it h
e
I e 111 en ta
Is
u I p hu
r to g i v e s ul ph ate .I f e 1 e 111 en t a I s ul ph u r fo nn s d u r i n g I c a c h i n g, i l causes to
the pass ivati on in leaching. Chl orineihypochl orite
leac hing has an advantage of ulphatc fo nn ati on [2 J .
(2)
JS2CI ~(aq l + 2H.20 1, , - ~
5Su
+
S02Cl2(ut1l + 4H-(ac1)+
4Cr,tufl (3)01
era!/: 3CI2lacJl +Concentrated ores don't need to use in leaching .._ processes, unlike in pyrotnetallurgica l routes. Pritnary ore can be used. In this study, a pri tnary chalcopyrite ore, not concentrated, \\!as used and hypochl orite
solution was chosen as the leaching agent. The effects of initial pH, hypoc hlorite co ncentration, particle size,
stirring speed have been studied.
2.
EXPERIMEN ~fALThe chalcopyrite ore used in this study was supplied frotn Artvin-Murgul, Turkey. The ore was tnainly corn posed of quartz, chalcopyrite, pyrite and others.
Chetnical analys is of the chalcopyrite ore was given in Tab le- 1.
Table I. Chcm ical anal) sis of the chalcopyri tc ( 0/o)
S
i
O
-.,
Cu FeS
CaO
69.85
3
.00
11.1 5 11 .67 2. 10The eh a lcopyrite satnp le used in the experi n1ents was
ground and distribution of particle size of the ore \Vas given in T'ab le-2.
SAO Fen Bili1nkri EnstitCJsCJ Der~ gisi 9.Cilt. ?.Sav1 . 2005
Table 2. Particle size distribution
Particle Size (~Lnl) 0/o (w/w) 0/oCu (w/w) - 53 5.6 1 5.55 -100+53, 15.67 .) ... . 9 .) ... -150 : 100 35.89 ... 6 _),_) 212+150 34.22 1.98 -3 15+2 12 8.6 1 0.89
Hypo c h l or it e so I uti on \Vas used as the re agent in
I each in g ex per i n1 en t s. It \Vas t e c h n i c a I grade and is used
as cleaning agent and disinfectant in tnost hon1e, office
etc. in Turkey. In this so lution active chlorine was
analyzed by iodornetric titrat ion method. Then it was
diluted fo r different concentrations. pH \vas adjusted with hydrochloric ac id solution in reagent grade.
Leaching experin1ents were carri ed out at atrnospheric
pressure in a beaker or a ba I loon with reflu x systern s in
constant ternperature bath on a rnagnetic stirrer.
Periodically Cu~"t- and FeJ, ions in so lution were
analyzed by atotn ic absorption spectrophotometer,
Shitnad zu AAS-6 700 .
3. RESULTS AND DISCU SSION
3.1. Dissolution Reactions
Possible reactions in the disso lution process are given in
Eqs. (6-1 0). One of hypochlorite and aqueo us chlorine
n1ay react with chalco pyrite and pyrite to fonn sulphate
con1pounds (Eqs.-5 9-11 ). In the leaching so lutions, sulphate analysis was done by gravitnetric rnethod with BaC12 and it was fo und that sul phate fo nnation was over
50%. This showed that sulphide in chalcopyrite can
ox idize in eh lorine/hypoch lorite tned ia about copper
disso lution ratio. On the other hand, it vvas see n that pH
decreased during the disso lution. So it was concluded
that aqueous chlorine in hypochlorite so lution reacted
with chalco pyrite [ 11 , 19,23 ].
(6)
(8)
Cu~ S.Fe2S3(.") + 17CI2(c1CJ) + l6H 20 (/) _...._
2CuC I~(acJ) + 2FeC lJ(acJl + 4H1S04(aq) + 24HCl(ac1) (9)
Cu2S.Fe2S3(.\j + 17CIO.(aq) + 2 H+~aq) _...._
2Cu2+(cHf)+ 2Fe3+(ac1l + 4SO.t2.(£1Cf)+ 17Cr(aq) + H20 (!) (10)
2FeS2c\ ) + 15CI2<"<Jl
+
16H10 u) _.,..2FeC l31u,1l + 4 H2SO~('"'l
+
24HC11w11 ( 11 )8
The Optin1un1 Leaching Conditions nf A rt\ in Murgul
Chalcopyritc Ore in llypoch loritc. olution. D. iki7
3.2. Effect of Initial pH
To detern1ine the optitnu tn initial pl--1 value, the tests
were conducted at pH va lues of 1-8 and in 0.04, 0.10 and
0.20 N hypochlorite concentrations. holding co nstant the
other paratneters. The results were given in Fig.- I . It was
seen tnore copper and less iron dissolutions from
chalcopyri te. High co pper disso lution rati o continues up
to in itial pH of 6. On the other hand, high iron
disso lution was obtained below initial pH of 4. It was dec ided the optiinutn pH in wh ich is 5-6, that is n1ore
copper and less iron disso lutions frorn the chalcopyrite.
140 ~---~
-
0 ~ 120 LL -::J ~ 100 c 0 +-J ::J 0 80 Cf) Cf) · -0 60 40 20 1 - 0.04 N Hypo(Cu) A 0. 10 N Hypo(Cu) • 0.20 N Hypo(Cu) - - 0 - · 0.04 N Hypo(Fe) - - -6.- - · 0.10 N Hypo( Fe) - - 0 - · 0.20 N Hypo(Fe)-
e--
-e
-
--
----fl·- ·1:1 --- ', .. .. .. ~\ ' - --D - - -0- .. _ ... 2 3 4 5 6 7 8 pH
Figure I. Effect of initial pi I(SoliJ/Iiquid ratio: 4 g/L, leach solution:
0.25 L: time: 5 min: stirring speed: ROO rpm: temperature: 293 K)
3.3. Change of pH During the Dissolution
It was though that pH values in the pulp may increase or
decrease duri ng the disso lution depending on the
reaction with chlorine or hypochlorite in the equilibriurn .
If chalco pyrite reacted \Vith hypochlorite, pH would
increase accord ing to Eq. ( I 0) because of H
-consutnption. However it \vas found that pH during the
disso lution decreased and this decrease was dependent
on tern perature.
On the other hand, pH decreased less at high
hypochlorite concentrations due to hypochlorite/
hypochlorite acid buffer so lution (F ig.-2a,b).
An advantage of using hypoch lorite solution the leaching
is the fact that hotnogeneous and aqueous chlorine
fonnation. Hypochlorite so lution provides hotnogeneous
~~\C Fen Bilin1leri EnstiUL li Dergisi 9.Cilt. 2.Say1 2005
3.4. Effect of Hypochlorite Concent ration
Figure-3 presents the disso lution of copper frorn
chalcopyrite related to ti n1e in 0.02-0.25 N hypochlorite
concentrations. The other pararneters were held at
constant values. The optin1u1n hypochlorite
1:t1ncentration was 0.20 N for I g chalcopyrite in 0.25 L
le~ch ing so lution. If chalcopyritc quantity changes or concentrated chalcopyrite is used in leach ing,
hvpochlorite concentration should increase or decrease
11::?use of hypoch lorite consurnption related to ..:opyrite or pyrite quantities.
Effect of Stirring Speed
·r-4 shows the leach results at stirring speeds of 0,
200, 400, 600, 800 and I 000 rprn (rotating per .. ~) . It was seen that the settlin g in the pulp occurred
• stirring speeds (0-400 rprn). At high speeds (600 -rpnl), tnore disso lution was found due to Teneous distribution of particles in the solution. · J5so I ut ions at 800 and I 000 rpn1 are lower than
600 rpn1 because of chlorine loss frorn so lution.
est results for stirring speed were obtained at 600
) ,---~ 0 - - G - · 0.1 N Hypo ---tO 0.1 N Hypo+Chalco - - -6.- - · 0.2N Hypo -~tJ 0.2N Hypo+Chalco - - • - · 0.4N Hypo - • 0.4N Hypo+Chalco - - -A- - · 0.6N Hypo A 0.6N Hypo+Chalco (a) ' \ 0 ~.0 4---,---r---r---~---t 0 100 200 300 400 500 600 Time (Sec)
r·igure 2.~l. pH changes during the dissolution in different
h) pnchlorite concentrations.
. .
9
The Optimun1 Leaching Conditions of 1\rt\·in Murgul
Chalcopyrite Ore in Hypochlorite So lution, D. iki;.
7,0 ~--- ~.--- ·D~.---- 283K Hypo 6.5 6.0 pH ).=' 5,0 4.0 3,0 2,5 ----lO 283K Hypo+Chalco - - · ~- - - 2 9 3 K Hypo ~ts 293K Hypo+Chalco - - -• - - - 303K Hypo r---- 303K Hypo+Chalco - - -A- · - 313 K Hypo • 313K o+Chalco ....__
_____ _
_,_ .. ) ,.
.
1
-
, , c : • ' t ~ - • - • -- . , -- -- . - . - - - ~ - . - . -(b) 2, 0 +---,----,----,r----.,..---r---~ 0 100 200 300 400 500 600 Tirre (sec.)Figure 2.b. pf I changes during the dissolution at different
temper a tu res 100 ~==============================~ ~ 90 0 ~ e_ 80 c 0
·
"5-
70 0 (/) (/) 60 0 50 40 30 - · 0.02N - - G - · 0.08N - - • - - · 0. 14 N , , , , , , , , ' , '•
, , 20 I 1 10 0 0 1 , , ---tO 0.04N - - • - · 0.06N ~o o.12N 0 0.25N A 0.10N - - -6.- - · 0.20N-
- -- .. - - -0 --
-
--0-- - --0 , ----, ,.-
..- -
-
.
-
--
-
-·---
-
-, 5 10 15 Time (min.) 20Figure 3. Effect of h~ poch lorite concentration (Solid/liquid ratio:
4 g/L. leach solution : 0.25 L: initial pH: 5: stirring speed : 800 rpm: temperature: 293 K)
3.6. Effect of Pa r ticle Size
In exa1nining the effect of particle size, it was found that the finer chalcopyrite was to be tnore suitable for high extraction, naturally (F ig.-5). Particle size is effective in the d is so l uti on of copper frorn the chalcopyrite.
·~. \C' Fen Bilimlcri Fn~tittisCI DLr~ i-.,i \) Ctlt. 2 ~ ;1~1 200~ ·~ () -11- 0 rpm
•
100 rprn - D - 200 - 0 - 400 rprn --. rpm ~ .., -- f r -- 800 rpm 0 _)"'
•
600 rpm :::Ju
•
1000 rpm ... c 0 .30 +-J :::J 0 1/) 1/) '5 0 ")() l5 10 () 0 2 4 6 8 10 12 T1n1e (rnlll )Figure -t. Fl'l\:ct
or
~trrring speed (\olrd lrqutd ratro IO !.!.11 . kachsolution: O.'S 1.. rnit1rll pi I 5. ~~~ puclllnllll: CtHlCcllllittrun () 2 N.
tempera tun~· 193 K)
3. 7. Effect of Solid/Liquid Ratio
Different initial quantities of chalcopyritc in the solution
of 0.25 L were leached to dctenninc the effect or
olidl liquid rati o on the leach ing rate. 'I'he obtained
result \verc give.._ n in Fi' -~.-6.
lt \\'a found that hi... gh di~so lution occurred at lt)\\'
solid; liquid ratios. Thi · shovvcd th at to dissolve copper
fro 111 t h e c h a I c o p
y
r i t e re q u i re cl t he so I i cl I i q u i d r a t i o or
~g L for enough hypochlorite concentration. I he hest
so lid liquid ratio to di -~o h c copper rrorn chalcnp) rite
\\'a at 4 ._ g L. ..--.. ~ 0 70 ::l u ...__.. c 60 0 ..., ::l -0 50 (/) (/) · -0 40 30 20 10 0 0 -D- -53 pm -t:r- -150+100 pm 2 4 6 - - - -1 00+53 pm
•
8 -212+150 pm 10 Time (mrn.) 12Figurt:' 5. 1·1'1\:ct ol parttck ""~ (Soltd lrqutd rattn 10 g I . kach
"olutton. 0.15 I . tlltttal pi I. 5. 'trrnng "~PCed 600 rpm. hy pnchlorttc concentration 0 2 '. . temperature 293 1\:)
10
I hL' < )pt11lllt11l I L',tL·hitt~ ( t) JH.Iititlth u l'/\ rt\ in \1 u r~ul
( h.tkup: I l k < >I L' 111 11 ~ pochlnrrtc Sulution. D. i'ki;. 60 ... - - ~- - · 4 g/L ~ 6 10 g/L 0 :::J - - •- - · 20 g/L
•
40 g/Lu
- - G - · 60 g/L ...._ 0 80 g/L c 50 0 - - • - · 160 g/L•
240 g/L ... - - 0 - · 320 g/L :::J 0 400 g/L -0 (/) ~ ~ (/) #-- -.fj.--- -l:l- -0 40 , f:l • • I 30 I , I 20 I - - - 0 - - - 0 0- - - -0- - - -, - - - --p
10 - ...-
---
-0 0 2 4 Figure.· 6. l'lkct ul \l)ltd ltqu1d 1· pi I 5. o...tlltlll!l "pccd ()()() 1 p111 lr tcmpcratut L' 2<); ~~ 3.8. Effect or ·rcrnperat ut 'J'hc effect of lellljlL'I ;tlex<unincd and the ohLtll ll'l
13 ccausc chlorine in cq tt tl I 0 () s c d <l t h i g h t l.' Ill p L' I l I t lll lo\v tcrnpcrat urcs. lt \\ ,l i 11 C IT aS e d h -V i 11 C r l' <I '-; j ll
.
L' { l' I I le ~ s l.' I Tc c t i v c i n t ll c d i " " l ) I t ~() 2 X ~ I -~*
; 11 'l I 0 ::l 0---
10 c 0 -... ::l -0 (/) (/) ~() -0-c
20 10 () 0 5-
·
-
- --·-
- --·
-
-- --
- - --
-
.. - -6 8 10 12 Time (min.) eh solutron. 0 25 L. inrtial 1tc concentration: 0.2 .) the disso lution was
ts were ... given in Fi... g.-7.
w ith hypochlorite was
tests vvcre carried out at
n
t
hat
th
e
dissolutionure but ten1perature \vas
-o--
293 ~--6:-- 313 K
0 15 20
Time (min.)
Figun· 7. I l k ct nl tcnlpcrattlll' ({ 'nnd1t tnns: lnittal pi I: 5, Solid/liqutd
r:ll1n 10 !.! I kaL'h "olut1nn (I 2~ I . stirrrng speed. 600 rpm.
~
1 t\. .
~~~ jHlLIJiotiiL' L'Oil(L'Il(lill ll)ll. ll- 1 '-~)
~ \l·. Fen Rilinllcri Enstitusi.i Dcrgisi 9.Cilt. 2.Sayt 2005
4. CONCLUSIONS
Ra ~ed on the forego ing e;....peritnenta l re .. ult , the
roiiO\\ ing COnclusions tnay be dra\VIl.
a. rhe dissolution reacti on occur betv·;een
chalcopyrite n1ineral and chlorine generated fron1 hypochlorite so lution. . h. Sulfide in the chalcopyrite can oxidize over 50 o/o tn
a~reernent with copper di so lutions to give the
s~
lp
hate
co rnpounds in chlorine/hypochlorite n1edia.c.
ln general, high disso lution ratios (40-80o/o at different con cl it ions) \V ere obta ined in periods of5-10 n1 inutes. This is in1portant for fast proces es.
· i ; H: opt i n1 u n1 I each in g c o n cl it ions were d c t c r 111 i ne d ,
~ ilich initial was pll 5-6, hypochlorite concentration
.. 0.2 N for 4 ._ g!L so lid/liquid rati o, stirring speed
_ ~ 600 rpn1 and ten1perature was. about roon1 perature. Req uired hypochlorite concentration ends on cha lcopyritc tnineral quantity in the
1. At hi ~h te 111 perat urcs n nd high stirring speeds.
r ne lo:s occurred tt·on1 so lution. ·rhercfore it
11 d be stud i e d at I n \V t c n 1 pc rat u r c s .
REFEI~ENC' ES
l as hi. F.. C'halcopyrite its chetnistry and llurgy, McGre\v-11 ilL London ( 1978).
rs, E., ll ydronletallurgical process innovations. r 1 n1 et a llu r g) , 2 9. 4 3 1 -4 59, ( l 9 9 2 ) .
1
L
A., A prclitninary research on acid pressure't ing pyritic copper ore
in Kure
CopperMine.
~c 'v ~ ' Mineral s Engineering, ~ 15, 1 193-1 197,
. '2 ).
i;ac, J. l·: .. Elcnlcntal sulphur forn1ation during
ferric sulrhatc leaching or chalcopyrite,
1 tian Metallurgica l Quarterly, 28(4),337-344.
\f ).
nHt. H .. Avvakura. Y., Iliroto, T. and Tanaka,
cachin._ t!_
or
chalcopyri te in ferric su lphatei )JlS. Canc.H.iian Metal lurgica l Quarterly, 24(4)
'9 1.(198)).
1 R . P . . [) r c i ~ i n .... g c r_ D . B . , Pet c r s. E. and K in g,
Passivation of chalcopyrite during oxidative
tH! in sulphate n1 edia. Hydrotnetallurgy, 39, ~
8. ( 1995).
tk. 1·. and Skrobian, M., Acid leac hing of · )pyrite in the presence of ozone. Ca nadian
tl lurgica l Quarterly, 29(2), 133-139 ( 1990). .
cgler,
·
r
.
and S\-virt. D. A., Anod1cll~c
hetni
~tr}
of chalcopyrite, Journal of Applied ctrochcn1istrv. 9, 545-554, ( I 979).d, ·bay o. A. () .·. I pin 111 or o t i, K. 0 . and Aj a vi, 0. 0.,
)!~
-.,o
lt~tion
kineti cs of chalcopyrite \Vith hydrogenpc
r u
x
ide
in
s
u
Ip
h urica c
id 111e
d i utn, C he n1 ic a
I andI~J()C hcnli ca ll·: ng in eering Quarterly, 17(3), 2I3-2 18,
(2003 ).
I I
The Ortimunl Leaching Conditions nf 1\rt\ in Mu1_·gul
Chalcopyrite Ore in I lypoch loritc Solution. D. lki;
[10]. Anton ijevic, M. M., Jankov ic~ Z. D. and Ditnitrijevic, M. D., Kinetics
o
r
chalcopyrite disso lution by hydroge n perox ide in sulphuric ac id.1:-1 y d r o n1 et a 11
u
r
g y. 7 I ( 3 -4 ) , 3 2 9-3 3 4 , ( 2 0 0 4 ) .f
I I ] . (o
Ia
k .S
.
,
A I k an , M . and Ko c
a
k cri 111 . M . M . ,Disso lution kinetics of chalcopyrite conta tn1ng
pyrite in water saturated with chlorine.
Hyd rometallurgy, 18, 183- 193, ( 1987).
[1 2] Devi~ N. B., Madhuchhanda M., Rao, K. S., Rath.
P. C. and Pararnguru, R. K ., Oxidation of
eh a lcopyrite in the presence of n1anganese diox ide
in hydrochloric acid n1ediutn , Hydro n1eta llurgy, 57.
57-76 (2000).
[ 13]. Puvvada~ G. V. K. and Murthy, D. S. R., Selective
precious rnetal s leaching fron1 a chalcopyrite using
ch loride/hypochlorite tned ia, Hyd rornetall urgy. 58,
185-19 I , (2000) .
[ 14]. An ton ijevic, M. M. and Bogdanovic. G. D ..
Invest ib oation of the leaching ._ of chalcopyrite ore in
a c id i c so I ut i o n s, I I y d r o 111 et
a
11 u r g y, 7 3 , 2 4 5 -2 5 6,(7004).
f
15]. Ekinci, Z. , (olak,S.,
(:aktci, A. and Sara<;, 11..Leaching kinetics of sphaleritc with pyrite in
chlorine saturated \Vater~ Minerals Engineering,
1 I (3), 279-283, ( 1998).
[16]. Herreros, 0., Quiroz, R. and Vinals, J .. Dissolution
kinatics of copper, white tnetal and natural
chalcocite in CI:/Cr n1edia, Hydron1etallurgy~ 51, 345-357, ( 1999).
[ 17]. Jena, P. K. , Barbosa-Filho, 0. and Vas~on~elos, _I.
C., Studies on the kinetics of slurry chlonnatton ot a
sphalerite concentrate by chlorine gas,
Hydrornetallurgy. 52, I 1 1-122. ( 1999).
ll8]. Kanari , N., Gaballah, I. and Allain, E .. A lo\v
ten1pcratu re c h lori nati on-vo lati I ization process for
the treattnent of chalcopyrite concentrates,
Thern1ochitnica Acta, 373, 75-93, (200 I).
f
19]. Hcrreros.0.,
Quiroz. R., Hernand ez~.M._
C .. andVina ls, J., Disso lution kinetics of enargne In dilute
c I~/ c r Ill c d i a. H y d r 0 Ill eta 11 u r gy' 6 4' I .5 3 - 1 6 0' (2002).
120]. Vina ls,
J.
,
Roca, A. , Hernandez. M. ~- and_Benaventc, 0., 'Topoche1n ical transforn1at1on ot
enargite into ~ copper oxide by hypochlorite leaching.
I lydro tneta llurgy, 68~ 183- 193 (2003). .
[2 1] . Li, W., Coal desulfurization with sodt.unl
hypochlorite, Master Of Sc ience in Chenl tca l
Enginering, West Virginia University-(2004).
f22]. Curreli, L., Ghiani, M., Surracco. M. and Orru, G.,
Benefic iation of a gold bearing enargite ore by
flotation and Arsenic leaching with sodiun1
hypochlorite, M incrals Engineering, 18(8), 849-854
(2005).
f23 J. Alkan, M., Oktay, M., Kocakerin1 M. M. and
(opur, M ., Solubility of chlorine in aqueous
hydrochloric acid ... olutions, Journal of Hazardou
