June 12, 2012
C 2012 American Chemical Society
Fluorophore-Doped Core
Multishell
Spherical Plasmonic Nanocavities:
Resonant Energy Transfer toward a
Loss Compensation
Bo Peng,†Qing Zhang,†Xinfeng Liu,†Yun Ji,†Hilmi Volkan Demir,†,‡,§Cheng Hon Alfred Huan,†
Tze Chien Sum,†and Qihua Xiong†,‡,*
†Division of Physics and Applied Physics, School of Physical and Mathematical Sciences, Nanyang Technological University, Singapore 637371, ‡Division of Microelectronics, School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore 639798, and§
Department of Electrical and Electronics Engineering, Department of Physics, UNAM-National Nanotechnology Research Center, Bilkent University, Bilkent Ankara, Turkey 06800
P
lasmonics, which deals with collectiveelectron oscillations in metallic nano-structures, offers the opportunity to enable routing and active manipulation of light at the subwavelength scale and pro-mises a family of exciting applications such as invisibility, optical data processing, and quantum information.14Nevertheless, me-tallic Joule loss, an intrinsic feature of metal-based waveguides supporting the surface plasmon propagation, hampers the achieve-ment of excellent optical properties for nano-photonics applications. Therefore, the losses impose key challenges in fundamental plas-monic research and relevant technological development. Recently, there is a tremendous interest in the plasmon loss compensation by introducing gain media.57Optically pumped gain media (dye molecules, quantum dots, etc.) have been incorporated into the adjacent dielectric to compensate the losses that dam-pen the coupled oscillations of electrons and light.810Pusch and Wuestner et al. theoreti-cally demonstrated the possibility of compen-sating the loss by gain in a negative refractive index double-fishnet metamaterial with an embedded laser dye on the basis of a full-vectorial three-dimensional Maxwell-Bloch approach.1113Zheludev et al. experimentally demonstrated a Joule loss compensation using optically pumped semiconductor quan-tum dots hybridized to plasmonic nanostruc-tures, leading to a multifold intensity increas-ing and narrowincreas-ing of their photolumines-cence (PL) spectrum due to Purcell effect.14,15 Meanwhile, gain compensation opens a prom-ising avenue to achieve surface plasmon laser, so-called SPASERs.1619 The results from these previous experiments suggest
the occurrence of the loss compensation, where the emission energy is coupled from the excited state of an adjacentfluorophore to the plasmon resonance through near-field interactions.2025
Recently, many studies have been de-voted to the interactions between fluo-rophores and the plasmon resonances. The fluorescence intensity quenching or
* Address correspondence to qihua@ntu.edu.sg.
Received for review April 17, 2012 and accepted June 12, 2012. Published online 10.1021/nn301716q ABSTRACT
Plasmonics exhibits the potential to break the diffraction limit and bridge the gap between electronics and photonics by routing and manipulating light at the nanoscale. However, the inherent and strong energy dissipation present in metals, especially in the near-infrared and visible wavelength ranges, significantly hampers the applications in nanophotonics. Therefore, it is a major challenge to mitigate the losses. One way to compensate the losses is to incorporate gain media into plasmonics. Here, we experimentally show that the incorporation of gain material into a local surface plasmonic system (Au/silica/silica dye coremultishell nanoparticles) leads to a resonant energy transfer from the gain media to the plasmon. The optimized conditions for the largest loss compensation are reported. Both the coupling distance and the spectral overlap are the key factors to determine the resulting energy transfer. The interplay of these factors leads to a non-monotonous photoluminescence dependence as a function of the silica spacer shell thickness. Nonradiative transfer rate is increased by more than 3 orders of magnitude at the resonant condition, which is key evidence of the strongest coupling occurring between the plasmon and the gain material.
KEYWORDS: coremultishell . plasmonic nanocavities . loss compensation . resonant energy transfer . nonradiative rate
enhancement as a function of the distance between the fluorophores and the metal nanoparticles is a fundamental question to be addressed.2628 There have been a few attempts to use polyelectrolyte or DNA linkers to control the distance; however, a rigid dielectric spacer layer is more advantageous to accu-rately control the spacer thickness and investigate the energy transfer in the sub-5 nm regime, which is critical to address the recent debate on the distance of quenching and enhancement maximum.2932 The systematic studies of the variation in fluorescence intensity as a function of the distance between gain materials and plasmon, which is an essential step toward understanding the loss compensation, still remain elusive. In addition to this distance depen-dence, the localfield enhancement surrounding metal nanostructures is strongly wavelength-dependent. Therefore, loss compensation will also depend on the spectral overlap between the gain media and plasmon. The aim of our work is to explore the optimized conditions for loss compensation in plasmon with gain media. We systematically investigate the distance de-pendence and spectral overlap effect of the energy transfer between plasmon andfluorophores based on a Au core, a rigid silica spacer shell, and rhodamine 6G dyes (R6G) orfluorescein isothiocyanate (FITC) which are embedded into another silica shell. Our results show that the energy transfers from R6G to plasmon when the silica spacer is smaller than 7.6 nm. On the contrary, the energy transfer direction is from plasmon to R6G above 7.6 nm. The PL intensity of R6G exhibits a minimum when the spacer is 2.8 nm and a maximum at 21.9 nm. Therefore, we suggest the optimized
distance for the energy transfer from R6G to plasmon is 2.8 nm, which indicates the largest loss compensation. Time-resolvedfluorescence spectroscopy shows that the lifetime of R6G also exhibits a minimum at 2.8 nm spacer. The nonradiative rate increases by more than 3 orders of magnitude, and the quantum efficiency also reduces down to 0.02% from 95%, which further confirms the strongest interaction between plasmon and R6G.
RESULTS AND DISCUSSION
Surface Plasmon Electronic Oscillations in Au/Silica Core Shell Structures. We designed and constructed a core multishell plasmonic nanocavity system consisting of a Au core with a diameter of about 60 nm, sur-rounded by a silica shell as a spacer which is coated with another silica shell with dye molecules embedded (Figure 1a,b). The thickness of the spacer silica shell can be tuned from 1.7 to 108.4 nm by solution chemistry, obtained from statistical analysis of the electron micro-graphs. In such plasmonic nanocavities, Au core under-pins the plasmonic modes, the outer silica shell containing the organic dye molecules (shown as red stars) provides a gain media, and the middle silica shell (shown in white) functions as a spacer to tune the distance between the plasmon and gain. It is important to note that the spacer can also fine-tune the plasmo-nic bands. Figure 1cf shows the TEM images of Au/silica coreshell structures, and the thickness of silica shell is 1.7( 0.2, 2.8 ( 0.4, 4.6 ( 0.8, 17.7 ( 0.6, and 39.5( 0.9 nm, respectively. The standard devia-tion is obtained by statistical analysis. Figure 1h shows the Au/silica spacer/dye silica multilayer hybrid core multishell structures, in which the embedded dye
Figure 1. Coreshell/multishell plasmonic nanocavities. (a) Schematic diagram of Au(yellow)/silica(green) coreshell nanostructures. (b) Schematic diagram of Au/silica/dye silica coremultishell nanostructures. Middle silica shell (shown in white) is used as a spacer to control the distance between Au particles and dye;r is the radius of Au particles, and s is the thickness of the spacer. Dye molecules (shown as red stars) are dispersed in the outermost silica shell (shown as green shell). (cg) TEM images of Au/silica coreshell structures with different shell thickness: (c) 1.7 nm, (d) 2.8 nm, (e) 4.6 nm, (f) 17.7 nm, (g) 39.5 nm. (h) TEM images of Au/silica/dye (Rhodamine 6G) silica coremultishell nanostructures. Silica spacer thickness is 2.8 nm, and the thickness of R6G silica layer is 54.2 nm.
molecule is R6G, the spacer shell is 2.8 nm, and the dye silica shell is 54.2( 0.5 nm.
For interacting metallic particles in a non-absorbing medium, their extinction coefficient is given by Mie theory, which describes a summation over all electric and magnetic multipolar oscillations contribut-ing to the absorption and scattercontribut-ing of the interactcontribut-ing electromagneticfield. The extinction coefficient of a particle is given by33
Cext ¼
18πVε3=2m ε2 λ((ε1þ2εm)2þ ε22)
(1) whereεmis the real part of the dielectric function of the
surrounding medium, andε1,ε2represent the real and
imaginary parts of the dielectric function of the ma-terial, respectively (ε~core = ε1þ iε2). V is the molar
volume of the material constituting the particles. The absorbance of a colloidal solution containing N par-ticles in an optical cell with a path length L is given by A = CextNL/ln 10.34This theory has been extended to
ellipsoids and multilayer particles.35The exact posi-tion of the plasmon absorpposi-tion band is extremely sensitive to the particle size and shape, and the dielectric constant of the surrounding medium. For coreshell structures, the extinction cross section is given by36
Cext ¼ 4πr2kIm
(εshell εm)(εshell 2ε~core)þ (1 h)(ε~core εshell)(εmþ 2εshell)
(εshellþ 2εm)(ε~coreþ 2εshell)þ (1 h)(2εshell 2εm)(ε~core εshell)
(2)
whereε~coreis the complex dielectric functions of the
core and εshell is the real part of shell material
di-electric function; h is the volume fraction of the shell layer, h = 1r3/(rþ s)3, where r is the radius of metallic
particle and s is the thickness of shell. The resonance condition for the plasmon absorption is roughly fulfilled when the denominator is equal to 037
ε1 ¼
2εshell[hεshellþ εm(3 h)]
εshell(3 2h) þ 2hεm
(3) According to Drude model, the real (ε1) and
imag-inary (ε2) parts of the dielectric function are given
byε1=ε¥ ωp2(ω2þ ωd2) andε2=ωp2ωd/ω(ω2þ ωd2),
whereε¥is the high-frequency dielectric constant of gold andωpis the bulk plasma frequency expressed in
terms of the free electron density n, the electron charge e, the vacuum permittivityε0, and the electron
effective mass meff, ωp2 = ne2/meffε0; λpis the bulk
plasma wavelength of metal,λp= 2πc/ωp.ωdis the
relaxation or damping frequency. Therefore, the band position for coreshell structures should obey
λ2 λ2 p
¼ ε¥þ2(1 h)εshell(εshell εm)þ 6εshellεm
3εshell 2(1 h)(εshell εm)
(4) From eq 4, wefind that the plasmon absorption band is red-shifted as the thickness of the shells increases whenεshell>εm.
Figure 2a shows the UVvis absorption spectra of Au/silica coreshell structures with different shell thickness (0 nm corresponds to bare Au nanoparticles),
Figure 2. Spectroscopy characterizations. (a) Normalized absorption spectra of aqueous solutions of Au nanoparticles and Au/silica coreshell nanostructures with different shell thickness; 0 nm represents the bare Au nanoparticles. (b) Plasmon band position as a function of the silica shell thickness obtained in experimental data (red open circlesþ line), and FDTD simulation (blue open circlesþline). (c,d) Normalized absorption and photoluminescence spectra of Rhodamine 6G (R6G) and FITC-APS conjugate. From (a) and (c), we know that R6G emission is in resonance with Au nanoparticles with a 2.8 nm silica shell.
dispersed into water solutions. Au colloids show a very intense surface plasmon absorption band around 544 nm, which red shifts systematically due to the fact that the dielectric constant of the silica shell (εshell= 2.12)
is larger than that of the solvent (H2O,εm= 1.78). 37
As the shell thickness increases, the surface plasmon resonance band red shifts from 544 nm for bare nanoparticles to 565 nm for 95 nm shell nanoparticles, which is in agreement with eq 4. The experimental surface plasmon resonance band position versus the shell thickness is plotted in Figure 2b (red open circles þ line). We also calculated the surface plasmon reso-nance position by the finite-difference time-domain method (FDTD), as depicted in Figure 2b (blue open circlesþ line), showing good agreement with experi-mental data.38 In order to investigate the coupling
between surface plasmon and gain medium, R6G and FITC dye molecules are used as the gain materials. Their peak positions of the absorption and PL maximum are 527 and 550 nm for R6G (Figure 2c) and 502 and 514 nm for FITC-(3-aminopropyl)-trimethoxysilane (FITC-APS) conjugate (Figure 2d), respectively. Compared with Figure 2a,c, wefind that the surface plasmon band of Au/silica coreshell structures is in resonance with the emission of R6G molecules when the shell thickness is∼2.8 nm with a resonance of ∼551 nm, where the FITC emission
energy is higher than the surface plasmon resonance band (Figure 2a,d).
Spacer Distance Dependence of Energy Transfer between Plasmon and Gain Medium. On the basis of Au/silica coreshell structures, we systematically investigate the distance dependence of energy transfer between plasmon and gain medium (R6G) by evaluating the enhancing or quenching effect on dye molecule emis-sion in the presence of plasmonic nanoparticles. Silica shell is used as a spacer to control the distance between Au and R6G, while keeping the concentra-tions of the particles and dye molecules constant. Figure 3a shows the room-temperature PL spectra of the aqueous solution of R6G (excited at 480 nm) con-taining Au/silica coreshell structures with different shell thickness. Presumably, only those R6G molecules getting in contact with plasmonic nanoparticles will be significantly affected in terms of their quantum yield of luminescence. A pronounced silica shell thickness dependence is spotted from Figure 3a. The PL inten-sities are extracted and plotted versus shell thickness in Figure 3b, where C and C0are the PL intensities of R6G
with and without Au/silica coreshell particles, respec-tively. When the spacer is 7.6( 0.9 nm, the PL intensity is comparable to that of only R6G in the aqueous solution. Below 7.6 nm, the PL is quenched, while the PL is enhanced above 7.6 nm. When the shell is thicker

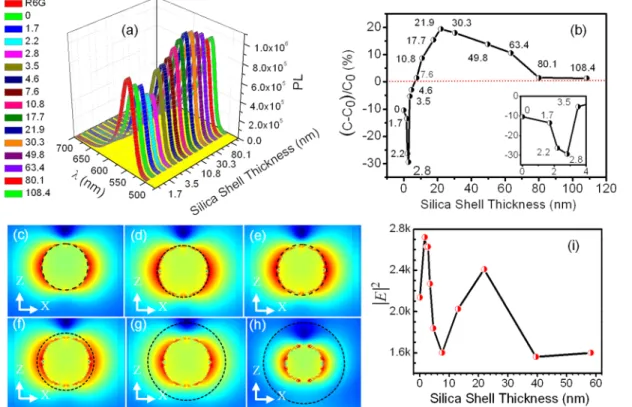

Figure 3. (a) Photoluminescence spectra of aqueous solution of R6G containing Au/silica coreshell nanostructures with different shell thickness. Non-monotonous behavior is noticed. (b) Plot of the variation (C C0)/C0of the PL intensity as a
function of the silica shell thickness extracted from (a); the inset is the zoomed-in view around 2.8 nm. Local electricfield contours for Au/silica coreshell structures with different shell thickness: (c) 0 nm (bare Au nanoparticles), (d) 1.7 nm, (e) 2.8 nm, (f) 7.6 nm, (g) 21.9 nm, (h) 39.5 nm. The dotted circles indicate the edge of silica shell. (i) Electricfield enhancement |E|2as a function of the silica spacer thickness. The wavelength of localfield intensity distribution corresponds to the plasmon
band position of Au/silica coreshell structures, which are shown in Figure 2b.
than ∼80 nm, the surface plasmon has barely any effect on the PL signal of R6G within the experimental error, which indicates that the energy transfer between plasmon and gain occurs only when the spacer is smaller than∼80 nm. Our results are consistent with previous studies.32,3941Two interesting phenomena are observed: the PL exhibits a local minimum (strongest quenching) when the spacer is 2.8 nm and a local maximum (strongest enhancement) at 21.9 nm, which are totally different from the previous experi-mental works.39,41,42
Theoretically, the optical quenching of donor fluor-ophores by proximal Au NPs has been formulated.43
Focusing on the dyeAu nanoparticle system, Strouse and co-workers proposed to model the system as a point dipole interacting with an infinite metal surface and to integrate the Förster expression over the two-dimensional surface, which leads to a 1/d4dependence of the energy transfer rate, where d is the separation distance between Au particle and dye molecules.29 Carminati et al. further derived the expressions for the distance dependence by using Green function formalism, and the rate of energy transfer,κT, can be
given by30,44 KT ¼ 1þ1 6(2πnd=λd) 2þ1 6(2πnd=λd) 4 τD(d=R0(FRET))6 (5) where R0(FRET)is the Förster separation distance
corre-sponding to 50% efficiency. However, only at large separation distances (>30 nm), the higher order correc-tions from (d/λd)2and (d/λd)4are expected. At a small
distance, the rate of energy transfer is equivalent to the Förster dipoledipole interaction model, which can be given by45
KT ¼ 1
τD(d=R0(FRET))6
(6) whereτDis the lifetime of the donor in the absence of
acceptor. R0(FRET) 6
= 8.79 105(κ2n4QdJ), in the unit
of Å6,45where n is the refractive index of the medium and λdis the donor emission wavelength. Qdis the
quantum yield of donor in the absence of Au particles, which is 0.95 for R6G.46Theκ2is the dipole orientation factor, which is 2 for Au particle acceptors.30J is the spectral overlap integral between the normalized do-nor emission and the acceptor absorption.45Therefore, the larger the spectral overlap is, the faster the energy transfer and the stronger local quenching is. We simu-lated the local electricfield enhancement by a FDTD method. Figure 3ch shows the calculated local field intensities distributed in the xz plane for bare Au nanoparticles and Au/silica coreshell structures with 1.7, 2.8, 7.6, 21.9, and 39.5 nm silica shells, respectively. Figure 3i plots the square of maximum electricfield |E|2, as a function of the spacer thickness. |E|2increases to a maximum when the thickness of the silica shell is
∼1.72.8 nm and then monotonously drops to a minimum at ∼7.6 nm. A second maximum at ∼21.9 nm is observed beyond which the |E|2
decreases. When the silica shell is more than 40 nm, |E|2shows a very weak dependence on the spacer thickness. Gen-erally speaking, two competing factors determine the overall quenching and enhancement of the lumines-cence intensity: increased absorption and emission due to the coupling of the radiative mode of the transition dipole with the surface plasmon, and the nonradiative energy transfer from the excited dipole to the metal.47Therefore, we suggest that nonradiative energy transfer predominates at short distances (<7.6 nm). Both the small distance and the large spectral overlap between PL and the plasmon band are the key factors, which yields a fast nonradiative energy transfer from the excited dipole to the metal. Since the spectral overlap between the surface plas-mon band and emission of R6G is the largest at 2.8 nm spacer, which is in good resonance, the quenching becomes the strongest. In the case of the enhance-ment of the luminescence intensity at long distances (>7.6 nm), the excitation rate is enhanced. Because the absorption increases due to the local surface plasmon, γexc |p 3 E|2, where p is the transition dipole moment
of dye molecule.26The radiative decay rate with and without plasmon, rradsp and rrad0 , are related by |E|2, rradsp
|E|2rrad 0
.48 Therefore, the radiative rate is enhanced significantly (Purcell effect);24,44,4951meanwhile, the
nonradiative rate is suppressed in the surface plasmon enhanced system. Therefore, the enhancement factors are large enough that we see an overall increase in PL intensity, which is proportional to |E|2.32,47,52
Gain-Assisted Spherical Gold Plasmon Nanostructures. Time-resolved fluorescence spectroscopy allows us to gain an understanding of the coupling between dye molecules and plasmon nanoparticles, which is criti-cally dependent on the distance between them. This is achieved in a hybrid coremultishell nanostructure consisting of a Au particle core, a silica shell as a spacer, and a R6G dye-doped silica shell as the outer layer (shown in Figure 1b). It is important to note that we also measured the time-resolved PL of a mixture of a R6G solution containing Au/silica coreshell nanostruc-tures. However, this approach shows a negligible difference of the PL decay constants with a control experiment of a R6G aqueous solution without Au/ silica nanostructures. We believe that the fast collision between R6G molecules and Au/silica nanostructures makes it difficult to resolve the plasmonexciton coupling, if any, by time-resolved PL. In our current coremultishell nanostructure with a dye-doped silica shell, it is possible to bring the gain media with a controlled concentration to a single gold nanoparticle level and precisely control the spacer thickness, both of which are essential for the understanding of the strong
plasmonexciton resonant coupling toward novel loss compensation in plasmonics.
Figure 4a shows time-resolved PL spectra of R6G and Au/silica/R6G silica coremultishell nanostruc-tures. The silica spacer thicknesses are 0, 1.7, 2.8, 4.6, and 21.9 nm, respectively. For the R6G aqueous solu-tion, the time-resolved PL decay curve can be well fitted as a single-exponential function shown in Figure 4a (black dots and red linefit), resulting in a lifetime ofτf= 4.1( 0.1 ns, which is consistent with
previous studies.53For Au/silica/R6G silica nanostruc-tures with the spacer thickness between 0 and 4.6 nm, the PL decay curves of R6G cannot be wellfitted by a single-exponential function. Rather, a biexponential decay function gives a betterfit, I(t) = A1exp(t/τ1)þ
A2exp(t/τ2),54with two time constants: a fast decay
(τ1) accompanied by a long-living emission (τ2), where
I(t) is the PL intensity. However, when the spacer thickness is 21.9 nm, the PL decay can befitted as a single-exponential function with a time constant of 2.8 ( 0.1 ns, which shows a pronounced decrease compared to R6G alone, suggesting an increase of the radiative recombination rate.55Pons et al. and Ray et al.
reported that plasmon-induced multiexponential fluo-rescence decay is due to dipolemetal interactions.30,41 Dulkeith et al. found that short- and long-living emission components can be identified in the decay dynamics of the dye/Au nanoparticle system. The long-living emission decay is attributed to dye molecule far away from Au
nanoparticles.56In our case, the thickness of the R6G-doped silica layer is 54.2 nm. Therefore, we suggest that the long-living emission is related to the fraction of dye molecules in the silica shell, which are located at longer distances from plasmonic Au nanoparticles, thus exhibiting a very weak interaction with the Au core. The fast decay time is attributed to the fraction of R6G dye decorating the silica shell that experiences the resonant energy transfer process, which is consistent with the opening up of additional relaxation pathways due to the surface plasmon.
Figure 4b shows the decay lifetime as a function of spacer shell thickness in Au/silica/R6G silica core multishell plasmon nanostructures. The two decay lifetimes are (τ1) 250( 40, 178 ( 10, 65 ( 9, and 336 (
16 ps and (τ2) 3.4( 0.1, 2.5 ( 0.1, 1.9 ( 0.1, and 2.7 (
0.1 ns in the case that the silica spacers are 0, 1.7, 2.8, and 4.6 nm, respectively. Many previous works have reported the significant decrease of lifetime in dye plasmon systems coupled via DNA or polyelectrolyte linkage, which can be essentially traced back to an increase of the nonradiative rate leading to fluores-cence quenching.30,57,58 Ray et al. investigated the distance dependence of thefluorescence lifetime of dye molecules. They found that the lifetime was mono-tonously increased as the distance between plasmon andfluorophore was increased.41However, in our case, we observe that the lifetimefirst decreases strikingly to a minimum at 2.8 nm and then increases monotonously
Figure 4. (a) Time-resolvedfluorescence spectra of R6G and Au/silica/R6G silica coremultishell structures. The silica spacer thicknesses are 0, 1.7, 2.8, 4.6, and 21.9 nm, respectively. The solid lines arefits to the data using an exponential decay function, as described in the text. (b) Lifetime as a numerical function of the silica spacer thickness (τ1red line,τ2black line). (c)
Nonradiative rate (rnradsp ) as a function of the silica spacer thickness. The unit is 1010s1. (d) Jablonski diagram for molecular
fluorescence excitation and decay on a plasmonic system: direct photon excitation without plasmon (γ0) and enhanced
excitation due to plasmon (γsp) (green), radiative model with plasmon (rradsp, red), nonradiative model without plasmon
(rnrad 0
cyan), and new decay nonradiative model due to plasmon (rnrad new
, violet).
when the spacer thickness increases even further. To obtain more quantitative information, we evaluate the fluorescence decay rate using rf= 1/τf. The decay rate has
both radiative and nonradiative components and can be expressed as rf= rradsp þ rnradsp , where rfis thefluorescence
decay rate and rnradsp is the nonradiative decay rate with
plasmon. Thefluorescence quantum efficiency η(d) can be written as56
η(d) ¼ rsp
rad=rf ¼ gI(d, t ¼ 0)=rf (7) where d is the separation distance between the Au particle and dye. I(d,t) is the intensity of measuredfluorescence transient, and g is the collection efficiency factor, which can be determined from R6G dye molecules sinceη(d) = 0.95, I(t = 0), and rfare experimentally determined values.
From eq 7, we can obtain rradsp = gI(d,t = 0). Therefore, we
can deduce the nonradiative rate. In Figure 4c, the nonradiative rate rnradsp is plotted versus the spacer
thickness, which increases by more than 3 orders of magnitude at 2.8 nm compared to pure R6G dye molecules (1.1 107s1); meanwhile, the quantum
efficiency drops by more than 3 orders of magnitude. Therefore, the drastically enhanced nonradiative decay rate leads to a pronounced shortening of lifetime. The fluorescence excitation and decay can be shown as a simplified Jablonski diagram in Figure 4d. The electrons of the R6G molecule in ground states are excited into a higher state when they are excited by incident photons. The excitation transition rate,γexc, is proportional to the
localfield, which is enhanced when the dye molecule is near the plasmon structures.26To make it simple,γ0and
γspare denoted to express the photon excitation rate of
the R6G molecule and Au plasmon enhanced excitation rate, respectively,γexc=γ0þ γsp. On the other hand, the
modified nonradiative decay rate due to plasmon, rnradnew, is
induced when metallic nanoparticles approach the R6G molecule due to Förster energy transfer from exciton to lossy plasmon. Therefore, the nonradiative decay rate is accelerated, rnradsp = rnrad0 þ rnradnew, where rnrad0 is the
non-radiative decay rate without plasmon, which results in more energy transferred to the plasmon and quantum yield decreases. Previous reports in theory and experiment have proven that the increased nonradiative rate dom-inates the increased excitation rate leading to the quench-ing of the dye molecules when the silica spacer thickness is smaller than 8 nm.26,39In our experiments, the
nonradia-tive rate is the fastest at ∼2.8 nm, which justifies the minimum lifetime and quantum efficiency (0.02%). There-fore, the rate of energy transfer from gain media to plasmon is the fastest at∼2.8 nm, which indicates that the most energy is transferred to the plasmon. Our results further reasonably confirm the strongest fluorophore plasmon coupling resonance and the largest loss com-pensation at∼2.8 nm spacer thickness. From the Förster dipoledipole interaction model, it is found that the larger
the spectral overlap is, the faster the energy transfer is. It has been reported that both large spectral overlap and resonance between plasmon and emission of dye mol-ecules can greatly improve energy transfer.21,49 In our experiments, the largest spectral overlap occurs at ∼2.8 nm, manifesting a strong resonant R6G dye emission with a Au/silica coreshell nanostructure surface plasmon band. Therefore, we attribute the decrease offluorescence lifetime to the spectral overlap and resonance between plasmon and R6G emission.
To further investigate the effect of spectral overlap and resonance on the energy transfer, we replace the R6G dyes by FITC dyes as the gain media to design Au/ silica/FITC silica coremultishell nanostructures, and the middle silica shell spacers are 0, 1.7( 0.2, 2.2 ( 0.2, 3.5( 0.4, 7.6 ( 0.9, and 13 ( 0.9 nm, respectively. The PL position of the FITC-APS conjugate is at 514 nm (Figure 2d), at the blue side of the plasmon band. Figure 5a shows the time-resolved PL spectra of the FITC-APS conjugate and the Au/silica/FITC silica core multishell nanostructures, with each spacer thickness specified. For the FITC-APS conjugate, the time-resolvedfluorescence intensity decay is fitted with a single-exponential function, giving rise to a time con-stant of 4.3( 0.1 ns, close to the previous report.59 However, for Au/silica/FITC silica coremultishell na-nostructures, two time constants are observed, a short-living lifetimeτ1and long-living lifetimeτ2when the
silica spacer thickness is smaller than approximately 8 nm. Figure 5b shows the lifetime as a function of the spacer thickness. Thefluorescence lifetimes τ1are 185(
4, 110( 11, 195 ( 8, 240 ( 22, and 281 ( 24 ps and τ2
are 2.8( 0.1, 2.1 ( 0.1, 2.5 ( 0.1, 3.1 ( 0.1, and 3.2 ( 0.1 ns for the silica shell spacer of 0, 1.7, 2.2, 3.5, and 7.6 nm, respectively. Both time constants decrease to a minimum when the silica spacer is 1.7 nm. We assign the two lifetimes to FITC dye molecules located close to and far away from the Au core, respectively. When the silica spacer is 13 nm, there is only one long-living lifetime (3.4( 0.1 ns), suggesting that the coupling between the plasmon and exciton of FITC becomes very weak.

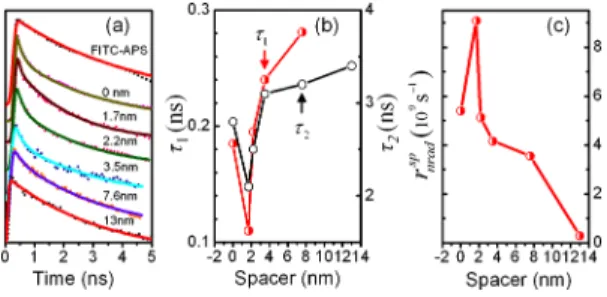

Figure 5. (a) Time-resolvedfluorescence spectra of FITC-APS conjugate and Au/silica/FITC silica coremultishell structures. Silica spacer shells are 0, 1.7, 2.2, 3.5, 7.6, and 13 nm, respectively. The solid lines arefits to the data using an exponential decay function, as described in the text. (b) Lifetime as a function of the silica spacer thickness. (c) Nonradiative rate (rnradsp ) as a function of the silica spacer
thickness; the unit is 109s1.
For the long-living lifetimeτ2, the increase rate declines
when the spacer is larger than 3.5 nm, which further indicates that the plasmonexciton coupling becomes weak as the spacer thickness is considerably large (e.g., 8 nm in this case). This also verifies that the long-living lifetime is from those dye molecules located far away from the Au core. Figure 4c shows the nonradiative rate as a function of the spacer thickness. The nonradiative rate rnradsp increases by approximately 2 orders at 1.7 nm
compared to the FITC-APS conjugate (1.2 108s1), where the quantum efficiency decreases more than 3 orders of magnitude. Compared to the results of R6G, we find that the nonradiative rate rnradsp increases to a
maximum at a spacer thickness of 1.7 nm and then monotonously decreases with the increasing spacer thickness for FITC-doped plasmonic nanostructures. However, for R6G-doped plasmonic nanostructures, rnrad
sp first increases to achieve a maximum at 2.8 nm,
where the plasmon band (551 nm) is in resonance with the emission of R6G (550 nm) and the spectral overlap is the largest, and then decreases monoto-nously as the silica spacer thickness further increases. Therefore, the spectral overlap and the plasmon exciton resonance at short distances lead to a new nonradiative channel and accelerate the nonradiative decay rate, resulting in short-living lifetime and low quantum efficiency. Larger spectral overlap leads to a larger nonradiative energy transfer rate from the gain medium to the plasmon. We suggest that only when the plasmon band is in close resonance with the emission of fluorophores, and the distance between plasmon and the gain media is in a few nanometer proximity, a
maximum nonradiative rate and the largest loss com-pensation can be readily achieved.
CONCLUSION
In summary, Au/silica coreshell and Au/silica/dye-doped silica coremultishell nanostructures have been synthesized with a tunable silica shell as a spacer with thickness ranging from∼1.7 to 108.4 nm, where the plasmon band is red-shifted from 544 to 565 nm. Such exquisite structures enable the systemic investi-gations of the energy transfer between active dye molecules and surface plasmon as a function of the spacer thickness. Our results show that the largest fluorescence quenching and plasmon loss compensa-tion with R6G molecules can be achieved when the spacer is∼2.8 nm, where the spectral overlap between plasmon and R6G emission is maximized. The time-resolved fluorescence spectroscopy of the core multishell system with dye embedded shows that the lifetime drops from 4.1 ns to 65 ps and the nonradiative rate increases by more than 3 orders of magnitude at ∼2.8 nm, resulting in the largest plasmon loss com-pensation from gain materials. As a comparison, the coremultishell nanostructures doped with FITC mole-cules, which exhibit much smaller spectral overlap with plasmon, show that the decay lifetime decreases to a minimum and the nonradiative rate increases to a maximum at 1.7 nm. Our results suggest that the loss compensation is critically dependent on both the spectral overlap and the distance between plasmon and gain materials with nanometer accuracy in the sub-10 nm regime.
METHODS
Materials. (3-Aminopropyl)trimethoxysilane (APS), tetra-ethoxysilane (TEOS), chloroauric acid (HAuCl43 3H2O), sodium
citrate anhydrous, Rhodamine 6G (R6G), fluorescein isothiocya-nate (FITC), 2-propanol (IPA, HLPC), ethanol (HLPC), sodium hydroxide (NaOH), and ammonia were purchased from Sigma-Aldrich. Sodium silicate was purchased from Beijing Chemical Regent Company. Milli-Q water was used in all of the preparations.
Synthesis of Au/Silica CoreShell Structures. We first synthesized Au NPs with a diameter of about 64 nm as cores by a standard sodium citrate reduction method.60A freshly prepared aqueous solution of 1 mM (3-aminopropyl)trimethoxysilane (APS) (0.4 mL) was added to 20 mL of as-prepared gold sol and 80 mL of Milli-Q water under vigorous magnetic stirring in 15 min, ensuring complete complexation of the amine groups with the gold surface. Then, 1.6 mL of 0.54 wt % sodium silicate solution and 2 mL of 0.1 M NaOH were added to the sol again under vigorous magnetic stirring.38To accelerate the synthesis procedure and make the ultrathin silica shell, we elevated the reaction temperature from room temperature to 90C.61The
thickness of thin silica shell can be tuned between 1 and 3 nm by controlling the reaction time. Au core/thin silica shell struc-tures were obtained by centrifugation (9000 rpm, 5 min) and redispersed in 6 mL of Milli-Q water. To increase the thickness of the silica shell, 0.36 mL of as-prepared Au/silica was added into 1.14 mL of water, 5 mL of IPA, and 0.125 mL of ammonia, followed by the addition of 75μL of tetraethoxysilane (TEOS,
10 mM) and stirring for 24 h. Au/silica coreshell nanostructures were centrifugated at 9000 rpm for 5 min and redispersed in 1.5 mL of Milli-Q water. Silica shell thickness was then increased to 3.5 nm. The thickness of the silica shell can further be tuned between 3.5 and 108.4 nm by increasing the amount of TEOS. On the basis of the Au/silica coreshell structures, we system-atically investigated the distance dependence of energy trans-fer between the plasmon and R6G; 5.12 109 Au/silica
coreshell particles were dispersed in 3 mL of DI water contain-ing 2.83 107M R6G, which were prepared freshly and kept in the dark before measurements.
Synthesis of Au/Silica/Dye-Doped Silica CoreMultishell Nanostruc-tures. For Au/silica/R6G silica coremultilshell structures, 1.5 mL of obtained Au/silica coreshell nanostructures was added into 5 mL of IPA and 0.125 mL of ammonia, followed by the addition of 400μL of TEOS (10 mM) twice within 4 h (at a interval of 2 h) and 100μL of R6G solution (1 mM), stirring for 24 h in the dark. Au/silica/R6G silica coremultilshell structures can be obtained by centrifugation (6000 rpm, 3 min), washed five times by Milli-Q water to remove free R6G, redispersed in 0.2 mL of Milli-Q water, and kept in the dark before measurements.
For Au/silica/FITC silica coremultishell nanostructures, the experimental steps are the same except for using 20μL of FITC-APS conjugate instead of R6G solution, which was formed by stirring FITC (6.2 mg) in 25 mL of ethanol containing 5.65μL of APS in the dark for 24 h.62,63
Time-Resolved Fluorescence Intensity Decays. Excitation pulses were generated from an optical parametric amplifier (TOPAS,
Light Conversion Ltd.) that was pumped by a 1 kHz, 150 fs Ti: sapphire regenerative amplifier (Legend, Coherent, Inc.). The PL emission was collected in a standard backscattering geometry and dispersed by a 0.25 m DK240 spectrometer with a 150 g/ mm grating. The PL signal was time-resolved using an Optronis Optoscope streak camera system which has an ultimate tem-poral resolution of 6 ps. Samples were loaded in cuvettes of 2 mm path length, and excitation wavelength was tuned to 480 nm for the Au/silica/R6G silica samples and to 490 nm for the Au/silica/FITC silica samples.
Characterization. TEM was performed on a JEOL1400 transmis-sion electron microscope with an accelerating voltage of 100 kV. The spacer thickness was obtained by measurement and statistical analysis of many TEM images (>100 nanoparticles). UV/vis absorp-tion spectra were recorded at room temperature using a Lambda 950 spectrophotometer. Room-temperature steady-state PL was recorded by Fluorolog with a 430 W Xe lamp, and the excitation wavelength is 480 nm. In case R6G and FITC molecules were photobleached in our experimnts, the dye solution was freshly prepared. All samples were kept in the dark before measurements, which were finished within 5 min for each sample.
Conflict of Interest: The authors declare no competing financial interest.
Acknowledgment. Q.X. thanks the strong support from Singapore National Research Foundation through Singapore NRF fellowship grant (NRF-RF-2009-06) and Nanyang Techno-logical University via start-up grant (M58110061) and New Initiative Fund (M58110100). H.V.D. and Q.X. gratefully acknowl-edge the substantial support from Singapore National Research Foundation through the Competitive Research Program (NRF-CRP-6-2010-2).
REFERENCES AND NOTES
1. Brongersma, M. L.; Shalaev, V. M. The Case for Plasmonics. Science2010, 328, 440–441.
2. Zheludev, N. I.; Prosvirnin, S. L.; Papasimakis, N.; Fedotov, V. A. Lasing Spaser. Nat. Photonics2008, 2, 351–354. 3. Wang, H.; Brandl, D. W.; Nordlander, P.; Halas, N. J.
Plas-monic Nanostructures: Artificial Molecules. Acc. Chem. Res. 2007, 40, 53–62.
4. Luk'yanchuk, B.; Zheludev, N. I.; Maier, S. A.; Halas, N. J.; Nordlander, P.; Giessen, H.; Chong, C. T. The Fano Reso-nance in Plasmonic Nanostructures and Metamaterials. Nat. Mater.2010, 9, 707–715.
5. Stockman, M. I. Spaser Action, Loss Compensation, and Stability in Plasmonic Systems with Gain. Phys. Rev. Lett. 2011, 106, 156802.
6. De Luca, A.; Grzelczak, M. P.; Pastoriza-Santos, I.; Liz-Marzán, L. M.; La Deda, M.; Striccoli, M.; Strangi, G. Dis-persed and Encapsulated Gain Medium in Plasmonic Nanoparticles: A Multipronged Approach To Mitigate Optical Losses. ACS Nano2011, 5, 5823–5829.
7. Liu, S.-Y.; Li, J.; Zhou, F.; Gan, L.; Li, Z.-Y. Efficient Surface Plasmon Amplification from Gain-Assisted Gold Nanorods. Opt. Lett.2011, 36, 1296–1298.
8. Zheludev, N. I. The Road Ahead for Metamaterials. Science 2010, 328, 582–583.
9. Xiao, S.; Drachev, V. P.; Kildishev, A. V.; Ni, X.; Chettiar, U. K.; Yuan, H.-K.; Shalaev, V. M. Loss-Free and Active Optical Negative-Index Metamaterials. Nature2010, 466, 735–738. 10. Pendry, J. B.; Maier, S. A. Comment on00Spaser Action, Loss Compensation, and Stability in Plasmonic Systems with Gain00. Phys. Rev. Lett.2011, 107, 259703.
11. Wuestner, S.; Pusch, A.; Tsakmakidis, K. L.; Hamm, J. M.; Hess, O. Comment on00Spaser Action, Loss Compensation, and Stability in Plasmonic Systems with Gain00. Phys. Rev. Lett.2011, 107, 259701.
12. Wuestner, S.; Pusch, A.; Tsakmakidis, K. L.; Hamm, J. M.; Hess, O. Overcoming Losses with Gain in a Negative Refractive Index Metamaterial. Phys. Rev. Lett.2010, 105, 127401. 13. Pusch, A.; Wuestner, S.; Hamm, J. M.; Tsakmakidis, K. L.; Hess,
O. Coherent Amplification and Noise in Gain-Enhanced
Nanoplasmonic Metamaterials: A Maxwell-Bloch Langevin Approach. ACS Nano2012, 6, 2420–2431.
14. Plum, E.; Fedotov, V. A.; Kuo, P.; Tsai, D. P.; Zheludev, N. I. Towards the Lasing Spaser: Controlling Metamaterial Op-tical Response with Semiconductor Quantum Dots. Opt. Express2009, 17, 8548–8551.
15. Tanaka, K.; Plum, E.; Ou, J. Y.; Uchino, T.; Zheludev, N. I. Multifold Enhancement of Quantum Dot Luminescence in Plasmonic Metamaterials. Phys. Rev. Lett. 2010, 105, 227403.
16. Noginov, M. A.; Zhu, G.; Belgrave, A. M.; Bakker, R.; Shalaev, V. M.; Narimanov, E. E.; Stout, S.; Herz, E.; Suteewong, T.; Wiesner, U. Demonstration of a Spaser-Based Nanolaser. Nature2009, 460, 1110–1112.
17. Stockman, M. I. Spasers Explained. Nat. Photonics2008, 2, 327–329.
18. Das, S. R. The Spaser Nanolaser. IEEE Spectrum2009, 46, 14–16.
19. Zhang, X.; Oulton, R. F.; Sorger, V. J.; Zentgraf, T.; Ma, R. M.; Gladden, C.; Dai, L.; Bartal, G. Plasmon Lasers at Deep Subwavelength Scale. Nature2009, 461, 629–632. 20. Bardhan, R.; Grady, N. K.; Cole, J. R.; Joshi, A.; Halas, N.
J. Fluorescence Enhancement by Au Nanostructures: Na-noshells and Nanorods. ACS Nano2009, 3, 744–752. 21. Ginger, D. S.; Chen, Y.; Munechika, K. Dependence of
Fluorescence Intensity on the Spectral Overlap between Fluorophores and Plasmon Resonant Single Silver Nano-particles. Nano Lett.2007, 7, 690–696.
22. Ming, T.; Zhao, L.; Chen, H.; Woo, K. C.; Wang, J.; Lin, H.-Q. Experimental Evidence of Plasmophores: Plasmon-Direc-ted Polarized Emission from Gold NanorodFluorophore Hybrid Nanostructures. Nano Lett.2011, 11, 2296–2303. 23. Chen, H.; Ming, T.; Zhao, L.; Wang, F.; Sun, L.-D.; Wang, J.;
Yan, C.-H. PlasmonMolecule Interactions. Nano Today 2010, 5, 494–505.
24. Ginger, D. S.; Munechika, K.; Chen, Y. C.; Tillack, A. F.; Kulkarni, A. P.; Jen-La Plante, I.; Munro, A. M. Quantum Dot/Plasmonic Nanoparticle Metachromophores with Quantum Yields That Vary with Excitation Wavelength. Nano Lett.2011, 11, 2725–2730.
25. Zhang, Q.; Shan, X. Y.; Feng, X.; Wang, C. X.; Wang, Q. Q.; Jia, J. F.; Xue, Q. K. Modulating Resonance Modes and Q Value of a CdS Nanowire Cavity by Single Ag Nanoparticles. Nano Lett.2011, 11, 4270–4274.
26. Novotny, L.; Anger, P.; Bharadwaj, P. Enhancement and Quenching of Single-Molecule Fluorescence. Phys. Rev. Lett.2006, 96, 113002.
27. Aslan, K.; Wu, M.; Lakowicz, J. R.; Geddes, C. D. Fluorescent CoreShell Ag@SiO2 Nanocomposites for
Metal-Enhanced Fluorescence and Single Nanoparticle Sensing Platforms. J. Am. Chem. Soc.2007, 129, 1524–1525. 28. Kulakovich, O.; Strekal, N.; Yaroshevich, A.; Maskevich, S.;
Gaponenko, S.; Nabiev, I.; Woggon, U.; Artemyev, M. En-hanced Luminescence of CdSe Quantum Dots on Gold Colloids. Nano Lett.2002, 2, 1449–1452.
29. Jennings, T. L.; Schlatterer, J. C.; Singh, M. P.; Greenbaum, N. L.; Strouse, G. F. NSET Molecular Beacon Analysis of Hammerhead RNA Substrate Binding and Catalysis. Nano Lett.2006, 6, 1318–1324.
30. Pons, T.; Medintz, I. L.; Sapsford, K. E.; Higashiya, S.; Grimes, A. F.; English, D. S.; Mattoussi, H. On the Quenching of Semiconductor Quantum Dot Photoluminescence by Prox-imal Gold Nanoparticles. Nano Lett.2007, 7, 3157–3164. 31. Tovmachenko, O. G.; Graf, C.; van den Heuvel, D. J.; van
Blaaderen, A.; Gerritsen, H. C. Fluorescence Enhancement by Metal-Core/Silica-Shell Nanoparticles. Adv. Mater. 2006, 18, 91–95.
32. Kulakovich, O.; Strekal, N.; Yaroshevich, A.; Maskevich, S.; Gaponenko, S.; Nabiev, I.; Woggon, U.; Artemyev, M. En-hanced Luminescence of CdSe Quantum Dots on Gold Colloids. Nano Lett.2002, 2, 1449–1452.
33. Schatz, G. C.; Kelly, K. L.; Coronado, E.; Zhao, L. L. The Optical Properties of Metal Nanoparticles: The Iinfluence of Size, Shape, and Dielectric Environment. J. Phys. Chem. B 2003, 107, 668–677.
34. Link, S.; El-Sayed, M. A. Spectral Properties and Relaxation Dynamics of Surface Plasmon Electronic Oscillations in Gold and Silver Nanodots and Nanorods. J. Phys. Chem. B 1999, 103, 8410–8426.
35. Mulvaney, P.; Ung, T.; Liz-Marzan, L. M. Optical Properties of Thin Films of Au@SiO2Particles. J. Phys. Chem. B2001,
105, 3441–3452.
36. Mulvaney, P. Surface Plasmon Spectroscopy of Nanosized Metal Particles. Langmuir1996, 12, 788–800.
37. Mulvaney, P.; Liz-Marzan, L. M.; Giersig, M.; Ung, T. Silica Encapsulation of Quantum Dots and Metal Clusters. J. Mater. Chem.2000, 10, 1259–1270.
38. Liz-Marzan, L. M.; Giersig, M.; Mulvaney, P. Synthesis of Nanosized GoldSilica CoreShell Particles. Langmuir 1996, 12, 4329–4335.
39. Schneider, G.; Decher, G.; Nerambourg, N.; Praho, R.; Werts, M. H. V.; Blanchard-Desce, M. Distance-Dependent Fluo-rescence Quenching on Gold Nanoparticles Ensheathed with Layer-by-Layer Assembled Polyelectrolytes. Nano Lett.2006, 6, 530–536.
40. Zin, M. T.; Leong, K.; Wong, N. Y.; Ma, H.; Sarikaya, M.; Jen, A. K. Y. Surface-Plasmon-Enhanced Fluorescence from Periodic Quantum Dot Arrays through Distance Control Using Biomolecular Linkers. Nanotechnology 2009, 20, 015305.
41. Ray, K.; Badugu, R.; Lakowicz, J. R. Distance-Dependent Metal-Enhanced Fluorescence from LangmuirBlodgett Monolayers of Alkyl-NBD Derivatives on Silver Island Films. Langmuir2006, 22, 8374–8378.
42. Dulkeith, E.; Ringler, M.; Klar, T. A.; Feldmann, J.; Mu~noz Javier, A.; Parak, W. J. Gold Nanoparticles Quench Fluores-cence by Phase Induced Radiative Rate Suppression. Nano Lett.2005, 5, 585–589.
43. Gersten, J.; Nitzan, A. Spectroscopic Properties of Mole-cules Interacting with Small Dielectric Particles. J. Chem. Phys.1981, 75, 1139–1152.
44. Carminati, R.; Greffet, J. J.; Henkel, C.; Vigoureux, J. M. Radiative and Non-radiative Decay of a Single Molecule Close to a Metallic Nanoparticle. Opt. Commun.2006, 261, 368–375.
45. Lakowicz, J. R. Principles of Fluorescence Spectroscopy, 3rd ed.; Springer: New York, 2006; pp 443472. 46. Kubin, R. F.; Fletcher, A. N. Fluorescence Quantum Yields of
Some Rhodamine Dyes. J. Lumin.1982, 27, 455–462. 47. Shimizu, K. T.; Woo, W. K.; Fisher, B. R.; Eisler, H. J.; Bawendi,
M. G. Surface-Enhanced Emission from Single Semicon-ductor Nanocrystals. Phys. Rev. Lett.2002, 89, 117401. 48. Wang, Y. K.; Yang, T. Y.; Tuominen, M. T.; Achermann, M.
Radiative Rate Enhancements in Ensembles of Hybrid Metal-Semiconductor Nanostructures. Phys. Rev. Lett. 2009, 102, 163001.
49. Tam, F.; Goodrich, G. P.; Johnson, B. R.; Halas, N. J. Plas-monic Enhancement of Molecular Fluorescence. Nano Lett.2007, 7, 496–501.
50. Munechika, K.; Chen, Y.; Tillack, A. F.; Kulkarni, A. P.; Plante, I. J. L.; Munro, A. M.; Ginger, D. S. Spectral Control of Plasmonic Emission Enhancement from Quantum Dots near Single Silver Nanoprisms. Nano Lett.2010, 10, 2598–2603. 51. Ma, R.-M.; Oulton, R. F.; Sorger, V. J.; Bartal, G.; Zhang, X.
Room-Temperature Sub-Diffraction-Limited Plasmon La-ser by Total Internal Reflection. Nat. Mater. 2011, 10, 110– 113.
52. Kühn, S.; Håkanson, U.; Rogobete, L.; Sandoghdar, V. Enhancement of Single-Molecule Fluorescence Using a Gold Nanoparticle as an Optical Nanoantenna. Phys. Rev. Lett.2006, 97, 017402.
53. Magde, D.; Wong, R.; Seybold, P. G. Fluorescence Quantum Yields and Their Relation to Lifetimes of Rhodamine 6G and Fluorescein in Nine Solvents: Improved Absolute Standards for Quantum Yields. Photochem. Photobiol. 2002, 75, 327–334.
54. Xu, X. L.; Zhao, Y. Y.; Sie, E. J.; Lu, Y. H.; Liu, B.; Ekahana, S. A.; Ju, X.; Jiang, Q. K.; Wang, J. B.; Sun, H. D.; et al. Dynamics of Bound Exciton Complexes in CdS Nanobelts. ACS Nano 2011, 5, 3660–3669.
55. Zhang, Y. X.; Mandeng, L. N.; Bondre, N.; Dragan, A.; Geddes, C. D. Metal-Enhanced Fluorescence from Silver SiO2Silver Nanoburger Structures. Langmuir 2010, 26,
12371–12376.
56. Dulkeith, E.; Morteani, A. C.; Niedereichholz, T.; Klar, T. A.; Feldmann, J.; Levi, S. A.; van Veggel, F. C. J. M.; Reinhoudt, D. N.; Möller, M.; Gittins, D. I. Fluorescence Quenching of Dye Molecules near Gold Nanoparticles: Radiative and Nonradiative Effects. Phys. Rev. Lett. 2002, 89, 203002. 57. Cannone, F.; Chirico, G.; Bizzarri, A. R.; Cannistraro, S.
Quenching and Blinking of Fluorescence of a Single Dye Molecule Bound to Gold Nanoparticles. J. Phys. Chem. B 2006, 110, 16491–16498.
58. Lim, T. S.; Fu, C. C.; Lee, K. C.; Lee, H. Y.; Chen, K.; Cheng, W. F.; Pai, W. W.; Chang, H. C.; Fann, W. Fluorescence Enhancement and Lifetime Modification of Single Nano-diamonds near a Nanocrystalline Silver Surface. Phys. Chem. Chem. Phys.2009, 11, 1508–1514.
59. Santra, S.; Liesenfeld, B.; Bertolino, C.; Dutta, D.; Cao, Z. H.; Tan, W. H.; Moudgil, B. M.; Mericle, R. A. Fluorescence Lifetime Measurements To Determine the CoreShell Nanostructure of FITC-Doped Silica Nanoparticles: An Optical Approach To Evaluate Nanoparticle Photostability. J. Lumin.2006, 117, 75–82.
60. Liu, S. H.; Han, M. Y. Synthesis, Functionalization, and Bioconjugation of Monodisperse, Silica-Coated Gold Na-noparticles: Robust Bioprobes. Adv. Funct. Mater.2005, 15, 961–967.
61. Li, J. F.; Huang, Y. F.; Ding, Y.; Yang, Z. L.; Li, S. B.; Zhou, X. S.; Fan, F. R.; Zhang, W.; Zhou, Z. Y.; Wu, D. Y.; et al. Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy. Nature2010, 464, 392–395.
62. Chen, D.; Li, L. L.; Tang, F. Q.; Qi, S. O. Facile and Scalable Synthesis of Tailored Silica00Nanorattle00Structures. Adv. Mater.2009, 21, 3804–3807.
63. Peng, B.; Tang, F. Q.; Chen, D.; Ren, M. L.; Meng, X. W.; Ren, J. Preparation of PS/TiO2/UF Multilayer CoreShell Hybrid
Microspheres with High Stability. J. Colloid Interface Sci. 2009, 329, 62–66.
