Comparative study of arylene bisimides substituted with imidazole side group for different dielectrics on the OFET application

(1)

ContentslistsavailableatSciVerseScienceDirect

Synthetic

Metals

j o u r n a l ho me p a g e : w w w . e l s e v i e r . c o m / l o c a t e / s y n m e t

Comparative

study

of

arylene

bisimides

substituted

with

imidazole

side

group

for

different

dielectrics

on

the

OFET

application

Cem

Tozlu

a,∗

_,

_Sule

_Erten-Ela

b

_,

_Th.

_Birendra

_Singh

c

_,

_N.

_Serdar

_Sariciftci

c

_,

_{Sıddık ˙Ic¸}

_li

b,∗ a_Department_of_Energy_System_Engineering,_Faculty_of_Engineering,_{Karamano˘glu}_Mehmetbey_University,₇₀₁₀₀_Karaman,_Turkey

b_Solar_Energy_Institute,_Ege_University,_Bornova,₃₅₁₀₀_Izmir,_Turkey

c_Linz_Institute_for_Organic_Solar_Cells_(LIOS),_Physical_Chemistry,_Johannes_Kepler_University_Linz,_{Altenbergerstr.}_69,_A₄₀₄₀_Linz,_Austria

a

r

t

i

c

l

e

i

n

f

o

Articlehistory:

Received23January2013

Receivedinrevisedform25February2013 Accepted29March2013

Keywords:

Organicﬁeldeffecttransistor Naphthalene

Perylene Benzimidazole

a

b

s

t

r

a

c

t

Weanalyzedtheeffectofpolymericdielectricwithhydroxylandhydroxyl-freegrouponcurrent–voltage

characteristicsoforganicthinﬁlmtransistorbytheuseofbenzimidazole-derivedarylenebisimide

derivatives.Polyvinylalcohol(PVA)withpolargroupandbenzocyclobutene(BCB)withnon-polargroup

wereusedassolutionprocesseddielectricmaterialstocomparewitheachotherinthinﬁlm

transis-torapplication.Thehydroxylgrouphasasigniﬁcanteffectonturn-onvoltageandturn-offcurrentin

depletionregimeduetohydroxylgroup.Itisobservedthatthesurfacemorphologyisinﬂuencedbythe

chemicalstructureofpolymericdielectricconcerningsurfaceenergy.Theelectronﬁeldeffectmobilityof

botharylenebisimidesisenhancedbydecreasedsurfaceenergyofdielectric.Thehighestmobilitywas

obtainedbyemployingnaphthalenebis-benzimidazoleasanactivelayeronbothdielectricscompared

withperylenebis-benzimidazolesemiconductor.Theelectricalbehaviorsofthesesemiconductorsare

discussedinrelationtogatedielectricsurfaceproperties.

1. Introduction

Organicsemiconductorshavebeenattractingmuchattention for electronicdevices becauseof theirpotential applicationsin low-cost,largeareaandflexibledevicessuchasplasticsolarcell, flat-paneldisplaysetc.[1–3].Organicthinfilmtransistors(OTFT) based on highly conjugated p-channel or n-channel active, as organicelectronicdevices,havebeenusedonactiveandpassive matrixdisplays[4,5],radiofrequencyidentificationtags, chem-icalsensors,biological sensors,etc.[6,7].Lowmolecularweight peryleneandnaphthalenebisimidederivatives,arylenebisimides werewidelyinvestigated assmallorganicmoleculeswith vari-ous substituents tocreate advantages ontheirelectrochemical, luminescentandelectronicpropertiesallowingapplicationto con-structorganicbased electronicdevices [8–10]. Thestrong␲−␲ interactions and high electron affinity are special features of these materials to utilize in n-channel organic thin film tran-sistors[11–13].Inrecentyears,electronacceptingmoietieslike halogen substituents [14–16] and polymer containing arylene bisimides [17,18] have been reported as air stable n-channel OTFT. Remarkable studies have been reported employing vari-ous perylene and naphthalenebisimides as modified dielectric

∗ Correspondingauthors.Tel.:+903882265053;fax:+902323882023. E-mailaddresses:tozlu.cem@gmail.com(C.Tozlu),sicli@yahoo.com(S. ˙Ic¸li).

layerwithpoly-methylmethacrylate(PMMA)[19,20],n-octadecyl triethoxysilane (OTS) [21], hexzamethyl disilazane (HDMS)and 3,5-bis(triﬂuoromethyl)thiophenol[22],onbareSiO2[23,24].The

surface modiﬁcation improves drastically the performance of OTFTsincomparedonlywiththebareSiO2.Polymericdielectrics

havebeenusedwidelyingateinsulatorsinrecentyears,dueto theirfavorablechemicalandphysicalpropertiesinsolution pro-cessabledepositiontechnique.Someofthesepolymericmaterials alsocompetewiththebareSiO2insulatorforapplicationin

elec-tronics[25].Theirsurfacepropertiesinﬂuencedirectlymorphology ofsemiconductorsandsemiconductor/dielectricinterfaceinwhich motionofchargecarriersoccurs[26,27].ThestudiesofOTFTbased onperyleneandnaphthaleneorganicsemiconductorsareless com-monfor comparativeofperformancearylenebisimidesonbare polymericdielectricsurfaces.

We nowreporttheOTFTperformanceswithnovel naphtha-leneandperylenebisimidessubstitutedbenzimidazolegroupson hydroxyl and hydroxyl-freepolymeric insulators.The synthesis of thenaphthalene and perylene bis-benzimidazole is reported elsewhere [28,29]. Novelty of application on OTFTs for these molecular structures is the extended conjugation of aromatic rings onbare polymeric dielectrics, compared to the naphtha-lene and perylene diimides studiedin literature. Hydroxyl-free divinyltetramethyldisiloxane-bis(benzocyclobutene)(BCB,called “cyclotene”)and hydroxyl polyvinylalcohol (PVA)werechosen toevaluatetheperformanceoffabricatedtransistorsdependence 0379-6779/$–seefrontmatter © 2013 Elsevier B.V. All rights reserved.

(2)

6 C.Tozluetal./SyntheticMetals172 (2013) 5–10

ondielectricsurfaceproperties.Naphthalenebis-benzimidazole, NBBI,andperylenebis-benzimidazole,PBBI,basedOTFTsarenot usedinthinﬁlmtransistorasanactivelayer.

2. Experimental

Theorganicthinﬁlmtransistors(OTFTs)werefabricatedwith top contact/bottom gate geometry to investigate properties of dielectric/semiconductorinterfacebydepositionoforganic semi-conductor on dielectric layer. The OTFT device geometry and chemical structure of used NBBI and PBBI semiconductors are shownin Fig.1(a–c).Theindium tinoxidecoatedglasseswere patternedbyetchingwithdilutedHClforbottomgateelectrode. Prior to coating of dielectrics, the substrates were cleaned by soakinginultrasonicbathwithdistilledwater,acetoneand iso-propanol, respectively. Benzocyclobutene (BCB) and poly(vinyl alcohol) (PVA)(Mowiol® _40-8) _with _average _molecular_weight

of120,000werepurchased fromDownChemicalCompany and AldrichCompany,respectively.Themolecularstructuresof poly-meric dielectrics are shown in Fig. 1(d–e). The BCB thin ﬁlm polymericdielectricwascoatedonITOsubstratebyspincoating at1500rpmin 45sand curedfor1hat285◦Cin vacuumoven underargonatmosphere.PVAthinﬁlmpolymericdielectricwas coatedonITOsubstratebyspincoatingof10wt/v%PVAsolution at1500rpmin45sanddriedfor24hunderroomtemperaturein vacuum.NBBIandPBBIsemiconductorswiththicknesses100nm werethermallyevaporated undervacuum(10−5mbar)atarate of0.05nm/sonBCBandPVAcoatedsubstratesundersame con-ditions,respectively.LiF/Almetalelectrode(purity99.9%)witha

Fig.1.(a)Cross-sectionalillustrationoffabricatedtopcontactOTFT,(b)chemical structuresofnaphthalenebis-benzimidazole(NBBI),(c)perylenebis-benzimidazole (PBBI), (d) divinyltetramethyldisiloxane-bis (benzocyclobutene) (BCB) and (e) polyvinylalcohol(PVA).

Fig.2. Outputcharacteristics(Ids−Vds)ofNBBIandPBBItransistorsondielectricsofBCBandPVAforvariousVgsindeviceI(a),deviceII(b),deviceIII(c)anddeviceIV(d), respectively.Allmeasurementsweretakenundersameconditions.

(3)

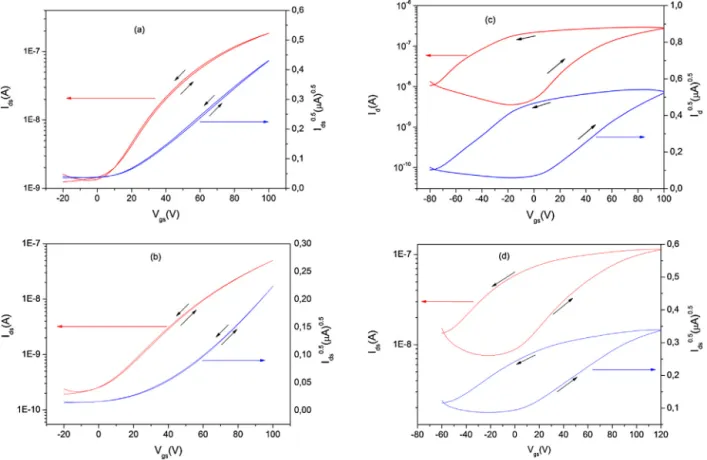

Fig.3. TransfercharacteristicsfordeviceI(a),deviceII(b),deviceIII(c)anddeviceIV(d).AllcurveswereobtainedunderVds=50V.Leftaxisrepresents(logIds−Vgs)curve andrightaxisI1/2_ds −Vgscurve.

thickness0.6nm/60nm wasdeposited onactive layersof NBBI andPBBIwithvacuumevaporatorunder1×10−6mbarbyusing shadowmaskhavingachannellength(L)of47_␮mandchannel width(W)of2mm.Theelectricalcharacterizationsoffabricated devicewerecarriedoutinaninertgasatmosphere.Theoutput (Ids−Vds)andtransfer(Ids−Vgs)characteristicsoffabricatedOFETs

weremeasuredwithAgilentE5273ASource/Measureunit. Sepa-ratesandwichstructuresofmetal–insulator–metal(MIM)withAu electrodeswerepreparedforcapacitance–voltagemeasurements ofdielectricfilms.AHP4842ALCRmeterwasusedforthe geometri-calcapacitancemeasurementsofinsulatorinMIMdevicestructure. Thesurfacemorphologiesofdielectricfilmsandactivelayerswere examinedintappingmodewitha Q-Scope250ScanningProbe MicroscopeAmbiosTechnologyoperatingat roomtemperature. Thethicknessofthedielectricwasdeterminedbyasurface pro-filometer(AmbiosXP-1).

Inthisstudy,devicesarereferredasdeviceIanddeviceIIfor NBBIandPBBIbasedOTFTsontheBCBdielectric,deviceIIIand deviceIVforNBBI andPBBIbasedOTFTsonthePVA dielectric, respectively.

3. Resultsanddiscussion

ThethicknessesofpolymericdielectricﬁlmsofPVA andBCB wereadjustedtoobtaininsameordercapacitancevaluesof insu-latedﬁlms.ThecapacitancevaluesofBCBandPVAinsulatorswere found to be 1.2nF/cm2 _and _1.8_nF/cm2 _with ₂_␮m _and _3.8_␮m

ﬁlmthicknesses,respectively.Thedielectricconstantsofinsulators frommeasureddielectricthicknesseswereestimatedasεPVA=8

andεBCB=2.6,respectively.Thepolymericinsulatedﬁlmsdifferin

theirsurfaceenergydependonmolecularstructures.Thesurface energyofBCBandPVAwere34.3mJ/m2 _and₄₅_mJ/m2 _in

accor-dancewiththeRefs.[30,31],respectively.

AllOTFTswerefabricatedunderthesameconditionsinorder toabletocomparewitheachother.Alldevicespresenttypical n-channeltransistoroutputcharacteristicsasafunctionofVgs.The

outputcharacteristicsofalldevicesfabricatedontopofthe poly-mericgate-insulatorwithLiF/Altop drain-sourcecontactswere showninFig.2(a–d).ThedraincurrentIdsincreaseslinearlywith

Vds, at low voltages, implies that good establishment of ohmic

contactforelectroninjectionbetweensemiconductorsandLiF/Al contacts. When the output characteristics of devices are com-pared withPVA and BCB dielectrics,thewell-deﬁned pinch-off (Vds≈Vgs−Vth)voltagesarenotobservedasshowninFig.2.Inideal

thin ﬁlmtransistor (TFT),the differentialresistancer=

∂

Vds/

∂

Ids

must behighin thesaturationregime(Vds>Vgs).In contrastto

idealTFToutputcharacteristics,deviceswithexceptionofdevice IIIexhibitedalowdifferentialresistanceinoutputcharacteristics abovethepinch-offvoltages.Thehighconductivityinsaturation regimecanbeattributedtothepresenceofinterfacechargesatthe dielectric/semiconductorinterface[32].

Fig. 3(a–d) depicts the transfer characteristics (logIds−Vgs)

and (I_ds1/2−Vgs)of OTFTs at Vth=50V to illustrate turn-off and

turn-onstatebehaviorbysweepinggatevoltage.Themagnitude oftheturn-offcurrentexhibitsadependenceonpolymericgate dielectric,PVAgateinsulateddevicesshowedveryhighoffcurrent comparedwithBCBgateinsulateddevicetransfercharacteristicsin depletionregime(Vgs≤0V).TheOH−groupofPVAhassigniﬁcantly

largedipolemomentthatcreatesinternalelectricfieldinaddition to gate induced field at the semiconductor/dielectric interface. AlthoughcapacitancevalueofPVAgatedielectriciscomparable withBCBdielectric,draincurrentisverylargeinbothaccumulation regimeandalsoindepletionregimeforPVAdielectricduetodipole fieldofgateinsulator.Inadditiontoturn-offcurrent,weevaluated turn-on voltagewhichis definedasthegatevoltagewhere the drain current starts to increase. From transfer characteristic of

(4)

8 C.Tozluetal./SyntheticMetals172 (2013) 5–10

Fig.4. Atomicforcemicroscopy(AFM)imagesofNBBIfilm(a)andPBBIfilm(b)whichweredepositedonBCBlayers;NBBIfilm(c)andPBBIfilm(d)whichweredeposited onPVAdielectric.Allimagesweretakenintappingmode.

devices,thelargenegativeturn-onvoltagewasobservedforPVA gateinsulateddevicescomparedwithBCBdielectric.Thisnegative turn-onvoltageshowspresencesoftrapstatesthatprovidemobile charge in the channel formed at the dielectric/semiconductor interface [33,34] and also molecular dipole field of dielectric influencesturn-onvoltageabsolutelyduetoband-bendingatthe insulator/semiconductorinterface[35,36]. Thehysteresiseffects werealsoobservedespecially in thepresenceof PVA dielectric whichhavehydroxylgroup.Althoughthereareseveralarguments astothemechanismofthehysteresiseffectinOFET,theresults showthatthechargeinjectionandtrappingmechanismaremain sourcesofhysteresismechanisminOFETwhichisproducedonthe dielectricwithOH−[37].Furthermore,forinvestigationofinterface trapsinfluencesontransfercharacteristics,subthresholdswing,S, whichispointedoutthesharpnessoffieldeffectonsetdetermined from inverse slope of the log(Ids) versus Vgs below threshold

voltage, was evaluated. From transfer characteristics of below thresholdvoltage whichis extracted froma slope of(Ids(sat))1/2

versusVgswhereinterceptontheVgsaxis,alldevices exhibited

largesubthresholdswing(S).Actuallynormalizedsub-threshold swing,SN=S×Ci whereCiis thedielectric capacitanceper unit

area,permitstocomparemoreaccuratelydevicesbehaviorbelow thresholddependsondielectric thicknessand varyingdielectric materials.Thenormalized subthresholdswingvalues varyfrom

50nFVdecade−1cm−2 to 120nFVdecade−1cm−2, the largest valuewasobtainedfromPVAinsulateddevices thatshowmore deepinterfacetraps.Thesubthresholdswingdependsonnotonly dielectricthicknessandalsostronglyinterfacetrapspositionnext tointerface[38].Thedeviceparameters extractedfromtransfer characteristicsofOTFTsusingEq.(1)aresummarizedinTable1. Thesaturatedelectronﬁeld-effectmobility,,wasobtainedfrom saturatedregimeofOTFTbyusingfollowingequation[39], (Ids(sat))1/2=

_W

2LCi

1/2

(Vgs−Vth) Vds>Vgs−Vth (1)

whereIdsisthedrain–sourcecurrent,Wisthewidthofchannel,

L is thechannel length, Ci is the capacitance per unit area of

theinsulator.Vgsisthegatevoltage,isthemobilityofcharge

carrierandVthisthethresholdvoltage.Aslopeof(Ids(sat))1/2versus

Vgs determines saturated electron ﬁeld-effect mobility, , and

thresholdvoltagesinwhichinterceptVgsaxis.

The saturated electron mobilities of devices fabricated on BCB dielectrichave highermobility compared withsame semi-conductorsbaseddevicesfabricatedonPVAdielectricalthoughthe permittivityofPVAismuchhigherthanBCB.Thecarriermobilities ofarylenebisimidederivativesbasedOTFTsincreasedasthesurface energyofthegatedielectricdecreased.Asdiscussedforpentacene smallmoleculesinbyYangetal.[40],mobilityvaluesofpentacene

(5)

Table1

SummaryofdeviceparametersforNBBIandPBBIbasedOTFTswithPVAandBCBdielectrics.

Device Semiconductor Dielectric V0(V) Vth(V) e(cm2V−1s−1)

DeviceI NBBI BCB 0 15 1×10−3

DeviceII PBBI BCB −2 18 1.6×10−4

DeviceIII NBBI PVA −12 3.9 8.1×10−4

DeviceIV PBBI PVA −16 2.8 9×10−5

Thevaluesshownhereareanaverageofatleastsixdifferentdevicesfabricatedundersameconditions.

decreasedwithincreasingsurfaceenergyofdielectric.Shinetal.

investigated the effects of polar functional groups of dielectric

resultingfromO2plasmatreatment.Theyfoundthatthemobility

ofpentaceneincreasesasdecreasesurfaceenergyofgatedielectric

withlargepolarfunctionalgroups[41].Gaoetal.demonstrated

similarresultsbyinvestigatingrelationshipbetweenmobilityand surfaceenergyofgatedielectricregardingthesurfaceenergyof activesemiconductor.Itisgenerallyacceptedthatthehigherfield effectmobility is achieved in case identicalsurface energies of dielectricandthesemiconductor[42].Thetransfercharacteristics ofsemiconductorsshowthatnaphthalenebis-benzimidazolehas agood performanceinOTFTonbothdielectricscompared with perylenebis-benzimidazoleonthesamegateinsulatedlayer.This performance difference mayattribute tofacilitation of channel formationandstrong␲–␲interactionatinsulator/NBBIinterface. Inordertoexaminethesurface effectsonthechargecarrier mobility depends on dielectric and semiconductors, an atomic forcemicroscopy(AFM)wasused.Beforecomparisoninsurface morphologiesofsemiconductorsonPVAandBCBinsulating-films, weevaluatedthesmoothnessofbare insulatorfilms.Themean roughnessofPVAwas0.2nmandthatofBCBwas0.43nm, indicat-ingthereisnolargedifferencesinroughnessofinsulating-films. Fig.4(a–b)depictsatomicforcemicroscopy(AFM)imageofvacuum evaporatedNBBIandPBBIfilmsonBCBlayerinthreedimensions. NBBIandPBBIfilmsexhibitroughsurfacewitharoot-meansquare (RMS)roughnessof1.73nmand1.33nm,respectively.Thegrains ofsemiconductorgrowthanislandshapeonBCBdielectricwith averagepeaktovalleydistanceof110nmforNBBIand150nmfor PBBI.Theaveragemaximumheightvalueofgrainsaboveaverage filmthicknessonBCBdielectriclayerwasfoundtobe5.57nmfor NBBIand4.392nmforPBBI,respectively.Thefilmmorphologies ofNBBIandPBBIonPVAdielectriclayerareshowninFig.4(c–d). ThegrainheightsofNBBIdepositedonPVAinsulating-filmwere decreased withtheexception ofsomeisland formationslocally whicharesufficientlyseparatedfromeachother,whilePBBI semi-conductorshowsasamorphous-likefilmswholethesurface.These imagesshowanevidenceoflower mobilitydue tograinshape propertiesonsurface.Althoughvalleysactasacarriertrapsdue to roughness scattering at first or second semiconductor layer formedclosetotheinterface,itisdifficulttoestimateinterface morphologyfromAFMimagesoftopsurface.Hence,wecanmerely makeanassumptionaboutthechargecarriermobilitydependence ongrainsappeared ontopsurfaces.In generally, grains signifi-cantlyinfluencethetransport mechanism ofcharge carrierand itsmobilitydue tohoppingprocess betweenorganicmolecules [43]. The grain size differenceof same semiconductors on dif-ferentinsulating-filmscanbeattributedtotheRMSdifferences andhydrophilic/hydrophobicpropertyofinsulatorfilms.The ary-lenebisiimidessubstitutedwitharomaticsidechainscanchange surfacepropertyfromhydrophilictohydrophobic.Inthecaseof C O and N H terminated perylene and naphthalene tetra car-boxylicdimidesmayshowrelativelymorehydrophilicsurfacein accordancewithdensityofpolargroups.Thegrainsof semiconduc-torgrowthshowmoreorderedaggregationsandbetterelectrical characteristicsinthepresenceofsubstratewiththesamesurface property.

4. Conclusion

Adetailedstudyofn-channelOFETsbasedonnaphthaleneand perylene bis-benzimidazole is presentedby incorporating polar andnon-polarpolymericdielectrics.Wefindthedipolemoment depending onthe polarfunctional groups modifies thesurface potentialoftheinterfacenexttochannelandinducesmobilecharge carriersatturn-offstateofOTFT.Experimentalresultsindicatethat thechoiceofgatedielectricscandominatetheelectrical perfor-manceofOTFTbyinfluencingmorphologyandstructureofactive layer.Thepresenceofhydroxylinpolymericdielectrichasaneffect ontheinterfacialelectrontrappingstatesnexttochannelat insu-lator/semiconductor.ThehighestmobilitywasobtainedfromBCB gate insulatedalthoughitscapacitance valueandpermitivityis lowerthanPVAdielectric.Theresultsshowedthatnaphthalene bis-benzimidazolehasagoodperformanceinOTFTonbothdielectrics compared with perylenebis-benzimidazole. The imidazole side groupinfluencessignificantlychargecarriermobilityandsurface morphologyduetosurfaceenergyoforganicthinfilm.

Acknowledgments

This studywas supportedby European Science Foundation-ExchangeGrantofORGANISOLARandEUFP6OrgaPVNetprojects. We acknowledge Scientiﬁc and Technological Research Council of TURKEY(TUBITAK)and StatePlanningOrganization (DPT)of Turkey.

References

[1]H.Hoppe,N.S.Sariciftci,JournalofMaterialsResearch19(2004)1924. [2]G.B.Blanchet,Y.L.Loo,J.A.Rogers,F.Gao,C.R.Fincher,AppliedPhysicsLetters

82(2003)463.

[3]F.Eder,H.Klauk,M.Halik,U.Zschieschang,G.Schmid,C.Dehm,AppliedPhysics Letters84(2004)2673.

[4]J.H.Lee,D.N.Liu,S.T.Wu(Eds.),IntroductiontoFlatPanelDisplays,JohnWiley &SonsLtd.,Wiltshire,2008.

[5]L.Zhou,A.Wanga,S.C.Wu,J.Sun,S.Park,T.N.Jackson,AppliedPhysicsLetters 88(2006)83502–83504.

[6]Z.Bao,J.Locklin(Eds.),OrganicField-EffectTransistors,TaylorandFrancis,Boca Raton,2007.

[7]L.Wang,D.Fine,D.Sharma,L.Torsi,A.Dodabalapur,Analyticaland Bioanalyt-icalChemistry384(2006)310.

[8]S.K.Lee,Y.Zu,A.Herrmann,Y.Geerts,K.Mullen,A.J.Bard,Journalofthe Amer-icanChemicalSociety121(1999)3513–3530.

[9]P.Gawrys,D.Boudinet,M.Zagorska,D.Djurado,J.M.Verilhac,G.Horowitz,J. Pécaud,S.Pouget,A.Pron,SyntheticMetals159(2009)1478–1485. [10]E.E.Neuteboom,S.C.J.Meskers,E.W.Meijer,R.A.J.Janssem,Macromolecular

ChemistryandPhysics205(2004)217–222.

[11]C.Tozlu,S.ErtenEla,S.Icli,SensorsandActuatorsA:Physical161(2010) 46–52.

[12]T.N.Krauss,J.Major,E.Barrena,V.Dehm,X.N.Zhang,F.Würthner,D.G.de Oteyza,L.P.Cavalcanti,H.Dosch,Langmuir24(2008)12742–12744. [13]M.M.Torrent,C.Rovira,ChemicalSocietyReviews37(2008)827–838. [14]R.Schmidt,A.M.Krause,J.H.Oh,K.Radacki,P.Erk,Y.S.Sun,M.Deppisch,H.

Braunschweig,Z.Bao,M.Könemann,F.Würthner,JournaloftheAmerican ChemicalSociety131(2009)6215–6228.

[15]B.A.Jones,A.Facchetti,M.R.Wasielewski,T.J.Marks,JournaloftheAmerican ChemicalSociety129(2007)15259–15278.

[16]H.Z.Chen,M.M.Ling,X.Mo,M.M.Shi,M.Wang,Z.Bao,ChemistryofMaterials 19(2007)816–824.

[17]Z.Chen,Y.Zheng,H.Yan,A.Facchetti,JournaloftheAmericanChemicalSociety 131(2009)8–9.

(6)

10 C.Tozluetal./SyntheticMetals172 (2013) 5–10 [18]S. Hüttner,M. Sommer,M. Thelakka, AppliedPhysics Letters 92 (2008)

93302–93305.

[19]A.S.Molinari,H.Alves,Z.Chen,A.Facchetti,Al.F.Morpurgo,Journalofthe AmericanChemicalSociety131(2009)2462–2463.

[20]S.Tanida,K.Noda,H.Kawabata,K.Matsushige,ThinSolidFilms518(2009) 571–574.

[21]M.M.Ling,P.Erk,M.Gomez,M.Koenemann,J.Locklin,Z.Bao,Advanced Mate-rials19(2007)1123–1127.

[22]C.Piliego,D.Jarzab,G.Gigli,Z.Chen,A.Facchetti,M.A.Loi,AdvancedMaterials 21(2009)1–4.

[23]B.A.Jones,A.Facchetti,T.J.Marks,M.R.Wasielewski,ChemistryofMaterials19 (2007)2703–2705.

[24]H.E.Katz,A.J.Lovinger,J.Johnson,C.Kloc,T.Siegrist,W.Li,Y.-Y.Lin,A. Doda-balapur,Nature404(2000)478–480.

[25]A.Facchetti,M.H.Yoon,T.J.Marks,AdvancedMaterials17(2005)1705–1725. [26]F.C.Chen,C.H.Liao,AppliedPhysicsLetters93(2008)103310–103313. [27]H.Kawaguchi,M.Taniguchi,T.Kawai,SyntheticMetals15(8)(2008)355–358. [28]S.Erten,S.Icli,InorganicaChimicaActa361(2008)595.

[29]S.Erten,F.Meghdadi,S.Gunes,R.Koeppe,N.S.Sariciftci,S.Icli,European Phys-icalJournalAppliedPhysics36(2007)225.

[30]F.A. Yildirim, R.R. Schliewe, W. Bauhofer, R.M. Meixner, H. Goebel, W. Krautschneider,OrganicElectronics9(2008)70–76.

[31]Th.B.Singh,F.Meghdadi,N.SerapGünes,G.Marjanovic,P.Horowitz,S.Lang, N.S.Bauer,Sariciftci,AdvancedMaterials17(2005)2315–2320.

[32]Th.B.Singh,N.Marjanovic,P.Stadler,M.Auinger,G.J.Matt,S.Günes,N.S. Sari-ciftci,JournalofAppliedPhysics97(2005)83714.

[33]C.Erlen,P.Lugli,IEEETransactionsonElectronDevices56(2009)546–552. [34]S.Scheinert,K.P.PErntich,B.Batlogg,G.Paasch,JournalofAppliedPhysics102

(2007)104503–104510.

[35]K.P.Pernstich,S.Haas,D.Oberhoff,C.Goldmann,D.J.Gundlach,B.Batlogg,A.N. Rashid,G.Schitter,JournalofAppliedPhysics96(2004)6431–6438. [36]Y.Jang,J.H.Cho,D.H.Kim,Y.D.Park,M.Hwang,K.Cho,AppliedPhysicsLetters

90(2007)131104–131106.

[37]Cheon An Lee, Dong-Wook Park, Sung Hun Jin, Yoo Chul Kim, Han Park,JongDunkLee,Byung-GookPark,AppliedPhysicsLetters 88(2006) 262120–2621123.

[38]S.Scheinert,G.Paasch,M.Schröder,H.K.Roth,S.Sensfuß,Th.Doll,Journalof AppliedPhysics92(2002)330–337.

[39]S.M.Sze,PhysicsofSemiconductorDevices,3rded.,Wiley,NewYork,2007. [40]S.Y. Yang, K. Shin, C.E. Park, Advanced Functional Materials 15 (2005)

1806–1814.

[41]K.Shin,S.Yoon,C.Yang,H.Jeon,C.E.Park,OrganicElectronics8(2007)336–342. [42]J.Gao,K.Asadi,J.B.Xu,J.An,AppliedPhysicsLetters94(2009)93302–93305. [43]G.Horrowitz,M.H.Hajlaoui,AdvancedMaterials12(2000)1046–1050.
