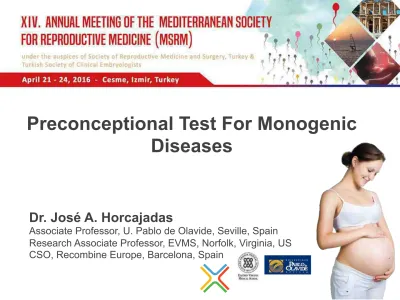

Preconceptional Test For Monogenic Diseases

1

Preconceptional Test For Monogenic Diseases

Dr. José A. Horcajadas

Associate Professor, U. Pablo de Olavide, Seville, Spain

Research Associate Professor, EVMS, Norfolk, Virginia, US

CSO, Recombine Europe, Barcelona, Spain

The Human Genome Project started in 1990

² The Mission of the HGP: The quest to understand the human genome and the role it plays in both health and disease.

“The true payoff from the HGP will be the ability to better diagnose, treat, and prevent disease.”

--- Francis Collins, Director of the HGP

and the National Human Genome

Research Institute (NHGRI)

1985-Human Genome Project

1985 2003

FINISHED!!!

Lord,

They discover the complete Human Genome code!

Heavens!

Those … hackers!

I have to change

the password!

HUMAN GENOME PROJECT

+

NEW TECHNOLOGIES

=

THE “OMICS” REVOLUTION

Quackenbush 2006 N Engl J Med 354:2463-72

TRADITIONAL VERSUS OMICS APPROACHES

The Basic Paradigm of the Biology

PRECONCEPTIONAL

PGD/PGS PRENATAL

Complexity  of  the  Human  Genome

•  3.500  million  pairs  of  bases

•  Around  35.000  genes

•  3%  are  genes,  97%  is  “junk”  DNA  with  some  regulatory   acEvity  over  those  genes  (not  anymore  junk!)

•  We  all  share  >99%  of  geneEc  informaEon,  with  >20  million   pairs  of  bases  (SNPs)  being  different.

GENETIC  BASIS  OF  DISEASE

•  SNPs  (single  nucleoEde   polymorphisms)  are  one

base  change  (A,T,C,G)  in  the   DNA  sequence.

•  SNPs  explain  many  geneEc   diseases  and  differences   between  humans.

•  Close  to  20M  SNPs   idenEfied

SNPs

§  6000-­‐7000  single  gene  disorders

§  Combined  incidence:    1/300  births  (U.S.)

§  Everyone   carries   severe   recessive   mutaJons  that  can  cause  geneEc  condiEons

§  Recessive  mutaEons  can  pass  down  quietly   through  many  generaEons

§  Carriers   may   not   have   a   family   history   or   symptoms  of  a  geneEc  disease

§  Hence,   carrier   tesJng   is   the   only   way   to   determine  carrier  status

Autosomal Recessive Inheritance

THE  BURDEN  OF  GENETIC  DISEASE

1. Bell,  C.J.,  Dinwiddie,  D.L.,  Miller,  N.A.,  Hateley,  S.L.,  Ganusova,  E.E.,  Mudge,  J.,  Langley,  R.J.,  Zhang,  L.,  Lee,  C.C.,  Schilkey,  F.D.,  Sheth,  V.,  Woodward,  J.E.,  Peckham,  H.E.,  Schroth,  G.P.,  Kim,  R.W.,  Kingsmore,  S.F.,  2011.

Carrier  tesEng  for  severe  childhood  recessive  diseases  by  next-­‐generaEon  sequencing.  Sci  Transl  Med.  Jan  12;3(65):65ra4

2. Berry,  R.J.,  Buehler,  J.W.,  Strauss,  L.T.,  Hogue,  C.J.,  Smith,  J.C.,  1987.  Birth  weight-­‐specific  infant  mortality  due  to  congenital  anomalies,  1960  and  1980.  Public  Health  Rep.  102,  171–181.

3. Costa,  T.,  Scriver,  C.R.,  Childs,  B.,  1985.  The  effect  of  Mendelian  disease  on  human  health:  a  measurement.  Am.  J.  Med.  Genet.  21,  231–242.

4. Gukmacher,  A.E.,  Collins,  F.S.,  2002.  Genomic  medicine:  a  primer.  N.  Engl.  J.  Med.  347,  1512–1520.

5. Kingsmore,  S.,  2012.  Comprehensive  carrier  screening  and  molecular  diagnosEc  tesEng  for  recessive  childhood  diseases.  PLoS  Curr.  May  2:e4f9877ab8ffa9.

6. Kumar,  P.,  Radhakrishnan,  J.,  Chowdhary,  M.A.,  Giampietro,  P.F.,  2001.  Prevalence  and  pakerns  of  presentaEon  of  geneEc  disorders  in  a  pediatric  emergency  department.  Mayo  Clin.  Proc.  76,  777–783.

7.  Scriver,  C.R.,  Neal,  J.L.,  Saginur,  R.,  Clow,  A.,  1973.  The  frequency  of  geneEc  disease  and  congenital  malformaEon  among  paEents  in  a  pediatric  hospital.  Can.  Med.  Assoc.  J.  108,  1111–1115.

8. Srinivasan,  B.S.,  Evans,  E.A.,  Flannick,  J.,  Pakerson,  A.S.,  Chang,  C.C.,  Pham,  T.,  Young,  S.,  Kaushal,  A.,  Lee,  J.,  Jacobson,  J.L.,  Patrizio  P.,  2010.  A  universal  carrier  test  for  the  long  tail  of  Mendelian  disease.  Reprod   Biomed  Online.  Oct;21(4):537-­‐51.

infant deaths 20%

PaEents  affected  by  rare  disorders  face  mulEple   challenges  (survey  by  Eurodis  2006):

•  40%  iniEally  receive  incorrect  diagnosis

•  DiagnosEc  delay  (5-­‐30  years  for  25%  of  paEents)

•  10%  received  Psychological  care:

                       Wrong  assumpEon  of  psychosomaEc  basis

•  33%  received  inappropriate  treatment:

                       16%  unnecessary  surgery

GENETIC  DISORDERS  AND  SCREENING

Great,  great,  great,  great,  great   granduncle  was  the  previous   affected  family  member

~175  years  earlier

Why  should  we  recommend

expanded  carrier  screening?

It  has  worked  with  other  ethnic  panels

It  is  recommended  for  the  specialists

It  is  cheaper  that  the  cost  of  maintaining  the  affected  people

Because   populaEon   is   homogenizing   and   ethnicity   panels   are   not  valid

REASONS  TO  DO  IT

17

Genomic  TesJng  for

Universal  Carrier  Status

Test  every  couple  planning  to  conceive   for  as  many  diseases  as  possible,

affordably.

NEW  PARADIGM

What  diseases

should  be  included  in

expanded  screening?

In   the   NIH   meeEng   on   “PopulaEon-­‐based   Carrier   Screening   for   Single   Gene  Disorders,”  the  following  criteria  was  recommended:

§  Impaired  health  in  homozygous   affected  offspring

§  High  frequency  of  carriers  in  screened   populaEon

§  Technically  and  clinically  valid   screening  methods  available

§  Screening  is  cost-­‐effecEve

§  Consent  is  obtained

§  IVF,  prenatal  diagnosis  and  terminaEon   are  reproducEve  opEons

§  PotenEal  benefits  and  risks  of  carrier   tesEng  are  explained  pre-­‐  and  post-­‐test

§  Privacy  is  protected

§  Experienced  professionals  are  available

§  SEgmaEzaEon  of  carrier  status  in  the   community  is  minimized

The  meeEng  concluded  that  the  top  three  consideraEons  are:

 carrier  frequency,  disease  burden  and  cost  of  screening.

1.   hkp://www.genome.gov/27026048,  Last  accessed:  9/20/2012

CRITERIA  FOR  EXPANDED   SCREENING:  NIH

The  meeEng  concluded  that  the  top  three  consideraEons  are:

 carrier  frequency,  disease  burden  and  cost  of  screening.

ACMG & ACOG

CURRENT GUIDELINES IN THE UNITED STATES

Cystic Fibrosis ACMG ACOG AJ

Fragile X ACMG ACOG AJ

Spinal Muscular Atrophy ACMG

Hemoglobinopathies ACOG

Bloom Syndrome ACMG AJ

Canavan Disease ACMG ACOG AJ Familial Dysautonomia ACMG ACOG AJ Fanconi Anemia Type C ACMG AJ

Gaucher Disease ACMG AJ

Mucolipidosis Type IV ACMG AJ Niemann-Pick Type A ACMG AJ Tay-Sachs Disease ACMG ACOG AJ

ACOG = American Congress of

Obstetricians &

Gynecologists

ACMG = American College of Medical Genetics & Genomics

AJ = Ashkenazi Jewish Screening

Recommendations by

ACOG/ACMG

Screening  methods:

SNP  arrays

Simultaneous analysis of 15,000 of SNPs and/or mutations

Probes for each SNP allele are attached to a slide

DNA sample

SINGLE  NUCLEOTIDE  POLYMORPHISM

(SNP)  MICROARRAYS

G A T A A G T

A T A A G

A G G A T T C T A T T C

A G

C A A T T A

G

Homozygous  for  C  allele   Heterozygous  C/T

SNP  MICROARRAYS

HUMAN GENOME COST

Decrease

The  CarrierMap

•  We   have   created   a   chip   to   determine   carrier   status   simultaneously   for   more   than   300   geneEc   condiEons   by   screening  nearly  2,000  mutaEons.

•  Our  pan-­‐ethnic  screen  includes  diseases  that  are  more  common   in  specific  ethnic  groups  as  well  as  diseases  that  are  less  common   or  occur  more  broadly  in  the  general  populaEon.

•  Recombine’s   test   therefore   provides   the   greatest   reducEon   to   the  overall  risk  of  having  a  child  with  a  geneEc  condiEon.

THE  RECOMBINE  TEST

>300 GENETIC DISEASES

CARRIERMAP TESTS FOR

Copyright Recombine 2016

Cystic Fibrosis

•

Common High Impact Conditions

•

Spinal Muscular Atrophy

•

Fragile X Syndrome

Sickle-Cell Disease

•

•

Tay-Sachs Disease

•

Alpha and Beta Thalassemia

CarrierMap is the most comprehensive genetic carrier screen

available and follows all recommendations and guidelines from the leading organizations in reproduction and genetics. Useful for all patients, regardless of ethnicity.

10.05.2016 28

SELECTION CRITERIA DISEASE LIST

10.05.2016 Copyright Recombine 2014 29

INCLUSION:

§  Autosomal recessive and/or X-linked recessive inheritance pattern

§  Inclusion in ACOG/ACMG guidelines, and Jewish advocacy group recommendations

§  Inclusion in state newborn screening guidelines

§  Significant impact on life expectancy and/or quality of life, as defined by GC team

§  High carrier rate in at least one population

§  PGD previously performed for genetic disease

§  Meets population-based screening criteria

§  Disease and/or mutation frequency studies published

§  Inclusion in other carrier screening panels

EXCLUSION:

§  Autosomal dominant and/or multifactorial inheritance pattern

§  Adult-onset disorder

§  Limited or no impact on reproductive decisions (e.g. MTHFR deficiency)

§  Low penetrance (e.g. HFE-related Hemochromatosis)

1. NIH meeting on “Population-based Carrier Screening for Single Gene Disorders” http://www.genome.gov/27026048, Last accessed: 9/2014.

2. Watson, M.S., Lloyd-Puryear, M.A., Mann, M.Y., Rinaldo, P., Howell, R.R., 2006. Newborn Screening: Toward a Uniform Screening Panel and System. Genetics in Medicine. 8(5):12S-252S

INCLUSION:

§  Autosomal recessive and/or X-linked recessive inheritance pattern

§  Inclusion in ACOG/ACMG guidelines, and Jewish advocacy group recommendations

§  Inclusion in state newborn screening guidelines

§  Significant impact on life expectancy and/or quality of life, as defined by GC team

§  High carrier rate in at least one population

§  PGD previously performed for genetic disease

§  Meets population-based screening criteria

§  Disease and/or mutation frequency studies published

§  Inclusion in other carrier screening panels

EXCLUSION:

§  Autosomal dominant and/or multifactorial inheritance pattern

§  Adult-onset disorder

§  Limited or no impact on reproductive decisions (e.g. MTHFR deficiency)

§  Low penetrance (e.g. HFE-related Hemochromatosis)

EVOLUTION CRITERIA DISEASE LIST

10.05.2016 Copyright Recombine 2014 30

NEW DISEASES ADDED BASED ON:

§  Emerging literature on natural history and frequency of diseases

§  High carrier frequency in at least one population, particularly in in less well-represented populations (e.g. African, Latin American, Asian, Middle Eastern)

§  Clinical impact affects areas that are less well-studied (e.g. ophthalmology)

NEW MUTATIONS FOR EXISTING DISEASES ADDED BASED ON:

§  Emerging literature on natural history and frequency of mutations

§  Associated with diseases for which detection rate is relatively low (<40%)

§  High frequency in at least one population

§  Highly penetrant mutation

DISEASES & MUTATIONS REMOVED BASED ON:

§  Emerging literature on relatively low impact of disease and/or mutation

§  Emerging literature on relatively low penetrance of disease and/or mutation

§  Found to be unrelated to reproductive decision-making

HAVE SIGNIFICANT IMPACT RECOMBINE CARRIERMAP DISEASES

10.05.2016 Copyright Recombine 2014 31

185+ Shortened Lifespan

α-Thalassemia Cystic Fibrosis ARPKD

145+ Cognitive Impairment

Fragile X

Smith-Lemli-Opitz PKU

290+ Physical Impairment

SCID FMF

β-Thalassemia

Detection Rates

10.05.2016 Genetic Testing. Simplified. 32

Disease Gene

(# Mutations) Ethnic Groups Detection Rate

Carrier Rate

Residual Risk

Cystic Fibrosis CFTR

(99)

African American Ashkenazi Jewish Asian American European

Hispanic

~81%

~97%

~55%

~93%

~77%

1/61 1/23 1/94 1/25 1/59

1/316 1/767 1/205 1/343 1/257

Spinal Muscular Atrophy SMN1 (Ex7 deletion)

African American Ashkenazi Jewish Asian American European

Hispanic

~71%

~90%

~93%

~95%

~91%

1/66 1/41 1/53 1/35 1/117

1/121 1/350 1/628 1/632 1/1,061

Bloom Syndrome BLM (2) Ashkenazi Jewish 97% 1/134 1/3,350

Canavan Disease ASPA (4) Ashkenazi Jewish European

99%

47%

1/55 Unknown

1/2,750 Unknown Familial Dysautonomia IKBKAP (3) Ashkenazi Jewish ~>99% 1/31 <1/3,000 Fanconi Anemia Type C FANCC (6) Ashkenazi Jewish ~99% 1/101 1/10,100

Gaucher Disease GBA (9) Ashkenazi Jewish ~96% 1/15 1/375

Results: Carrier Rates Observed

10.05.2016 Copyright Recombine 2013 33

SAMPLE SIZE & DEMOGRAPHICS

10.05.2016 Copyright Recombine 2014 34

v Sample size: 6,636 samples

§  Analysis limited to samples tested on CarrierMap V3

§  Patient referrals from: endocrinologists, obstetricians, maternal-fetal medicine specialists, and genetic counselors

§  67% females, 33% males

Females Males 67%

33%

DEMOGRAPHICS: ETHNICITY

10.05.2016 Copyright Recombine 2014 35

v Patient self-reported ethnicity

§  10 broadly defined ethnic groups, including “Other”

67%

33%

6% 5%

36%

14%

13%

5%

2%

1%

4%

3% 11% African

East Asian European

Jewish

Latin American

Mediterranean

Middle Eastern

Native American

South Asian

South East Asian

Other

RESULTS: QUICK OVERVIEW

10.05.2016 Copyright Recombine 2014 36

56% of patients identified as carriers

for any disease

39% of patients identified as carriers for high impact disease

172 ^diseases,

534 mutations detected in total

1.9% of couples identified as carriers

for same disease

RESULTS: HIGH IMPACT DISEASES

10.05.2016 Copyright Recombine 2014 37

Disease Counts Percentage

Familial Mediterranean Fever 1/10 10.0%

Spinal Muscular Atrophy 1/17 5.9%

Cystic Fibrosis 1/19 5.2%

Nonsyndromic Hearing Loss & Deafness: GJB2-Related 1/31 3.2%

Alpha Thalassemia 1/51 2.0%

Congenital Disorder of Glycosylation: Type 1A: PMM2 Related 1/51 2.0%

Phenylalanine Hydroxylase Deficiency 1/77 1.3%

Smith-Lemli-Opitz Syndrome 1/77 1.3%

Autosomal Recessive Polycystic Kidney Disease 1/77 1.3%

Beta Thalassemia 1/77 1.3%

10.05.2016 Copyright Recombine 2013 38

Disease Carrier Rate in General Population Observed Reported

Smith-Lemli-Opitz Syndrome 1/47 1/71

GSD Type II: Pompe Disease 1/72 1/97

Nonsyndromic Hearing Loss & Deafness: GJB2 Related 1/19 1/43

Gaucher Disease 1/75 1/112

Bardet-Biedl Syndrome: BBS1 Related 1/168 1/376

Walker-Warburg Syndrome 1/59 1/150

OBSERVED > REPORTED FREQUENCIES

CARRIER OF THE SAME DISEASE

COUPLES

Couples are carriers of the same disease

1,9%

~

*Kumar, N., Bisignano, A., Asgari, S., Chu, B., Munne, S., Grifo, J., Berkeley, A., Licciardi, F., Chen, S., Hoffman, D., Barrionuevo, M., Prates, R.

October 2014. From Carrier Screening to Single Gene PGD: An Analysis of 1/479 Couples Screened via an Expanded Carrier Screening Platform. ASRM 2014.

29/1479

PGD for gene disorders

Disease  tested: Acetil Co Oxidase type I defficiency, Adrenoleucodistrophy, Alpha-thalassemia, Alport syndrome, Autosomal Dominant Polycystic Kidney Disease (ADPKD), Autosomal Recesive Polycystic Kidney Disease (ARPKD), Beta-thalassemia, Branchio-Oto-Renal syndrome (BOR), BRCA1 breast cancer predisposition, BRCA2 breast cancer predisposition, CanavanCharcot-Marie-Tooth type IA (CMT1a), Choroideremia, Congenital adrenal hyperplasia (CAH), Congenital neutropenia, Connexin 26 hearing loss, Cystic fibrosis, Duchenne/Becker Muscular Dystrophy (DMD), Ectrodactyly, Ectodermal dysplasia, and Cleft lip/palate syndrome (EEC1), Fabry Disease, Familial adenomatous poliposis coli (FAP), Familial dysautonomia, Familial intrahepatic cholestasis 2, Fanconi anemia, Fragile site mental retardation , Gangliosidosis type 1 (GM1), Gaucher disease, Glomuvenous malformations (GVM), Glycogen-storage disease type I (GSD1), Glycosylation type 1C, Hemoglobin SC disease, Hemophilia A, Hemophilia B, Hereditary nonpolyposis colon cancer (HNPCC), Hereditary pancreatitis, HLA matching Huntington disease, Hurler syndrome, Hypophosphatasia, Incontinential pigmenti, Krabbe disease (Globoid cell leukodystrophy), Long QT syndrome, Marfan syndrome, Meckle gruber, Metachromatic leukodystrophy (MLD), Methylmalonic aciduria cblC type (MMACHC), Myotonic Dystrophy 1, Myotubular myopathy, Neurofibromatosis 1, Neurofibromatosis 2, Niemann-Pick Disease, Noonan

syndrome, Oculocutaneous albinism 1 (OCA1), Ornithine carbamoyltransferase deficiency (OTC), Osteogenesis Imperfecta 1, Rapp Hodgkin ectodermal dysplasia, Retinitis pigmentosa, Retinoblastoma, Sickle Cell Anemia, Smith- Lemli-Opitz syndrome (SLOS), Spinal bulbar muscular atrophy (SBMA), Spinal Muscular Atrophy Type 1 (SMA1), Tay Sachs, Tuberous sclerosis 1 (TSC1), Tuberous sclerosis 2 (TSC2), Von Hippel-Lindau Syndrome (vHL), X-linked dominant Charcot–Marie–Tooth (CMTX), etc…… (see review Gutierrez et al. (2008))

   We  can  do  PGD  for  any  of  the  6000  diseases  provided  the  mutaJon  is  known

DISEASES FOUND IN COUPLES

SUMMARY

High impact disease Carrier

Couples

PGD Cases Initiated

ALPORT SYNDROME : COL4A4 1 0

CARNITINE PALMITOILTRANSFERASE II 1 0

GLYCOSILATION DEFICIENCY: TYPE 1A, PMM2 1 1

CYSTIC FIBROSIS 6 3

GAUCHER 1 0

MEDITERRANEAN FEVER 2 1

MIOPATHY ON INCLUSION BODIES: TYPE 2 1 1

NIEMANN-PICK : TYPE A 1 1

NON SYNDROMIC DEAFNESS RELATED TO GJB2 7 1

SICKLE CELL DISEASE 4 1

SPINAL MUSCULAR ATROPHY: SMN1 3 2

TAY-SACHS 1 1

Total 29 12

*Kumar, N., Bisignano, A., Asgari, S., Chu, B., Munne, S., Grifo, J., Berkeley, A., Licciardi, F., Chen, S., Hoffman, D., Barrionuevo, M., Prates,

R. October 2014. From Carrier Screening to Single Gene PGD: An Analysis of 1/479 Couples Screened via an Expanded Carrier Screening

Platform. ASRM 2014.

Couple Report

FOR  OOCYTE  DONATION

OLD  PARADIGM

•  “we  have  healthy  donors”

•  Only  few  diseases

•  Some  characterisEcs  selected  by  phenotype

NEW  PARADIGM

•  Test  donors  and  couples  for  as  much  diseases  as  possible

•  Don’t  rule  out  affected  donors  (40%)  but  avoid  matching  (2.4%)

DONOR  TESTS

Validation Phase

1 test.

30+ causes of infertility 70+ genes.

700+ variants.

Recombine FertilityMap

The unique test based on the Genetics of Infertility

Designed to provided to patients and doctors the best options for a success pregnancy

Validation Phase

Dr. Howard Jones (July 31st 2015)

Thank you Dr. Jones!

Thank you for your attention

[email protected]

Teşekkürler…
