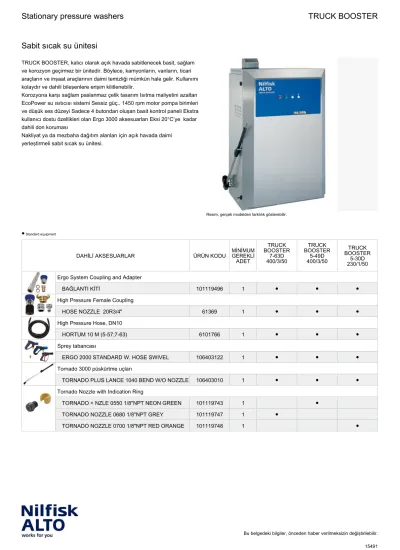

Sabit sıcak su ünitesi

(1)

Resim, gerçek modelden farklılık gösterebilir.

TRUCK BOOSTER, kalıcı olarak açık havada sabitlenecek basit, sağlam ve korozyon geçirmez bir ünitedir. Böylece, kamyonların, vanların, ticari araçların ve inşaat araçlarının daimi temizliği mümkün hale gelir. Kullanımı kolaydır ve dahili bileşenlere erişim kilitlenebilir.

Korozyona karşı sağlam paslanmaz çelik tasarım Isıtma maliyetini azaltan EcoPower su ısıtıcısı sistemi Sessiz güç.. 1450 rpm motor pompa birimleri ve düşük ses düzeyi Sadece 4 butondan oluşan basit kontrol paneli Ekstra kullanıcı dostu özellikleri olan Ergo 3000 aksesuarları Eksi 20°C’ye kadar dahili don koruması

Nakliyat ya da mezbaha dağıtım alanları için açık havada daimi yerleştirmeli sabit sıcak su ünitesi.

● Standard equipment

DAHİLİ AKSESUARLAR ÜRÜN KODU

MİNİMUM GEREKLİ ADET

TRUCK BOOSTER

7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50

TRUCK BOOSTER

5-30D 230/1/50 Ergo System Coupling and Adapter

BAĞLANTI KİTİ 101119496 1 ● ● ●

High Pressure Female Coupling

HOSE NOZZLE 20R3/4" 61369 1 ● ● ●

High Pressure Hose, DN10

HORTUM 10 M (5-57;7-63) 6101766 1 ● ● ●

Sprey tabancası

ERGO 2000 STANDARD W. HOSE SWIVEL 106403122 1 ● ● ●

Tornado 3000 püskürtme uçları

TORNADO PLUS LANCE 1040 BEND W/O NOZZLE 106403010 1 ● ● ●

Tornado Nozzle with Indication Ring

TORNADO + NZLE 0550 1/8"NPT NEON GREEN 101119743 1 ●

TORNADO NOZZLE 0680 1/8"NPT GREY 101119747 1 ●

TORNADO NOZZLE 0700 1/8"NPT RED ORANGE 101119748 1 ●

(2)

MODEL

TRUCK BOOSTER 7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50 TRUCK BOOSTER 5-30D 230/1/50

ÜRÜN KODU 107370810 107370830 107370840

ÜRÜN ÖZELLİKLERİ

Tam seramik pistonlar ● ● ●

Paslanmaz çelik kasa ● ● ●

Otomatik bekleme konumu ● ● ●

Yüksek verimli sicak su kazani ● ● ●

Sessiz güç-1450 rpm motor ● ● ●

Çabuk servis - yenilikçi konsept ● ● ●

C3 4-seramik pistonlu pompa ●

Ergo aksesuar sistemi ● ● ●

Wdk ikili deterjan enjektörü ● ● ●

Kompakt tasarim ● ● ●

Don korumasi için dahili isitici ve yalitim ● ● ●

Flame sensor ● ● ●

Water brake tank ● ● ●

TEKNİK ÖZELLİKLER

TRUCK BOOSTER 7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50 TRUCK BOOSTER 5-30D 230/1/50

Pompa basinci (BAR/MPA) 175/17.5 180/18 85/8.5

Temizleme etkisi (KG/KUVVET) 6.3 4.9 3

Pompa (RPM) 1450 1450 1450

Güç tüketimi (KW) 8.2 7.2 3.2

Voltaj/faz/frekans/akim (V/~/HZ/A) 400/3/50/16 400/3/50/14 230/1/50/15.2

Su debisi max miktar/iec miktari l/saat 1260/1170 970/930 850/800

Su sicakliği (SU/BUHAR) (°C) 90/150 90/150 90/150

Fuel consumption, motor (Diesel) kg/h 5.3 4.3 3.8

Yakit tanki (L) 33 33 33

Deterjan tanki (L) 2 x 25 2 x 25 2 x 25

Nozul ebadi .0680 .0550 .0700

Max giriş sicakliği (°C) 30 30 30

Seramik pistonlar 4 3 3

Ebatlar uxgxy (MM) 1025x715x1670 1025x715x1670 1025x715x1670

Ağirlik (KG) 262 227 217

Sound power level, Re Directive 2000/14/EU (LwA) 92 92 85

(3)

● Standard equipment, ○ Supplementary accessories, □ Mountable equipment

AKSESUARLAR ÜRÜN KODU

TRUCK BOOSTER

7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50

TRUCK BOOSTER

5-30D 230/1/50 Standard Nozzle 50° 1/8” NPT

HP-NOZZLE 5070 1/8 5007 1 ○

Special Nozzle

NOZUL 2802696 1 ○ ○ ○

NOZZLE PROTECTION CAP 18430 1 ○ ○ ○

TEMİZLİK HAZNESİ NOZULU 1/8'' 15861 1 ○ ○ ○

VARIO NOZZLE HL-I 1/8-27N 56829 1 ○ ○ ○

VARIO-NOZZLE CASING 1/8 5888 1 ○ ○ ○

High Pressure Male Coupling

ADAPTER KEW M - M27X1,5EXT 66159 1 ○ ○ ○

GARDENA COUPLING HOSE END 3/4" 1608629 1 ○ ○ ○

GEKA COUPLING HOSE END 3/4" 1311 1 ○ ○ ○

NITO COUPLING HOSE END 1 1604669 1 ○ ○ ○

NITO COUPLING HOSE END 3/4" 1600659 1 ○ ○ ○

REDUCTION PIECE FOR DRAIN NZLE 6401067 1 ○ ○ ○

Standard Nozzle 15° 1/4” NPT

HP-NOZZLE 1570 1/8 1507 1 ○

High Pressure Female Coupling

GARDENA MALE 3/4 32541 1 ○ ○ ○

GEKA COUPLİNG İNT THREAD 3/4" 1718 1 ○ ○ ○

HOSE NOZZLE 20R3/4" 61369 1 ● ● ●

NITO COUPLING INT THREAD 3/4" 1602945 1 ○ ○ ○

HP NOZZLE 25070 1/8 INCH NPT 2507 1 ○

HP-NOZZLE 2555 1/8 7814 1 ○

Adaptörler

GEKA HORTUM KAPLİNİ 1 3250 1 ○ ○ ○

HP-NOZZLE 0070 1/8 7820 1 ○

Aşındırıcı püskürtme

KUM 8379 1 ○ ○ ○

KUMLAMA NOZULU 6400382 1 ○ ○ ○

SOFT BLASTING LANCE 06 NOZZLE 6401234 1 ○ ○ ○

TÜP VE HORTUM 6400375 1 ○ ○ ○

(4)

TRUCK BOOSTER

7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50

TRUCK BOOSTER

5-30D 230/1/50

WSB NOZZLE RUBBER FLAT 6402317 1 ○ ○ ○

YUMUŞAK AKIMLI HORTUM UCU NOZULU

05-(KUMLAMA) 6401233 1 ○

Deterjanlar

ALTO ACIDO 10 L 81204 1 ○ ○ ○

ALTO ACTIVE WAX 10 L 81177 1 ○ ○ ○

ALTO ALLOSIL 10 L 81237 1 ○ ○ ○

ALTO COMBI ACTIVE 10L 81172 1 ○ ○ ○

ALTO INTENSIVE 10 L 81137 1 ○ ○ ○

ALTO J 25 MULTI 10 L 80923 1 ○ ○ ○

ALTO RIMTOP 10 L 80935 1 ○ ○ ○

ALTO SAPPHIRE 10 L 81180 1 ○ ○ ○

ALTO STONE-EX 10 L 81191 1 ○ ○ ○

ALTO SUPERPLUS 10 L 81170 1 ○ ○ ○

ALTO UNIVERSAL 10 L 80930 1 ○ ○ ○

ANTİ STONE -KİREÇ ÖNLEYİCİ (NUMUNE) 80919 1 ○ ○ ○

ANTI-STONE SET-6X1 L 8466 1 ○ ○ ○

AUTO ACTIVE 10 L 81136 1 ○ ○ ○

Yıkama fırçaları

BRUSH INSERT 10356 1 ○ ○ ○

WASH BRUSH - ERGO 14202 1 ○ ○ ○

WASH BRUSH L1550 MM 6400088 1 ○ ○ ○

YIKAMA FIRÇASI- L2350MM 6400087 1 ○ ○ ○

Drain and Pipe Cleaning

BORU TEMİZLEME DÖNER NOZUL 1/8'' 46918 1 ○ ○ ○

DRAIN CLEANER 06, 20M HOSE 6401268 1 ○ ○ ○

DRAIN NOZZLE 06, 3/8" 2800894 1 ○ ○ ○

PIPE CLEANING NOZZLE 1/8INC IG DN4 46921 1 ○ ○ ○

TurboHammer Nozzle

TURBOHAMMER NOZZLE W11 045 48874 1 ○

FlexoPower püskürtme uçları

FLEXOPOWER PLUS LANCE 87CM W/O NOZ.

BEND 106402282 1 ○ ○ ○

FLEXOPOWER PLUS LANCE 92CM W/O NOZ.

BEND 106402281 1 ○ ○ ○

(5)

TRUCK BOOSTER

7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50

TRUCK BOOSTER

5-30D 230/1/50 FLEXOPOWER PLUS LANCE 104CM W/O NOZ.

BEND 106402280 1 ○ ○ ○

FLEXOPOWERJET NOZZLE 63251 1 ○ ○ ○

Basınçlı yıkayıcı filtreleri

CARTRIDGE FILTER 50MICRONF 1104041 1 ○ ○ ○

Non Blacking High Pressure Hose, DN10

10 M 2 WIRE HOSE 3/8" FOOD 6101767 1 ○ ○ ○

15 M 2 WIRE HOSE 3/8" FOOD 1401983 1 ○ ○ ○

20 M 2 WIRE HOSE 3/8" FOOD 1401991 1 ○ ○ ○

25 M 2 WIRE HOSE 3/8" FOOD 1402007 1 ○ ○ ○

30 M 2 WIRE HOSE 3/8" FOOD 1402015 1 ○ ○ ○

1 M 2 WIRE HOSE 3/8" DN10 1402916 1 ○ ○ ○

2 M 2 WIRE HOSE 3/8" DN10 1402924 1 ○ ○ ○

3 M 2 WIRE HOSE 3/8" DN10 1402932 1 ○ ○ ○

5 M 2 WIRE HOSE Ø 3/8" DN10 1402940 1 ○ ○ ○

15 M 2 WIRE HOSE 3/8" DN10 1402064 1 ○ ○ ○

20 M 2 WIRE HOSE 3/8" DN10 1402072 1 ○ ○ ○

25 M 2 WIRE HOSE 3/8" DN10 1402080 1 ○ ○ ○

30 M 2 WIRE HOSE 3/8" DN10 1402098 1 ○ ○ ○

50 M 2 WIRE HOSE 3/8" DN10 1402759 1 ○ ○ ○

HORTUM 10 M (5-57;7-63) 6101766 1 ● ● ●

HOSE 1W 20 MTR 1405666 1 ○ ○ ○

Ergo System Coupling and Adapter

BAĞLANTI KİTİ 101119496 1 ● ● ●

ERGO COUPLING FEMALE 3/8" 106402075 1 ○ ○ ○

ERGO COUPLING MALE 3/8 1600493 1 ○ ○ ○

ERGO COUPLING MALE S.S3/8" 1603101 1 ○ ○ ○

HIGH PRESSURE COUPLINGS KIT 101119499 1 ○ ○ ○

Döner Fırçalar

BRASS, BRISTLE 6401433 1 ○ ○ ○

BRISTLE W. SHORT FIBRE HA 6401430 1 ○ ○ ○

BRISTLE, LONG 6401431 1 ○ ○ ○

DÖNEN FIRÇA- 065 L1700MM 6400016 1 ○ ○ ○

DÖNER FIRÇA 6400019 1 ○

(6)

TRUCK BOOSTER

7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50

TRUCK BOOSTER

5-30D 230/1/50

NYLON, BRISTLE FOR ROTARY 6401432 1 ○ ○ ○

ROTARY BRUSH 055 L800 MM 6400018 1 ○

ROTARY BRUSH 065 L800 MM 6400017 1 ○ ○ ○

Özel püskürtme uçları

CURVED LANCE L1090 MM 6402016 1 ○ ○ ○

UNDER CARRIAGE WASHER 40065 6400036 1 ○ ○ ○

UZUN PÜSKÜRTME TABANCASI 6401193 1 ○ ○ ○

Injector and Foam Sprayer

03 INJECTOR COMPLETE 6401247 1 ○ ○ ○

FOAM INJECTOR AGRESSIVE LQDS 6401245 1 ○ ○ ○

FOAM INJECTOR W BYPASS 6401242 1 ○ ○ ○

FOAM INJECTOR W BYPASS S. S 6401243 1 ○ ○ ○

KOMPLE KÖPÜK LANSI 6404369 1 ○ ○ ○

KÖPÜK ENJEKTÖRÜ 6401244 1 ○ ○ ○

KÖPÜK HORTUM UCU 60CM 6404368 1 ○ ○ ○

SABİT DOZAJLI ENJEKTÖR 6401092 1 ○ ○ ○

Hortum bobinleri

CLEANING TROLLEYST. STEEL 6401094 1 ○ ○ ○

Sprey tabancası

ERGO 2000 STANDARD W. HOSE SWIVEL 106403122 1 ● ● ●

ERGO 3000 TABANCA 106402190 1 ○ ○ ○

HOSE SWİVEL ERGO 1000 101119484 1 ○ ○

YAN TUTMA KOLU 106402110 1 ○ ○ ○

Tornado Nozzle with Indication Ring

TORNADO 3000 NOZZLE COVER 106402425 1 ○ ○ ○

TORNADO + NZLE 0550 1/8"NPT NEON GREEN 101119743 1 ●

TORNADO NOZZLE 0680 1/8"NPT GREY 101119747 1 ●

TORNADO NOZZLE 0700 1/8"NPT RED ORANGE 101119748 1 ●

Kısa püskürtme uçları

DOUBLE SHORT LANS 106402150 1 ○ ○ ○

FLEXOPOWER LANS 100MM 106402152 1 ○ ○ ○

KISA SİMPLE LANS 100MM 106402151 1 ○ ○ ○

Tornado 3000 püskürtme uçları

TORNADO PLUS LANCE 1040 BEND W/O NOZZLE 106403010 1 ● ● ●

TORNADO PLUS LANCE 2000 BEND W/O NOZZLE 106403012 1 ○ ○ ○

(7)

TRUCK BOOSTER

7-63D 400/3/50

TRUCK BOOSTER

5-49D 400/3/50

TRUCK BOOSTER

5-30D 230/1/50

TORNADO PLUS LANCE 920 BEND W/O NOZZLE 106403011 1 ○ ○ ○

Universal püskürtme uçları

UNIVERSAL PLUS 650 W/O NOZZLE STRAIGHT 106403032 1 ○ ○ ○

UNIVERSAL PLUS 1090 W/O NOZZ STRAIGHT 106403033 1 ○ ○ ○

UNIVERSAL PLUS LANCE 1090 BEND W/O NOZZ 106403035 1 ○ ○ ○

UNIVERSAL PLUS LANCE 1210 BEND W/O NOZZL 106403034 1 ○ ○ ○

UNIVERSAL PLUS LANCE 940 BEND W/O NOZZ 106403036 1 ○ ○ ○

Sabit ekipman

ANTI-CALK KIT FOR T.B 107370974 1 ○ ○ ○

ANTI-FROST CLOSED CIRCUITT.B 107370971 1 ○ ○ ○

EXHAUST PLATE F. TRUCK BOOSTER 107318048 1 ○ ○ ○

INSULATION KIT TRUCK BOOSTER 107370975 1 ○ ○ ○
