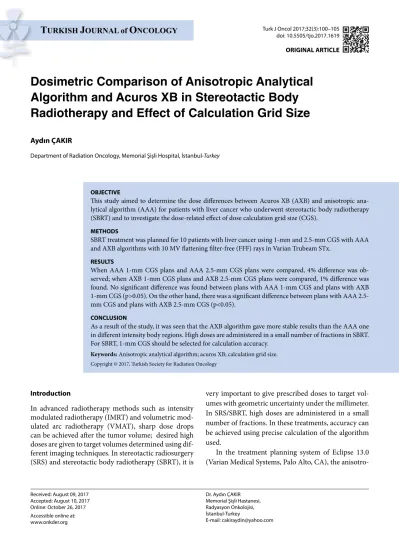

Dosimetric Comparison of Anisotropic Analytical
Algorithm and Acuros XB in Stereotactic Body
Radiotherapy and Effect of Calculation Grid Size
Received: August 09, 2017 Accepted: August 10, 2017 Online: October 26, 2017 Accessible online at: www.onkder.org
Aydın ÇAKIR
Department of Radiation Oncology, Memorial Şişli Hospital, İstanbul-Turkey
OBJECTIVE
This study aimed to determine the dose differences between Acuros XB (AXB) and anisotropic ana-lytical algorithm (AAA) for patients with liver cancer who underwent stereotactic body radiotherapy (SBRT) and to investigate the dose-related effect of dose calculation grid size (CGS).
METHODS
SBRT treatment was planned for 10 patients with liver cancer using 1-mm and 2.5-mm CGS with AAA and AXB algorithms with 10 MV flattening filter-free (FFF) rays in Varian Trubeam STx.
RESULTS
When AAA 1-mm CGS plans and AAA 2.5-mm CGS plans were compared, 4% difference was ob-served; when AXB 1-mm CGS plans and AXB 2.5-mm CGS plans were compared, 1% difference was found. No significant difference was found between plans with AAA 1-mm CGS and plans with AXB 1-mm CGS (p>0.05). On the other hand, there was a significant difference between plans with AAA 2.5-mm CGS and plans with AXB 2.5-2.5-mm CGS (p<0.05).
CONCLUSION
As a result of the study, it was seen that the AXB algorithm gave more stable results than the AAA one in different intensity body regions. High doses are administered in a small number of fractions in SBRT. For SBRT, 1-mm CGS should be selected for calculation accuracy.
Keywords: Anisotropic analytical algorithm; acuros XB; calculation grid size. Copyright © 2017, Turkish Society for Radiation Oncology
Introduction
In advanced radiotherapy methods such as intensity modulated radiotherapy (IMRT) and volumetric mod-ulated arc radiotherapy (VMAT), sharp dose drops can be achieved after the tumor volume; desired high doses are given to target volumes determined using dif-ferent imaging techniques. In stereotactic radiosurgery (SRS) and stereotactic body radiotherapy (SBRT), it is
very important to give prescribed doses to target vol-umes with geometric uncertainty under the millimeter. In SRS/SBRT, high doses are administered in a small number of fractions. In these treatments, accuracy can be achieved using precise calculation of the algorithm used.
In the treatment planning system of Eclipse 13.0 (Varian Medical Systems, Palo Alto, CA), the
anisotro-Dr. Aydın ÇAKIR Memorial Şişli Hastanesi, Radyasyon Onkolojisi, İstanbul-Turkey
Analytical Anisotropic Algorithm
The AAA dose calculation model is a 3D pencil beam and convolution superposition algorithm consisting of separate models for electrons emitted from prima-ry photons, scattered photons, and beam modulators (primary collimator, beam straightening filter, and wedge filter).[10] The functional forms that form the basic physical quantities initiate a process by adding device properties to the account. This often leads to a noticeable reduction in the computation required for such algorithms. Tissue heterogeneities are anisotropi-cally accounted for using photon scattering kernels in multiple lateral directions in a 3D neighborhood. The final dose distribution is formed by superimposing the photon- and electron-initiated process.
Acuros XB Algorithm
The AXB algorithm was developed for two strategic needs such as accuracy and speed in external photon beam treatment planning. AXB uses a sophisticated technique to solve the LBTE and fully exploits hetero-geneity in patient mortality from lung, bone, air, and non-biological implants.
Instead of Boltzman Transport Equation, which de-scribes the macroscopic behavior of radiation particles, LBTE, its linear form, assumes that the particles in the environment interact with each other and the external magnetic field.[2-4] There are two solution approaches that try to explain LBTE. One of them is the Monte Carlo method, which does not clearly solve the com-monly known LBTE and produces indirect solutions for LBTE. Second one is solving LBTE using numerical methods.
Monte Carlo and LBTE solution methods produce close results but fail to produce clear solutions.[2-4] The mistakes of Monte Carlo System are random and result from the fact that a limited number of particles are simulated. Systematic faults can occur when using Monte Carlo methodologies to expedite the solution time.
The source model of the AXB algorithm used in the Eclipse TPS uses the existing AAA source model. In this model; primary photons, out-of-focus photons, contaminant electrons, and photons scattered from the wedge.
The AXB algorithm uses knowledge of the mass concentration obtained in the CT images of each voxel for dose calculation. The calculation difference be-tween the AAA and AXB algorithms depends on the beam energy, field size, and material density.
pic analytical algorithm (AAA) is commonly used for dose calculation.
Recently, in the dosimetric study performed by many investigators, it has been reported that AAA cal-culated the calcal-culated dose significantly inaccurate.[1-12] Particularly, it has been observed that in the tran-sition from tissue to air, dose is incorrectly calculated near two mediums. Varian (Varian Medical Systems, Palo Alto, CA) has introduced a new dose calculation algorithm called Acuros XB (AXB), a computational algorithm for clinical use. AXB uses a sophisticated technique to solve the Linear Boltzmann Transport Equation (LBTE), and it provides the correct approach for calculating patient dose from heterogeneous sourc-es entirely of lung, bone, air, and different density im-plants. LBTE describes the macroscopic behavior of the radiation beam in its environment.[2-4]
There are many studies in the literature that dosimet-rically compared the AAA and AXB algorithms.[3-8] The dose difference between the two algorithms results from parameters such as energy of the incoming beam, field size, and electron density of the medium.
However, studies have reported that the calculation grid size (CGS) is associated with dose changes. The difference between AAA and AXB due to different uses is not known to affect SBRT treatments, and this effect requires further investigation.
The dosimetric effect of AXB in the SBRT plan for lung cancer has little information on this. With ad-vancing technological facilities, manufacturers of lin-ear accelerator devices offer both flattened (FF) and unflattened (FFF) beams together. SBRT treatments can be applied to patients in a shorter time because of increased dose rate due to FFF beams.
This study aimed to investigate the calculated dif-ferences between AXB and AAA and the dose-related effect of dose CGS on SBRT treatments for planned liver cancer with FFF beams.
Materials and Methods
Eclipse Treatment Planning System
Eclipse TPS 13.0 (Varian, Palo Alto, California, USA) is designed to make 3D CRT, IMRT, VMAT, SRS/SBRT, and electron schemes. In the Eclipse treatment plan-ning system in our clinic, pencil beam convolution and analytical anisotropic algorithm (AAA) are performed with dose volume optimization, plan geometry opti-mization, progressive resolution optiopti-mization, multi-resolution dose optimization (MRDC), and Acuros XB (AXB) dose calculation algorithms.
Varian TrueBeam STx Linear Accelerators
Varian TrueBeam STx is a radiotherapy device using 3D Conformal, IMRT, IGRT, VMAT, stereotactic ra-diosurgery (SRS), and stereotactic body radiotherapy (SBRT). This linear accelerator is designed as a digital linear accelerator with 6 MV, 10 MV, 15 MV flattening filters (FF) and 6 MV and 10 MV flattening filter-free (FFF) beams. The dose range of filtered beams is 100– 600 MU/min, 400–1400 MU/min for unfiltered FFF beams is 6 MV, and 400–2400 MU/min for 10 MV FFF. The maximum area dimensions used for active MLC with minimum 0.5×0.5 cm and maximum 40×40 cm area dimensions are 22×40 cm.
TrueBeam STx linear accelerator has a multileaf (MLC) consisting of 120 tungsten materials. MLCs are 2.5 mm thick in the isocenter and have 32 pairs of MLC and 28 pairs of 5-mm MLC that surround them from the outside. The tongue-and-groove effect has the same design as the Millennium MLC and the High Defini-tion MLC (HD-MLC) in terms of rounded leaf edge properties. The radius of curvature of the Millennium 120 MLC is 8 cm, while the radius of curvature of HD-MLC is 16 cm. HD-HD-MLC, irregularly shaped areas of 40 cm wide and 22 cm long can be formed.
We recruited 10 patients with liver cancer who were referred to our clinic and their CT data was used. Treatment plans were generated using the volumetric
modulated arc (VMAT) SBRT planning method have been used two partial Arc angles with 10 MV FFF beams of Varian TrueBeam STx. For each patient, four treatment planning were done using AAA and AXB al-gorithms using 1 and 2.5 mm calculation grid (CGS), respectively.
Results
The dosimetric results of our plans for SBRT plan-ning for liver disease are shown in (Table 1). In Table 1, doses of PTV minimum, maximal, and Dmean, spi-nal cord maximal dose, ipsilateral lung V5, V10, V20, and Dmean doses, bilateral kidney Dmean and small intestine Dmax doses were calculated for two AAA and AXB algorithms.
Figures 1a–d show the mean dose volume histo-grams for PTV and critical organs compared with those for 1 and 2.5 mm CGS plans. The dose distribution of SBRT treatment planning samples calculated using 1 mm and 2.5 mm CGS for both algorithms (AAA and AXB) is shown in Figures 2a–d.
In the case of spinal cord, the AXB algorithm pre-dicted a higher dose than the AAA algorithm. The dose change on the spinal cord was statistically significant (p<0.05). However, the ipsilateral lung V5 and V10 are statistically higher in the AAA algorithm than in the AXB algorithm.
Table 1 Dose volume tables of PTV and critical organs calculated for grid size of 1 and 2.5 mm with AAA and AXB algorithms
AAA 2.5 AXB AAA AXB 1mm
mm 2.5mm 1mm
PTV Dmin cGy 5541 5489 5738 5458
Dmax cGy 6323 6381 6363 6388 Dmean cGy 6098 6090 6098 6100 Spinal cord Dmax cGy 641 720 629 1005
Heart Dmax cGy 696 770 868 734
Dmean cGy 111 107 115 110
Lung V5 % 7.8 8.3 7.7 8.2
V10 % 2.8 3.4 2.6 2.5 V20 % 0.2 1.1 0.1 0.1 Dmean cGy 114 181 170 170 Bilateral Kidney Dmean cGy 97 87 93 86 Small Intestine Dmax cGy 2078 2210 2255 2276
to the fact that the AXB algorithm does not provide enough information about out-of-field side doses.
In the case of Dmean doses of ipsilateral lung doses, there was a significant difference between AAA plans with 1 mm CGS and 2.5 mm CGS (p<0.05). Likewise, differences between AXB plans with 2.5 mm CGS were significant (p<0.05). No significant results were found between AAA with 1 mm CGS and AXB plans with 1 mm CGS (p>0.05).
There was a significant difference between bilateral renal doses of 1-mm CGS AAA and AXB plans and 2.5-mm CGS AAA and AXB (p<0.05).
When we examined the small intestinal Dmax doses in our study, no significant difference was found between 1-mm CGS plans and 2.5-mm CGS plans (p>0.05). The most interesting aspect of the work is that there is a 1% difference between AAA plans with 2.5-mm CGS and AXB plans with 2.5-mm CGS, and 5% difference between AAA plans with 1-mm CGS and AXB plans with 1-mm CGS.
Discussion
In stage III patients with HCC, using the 6-MV rays, AXB and AAA were compared with each other to ob-There was a significant difference between PTV
minimum doses of 1 mm CGS and 2.5 mm CGS AAA (p<0.05), whereas AXB plan with 1 mm CGS and AXB plans with 2.5 mm CGS showed close results (p>0.05). Considering the Dmax and Dmean doses for the heart, AAA and AXB with 1 and 2.5 mm CGS were not sig-nificantly associated with all plans (p>0.05). This is due
Fig. 1. (a) Dose volume histograms with AAA 1 mm and AAA 2.5 mm CGS. (b) Dose volume histograms with AXB 1 mm and AXB 2.5 mm CGS. (c) Dose volume histograms with AAA 1-mm CGS and AXB 1-mm CGS. (d) Dose volume histograms with AAA 2.5-mm CGS and AXB 2.5-mm CGS
a
c d
b
Fig. 2. (a) AAA isodose distribution for 1 mm. (b) AAA isodose distribution for 2.5 mm. (c) Isodose distribution for AXB 1 mm. (d) Isodose distribution for AXB 2.5 mm.
a
c d
tain a slightly higher mean dose with the AXB algo-rithm in lung tissue.[13] Fogliata et al. in their study supports our study, in which our computed ipsilateral lung dose was calculated to be 114 cGy with 2.5 mm AAA versus 181 cGy with 2.5 mm AXB. In our study, there is a significant difference between AAA and AXB plans for 2.5-mm CGS (p<0.05).
In their study, Kan et al.[14] found that AXB had a 1% higher dose than AAA for air trapping-includ-ed nasopharyngeal carcinoma treatment plans using IMRT and RapidArc techniques.
The difference between AAA and AXB is interest-ing as CGS has also contributed to the correct dose calculation. CGS is associated with the estimate and calculation accuracy. Kan et al.[14] showed a signifi-cant improvement in dose accuracy of AXB with 1-mm CGS. The smaller grid resolution reduces the average effect and results in a better sampling of the structure voxels. They showed that the dose difference in PTV was greater between the two algorithms in 2.5-mm CGS for 6×FFF and 10×FFF beams.
In addition, Kan et al.[14] suggests that 1-mm CGS should be chosen for stereotactic plans, especially for low density tissue regions contained by PTV instead of 2.5–mm CGS.
Chung et al.[15] and Mittauer et al.[16] showed that CGS was effective on dose estimation for head and neck treatments. Ong et al.[17] demonstrated that 1-mm CGS accounts for a more accurate dose com-pared to AAA calculations with 2.5-mm CGS.
In our study, we found that there were 4% difference between AAA 1-mm CGS plans and AAA 2.5-mm CGS plans, whereas AXB 1-mm CGS plans and AXB 2.5-mm CGS plans had 1% difference.
Regarding the PTV minimum doses, it was seen that there was a 5% difference between AAA plans with 1-mm CGS and AXB plans with 1-mm CGS. This may be the reason for the preference of the AXB algorithm to reduce the PTV dose during treatment planning. The effect of the dose difference between the two algo-rithms will be another area of interest for us. Our other work will focus on the difference between the two algo-rithms for different energy stages, focusing on the lung SBRT where small areas and air spaces are located.
In conclusion, SBRT treatments administer high doses in a small number of fractions. The accuracy of calculation related the accuracy of these treatments; it is necessary to ensure the dose response in the critical regions of the algorithm used.[18] The presence of dif-ferent concentrations of tissue in the human body does not have a linear curve on the dose-response
relation-ship. This effect should be investigated in detail before each clinical use.
Disclosure Statement
The authors declare no conflicts of interest.
Ethics Committee Approval: This study was conducted in-accordance with local ethical rules.
Peer-review: Externally peer-reviewed. Conflict of Interest: None declared.
