Resonance
tuning
and
broadening
of
bowtie
nanoantennas
on
graphene
Semih
Cakmakyapan
a,b,*
,
Levent
Sahin
b,c,
Francesco
Pierini
b,
Ekmel
Ozbay
a,b,ca
DepartmentofPhysics,BilkentUniversity,06800Ankara,Turkey
b
NanotechnologyResearchCenter,BilkentUniversity,BilkentUniversity,06800Ankara,Turkey
c
DepartmentofElectricalandElectronicsEngineering,BilkentUniversity,06800Ankara,Turkey Received20January2014;receivedinrevisedform7February2014;accepted7February2014
Availableonline22February2014
Abstract
Metallicbowtieantennasareusedinnanophotonicsapplicationsinordertoconfinetheelectromagneticfieldintovolumesmuch smallerthanthatoftheincidentwavelength.Electricallycontrollablecarrierconcentrationofgrapheneopensthedoortotheuseof plasmonic nanoantennastructures withgraphene sothat theresonantnatureof nanoantennascanbetuned. Inthis study,we demonstratedwiththeFouriertransforminfrared(FTIR)spectroscopyandtheFiniteDifferenceTimeDomain(FDTD)methodthat theintensityandresonancepeakofbowtienanoantennasonmonolayergraphenecanbetunedatmid-infrared(MIR)wavelength regimebyapplyingagatevoltage,sincetheopticalpropertiesofgraphenechangebychangingthecarrierconcentration. #2014ElsevierB.V.Allrightsreserved.
Keywords: Graphene;Nanoantennas;Plasmonics;Bowtieantennas
1. Introduction
Graphene is amonolayer of carbonatomsthat are arrangedinatwo-dimensional(2D)honeycomblattice. Property of the ballistic transport of electrons in graphene makes it a very unique material, since the graphenemobilitycanreachupto100,000cm2V1s1
[1–3].Electrons ina graphenemonolayer, whichcan travel for micrometers without scattering at room temperature [4], behave as massless Dirac fermions,
where principles of quantum electrodynamics can be tested[5,6].Graphenehasattractedgreatattentiondue to its exceptional optical properties along with its electricalandmechanicalproperties.Itsoptical proper-tiesmakeitidealforterahertzoscillators,andlow-noise electronicandopticalsensors[7].Itexhibitsasaturable absorptionconstantasaconsequenceofPauliblocking
[8–10].Graphene hasbeen anewcandidatefor future nanophotonics so far with the numerous applications based on metamaterials [11], photodetectors [12–14], photovoltaics [15], and nanoantennas [16,17], where electronics and plasmonics are combined in nanocir-cuitry [18]. Surface plasmons that are bound to graphene are confined to volumes on the order of 106 (1/a3) times smaller than the diffraction limit, wherea=e2/£cisthefinestructureconstant[19].Asa
www.elsevier.com/locate/photonics
Availableonlineatwww.sciencedirect.com
ScienceDirect
PhotonicsandNanostructures–FundamentalsandApplications12(2014)199–204
*Correspondingauthorat:NanotechnologyResearchCenter, Bilk-entUniversity,BilkentUniversity,06800Ankara,Turkey. Tel.:+905359831994.
E-mailaddresses:semihc@bilkent.edu.tr,semihckm@gmail.com
(S.Cakmakyapan).
http://dx.doi.org/10.1016/j.photonics.2014.02.001
result, these strong light-matter interactions make graphene favorable for new plasmonic applications due to the field enhancement and confinement. The opticalconductivityofgraphenedependsonthedoping ofthegraphenelayerattheinfraredfrequencyregime. Sincehighfrequencyinterbandtransitionsingraphene can be exploited through electrical gating [20], the plasmonresonanceofgraphene-hybridstructuressuch asnanoantennascanbemodulatedbyapplying agate voltage[16,17,21,22].
Bowtie antennas are similar to dipole antennas, however they have a larger bandwidth compared to dipole antennas. The broadband nature of bowtie antennas provides flexibility in terms of operation frequency. Bowtie nanoantennas made of gold are critical in applications such as the enhancement of single-moleculefluorescence[23],single-particle trap-ping [24], and efficient surface-enhanced Raman spectroscopy (SERS) substrate [25], due to strong electromagnetic field enhancement. In this study, the resonancepropertiesofthebowtienanoantennasatthe mid-infraredwavelengthregimeare controlled bythe electrical gating of the graphene layer, where we obtained 113nm shift at the resonance peak. It was shownintheearlierstudybyEmanietal.[17]thatthe tuning is possible, but limited, by using connected bowtie antennas. Here, the tuning range is further enhancedbyusingbowtieantennaswithagap,andalso bydesigningtheantennaswhichoperateatmid-infrared wavelengths.
2. Methods
Commercially available (Graphene Supermarket) monolayer graphene samples grown via Chemical VaporDeposition(CVD)onp-dopedsiliconsubstrates coated with 285nm SiO2 dielectric film are used in
fabrications. In order to measure the mobility and carrier concentration of graphene samples, Hall measurement, which is a technique to measure the mobilitywiththehelpofchargecarriers,isperformed by fabricating four-contact Van der Pauw devices as shown in Fig. 1(a). The average of several Hall measurementsatroomtemperaturefromdifferentVan derPauwdevicesofachipsized1cm1cmresulted thatthe graphene samplesare veryuniform,andthey haveamobilityof2286cm2/Vs,and7.851012cm2 sheet carrier concentration,where the positive carrier concentrationmeansthatthemajoritycarriersareholes. Inaddition,thesheetresistanceofthegraphenesamples is on the order of 1000V/&, which shows a good agreementwiththevaluesinthe literature[26].
Forthepreparationofthetransistor-likedeviceswith bowtieantennas,wefabricatedourownopticalmaskby using electron beam lithography.The first step of the device fabrication is the ohmic contacts with optical lithography for the drain and source. 20nm titanium and 80nm gold are deposited as ohmic contact metallization with electron beam evaporator. Then, optical lithography for mesa etching is carriedout in ordertoobtaintheactiveareathatconnectsthesource
Fig.1. (a)Fabricatedfour-contactVanderPauwdeviceforHallmeasurements,(b)opticalmicroscopyimageofthetunablebowtiedevice,i.e. activegrapheneregionwithnanostructuresbetweendrain(D)andsource(S)contacts;insetshowingSEMpictureofabowtieantenna,(c)measured drain–sourcecurrentwithrespecttothegatevoltage,and(d)calculatedvariationofcarrierconcentrationandFermienergywithrespecttothegate voltagedifferenceDV.
(S) and drain (D), and thus removing the unwanted grapheneonthechip.Theetchingprocessiscarriedout with ICP-RIE by exposing samples to O2plasma for
20s with 50W RF power, and 1100W ICP source power. After that, another optical lithography for interconnect metallizationisdone inordertobe used forprobingandbondingpurposes.20nmtitaniumand 200nmgoldareevaporatedasinterconnectmetals.As the last stepof the nanofabrication, bowtie arraysare lithographed on the active region by using electron beamlithography,followedby5nmTiand40nmAu evaporation.Opticalmicroscopyimageofacompleted fabricationofadeviceisshowninFig.1(b).Scanning electron microscopy(SEM) image of aunit cell of a bowtieantennaarray,whichwillbereferredasSample 1,isgivenintheinsetofFig.1(b).Herethegapdistance ismeasuredtobe177nm,totallengthofasinglebowtie is4.46mm,andtheflareangleis588.Beforetheoptical measurements, dark current–voltage measurements were performed. Charge neutrality point of the graphene sheet is observedto be at140V,as plotted inFig.1(c).Highcarrierconcentrationofgraphene,as measuredusingVanderPauwdevices,resultsinalarge valueofchargeneutralitypoint.Thereasonispredicted tobeduetotheresistresiduesonthegraphenesurface as discussedinRef.[27].
Theoreticalcalculations,inordertoobtaintheFermi energy dependent refractive index of graphene, are carried out by using the optical conductivity of graphene from the random-phase approximation method[28,29]. EF ¼hnF ffiffiffiffiffiffiffiffiffi pNS p (1) Fermienergy,EF,canbeexpressedasinEq.(1)[30],
whereyFistheFermivelocity,andNsisthesheetcarrier
concentration. The optical conductivity of graphene
[28,29] canbechangedwith different Fermienergies, whichisafunctionofthesheetcarrierconcentrationof graphene,asseeninEq.(1).ItwasdemonstratedinRefs.
[30,31] that the charge concentration is linearly proportionalwiththeappliedgatevoltageand,therefore, the optical conductivity of graphene can be tuned at differentgatevoltages.Relationbetweentheappliedgate voltageandcarrierconcentration/Fermienergyisplotted inFig.1(d).Herethevoltagedifference,DV,isdefinedby DV=jVg–VCNPj,whereVgisthegatevoltageandVCNP
thevoltageatthechargeneutralitypoint.
3. Resultsanddiscussion
Fourier transform infrared (FTIR) spectroscopy measurement results for Sample 1 are given in
Fig. 2. Reflection spectrum in Fig. 2(a) shows that reflectivity changes with a blue shift, as the voltage differenceincreases, since the refractive index of the graphenelayerchangeswiththeappliedvoltage.There is a113nm shift at the peaks between DV=0Vand 140Vcases,asdemonstratedinthe insetofFig.2(a). Along withthe blueshift, reflectioncurves exhibitan asymmetricnaturewiththeappliedvoltage.Thereason of thisasymmetryisthatthe tuningof the curvesare muchmorepronouncedatlongerwavelengths,because the optical conductivityof graphene changes more at thelongerwavelengthsfordifferentFermienergies.In other words, graphene is more sensitive at longer wavelengths.Itisalsoobservedthattheresonantcurves narrow down for larger DV, which will be discussed later.Relativereflectivitywithrespecttothereflection atthechargeneutralitypointisshowninFig.2(b).Itis seen that the curves blue shift by applied voltage.
Fig.2. (a)MeasuredreflectancespectraatdifferentDV;enlargedviewofresonancepeaksshownintheinset,and(b)relativereflectivityofbowtie antenna arrayatdifferentgatevoltages;insetshowing thex-componentofelectric field intensityforSample 1at5.5mmand 7mm.(For interpretationofthereferencestocolorintext,thereaderisreferredtothewebversionofthisarticle.)
Calculated results of jExj2 on the surface at the
wavelengthsof5.5mmand7.0mmaredemonstratedin theinsetofFig.2(b),inordertobeabletounderstand thereasonoftheintensitychangeat7mm.Therealand imaginarypartsoftherefractiveindexofgrapheneare calculated for different Fermi energies, and hence differentgatevoltages.Thenumerical simulationsare performed by using commercially available software packageLumericalbyembeddingtheserefractiveindex dataasanewmaterial.Fieldintensityandlocalization atoff-resonancewavelength(7mm)ishigherthanthat of resonance wavelength 5.5mm, where the field is mainlylocalizedatthegapregion.Additionally,thereis acouplingbetweenneighborbowtiesat7.0mm,andthe tunability of the curves depends on the interaction volume between light and graphene. Since the total interactionvolumeishigherat7.0mm,electricfieldat this wavelength results more interaction with the graphene layer, and the generated e–hpairs decrease theresonancemorearound7mm.Calculated reflectiv-ityofthestructuresunderdifferentbiasvoltageisalso shown in Fig. 3, where the resonance shift is approximately190nm. Fermienergy of thegraphene isconvertedtothevoltagedifferenceaccordingtothe relationgiveninFig.1(d).Theresultsareinagreement withthemeasurements.Thediscrepanciesareduetothe fabricationimperfections,andthepossibledefectsand grainboundariesongraphenesurface.
Quality factor and line width difference, Dl, variation under different gate bias are shown in
Fig.4.Qualityfactoristheratiobetweentheresonance peak and the bandwidth of the reflection curve. Line width represents the full width half maximum of a reflectivitycurve,andDlisthedifferenceoffullwidth half maximumvalues relativetothe curve atDV=0. Linewidthofthereflectivitypeakdecreases,asthegate voltagedifference,DV,increases.Inotherwords,curves narrowdownupto120nmatlargerDV.Therefore,the
quality factor increases. Incident photons having energies higher than 2EF are absorbed, since they
can generate electron–hole pairs. At the charge neutrality point, DV=0, Fermi energy goes to zero, according to Eq. (1). This results in more interband transitionsduetotheincidentphotons,thusincreasing the absorption,because almost all of the photons are able to exceed 2EF. The results shown in Fig. 4 are
consistent with this qualitative explanation. The reflection curve at the charge neutrality point is the broadestonehavingthelowestqualityfactor.
The importance of the coupling between the neighboring bowties can be further analyzed. The graphenebetweentheneighboringbowtiesinx-direction isremovedinsimulationenvironment.Thecomparison betweentwocases,wherethereisgrapheneontheentire surfaceandgraphene removedforisolation,is demon-stratedinFig.5.Thesheetconcentrationofgrapheneis taken to be 7.851012cm2, which corresponds to
Fig.3. CalculatedreflectancespectraatdifferentDV.
Fig.4. Qualityfactor(blacksquares)andlinewidthdifference(red dots)underdifferentgatebias.(Forinterpretationofthereferencesto colorinthisfigurelegend,thereaderisreferredtothewebversionof thisarticle.)
Fig.5. Comparisonofcalculatedreflectivitybetweenthestructure with graphene everywhere and graphene removed between two neighborsinx-direction.
DV=140V case in our experiments. As seen in the figure, results do not change up to the resonance frequency, however, there is a shift at the larger wavelengths.Therefore,itisimportantforthis caseto havegrapheneeverywhereonthesurface,becausethe interactions increase, when there is electric field enhancement,whichalsoincreasesthetuningcapability ofthedevices.
Experimental results for another bowtie antenna array, Sample 2, that operates at 7mm are given in

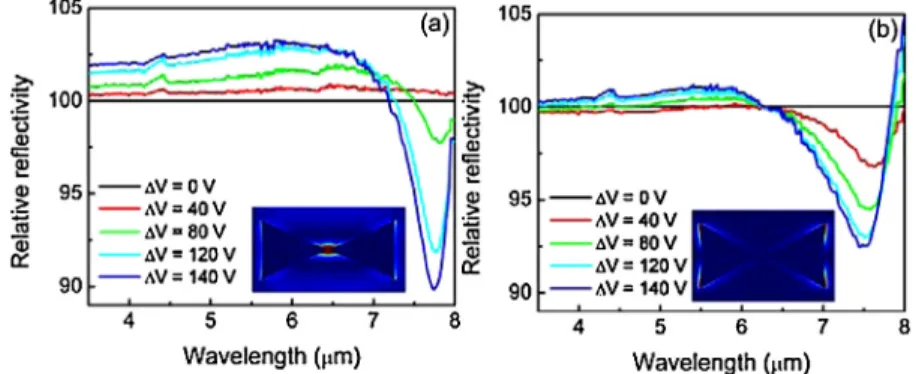

Fig. 6(a) and (b) for TE and TM polarized incident waves,respectively.Thetotallengthofasinglebowtie is6.1mm,andtheflareangleis528.Itisobservedthat the damping effect is higher for the case of TE polarization,wheretheelectricfieldcomponentofthe waveisinthex-direction.Theexcitationofthebowtie gapand the coupling between two neighborantennas can be provided by TE polarization, whereas TM polarization only excites the edges of the triangles. Namely,itworksasaperiodicarraymadeoftriangles, whichcanbe seenfromthefielddistributioninsetsof
Fig.6.Asaresult,theeffectivegrapheneareaislarger for the case of TE. Therefore, reflectivity is more sensitivetothevoltagedifference.
4. Conclusion
In summary, we demonstrated the resonance tun-ability of bowtie nanoantennas with the help of electrically gated graphene samples. We obtained a frequencyshift,resonancedamping,andenhancement by fabricating bowtie structures on a graphene layer. Electrical tuningofantennaresonancewith avarying gate bias is studied with a theoretical modeling and confirmed experimentally.As graphene-based devices are already being realizedat opticalfrequencies, it is possible to use these bowtie and graphene-based structures for new optical applications such as novel
photovoltaic, ultrafast miniature photodetectors and optical switches. The research for novel applications like optical switches will be conducted by us in the future.
Acknowledgments
ThisworkissupportedbytheprojectsDPT-HAMIT, ESF-EPIGRAT,NATO-SET-181andTUBITAK under ProjectNos.,107A004,109A015,109E301.Oneofthe authors(E.O.)alsoacknowledgespartialsupportfrom theTurkishAcademy ofSciences.
