A smartphone based surface plasmon resonance imaging (SPRi) platform for on-site biodetection

(1)

ContentslistsavailableatScienceDirect

Sensors

and

Actuators

B:

Chemical

j ou rn a l h o m ep a g e :w w w . e l s e v i e r . c o m / l o c a t e / s n b

A

smartphone

based

surface

plasmon

resonance

imaging

(SPRi)

platform

for

on-site

biodetection

Hasan

Guner

a

_,

_Erol

_Ozgur

a

_,

_Guzin

_Kokturk

b

_,

_Mehmet

_Celik

c

_,

_Elif

_Esen

b

_,

_Ahmet

_E.

_Topal

a

_,

Sencer

Ayas

d

_,

_Yildiz

_Uludag

b

_,

_Caglar

_Elbuken

a

_,

_Aykutlu

_Dana

a,∗

a_UNAM,_Institute_of_Materials_Science_and_{Nanotechnology,}_Bilkent_University,_Ankara,_06800,_Turkey

b_{UEKAE-BILGEM,}_The_Scientiﬁc_and_{Technological}_Research_Council_of_Turkey_(TUBITAK),_Gebze,_Kocaeli,_41470,_Turkey

c_Department_of_Computer_Engineering,_Middle_East_Technical_University,_Ankara,_06800,_Turkey

d_Canary_Center_at_Stanford_for_Cancer_Early_Detection,_Department_of_Radiology,_Stanford_School_of_Medicine,_Palo_Alto,_CA_94304,_USA

a

r

t

i

c

l

e

i

n

f

o

Articlehistory:

Received2July2016

Receivedinrevisedform5August2016

Accepted10August2016

Availableonline10August2016

Keywords: Plasmonics

Surfaceplasmonresonanceimaging

Opticaldiscs

Mobilesensing

Biosensors

Opticalsensor

a

b

s

t

r

a

c

t

Wedemonstrateasurfaceplasmonresonanceimagingplatformintegratedwithasmartphonetobe usedintheﬁeldwithhigh-throughputbiodetection.InexpensiveanddisposableSPRsubstratesare pro-ducedbymetalcoatingofcommercialBlu-raydiscs.Acompactimagingapparatusisfabricatedusinga 3DprinterwhichallowstakingSPRmeasurementsfrommorethan20.000individualpixels.Real-time bulkrefractiveindexchangemeasurementsyieldnoiseequivalentrefractiveindexchangesaslowas 4.12×10−5RIUwhichiscomparablewiththedetectionperformanceofcommercialinstruments.Asa demonstrationofabiologicalassay,wehaveshowncaptureofmouseIgGantibodiesbyimmobilized layerofrabbitanti-mouse(RAM)IgGantibodywithnanomolarlevellimitofdetection.Ourapproach inminiaturizationofSPRbiosensinginacost-effectivemannercouldenablerealizationofportableSPR measurementsystemsandkitsforpoint-of-careapplications.

1. Introduction

Thewide useofmobilephonesallacrosstheworld created signiﬁcantopportunitiesforhealthcareapplicationsusingmobile devices. Improvement of healthcare services requires democ-ratization of the services with higher quality and lower cost. Early diagnosis, close monitoring,patient comfort are some of theconcerns that healthcare providers are strivingto improve on.Thedevelopmentoflab-on-a-chip platformsin thelast two decades brought severalexamples of novel platforms that can beused for rapid diagnosisof widespreaddiseases. Portability, shortturn-around-time,cost-efﬁciencyandconnectivityaresome ofthecriticalassetsthatsuccessfuldevicesshouldpossess.The advancementsinsuchareasenabledtheuseoflab-on-a-chip sys-temsason-siteorpoint-of-caresystemsnotonlyforremoteor resource-limitedsettings,butalsoforhome-monitoringofelderly populationatdevelopedcountries.

Oneofthemainbottlenecksintransformingthelab-on-a-chip systemsintopoint-of-carediagnosticdevicesistherequirementto miniaturizeandcombineseveraloff-chipcomponents.The

mar-∗ Correspondingauthor.

E-mailaddress:aykutlu@unam.bilkent.edu.tr(A.Dana).

riageofthelab-on-a-chipsystemswithmobilephoneswasthe tippingpointthatyieldedaplethoraofintegratedscreeningand diagnosticdevices.MobilephonesprovidepowerfulCPUs,touch screen displays,advanced connectivityfeatures as wellas high pixel-count,sensitivecamerasandintegratedlightsources. There-fore,theuseofmobilephonesforapplicationsrequiringoptical detectionisaninterestingandrapidlydevelopingfieldofresearch. Forinstance,immunodiagnosticassays,lateralflowassays, micro-scopicimaging,flowcytometry,colorimetricdetection,photonic crystalandsurfaceplasmonresonance(SPR)basedbiosensinghave beendemonstratedusingmobilephoneplatforms[1–12].Inthis study,tothebestofourknowledgewepresentthefirstsurface plasmonresonanceimagingonasmartphone.

SPR biosensing is a popular method for quantitative anal-ysis and characterization of biomolecular interactions [13–15]. SPRprovideslabel-freeandreal-timedetectionofbindingevents withhighsensitivity.Surfaceplasmonsareelectromagneticwaves propagating along and evanescently decaying away from the metal/dielectric interface. This field confinement around the boundarymakesplasmonresonancecouplingconditionextremely sensitivetothelocalrefractiveindexchangescausedbyspecific adsorptionoftargetanalytesontothemolecularprobesresidingon themetalsurface.Recently,somestudieshavedemonstratedSPR sensingusingsmartphone. Preechaburanaetal.reported

angle-http://dx.doi.org/10.1016/j.snb.2016.08.061

(2)

572 H.Guneretal./SensorsandActuatorsB239(2017)571–577

resolvedSPRchemicaldetectionusinganSPRcouplerattachedon thesmartphonescreenutilizingtheilluminationfromthescreen [8].Inordertodevelopamorepracticalsystem,Liuetal.[9]and Bremeretal.[10]showedtheuseofopticalﬁbersforSPR detec-tiononcellphones.Bothofthesesystemsusedtheback-sideLED andcameraofthecellphoneasthelightsourceandthesensor, respectively.Rocheetal.demonstratedlocalizedSPRsensingon cellphonewithincreasedsensitivityusinggoldnanoparticlesand nanorods[11].Duttaetal.reportedlocalizedSPR(LSPR)sensing oncellphoneforbiomoleculardetectionandmeasuringsize vari-ationofmetalnanoparticles[12].Allofthesestudies,demonstrate single-spotor1DspatiallyresolvedSPRsensing,whichlimitstheir applicabilityforhigh-throughputandmultiplexeddetection.Inthis article,wedemonstrateSPRimagingor2DSPRsensingonacell phone,unveilingthepotentialofmulti-analytedetectionaswell asimplementationofarray-basedadvancedbiochemicalanalysis usingalow-cost,integratedplatform(SeeSupplementarymaterial TableS1fordetailedcomparisonwithpreviousstudies).

SPRimagingissuperiortosingle-spotSPRsinceitcanbeusedfor detectionofmultipleanalytesinasinglesampleforpanelassays. Thisleadstosigniﬁcantbeneﬁtsintermsofcostandmeasurement time.Similarly,themultiplesensingpointsonthesensorcanbe usedfordetectionoftheanalyteatseveralsampledilutionswhich iscriticalforserialdilutionassays.Also,image-based bioanalyti-caldetectionhelpstheoperatortoviewtheresultsatonceand interpretthem moreeasily.Additionally, image-based2D sens-ingcanprovidereplicatedmeasurementsonthesamesensorchip togetherwithcontrolsthatleadstohigherreliability,precisionand on-chipself-calibration. On-chipcontrolandself-calibrationare especiallycriticalforpoint-of-caresensingapplicationsthat suf-ferfromhigherrorratesduetovaryingoperatingconditionsand thewide rangeof userlevels.We believethedemonstrationof suchadvancedbiochemicaltechniquesusingmobilephonesand cost-effectivesensorswillleadtoa paradigmshiftintheglobal healthcaremarket.Implementationofadvanceddetection appli-cationsoncontinuouslyimprovingfeature-richmobilephoneswill pavethewaytowardshighlysensitivediagnosistoolsreachingto thepeoplefromallsocio-economiclevels.

Here, we present surface plasmon resonance imaging on a smartphone.We have developedvery low-costgratingcoupled SPRsensor chipsusingoff-the-shelfopticalstorage discs. Addi-tionally,wedesignedacompactopticalsystem,usinga3D-printed apparatusthathoststheLEDsource,collimator,bandpassﬁlter, linearpolarizer,beamsplitterplateandanexternalimaginglens whichcanbeeasilyattachedtothesmartphone.Weemployeda silver/gold(Ag/Au)bilayerstructurecoatedontheperiodic cor-rugationsofBlu-raydiscsinordertoperformplasmonresonance imaging at thecentral regionof visible spectrum (␭r∼500nm)

undernormalincidenceilluminationinaqueousenvironment.This allowedtheoptimaluseoftheCMOSsensorofthesmartphone whilemaintaininghighsensitivity,chemicalstabilityandbiological affinity[16–20].Amicrofluidicchannelisplacedonthe bimetal-liclayerforcontrolledplumbingoftheliquids.TheuseofBlu-ray discsandstandardmetaldepositiontechniquestogetherwiththe low-costmicrofluidicchannelresultedinsignificantcost-reduction whichcanallowthesystemtobeusedforapplicationsrequiring disposableSPRsensors.

2. Materialsandmethods

2.1. Smartphoneattachmentforsurfaceplasmonresonance imaging

Anopticalattachmentwasdevelopedwhich converts smart-phone into a real-time surface plasmon resonance imaging

platformbasedonintensityinterrogationmechanism.ASamsung I8552Galaxy Win wasused asthe smartphone. Theprototype accessorywasfabricatedoutofpolylacticacid(PLA)filamentusing a 3D printer (MakerBot Replicator 2). Optical configuration of theimagingplatformisschematicallyillustratedinFig.1a.Light emittingfrom a 520nm LEDsource iscoupledto a multimode fiberopticcable (actingas a spatialfilter) and collimatedby a fiberopticcollimator.Abandpassinterferencefilter(␭c=520nm,

␭FWHM=10nm)isusedtonarrowthespectralbandwidthof

illu-mination.Collimatedbeamoflightbecomestransversemagnetic (TM)polarizedpassingthroughalinearpolarizingfiltersheetand isdirectedontothesensorsurfaceatnormalincidenceby reflect-ingfromabeamsplitterplate.Lightreflectingoffthesensorsurface passesthroughthebeamsplitterplateandisfocusedonthe smart-phone’scamerasensorbyanexternalplasticimaginglens(focal length=8mm).Imagingspotcoversapproximately160pixelsin diameterwhichcorrespondstomorethan20.000individual pix-els,althoughthecameraiscapableofvideorecordingat720×480 pixelsresolution.Imagingresolutioniscalculatedas12␮m/pixel. OnlygreenchannelofRGBimageisanalyzedsinceithasthehighest spectralresponsivityattheoperationwavelength.Theattachment measures143_×75_×44mm3 _and _weighs₂₁₅_g_including₂ _AAA

batteries(Fig.1b).

An Android application software was developed to analyze imagedata,reportintensitychangesandestimateanalyte concen-trationinthefielduse(Fig.1c).Whentheappisinitiated,zoomed inviewoftheimagingspotisdisplayedcontinuouslyatthe back-ground.First,regionofinterests(ROI)onthesensorsurfaceare definedbytappingmenubuttonandenteringROIparametersin thesettingsmenu.Toestimateanalyteconcentrationsfrom inten-sitychanges,predeterminedcalibrationlineparametersaresetin slope,interceptandunitfields.Timeaveragingfeaturecanbe acti-vatedbyenteringthenumberofconsecutiveframestobeaveraged. “Reference”,“Dark”and“Baseline”buttonsareusedtotakeand storereference,darkandbaselineintensityvalues,respectively,as describedinSubsection2.3.Averagedintensitychangesand esti-matedanalyteconcentrationsforeachROIsegmentaredisplayed separatelyontherightsideofthescreenwhenthe“Start record-ing”boxischecked.Uncheckingthe“Startrecording”itemstops recordingandsavesmeasurementdatainatextfile.Screen cap-turesfromapplicationsoftwarearepresentedinSupplementary materialFig.S1.

2.2. DesignandfabricationofSPRisensorchips

Opticalstoragediscscanbeexploitedasgratingcoupled sur-faceplasmonresonancesensorsbymetalcoating,thankstothe periodic corrugations [21,22]. Depending on thedisc type and refractive index of the surrounding medium, surface plasmons canbe excitedatwavelengthsranging fromultravioletto near infraredspectral regions.SPR substratesproduced fromBlu-ray discs (BD)(gratingperiod =320nm, grating depthd=20nm) exhibitplasmonresonanceswithinthevisiblespectrumwhen illu-minatedatnormalincidenceinaqueousmedium,asindicatedby thereflectancespectracalculations(Fig.S2). Numerical calcula-tionsareperformedusingacommercialsoftware(PCGrate)which employsmodifiedintegralmethod(MIM)[23].PCGrateallows cal-culationof diffraction efficienciesof multilayered 1-D gratings. Calculationmodeshouldbeswitchedfromnormaltoresonance modefor SPR coupler simulations. Polarization of the incident beamissetasnon-polarizedinordertoexaminethereflectance spectraforbothtransverseelectric(TE)andtransversemagnetic (TM)polarizedilluminations.SurfaceprofileofthegratingonBDis definedassine-trapezoidalusingbuilt-ingeometricaltools. Com-plexrefractiveindices of gold andsilver are extrapolatedfrom previouslytakenexperimentaldata[24].Accordingtothe

(3)

simu-Fig.1. Surfaceplasmonresonanceimagingplatformintegratedwithasmartphone.(a)Schematicillustrationand(b)photographoftheimagingapparatus.(c)Custom

developedsmartphoneapplicationforreal-timeandon-sitemonitoringofmultiplesensingspots.

lationresults,silvercoatedBDexhibitssharpplasmonresonance around500nmwavelength,whereasgoldcoatedBDdoesnot dis-play surfaceplasmon resonant behaviorat normal incidenceof excitationduetoitsintrinsicabsorptioncharacteristicsatthis por-tionofthespectrum.However,goldhassuperiorpropertiesover silverintermsofchemicalstabilityandadequacyforfurthersurface functionalizationchemistryforbiosensingapplications.Inorderto overcomethisdichotomy,wecameupwithahybridsolutionin whichthick(>80nm)silvercoatingatthebottomactsasa plas-monexcitationlayerandthin(<10nm)goldfilmontopfunctions asa surfaceforthesubsequentsurfacemodification,aswellas extendingtheshelflifeofthesensorchip.ThethicknessesofAg andAulayersareoptimizedusingnumericalsimulations.Silver layerthicknessabove80nm isfoundtoyieldalmost sameSPR reflectancespectrawithsemi-infinitesilverlayerconfigurationas showninFig.S3.Asthethicknessofthetopgoldlayerisincreased, ontheotherhand,plasmonresonancecurvedegradesandloses itssharpnessasshowninFig.S4.Thus,goldcoatingthicknessis keptas2nminordertosatisfybothsensitivityandsurface chem-istryrequirements.Apartfromthepreviousstudieswhichusethe Ag/Aubimetallicstructuretoincreasesensitivity[16–20],weused thisconfigurationtoobtainaresponsebelow520nmwhichisnot possiblewiththecommonlyusedsinglegoldlayeredcouplers.

Blu-raydiscs(BD)areconvertedtoplasmonicsurfacesby peel-ingoffthetransparentthinprotectivecoatingontopofthediscwith tweezeraftercuttinganotchonthesideofthedisc,followedby metallizationusingthermalvacuumevaporation(VaksisThermal Evaporator).First,athingermaniumlayerisdepositedtoactasan adhesionlayeraswellastoreducethesurfaceroughnessof sub-sequentsilvercoating[25,26].Germanium(3nm),silver(80nm) andgold(2nm)metallayersaredepositedat0.4 ˚A/s,0.6–1.0 ˚A/s and0.2 ˚A/sgrowthrates,respectively,under0.005mTorrchamber pressure.SchematicillustrationandSEMimageofaAg/Aubilayer coatedBDstructureareshowninFig.2.

SensitivityperformanceofabimetallicBDbasedSPRsensoris investigatedusingnumericalsimulations.Thespectralbulk refrac-tiveindexsensitivity,S_␭BCiscalculatedas316nm/RIU.Theratioof thechangeinresonancewavelengthtothechangeinthethickness oflayerformedbytheadsorptionofmoleculesontothesensor surfacegivesthespectralsurfacecoatingsensitivity,S_␭SC,andit iscalculatedas0.7nm/nmforacoatingmaterialwithrefractive index,n=1.45.

Blu-raydiscs asdescribedherealloweasyreplicationof our workby otherswithoutneeding anyinfrastructure investment. Moreover,sensor surfacescanbeproducedat lowercostsona largescalefollowingthemanufacturingprocessesofBlu-raydiscs. Infactroll-to-rollprintingofgratingsisdemonstrated[27],which canbeusedasanalternativetoBlu-raydiscs.Itisimportantto notethatplanarsensorsurfacesthatarefabricatedusinganyofthe processesmentionedabovearecompletelycompatiblewithour opticalreadoutconﬁguration.

Alow-costmicroﬂuidicchannelisfabricatedusinganextremely simple,yetveryeffectivemethodbasedonlasercuttingofa3mm thicktransparentacrylicplateandadoublesidedadhesivetape(3M 468MPAdhesiveTransferTape)(Fig.S5).Bothchannelgeometry andholesforinletandoutletaredeﬁnedbyahighpowerCO2laser

cuttingsystem(EpilogZing24).Channelgeometryisdefinedon thedoublesidedtapeat8Wlaserpowerand100%scanningspeed. Channelframe,inlet andoutletholesaredefinedontheacrylic plateat30W laserpowerand15%scanningspeed.First,double sidedtapeisbondontotheacrylicplate.Then,acrylicplateand BDchiparebondtogethertightlybyapplyingmechanicalpressure forhalfaminute.Schematicillustrationofaflowcellintegrated SPRisensorchipisshowninFig.2.Tygontubings(Cole-Palmer) areconnectedtotheinletandoutletoftheflowcell.Epoxy adhe-sive(BisonEpoxy5Minutes)isusedtocompletelysealthetubings attheinletandoutletconnections.Thevolumeofaflowcellis8

(4)

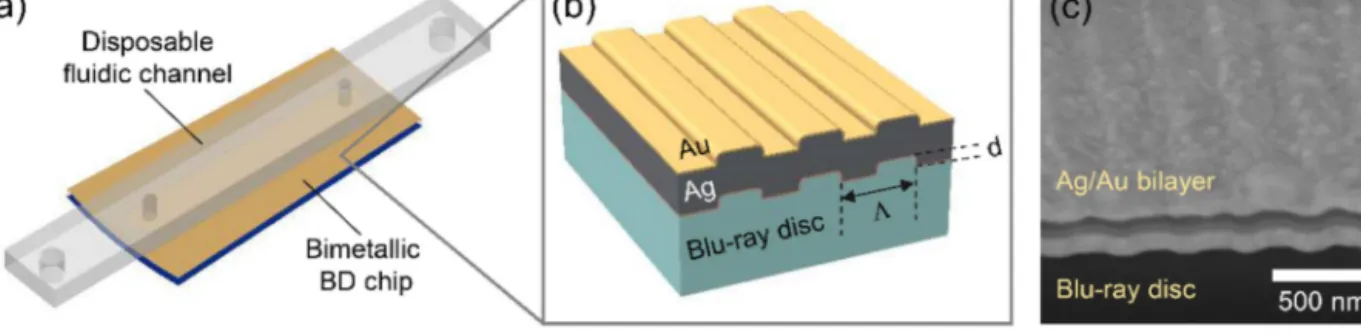

Fig.2.GratingcoupledSPRisensorchip.(a)SchematicoftheSPRichipassemblyfabricatedbyintegratingabimetallicBlu-raydiscchipandadisposableﬂuidicchannel.(b)

Cross-sectionschematicviewand(c)SEMimageofabimetallicBDchip.Groovedepth,dis20nm,andpitchwidth,is320nm.FilmthicknessesofAgandAulayersare

80nmand2nm,respectively.

microliters(16×5x0.1mm3_)._An_external_peristaltic_pump_is_used

forcontrolledplumbingoftheliquidsthroughthechannel. 2.3. Measurementprotocol

Inatypicalmeasurement,anSPRisensorchipispluggedintothe sampleholderunit.Next,LEDlightsourceisturnedonand polariz-ingfilterisadjustedtotransverseelectric(TE)polarizationwhere electricfieldofthetransmittedlightisparalleltothegratinglines ofthesensorsurface.Inletportoftheflowcellisconnectedtothe pumpandoutletportisconnectedtoawastetube.Flowcellisfilled withtherunningbuffersolution.Orientationofthesamplewith respecttotheincidentlightbeamisfinelytunedbyadjustingset screwsbehindthesampleholdercoveruntiltheilluminationspot displayedonthetouchscreenhasacircularshapeandgetslocated atthecenterofthescreen.Havingthesampleproperlyaligned, surfaceimageisrecordedunderTEpolarizedilluminationtobe takenasnormalizationreference.Thenthelightsourceisturned offandscreenimageiscapturedasdarkreading.Fortherestofthe measurement,thelightsourceisturnedonandpolarizingfilter isadjustedtoTMpolarization.Beforeperformingtheassay proto-col,surfaceimageisrecordedtoestablishbaselinereadingwhile thesampleisinitsbarestateandsurroundedbybuffersolution. Intensitychangeateachpixeliscalculatedbytakingthedifference betweenactualandbaselineintensities.Timeandareaaveraging optionsareprovidedintheapplicationsoftwaretoobtainenhanced signalduringthecourseofthemeasurement.Fromsurface activa-tiontothecaptureofanalytemolecules,thewholeassayprotocol canbemonitoredinreal-time.

2.4. Experimentalsetupforwavelengthinterrogationofplasmon resonance

Reflectancespectraofsurfaceplasmonresonancesexcitedon thesensorchipsareprobedinreal-timeusinganormalincidence SPRspectroscopysetup(Fig.S6).Whitelightemittedfromahigh powerbroadbandLEDsourcedrivenbyastableDCcurrentsource (Keithley2400SourceMeter)iscoupledtoamultimodefiberoptic cableandcollimatedbyacollimationlensattheoutputofthefiber. Collimatedbeamoflightpassesthroughanadjustablelinear polar-izer,anadjustableiristonarrowdownthebeamdiameter,anda non-polarizingbeamsplittercube.Polarizedandnarrowedbeam isreflectedoffthesensorsurface,directedbythebeamsplitter towardsthespectrometerfiberopticcomponents,collectedbya fibercouplinglensandanalyzedbyaspectrometer(OceanOptics Maya2000Pro).Eachreflectancespectrummeasurementistaken at20msofintegrationtime.Thespectralpositionoftheresonance dipisprobedusingcentroidalgorithm[28].Resonancewavelength shiftnoiseofaspectrogramaveragedover75spectraiscalculated as1.5pm.Takingtheexperimentalspectralbulkrefractiveindex

sensitivity,S_␭BEas356nm/RIUforBDSPRsensors,theminimum detectablebulkrefractiveindexchange,␴nBEisfoundas4.2×10−6

RIUforthewavelengthinterrogationsetup. 2.5. Optimizationoftheilluminationwavelength

Theilluminationwavelength(␭i)oftheimagingplatformwhich

yieldsthehighestintensitysensitivitywasidentiﬁedbymeasuring reﬂectancespectraforvaryingrefractiveindicesofthe surround-ingliquidmedium(Fig.S7).Liquidsolutionswithrefractiveindices rangingfrom1.335to1.365werepreparedbydissolvingglycerol (n=1.474)indeionizedwater(n=1.335)atvaryingconcentrations. Thehighestbulkrefractiveindexsensitivitywasfoundtobeabout 800%/RIUatthewavelengthof520nmforTDKBD-Rsubstrate. Bothresonancewavelengthshiftandintensitychange(␭i=520nm)

showlineardependenceontherefractiveindexchangewithinthe 1.335<nd<1.365range.

3. Resultsanddiscussion

3.1. MicroarrayimagingofAg/Aubimetallicsensingspots

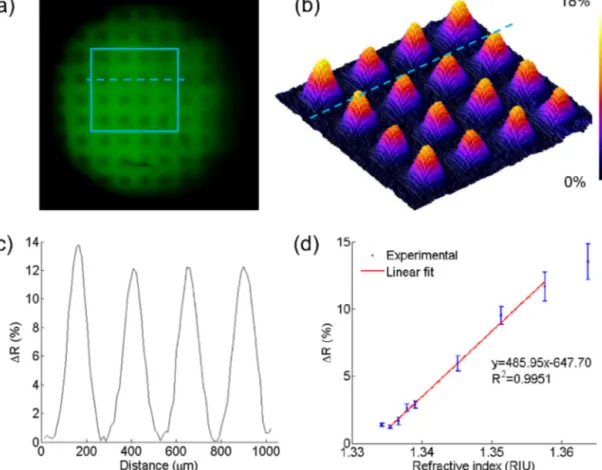

WehaveperformedSPRimagingofAg/Aubimetallicmicrospot arrayunderbulkdielectricmediawithchangingrefractiveindices. Thebimetallicmicroarraystructurewasfabricatedusing conven-tionalopticallithographyprocessesinadditiontometaldeposition steps.Thediameterofeachspotis110␮mandthespacingbetween adjacentspotsis 130␮m.First, wehaverecorded videoof illu-minatedsensorsurfaceat30frames/sduringthesuccessiveﬂow ofglycerolsolutionswithincreasingrefractiveindices.Each200 consecutivevideoframeswereaveragedinordertoenhancethe signal-to-noise ratio. As the refractive index of the surround-ingmediumgetshigher,plasmonresonancecurveshiftstowards longerwavelengthsresultingindarkerimaging spotsunderTM polarizedillumination.Fig.3ashowsgreenchannelviewofan aver-agedRGBimageofamicrospotsensorarrayin20%v/vglycerol solutionenvironment (nd=1.3596).SPRidifferenceimageswere

generated bytaking TE imagesasnormalizationreference, and TMimagesinpurewater mediumasbackground(Fig.3b).Line profileofarowofmicroarrayrevealstheuniformityofthe reflec-tivitychangeacrossthespots(Fig.3c).Averagereflectivitychange ofspotsweremeasuredateachglycerolconcentrationlevelfrom 1%to25%v/v(SeeFig.S8fortimeresolvedresponsesof individ-ualsensingspotsduringfluidexposures).Theglycerolcalibration curvefor4×4spotslocatedwithintherectangularframeshownin Fig.3aexhibitshighlinearity(R2₌_0.9951)_within_a_dynamic_range

of22200×10−6RIUbetweennd=1.3354and1.3576(Fig.3d).The

errorbarsshowninFig.3dshowtwicethestandarddeviation(2SD) ofthemeasuredvaluedemonstratingthelowintra-sensor variabil-itybetween16spots.Theslopeofthecalibrationcurvewhichgives

(5)

Fig.3. Microarrayimagingofsensingspotsunderbulkdielectricmediawithdifferentrefractiveindices.(a)GreenchannelviewofanRGBimageofamicroarrayofAg/Au

bimetallicsensingspotsunder20%v/vglycerolsolutionenvironment(Refractiveindexofglycerolsolution,nd:1.3596).(b)3DrepresentationofSPRidifferenceimage.

Baselineimageistakenunderpurewatermedium(Refractiveindexofpurewater,nd:1.335).(c)Lineproﬁleofarowofmicrospots.(d)Percentagereﬂectivitychangewith

respecttotherefractiveindexofbulkmediumatvaryingconcentrationsofglycerolsolutionsfrom1%to25%v/v.Bulkrefractiveindexsensitivityobtainedfromlinear

calibrationcurveis485%/RIU.Errorbarsdenote2SDofmeasurementsfrom16spotsshowninpart(a),demonstratingintra-sensorvariability.(Forinterpretationofthe

referencestocolourinthisﬁgurelegend,thereaderisreferredtothewebversionofthisarticle.)

theexperimentalreﬂectivitybulkrefractiveindexsensitivity,SRBE

wasfoundas485%/RIU.Intensitynoiseofasinglepixelinterms ofpercentagereﬂectivity,␴Rwasfoundas0.2%,whereas

averag-ingarectangularareaof10-by-10pixels(120×120␮m2₎_reduces

thereﬂectivity noise downto 0.02% level. Thus, theminimum detectablebulkrefractiveindexchange,␴novera10-by-10pixels

areaiscalculatedas4.12×10−5RIUforthesmartphoneplatform. ThelowcostAg/AubimetallicBDSPRstructureexhibitsrelatively low refractive index sensitivity as compared to the previously reportedSPRgrating,prismandwaveguidecouplers[13,29–32]. However,sincethenoiselevelisalsoreducedbyareaaveraging, overallresolutionofthesystemiscomparablewiththepreviously demonstratedstudies.

3.2. Real-timemonitoringofbovineserumalbumin(BSA) adsorption

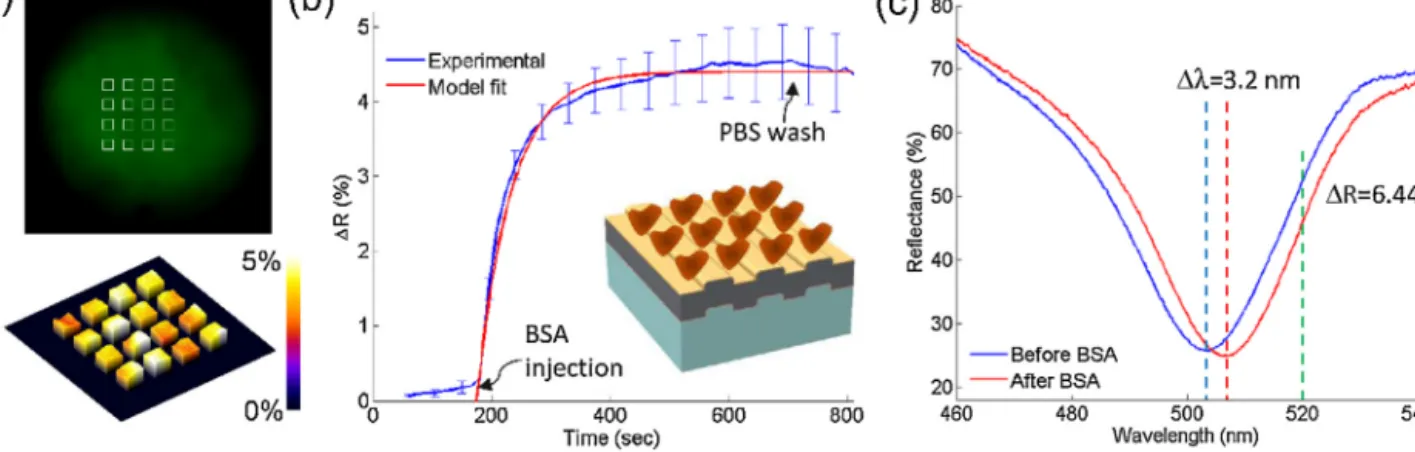

Wehavetakentime-resolvedintensitychangemeasurements inresponsetotheproteinadsorptiononthesensorsurface.Bovine serumalbumin(BSA) isknowntoadsorbontothegoldsurface forming a 4–7nm thick monolayer [33]. 1mg/mL (15␮M) BSA (Sigma Aldrich) dissolved in 10mM phosphate buffer solution (PBS,pH=7.4)wasinjectedthroughtheﬂowcellfor5minafter athoroughPBSwash.Followingtheformationofself-assembled monolayeronthegoldcoating, thesensorsurface wascleaned byPBS washagain.SPRi differenceimageof arbitrarilydeﬁned 4-by-4rectangularregionofinterestsaftertheBSAadsorptionis

showninFig.4a.Averagereflectivitychangeof16ROIsovertime isasshowninFig.4bandthesteady-statereflectivitydifference is foundas4.37±0.53%.Resonancewavelength shiftcausedby theBSAadsorptionwasmeasuredusingSPRwavelength interro-gationsetuprepeatingthesameBSAprotocol.Theresonancedip shiftsfrom503.8nmto507nmasshowninFig.4c.Reflectivityat 520nmdecreasesby6.44%from52.46%to46.02%,inagreement withimagingresults.

Wehaveperformedkineticanalysisofthereactionbasedona simpleinteractionmodelexplainedintheSupplementarymaterial. Theassociationrate,kaoftheBSA-Aucomplexformationis

calcu-latedas1150M−1s−1,withtheassumptionthatthedissociation rate,kdisnegligiblysmallascanbededucedfromthesensorgram

curveaftersecondPBSinjection.

3.3. Demonstrationofabiodetectionassay

Asanexemplarybiodetection experiment,captureofmouse IgG antibodyby immobilized layerof rabbit anti-mouse(RAM) IgGantibodyprotocolwasimplementedasdirectassay.First, sur-face of a thin gold ﬁlm coated BD chip wascleaned by argon plasmatreatment.Sensorsurfacewascoatedwithself-assembled monolayer(SAM)of 11-mercaptoundecanoicacid(11-MUDA)by immersingthechipin2mMethanolsolutionof mercaptounde-canoicacidovernightfollowedbyrinsingwithethanolandwater, and drying in the fume hood. Then, BD chip was integrated withaﬂow cell.Ethanol(70%)and PBSsolutionswereinjected

(6)

Fig.4. Real-timemonitoringofBSAadsorptionontothegoldsurface.(a)Arbitrarilydeﬁned4-by-4rectangularregionofinterests(96×96␮m2_each)_on_entirely_Ag/Au_bilayer

coatedsensorspotimage(top)andbackgroundcorrectedSPRidifferenceimageofROIs(bottom)takenafterBSAadsorption.(b)Sensorgramshowingaveragereﬂectivity

changeofROIspotsduringtheimplementationofBSAprotocol.TheinsetschematicillustratesbindingofBSAmoleculesonthegratingsurface.Errorbarsdenote2SDof

measurementsfrom16spots.(c)ReﬂectancespectratakenbeforeandafterBSAadsorptionusingthenormalincidenceSPRspectroscopysetup(Fig.S6).

Fig.5.NanomolarleveldetectionofcaptureofmouseIgGbyimmobilizedlayerofRAMIgG(a)SpectralsensorgramshowingtheimmobilizationstepsofRAMIgGtakenby

usingthenormalincidenceSPRspectroscopysetup(Fig.S6).(b)Dose-responsecurveforthecaptureofmouseIgGtakenbyusingSPRimagingplatform.Theinsetschematics

illustrateimmobilizationofRAMIgG(bluecolored)onthesensorsurfaceandselectivebindingofmouseIgG(redcolored)withRAMIgG,respectively.Errorbarsdenote2SD

ofmeasurementsfrom3spots.(Forinterpretationofthereferencestocolourinthisﬁgurelegend,thereaderisreferredtothewebversionofthisarticle.)

onto the surface at 100␮L/min flow rate for further cleaning. Surfaceofthe11-MUDA SAMlayerwasactivatedbythe expo-sureof400mM1-ethyl-3-(3dimethylaminopropyl)-carbodiimide (EDC)and100mMN-hydroxysuccinimide(NHS)mixture(1:1)at 100␮L/minflowratefor4min.Bothreagentswerepreparedin distilledwaterandmixturewaspreparedjustbeforeuse.Diluted RAMIgG(50␮g/mL)in0.1mMsodiumacetatebuffersolutionwas injectedontotheactivatedsensorsurfaceat50␮L/minflowrate for3min.RAMIgGantibodieswereimmobilizedontheactivated surfacebyaminecouplingchemistry.FollowingtheRAMFc immo-bilization,non-reactedNHSesterswerecappedbytheexposure of1Methanolaminesolutionat100␮L/minflowratefor4minto preventnon-specificanalytebindings.Sensorsurfacewascleaned byPBSwashfor5minaftereachstep.Thewholeimmobilization processfromsurfaceactivationtoblockingstepwasprobedin real-timeusingthewavelengthinterrogationsetup(Fig.5a).

SPRchipimmobilizedwithRAMIgGistakenoutthewavelength interrogationsetupandpluggedintothesmartphoneattachment. MouseIgG solutionsat concentrationsrangingfrom1.33nMto 830nMwereinjectedsuccessivelyat50␮L/minﬂowratefor5min. Intensitychangesofindividualpixelsatthreedistinctlocationson thesensorsurfaceisshowninFig.5b.Dose-responsecurvereveals

thatnanomolarleveldetectionofantibodyanalyteisachievable withina dynamic range froma few nanomolarstomicromolar concentration.

4. Conclusion

In this work, we demonstrated the useof a smartphone as ahand-heldsurface plasmonresonanceimagingbiosensor with highsensitivity.Developinganattachableimagingaccessoryfrom inexpensiveopticalcomponentsand3Dprintedparts,andusing easy-to-implementproceduresforfabricatingminiaturizedsensor chipsintegratedwithﬂowcellsfromextremelycheapsubstrates likeopticalstoragediscs,weofferapromisingdetectionplatform thatenablesbiosensingintheﬁeldwithhighlevelofportabilityand affordablecost.Thecapabilitytoperformparallelassaysinashort amountoftimeallowstheuseoftheinstrumentforpoint-of-care applicationswheremonitoringofmultipleparametersisdesirable.

Acknowledgement

ThisworkwassupportedbytheStatePlanningAgencyofthe TurkishRepublicProjectUNAM.

(7)

AppendixA. Supplementarydata

Supplementarydataassociatedwiththisarticlecanbefound,in theonlineversion,athttp://dx.doi.org/10.1016/j.snb.2016.08.061.

References

[1]S.K.Vashist,O.Mudanyali,E.M.Schneider,R.Zengerle,A.Ozcan,

Cellphone-baseddevicesforbioanalyticalsciences,Anal.Bioanal.Chem.406

(2014)3263–3277,http://dx.doi.org/10.1007/s00216-013-7473-1.

[2]Y.Lu,W.Shi,J.Qin,B.Lin,Lowcost,portabledetectionofgold

nanoparticle-labeledmicroﬂuidicimmunoassaywithcameracellphone,

Electrophoresis30(2009)579–582,http://dx.doi.org/10.1002/elps.

200800586.

[3]O.Mudanyali,S.Dimitrov,U.Sikora,S.Padmanabhan,I.Navruz,A.Ozcan,

Integratedrapid-diagnostic-testreaderplatformonacellphone,LabChip12

(2012)2678–2686,http://dx.doi.org/10.1039/c2lc40235a.

[4]D.N.Breslauer,R.N.Maamari,N.A.Switz,W.A.Lam,D.A.Fletcher,Mobile

phonebasedclinicalmicroscopyforglobalhealthapplications,PLoSOne4

(2009)e6320,http://dx.doi.org/10.1371/journal.pone.0006320.

[5]H.Zhu,S.Mavandadi,A.F.Coskun,O.Yaglidere,A.Ozcan,Optoﬂuidic

ﬂuorescentimagingcytometryonacellphone,Anal.Chem.83(2011)

6641–6647,http://dx.doi.org/10.1021/ac201587a.

[6]L.Shen,J.a.Hagen,I.Papautsky,Point-of-carecolorimetricdetectionwitha

smartphone,LabChip12(2012)4240,http://dx.doi.org/10.1039/c2lc40741h.

[7]D.Gallegos,K.D.Long,H.Yu,P.P.Clark,Y.Lin,S.George,etal.,Label-free

biodetectionusingasmartphone,LabChip13(2013)2124–2132,http://dx.

doi.org/10.1039/c3lc40991k.

[8]P.Preechaburana,M.C.Gonzalez,A.Suska,D.Filippini,Surfaceplasmon

resonancechemicalsensingoncellphones,Angew.Chem.Int.Ed.Engl.51

(2012)11585–11588,http://dx.doi.org/10.1002/anie.201206804.

[9]Y.Liu,Q.Liu,S.Chen,F.Cheng,H.Wang,W.Peng,Surfaceplasmonresonance

biosensorbasedonsmartphoneplatforms,Sci.Rep.5(2015)12864,http://

dx.doi.org/10.1038/srep12864.

[10]K.Bremer,B.Roth,Fibreopticsurfaceplasmonresonancesensorsystem

designedforsmartphones,Opt.Express23(2015)17179–17184,http://dx.

doi.org/10.1364/OE.23.017179.

[11]P.J.R.Roche,S.Filion-Côté,M.C.K.Cheung,V.P.Chodavarapu,A.G.Kirk,A

cameraphonelocalisedsurfaceplasmonbiosensingplatformtowards

low-costlabel-freediagnostictesting,J.Sens.2011(2011)1–7,http://dx.doi.

org/10.1155/2011/406425.

[12]S.Dutta,K.Saikia,P.Nath,SmartphonebasedLSPRsensingplatformfor

bio-conjugationdetectionandquantiﬁcation,RSCAdv.6(2016)

21871–21880,http://dx.doi.org/10.1039/C6RA01113F.

[13]B.Liedberg,C.Nylander,I.Lunström,Surfaceplasmonresonanceforgas

detectionandbiosensing,Sens.Actuators4(1983)299–304,http://dx.doi.

org/10.1016/0250-6874(83)85036-7.

[14]J.Homola,Presentandfutureofsurfaceplasmonresonancebiosensors,Anal.

Bioanal.Chem.377(2003)528–539,

http://dx.doi.org/10.1007/s00216-003-2101-0.

[15]J.Homola,Surfaceplasmonresonancesensorsfordetectionofchemicaland

biologicalspecies,Chem.Rev.108(2008)462–493,http://dx.doi.org/10.1021/

cr068107d.

[16]B.H.Ong,X.Yuan,S.C.Tjin,J.Zhang,H.M.Ng,Optimisedﬁlmthicknessfor

maximumevanescentﬁeldenhancementofabimetallicﬁlmsurfaceplasmon

resonancebiosensor,Sens.ActuatorsBChem.114(2006)1028–1034,http://

dx.doi.org/10.1016/j.snb.2005.07.064.

[17]L.Xia,S.Yin,H.Gao,Q.Deng,C.Du,Sensitivityenhancementforsurface

plasmonresonanceimagingbiosensorbyutilizinggold–silverbimetallicﬁlm

conﬁguration,Plasmonics6(2011)245–250,http://dx.doi.org/10.1007/

s11468-010-9195-y.

[18]Y.Chen,R.S.Zheng,D.G.Zhang,Y.H.Lu,P.Wang,H.Ming,etal.,Bimetallic

chipsforasurfaceplasmonresonanceinstrument,Appl.Opt.50(2011)

387–391,http://dx.doi.org/10.1364/AO.50.000387.

[19]C.-T.Li,K.-C.Lo,H.-Y.Chang,H.-T.Wu,J.H.Ho,T.-J.Yen,Ag/Aubi-metallicﬁlm

basedcolorsurfaceplasmonresonancebiosensorwithenhancedsensitivity,

colorcontrastandgreatlinearity,Biosens,Bioelectron36(2012)192–198,

http://dx.doi.org/10.1016/j.bios.2012.04.016.

[20]T.T.Ehler,L.J.Noe,Surfaceplasmonstudiesofthinsilver/goldbimetallicﬁlms,

Langmuir11(1995)4177–4179,http://dx.doi.org/10.1021/la00010a088.

[21]B.Kaplan,H.Guner,O.Senlik,K.Gurel,M.Bayindir,A.Dana,Tuningoptical

discsforplasmonicapplications,Plasmonics4(2009)237–243,http://dx.doi.

org/10.1007/s11468-009-9099-x.

[22]B.Turker,H.Guner,S.Ayas,O.O.Ekiz,H.Acar,M.O.Guler,etal.,Grating

couplerintegratedphotodiodesforplasmonresonancebasedsensing,Lab

Chip11(2011)282–287,http://dx.doi.org/10.1039/c0lc00081g.

[23]I.InternationalIntellectualGroup,PCGrate-S,2011.

[24]E.D.Palik,HandbookofOpticalConstantsofSolids,1985.

[25]LogeeswaranVj,N.P.Kobayashi,M.S.Islam,W.Wu,P.Chaturvedi,N.X.Fang,

etal.,Ultrasmoothsilverthinﬁlmsdepositedwithagermaniumnucleation

layer,NanoLett.9(2009)178–182,http://dx.doi.org/10.1021/nl8027476.

[26]W.Chen,M.D.Thoreson,S.Ishii,A.V.Kildishev,V.M.Shalaev,Ultra-thin

ultra-smoothandlow-losssilverﬁlmsonagermaniumwettinglayer,Opt.

Express18(2010)5124–5134,http://dx.doi.org/10.1364/OE.18.005124.

[27]S.H.Ahn,L.J.Guo,High-Speedroll-to-rollnanoimprintlithographyonﬂexible

plasticsubstrates,Adv.Mater.20(2008)2044–2049,http://dx.doi.org/10.

1002/adma.200702650.

[28]G.G.Nenninger,M.Piliarik,J.Homola,Dataanalysisforopticalsensorsbased

onspectroscopyofsurfaceplasmons,Meas.Sci.Technol.13(2002)

2038–2046,http://dx.doi.org/10.1088/0957-0233/13/12/332.

[29]D.C.Cullen,R.G.W.Brown,C.R.Lowe,Detectionofimmuno-complex

formationviasurfaceplasmonresonanceongold-coateddiffractiongratings,

Biosensors3(1987)211–225,

http://dx.doi.org/10.1016/0265-928X(87)85002-2.

[30]C.Nylander,B.Liedberg,T.Lind,Gasdetectionbymeansofsurfaceplasmon

resonance,Sens.Actuators3(1982)79–88,

http://dx.doi.org/10.1016/0250-6874(82)80008-5.

[31]Z.Wang,Z.Cheng,V.Singh,Z.Zheng,Y.Wang,S.Li,etal.,Stableandsensitive

silversurfaceplasmonresonanceimagingsensorusingtrilayeredmetallic

structures,Anal.Chem.86(2014)1430–1436,http://dx.doi.org/10.1021/

ac402126k.

[32]L.Song,Z.Wang,D.Zhou,A.Nand,S.Li,B.Guo,etal.,Waveguidecoupled

surfaceplasmonresonanceimagingmeasurementandhigh-throughput

analysisofbio-interaction,Sens.ActuatorsBChem.181(2013)652–660,

http://dx.doi.org/10.1016/j.snb.2013.01.096.

[33]D.C.Carter,J.X.Ho,Structureofserumalbumins,Adv.ProteinChem.45

(1994)153–203,http://dx.doi.org/10.1016/S0065-3233(08)60640-3.

Biographies

HasanGunerisaPh.D.studentattheUNAMMaterialsScienceandNanotechnology

ProgramatBilkentUniversity.Hisresearchinterestsareintheﬁeldofdesignand

implementationofplasmonresonancesensingsystems.

ErolOzgurisapost-doctoralresearchassociateattheUNAMMaterialsScienceand

NanotechnologyProgramatBilkentUniversity.Hecurrentlyworksonlargescale

productionandvariousapplicationsofphotonicandplasmonicbiosensors.

GuzinKokturkisaresearcherattheUEKAE−BILGEM−TheScientiﬁcand

Techno-logicalResearchCouncilofTurkey(TUBITAK).SheworksinBioelectronicsDevices

andSystemsGroup.Herresearchinterestsaredevelopmentofbiosensordevices

andbiologicalassaysfordifferentbiosensorapplicationareas.

MehmetCelikisaPh.D.studentattheDepartmentofComputerEngineeringat

MiddleEastTechnicalUniversity.Hisresearchinterestsareintheﬁeldofcomputer

visionandmachinelearning.

ElifEsenisresearcherattheUEKAE−BILGEM−TheScientiﬁcandTechnological

ResearchCouncilofTurkey(TUBITAK).SheisaPh.D.studentatMolecular

Biol-ogy,GeneticsandBiotechnolgyprogramattheIstanbulTechnicalUniversityand

continuestoworkintheﬁeldsofbiosensordeviceandsensorchipdevelopment.

AhmetEminTopalisaPh.D.studentattheUNAMMaterialsScienceand

Nano-technologyProgramatBilkentUniversity.Hisresearchinterestsareintheﬁeldof

colorimetricbiomolecularsensingandimagingusingplasmonresonances.

SencerAyasisapost-doctoralfellowattheCanaryCenteratStanfordforCancer

EarlyDetection,DepartmentofRadiology,StanfordSchoolofMedicine.Hisresearch

isonthedesignandrealizationofplasmonicnanostructuresandmetasurfaces,with

applicationstoimagingandspectroscopy.

YildizUludagistheHeadofComputationalBiologyAndSecurityApplicationsUnit

attheUEKAE−BILGEM−TheScientiﬁcandTechnologicalResearchCouncilof

Turkey(TUBITAK).ShereceivedherPh.D.fromCranﬁeldUniversity(UK)and

con-tinuestoworkintheﬁeldsofbiosensordeviceandsensorchipdevelopment.

CaglarElbukenisAssistantProfessoratBilkentUniversity,National

Nanotech-nology Research Center.His researchinterests include lab-on-a-chipdevices,

microdroplet-basedmicroﬂuidicsystemsandsensingtechnologiesforportable

applications.

AykutluDanaisAssociateProfessoratBilkentUniversity,NationalNanotechnology

ResearchCenter.HereceivedhisPh.D.fromStanfordUniversityandcontinuesto
